Performance Optimized Sealed 12" Enclosure | Image Dynamics IDQ 12
Sealed 12" Enclosure | Image Dynamics IDQ12 V4
One driver, one airspace, zero compromise. This driver-specific sealed enclosure is CNC-cut around the Image Dynamics IDQ12 V4's published parameters, giving one of the most musical 12s in car audio exactly the box it was engineered for.
Engineered Around the IDQ12 V4
The Image Dynamics IDQ12 V4 is a sealed-box subwoofer by design, with an EBP of 40 that tells you exactly where it belongs. This enclosure gives it 1.4 cubic feet of net internal volume, the extended portion of the IDQ12's sealed window. Compared to the tighter 1.0 cubic foot alignment, that buys deeper bass extension while preserving the transient accuracy and tonal neutrality that built the IDQ Series' sound quality reputation.

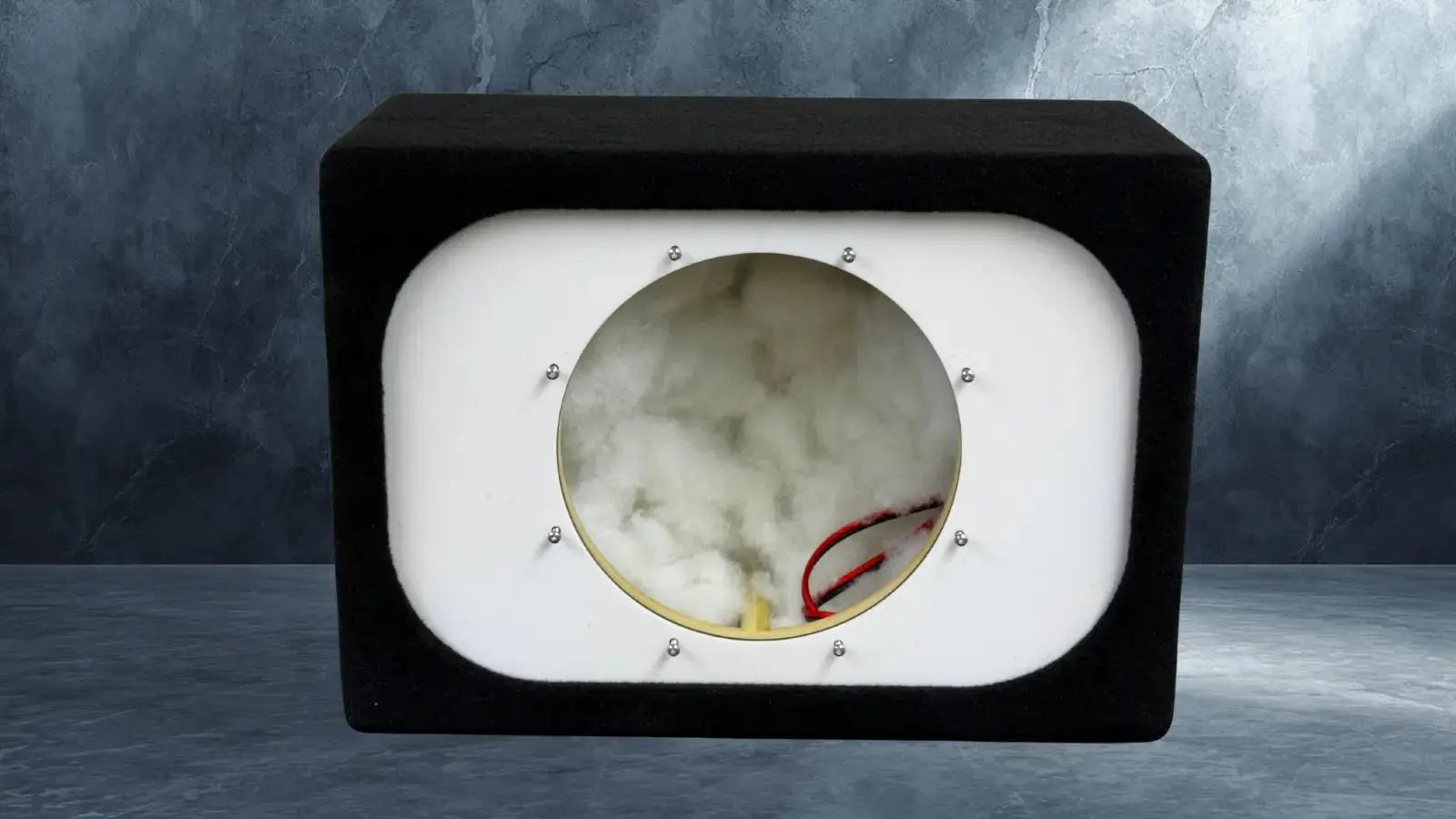

The baffle is cut for the IDQ12 V4's 10.87 inch cutout, the 10.5 inch cabinet depth clears the driver's 5.91 inch mounting depth comfortably, and polyfill comes pre-installed so the enclosure performs as modeled the day it arrives.
Performance Optimized Construction
Every Performance Optimized enclosure is CNC-cut from Langboard Elite MDF on our ShopSabre routers in Tullahoma, Tennessee, with precision V-groove and dado joinery for panel alignment and long-term sealed integrity. The baffle carries 8/32 threaded inserts matched to the IDQ12 V4's published mounting pattern, with stainless steel machine screws included, so the driver bolts down with real hardware instead of wood screws.
Connections run through the Proline X ABS and carbon fiber composite terminal cup with stainless hardware and copper ring terminals, pre-wired with 12-gauge OFC to the driver position. Drop the sub in, land two wires at the cup, and the install is done.
This is the same driver-specific approach as our Professional Series: airspace, cutout, and hardware locked to one driver, the Image Dynamics IDQ12 V4, rather than averaged across a class of 12s.
Finish It Your Way

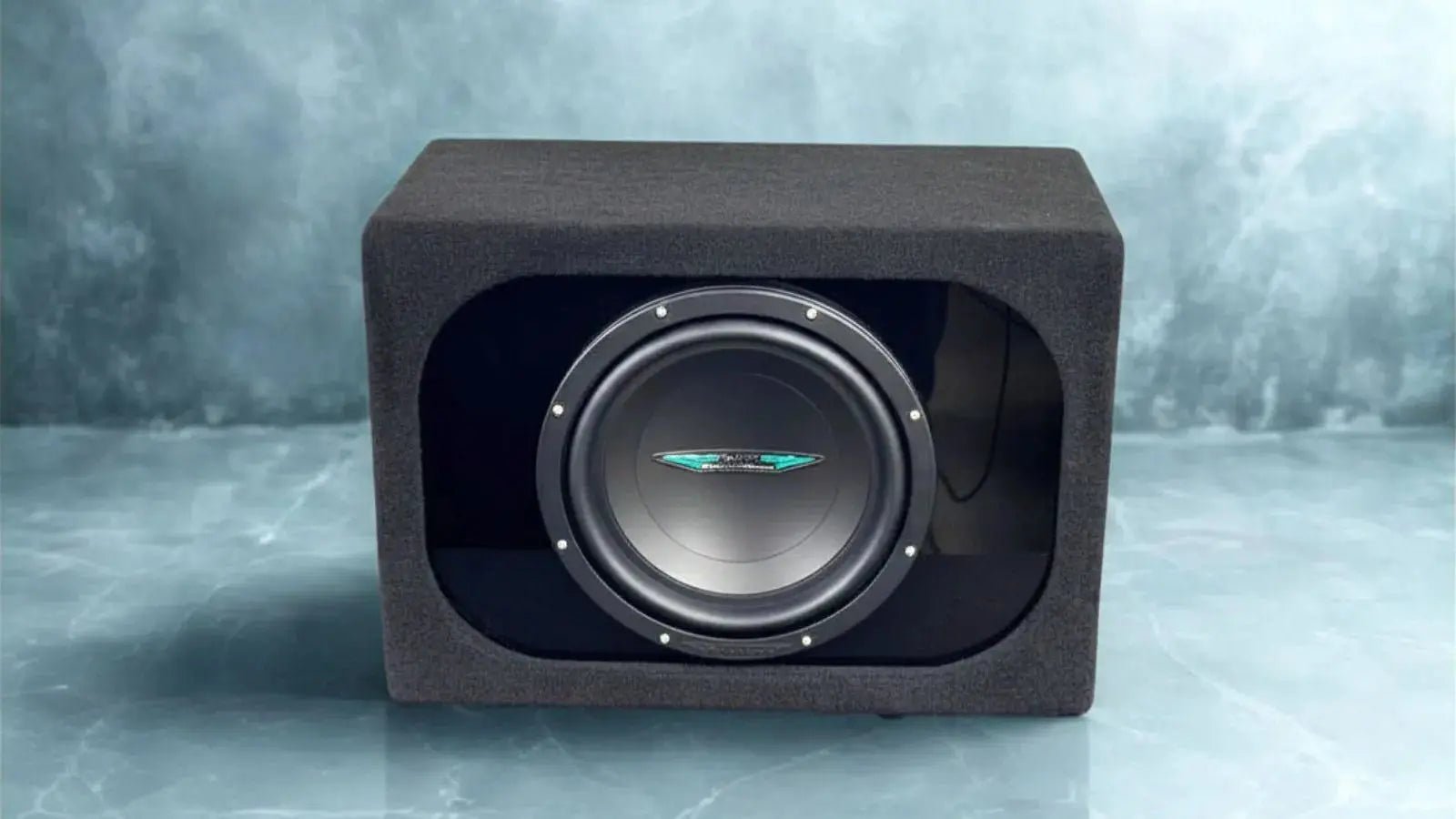

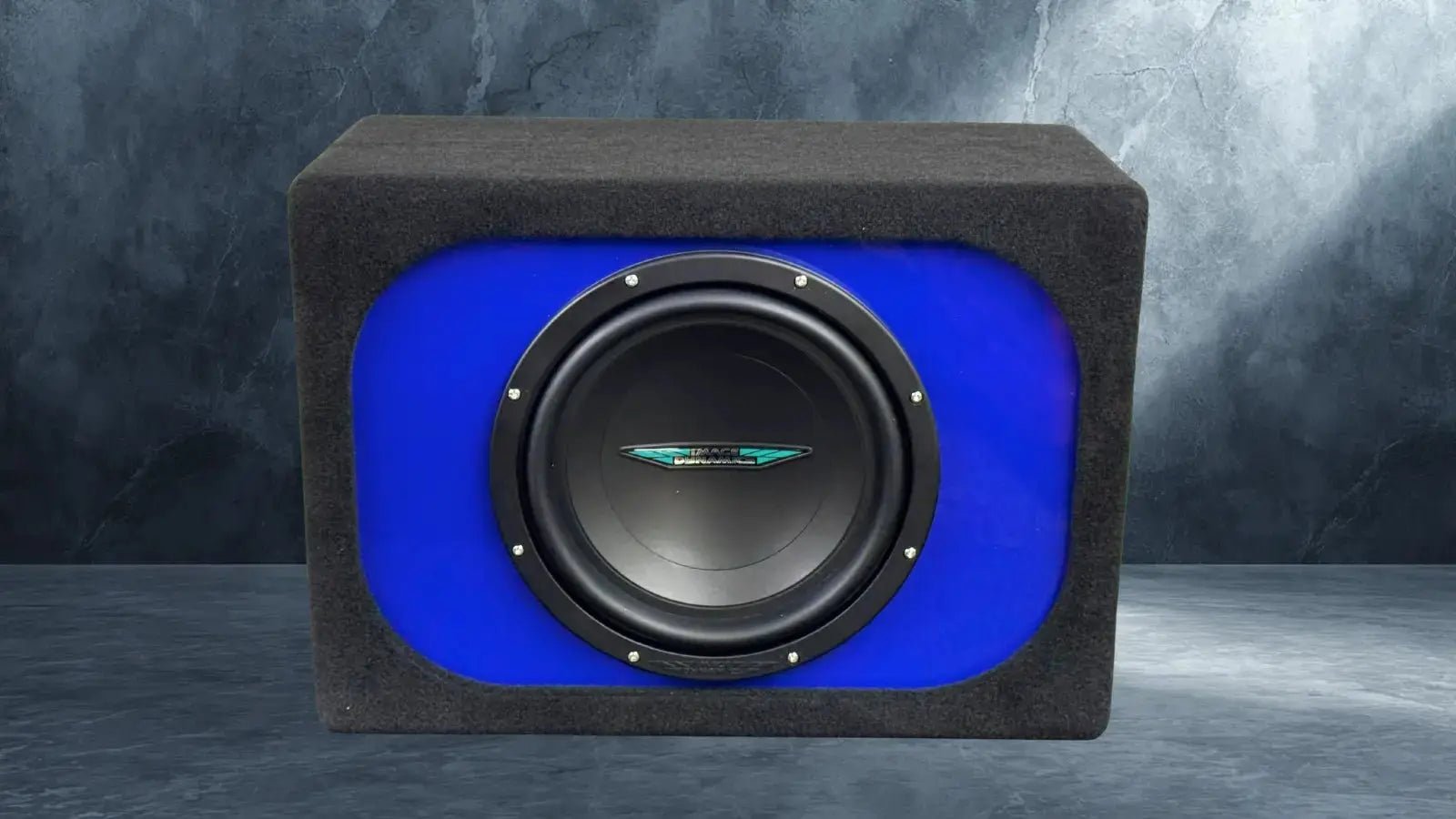

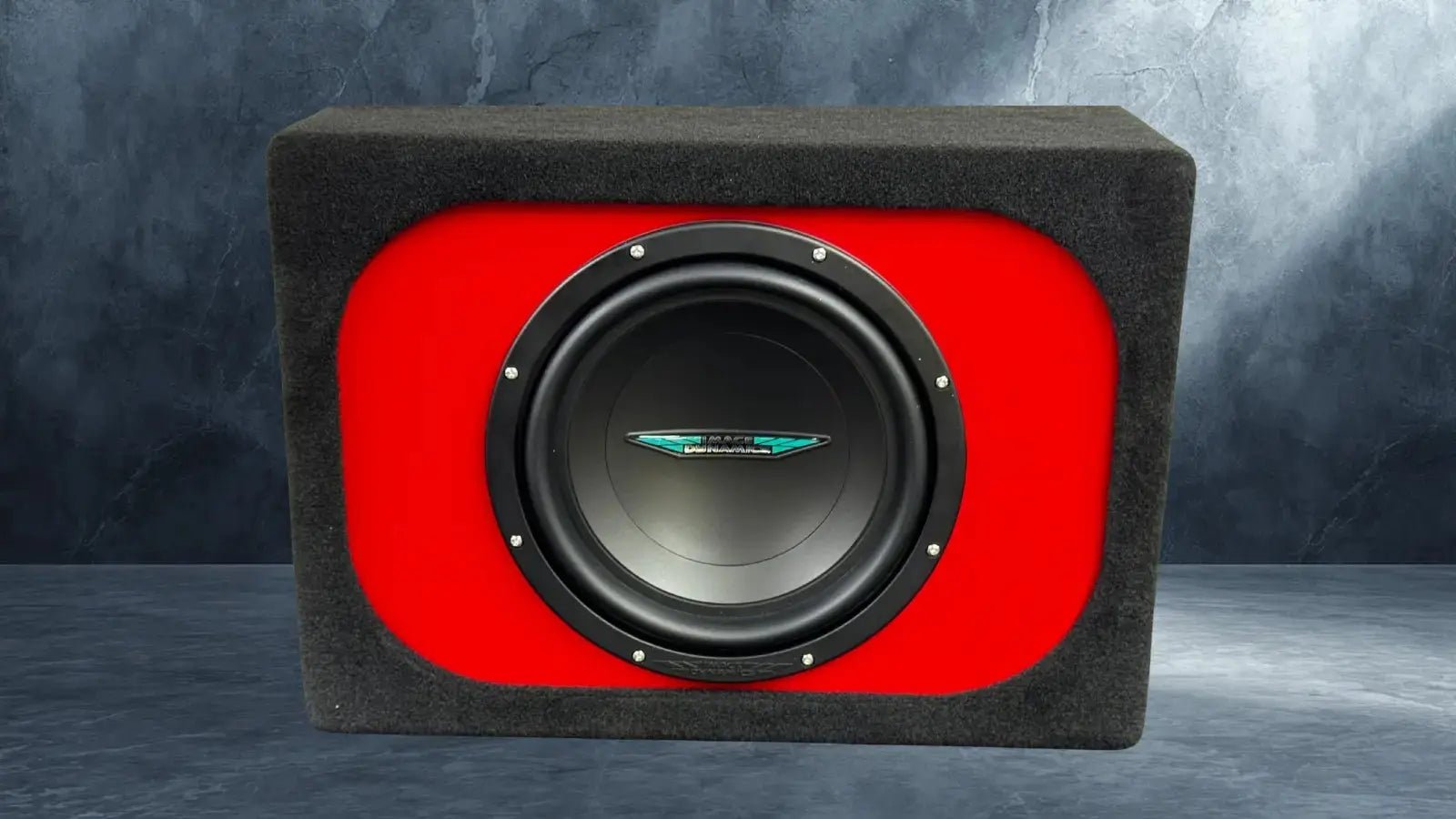

The enclosure comes wrapped in Dark Gray Trunkliner as standard, with Plush Black carpet available as an upgrade. The front baffle accepts a colored acrylic insert in Black, Blue, Red, or White to match the build, or can be ordered without the insert for a clean, blacked-out face at a reduced price.
Order the box on its own if you already have your driver, or bundle it with an IDQ12 V4 in Dual 2-ohm or Dual 4-ohm, and we ship everything together. A Dual 2-ohm driver wires to 1 ohm or 4 ohms; a Dual 4-ohm driver wires to 2 ohms or 8 ohms.
1.4 Cubic Feet, Driver-Matched
The extended end of the IDQ12 V4's sealed window, set against Image Dynamics' published parameters for deeper extension.
V-Groove + Dado Construction
CNC-cut Langboard Elite MDF with precision joinery for rigid panels and an airtight sealed cabinet that stays that way.
8/32 Threaded Inserts
Matched to the IDQ12 V4 mounting pattern with stainless machine screws included. Real fasteners, repeatable torque.
Pre-Wired Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12-gauge OFC.
Acrylic Insert Options
Black, Blue, Red, or White front acrylic to match the build, or skip the insert for a blacked-out baffle.
Box Only or Loaded
Order the enclosure alone or bundled with an IDQ12 V4 driver in Dual 2-ohm or Dual 4-ohm.
The Box the IDQ12 Deserves
Precision airspace, real hardware, and pre-wired connections, built around one driver and cut on CNC in Tennessee. Give the IDQ12 V4 500 clean watts and the right 1.4 cubic feet, and let it do what it was engineered to do.
| Series | Proline X Performance Optimized |
| SKU | PO ID 12-S IDQ |
| Designed For | Image Dynamics IDQ12 V4 subwoofer (D2 or D4) |
| Enclosure Type | Sealed |
| Net Internal Volume | 1.4 cu ft |
| External Dimensions (W x H x D) | 24" x 15" x 10.5" |
| Cutout Diameter | 10.87" (276mm), matched to IDQ12 V4 |
| Driver Mounting Depth Supported | 5.91" (IDQ12 V4) with generous clearance |
| Power Handling | 500 watts RMS (IDQ12 V4) |
| Material | Langboard Elite MDF, 3/4" |
| Joinery | Precision V-groove and dado, CNC-cut on ShopSabre routers |
| Driver Mounting | 8/32 threaded inserts with stainless steel machine screws (included) |
| Terminal | Proline X ABS/carbon fiber composite cup, stainless hardware, copper ring terminals |
| Internal Wiring | 12-gauge OFC, pre-wired |
| Damping | Polyfill pre-installed |
| Carpet Options | Dark Gray Trunkliner (standard) / Plush Black (+$10) |
| Acrylic Insert Options | Black, Blue, Red, White, or None (-$40) |
| Bundle Options | Box Only / Add IDQ12 V4 Dual 2-ohm / Add IDQ12 V4 Dual 4-ohm |
| Built In | Tullahoma, Tennessee, USA |
| Warranty | 1-Year Limited |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF — 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure — because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF — Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source — not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure — the most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks — relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention — relevant for every joint that isn't face-to-face |
200 psi — The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually — the symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE — Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness — resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level — not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge — Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint — where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock — Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification — it is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
