Proline X
Performance Optimized Sealed 10" Enclosure | Image Dynamics IDQ 10
SKU: PO ID 10-S IDQ BB none
- Best For: SQ Builds | IDQ10 V4 Dedicated Installs
- Net Volume: 1.0 cu ft Sealed
- Driver Match: Image Dynamics IDQ10 V4 (D2 or D4)
- Construction: Threaded Inserts | Pre-Wired Terminal Cup
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Sealed 10" Enclosure | Image Dynamics IDQ 10
Performance Optimized | Image Dynamics IDQ 10
Single 10" Sealed Enclosure | Driver-Specific for the IDQ10 V4
The IDQ10 V4 Deserves a Box Built for It
The Image Dynamics IDQ10 V4 is one of the most respected sound quality 10" subwoofers on the market. A field-replaceable mica-reinforced cone, Nomex spider, 14.5mm linear Xmax, and a 31.77 Hz Fs that loads beautifully into a properly sized sealed cabinet. Drop it in a generic box and you'll get good bass. Drop it in a cabinet engineered around its Thiele-Small parameters and you'll hear what the IDQ was designed to do.
The Performance Optimized Sealed 10 is that cabinet. Internal volume, baffle thickness, bracing layout, and mounting hardware are all chosen to extract the IDQ10 V4's full mechanical and acoustic potential — not approximated, not averaged across a class of 10s, not adapted from a universal box.
This enclosure is engineered specifically around the published Thiele-Small parameters of the Image Dynamics IDQ10 V4. The 1.0 cu ft net volume and 9.57" cutout are tuned to the IDQ — not a generic 10" platform.
Why Performance Optimized Sits Where It Does
The Performance Optimized line is the bridge between our standard Performance Series and our top-tier Professional Series. Same Performance-tier construction quality — Langboard Elite MDF, V-groove and dado joinery, ShopSabre CNC routing — but the geometry of every panel is cut around one specific driver instead of a class of drivers.
vs Performance Series
Standard Performance Series boxes (P6 through P15) are built for universal driver fitment within a size class. Great if you want flexibility across multiple driver options. Performance Optimized takes the same construction and locks the airspace and hardware to one specific driver.
vs Professional Series
Professional Series uses extensive multi-layer baffles, triple-stacked construction, and a 2-year warranty for the most demanding builds. Performance Optimized delivers driver-specific engineering at a more accessible price point with a 1-year warranty.
Engineered Around the IDQ10 V4's Parameters
Image Dynamics calls for the IDQ10 V4 to live somewhere between 0.6 and 1.1 cubic feet sealed. We landed on 1.0 cu ft net after airspace because that's where the IDQ's Qtc, F3, and transient response settle into the sweet spot most SQ-oriented installers chase. Tight, fast, articulate — without sounding choked or clinical.
Volume Selection
1.0 cu ft net is the upper end of the IDQ's compact-sealed range. Smaller volumes drive Qtc higher (overdamped, dry), larger volumes pull it lower (underdamped, loose). At 1.0 cu ft, the IDQ produces a Qtc near 0.707 — textbook critical damping, where transient response and low-end extension balance cleanly.
Mounting Geometry
The 9.57" cutout matches the IDQ's flange geometry exactly. The 5.81" mounting depth specification leaves comfortable internal clearance behind the magnet structure inside the 8.5" deep cabinet. No interference, no airspace robbed by a deep motor.
Performance Series Construction, Driver-Specific Tuning
Langboard Elite MDF
Premium 3/4" MDF panels milled to documented spec — denser and more dimensionally stable than commodity MDF. Less panel resonance, tighter joints, and a longer service life.
V-Groove and Dado Joinery
CNC-cut V-grooves at every panel intersection let the cabinet fold into shape with maximum glue surface. Dado joints lock the baffle and rear panel into the side walls — no fasteners visible from outside.
8/32 Threaded Inserts
Threaded inserts pressed into the baffle backside accept stainless steel mounting screws. No stripped pilot holes, no MDF damage from drywall screws, no surprises when the next driver upgrade rolls around.
Pre-Wired Terminal Cup
Proline X ABS/carbon fiber composite terminal cup, pre-wired with 12-gauge OFC inside the cabinet, with stainless steel hardware accepting both spade and banana terminations on the input side.
Every panel is cut on ShopSabre CNC routers in our Tullahoma, TN facility. Tolerances that manual fabrication can't hold — joints close cleanly, baffle concentricity stays accurate, and internal volume is consistent unit to unit.
Customize Your Build
Carpet Finish
Dark Gray Trunkliner is the standard durable wrap, matched to most factory trunk and cargo-area carpet tones. Plush Black (+$10) is a deeper, more luxurious nap that pairs well with blacked-out interiors and show builds.

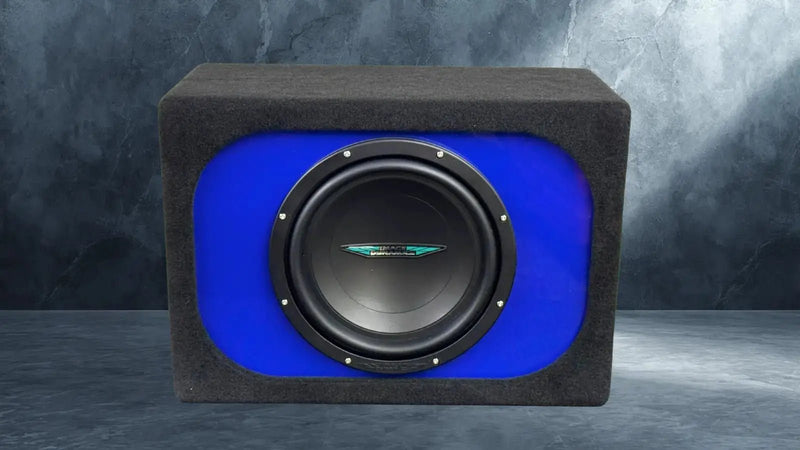

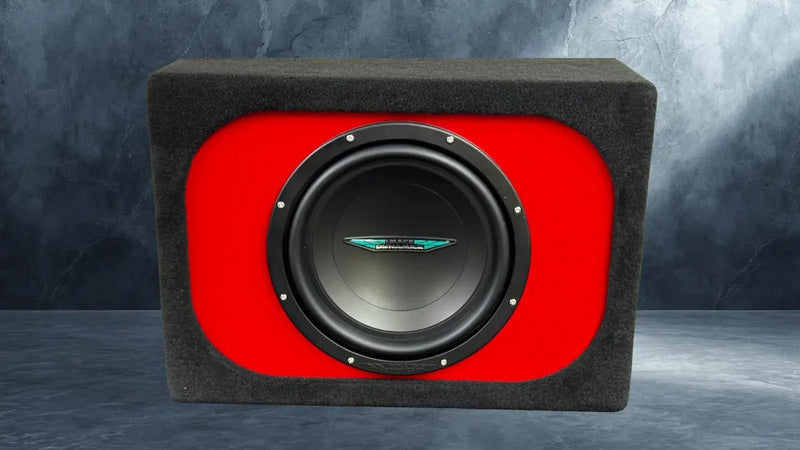

Acrylic Insert Color
Choose Black, Blue, Red, or White for the baffle insert to match your build. Or skip the insert entirely (-$40) for a clean, understated look. The insert is purely cosmetic — performance is identical across colors.
Box-Only or Loaded
Add a Dual 2-ohm or Dual 4-ohm IDQ10 V4 directly to your order and we'll ship the complete loaded system, ready to wire to your amplifier. Already own your IDQ? Order the enclosure box-only and drop in the driver you have.
Built in Tennessee, Backed by Audio Intensity
Every Performance Optimized enclosure is CNC-cut, assembled, and finished in our Tullahoma, TN facility. Components are pulled from inventory after your order is placed, then bonded and wrapped — a 2 to 5 business day assembly window before the box ships. No pre-built inventory sitting in warehouses, warping in storage. Each unit is built to order.
Backed by a 1-year limited warranty against structural failure and hardware defects. Questions on fitment, wiring, or amplifier pairing? Contact us — we install this gear ourselves, in our own vehicles.
Stop Compromising Your IDQ
Driver-specific engineering, Performance Series construction, and the option to bundle the IDQ10 V4 driver in one order. Build the box that was designed for the sub you've already chosen.
| Enclosure Type | Sealed |
| Driver-Specific Fitment | Image Dynamics IDQ10 V4 (Dual 2Ω or Dual 4Ω) |
| Internal Volume (Net) | 1.0 Cubic Feet |
| Material | Langboard Elite 3/4" MDF |
| Construction | CNC-Cut / V-Groove and Dado Joinery |
| External Width | 20 Inches |
| External Height | 14 Inches |
| External Depth | 8.5 Inches |
| Mounting Hole Diameter | 9.57 Inches |
| Bolt Circle Diameter | 9.75 Inches |
| Max Mounting Depth | 7 Inches |
| Mounting Hardware | 8/32 Threaded Inserts | Stainless Steel Screws Included |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | 12g OFC Pre-Wired |

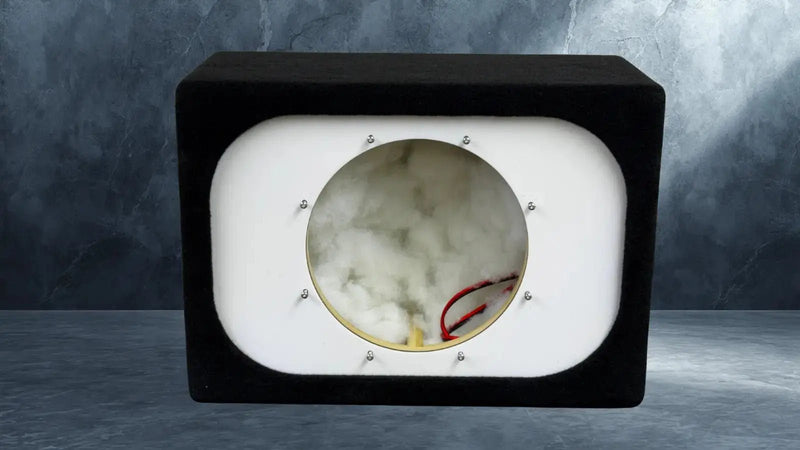

| Damping | Polyfill Pre-Installed |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black (+$10) |
| Acrylic Insert | Black, Blue, Red, White, or None (-$40) |
| Bundle Options | Box Only | Add Dual 2Ω Driver | Add Dual 4Ω Driver |
| Warranty | 1-Year Limited |
| Manufactured | Tullahoma, Tennessee, USA |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF — 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure — because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF — Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source — not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure — the most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks — relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention — relevant for every joint that isn't face-to-face |
200 psi — The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually — the symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE — Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness — resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level — not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge — Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint — where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock — Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification — it is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
