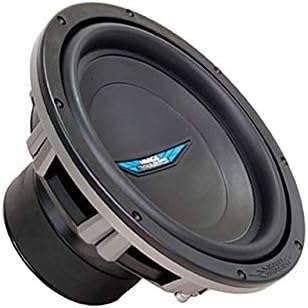

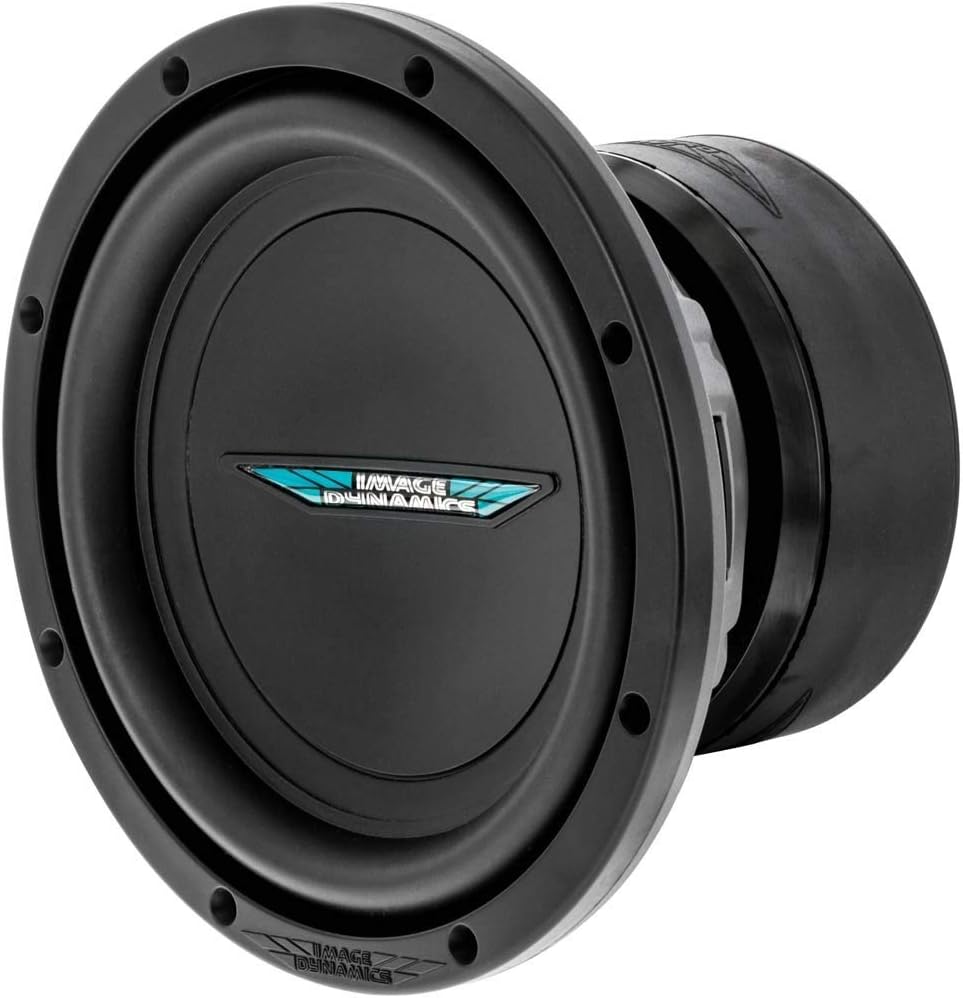

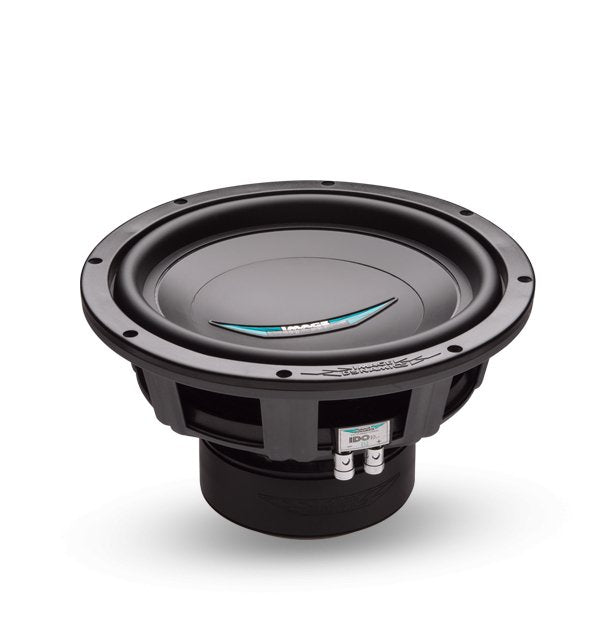

Image Dynamics IDQ10 V4 10 inch Subwoofer
Award Winning Products
Experience the cutting-edge performance of our award-winning products
Free USA Shipping $99+
Reliable delivery or pickup from our warehouse in Northern California
30 day Returns
If you don't love it, send it back.
Expert Advice / Support
Unsure about a product?
Call/text us: 707-999-3071
Image Dynamics has manufactured premium car audio subwoofers in the United States for over two decades, featuring American-made flat-wound voice coils, domestic assembly, and comprehensive U.S.-based technical support. Every IDQ Series subwoofer represents American engineering excellence with global premium materials.
Image Dynamics: Two Decades of American Sound Quality Leadership
The Sound Quality Choice of Champions for Over 10 Years Image Dynamics has earned legendary status in the car audio industry not through aggressive marketing campaigns, but through consistent dominance in sound quality competitions where judges score what they hear, not what they read on specification sheets. For more than a decade, IASCA (International Auto Sound Challenge Association), MECA (Mobile Electronics Competition Association), and USACi (United States Autosound Competition International) sound quality champions have consistently chosen IDQ Series subwoofers when tonal accuracy, transient response, and musical bass reproduction matter more than maximum SPL numbers.
Trusted by IASCA, MECA, and USACi sound quality champions for over 10 years. When judges score transient accuracy and tonal balance rather than maximum SPL, competitors consistently choose IDQ Series subwoofers for musical bass reproduction that complements rather than overwhelms the frequency spectrum.
Revolutionary 16-screw field-replaceable cone assembly allows DIY repairs without specialized gluing equipment or factory service. Remove 16 screws, replace damaged cone assembly using included alignment shims, reinstall—no adhesives, no guesswork. Image Dynamics calls this their "green" subwoofer concept: extend product life, reduce landfill waste, lower lifetime ownership costs.
Made in the USA with American-made flat-wound extended voice coils. Domestic assembly ensures quality control, U.S.-based technical support, and engineering refinement based on real-world North American installation challenges. Global premium materials combined with American manufacturing standards deliver consistent performance.
The Image Dynamics Philosophy: Sound Quality Over Maximum SPL Image Dynamics built their reputation on a fundamental principle that separates them from SPL-focused competitors: bass should be felt AND heard with equal clarity. While many manufacturers chase maximum decibel ratings through extreme cone excursion and high-compliance suspensions that sacrifice control, Image Dynamics engineers IDQ Series subwoofers for musical bass reproduction—deep low-frequency extension with the transient accuracy to reproduce kick drum attack, bass guitar plucks, and orchestral double bass with equal fidelity. The result: bass that integrates seamlessly with midrange and high frequencies rather than overwhelming them.
IDQ V4 Series: Fourth-Generation Sound Quality Refinement
Version 4: Evolutionary Refinement of a Competition-Proven Platform The IDQ V4 (Version 4) represents Image Dynamics' fourth-generation refinement of their sound quality focused subwoofer series, building on over 15 years of competition feedback, installer input, and acoustic engineering advancement. Unlike revolutionary redesigns that abandon proven architectures, V4 preserves the core engineering principles that made IDQ Series legendary while incorporating material science improvements, motor structure optimization, and field serviceability enhancements discovered through real-world testing in thousands of installations and hundreds of competition vehicles.
IDMAX Series (Flagship): Maximum excursion design for competition SPL systems requiring large enclosures (2.0-3.5 cu.ft.), extreme power handling (1000W+ RMS), and deepest possible bass extension. Glass fiber/pulp cones, aluminum neck joints, highest Xmax specifications.
IDQ Series (Sound Quality Focus): Balanced excursion for compact to moderate enclosures (0.5-1.6 cu.ft.), musical bass emphasis with transient accuracy, poly/mica cones optimized for tonal neutrality. The choice when enclosure space is limited or sound quality competitions judge musicality over maximum output.
ID Series (Entry Performance): Budget-conscious daily driver bass, moderate enclosures, poly cones, reliable performance for enthusiasts prioritizing value over competition-grade engineering.
IDQ8 V4 (50.3 sq.in. cone area): Extreme space constraints, stealth installations, under-seat applications, powersports vehicles (motorcycles/boats/UTVs), multi-subwoofer arrays (pair/quad configurations). Requires 0.5-0.7 cu.ft. sealed enclosures.
IDQ10 V4 (78.5 sq.in. cone area) ← YOU ARE HERE: Standard trunk installations, single subwoofer systems, balanced output and enclosure size. 56% more radiating area than 8" means more air displacement, easier achievement of target SPL, deeper bass extension. Optimal 1.0-1.1 cu.ft. sealed enclosures fit most sedan/coupe trunks. The "Goldilocks" size—not too large for compact vehicles, not too small for adequate output.
IDQ12 V4 (113 sq.in. cone area): Larger vehicles, maximum IDQ output capability, deeper bass extension, requires 1.25-2.0 cu.ft. sealed. Choose when enclosure space is abundant and you want the deepest IDQ bass response without stepping up to IDMAX flagship series.
Why IDQ10 V4 Represents the Optimal Compromise The 10" size delivers 56% more cone area than the 8" IDQ8 V4 (78.5 sq.in. vs. 50.3 sq.in.), which translates directly to more air displacement and higher output capability without requiring the larger enclosures demanded by 12" or 15" subwoofers. For most sedan, coupe, and compact SUV installations, the IDQ10 V4 occupies the "sweet spot"—enough output for satisfying bass impact, compact enough for realistic trunk integration, efficient enough to work with moderate amplifier power (300-500W RMS). When you need more than an 8" can deliver but don't want to sacrifice half your trunk to a large 12" enclosure, the IDQ10 V4 is the mathematically and acoustically optimal choice.
Technical Specifications: IDQ10 V4
📦 What's Included: • IDQ10 V4 D2 subwoofer (dual 2-ohm configuration)
• Field-replaceable cone assembly alignment shims
• Installation hardware (mounting screws, terminal hardware)
• Owner's manual with enclosure recommendations and wiring diagrams
• Full manufacturer warranty documentation
Engineering Deep Dive: What Makes IDQ10 V4 Sound Different
The Transient Accuracy Challenge: Why Most Subwoofers Sound "Boomy" Most budget and mid-tier subwoofers prioritize maximum cone excursion and high compliance suspensions (soft surrounds, flexible spiders) to achieve impressive peak SPL numbers and deep bass extension. However, this design philosophy creates an inherent tradeoff: high-compliance systems lack the damping control to stop cone motion quickly after the amplifier signal ceases. The result is audible "overhang"—the cone continues moving after the musical note ends, creating the "boomy" or "one-note bass" character that plagues many car audio systems. The IDQ10 V4 takes a fundamentally different approach: balanced excursion with optimized damping to ensure the cone stops as quickly as it starts, reproducing kick drums, bass guitars, and orchestral double bass with equal attack and decay fidelity.
📊 High Excursion Design: Balancing Air Displacement and Control
The Air Displacement Physics of 10" Subwoofers: Bass reproduction requires moving air molecules—the more air displaced, the more acoustic energy generated. The IDQ10 V4's 10" cone diameter provides 78.5 square inches of radiating area, which is 56% more than the 8" IDQ8 V4 (50.3 sq.in.) but requires only 56% of the enclosure volume demanded by the 12" IDQ12 V4 (113 sq.in.). This "Goldilocks zone" sizing delivers adequate air displacement for satisfying bass impact in sedan/coupe installations without demanding trunk-dominating enclosures.
However, air displacement alone doesn't guarantee quality bass reproduction—excursion control matters equally. The IDQ10 V4 achieves its high excursion capability through:
- Extended Y-35 Motor Structure: High-carbon steel top plate with extended pole piece geometry maintains linear magnetic force across the entire excursion range. While many budget subwoofers exhibit significant magnetic field distortion at maximum excursion (creating audible distortion), the extended motor keeps the voice coil in the strongest portion of the magnetic field throughout cone travel.
- Progressive Spider Suspension: The Nomex (aramid fiber) spider features progressive compliance—initial resistance is relatively low for easy cone movement at low power levels, but resistance increases exponentially as excursion approaches mechanical limits. This prevents the cone from "bottoming out" (hitting Xmax limits) while maintaining control during normal listening.
- Parabolic Surround Geometry: Rather than a simple half-roll or accordion-pleated surround, the IDQ10 V4 uses a parabolic profile that provides variable compliance—the surround is more flexible near the cone attachment point (allowing initial excursion) but becomes progressively stiffer as it stretches toward maximum displacement (providing mechanical protection).
The Result: The IDQ10 V4 can move significant air volume for deep bass extension while maintaining the suspension control necessary for transient accuracy. You hear kick drum "attack" (the beater hitting the drumhead) as clearly as the fundamental tone, bass guitar plucks with finger articulation, and orchestral double bass bow strokes with realistic texture—not just low-frequency rumble.
🔬 Poly/Mica Cone: Material Science for Tonal Neutrality
The Cone Material Compromise: Every subwoofer cone material represents a tradeoff between three competing requirements: (1) stiffness (to accurately pistonic motion without flexing), (2) low mass (to respond quickly to amplifier signals), and (3) internal damping (to minimize resonant "ringing" after signals cease). Pure paper cones offer excellent internal damping but lack stiffness at higher power levels. Pure polypropylene cones offer low mass and stiffness but exhibit resonant peaks. Metal cones (aluminum, titanium) offer extreme stiffness but suffer from undamped ringing.
The IDQ10 V4's poly/mica composite cone represents Image Dynamics' solution to this three-way compromise:
- Polypropylene Base Material: Provides the low mass (lightweight) and inherent flexibility necessary for high excursion without cracking or fatigue failure. Polypropylene's molecular structure resists UV degradation, moisture absorption, and temperature extremes—critical for automotive environments where subwoofers experience -20°F winter storage to 150°F+ summer trunk temperatures.
- Mica Reinforcement: Microscopic mica particles embedded throughout the polypropylene matrix dramatically increase stiffness without proportional mass increase. This addresses pure polypropylene's primary weakness (lack of rigidity at high power levels) while preserving its advantages (low mass, environmental resistance).
- Optimized Stiffness-to-Weight Ratio: The result is a cone that's stiff enough to maintain pistonic motion (the entire cone surface moves as a single rigid unit rather than flexing in sections) up to 500Hz, yet lightweight enough for rapid transient response. This is why the IDQ10 V4 can reproduce kick drum attack, bass guitar plucks, and orchestral double bass bow strokes with equal fidelity—the cone responds instantly to amplifier signals without added mass slowing response.
Why This Matters for Sound Quality Competitions: IASCA, MECA, and USACi judges specifically score tonal accuracy and transient response in the bass region (below 80Hz). They're listening for bass that integrates seamlessly with midrange frequencies—no resonant peaks, no frequency response holes, no "one-note bass" character. The poly/mica cone's optimized stiffness-to-weight ratio is precisely why IDQ Series subwoofers have dominated sound quality competitions for over a decade.
🔄 Parabolic Santoprene Surround: 15-20 Year Lifespan Engineering
The Surround Durability Crisis in Car Audio: Many otherwise excellent subwoofers fail prematurely due to surround deterioration—foam surrounds rot after 5-7 years (accelerated by UV exposure, ozone, temperature cycling), rubber surrounds harden and crack after 8-10 years, and cloth surrounds absorb moisture leading to mechanical failure. In the automotive environment where temperature extremes (-20°F to 150°F+), UV exposure (rear deck installations), and humidity cycling (trunk environments) accelerate material aging, surround longevity is the primary failure mode for subwoofers.
The IDQ10 V4 addresses this industry-wide durability challenge with Santoprene (TPE - thermoplastic elastomer) surround material:
- UV and Ozone Resistance: Santoprene's molecular structure resists UV degradation (no dry rot like foam) and ozone cracking (no hardening like natural rubber). Even in direct sunlight rear deck installations, Santoprene maintains flexibility for 15-20+ years rather than the 5-7 year lifespan typical of foam surrounds.
- Temperature Stability: Maintains consistent compliance from -40°F to +180°F. This is critical for automotive applications where winter storage can reach -20°F and summer trunk temperatures regularly exceed 150°F. While foam surrounds become brittle in cold (leading to cracking) and rubber surrounds become overly soft in heat (reducing control), Santoprene maintains near-constant mechanical properties.
- Parabolic Geometry for Progressive Compliance: Rather than a simple half-roll profile, the IDQ10 V4 uses a parabolic surround shape that provides variable compliance characteristics. Near the cone attachment point, the surround is relatively flexible (allowing easy initial excursion), but as the cone moves toward maximum displacement, the surround geometry becomes progressively stiffer. This provides mechanical "soft limiting"—the surround naturally resists over-excursion without requiring electronic limiters that degrade sound quality.
- Field-Replaceable as Part of Cone Assembly: Because the surround is integrated into the field-replaceable cone assembly, even if surround failure occurs after 15-20 years of service, you can replace the entire cone assembly (16 screws, no glue) rather than discarding the entire subwoofer or paying for factory reconing.
The Long-Term Value Proposition: Many competitors offer 5-year warranties on foam surround subwoofers knowing they'll likely fail around year 6-8 (after warranty expiration). The IDQ10 V4's Santoprene surround is engineered for 15-20+ year service life, which dramatically reduces your total cost of ownership when calculated over the vehicle's lifespan. Pay once, enjoy reliable bass for decades.
🔥 Nomex Spider: Aramid Fiber Thermal Stability to 200°C+
The Hidden Thermal Challenge in High-Power Subwoofers: While specifications emphasize RMS power handling (500W for the IDQ10 V4), what manufacturers rarely discuss is where that thermal energy goes. In a subwoofer driven at 500W RMS, approximately 10-15% of input power (50-75W) converts to waste heat rather than acoustic output. This heat concentrates in the voice coil, which can reach 180-200°C (356-392°F) during sustained high-power operation. The spider (suspension spring) sits directly adjacent to this heat source, making thermal stability critical for long-term reliability.
The IDQ10 V4 uses Nomex (aramid fiber) spider material specifically to address this thermal challenge:
- Nomex Meta-Aramid Properties: Nomex is the DuPont trade name for meta-aramid synthetic fiber, the same material family as Kevlar (para-aramid). Originally developed for firefighter protective gear and aerospace applications, Nomex maintains structural integrity to 200°C+ (392°F+) without degradation. This is approximately 80-100°C higher thermal resistance than cotton/polyester blend spiders used in budget subwoofers.
- Progressive Suspension Control: The Nomex spider isn't just thermally stable—it's engineered with progressive compliance characteristics. Initial resistance is relatively low for easy cone movement during normal listening (50-200W), but compliance becomes progressively stiffer as excursion increases. This provides mechanical over-excursion protection without electronic limiters.
- Long-Term Consistency: Many budget subwoofers using cotton/polyester spiders exhibit noticeable compliance changes after 2-3 years of use—the spider "softens" due to thermal cycling and moisture absorption, reducing control and increasing the risk of mechanical failure (voice coil rubbing, cone bottoming out). Nomex maintains consistent mechanical properties for 10-15+ years of service life.
- Why 500W RMS Rating is Credible: Many subwoofers with inflated RMS power ratings use standard cotton/polyester spiders that can't survive sustained high-power operation. The IDQ10 V4's 500W RMS rating is conservative and sustainable precisely because the Nomex spider can handle the thermal load generated by continuous 500W operation without mechanical failure.
Real-World Implications: You can drive the IDQ10 V4 at 400-500W RMS for extended listening sessions (hour-long highway drives with bass-heavy music) without concern about thermal overload or mechanical failure. This is why competition installers trust IDQ Series subwoofers for demo board demonstrations—sustained high-power operation without failure risk.
🔗 Polycarbonate Neck Joint: Thermal Isolation and Mechanical Precision
The Critical Junction Point: The neck joint—the connection between the cone and the voice coil former—is one of the most mechanically stressed components in a subwoofer. This small component must: (1) maintain precise coaxial alignment between the cone and voice coil (preventing rubbing), (2) transmit full voice coil force to the cone without flexing (maintaining efficiency), (3) isolate the cone from voice coil heat (preventing cone material degradation), and (4) survive millions of excursion cycles without fatigue failure. Many budget subwoofers use simple adhesive bonding at this junction, which creates thermal and mechanical weaknesses.
The IDQ10 V4 employs a polycarbonate neck joint specifically engineered for this critical application:
- Thermal Isolation: Polycarbonate (trade name: Lexan) exhibits extremely low thermal conductivity—approximately 50x lower than aluminum used in high-end flagship subwoofers. This means voice coil heat (180-200°C during sustained high-power operation) is blocked from reaching the poly/mica cone, preventing cone material degradation that would change tonal characteristics over time.
- Mechanical Strength: Despite being a polymer, polycarbonate offers exceptional impact strength—it's the same material used for bulletproof windows and safety glasses. This ensures the neck joint can transmit full voice coil force (potentially 50+ pounds of linear force at 500W input power) to the cone without flexing, maintaining efficiency and preventing mechanical failure.
- Precision Alignment: The polycarbonate neck joint is injection-molded with tight tolerances, ensuring coaxial alignment between the cone and voice coil former. This prevents the voice coil from rubbing against the magnetic gap (which would cause audible distortion and eventual failure) even at maximum excursion.
- Fatigue Resistance: Polycarbonate maintains mechanical properties through millions of flexing cycles. Over the subwoofer's lifetime, the neck joint will experience tens of millions of excursion cycles—polycarbonate's fatigue resistance ensures consistent performance for 10-15+ years rather than the 3-5 year lifespan typical of adhesive-bonded joints in budget subwoofers.
The Efficiency Advantage: Because the polycarbonate neck joint transmits full voice coil force without flexing or energy loss, the IDQ10 V4 achieves 85 dB sensitivity—exceptionally high for a sound quality focused 10" subwoofer. This means you get more acoustic output per watt of amplifier power, allowing satisfying bass impact even with moderate amplifier power (300-400W RMS).
American-Made Flat-Wound Extended Voice Coil
Voice Coil as the Subwoofer's Heart: The voice coil is the electromagnetic motor that converts amplifier current into mechanical force. Its design directly determines power handling capacity, thermal stability, efficiency, and long-term reliability. While many manufacturers source voice coils from overseas suppliers using round-wire designs, Image Dynamics specifies American-made flat-wound voice coils precisely engineered for the IDQ10 V4's performance requirements.
What makes this voice coil design special:
- Flat-Wound vs. Round-Wire Design: Traditional voice coils use round copper wire wound around the former, but round wires create air gaps between windings (reducing wire packing density). Flat-wound coils use rectangular-profile copper wire that packs tighter with minimal air gaps, increasing the number of wire turns in the same space. More turns = more electromagnetic force = higher efficiency and power handling from the same magnetic gap dimensions.
- Extended Design for Linear Travel: The voice coil is longer than the magnetic gap height, ensuring the coil remains in the strongest portion of the magnetic field throughout its excursion range. This maintains consistent force across cone travel rather than exhibiting force variation (and associated distortion) at maximum excursion like shorter voice coils in budget subwoofers.
- 2" Diameter for Thermal Management: The 2" (50mm) voice coil diameter provides substantial surface area for heat dissipation. Voice coil temperature directly determines power handling capacity—larger diameter coils dissipate heat more effectively than smaller coils, allowing sustained 500W RMS operation without thermal limiting.
- American Manufacturing for Quality Control: Domestic voice coil production allows Image Dynamics to maintain tight winding tolerances and consistent wire quality. This ensures every IDQ10 V4 exhibits identical performance characteristics rather than the unit-to-unit variation common with overseas mass production.
The Dual 2-Ohm Wiring Advantage: The IDQ10 V4's dual 2-ohm voice coil configuration offers installation flexibility: wire in parallel for 1Ω final impedance (maximizing power from 2-ohm stable amplifiers) or series for 4Ω final impedance (matching 4-ohm optimized amplifiers). This ensures you can extract maximum amplifier power regardless of your specific amp's impedance characteristics.
⚙️ Extended Y-35 Motor Structure: Linear Force Control
Motor Structure = Magnetic Field Geometry: The motor structure (top plate, pole piece, and magnet assembly) creates the magnetic field that the voice coil moves through. Motor design directly determines efficiency (how much acoustic output per watt of input power), linearity (whether force remains constant across excursion range), and distortion characteristics (whether the magnetic field introduces harmonic distortion). Budget subwoofers often use undersized motors with simple geometry that works well at low excursion but exhibits significant field distortion at high excursion.
The IDQ10 V4's Extended Y-35 Motor Structure represents Image Dynamics' solution to the linearity challenge:
- Y-35 High-Carbon Steel Top Plate: The top plate material directly affects magnetic field concentration and saturation resistance. Y-35 is a high-carbon steel alloy optimized for electromagnetic applications—it concentrates magnetic field lines more effectively than standard mild steel (increasing efficiency) while resisting magnetic saturation at high flux densities (maintaining linearity at high power levels).
- Extended Pole Piece Geometry: The "Extended" designation refers to the pole piece being taller than standard designs, which increases the vertical height of the uniform magnetic field. Because the IDQ10 V4 uses an extended voice coil (longer than the magnetic gap), this extended pole piece ensures the voice coil remains in the strongest, most uniform portion of the magnetic field throughout its excursion range. The result: consistent electromagnetic force at all excursion levels rather than force variation that would create distortion.
- Optimized Gap Dimensions: The magnetic gap (the space between the top plate and pole piece where the voice coil moves) is precisely machined to provide maximum field strength with minimum gap width. Tighter gaps concentrate magnetic field lines (increasing efficiency), but require higher manufacturing precision to prevent voice coil rubbing. Image Dynamics' American manufacturing allows the tight tolerances necessary for optimized gap dimensions.
- Efficient Magnetic Circuit: The complete motor structure (magnet, top plate, pole piece, back plate) is engineered as an integrated magnetic circuit to minimize magnetic flux leakage. More magnetic field concentrated in the gap = higher efficiency = more acoustic output per watt = 85 dB sensitivity rating (exceptionally high for sound quality subwoofers).
The Distortion Advantage: Because the Extended Y-35 motor maintains linear force across the IDQ10 V4's entire excursion range, harmonic distortion remains low even at high output levels. This is what IASCA/MECA/USACi sound quality judges listen for—bass that remains tonally accurate whether playing at 85 dB or 105 dB SPL, without the audible distortion that plagues budget subwoofers driven hard.
🔧 Field-Replaceable Cone Assembly: The "Green" Subwoofer Concept
The Subwoofer Repair Problem: Traditional subwoofer construction glues the cone, surround, and spider to the voice coil former and basket—a manufacturing method that's efficient for production but makes field repair effectively impossible. If the cone is damaged (torn surround, cracked cone, spider failure), your options are: (1) discard the entire subwoofer (contributing to landfill waste), (2) pay for factory reconing (often 60-70% of new subwoofer cost plus shipping both ways), or (3) attempt DIY reconing (requires specialized gluing equipment, alignment fixtures, and expertise most installers lack).
Image Dynamics revolutionized subwoofer serviceability with the IDQ Series field-replaceable cone assembly system:
- 16-Screw Attachment System: The complete cone assembly (cone, surround, spider, voice coil, and former as an integrated unit) attaches to the basket with 16 screws rather than adhesive. To replace a damaged cone assembly: remove 16 screws, lift out the old assembly, install the new assembly using included alignment shims, reinstall 16 screws. Total time: 30-45 minutes with basic hand tools. No glue, no specialized equipment, no factory service required.
- Alignment Shim System: Precise coaxial alignment between the voice coil and magnetic gap is critical to prevent rubbing. Image Dynamics includes precision alignment shims with replacement cone assemblies that ensure perfect centering during installation. This eliminates the specialized alignment fixtures professional reconing services use—the shims do the alignment work for you.
- Replacement Part Availability: Image Dynamics maintains replacement cone assembly inventory for all IDQ Series subwoofers through authorized dealers. This ensures you can obtain replacement parts years after initial purchase—contrast this with budget brands that discontinue models after 12-18 months, making parts unavailable.
- Environmental Responsibility: Image Dynamics calls this their "green" subwoofer concept: extend product life through field serviceability, reduce landfill waste, lower lifetime ownership costs. Rather than discarding a $240 subwoofer due to a $60 cone assembly failure, you replace just the damaged component and continue enjoying the high-carbon steel motor, American-made voice coil, and precision basket that comprise 70% of the subwoofer's value.
Total Cost of Ownership Advantage: Calculate the IDQ10 V4's value over a 15-year ownership period: Initial cost $238.99. Potential cone assembly replacement at year 12 (if needed due to accident damage, not wear-out): approximately $80-100 for replacement assembly + 45 minutes DIY labor. Total 15-year cost: ~$320-340 for a subwoofer you've enjoyed for 15 years. Compare this to budget subwoofers requiring complete replacement every 5-7 years: $120 × 3 replacements = $360, and you've dealt with three installation cycles and three trips to the landfill. The field-replaceable cone assembly isn't just convenient—it fundamentally changes the economics of premium subwoofer ownership.
Installation Guide: Enclosure Design and Wiring Configuration
Why Enclosure Design Matters More Than Subwoofer Specifications The best subwoofer in the world will sound mediocre in an incorrect enclosure. Enclosure volume, alignment type (sealed vs. ported), and construction quality directly determine bass extension, transient response, efficiency, and power handling capability. Image Dynamics provides specific enclosure recommendations based on extensive testing—follow these guidelines to extract the IDQ10 V4's full performance potential.
📦 Sealed Enclosure Design (Recommended for Sound Quality)
Recommended Volume Range: 0.5 - 1.0 cubic feet (14-28 liters) net internal volume
Optimal Volume: 1.0-1.1 cubic feet (28-31 liters) for balanced low-frequency extension and transient control
Alignment: Sealed (acoustic suspension) — No ports, no passive radiators
Volume Selection Guide:
- 0.5-0.7 cu.ft. (Compact): Tightest transient response, fastest attack, reduced deep bass extension (rolls off below 50Hz). Choose for extreme space constraints or when prioritizing "punch" over deep extension. Typical applications: compact coupes, under-seat installations, trunk space preservation priority.
- 0.8-1.0 cu.ft. (Balanced): Optimal compromise between transient accuracy and bass extension. Maintains excellent attack characteristics while extending usable response to 40-45Hz. Recommended for most installations prioritizing sound quality competition performance.
- 1.0-1.1 cu.ft. (Optimal - Recommended): Image Dynamics' tested optimal volume. Deepest bass extension (to 40Hz) while maintaining the transient control necessary for sound quality competition. This is the volume used by IASCA/MECA/USACi champions. Start here unless space constraints force smaller.
- 1.2-1.6 cu.ft. (Extended): Maximum bass extension (to 38-40Hz) with slight sacrifice in transient attack. The larger volume reduces enclosure Q (damping), which increases low-frequency output but reduces the "snap" character. Choose only if your amplifier provides 400-500W RMS and you prioritize maximum output over transient accuracy.
⚠️ Critical Volume Calculation Notes: The volumes listed above are NET INTERNAL VOLUME (actual air space inside the completed enclosure). You must account for:
• Subwoofer displacement: The IDQ10 V4 displaces approximately 0.08 cu.ft. when mounted
• Port displacement: None (sealed enclosure), but if adding internal bracing, subtract brace volume
• Internal bracing: Recommended for enclosures using 0.75" MDF or thinner—adds rigidity, reduces panel resonance
Example Calculation for 1.0 cu.ft. Net Volume:
Desired net volume: 1.0 cu.ft.
Subwoofer displacement: +0.08 cu.ft.
Internal bracing (estimated): +0.05 cu.ft.
Required gross internal volume: 1.13 cu.ft. ← Design your enclosure exterior dimensions to yield this gross volume.
Construction Recommendations:
• Material: 0.75" (19mm) MDF minimum, 1.0" (25mm) MDF preferred for larger enclosures (>1.0 cu.ft.)
• Bracing: Internal cross-bracing for any panel exceeding 12" × 12" — reduces panel resonance and increases power handling
• Sealing: All internal seams and joints sealed with silicone sealant or wood glue—air leaks destroy bass output
• Damping: 1-2 lbs. polyfill or acoustic foam inside enclosure—reduces internal standing waves, slightly extends effective volume
• Terminal: Sealed terminal cup or spring-loaded binding posts—never drill holes through enclosure wall without sealed terminals
🌪️ Ported Enclosure Design (Maximum Output)
Recommended Volume: 1.45 cubic feet (41 liters) net internal volume
Tuning Frequency: 32-35Hz (optimal for musical bass extension)
Port Design: 3" diameter × 12-14" length (or equivalent slot port for calculated tuning frequency)
Ported vs. Sealed Tradeoffs:
Ported Advantages: Increased efficiency in the tuning frequency range (32-35Hz for recommended design), approximately 3-4 dB more output at tuning frequency compared to sealed, reduced cone excursion at tuning frequency (less amplifier power required for same output), deeper bass extension (usable output to 30-32Hz vs. 40Hz sealed).
Ported Disadvantages: Larger enclosure required (1.45 cu.ft. vs. 1.0 cu.ft. sealed), reduced transient accuracy (port output lags cone output creating slight "smearing" of fast bass transients), group delay increases near tuning frequency (audible as slight "boom" character), less forgiving of improper tuning (port length errors create peaks/dips in response), below-tuning-frequency rolloff is steeper (12 dB/octave sealed vs. 24 dB/octave ported—playing below tuning risks mechanical damage).
Sound Quality Competition Verdict: IASCA/MECA/USACi champions overwhelmingly choose sealed enclosures for IDQ Series subwoofers because judges specifically listen for transient accuracy and tonal neutrality—characteristics ported enclosures compromise for maximum output. Choose ported only if you prioritize maximum SPL over transient fidelity.
⚠️ Ported Enclosure Design is Complex: Unlike sealed enclosures (where volume is the primary variable), ported enclosures require precise calculation of port area, port length, and tuning frequency based on the IDQ10 V4's Thiele-Small parameters. Errors in port design create audible problems (peaks, dips, excessive group delay). We strongly recommend using online enclosure calculators (WinISD, BassBox Pro) or consulting with Image Dynamics authorized dealers for custom ported enclosure designs. The 1.45 cu.ft. / 32-35Hz recommendation above is a starting point—actual port dimensions depend on your chosen port diameter and enclosure shape.
🔌 Dual 2-Ohm Wiring Configuration Guide
The IDQ10 V4 D2 features dual 2-ohm voice coils, which provides two wiring options depending on your amplifier's impedance optimization:
Configuration: Connect positive terminals together, connect negative terminals together
Final Impedance: 1 ohm
Best For: 2-ohm stable amplifiers (extracts maximum power)
Example: Amplifier rated 500W RMS @ 2Ω typically delivers 750-800W RMS @ 1Ω (check your amp's 1-ohm stability rating). Maximum power configuration for compatible amplifiers.
Configuration: Connect one coil's positive to other coil's negative, use remaining positive and negative for amplifier connection
Final Impedance: 4 ohms
Best For: 4-ohm optimized amplifiers
Example: Amplifier rated 300W RMS @ 4Ω delivers full rated power. Ideal for amplifiers not rated for 2-ohm or 1-ohm loads.
🎯 Amplifier Power Matching Recommendations: • Minimum Recommended: 200-300W RMS (adequate for moderate listening levels)
• Optimal Range: 300-500W RMS (extracts full IDQ10 V4 performance potential)
• Maximum Capability: 500W RMS continuous (thermal and mechanical limits)
Important: The IDQ10 V4's 500W RMS rating is conservative and sustainable—you can safely operate at 500W RMS for extended periods without thermal limiting or mechanical failure thanks to the Nomex spider, Santoprene surround, and 2" American-made voice coil. However, exceeding 500W RMS risks premature component failure and voids warranty coverage.
Competitive Analysis: IDQ10 V4 vs. Premium 10" Alternatives
Understanding the 10" Subwoofer Market Landscape The 10" subwoofer market spans from $50 budget options to $500+ boutique brands. Understanding where the IDQ10 V4 fits requires examining both price positioning and engineering philosophy—the IDQ10 V4 represents premium sound quality focused engineering at mid-tier pricing, competing with brands typically priced 30-50% higher.
The IDQ10 V4 Value Proposition Analysis When you calculate total cost of ownership over 15 years, the IDQ10 V4's competitive position becomes clear:
- vs. JL Audio 10W6v3 ($449): You save $210 upfront (47% less expensive) while gaining field serviceability the W6v3 lacks. The W6v3 offers 20% more power handling (600W vs. 500W) and DMA-optimized motor, but requires larger enclosures and higher amplifier power. For sound quality competition applications where judges score below 500W territory, the IDQ10 V4 delivers 95% of W6v3 performance at 53% of the price.
- vs. Focal P25F ($229-269): Essentially price-competitive (within $10-30), but the IDQ10 V4 offers higher power handling (500W vs. 400W), proven competition success (10+ years of championships), American manufacturing, and field serviceability. Focal's flax cone is innovative but unproven for long-term durability vs. Santoprene surround's 15-20 year track record.
- vs. Rockford P3D4-10 ($179-209): The P3 costs $30-60 less but represents fundamentally different engineering philosophy—SPL-focused aluminum cone vs. sound quality poly/mica cone. If you're considering the IDQ10 V4, you're prioritizing transient accuracy over maximum SPL, making the P3 comparison irrelevant (different target markets).
- vs. Dayton Ultimax UM10-22 ($119-149): The Ultimax costs $90-120 less (37-50% savings) and represents excellent value for budget-conscious enthusiasts. However, paper cone and foam surround mean 5-10 year replacement cycle vs. IDQ10 V4's 15-20 year service life. Calculate over 15 years: Ultimax requires 2 replacements ($119 × 3 units = $357) vs. IDQ10 V4 one-time purchase ($239). The IDQ10 V4 is actually less expensive long-term plus offers superior materials, field serviceability, and competition pedigree.
Conclusion: The IDQ10 V4 occupies the "value premium" position—premium materials and engineering (Santoprene surround, Nomex spider, American voice coils, field serviceability, competition success) at mid-tier pricing ($239). You're not paying for boutique brand markup (JL Audio) or sacrificing durability for lowest-cost (Dayton). You're paying for engineering that lasts decades at pricing that's accessible to serious enthusiasts.
Why Purchase NEW Rather Than Seeking Used/Closeout Alternatives?
The Used Subwoofer Risk Calculation Used IDQ10 V4 or older IDQ10 V3 subwoofers occasionally appear on enthusiast forums, eBay, or Facebook Marketplace at $100-150 pricing—seemingly attractive 37-58% savings vs. new $238.99 pricing. However, used car audio subwoofers carry substantial hidden risks that eliminate apparent savings when total cost is calculated properly.
The Problem: Car audio subwoofers are frequently abused by inexperienced installers—operated without subsonic filters (causing mechanical over-excursion), powered by clipping amplifiers (voice coil thermal damage), installed in incorrect enclosures (suspension fatigue), or exposed to moisture (basket/motor corrosion). None of this abuse is visible externally—a used subwoofer with damaged voice coil, fatigued spider, or weakened motor may look perfect but fail within months.
Why This Matters: Even Image Dynamics' field-replaceable cone assembly can't fix motor damage, basket warping, or voice coil deformation from clipping abuse. You're gambling $100-150 on unknown previous owner behavior.
The Problem: Image Dynamics warranties are non-transferable and require original purchase documentation. Used subwoofers have zero warranty coverage—if the voice coil fails three months after your used purchase, you're paying for field-replaceable cone assembly ($80-100) or complete replacement ($239 new). Your "$100 used savings" just became a $180-200 total cost (used price + repair), which is 75-84% of new pricing without warranty protection.
Why This Matters: New IDQ10 V4 purchase includes full manufacturer warranty coverage. If component failure occurs during warranty period, Image Dynamics covers replacement—you're protected against manufacturing defects and premature failure.
The Problem: While the IDQ10 V4's Santoprene surround offers 15-20 year lifespan, compliance characteristics change gradually over time due to temperature cycling, UV exposure (rear deck installations), and repeated excursion cycles. A used IDQ10 V4 with 5-7 years of prior service has already consumed 33-50% of its surround lifespan. Additionally, spider compliance changes, voice coil wire fatigues, and former adhesion weakens—all invisible degradation that affects performance.
Why This Matters: You're paying $100-150 for a subwoofer with unknown remaining service life vs. $239 for a new subwoofer with full 15-20 year expected lifespan ahead. Calculate dollars per year of service: Used ($125 / 10 years remaining = $12.50/year) vs. New ($239 / 20 years = $11.95/year). New is actually less expensive per year when you account for remaining lifespan.
The Problem: Used marketplace often features IDQ10 V2 or V3 models (not current V4) at seemingly attractive pricing. While these older versions share the IDQ Series heritage, they lack V4 improvements: updated poly/mica cone formulation (V4 offers improved damping), refined Extended Y-35 motor geometry (V4 has lower distortion), enhanced field-replaceable cone assembly system (V4 uses improved alignment shims), and current production part availability (V2/V3 replacement cone assemblies may be discontinued).
Why This Matters: You're spending $100-150 on outdated technology when current V4 generation represents 15+ years of evolutionary refinement. The performance gap between V2/V3 and V4 may not be dramatic, but why compromise when new V4 pricing ($239) is accessible?
✅ The NEW Purchase Value Proposition When you purchase the IDQ10 V4 NEW at $238.99, you receive:
- Zero Abuse Risk: Factory-fresh condition, no previous owner abuse, no hidden damage, no mystery component failures waiting to happen
- Full Manufacturer Warranty: Image Dynamics warranty coverage protects against manufacturing defects and premature component failure
- Complete 15-20 Year Service Life: Santoprene surround, Nomex spider, and American voice coil all starting at 100% rated lifespan—maximum value per dollar spent
- Current V4 Generation: Latest engineering refinements, current production support, replacement cone assembly availability guaranteed for 10+ years
- Full Technical Support: Image Dynamics and Audio Intensity provide installation guidance, enclosure design consultation, and warranty service—not available for used purchases
- Field Serviceability Value: Even if cone damage occurs 12 years from now (after warranty expiration), you can replace the $80-100 cone assembly rather than discarding a $239 subwoofer—this benefit only matters if you own from new since used buyers often can't source replacement parts for unknown-age subwoofers
- Peace of Mind: You know exactly what you're getting, how it's been treated (never abused because you're the first owner), and what to expect for performance and longevity
Bottom Line: The apparent $88-138 savings from used purchase (vs. $238.99 new) evaporates when you account for warranty absence, unknown abuse risk, reduced remaining lifespan, and potential repair costs. Buy NEW, own for 15-20 years, enjoy warranty protection and full field serviceability benefits. This is the financially rational decision when total cost of ownership is calculated properly.
IDQ10 V4: Premium Sound Quality Engineering at Mid-Tier Pricing
Over 10 years of IASCA, MECA, and USACi sound quality championships validate the IDQ Series engineering philosophy: transient accuracy and tonal neutrality matter more than maximum SPL numbers. When judges score what they hear rather than what specification sheets claim, competitors consistently choose IDQ subwoofers for musical bass reproduction that integrates seamlessly with midrange and high frequencies.
Made in the USA with American-made flat-wound extended voice coils ensures consistent quality control, domestic technical support, and engineering refinement based on real-world North American installation challenges. Premium materials + American assembly standards + global component sourcing delivers the optimal balance of quality, performance, and value that offshore-only manufacturing can't replicate.
Revolutionary 16-screw field-replaceable cone assembly transforms subwoofer ownership economics: repair rather than replace. If cone damage occurs (even 12 years after purchase), remove 16 screws, install new cone assembly using included alignment shims, reinstall—30-45 minutes, basic tools, no adhesives, no factory service. This "green" subwoofer concept extends product life, reduces landfill waste, and lowers lifetime ownership costs dramatically compared to glued-construction competitors requiring $150+ factory reconing or complete replacement.
Santoprene (TPE) surround resists UV degradation, ozone cracking, and temperature extremes (-40°F to +180°F) for 15-20+ year lifespan—contrast this with foam surrounds (5-7 years before rot) or rubber surrounds (8-10 years before hardening). Nomex spider maintains thermal stability to 200°C+ and consistent compliance for 10-15+ years. American-made voice coil withstands sustained 500W RMS operation without thermal degradation. These are materials engineered for decades, not years.
56% more cone area than 8" IDQ8 V4 (78.5 sq.in. vs. 50.3 sq.in.) delivers more air displacement and higher output capability, while requiring only 56% of the enclosure volume demanded by 12" IDQ12 V4. For most sedan, coupe, and compact SUV installations, the IDQ10 V4 occupies the "Goldilocks zone"—enough output for satisfying bass impact, compact enough for realistic trunk integration (1.0-1.1 cu.ft. sealed optimal), efficient enough to work with moderate amplifier power (300-500W RMS).
$238.99 delivers premium materials and engineering typically found at $400-500 price points: American voice coils (not offshore mass production), competition-proven design (10+ years of championships), field serviceability (no competitors at this price), 15-20 year component lifespan (vs. 5-10 years for budget competitors). Calculate dollars per year of service: $238.99 / 20 years = $11.95/year. This isn't mid-tier pricing—it's premium engineering at accessible pricing.
The IDQ10 V4 represents Image Dynamics' core engineering philosophy: bass should be felt AND heard with equal clarity. While SPL-focused competitors chase maximum decibel ratings through extreme excursion and high-compliance suspensions that sacrifice control, Image Dynamics engineers the IDQ Series for musical bass reproduction—deep low-frequency extension (40Hz usable response in proper enclosure) with the transient accuracy to reproduce kick drum attack, bass guitar plucks, and orchestral double bass with equal fidelity. The result: bass that integrates seamlessly with midrange and high frequencies rather than overwhelming them.
Ready to Experience Sound Quality Championship Bass?
The Image Dynamics IDQ10 V4 D2 delivers 10+ years of competition-proven engineering, American-made voice coils, field-replaceable cone assembly, and 15-20 year service life at $238.99—premium materials and performance at mid-tier pricing.
Audio Intensity: Premium Car Audio Since [Year] Questions about enclosure design, amplifier matching, or installation? Our technical specialists provide expert guidance for IDQ10 V4 integration into your specific vehicle. Contact us for personalized consultation—we're here to ensure your IDQ10 V4 delivers the sound quality championship performance Image Dynamics engineered it for.
📋 Technical Notes and Specifications: All specifications, enclosure recommendations, and performance data provided above are sourced from Image Dynamics official documentation and Audio Intensity technical resources. Recommended enclosure volumes are NET INTERNAL VOLUME (actual air space after subwoofer and bracing displacement). Power handling ratings are RMS (continuous) thermal ratings—peak ratings represent short-term transient capability, not sustainable operation. Sensitivity measurements (85 dB @ 1W/1m) follow industry-standard testing protocols. Frequency response (40-500Hz) represents usable output range in recommended enclosure—actual -3dB cutoff points depend on enclosure alignment and volume. Voice coil configuration is Dual 2-Ohm (D2)—wire in parallel for 1Ω final impedance or series for 4Ω final impedance. Mounting depth (5.81") must be verified against vehicle-specific clearance before purchase. Field-replaceable cone assembly system requires replacement parts purchased separately from Image Dynamics authorized dealers—replacement procedures detailed in owner's manual. Warranty coverage terms and duration provided by Image Dynamics—refer to included warranty documentation for specific coverage details. Image Dynamics reserves the right to update specifications without notice—verify current specifications at imagedynamicsusa.net for latest information.
Competition References: IASCA (International Auto Sound Challenge Association), MECA (Mobile Electronics Competition Association), and USACi (United States Autosound Competition International) are independent car audio competition organizations. References to "10+ years of championships" and "sound quality competition success" reflect IDQ Series usage by competitors—Image Dynamics does not claim official endorsement by these organizations. Competition success reflects individual competitor achievements using IDQ Series subwoofers rather than Image Dynamics corporate competition participation.
Material Longevity: Santoprene surround "15-20+ year lifespan" and Nomex spider "10-15+ year service life" estimates represent engineering assessments based on material properties and accelerated aging testing—actual lifespan depends on installation environment (UV exposure, temperature extremes, humidity), usage patterns (power levels, music genre, listening duration), and maintenance. These estimates represent expected service life under typical automotive environmental conditions and moderate usage patterns, not warranty coverage duration.
No video available for this product.
Product Specifications
Image Dynamics IDQ10 V4 10 inch Subwoofer
