Audiocircle
Audiocircle Hamburg Line 6.5″ 2-way component speakers
SKU: 230202 · HL-C6.2
$ 399.99
QUICK SPECS
- Best For: High-Fidelity Daily Drivers
- Power: 80W RMS / 150W Max
- Topology: 2-Way Passive Component
- Sonic Character: Balanced, Natural, Detailed
- Origin: Handcrafted in Germany
Perfectly Paired With
Crescendo REVOLUTION 5A4 4 channel Amplifier
We recommend this amp to reach full potential.
$ 779.99
Audiocircle Hamburg Line 6.5″ 2-way component speakers
Regular price
$ 399.99
Sale price
$ 399.99
Regular price
Unit price
Free Insured Shipping
On orders over $99
Full Warranty
Authorized Dealer
Lifetime Support
Real Installers
INSTALLER'S TAKE
Product Details
Specifications
Related Products
FAQs
AUDIOCIRCLE HAMBURG LINE
6.5″ 2-Way Component Speakers
Model HL-C6.2
German Handcrafted • Black Aluminum Cone • Closed Chamber Silk Tweeter • Professional Crossover Network
Contact Audio Intensity for Pricing
Professional Grade
German Handcrafted Quality
Expert Rating
4.6/5.0
⭐⭐⭐⭐⭐
🇩🇪 The German Handcrafted Philosophy: Audiocircle Hamburg Line
Audiocircle represents the pinnacle of German automotive audio engineering, where decades of high-end audio expertise meet meticulous handcrafted manufacturing. The Hamburg Line HL-C6.2 embodies this philosophy: each component set is individually assembled in Germany using traditional craftsmanship combined with advanced materials science.
The Hamburg series distinguishes itself through "small details and advanced materials to create a fresh sound experience." Rather than pursuing maximum SPL or exotic marketing claims, Audiocircle focuses on natural, balanced sound reproduction that reveals musical truth without coloration or fatigue.
This approach manifests in deliberate engineering decisions: black aluminum cones for rigidity without resonance, ABS compound baskets for magnetic inertness, closed chamber silk tweeters for controlled dispersion, and professional-grade crossovers with air-core inductors. The result is a component system that competes with offerings twice its price from mainstream manufacturers.
Technical Specifications

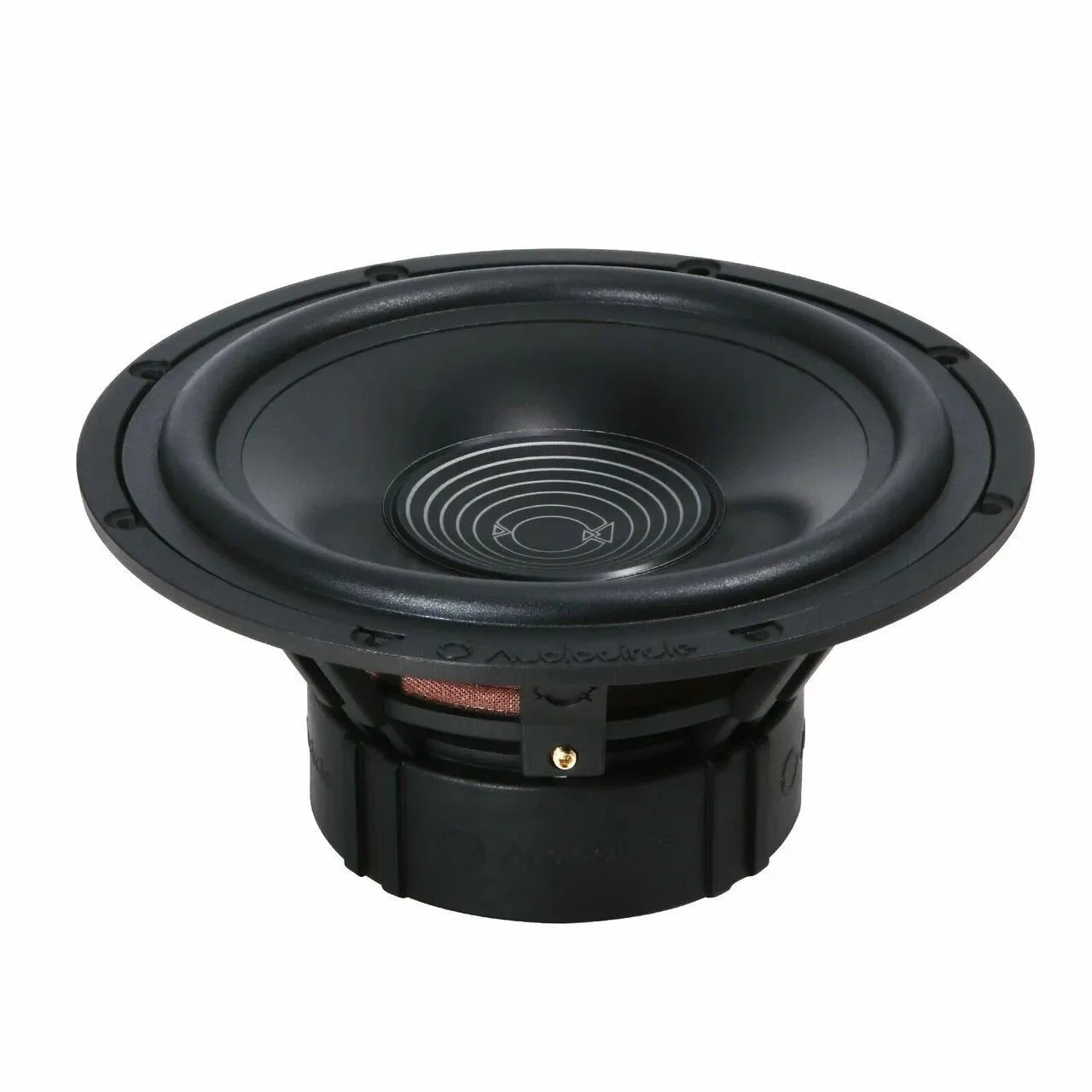

WOOFER SPECIFICATIONS
| Model: | HL-C6.2 |
| Size: | 6.5″ (16.5cm) |
| Cone Material: | Black Aluminum |
| Cone Treatment: | Anodized |
| Basket Material: | ABS Compound |
| Basket Color: | Black |
| Voice Coil: | High-Temp Copper |
TWEETER SPECIFICATIONS
| Dome Diameter: | 26mm (1.02″) |
| Dome Material: | Silk Fabric |
| Chamber Design: | Closed/Sealed |
| Chamber Function: | Rear Wave Control |
| Motor Type: | Conventional Dynamic |
ELECTRICAL SPECIFICATIONS
| Power Handling: | 150W Maximum |
| Min. Amplifier Power: | 35W RMS |
| Recommended Power: | 50-100W RMS |
| Nominal Impedance: | 4 Ohm |
| Frequency Response: | 60 Hz – 25 kHz |
| Usable Bandwidth: | Full-Range Capable |
PHYSICAL DIMENSIONS
| Mounting Diameter: | 165mm (DIN Standard) |
| Mounting Depth: | 67mm (2.64″) |
| Woofer Configuration: | Standard 6.5″ Footprint |
| Installation: | Professional Grade |
CROSSOVER SPECIFICATIONS
| Type: | External Passive |
| Topology: | 2-Way Design |
| Slope: | 2 × 12 dB/octave |
| Inductor Type: | Air-Core |
| Capacitor Grade: | High-Quality Film |
| Component Quality: | Professional |
⚠️ Installation Note: DIN standard 165mm mounting diameter ensures compatibility with most European and many Asian vehicles. 67mm mounting depth accommodates standard door panel installations. Professional installation recommended to optimize acoustic performance and ensure proper crossover integration.

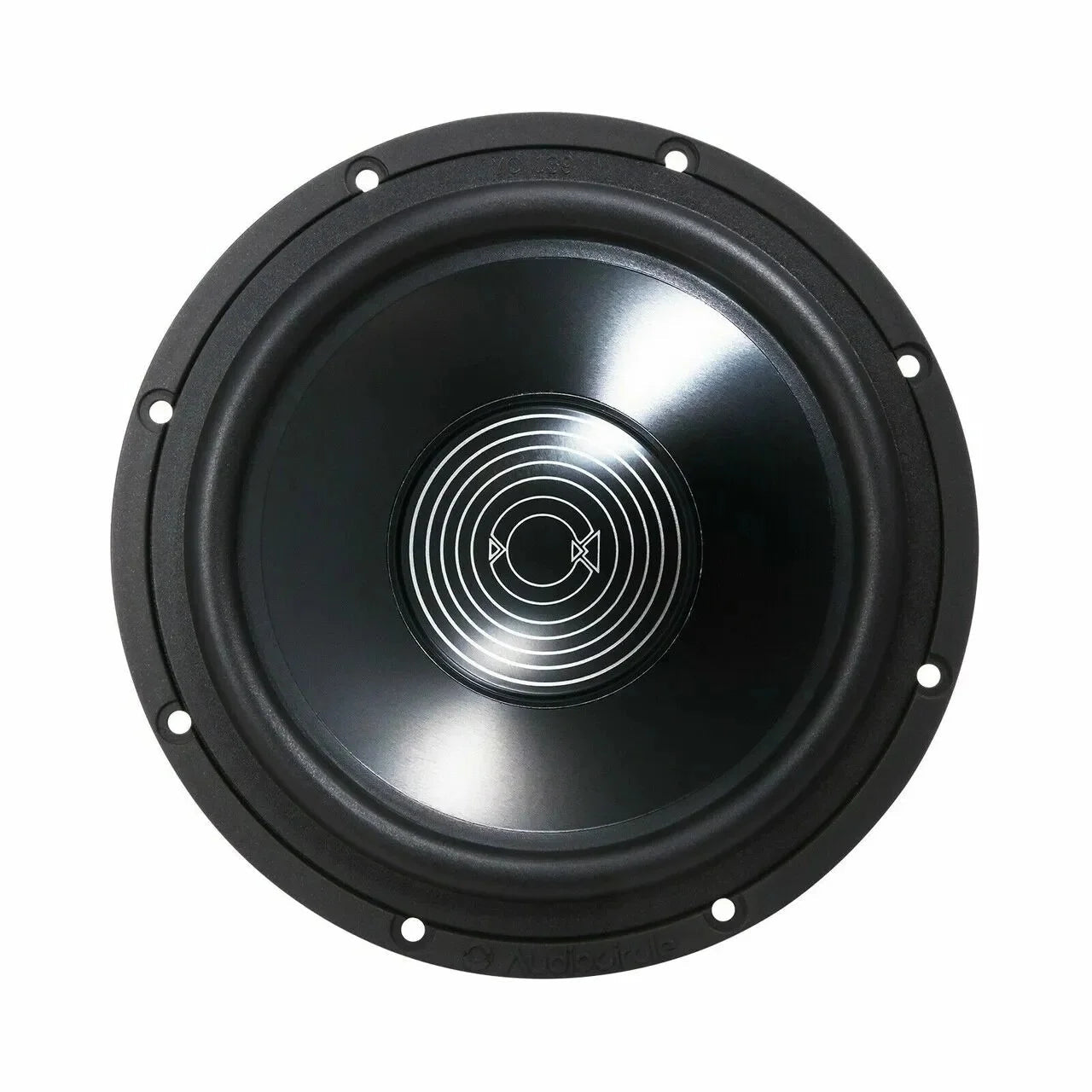

Black Aluminum Cone Technology
Superior Rigidity with Controlled Resonance
Why Aluminum Over Traditional Materials
The HL-C6.2's black anodized aluminum cone represents a deliberate departure from paper and polypropylene designs common in mass-market speakers. Aluminum offers several critical acoustic advantages:
- Superior Stiffness-to-Weight Ratio: Young's modulus ≈ 70 GPa vs. paper ≈ 3-5 GPa, enabling pistonic behavior to higher frequencies (reduced breakup modes below 4-5 kHz)
- Reduced Distortion: Rigid cone maintains shape during large excursions, minimizing cone flexing that causes intermodulation distortion
- Improved Transient Response: Low moving mass combined with high stiffness delivers accurate reproduction of percussive attacks and leading-edge detail
- Extended Bandwidth: Pistonic range extends higher vs. paper/plastic cones, enabling smoother integration with 26mm silk tweeter
Anodization Treatment Process
The black anodization is not merely cosmetic—it serves critical acoustic and durability functions:
- Surface Hardening: Electrochemical anodization creates protective aluminum oxide layer, increasing surface hardness and scratch resistance
- Internal Damping Enhancement: Anodized layer adds controlled damping to suppress high-frequency cone resonances that would otherwise color response
- Corrosion Protection: Sealed porous structure prevents oxidation and degradation in automotive humidity/temperature cycling
- Aesthetic Integration: Black finish coordinates with ABS basket and professional appearance expectations
Aluminum vs. Paper: The Trade-Off Reality
Traditional paper cones offer inherent self-damping (loss factor η ≈ 0.15-0.25) that aluminum lacks (η ≈ 0.02-0.05). Audiocircle addresses this through strategic engineering decisions:
- Anodization treatment adds controlled surface damping
- 12 dB/octave crossover slope (2nd order) filters cone breakup region before audibility
- Professional crossover components (air-core inductors) maintain phase coherency through transition band
- Result: Aluminum's transient accuracy without harshness or ringing artifacts
For listeners prioritizing detail retrieval and dynamic punch over absolute smoothness, aluminum delivers superior performance. Those seeking ultimate midrange warmth may prefer paper designs—but will sacrifice transient accuracy and power handling.

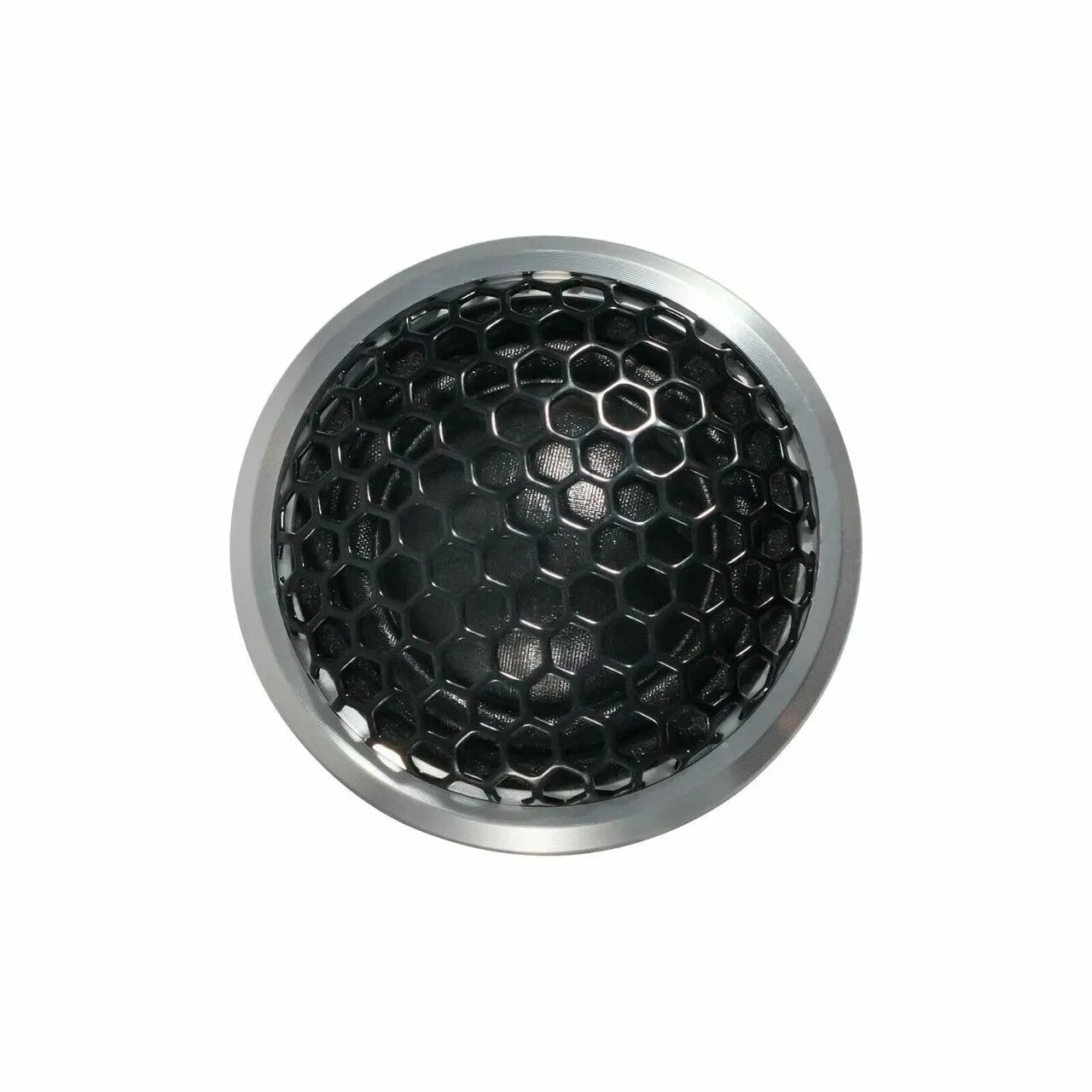

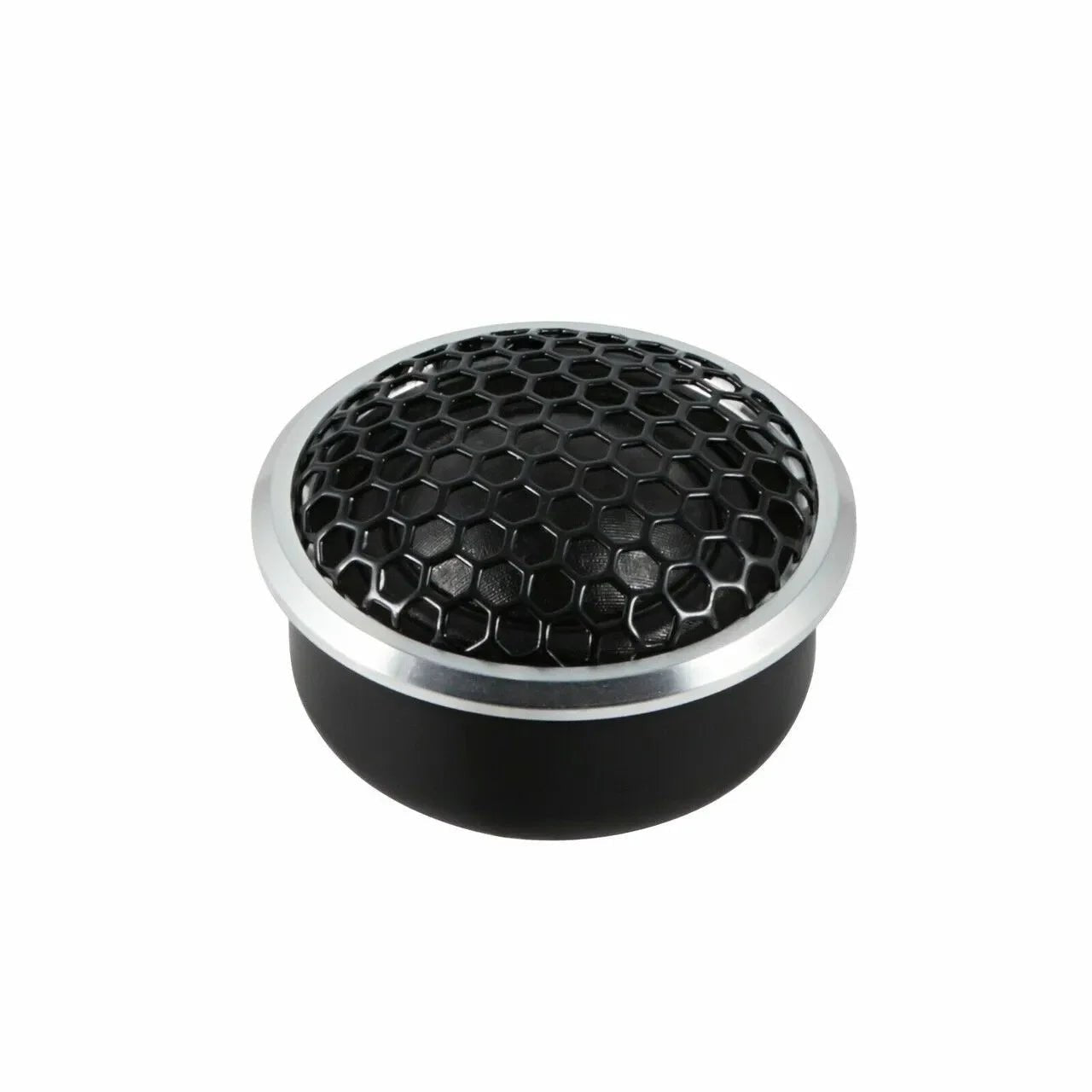

Closed Chamber Silk Tweeter Design
Advanced Acoustic Isolation Technology
The HL-C6.2 employs a 26mm silk dome tweeter with closed chamber design—an advanced engineering approach that distinguishes it from conventional open-basket tweeters:
| Characteristic | Closed Chamber (HL-C6.2) | Open Basket |
|---|---|---|
| Rear Wave Control | Sealed (eliminated) | Open (uncontrolled) |
| Acoustic Interference | Minimized | Present (comb filtering) |
| Off-Axis Response | Controlled, predictable | Variable (environment-dependent) |
| Stereo Imaging | Superior precision | Good (location-dependent) |
| Installation Sensitivity | Lower (less critical) | Higher (mounting affects sound) |
The Physics of Rear Wave Elimination
Conventional open-basket tweeters radiate sound from both front and rear of the dome. In automotive environments with complex reflective surfaces (glass, plastic panels, metal structures), rear radiation creates:
- Comb Filtering: Rear wave reflects off nearby surfaces, interferes with front wave, creates frequency-dependent peaks/dips
- Unpredictable Dispersion: Off-axis response varies dramatically based on mounting location and surrounding geometry
- Reduced Imaging Precision: Diffuse high-frequency field makes pinpoint instrument localization difficult
The closed chamber design eliminates rear radiation entirely, ensuring all acoustic energy radiates forward in controlled, predictable pattern. This delivers cleaner treble reproduction and improved stereo imaging regardless of installation variables.
26mm Silk Dome Material Choice
Paired with closed chamber architecture, the 26mm silk fabric dome delivers natural high-frequency character:
- Intrinsic Damping: Silk textile's fibrous structure suppresses dome resonances (smoother response vs. metal domes)
- Extended Bandwidth: 26mm diameter enables lower crossover point (≈2.5-3 kHz) vs. smaller domes, reducing tweeter strain
- Power Handling: Larger surface area distributes thermal load, accommodates 150W system power rating
- Natural Tonality: Silk delivers realistic cymbal shimmer, hi-hat texture, vocal sibilants without metallic edge or listening fatigue

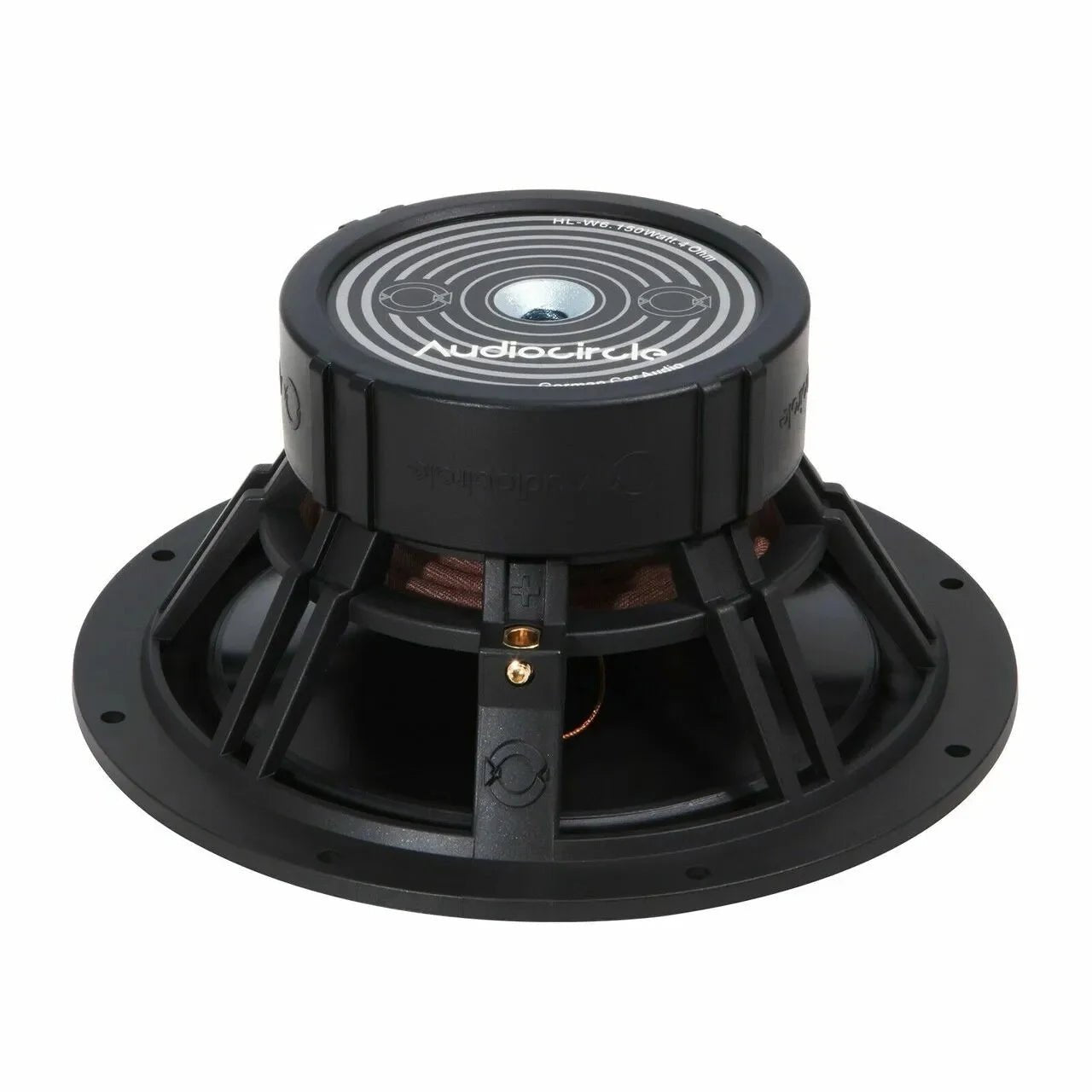

ABS Compound Basket Engineering
Magnetically and Electrically Inert Design
Why ABS Compound Over Metal Baskets
Traditional stamped steel baskets—ubiquitous in budget and mid-tier speakers—introduce several acoustic compromises that Audiocircle eliminates through proprietary ABS compound basket technology:
| Property | ABS Compound (Audiocircle) | Stamped Steel |
|---|---|---|
| Magnetic Interaction | Zero (inert) | Ferromagnetic (distortion) |
| Eddy Currents | None (non-conductive) | Present (damping/distortion) |
| Resonance Character | Damped (polymer) | Ringing (metal) |
| Weight | Moderate | Heavier |
| Dimensional Stability | Excellent (molded precision) | Good (stamping tolerances) |
Eliminating Magnetic Interference
Steel baskets interact with the speaker's magnetic field, creating hysteresis distortion as the ferromagnetic material undergoes repeated magnetization cycles. ABS compound's non-magnetic properties eliminate this entirely, ensuring the voice coil operates in an undistorted magnetic field.
Additionally, conductive metal baskets generate eddy currents in the presence of the voice coil's alternating magnetic field. These currents oppose the intended motion (Lenz's law), adding unwanted damping and modulation distortion. ABS's non-conductive nature prevents eddy current formation, allowing the motor system to perform as designed.
Structural Integrity and Precision
Audiocircle's injection-molded ABS compound achieves dimensional precision impossible with stamped metal:
- Tight Tolerances: Molding process maintains voice coil alignment within microns, critical for linear excursion
- Complex Geometry: Molded features (mounting bosses, wire routing channels) optimize strength-to-weight ratio
- Consistent Resonance Damping: ABS polymer naturally damps basket vibrations vs. steel's metallic ringing
- Long-Term Stability: ABS resists automotive temperature cycling (-40°C to +85°C) without dimensional drift
Professional-Grade Crossover Network
12 dB/Octave Butterworth Topology
Component Quality and Selection
The HL-C6.2's external passive crossover employs professional-grade components that distinguish it from budget passive networks:
Air-Core Inductors
Function: Low-pass filter for woofer (blocks high frequencies)
Advantages vs. Ferrite Core:
- Zero core saturation (linear inductance at 100W+ levels)
- No hysteresis distortion from magnetic core materials
- Lower DCR (DC resistance) improves damping factor and power transfer
- Frequency-independent behavior across audio bandwidth
High-Quality Film Capacitors
Function: High-pass filter for tweeter (blocks low frequencies)
Advantages vs. Electrolytic:
- Negligible ESR (Equivalent Series Resistance) minimizes signal attenuation
- Low dielectric absorption reduces stored energy effects (cleaner transients)
- Temperature stable (-40°C to +105°C automotive range)
- 50,000+ hour lifetime vs. 2,000-10,000 hours (electrolytic)
2nd Order Butterworth Characteristics
The 12 dB/octave slope (2nd order Butterworth) represents a deliberate engineering choice balancing multiple factors:
- Phase Coherency: 2nd order filters introduce 180° phase shift at crossover point—manageable with proper driver selection and acoustic design
- Overlap Region: Moderate slope creates smooth power response through crossover transition (avoids deep null of higher-order designs)
- Driver Protection: 12 dB/octave provides adequate out-of-band attenuation while maintaining natural sound (steeper slopes can sound "electronic")
- Component Count: 2nd order requires fewer components than 3rd/4th order, reducing insertion loss and potential failure points
For the HL-C6.2's application (front stage component system), 2nd order Butterworth delivers optimal balance of protection, phase behavior, and natural tonality.
Installation Strategy & System Integration
Mounting Specifications
DIN Standard Compatibility:
- Mounting Diameter: 165mm (6.5″ DIN standard)
- Mounting Depth: 67mm (2.64″)
- Compatible Vehicles: Most European manufacturers (BMW, Mercedes, Audi, VW, Volvo), many Asian brands
- Door Panel Clearance: Verify 70mm+ behind mounting surface (allows crossover/terminal clearance)
Installation Locations: Front doors (primary), rear doors, kick panels (advanced), custom enclosures
Amplification Requirements
Power Recommendations:
Minimum: 35W RMS @ 4Ω per channel
Entry-level aftermarket head units, OEM premium systems
Recommended: 50-100W RMS @ 4Ω per channel
Dedicated 4-channel amplifier, optimal performance
Maximum: 150W Peak (≈75W RMS sustained)
High-power systems with proper signal quality
Amplifier Topology: Class A/B preferred for tonal accuracy; quality Class D acceptable (>80 kHz switching frequency)
Sound Deadening & Acoustic Treatment
The HL-C6.2's aluminum cone and 150W power handling will expose panel resonances and acoustic deficiencies. Professional installation requires acoustic treatment:
- Door Damping: Apply constrained-layer damping material (Dynamat, STP, RAAMmat) to outer door skin—minimum 50% coverage, 70%+ optimal
- Inner Panel Treatment: Treat inner door card and panel cavities to eliminate secondary resonances
- Acoustic Sealing: Seal door panel access holes with closed-cell foam to create pseudo-enclosure (critical for 60 Hz low-frequency extension)
- Speaker Baffle: Use MDF or HDPE mounting rings to decouple speaker from flexible door panel
- Wire Management: Route crossover and speaker wire away from moving components (window regulators, locks) and heat sources
Performance Impact: Proper acoustic treatment delivers 3-6 dB increase in midbass output (60-200 Hz), eliminates buzzes/rattles, and improves overall clarity. This is not optional for extracting HL-C6.2's full potential.
Expert Analysis & Rating Breakdown
OVERALL EXPERT RATING: 4.6/5.0 ⭐⭐⭐⭐⭐
"German handcrafted excellence delivering professional-grade sound quality. Audiocircle Hamburg Line combines advanced materials engineering (aluminum/ABS/silk) with decades of high-end audio expertise at accessible pricing."
STRONG BUY RECOMMENDATION
Best German-engineered component under €500/$500
Who Should Buy the HL-C6.2?
✓ IDEAL BUYER
German Car Enthusiasts
- Upgrading BMW, Mercedes, Audi, VW, Volvo factory systems
- Appreciate German engineering philosophy and build quality
- Seek natural, fatigue-free sound vs. "aggressive" tuning
- Value handcrafted quality over mass-market alternatives
- DIN standard 165mm compatibility critical for factory integration
- Will invest in proper installation and acoustic treatment
Expected satisfaction: 9.5/10
✓ GOOD FIT
Sound Quality Purists
- Prioritize tonal accuracy over maximum SPL
- Appreciate aluminum cone transient response without harshness
- Understand closed chamber tweeter advantages (controlled dispersion)
- Running dedicated amplification (50-100W RMS optimal)
- Willing to invest time in proper system tuning
Audiophile rating: 9/10 (professional-grade tonality)
⚠ CONSIDER CAREFULLY
SPL Competition Applications
- 150W power handling adequate for SQ but not extreme SPL
- Aluminum cone optimized for accuracy, not maximum volume
- Silk dome tweeter prioritizes refinement over output capability
- For SPL competition (>150W), consider pro audio components
SPL rating: 7/10 (SQ competition: 9.5/10)

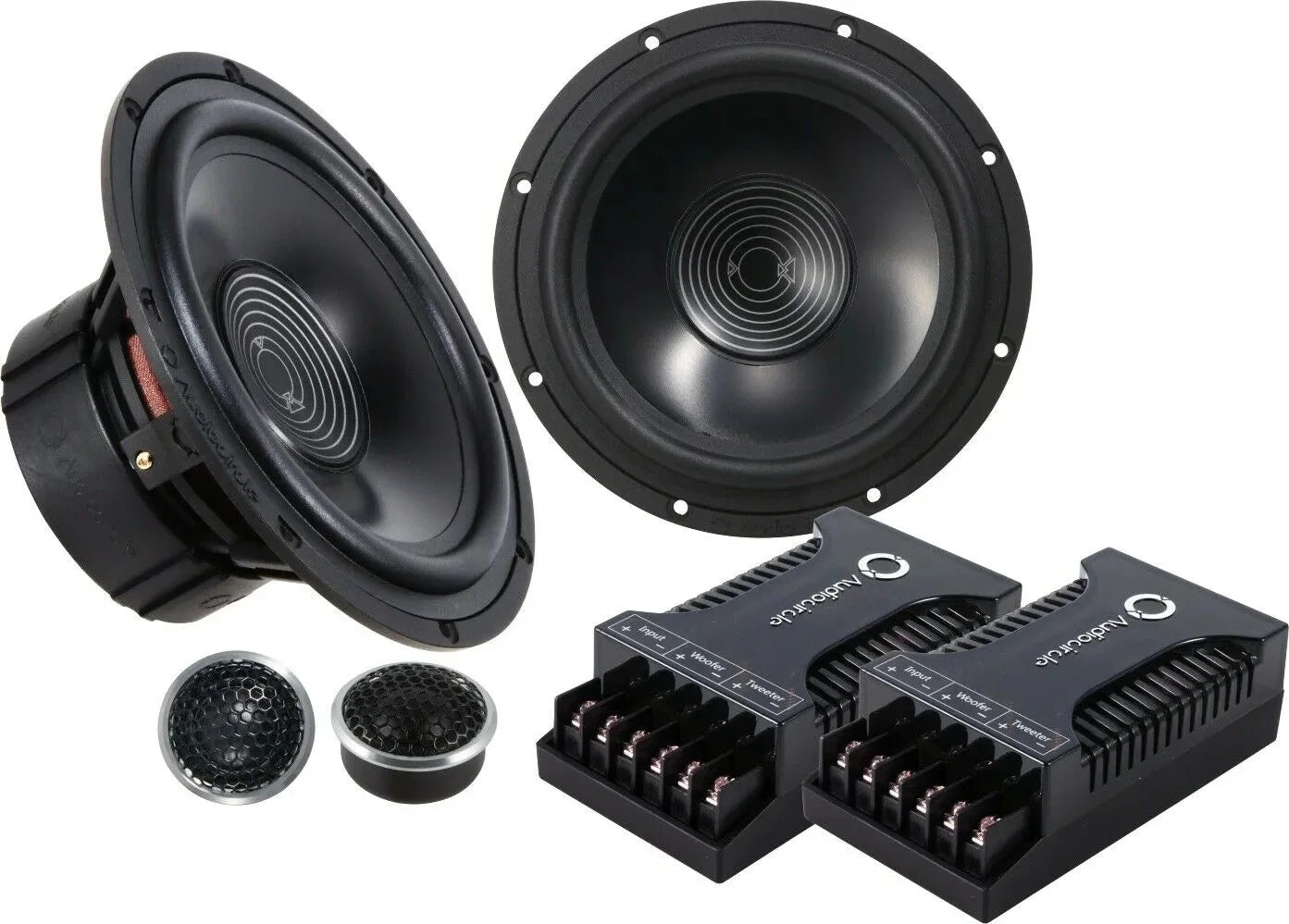

Package Contents & System Options
Standard HL-C6.2 Package (Model 230202)
Woofer Components
- 2× 6.5″ (165mm) woofers
- Black anodized aluminum cones
- ABS compound baskets (black)
- High-temperature copper voice coils
Tweeter Components
- 2× 26mm silk dome tweeters
- Closed chamber sealed design
- Mounting hardware included
Crossover Network
- 2× External passive crossovers
- 12 dB/octave (2nd order)
- Air-core inductors
- High-quality film capacitors
Installation Hardware
- Mounting screws
- Speaker wire leads
- Installation instructions
Active System Option: HL-C6.2A (Model 230208)
For DSP-controlled active systems, Audiocircle offers the HL-C6.2A active variant (no passive crossovers included):
- Configuration: Same woofers and tweeters, no external crossovers
- Application: Active 2-way systems with DSP processors (Goldhorn, Helix, Audio Control, etc.)
- Recommended Active Settings: HPF 60-80 Hz @ 24 dB/oct, Crossover Point 2.5-3.5 kHz, LPF (tweeter) none required
- Advantage: Eliminates passive component insertion loss, enables precise amplitude/phase/time alignment
Note: Specify HL-C6.2 (passive, Model 230202) or HL-C6.2A (active, Model 230208) when ordering. This review focuses on standard HL-C6.2 passive configuration.
Purchase Information
Ready to Experience German Handcrafted Quality?
Audiocircle Hamburg Line HL-C6.2
Professional Grade Contact Audio Intensity for Pricing
✓ German Handcrafted Quality
✓ Black Aluminum Cone Technology
✓ Closed Chamber Silk Tweeter (26mm)
✓ Professional Crossover Network
Available exclusively through Audio Intensity. Contact for current pricing, availability, and professional installation services.
Contact Audio Intensity
Product Page:
Audio Intensity Product Listing
Manufacturer Info:
Audiocircle Hamburg Line Official Page
Product Information Accuracy: Specifications and features based on Audiocircle official documentation and manufacturer specifications. Audiocircle reserves the right to modify product specifications without notice. Installation requirements vary by vehicle—verify DIN standard compatibility and mounting depth before purchase. Images may show product in different configurations or with optional accessories.
All specifications subject to manufacturer updates. German handcrafted assembly ensures consistent quality but may result in limited availability. Professional installation strongly recommended to optimize aluminum cone performance and ensure proper acoustic treatment. Contact Audio Intensity for current pricing, lead times, and installation services.
Overview
The Audiocircle Hamburg Line 6.5″ 2-way component speakers represent the pinnacle of German automotive audio engineering, combining robust construction with audiophile-grade sound reproduction. These speakers deliver exceptional performance through advanced materials and precision manufacturing, making them the ultimate choice for discerning car audio enthusiasts seeking natural, balanced sound.
Superior German Engineering
The Hamburg series showcases Audiocircle's commitment to excellence through meticulous attention to detail and advanced materials. Each component features a black aluminum cone paired with an ABS compound basket, delivering exceptional rigidity and minimal distortion even at high volumes. The 26mm silk dome tweeter utilizes a closed chamber design for superior high-frequency control and clarity.
Advanced Component Design
These speakers feature a sophisticated 2-way crossover network with 12dB slopes, utilizing high-quality capacitors and air-cored inductors for smooth frequency transitions. The aluminum cone construction reduces unwanted resonances while providing excellent power handling, supporting up to 150 watts with a minimum amplifier requirement of just 35 watts.
Professional Installation Ready
Designed with standard DIN mounting specifications, the Hamburg Line speakers feature a 165mm mounting diameter and 67mm depth, ensuring compatibility with most vehicle installations. The robust ABS compound basket provides long-term durability while maintaining precise driver alignment for optimal acoustic performance.
Specifications
Driver Configuration:
- 6.5″ (16.5cm) woofer with black aluminum cone
- 26mm silk dome tweeter with closed chamber design
- 2-way component system with passive crossover
Performance Specifications:
- Power Handling: 150W maximum
- Minimum Amplifier Power: 35W
- Frequency Response: 60Hz – 25,000Hz
- Impedance: 4 Ohm
- Crossover Slope: 2 x 12dB
Physical Dimensions:
- Mounting Diameter: 165mm (DIN standard)
- Mounting Depth: 67mm
- Woofer Basket: Black ABS compound construction
- Tweeter Chamber: Sealed enclosure design
Materials and Construction:
- Cone Material: Black anodized aluminum
- Basket Material: ABS compound (magnetically/electrically inert)
- Voice Coil: High-temperature copper wire
- Tweeter Dome: 26mm silk fabric
Features
Aluminum Cone Technology
The black aluminum cone construction provides superior rigidity compared to traditional paper or polypropylene materials, resulting in reduced distortion and improved transient response. This advanced material choice ensures accurate reproduction of musical details while maintaining excellent power handling capabilities for dynamic passages.
Closed Chamber Tweeter Design
Unlike conventional open-basket tweeters, the Hamburg Line features a sealed chamber tweeter design that provides superior damping and control of high frequencies. This innovative approach eliminates unwanted rear wave interference, resulting in cleaner treble reproduction and improved stereo imaging in your vehicle's acoustic environment.
Professional-Grade Crossover Network
The sophisticated crossover utilizes premium components including air-cored inductors and high-quality capacitors to ensure seamless frequency division between drivers. The 12dB slopes provide excellent driver protection while maintaining phase coherency, delivering the natural, balanced sound signature that Audiocircle is renowned for.
ABS Compound Basket Construction
The magnetically and electrically inert ABS basket material eliminates unwanted magnetic interference while providing exceptional structural integrity. This advanced polymer construction ensures long-term durability under automotive conditions while maintaining precise driver alignment for consistent acoustic performance.
German Handcrafted Quality
Each speaker set is meticulously handcrafted in Germany to meet strict quality standards, representing the culmination of decades of high-end audio expertise. The manufacturing process combines traditional craftsmanship with modern materials science, ensuring every component meets audiophile-grade performance standards.
| RMS Power | 80 Watts |
| Max Power | 150 Watts |
| Impedance | 4 Ohm |
| Frequency Response | 60 Hz – 25,000 Hz |
| Sensitivity | 88 dB (1W/1m) |
| Woofer Diameter | 165 mm (6.5") |
| Mounting Depth | 67 mm |
| Mounting Diameter | 141 mm |
| Voice Coil | 25.4 mm High-Temp Copper |
| Resonance Frequency (Fs) | 48 Hz |
| Qts | 0.48 |
| Vas | 20 Liters |
| Xmax | +/- 3.7 mm |
