Rainbow
Rainbow Audio EL-C6.2P 2-Way 6.5" Component Set
SKU: EL-C6.2P
Rainbow Audio EL-C6.2P 2-Way 6.5" Component Set
Closeout, remaining stock
Rainbow Audio EL-C6.2P 2-Way 6.5 Inch Component Set
Shallow-mount component set with an angle-adjustable mounting pan. 19mm silk dome, butyl rubber surround, vented 25mm Kapton former, 50Hz to 20kHz. Discontinued line, remaining stock only.
- Closeout
- Discontinued
- Shallow mount
- Final sale
What You Are Buying

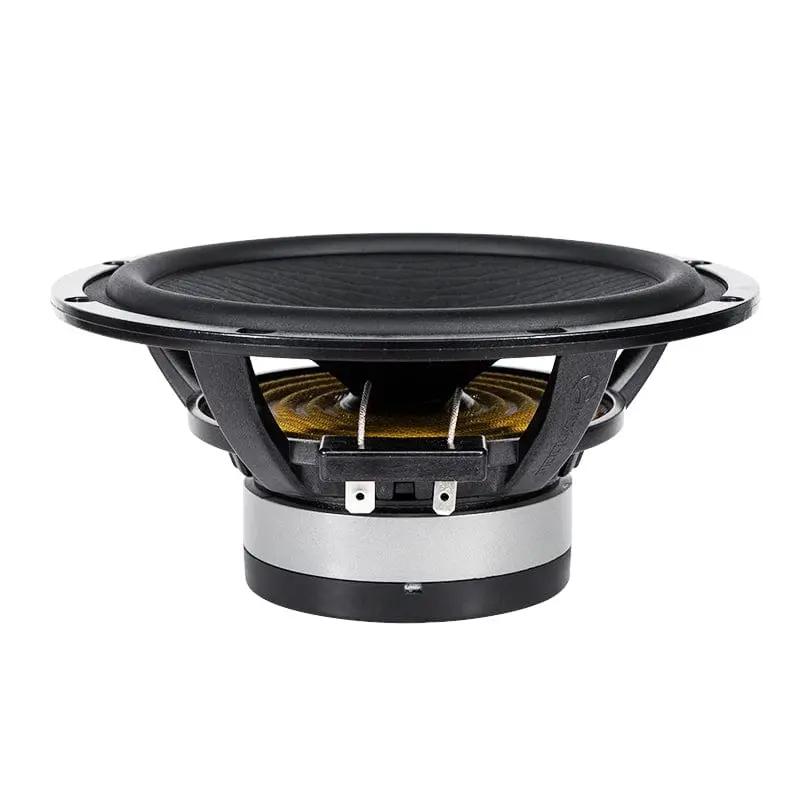

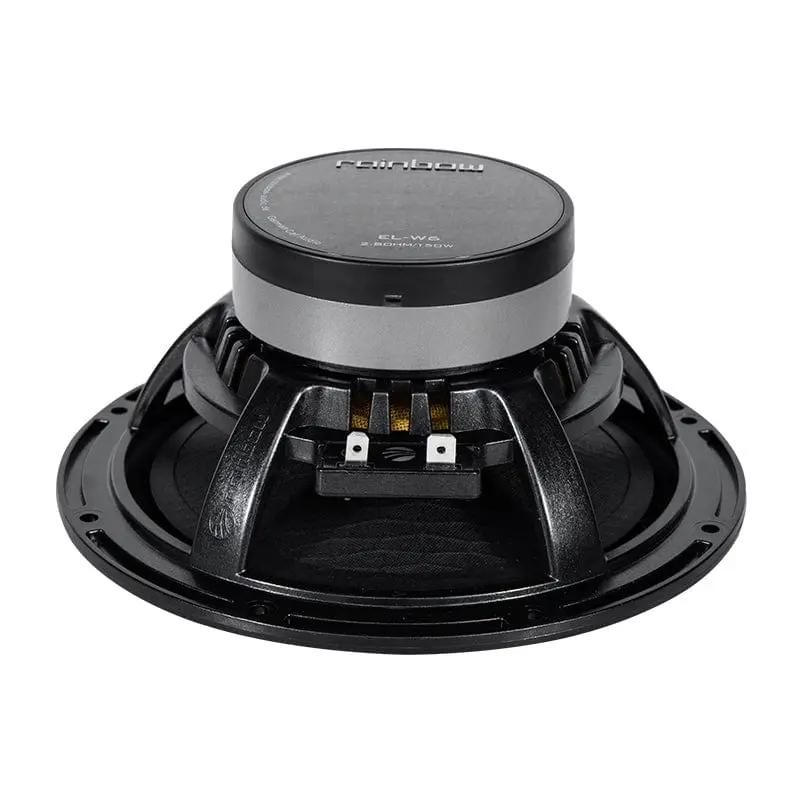

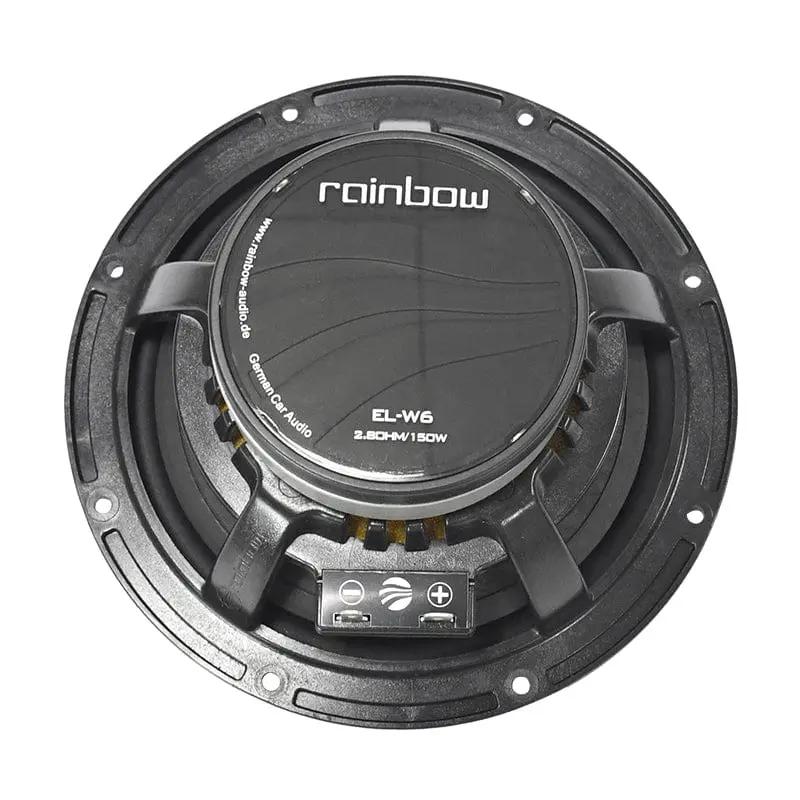

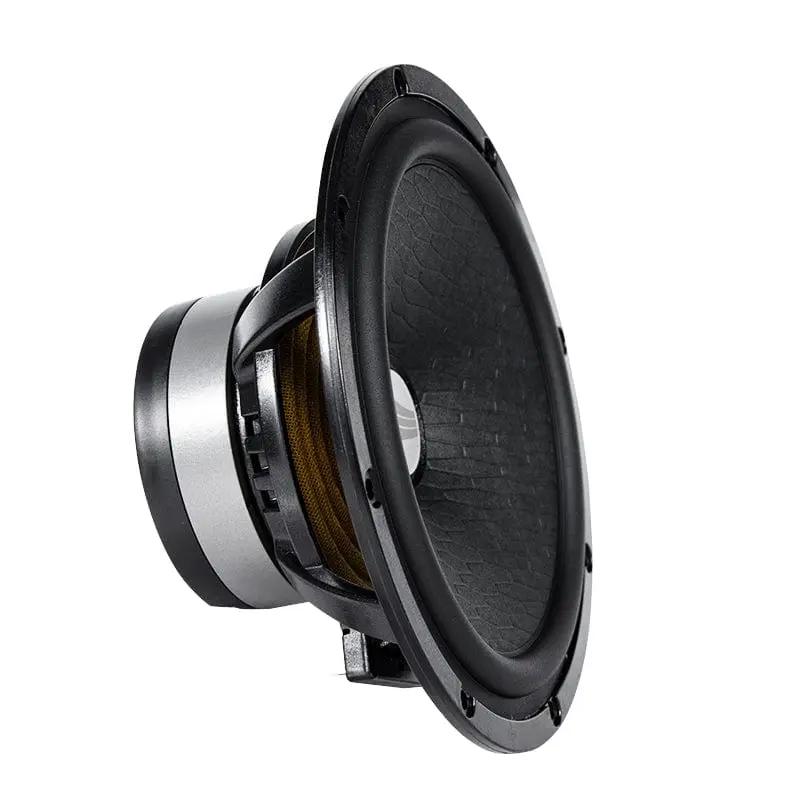

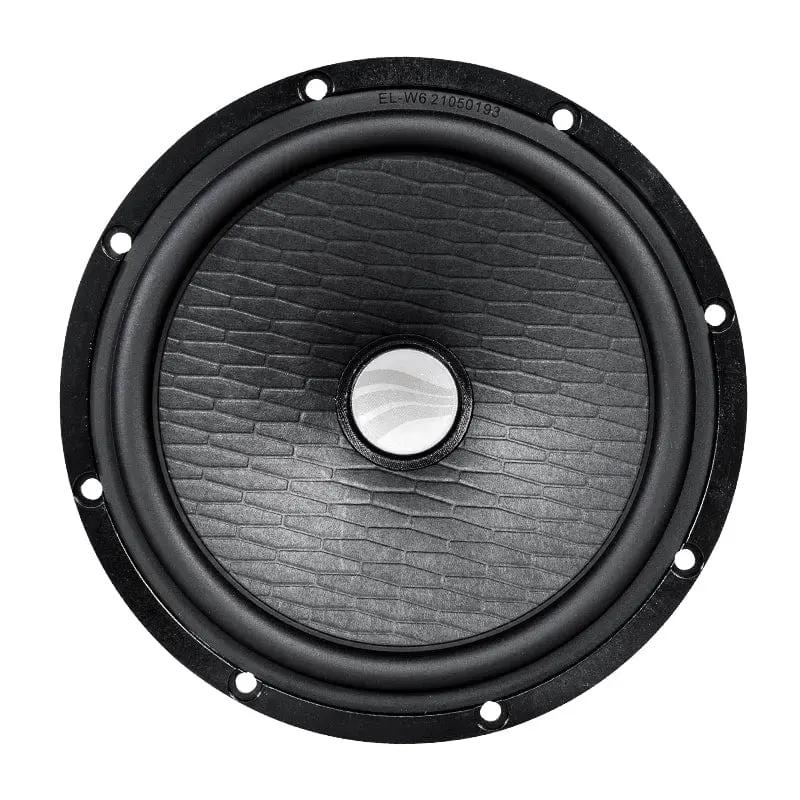

A two-way 6.5 inch component set from Rainbow's Experience Line: two woofers, two 19mm silk domes, two passive crossovers. Discontinued, and we are not restocking it.
The distinguishing feature is the mounting hardware. The woofer uses a shallow mounting pan with a sloping angle adjustment, which means you can tilt the driver in the baffle. On a factory door where the speaker points at your knees, a few degrees of aim is worth more than most spec-sheet upgrades.
Read this before you buy
Final sale. No returns, no exchanges, no manufacturer warranty. Discontinued model with no replacement pipeline, so a failed driver cannot be matched.
How Rainbow Rated This One
Rainbow did not publish an RMS power figure for the EL-C6.2P. What they published is an amplifier range: minimum 30W, maximum 150W. That is a different specification and it is worth understanding rather than converting.
A minimum amplifier power tells you the driver is not sensitive enough to do much below 30W. A maximum tells you where the manufacturer stops taking responsibility. Neither is an RMS thermal rating, and we are not going to invent one by dividing the maximum by two. Size your amplifier inside that 30 to 150W window and set the gain by ear rather than by arithmetic.
Reading the Specification
50Hz to 20kHz
A 50Hz lower limit is good for a 6.5 inch component woofer. It will carry more of the midbass on its own before a subwoofer has to take over, which matters if you are not running one.
Vented 25mm Kapton voice coil former
Kapton is a high-temperature polyimide film. It does not conduct heat the way an aluminum former does, but it also does not act as a shorted turn against the magnet gap, so you trade a little thermal path for a little more efficiency and less inductive distortion. The venting is what actually moves the heat. On a driver rated to accept 150W, this is the right combination.
Butyl rubber surround
Butyl outlasts foam by years in a car. On a discontinued speaker with no replacement path, a surround that will not rot is not a small detail.

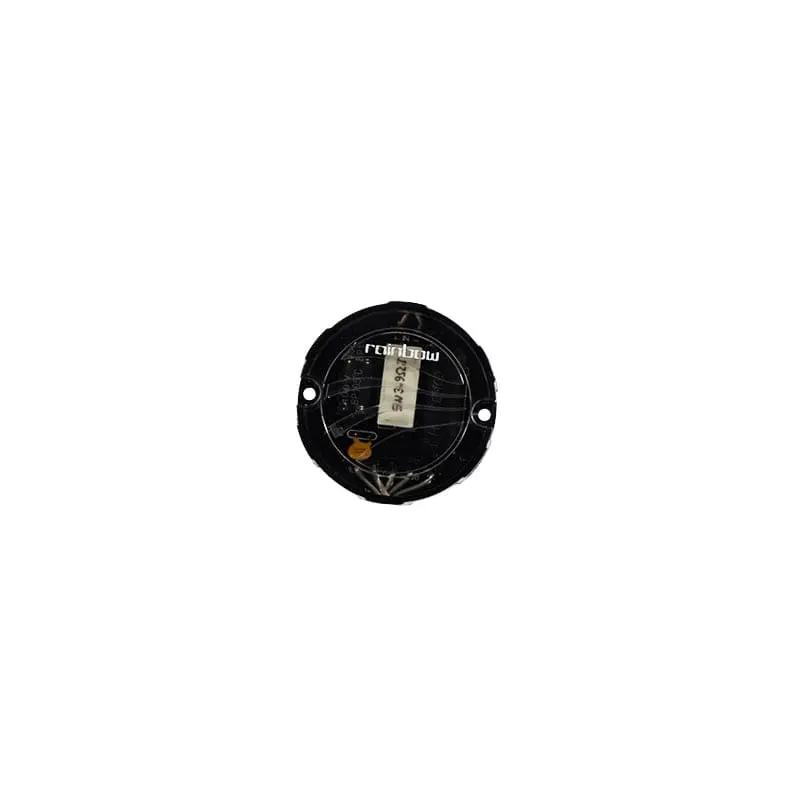

19mm silk dome
Silk rolls off gently and forgives a hard source. 19mm is small enough to disperse widely, which is what you want when the tweeter is aimed across the cabin rather than at you.
The angle adjustment is the reason to buy these
Most factory door locations fire the woofer at the floor and the far door card. Tilting the driver up even slightly moves the perceived stage and cleans up the midrange, because you stop listening to the reflection instead of the driver. Use the adjustment. It is free performance.
Fitment
- Standard 6.5 inch / 165mm mounting.
- Shallow mounting pan. Rainbow did not publish a depth figure for this model. If depth is your constraint, ask us and we will measure a set before it ships.
- Tweeters mount surface or flush.
- Crossovers need a dry, secured mounting location.
Who This Suits
Buy these if
- Your doors are shallow and most component woofers will not fit.
- You want to aim the woofer rather than accept where the door points it.
- You have an amplifier somewhere between 30 and 150W per channel.
- You accept a final sale on a discontinued product with no warranty path.
Look elsewhere if
- You need a published RMS figure to size a system precisely.
- You are running head unit power only.
- You want a one-hole coaxial install.
- You want warranty coverage or the option to return.
Installation
- Test-fit the woofer dry, window up and window down, before wiring.
- Set the mounting pan angle before final assembly. Getting back to it means pulling the door card again.
- Amplifier into the crossover input, crossover outputs to woofer and tweeter. Never feed the tweeter directly.
- Seal the inner door skin. A 50Hz-capable woofer in an unsealed door will not deliver 50Hz.
Condition and sale terms
Closeout stock from a discontinued Rainbow line. Sold as a final sale with no returns, no exchanges and no manufacturer warranty. Packaging may show shelf wear from storage. Specifications are as published by Rainbow, including the amplifier power range in place of an RMS rating and the absence of a published mounting depth. Once remaining stock is gone this listing will be removed.
Questions on fitment or depth before you buy: contact us.
| Type | 2-way component set |
|---|---|
| Woofer size | 6.5 inch / 165mm |
| Surround | Butyl rubber |
| Voice coil former | Vented 25mm Kapton, high temperature |
| Woofer finish | Folded and powder coated |
| Tweeter | 19mm silk dome |
| Series | Experience Line |
| Condition | Closeout, discontinued |
| Minimum amplifier power | 30W |
|---|---|
| Maximum power | 150W |
| RMS power | Not published by the manufacturer |
| Frequency response | 50Hz to 20kHz |
|---|---|
| Sensitivity | Not published by the manufacturer |
| Type | External passive |
|---|---|
| Capacitor | Film |
| Inductor | Low loss coil |
| Mounting pan | Shallow, with sloping angle adjustment |
|---|---|
| Mounting depth | Not published by the manufacturer |
| Impedance | Not published by the manufacturer |
Rainbow published an amplifier power range for this model rather than an RMS thermal rating, and did not publish sensitivity, impedance or mounting depth. Those rows say so rather than carrying a number we invented. Ask and we will measure or check a set before it ships.
