TRU Technology Billet B22-A v2.5 - 2-Channel Class A Amplifier
📦 Free Shipping, Fast Delivery
Every order includes:
- ✅ Free lifetime tech support
- ✅ 30-day price-drop protection
- ✅ 30-day returns
Brand: Tru Technology
Availability: ✅ In Stock

Competition Grade Products
TRU amplifiers and line amps come from the sound-quality competition scene. They deliver wide bandwidth, low noise, and clean power judges reward. The same gear appears in finalist and championship builds.

Made in the USA
Hand-built in California in small batches. Assembly and testing happen in-house for consistent results. Every unit ships with factory serials and documentation.

Free Shipping
We provide free, insured shipping on TRU orders within the continental USA. Per TRU policy, we confirm each order by phone or email before shipment. You receive tracking the day your amp ships.

Expert Advice / Support
Speak with an installer who knows TRU gain structure, line amps, and DSP integration. We help with power matching, wiring, and heat management. If you choose an authorized install, we guide you on warranty steps and proof of purchase.

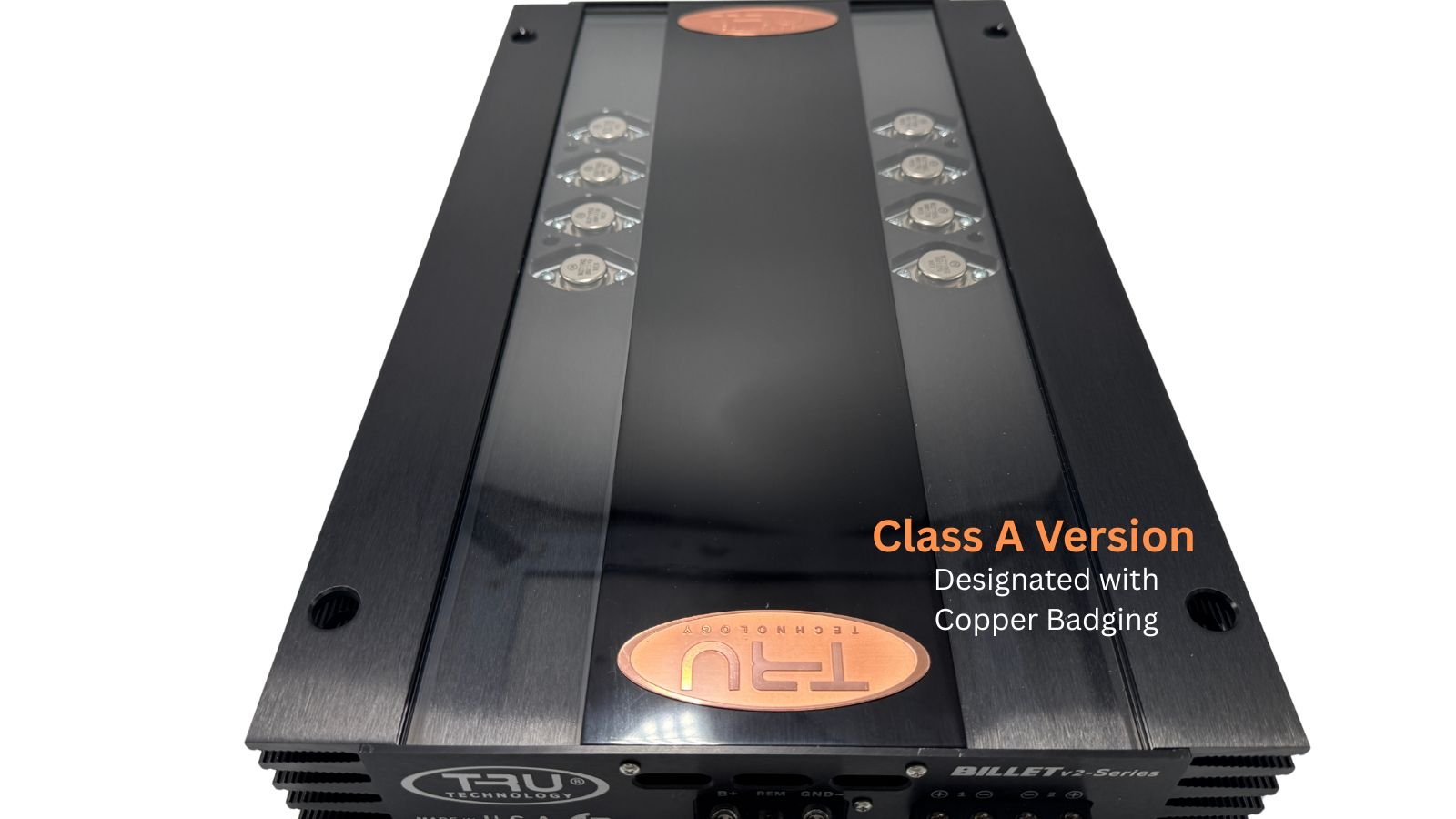

TRU Technology Billet B22-A v2.5 - 2-Channel Class A Amplifier
The Pinnacle of Audiophile Excellence - Hand-Crafted in California, USA
Product Overview
The TRU Technology Billet B22-A v2.5 represents the absolute pinnacle of car audio amplification, featuring a fully discrete Class A pre-amplifier circuit that defines reference-level sound quality. This hand-crafted masterpiece from La Crescenta, California delivers the kind of musical accuracy and refinement that separates true audiophiles from casual listeners.
Competition Proven Excellence: Used by multiple MECA World Champions including TeamTRU members who've captured 8 trophies at MECA Finals, including the prestigious Culbertson Cup for Best of Show Sound Quality.
Why Choose the Billet B22-A v2.5?
- ✅ Pure Class A Pre-Amplifier - The absolute finest pre-amplification available in car audio
- ✅ Hand-Built in USA - Individually crafted by artisans in California with rigorous QA
- ✅ Competition Heritage - Proven winner in MECA and IASCA sound quality competitions
- ✅ Fully Customizable - Extensive upgrade paths through TRU's Stage system
- ✅ Ultra-Low Noise Floor - Exceptional signal-to-noise ratio exceeding 100dB
- ✅ Limitless Exclusivity - Custom tuning options to match your musical preferences
Technical Specifications
Specification | Value |
---|---|
Model | B22-A (Class A) |
Channels | 2 |
Frequency Response | 10Hz ~ 30kHz ±0.5dB |
Rated Power @ 14.4VDC | |
├ 4Ω RMS | 200W x 2 |
├ 2Ω RMS | 300W x 2 |
└ 4Ω Bridged | 600W x 1 |
THD + Noise | < 0.1% |
Signal-to-Noise Ratio | > 100dB |
Input Sensitivity | 300mV ~ 9.5V (Pre-amp ON) |
Power Supply | 10VDC ~ 15VDC |
Fuse Requirement | 100 Amp |
Dimensions | 17" x 10.5" x 2.325" |
Construction | Hand-built, locally sourced extruded aluminum |
Made in | California, USA |
Key Features & Benefits

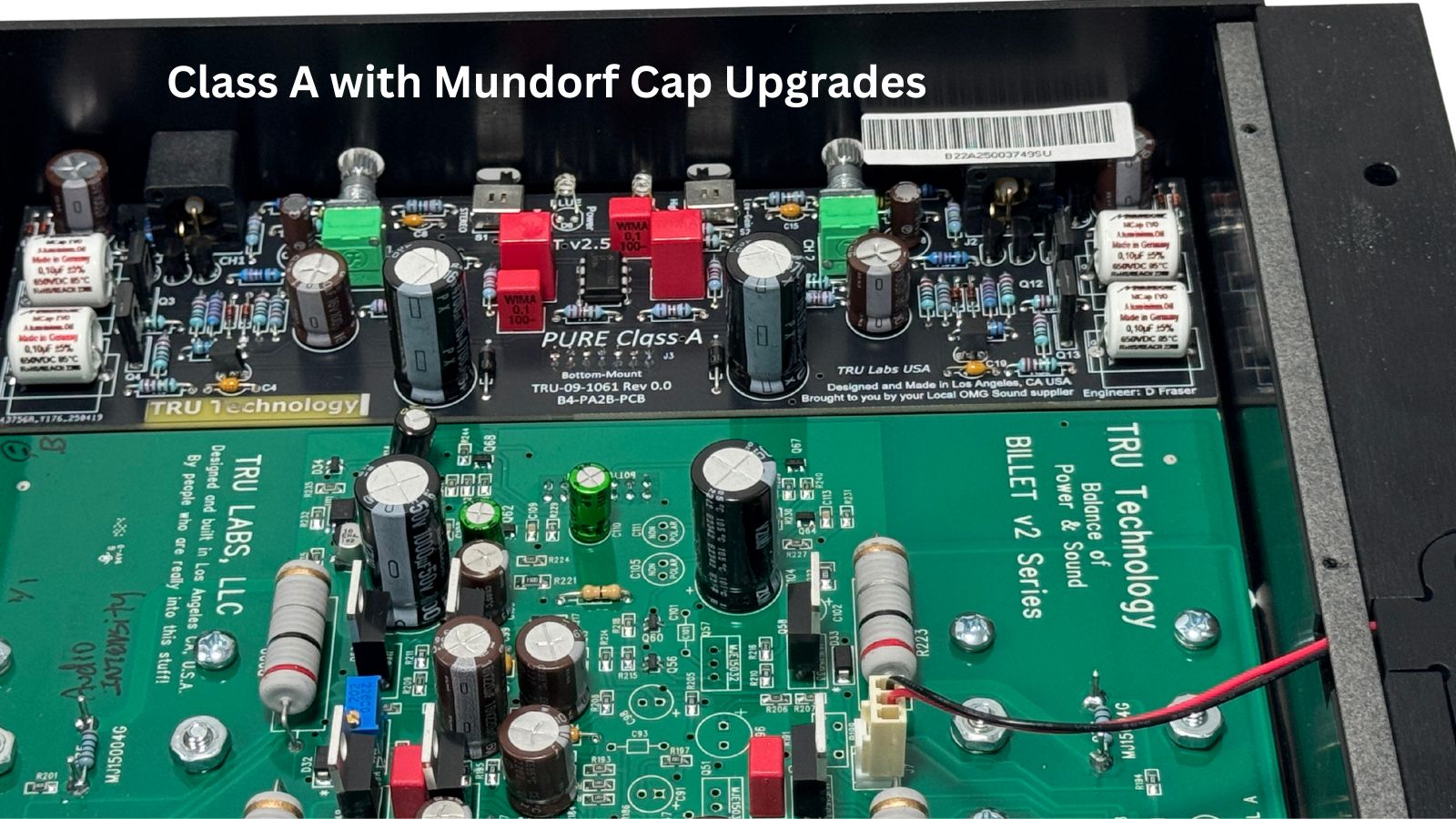

🎵 Fully Discrete Class A Pre-Amplifier Circuit
The B22-A features TRU's most advanced pre-amplifier design - a fully discrete Class A circuit that represents the absolute best within the Billet lineup. This pure analog design eliminates switching distortion and provides unparalleled musical accuracy.
🏆 Competition Proven Performance
TeamTRU Competition Results:
- 2020 MECA World Finals: 8 trophies including Best of Show
- Multiple MECA Championships with Tim Smith, Paul Adams, and Scott Butler
- Culbertson Cup Winner: Jim Becker (Best of Show Sound Quality)
- Used by champions in MECA Extreme, Modified, and Street classes
🔧 Made in USA Excellence
- Hand-crafted in La Crescenta, California by skilled artisans
- Locally sourced extruded aluminum construction (not cheap die-cast)

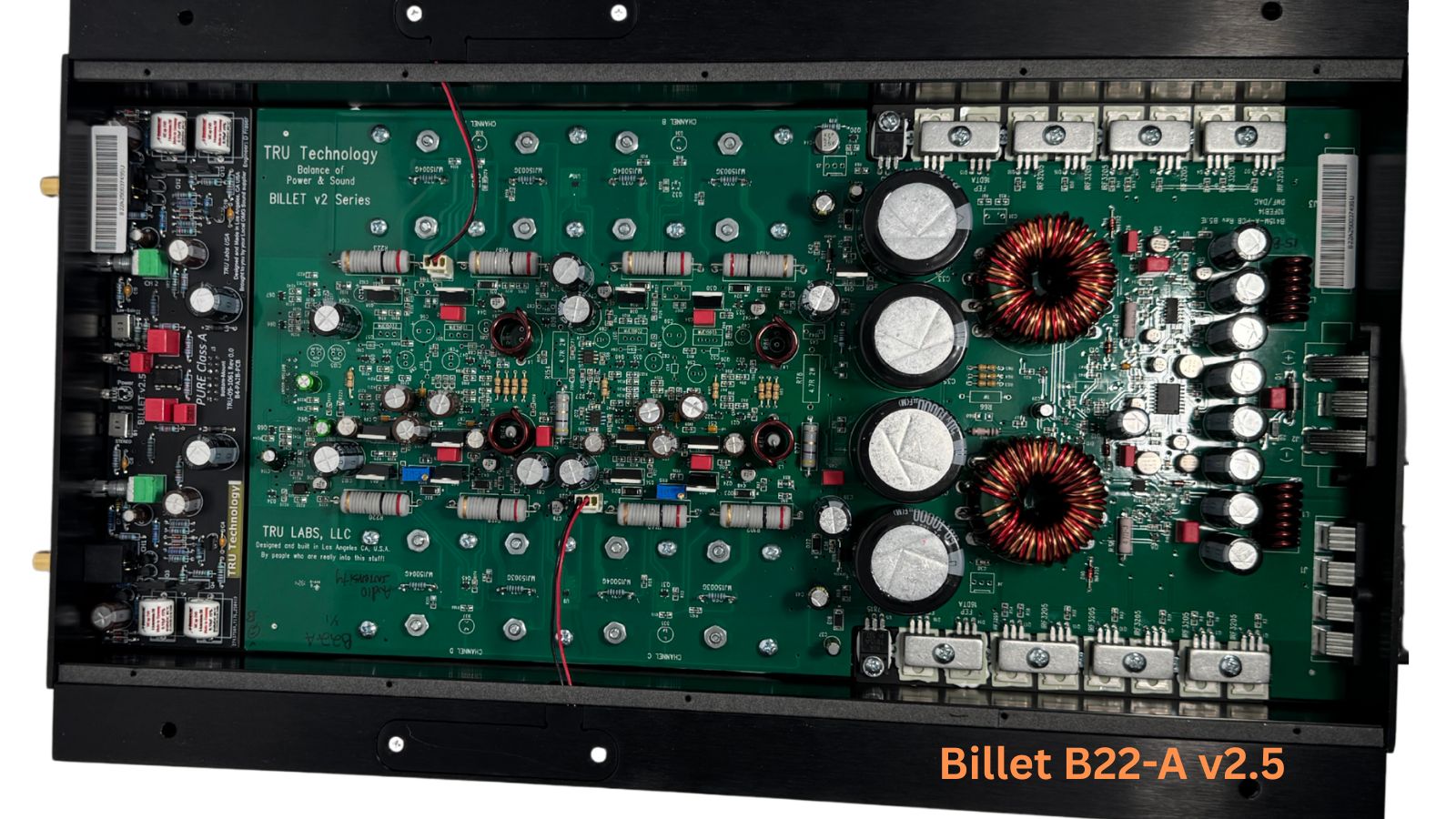

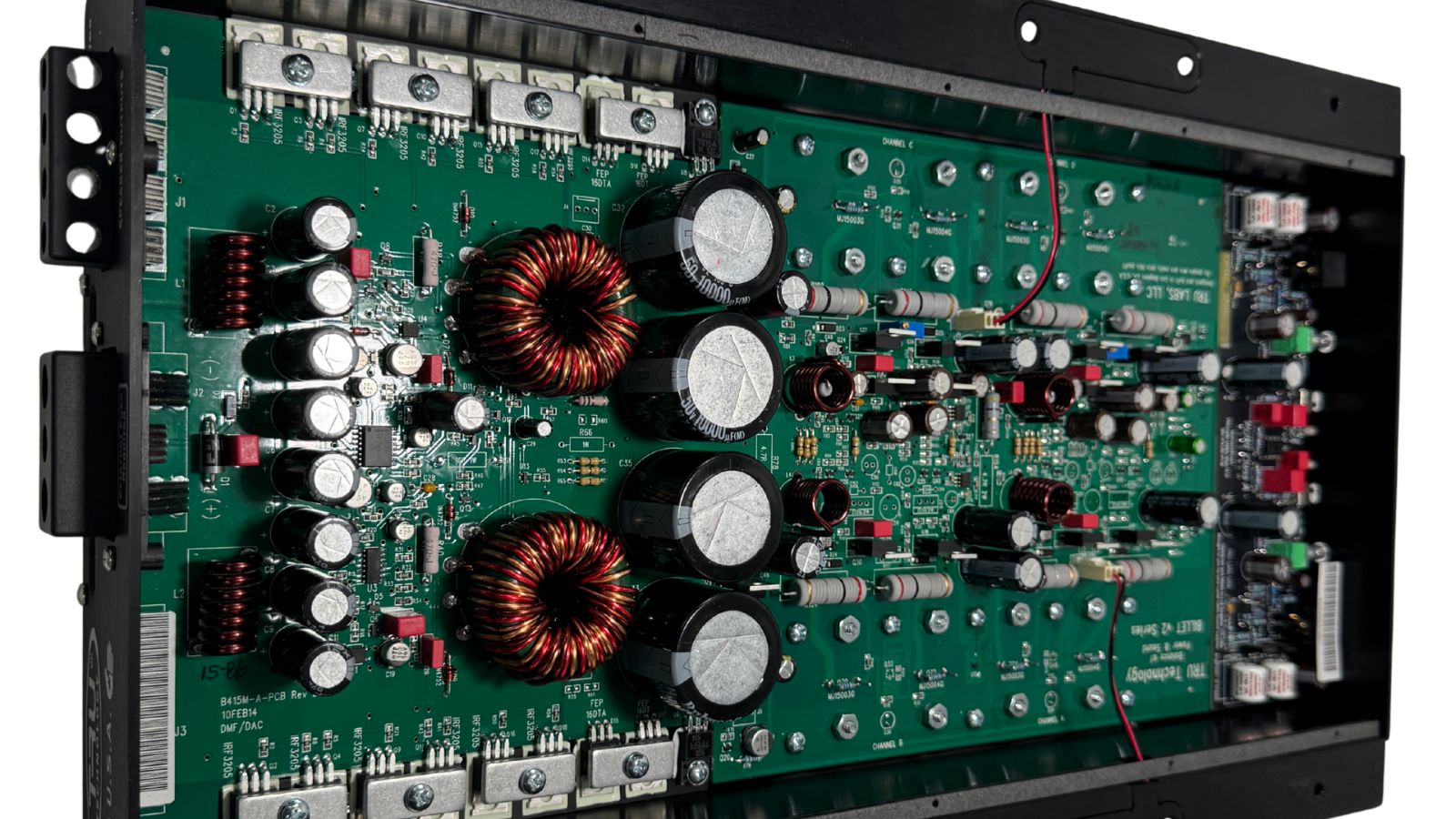

- 4-layer FR4 circuit boards with premium SMD and through-hole components
- Individual QA testing ensures each amplifier meets TRU's exacting standards
⚡ High-Bias Class A Operation
Important Installation Note: Due to the high-bias Class A design, this amplifier requires additional cooling beyond standard installations. Professional installation with proper thermal management is essential for optimal performance and longevity.
🎛️ Limitless Customization
TRU's exclusive Stage Upgrade System allows you to customize the sonic character:
- Stage I-V Upgrade Paths available
- Custom component selection for different tonal qualities
- Personalized tuning to match your musical preferences
- Professional voicing services available
What's Included
- TRU Technology Billet B22-A v2.5 Amplifier
- Comprehensive Owner's Manual
- Installation Hardware Kit
- TRU Technology Warranty Documentation
- Certificate of Hand-Crafted Authenticity
Installation Requirements
⚠️ Professional Installation Recommended
- Thermal Management: High-bias Class A operation requires enhanced cooling
- Power Supply: Clean 12V source with 100A fusing capacity
- Mounting: Adequate ventilation and airflow essential
- Wiring: High-quality OFC wiring recommended for optimal performance
Cooling Requirements
- Additional forced-air cooling strongly recommended
- Allow minimum 6" clearance on all sides
- Consider trunk-mounted installations for better thermal management
- Monitor operating temperature during initial setup
Who This Amplifier Is For
🏁 Sound Quality Competitors
Perfect for MECA, IASCA, and other SQ competitions where ultimate fidelity matters most.
🎯 Serious Audiophiles
Discerning listeners who demand reference-level accuracy and musical truth.
🛠️ Professional Installers
Experienced technicians building no-compromise systems for demanding clients.
🇺🇸 USA-Made Supporters
Enthusiasts who value American craftsmanship and manufacturing excellence.
Comparison Guide
Feature | B22-A (Class A) | B22-S (Class AB) | Competitor Class A |
---|---|---|---|
Pre-Amp Circuit | Fully Discrete Class A | Class AB | Varies |
Thermal Output | High (Cooling Required) | Moderate | High |
Sound Character | Ultimate Refinement | Excellent Balance | Varies |
Customization | Stage I-V Available | Stage I-V Available | Limited/None |
Competition Use | Reference Standard | Excellent | Varies |
Price Point | Premium | High-End | Premium |
Reviews & Testimonials
"Best sounding amps I've used in my vehicle. That includes Sinfoni, Brax, Steg Masterstroke, Zapco, Mosconi, Arc, etc. They have a super low noise floor too."
- DIYMobileAudio Forum Member
"Excellent SQ Competition Amplifiers that are high biased. These do require extra cooling."
- Competition Installer
"Pure sine wave action! None of that switching, oscillating and filtering class D crap here!"
- Audiophile Owner
Warranty & Support
- Manufacturer Warranty: Full factory warranty from TRU Technology
- Made in USA: Complete support and service from California facility
- Expert Technical Support: Direct access to TRU Technology engineers
- Authorized Dealer: Audio Intensity is your trusted TRU Technology specialist
Ready to experience the pinnacle of car audio amplification? Contact Audio Intensity today to discuss your TRU Technology Billet B22-A v2.5 and create your ultimate sound quality system.
Specifications
No specifications available for this product.
Features:
No feature information available for this product.
Owner's manual is not available for this product.
No video available for this product.
All About Tru Technologies
TRU Technology builds high-end car audio amplifiers and line amps for sound-quality fans. The brand comes from the competition scene. The goal is simple: clean power, wide bandwidth, and a silent noise floor.
Heritage and build
TRU makes products in small batches in California. Skilled builders assemble and test each unit. This control improves consistency and long-term reliability.
Product families
- Billet v2: Class-A/AB reference amplifiers for front stage duty. They focus on low distortion, linear gain, and detail at low listening levels.
- Tungsten & Tungsten Grande: Class-AB power with SQ voicing. These models suit active two-way and three-way systems where headroom and tone matter.
- Line Amps (LINE-2CA, LINE-6 v2, LINE-8 v2): Front-end signal amps that lower noise, stabilize gain, and improve dynamic range before the main amps.
Why competitors use TRU
TRU gear stays quiet between notes. It holds frequency response flat across the band. It keeps output stable during long listening sessions. Installers trust it for judging lanes because results are repeatable.
System use cases
Use Billet v2 for tweeters and midrange where micro-detail matters. Use Tungsten or Tungsten Grande for midbass or full-range channels that need strong current. Add a TRU line amp when your DSP or source needs cleaner gain structure.
Buying and support
TRU protects customers with an authorized-dealer process. Some models require a phone or email consultation before purchase. If you choose an authorized install, the brand may offer extended warranty coverage per its terms. Audio Intensity provides free, insured shipping in the continental USA, order confirmation, and tracking. Our team can assist with gain staging, wiring, and heat management so your system performs as designed.
Frequently Asked Questions
Why does this amplifier require additional cooling?
What's the difference between B22-A and B22-S?
Can I upgrade this amplifier later?
Is professional installation required?
What makes this amplifier competition-grade?
How much power does this amplifier draw from my electrical system?
What type of speakers work best with this amplifier?
