Where the cabinet is the point

Professional Series Subwoofer Boxes

Ported reference cabinets on a triple 2.25 in baffle, CNC-cut in Tullahoma, Tennessee.

Proline X professional series subwoofer enclosure high-performance banner.

Where the cabinet is the point

Professional Series is where the cabinet stops being a container and becomes part of the system. A triple 2.25 inch baffle with the woofer flush-mounted in the outer layer, more internal bracing, and port work sized to the driver's rated power rather than to a convenient number.

It is also the part of the range that runs ported by default, because the drivers built to take that kind of loading are the ones this standard exists for.

Professional cabinets in stock | ported by default, tuning stated per cabinet | triple 2.25 in baffle, flush-mounted woofer | port checked at 1.5x rated power | 2 year warranty

Cut, assembled and finished in Tullahoma, Tennessee, on ShopSabre routers from Langboard Elite MDF.

Net volume for a driver-matched cabinet is calculated from the parameters the driver manufacturer publishes for that model. Universal-cutout cabinets are cut to a standard cutout and a stated volume range instead.

Decision Shortcut

Find Your Match

Curated picks matched to common build goals

Best Pro for JL Audio W7

Professional Series Enclosure JL Audio 13w7 Ported Box

Proline X

Professional Series Ported 12" Enclosure | JL Audio 12W7AE

Built for the JL Audio 12W7. Double-layer baffle, threaded inserts matched to W7 bolt pattern, calculated for W7 Thiele-Small parameters.

$ 501.99

View Details

Best Pro for Image Dynamics IDMAX

Car audio subwoofer enclosure with American flag design on a white background

Proline X

Professional Series Sealed 12" Enclosure | Image Dynamics IDMAX12 V4

Sealed Professional Series for the Image Dynamics IDMAX 12. SQL-grade build with double-baffle construction and threaded inserts.

$ 280.99

View Details

Best Pro for Kicker Solo X

Proline X X Series ported enclosure that fits a Kicker Solo-X subwoofer, slot port at left and US flag panel.

Proline X

Proline X Enclosure | X Series | Fits Kicker Solo X 12" Subwoofer

Fits the Kicker Solo X 12. Driver not sold here, but the enclosure is built to Solo X parameters with double-baffle support for the driver's high-excursion behavior.

$ 570.99

View Details

Best Pro Compact

Professional Series 6.5 inch Subwoofer Box

Proline X

Professional Series Ported 6.5" Universal Enclosure

Ported 6.5 inch Professional Series enclosure for compact builds where output and footprint both matter.

$ 262.99

View Details

Shop the Lineup

←
→

Professional Series Against Performance Optimized

These two standards are often compared and they are not competing. One is cut to a driver on a triple 2.25 inch baffle inside the Professional envelope; the other is cut to a driver on a 1.5 inch double baffle inside a trunk-sized envelope.

The two build standards side by side.
ProfessionalPerformance Optimized
Usual alignmentPorted by default; sealed for reference driversSealed or ported, solved per driver
Front baffleTriple 2.25 in, woofer flush in the outer layer1.5 in double
Threaded insertsOn the published bolt circle, else a kit shipsWhere the bolt pattern is on hand
AcrylicBrand-logo acrylic standardOptional insert
Cabinet sizeUp to the largest cabinet we cut: a dual 15 runs 46.5 inches wideTrunk envelope
ShippingParcel included to 105 lb, freight aboveParcel included
Best forOutput, and drivers built to take that loadingAccuracy, and the widest driver choice
Warranty2 year limited1 year limited

Shared across every row: Langboard Elite MDF cut on ShopSabre routers in Tullahoma, Tennessee. Plush black carpet. A Proline X ABS and carbon fibre composite terminal cup with stainless hardware, pre-wired in 12-gauge OFC. Construction method varies by series and is stated on each product page.

The Standard That Runs Ported

Across the rest of the range the alignment follows the driver: a Performance Optimized cabinet is solved sealed or ported to suit the model it is cut for. Professional Series starts from the port. The drivers at this level are built for output, their parameters put them in ported territory, and a sealed cabinet would cost a significant part of what they are capable of.

That changes what the cabinet has to do. Port area and velocity are checked against 1.5 times the driver's rated power, not its resting figure, because that is where a marginal port shows itself as chuffing. Port length sets the tuning, and the tuning is fixed at the cut rather than adjustable afterwards.

How to Choose a Professional Series Enclosure

Establish the space takes a ported cabinet

Ported needs more airspace than sealed for the same driver, and there is no way around that. If your space will not take the larger cabinet, a sealed enclosure in that space will outperform a ported one that was shrunk to fit.

Read the tuning, not just the volume

Two cabinets of identical net volume tuned a few hertz apart are different products. The stated tuning is the number that tells you where the cabinet does its best work.

Match the amplifier to the driver, honestly

These cabinets are built for drivers that draw real current. Work from RMS at your final wired impedance rather than from peak figures, and confirm the electrical system before ordering.

Then single or dual

On a ported build a dual usually shares one chamber and one port sized for the pair, so the quoted volume is the total rather than per driver. The listing states which arrangement it uses.

Sealed at this standard exists too

A few cabinets here are sealed, for reference drivers where control rather than output is the point. The construction is the same; the alignment is not.

Volume, Port, Then Driver

Confirm the airspace before anything else

A ported cabinet has to hold the net volume the alignment needs plus the port itself, and at this end of the range that total is substantial. Measure the whole opening rather than the face. This is the constraint that rules the alignment in or out.

Then read the tuning frequency

Lower tuning extends deeper and gives up midbass impact; higher tuning does the reverse. It is set by the port at the point of cutting, not adjustable afterwards, and each listing states what its cabinet is tuned to.

Then confirm the driver model

Two drivers of the same nominal size want different volumes and different tunings, and at this level the gap between them is larger in absolute terms. The product page names the model each cabinet was cut for.

Port Area Is Not a Detail

A port too small for the excursion the driver is rated to will make audible noise at volume, and no tuning afterwards removes it. Port area at this standard is sized for the excursion rather than for a convenient number, which is part of why the cabinets are as large as they are.

Ten Cubic Feet Is Real Space

The dual 15 in this line runs ten cubic feet net. That is not a space you find in a vehicle, it is one you plan the build around. Published external dimensions and shipped weight are on every listing, and they are the first thing to check, not the last.

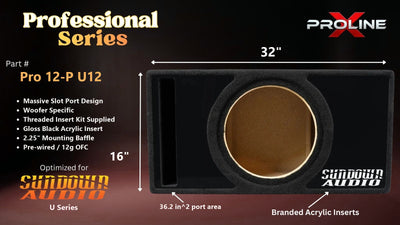

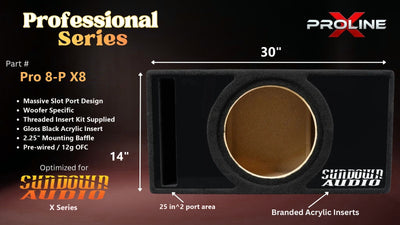

Triple Baffle, Flush-Mounted Woofer

Front baffle at this standard is a triple 2.25 inch layup: two structural 0.75 inch layers the woofer bolts through, plus an outer 0.75 inch layer routed so the woofer sits flush with the face. A glossy black, brand-logo acrylic insert is standard on every cabinet, not an option. The bracing is doing real work here, because the panel areas are large and the internal pressures are high.

The dual 15 in this line runs ten cubic feet net. That is not a space you find in a vehicle, it is one you plan the build around.

Ported

Built for output

The bulk of the range

Most of this standard. Port area sized for the excursion the driver is rated to and port length cut to a stated tuning, for drivers whose parameters put them in ported territory.

Read the tuning

Sealed

Built for control

The smaller group

A smaller group, for reference drivers where accuracy rather than output is the point. The same construction standard, a different alignment.

Polyfill pre-installed

Construction

Where the cabinet is the point

Triple 2.25 in baffle

A triple 2.25 inch baffle with the woofer flush-mounted in the outer layer, a brand-logo acrylic on every cabinet, and threaded inserts on the published bolt circle; where none is published, an insert kit ships with the box.

2 year limited warranty

Baffle thickness and construction method vary by series. Each product page states how that cabinet is built and, where it is driver-matched, which model it was cut for.

Categories

Keep Reading

Supporting guides to help you design, build, and tune your system.

Professional Series Questions

What makes a cabinet Professional Series?

Construction and intent. A triple 2.25 inch baffle with the woofer flush-mounted in the outer layer, a glossy black brand-logo acrylic insert standard on every cabinet, threaded inserts on the driver's published bolt circle or an insert kit where it isn't published, and port area and velocity checked at 1.5 times the driver's rated power rather than for convenience. Most Professional cabinets run ported; a few sealed builds exist for reference drivers where control is the point.

Why are most of these ported?

Because the drivers this standard exists for are built for output, and their published parameters put them in ported territory. A sealed cabinet would cost a significant part of what they can do. A few sealed builds exist here as well, for reference drivers where control is the point.

How much space does a Professional cabinet need?

More than most people plan for. A ported cabinet holds the net volume the alignment needs plus the port, and net volumes at this standard reach ten cubic feet. Published external dimensions are on every listing. Check them before you commit to the driver.

Can I change the tuning by modifying the port?

We do not recommend it. Port length and area are cut to produce a specific tuning for a specific driver, and altering either leaves you with an alignment nobody designed. If you want a different tuning, tell us and we will cut it.

What is the difference from Performance Optimized?

Performance Optimized is cut to one driver on a 1.5 inch double baffle, sealed or ported inside a trunk-sized envelope. Professional Series adds a triple 2.25 inch baffle with the woofer flush-mounted in the outer layer and standard brand-logo acrylic, and covers drivers whose alignment will not fit the Performance Optimized envelope on height, depth or width. Both are cut to the driver's published parameters; Professional carries a 2 year warranty against Performance Optimized's 1 year, and a Professional cabinet over 105 pounds ships freight instead of parcel.

Do these need a bigger amplifier?

They need an honestly matched one. Work from the driver RMS at your final wired impedance rather than from peak figures, and confirm your electrical system supports the current draw before ordering.

Related Collections

Every ported cabinet we cut

Browse curated picks that work with the products above.

Proline X 6.5-inch ported subwoofer enclosure, front view with the driver cutout and slot port

Proline X

Proline X P6-P | Single 6.5" Ported Subwoofer Enclosure | V3

$ 149.99
Proline X P8 - P Single 8-inch Ported Subwoofer Enclosure V3 - Proline X Subwoofer Enclosures for car audio systems

Proline X

Proline X P8-P | Single 8" Ported Subwoofer Enclosure | V3

$ 169.99
Proline X dual 6.5-inch ported subwoofer enclosure, front view showing both cutouts and the slot port

Proline X

Proline X P6D-P | Dual 6.5" Ported Subwoofer Enclosure | V3

$ 179.99
Proline X Ported Sub Box for 10 inch Subwoofers

Proline X

Proline X P10-P | Single 10" Ported Subwoofer Enclosure | V3

$ 199.99

View all ported subwoofer boxes | Need a custom build? Contact us

Related Collections

If control matters more than output

Browse curated picks that work with the products above.

Car subwoofer enclosure with visible brand logo on a gray background

Proline X

Performance Optimized Sealed 10" Enclosure | Sony ES

$ 199.99
Subwoofer in a black enclosure on a gray background

Proline X

Performance Optimized Sealed 10" Enclosure | Image Dynamics IDQ 10

$ 229.99
Performance Optimized Sealed 10-inch Enclosure Arc Audio 10-inch Arc Series - Proline X Subwoofer Enclosures for car audio systems

Proline X

Performance Optimized Sealed 10" Enclosure | Arc Audio 10" Arc Series

$ 229.99
A Proline PO 10-S W CompQ subwoofer enclosure shown on a dark promotional graphic with dimensions labeled 26.25 inches by 18 inches and feature text on the left.

Proline X

Performance Optimized Wedge Sealed 10" Enclosure | Kicker CompQ 10

$ 229.99

View all proline x performance optimized series enclosures | Need a custom build? Contact us

Related Collections

Pairs Well With This Collection

Browse curated picks that work with the products above.

Proline X Performance P15-S Sealed Enclosure for 15-inch Subwoofers

Proline X

Proline X P15-S | Single 15" Sealed Subwoofer Enclosure | V3

$ 219.99
A Proline Performance Optimized Series 15 inch car audio subwoofer enclosure, shown on a dark textured background with technical specifications and dimensions.

Proline X

Performance Optimized Wedge Sealed 15" Enclosure | NVX VCW15v3

$ 309.99
Proline X PO 15-S W P3 sealed wedge enclosure, front baffle with gloss black insert and pre-wired leads, 26.25 by 18 inches. Optimized for Rockford Fosgate P3.

Proline X

Performance Optimized Wedge Sealed 15" Enclosure | Rockford Fosgate P3D2-15

$ 329.99
Proline X placeholder graphic reading Photos Coming Soon over a United States flag, product photography pending.

Proline X

Performance Optimized Wedge Sealed 15" Enclosure | Image Dynamics IDMAX15 V.4

$ 329.99

View all 15 inch subwoofer boxes | Need a custom build? Contact us

Last updated September 6, 2026
