Proline X
Performance Optimized Sealed 10" Enclosure | Arc Audio 10" Arc Series
SKU: PO ARC 10-S BB none
- Best For: Single Arc ARC 10 Builds | SQ-Oriented Compact Systems
- Net Volume: 0.75 cu ft Sealed
- Driver Match: Arc Audio ARC Series 10 (D2 or D4)
- Construction: Threaded Inserts | Pre-Wired Terminal Cup
Financing available — choose Shop Pay Installments at checkout.

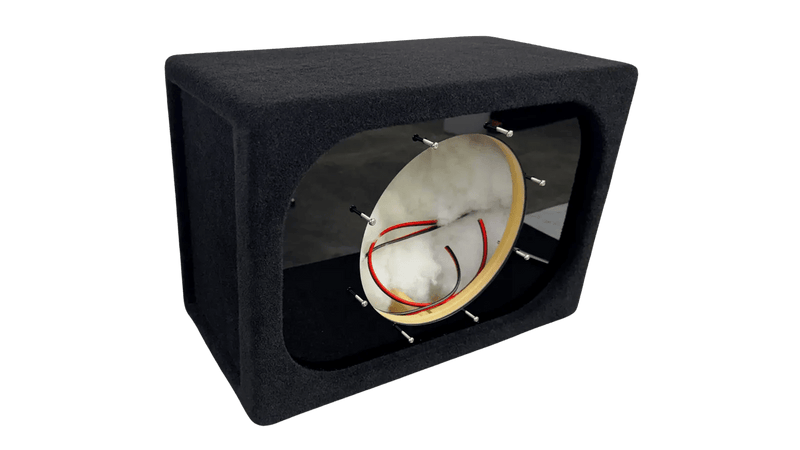

Performance Optimized Sealed 10" Enclosure | Arc Audio 10" Arc Series
Performance Optimized | Arc Audio ARC 10
Single 10" Sealed Enclosure | Driver-Specific for the Arc Audio ARC Series 10
The Arc Audio ARC 10 Deserves a Box Built for It
The Arc Audio ARC Series 10 is engineered around a linear excursion philosophy — consistent mechanical and electrical behavior across the full excursion range, high-temperature black anodized voice coils, and a four-spoke stamped steel basket with compound curves designed to eliminate resonance. Drop it in a generic box and you'll get good bass. Drop it in a cabinet engineered around its published Thiele-Small parameters and you'll hear what Arc's engineering team built it to do.
The Performance Optimized Sealed 10 for Arc Audio ARC 10 is that cabinet. Internal volume, baffle thickness, and mounting hardware are all chosen to extract the ARC 10's full mechanical and acoustic potential — not approximated, not averaged across a class of 10s, not adapted from a universal box.
This enclosure is engineered specifically around the Arc Audio ARC Series 10. The 0.75 cubic foot net volume is dialed toward the SQ side of Arc Audio's specified sealed range of 0.65 to 1.1 cubic feet — the sweet spot for the driver's linear excursion behavior.
Why Performance Optimized Sits Where It Does
The Performance Optimized line is the bridge between our standard Performance Series and our top-tier Professional Series. Same Performance-tier construction quality — Langboard Elite MDF, V-groove and dado joinery, ShopSabre CNC routing — but the geometry of every panel is cut around one specific driver instead of a class of drivers.
vs Performance Series
Standard Performance Series boxes (P6 through P15) are built for universal driver fitment within a size class. Great if you want flexibility across multiple driver options. Performance Optimized takes the same construction and locks the airspace and hardware to one specific driver.
vs Professional Series
Professional Series uses extensive multi-layer baffles, triple-stacked construction, and a 2-year warranty for the most demanding builds. Performance Optimized delivers driver-specific engineering at a more accessible price point with a 1-year warranty.
Engineered Around the Arc ARC 10's Parameters
Arc Audio specifies the ARC Series 10 for sealed enclosures between 0.65 and 1.1 cubic feet — 0.85 cubic feet as the published optimum. The Performance Optimized Sealed 10 delivers 0.75 cubic feet net, sitting between Arc's minimum and optimum values — dialed toward the SQ side of the driver's specified range for tighter transient response, cleaner midbass integration, and controlled low-end presentation.
Volume Selection
0.75 cubic feet net is the airspace that lets the Arc ARC 10 work in its sweet spot for musical accuracy. Larger volumes push the driver toward the SPL-oriented end of Arc's specified range, trading transient tightness for a small extension gain. 0.75 cubic feet delivers the SQ-oriented presentation the ARC 10 is engineered for.
Mounting Geometry
The baffle is cut to the Arc ARC 10's exact mounting specification. The ARC 10's 5.5" mounting depth leaves comfortable internal clearance behind the magnet structure inside the 8.25" deep cabinet. Arc Audio's four-spoke stamped steel basket with integrated cooling vents drops in cleanly with room for magnet ventilation.
Performance Series Construction, Driver-Specific Tuning
Langboard Elite MDF
Premium 3/4" MDF panels milled to documented spec — denser and more dimensionally stable than commodity MDF. Less panel resonance, tighter joints, and a longer service life under daily use at real power levels.
V-Groove and Dado Joinery
CNC-cut V-grooves at every panel intersection let the cabinet fold into shape with maximum glue surface. Dado joints lock the baffle and rear panel into the side walls — no fasteners visible from outside.
8/32 Threaded Inserts
Threaded inserts pressed into the baffle backside accept stainless steel mounting screws. No stripped pilot holes, no MDF damage from drywall screws, no surprises when the next driver upgrade rolls around.
Pre-Wired Terminal Cup
Proline X ABS/carbon fiber composite terminal cup, pre-wired with 12-gauge OFC inside the cabinet, with stainless steel hardware accepting both spade and banana terminations on the input side.
Every panel is cut on ShopSabre CNC routers in our Tullahoma, TN facility. Tolerances that manual fabrication can't hold — joints close cleanly, baffle concentricity stays accurate, and internal volume is consistent unit to unit.
Customize Your Build
Carpet Finish
Dark Gray Trunkliner is the standard durable wrap, matched to most factory trunk and cargo-area carpet tones. Plush Black (+$10) is a deeper, more luxurious nap that pairs well with blacked-out interiors and show builds.
Acrylic Insert Color
Choose Black, Blue, Red, or White for the baffle insert to match your build. Or skip the insert entirely (-$40) for a clean, understated look. The insert is purely cosmetic — performance is identical across colors.
Box-Only or Loaded
Add a Dual 2-ohm or Dual 4-ohm Arc Audio ARC 10 driver directly to your order and we'll ship the complete loaded system, ready to wire to your amplifier. Already own your ARC 10? Order the enclosure box-only and drop in the driver you have.
Wiring the Arc ARC 10 to Your Amplifier
The Arc Audio ARC 10 is a dual voice coil driver available in Dual 2-ohm (D2) or Dual 4-ohm (D4) configurations. The pre-wired terminal cup accepts either impedance version via 12-gauge OFC, with stainless steel input hardware.
A Dual 2-ohm ARC 10 wired in parallel presents a 1-ohm load. A Dual 2-ohm wired in series presents 4 ohms. A Dual 4-ohm ARC 10 wired in parallel presents 2 ohms, and wired in series presents 8 ohms. The ARC 10 is rated for 250 watts RMS — aim for a clean, well-regulated amplifier delivering 200 to 300 watts at your chosen impedance.
Arc Audio manufactures monoblock amplifiers engineered to pair specifically with their subwoofer lineup — the Arc Audio XD Series and Mini Series monoblocks in the 250 to 350 watt RMS range give you a fully matched system. Any quality monoblock stable at your chosen impedance will also work well.
Built in Tennessee, Backed by Audio Intensity
Every Performance Optimized enclosure is CNC-cut, assembled, and finished in our Tullahoma, TN facility. Components are pulled from inventory after your order is placed, then bonded and wrapped — a 2 to 5 business day assembly window before the box ships. No pre-built inventory sitting in warehouses, warping in storage. Each unit is built to order.
Backed by a 1-year limited warranty against structural failure and hardware defects. Questions on fitment, wiring, or amplifier pairing? Contact us — we install this gear ourselves, in our own vehicles.
Stop Compromising Your Arc ARC 10
Driver-specific engineering, Performance Series construction, and the option to bundle the Arc Audio ARC 10 driver in one order. Build the box that was designed for the sub you've already chosen.
| Enclosure Type | Sealed |
| Driver-Specific Fitment | Arc Audio ARC Series 10 (Dual 2Ω or Dual 4Ω) |
| Internal Volume (Net) | 0.75 Cubic Feet |
| Material | Langboard Elite 3/4" MDF |
| Construction | CNC-Cut / V-Groove and Dado Joinery |
| External Width | 20 Inches |
| External Height | 14 Inches |
| External Depth | 8.25 Inches |
| Max Mounting Depth | 7.75 Inches |
| Mounting Hardware | 8/32 Threaded Inserts | Stainless Steel Screws Included |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | 12g OFC Pre-Wired |
| Damping | Polyfill Pre-Installed |
| Recommended Power | 200-300 Watts RMS (250W RMS Driver Rating) |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black (+$10) |
| Acrylic Insert | Black, Blue, Red, White, or None (-$40) |
| Bundle Options | Box Only | Add a Dual 2Ω Driver | Add a Dual 4Ω Driver |
| Warranty | 1-Year Limited |
| Manufactured | Tullahoma, Tennessee, USA |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF — 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure — because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF — Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source — not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure — the most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks — relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention — relevant for every joint that isn't face-to-face |
200 psi — The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually — the symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE — Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness — resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level — not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge — Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint — where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock — Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification — it is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
