Performance Optimized Down Fire Wide Sealed 12" Shallow Sub Enclosure | ResoNix GUS-12
SKU: PO 12-S DFW GUS
- Alignment: 1.008 cu ft net. D4 Qtc 0.637, Fc 33.1 Hz, F3 37.1 Hz; D2 Qtc 0.597, Fc 30.9 Hz, F3 37.7 Hz
- Down Fire Wide: 41"W x 14"D x 6.0625"H in down fire position, effectively the same height as the standard 30 x 15 (6 in)
- Height Set By: the 4.539 in motor, 0.75 in clearance above it; holds more air than the standard box, so Qtc is lower
- Driver: ResoNix GUS-12 D2 or D4, 800W RMS, 20.69mm Klippel-verified Xmax, 14.5 Hz Fs, 4.539" mounting depth
- Standoffs: Included, ResoNix specifies 60mm from baffle surface to the floor, installed height near 8.4 in
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Wide Sealed 12" Shallow Sub Enclosure | ResoNix GUS-12
More enclosures cut for ResoNix subwoofers: ResoNix Subwoofer Boxes
Proline X Performance Optimized Down Fire Wide 12" Sealed
Cut for the ResoNix GUS-12, Dual 2-Ohm or Dual 4-Ohm
The Down Fire Wide Format
Down Fire Wide is the same driver in a different shape. The standard Performance Optimized Down Fire cabinet for the ResoNix GUS-12 is 30 by 15 inches. This one runs 41 inches wide by 14 inches deep: 1 inch shallower front to back and 11 inches longer.
Fourteen inches is not arbitrary. A 12 inch frame needs about 13 inches of baffle to sit on, so 14 is the practical minimum depth for this driver size. The ResoNix GUS-12 frame measures 12.99 inches across and sits on the 14 inch deep baffle with about 0.50 inches of baffle fore and aft.
Here the motor sets the height of both boxes, so this one stands 6.0625 inches tall against 6 for the standard 30 x 15 ResoNix GUS-12 cabinet, effectively the same, both measured in the down fire position without feet. The extra length goes into airspace instead of a lower cabinet.
Which one to choose. The standard 30 x 15 is the pick when length is limited. This one is the pick when height or depth is the limit and you have 41 inches of run. On this driver the motor fixes the height of both, so the wide box saves depth, not height, and adds air. ResoNix requires 60mm from the baffle surface to the floor, so the included standoffs add roughly 2.4 inches: plan on an installed height near 8.4 inches.
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds. Down Fire Wide variants like this one run long and shallow for under seat fitment. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double layer, outer layer machined as a flush recess. 1.5 inch. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, perimeter cross brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |
Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The airspace, the cutout and the cabinet height all come from the ResoNix GUS-12's own published numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around the ResoNix GUS-12
The baffle is bored to the GUS-12's 283.57mm cutout, 11.164 inches, and the internal height is set by its 4.539 inch mounting depth.
The parameter that makes this driver remarkable is a free-air resonance of 14.5 Hz paired with a Qts of 0.28. A 14.5 Hz Fs on a driver that mounts in four and a half inches is why this cabinet reaches the high 30s in about a cubic foot.
ResoNix publishes full Klippel LSI and TRF data for every GUS driver and commits to doing it for every production batch. Their enclosure recommendations reconcile with their own Thiele-Small parameters.
Net Volume and Alignment
The cabinet holds 1.008 cubic feet net, from 1.062 cubic feet gross after the brace and the driver's 0.046 cubic feet of displacement.
Height here is set by the driver's mounting depth, not by a volume target. The 4.539 inch motor needs 0.75 inch of clearance above it, so the cabinet can go no lower than 6.0625 inches. At that height the wide footprint holds 1.008 net, more than the 0.76 the standard 30 x 15 box was built to. More air lowers Qtc, which is the safe direction: a softer, better damped corner rather than a peakier one.
Computed from ResoNix's published Thiele-Small parameters: D4: Qtc 0.637, Fc 33.1 Hz, F3 37.1 Hz; D2: Qtc 0.597, Fc 30.9 Hz, F3 37.7 Hz.
That is a well-damped, dry alignment, most of all on the D2: tight and controlled, with a gentle, early rolloff rather than lift at the corner. If you want more punch, the standard 30 x 15 box is the pick.
ResoNix publishes 0.75 for a 0.707 alignment and a maximum of 1.1, which they pair with a 500 watt limit. At 1.008 net this cabinet sits inside that maximum but toward its end, so treat the power rating with care. Both coils land within a hertz of each other; choose on amplifier load.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's displacement, not estimated from external dimensions minus wall thickness.
Down Fire Wide Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

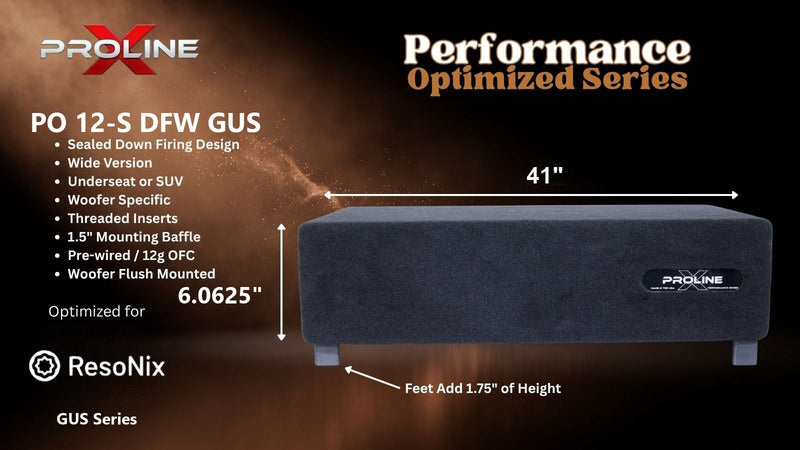

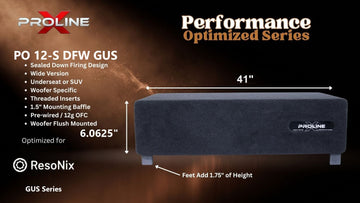

The cabinet measures 41 inches wide by 14 inches deep by 6.0625 inches tall, measured in the down fire position. Plan the space around the installed height rather than the cabinet height: the custom-fit standoffs hold the 60mm ResoNix requires under the baffle, roughly 2.4 inches, so the finished stack sits near 8.4 inches.
1.5 Inch Double Baffle
Two 3/4 inch layers laminated to 1.5 inches, with the outer layer machined as a flush recess so the driver bolts to the inner layer. 8/32 threaded inserts at the driver position, stainless machine screws included.
Windowed U-Brace
A windowed U-brace dadoed to the shell ties the long 41 inch panels together without taking a meaningful bite out of the airspace.

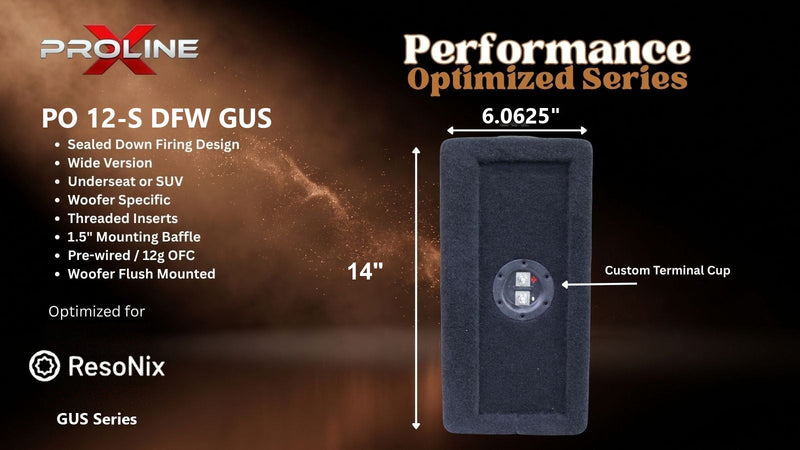

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.
Polyfill Installed
Polyfill is installed as a light wall lining to control internal reflections. It does not change the acoustic volume, so do not add more.
Down Firing, Endorsed by the Manufacturer
ResoNix addresses the orientation question directly in their own documentation: there is very little real world difference in sound between down firing and up firing, and you should choose whichever makes the installation easier, more reliable and easier to service.
The GUS series also uses a vented rear cone assembly attached to the voice coil former, so the pole vent can be completely obstructed with no negative effect. That is what allows these cabinets to be built without the rear motor clearance allowance most drivers require.
Power and Warranty
ResoNix rates the GUS-12 at 800 watts RMS and states plainly that they do not underrate their drivers. Burnt voice coils and damage from bottoming out are not covered under their warranty. Because this cabinet sits toward ResoNix's 1.1 maximum, where they limit power to 500 watts, treat 800 as a ceiling rather than a target and run a subsonic filter.
Both coil options are dual voice coil: the D2 gives 1 ohm parallel or 4 series, the D4 gives 2 ohms parallel or 8 series. The enclosure carries a 1 year limited warranty. Bring your own GUS-12; the driver is purchased directly from ResoNix Sound Solutions.
Cut for the Driver, Not the Catalog
Down Fire Wide, 41 inches long and 14 deep, cut for one driver model and built one at a time in Tullahoma, Tennessee. Questions on fitment or amplifier matching, call us at 931-563-5151.
| Series | Proline X Performance Optimized Down Fire Wide |
| Compatible Driver | ResoNix GUS-12, Dual 2-Ohm or Dual 4-Ohm. Direct fit, no other driver |
| Enclosure Type | Sealed, down fire, floor coupled |
| Intended Fitment | Where height or depth is the limit and 41 in of length is available |
| Firing Direction | Down firing. Feet ship uninstalled, so front or up firing is also possible |
| External Width | 41 in |
| External Depth | 14 in |
| External Height | 6.0625 in, measured in down fire position, excludes standoffs |
| Installed Height | About 8.4 in with the included standoffs holding ResoNix's 60mm floor clearance |
| Standard 30 x 15 Equivalent | 30 in W x 15 in D x 6 in H, 0.76 cu ft net |
| Internal Height | 3.8125 in |
| Internal Volume, Gross | 1.062 cu ft |
| Internal Volume, Net | 1.008 cu ft after the brace and displacement |
| Height Set By | Driver clearance: 0.774 in above the motor, the 0.75 in minimum plus rounding |
| Alignment, D4 | Qtc 0.637, Fc 33.1 Hz, F3 37.1 Hz, anechoic |
| Alignment, D2 | Qtc 0.597, Fc 30.9 Hz, F3 37.7 Hz, anechoic |
| ResoNix Target / Maximum | 0.75 for a 0.707 alignment; 1.1 maximum at a 500 W limit |
| Driver Fs | 14.54 Hz (D4) / 14.51 Hz (D2) |
| Driver Qts | 0.28, both variants |
| Driver Vas | 119.35 L (D4) / 101.07 L (D2) |
| Driver Sd | 490.87 cm² |
| Driver Xmax at 70% BL | 20.69mm, Klippel verified |
| Driver Xmech | 24mm |
| Driver Cone | Nomex honeycomb core with carbon fiber facing |
| Driver Voice Coil | 3 in copper on titanium former |
| Driver Motor | Patent pending FEA optimized overhung, full length copper shorting sleeve |
| Rear Venting | Vented rear cone assembly. Pole vent may be fully obstructed, ResoNix spec |
| Min Front Clearance | 60mm from baffle surface, ResoNix spec |
| Driver Qes / Qms | 0.28 / 9.08 (D4) | 0.29 / 7.66 (D2) |
| Driver BL | 13.634 (D4) / 11.436 (D2) |
| Driver Mms | 339.842 g (D4) / 402.797 g (D2) |
| Driver Power Handling | 800 W RMS. Do not exceed |
| Mounting Depth | 4.539 in |
| Woofer Opening | 11.164 (283.57mm) in |
| Driver Frame Diameter | 12.99 in, sits on the 14 in baffle |
| Driver Displacement | 0.046 cu ft |
| Material | Langboard Elite 3/4 in MDF |
| Joinery | V-groove and dado, CNC cut on ShopSabre routers |
| Panel Thickness | 0.75 in |
| Front Baffle | 1.5 in double baffle, outer layer machined as a flush recess |
| Internal Bracing | Windowed U-brace, dadoed to the shell |
| Corner Profile | Square, Down Fire series standard |
| Driver Mounting | 8/32 threaded inserts, stainless machine screws included |
| Terminal Cup | One Proline X ABS and carbon fiber composite, side mounted, pre-wired 12 gauge OFC |
| Damping | Polyfill installed as a light wall lining, does not alter acoustic volume |
| Standoffs | Custom fit, included, set to ResoNix's 60mm minimum from baffle surface to floor |
| Carpet | Plush black |
| Bundle Options | Enclosure only with standoffs; GUS-12 purchased directly from ResoNix |
| Warranty | 1 year limited |
| Built In | Tullahoma, Tennessee |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
1.008 cu ft against a 119.3 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 20.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 14.54 / 14.51 | Hz | free-air resonance |
| Qts | 0.280 / 0.280 | D4 / D2 | |
| Vas | 119.35 / 101.07 | L | equivalent compliance |
| Sd | 490.9 | cm² | effective piston area |
| Xmax | 20 | mm | one-way linear travel |
| Pe | 800 | W | continuous RMS |
| SPL | 83.0 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by resonixsoundsolutions.com. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
