Kicker 46TL7T122 Sealed 2-ohm enclosure with single square L7T Series 12" shallow-mount subwoofer | Display

$ 379.99
Hurry! Only 1 left in stock.
Speaker icon: original US importer of Goldhorn DSP
Closeout Item
Speaker icon: original US importer of Goldhorn DSP
Free Shipping Free shipping to the lower 48. AK, HI and international quoted live at checkout.
Speaker icon: original US importer of Goldhorn DSP
Final Sale No Restocks. No Returns
24 people are viewing this right now
Kicker 46TL7T122 Sealed 2 - ohm enclosure with single square L7T Series 12" shallow - mount subwoofer | Display - Kicker Enclosed Subwoofer for car audio systems

Kicker 46TL7T122 Sealed 2-ohm enclosure with single square L7T Series 12" shallow-mount subwoofer | Display

Regular price $ 379.99
Sale price $ 379.99 Regular price $ 169.99
Unit price
Product Details
Specifications
Related Products
Product Details

Previous display unit

Kicker 46TL7T122 Sealed Loaded Enclosure with 12 Inch L7T

Truck wedge, sealed, 3/4 inch MDF. Square 12 inch L7T shallow-mount driver, dual 4 Ohm coils wired to a 2 Ohm final load. 600W RMS, 25Hz to 100Hz, 7.75 inch base depth.

  • Display unit
  • Loaded enclosure
  • Shallow mount
  • Sold as-is

Where this sits in what we do

We are not a Kicker dealer and we do not stock Kicker drivers. This is a single previously displayed unit off our own floor. We do cut enclosures to Kicker drivers on our routers, and if you want a box built to a driver you already own, that is a different conversation and we are happy to have it.

What You Are Buying

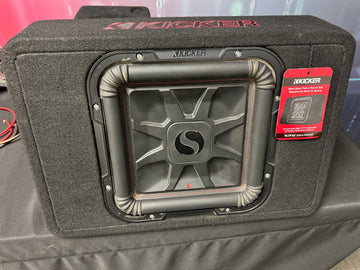

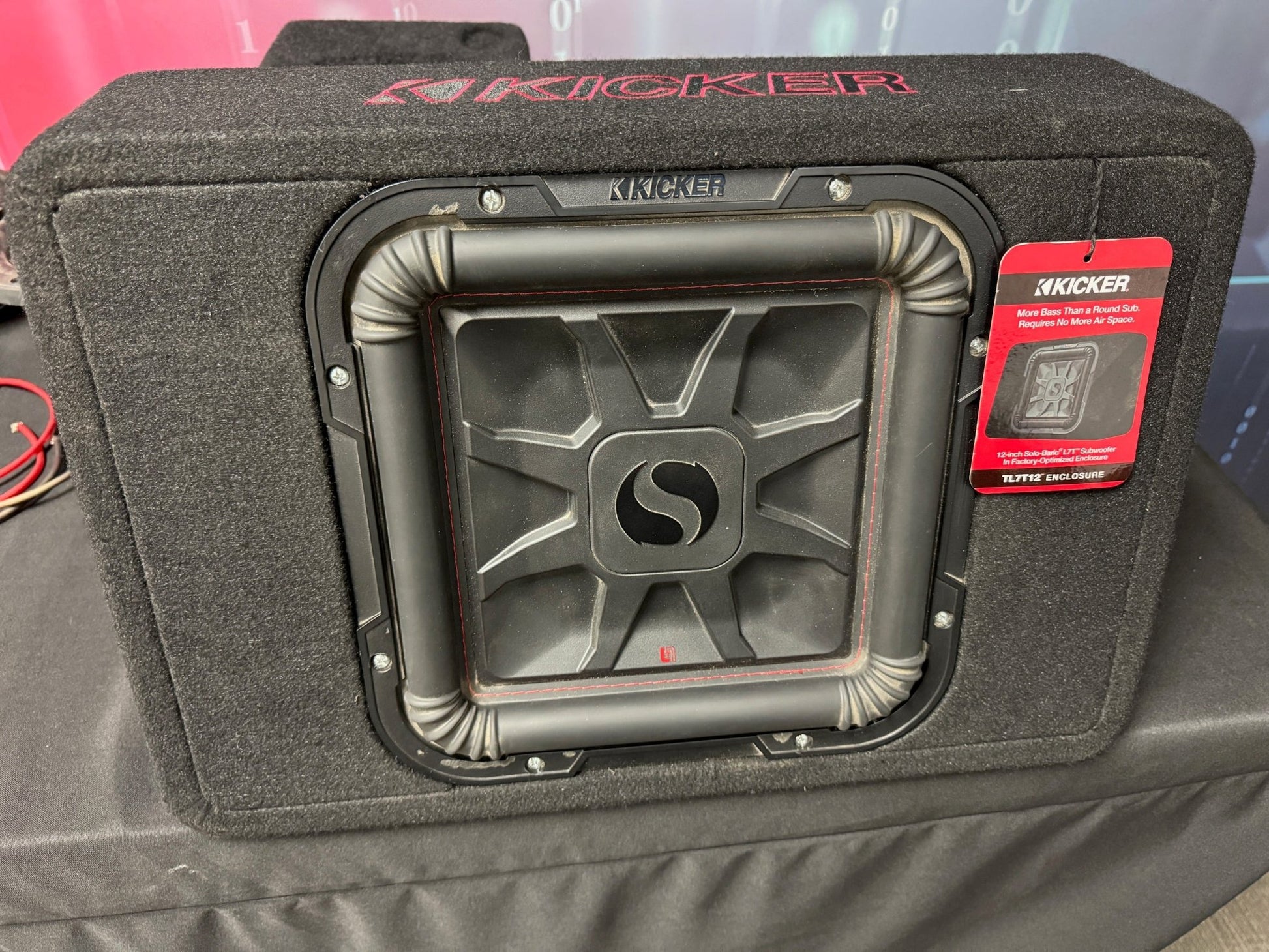

A loaded sealed enclosure: a square 12 inch L7T shallow-mount subwoofer already mounted in a carpeted MDF truck wedge, pre-wired to a 2 Ohm final load. One unit, previously on display.

Condition, stated plainly

This unit has been on display. Expect handling marks on the carpet and the driver. It is sold as-is. Ask us about condition before you buy and we will describe exactly what it looks like.

Reading the Specification

Dual 4 Ohm coils wired to 2 Ohm

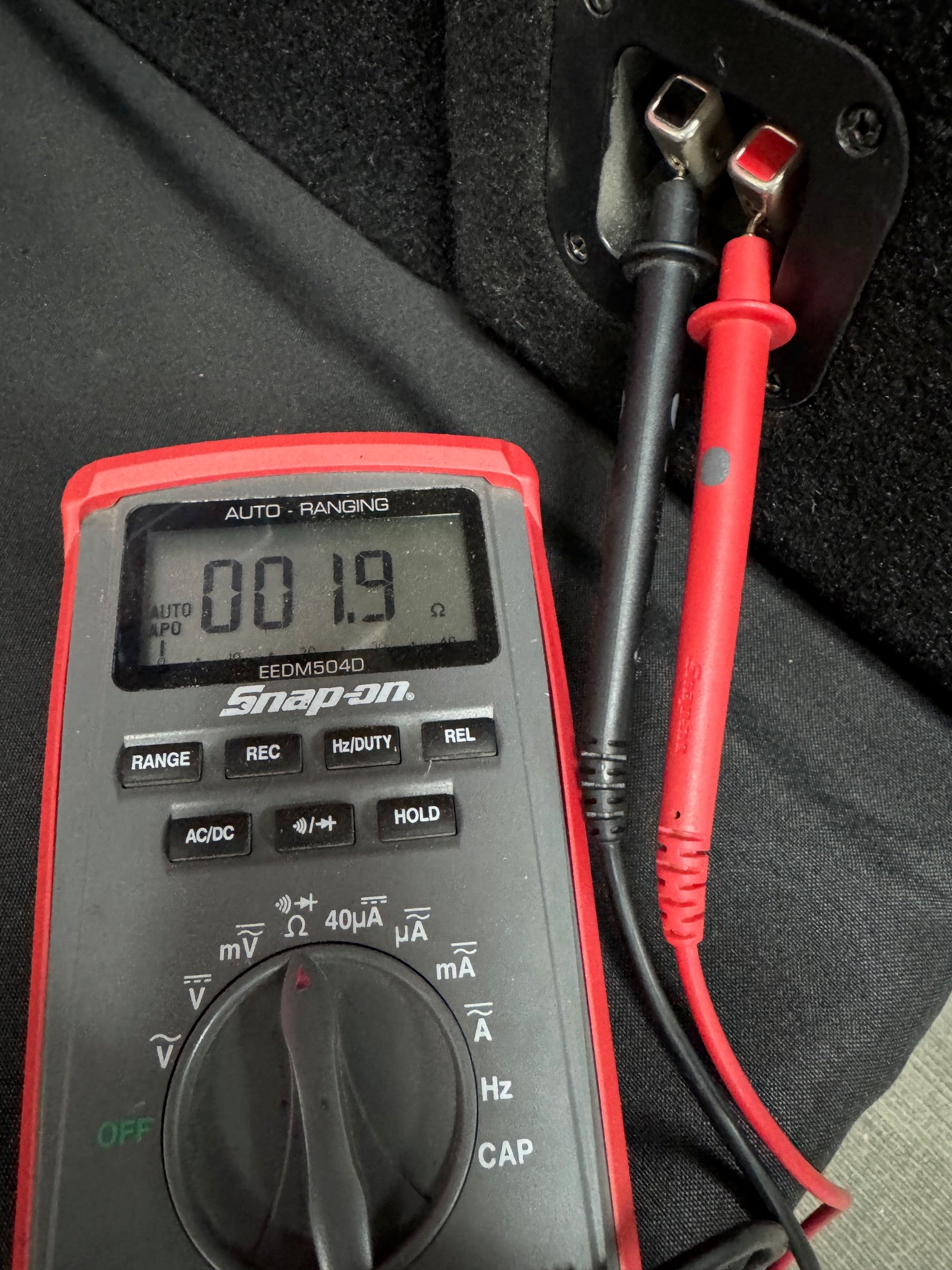

Two 4 Ohm coils in parallel give a 2 Ohm final load. That is fixed by the terminal wiring on this enclosure; you cannot get 1 Ohm or 4 Ohm out of it without opening the box and rewiring. Size your amplifier for 2 Ohms.

600W RMS, 1200W peak

600W is the number to plan against. A 400 to 500W monoblock at 2 Ohms is a comfortable, safe match and will not leave anything meaningful on the table. Going far above 600W means relying entirely on your gain discipline, and a clipped signal from an underdriven amplifier destroys more voice coils than clean power from a large one ever has.

86.54dB sensitivity, 25Hz to 100Hz

Sealed, so the rolloff below the passband is gentle rather than a cliff, and the transient behavior is tighter than a ported box of the same size. 25Hz on a sealed 12 in a small box is a claim about where output is still measurable, not where it is flat.

Square cone

The L7T's square cone is the reason Kicker built it that way: a square fits more radiating area into the same mounting footprint than a circle does. More area means more air moved per millimeter of excursion. The trade is a surround that has to flex differently along the sides than at the corners, which is why square drivers use a specialized surround.

7.75 inch base depth, 4.375 inch top depth

The wedge is what makes this fit behind a seat. The angled face means the top of the box is under four and a half inches deep while the base is under eight, so it tucks against a seat back where a rectangular box of the same volume would not.

The Enclosure

We build enclosures here, so a few observations on this one from someone who cuts MDF for a living.

  • 3/4 inch MDF with internal bracing. Correct thickness for a box this size, and the bracing is what stops the large flat panels acting as a second, out-of-phase driver.
  • Sealed. The right alignment for a shallow-mount driver in a small volume. A ported box that size would need a port so small it would choke.
  • Carpet with rounded corners. Rounded corners are not cosmetic. Carpet frays at a sharp 90 degree edge and a rounded one holds it.
  • Spring post terminals. They accept up to 10 gauge, bare wire, pins or banana plugs. Serviceable, and easier to work with in a cramped cab than a screw terminal.

Fitment

  • 21.5 x 13.75 x 7.75 inches at the base, 4.375 inches deep at the top.
  • 36 lbs loaded. Plan on two people for the install.
  • Designed for behind-seat mounting in crew cab and extended cab trucks. Regular cabs generally do not have the room.
  • The wedge angle faces the seat backs.

Measure your space before you buy. On a used display unit with one in stock, that is not a formality.

Who This Suits

Buy this if

  • You have a crew cab or extended cab truck and want bass without losing the bed or the back seat.
  • You have or will buy a 400 to 600W monoblock stable at 2 Ohms.
  • You want sealed, controlled bass rather than maximum output.
  • You accept a used display unit sold as-is.

Look elsewhere if

  • Your amplifier is 1 Ohm only. This load is fixed at 2 Ohm.
  • You want a ported box or maximum SPL.
  • You have a regular cab.
  • You want new stock with full warranty, or a box cut to a driver you already own. Talk to us about the second one.

Installation

  • Measure width, height and both depths against your space before committing.
  • Use 12 to 14 gauge speaker wire; the terminals take up to 10 gauge.
  • Secure the box. 36 lbs loose behind a seat is a hazard, not just a rattle.
  • Set the amplifier low-pass around 80Hz and the gain by ear at your normal maximum volume.
  • No subsonic filter is required on a sealed box, though a shallow one below 20Hz does no harm.

Condition and sale terms

Previously displayed unit, sold as-is. It has been handled and may show cosmetic marks on the carpet and driver. Specifications are as published by Kicker. Audio Intensity is not a Kicker dealer and does not stock Kicker drivers; this is a single unit from our own display floor. Once it is gone this listing will be removed.

Ask us for condition photos and measurements before you buy: contact us.

Specifications
General configuration
TypeLoaded sealed enclosure, truck wedge
Driver12 inch square L7T shallow mount
ConePolypropylene, square
Voice coil configurationDual 4 Ohm, pre-wired parallel
Final impedance2 Ohm
ConditionPreviously displayed unit, sold as-is
Power handling
RMS power600W
Peak power1200W
Recommended amplifier400 to 500W RMS monoblock, stable at 2 Ohm
Output
Sensitivity86.54 dB
Frequency response25Hz to 100Hz
Enclosure
AlignmentSealed
Material3/4 inch MDF with internal bracing
FinishBlack carpet, rounded corners
TerminalsSpring posts, accepts up to 10 AWG
Dimensions and fitment
Width21.5 inch
Height13.75 inch
Base depth7.75 inch
Top depth4.375 inch, wedge
Weight loaded36 lbs
Speaker wire12 to 14 AWG

The 2 Ohm final load is fixed by the enclosure terminal wiring. Getting 1 Ohm or 4 Ohm out of this box means opening it and rewiring the driver.
