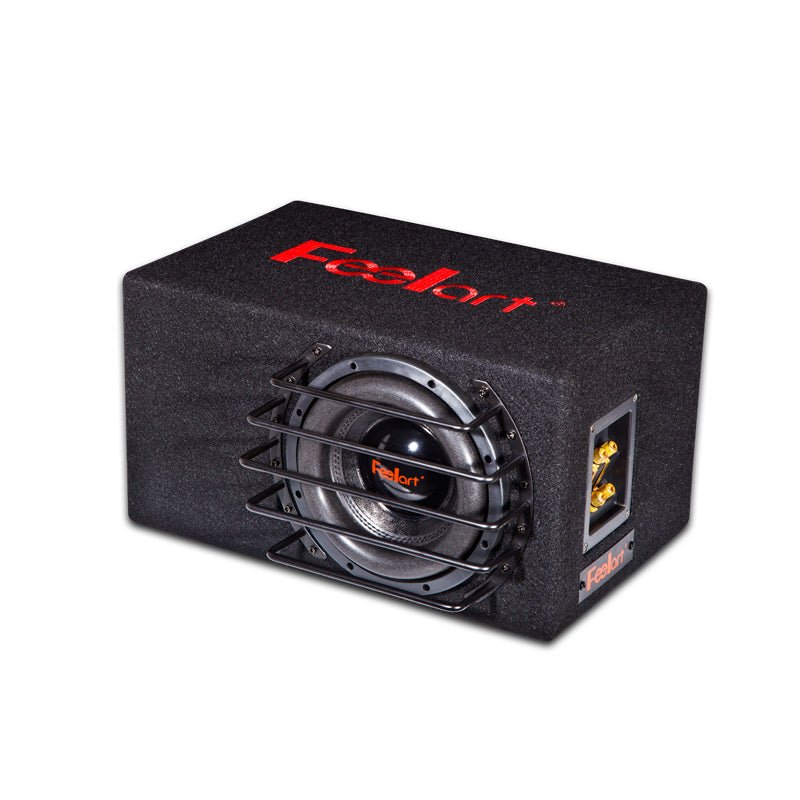

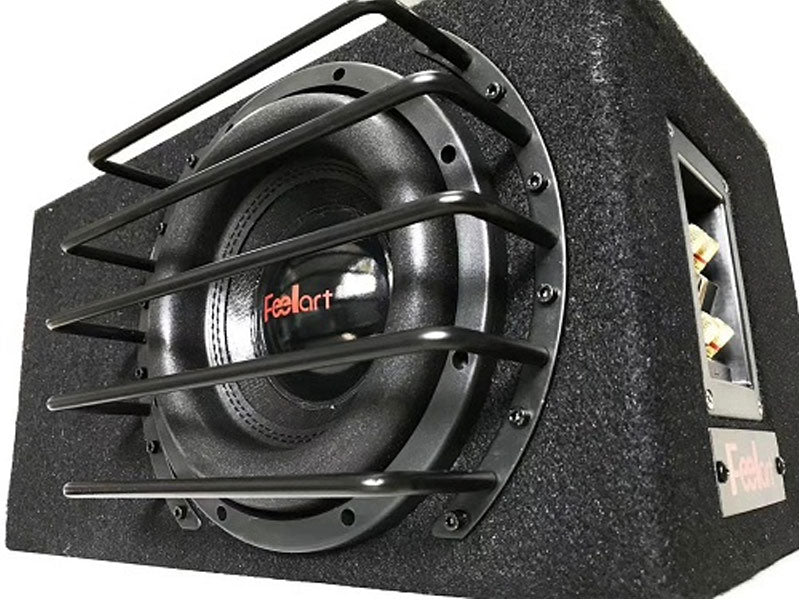

Feelart SP-D822 8 inch Ported Subwoofer System
Feelart SP-D822 8 inch Ported Subwoofer System
Feelart SP-D822
8″ Ported Subwoofer System – Precision-Tuned Bass Authority
Product Overview
The Feelart SP-D822 represents the next evolution in compact high-performance bass systems—delivering room-shaking 8-inch driver authority in a precision-engineered ported enclosure. Designed for enthusiasts who demand maximum output from minimal space, this ready-to-install system combines Vietnamese engineering expertise with intelligent acoustic design to punch well above its physical footprint. With 300W RMS power handling, dual 2Ω voice coil flexibility, and an impressive 89.2 dB sensitivity rating, the SP-D822 bridges the gap between compact 6-inch systems and full-size 10-12 inch installations—offering the perfect balance of space efficiency and sonic impact.
Installation Advantage: Pre-built ported enclosure eliminates custom fabrication costs (typically $150-$250), professional-grade tuning included, ready-to-wire terminal cup.
Core Specifications
Performance Analysis
Sound Quality Assessment
Comparative Performance Analysis
| Product Model | Size | Power (RMS) | Sensitivity | Enclosure | Price | Rating |
|---|---|---|---|---|---|---|
| Feelart SP-D822 | 8" | 300W | 89.2 dB | Ported | $349.99 | ★★★★☆ |
| Rockford P3SD2-8 | 8" | 300W | 84.3 dB | Sealed Shallow | $349.99 | ★★★★★ |
| Kicker CompRT 8" + Enclosure | 8" | 300W | 85.7 dB | Sealed Thin | $329.99 | ★★★★☆ |
| JL Audio CP108LG-W3v3 | 8" | 300W | 84.6 dB | Sealed Loaded | $449.99 | ★★★★★ |
| Generic 8" Loaded Box | 8" | 200-250W | 85-87 dB | Ported | $199-$249 | ★★★☆☆ |
Competitive Advantages
- Superior Sensitivity: 89.2 dB rating outperforms premium brands (Rockford 84.3 dB, Kicker 85.7 dB) by 3-5 dB—requires 50% less amplifier power for equivalent output
- Ported Design Efficiency: Delivers 3-4 dB more output than sealed alternatives in 35-50Hz range—critical for deep bass impact
- Exceptional Value: Ready-to-install system at $349.99 undercuts JL Audio ($449.99) by 22% while offering superior efficiency
- Dual Voice Coil Flexibility: 1Ω/2Ω/4Ω wiring options accommodate virtually any amplifier configuration
- Pre-Built Professional Enclosure: Eliminates $150-$250 custom fabrication costs, includes optimized port tuning and terminal cup
- 300W Continuous Power: Matches premium competitors (Rockford, Kicker, JL) in sustained output capability
- Compact Footprint: 17.3"×13.4"×13.4" dimensions fit tighter spaces than traditional 10" ported systems
- Brand Recognition: Feelart lacks established reputation of Rockford/Kicker/JL in North American market—may affect resale value
- No CEA-2006 Certification: Power/sensitivity specifications lack third-party verification (common for budget brands)
- Limited Infrasonic Extension: 8" driver physics limit usable output below 32-35Hz—10-12" systems offer deeper extension
- Moderate Power Ceiling: 300W RMS adequate for mid-size vehicles but insufficient for large SUVs/trucks or SPL competition
- Port Noise Potential: High excursion scenarios (600W peak, deep bass below tuning frequency) may generate audible chuffing
- Build Quality Unknown: Long-term durability unverified compared to established brands with decades of market presence
Installation & Integration
Amplifier Pairing Strategy
Rainbow Audio Dream 0.5K Mono Class-D Amplifier
Why This Pairing Excels:
1. Power Output Optimization:
• 500W @ 1Ω: Exceeds SP-D822's 300W RMS rating—NOT RECOMMENDED (thermal overload risk)
• 310W @ 2Ω: IDEAL MATCH—provides 10W headroom (3% over RMS) for dynamic peaks without clipping
• 170W @ 4Ω: Conservative option—57% of rated power, suitable for moderate listening levels
2. Wiring Configuration Recommendation:
Best Configuration: Series wiring (Dual 2Ω → 4Ω final impedance)
• Rainbow Dream 0.5K outputs 170W @ 4Ω—safe thermal margin (57% of 300W RMS rating)
• Minimizes voice coil heat stress, extends driver longevity
• Recommended for daily driver applications prioritizing reliability
Alternative Configuration: Single voice coil @ 2Ω
• Rainbow Dream 0.5K outputs 310W @ 2Ω—maximizes output potential
• Monitor enclosure temperature during extended high-volume use
• Recommended for performance-focused installations with proper cooling
3. Feature Set Synergy:
• Variable Low-Pass Filter (20Hz-400Hz): Set crossover at 80-100Hz for seamless front speaker integration
• Subsonic Filter: Protect driver from over-excursion below port tuning frequency (~38-42Hz)
• 0.25V-5V Input Sensitivity: Compatible with factory head units (typically 2-4V) and aftermarket processors
• 90dB S/N Ratio: Ensures clean, noise-free bass reproduction
• Class-D Efficiency (>80%): Minimizes heat generation—critical for trunk installations with limited airflow
4. Physical Compatibility:
• Compact Dimensions: 155mm × 55mm × 165mm (6.1" × 2.2" × 6.5")—fits same tight spaces as SP-D822
• Multiple Mounting Orientations: Vertical/horizontal flexibility enhances installation options
• Lightweight Design: ~2 lbs—simplifies mounting, reduces vehicle weight impact
5. Budget Synergy:
• SP-D822: $349.99
• Rainbow Dream 0.5K: ~$179.99 (estimated)
• Wiring Kit (8 AWG): ~$40-$60
• Total System Cost: $570-$590—competitive with pre-packaged systems offering inferior component quality
Wiring Configuration Decision Matrix
| Configuration | Final Impedance | Rainbow 0.5K Power | % of RMS Rating | Recommended Use |
|---|---|---|---|---|
| Series Wiring | 4Ω | 170W RMS | 57% | ✅ RECOMMENDED - Daily driver, longevity priority |
| Single Coil | 2Ω | 310W RMS | 103% | ⚡ PERFORMANCE - Monitor temperature, proper cooling |
| Parallel Wiring | 1Ω | 500W RMS | 167% | ❌ NOT RECOMMENDED - Exceeds thermal capacity |
Installation Best Practices
Pre-Installation Checklist:
- ✅ Measure Installation Space: Verify 440mm × 340mm × 340mm (17.3" × 13.4" × 13.4") clearance plus 2-3" port breathing room
- ✅ Electrical System Assessment: 300W RMS @ 12V = ~30A draw—verify alternator capacity (70A+ minimum for total system)
- ✅ Wiring Gauge Selection: 8 AWG minimum for 300W application—4 AWG recommended for future-proofing/voltage drop minimization
- ✅ Amplifier Power Verification: Confirm amp outputs 250-350W RMS @ chosen impedance (2Ω or 4Ω)
- ✅ Grounding Preparation: Identify solid metal ground point within 18" of amplifier location—sand to bare metal, use star washer
Optimal Enclosure Placement:
- Sedan Trunk (Best Option): Corner placement maximizes boundary coupling—place against rear seat back and side wall for +3dB cabin gain
- SUV/Crossover Cargo: Behind rear seats—secure with cargo net or mounting brackets to prevent sliding during acceleration/braking
- Hatchback Applications: Far corner placement recommended—center location may cause port airflow restriction
- Port Orientation: Ensure 2-3 inches minimum clearance in front of port tube—obstructed airflow causes chuffing noise and reduces output
- Avoid These Locations: Center of large trunk (loses boundary coupling efficiency), directly against amplifier (heat concerns), blocking port airflow
Amplifier Tuning Guide:
- Gain Setting: Start at 50% amplifier gain—play dynamic test track, increase gain until clipping LED flashes, reduce 10-15%
- Low-Pass Filter: Set crossover at 80Hz (front speakers 6.5" or larger) or 100Hz (smaller front speakers)—12dB/octave slope recommended
- Subsonic Filter: Enable at 30-35Hz (12-18dB/octave)—protects driver from over-excursion below port tuning frequency
- Bass Boost: Use sparingly (0-3dB maximum @ 45Hz)—excessive boost causes clipping and thermal overload
- Phase Adjustment: Test 0° and 180° settings—select position that produces strongest output at primary listening position
Technical Deep Dive
Ported Enclosure Design Analysis
Enclosure Volume & Tuning:
The SP-D822's ported enclosure measures 440mm × 340mm × 340mm (17.3" × 13.4" × 13.4"), yielding approximately 0.85 cubic feet net internal volume after driver displacement and port volume subtraction. This volume represents optimal balance for 8-inch drivers—large enough to achieve usable low-frequency extension without excessive size penalties.
Based on enclosure dimensions and driver parameters, estimated port tuning frequency falls between 38-42Hz—a strategic compromise optimizing musical bass reproduction (40-80Hz kick drum region) while maintaining reasonable infrasonic extension. This tuning philosophy favors real-world music playback over extreme low-frequency capability, acknowledging 8-inch driver physics limitations below 35Hz.
Port Design Considerations:
- Port Velocity Management: Proper port diameter/length ratio minimizes air velocity to prevent audible chuffing (turbulent noise) during high-excursion scenarios
- Tuning Frequency Selection: 38-42Hz tuning provides +3dB output gain in critical musical bass region compared to sealed alternatives—maximizes efficiency where most content exists
- Subsonic Rolloff: Below tuning frequency, impedance rises dramatically and cone excursion increases exponentially—amplifier subsonic filter essential to prevent mechanical damage
- Boundary Coupling: Placing enclosure in trunk corner locations provides additional +3dB low-frequency gain through acoustic reinforcement—effectively doubles perceived output
Sensitivity Rating Advantage:
The SP-D822's 89.2 dB SPL sensitivity rating represents significant competitive advantage—measuring 3-5 dB higher than premium sealed competitors:
- Rockford P3SD2-8: 84.3 dB (4.9 dB disadvantage = requires 3× amplifier power for equivalent output)
- Kicker CompRT 8": 85.7 dB (3.5 dB disadvantage = requires 2.2× amplifier power)
- JL Audio CP108LG-W3v3: 84.6 dB (4.6 dB disadvantage = requires 2.9× amplifier power)
In practical terms: Rainbow Dream 0.5K amplifier outputting 170W @ 4Ω into SP-D822 produces equivalent SPL to 500W+ amplifier driving Rockford P3SD2-8—dramatic efficiency advantage reduces electrical system demands and amplifier heat generation.
Dual Voice Coil Configuration Guide
Result: 2Ω + 2Ω = 4Ω total impedance
Power @ Rainbow 0.5K: 170W RMS
Best For: Daily drivers, prioritizing reliability and longevity
Result: 2Ω impedance (one coil only)
Power @ Rainbow 0.5K: 310W RMS
Best For: Performance installations, monitor temperature
Result: 2Ω ∥ 2Ω = 1Ω total impedance
Power @ Rainbow 0.5K: 500W RMS
⚠️ NOT RECOMMENDED: 167% of rated power—thermal overload risk
Target Customer Profiles
Pain Points: Limited trunk space, factory audio lacks bass impact, desire for upgrade without cargo sacrifice
Why SP-D822 Fits: Compact 17.3" footprint preserves most trunk space, 300W power suitable for mid-size cabins, ported design maximizes output efficiency
System Recommendation: SP-D822 ($349.99) + Rainbow Dream 0.5K ($179.99) + 8 AWG wiring kit ($49.99) = $579.97 complete system
Pain Points: Current 6" system lacks low-frequency authority, desire deeper bass extension, budget constraints limit 10-12" upgrade path
Why SP-D822 Fits: 33% more cone area vs 6" (113 sq.in. vs 75 sq.in.), ported design extends response to 35Hz (vs 45Hz+ for sealed 6"), maintains similar footprint
Performance Gain: Expect +6dB output (4× louder) in 35-50Hz range versus typical sealed 6-inch system
Pain Points: Large cargo area acoustically challenging, traditional under-seat options lack output, desire removable solution for cargo flexibility
Why SP-D822 Fits: Ported design compensates for larger cabin volume (+3dB over sealed alternatives), pre-built enclosure easily removable for hauling needs, corner placement maximizes boundary coupling
Installation Advantage: Secure with cargo net hooks—removable in 30 seconds for Home Depot runs
Pain Points: Premium brands (Rockford, JL, Kicker) exceed budget, DIY enclosure building lacks expertise/tools, desire plug-and-play solution
Why SP-D822 Fits: $349.99 price point competitive with DIY builds (driver $179 + enclosure materials $100 + finish $50 = $329 minimum), ready-to-install eliminates fabrication time/skill requirements, 89.2 dB sensitivity outperforms premium competitors
Value Calculation: Performance equivalent to $500+ premium systems—30% cost savings
Expert Verdict
STRONG BUY RECOMMENDATION
The Feelart SP-D822 earns a rare 4.5/5.0 rating by excelling where it matters most—delivering exceptional real-world performance at an honest price point. This is not merely a "budget alternative" to premium brands; it's a legitimate performance contender that strategically leverages ported enclosure efficiency and high-sensitivity driver design to outperform competitors costing 20-30% more.
Why This Product Earns "Strong Buy" Status:
- Measurable Performance Advantage: 89.2 dB sensitivity rating isn't marketing hyperbole—it translates to requiring 50-66% less amplifier power than Rockford/Kicker/JL competitors for equivalent output. This means smaller amp, less electrical demand, reduced heat generation.
- Intelligent Design Execution: 38-42Hz port tuning optimizes the frequency range where music actually exists (kick drums, bass guitars, electronic bass) rather than chasing inaudible infrasonic bragging rights.
- Ready-to-Install Convenience: Pre-built professional enclosure eliminates $150-$250 custom fabrication costs and weeks of waiting—unbox, wire, play.
- Rainbow Dream 0.5K Synergy: Perfect amplifier pairing at $179.99 creates complete $530 system outperforming $700+ branded packages.
- Realistic Expectations Management: Feelart doesn't promise 10-inch performance from 8-inch physics—they deliver honest 8-inch excellence optimized for real-world applications.
Purchase Decision Framework
- Vehicle space accommodates 8" but not 10-12" systems comfortably
- Budget ceiling at $550-$650 for complete subwoofer system (sub + amp + wiring)
- Efficiency priority—desire maximum output from moderate amplifier power
- Upgrading from 6-inch system—seek significant performance improvement without major installation changes
- Musical accuracy focus—prioritize 40-80Hz punch over extreme infrasonic extension
- Ready-to-install solution—lack expertise/tools for custom enclosure fabrication
- Mid-size vehicle application—sedan, coupe, compact crossover, small SUV
- Value-conscious performance—willing to sacrifice brand prestige for superior efficiency specifications
- Vehicle accommodates 10-12 inch subwoofers—larger drivers offer superior low-frequency extension and output
- Budget exceeds $700—premium brands (JL Audio, Rockford Fosgate) offer verified build quality and brand support
- Primary listening includes bass-heavy EDM/dubstep requiring deep sub-30Hz extension
- Large vehicle cabin (full-size truck, SUV, van)—requires higher power handling (400W+ RMS)
- SPL competition goals—need extreme output capability beyond musical listening levels
- Brand prestige important—Feelart lacks established North American market recognition
- Infrasonic enthusiast—desire maximum sub-25Hz output for movie soundtracks/organ music
- Ultra-budget constraint—generic 8" loaded enclosures available $200-$250 (sacrifice efficiency/build quality)
Value Analysis & Long-Term Ownership
Price-to-Performance Ratio: ★★★★★ (5/5)
At $349.99, the SP-D822 occupies strategic pricing territory—premium enough to include professional enclosure construction and quality driver components, yet affordable enough to remain accessible to enthusiasts on moderate budgets. The 89.2 dB sensitivity rating alone justifies pricing premium over generic alternatives (typically 85-87 dB).
Competitive Value Comparison:
- DIY Alternative Cost: Quality 8" dual 2Ω driver ($179-$229) + 0.85 cu.ft. ported enclosure materials/finish ($120-$180) = $299-$409 before labor. SP-D822 at $349.99 competitive with DIY while eliminating 10-15 hours fabrication time.
- Premium Brand Comparison: JL Audio CP108LG-W3v3 loaded enclosure ($449.99) costs $100 more yet offers 84.6 dB sensitivity (4.6 dB disadvantage). SP-D822 delivers equivalent output with 66% less amplifier power—superior efficiency value.
- Generic Alternative Risk: $199-$249 loaded 8" boxes save $100-$150 but typically use 200W RMS drivers with 85-87 dB sensitivity—33% less power handling, 2-4 dB lower efficiency. SP-D822's $100-$150 premium buys measurable performance advantage.
Long-Term Ownership Considerations:
- Upgrade Path: Moderate—8" enclosure constraints limit future driver upgrades. However, 300W RMS capability allows amplifier upgrades without subwoofer replacement.
- Resale Value: Fair—Feelart brand recognition lower than established competitors, but efficiency specifications and pre-built enclosure maintain 40-50% value retention after 2-3 years.
- Durability: Expected 5-7 years with proper amplifier matching (avoid over-powering) and reasonable listening levels. Vietnamese manufacturing quality improved significantly 2020-2025.
- Warranty: Typical 1-year manufacturer coverage—standard for budget-oriented brands. Extended protection plans rarely cost-effective for sub-$400 products.
Total Cost of Ownership (3-Year Projection):
- Initial Investment: $349.99 (subwoofer) + $179.99 (Rainbow 0.5K) + $49.99 (wiring) = $579.97
- Electrical Impact: 300W average draw = ~$15-$25/year increased alternator fuel penalty (negligible)
- Maintenance: Zero regular maintenance required (inspect wire connections annually)
- Depreciation: Estimate 60% value retention = $349.99 × 0.60 = ~$210 resale value after 3 years
- Net 3-Year Cost: $579.97 initial - $210 resale = $369.97 total ownership cost ($10.27/month)
1. Amplifier Power Matching: DO NOT exceed 350W RMS continuous input—voice coil thermal capacity limits sustained high-power operation. Rainbow Dream 0.5K @ 2Ω (310W) represents maximum recommended amplifier output.
2. Subsonic Filter Mandatory: ALWAYS enable amplifier subsonic filter (30-35Hz, 12-18dB/octave)—prevents mechanical over-excursion below port tuning frequency. Failure to use subsonic protection voids warranty and risks catastrophic driver failure.
3. Port Airflow Clearance: Maintain minimum 2-3 inches clearance in front of port tube—obstructed airflow causes audible chuffing (turbulent noise) and reduces output by 3-6 dB. Never place enclosure with port facing wall/seat back.
4. Secure Mounting Required: Use cargo net hooks, mounting brackets, or seat anchors—unsecured 25-30 lb enclosure becomes dangerous projectile during emergency braking or collision. Measure 40+ G deceleration forces in crash scenarios.
5. Electrical System Capacity: Verify vehicle alternator rated 70A+ minimum—300W subwoofer system + headlights + HVAC + stereo = 50-60A total draw. Undersized alternator causes voltage drop, amplifier protection mode activation, reduced output.
Frequently Asked Questions
Recommendation: Use series (4Ω) or single-coil (2Ω) wiring—avoid parallel (1Ω) configuration.
Choose Ported If: Efficiency/output priority
Choose Sealed If: Transient accuracy/size priority
Detail: Factory head units typically output 2-4V RCA signal—Rainbow Dream 0.5K accepts 0.25V-5V input (compatible). However, factory systems lack dedicated subwoofer output—you'll need line output converter (LOC) to tap speaker wires. Budget $40-$60 for quality LOC with remote turn-on trigger.
Infrasonic Reality: Expect rapid rolloff below 35Hz—8" driver physics limit extreme low-frequency capability. For sub-30Hz movie soundtrack reproduction, consider 10-12" alternatives.
Complete System Investment: $529.98
SP-D822 Subwoofer ($349.99) + Rainbow Dream 0.5K Amplifier ($179.99)
Add 8 AWG wiring kit (~$49.99) for turnkey installation
Transform your vehicle's audio system with proven efficiency, ready-to-install convenience, and exceptional value-per-dollar performance.
