Xcelsus XP6.2 6.5" 2-way Component Set

Why "No Lowpass Filter" Matters for OEM Integration

Most aftermarket component sets impose 12dB high-pass filters (typically 80-100Hz cutoff) on the woofer to protect it from excessive bass excursion when driven by external amplifiers. However, this approach creates three critical problems for factory system upgrades:

Problem 1: Factory EQ Curve Disruption

Modern factory head units apply bass boost EQ curves (typically +3 to +6dB at 80-100Hz) to compensate for small factory speakers' limited low-frequency response. When aftermarket component crossovers add 12dB high-pass filters in same frequency range, cumulative filtering creates 15-18dB attenuation—resulting in thin, anemic bass reproduction despite upgraded speakers.

Problem 2: Fade/Balance Control Conflicts

Factory head units route specific frequency bands to front vs rear channels via internal DSP. Adding external crossover filters disrupts this frequency steering—causes imbalanced soundstage where certain instruments appear louder in front while others dominate rear, depending on fade settings.

Problem 3: DSP Processing Incompatibility

Premium factory systems (Bose, Harman Kardon, Bang & Olufsen, etc.) apply sophisticated DSP equalization, time alignment, and dynamic range compression optimized for OEM speaker parameters. External crossover filters alter frequency response in ways factory DSP cannot compensate—creates unpredictable tonal imbalances.

XP6.2's Solution: Woofer Receives Full-Range Signal

By eliminating the lowpass filter on the woofer, XP6.2 allows factory head unit to control entire frequency response—preserves OEM EQ curves, maintains fade/balance functionality, ensures DSP processing operates as designed. Only tweeter receives 6dB high-pass filter (gentle slope minimizes phase distortion)—protects delicate textile dome from excessive excursion while maintaining natural tonal balance.

Door Preparation (Critical for Performance):

• Deadening Material: Apply 2-3 layers sound deadening (Dynamat, Noico, Kilmat) to outer door skin—converts door into quasi-sealed enclosure, improves 60-100Hz midbass response by 3-6dB
• Moisture Barrier: Install closed-cell foam behind speaker—prevents water intrusion during rain, protects magnet structure, maintains cone rigidity
• Factory Connector Adaptation: Use vehicle-specific speaker harness adapters—preserves OEM wiring, allows quick removal if needed, maintains warranty

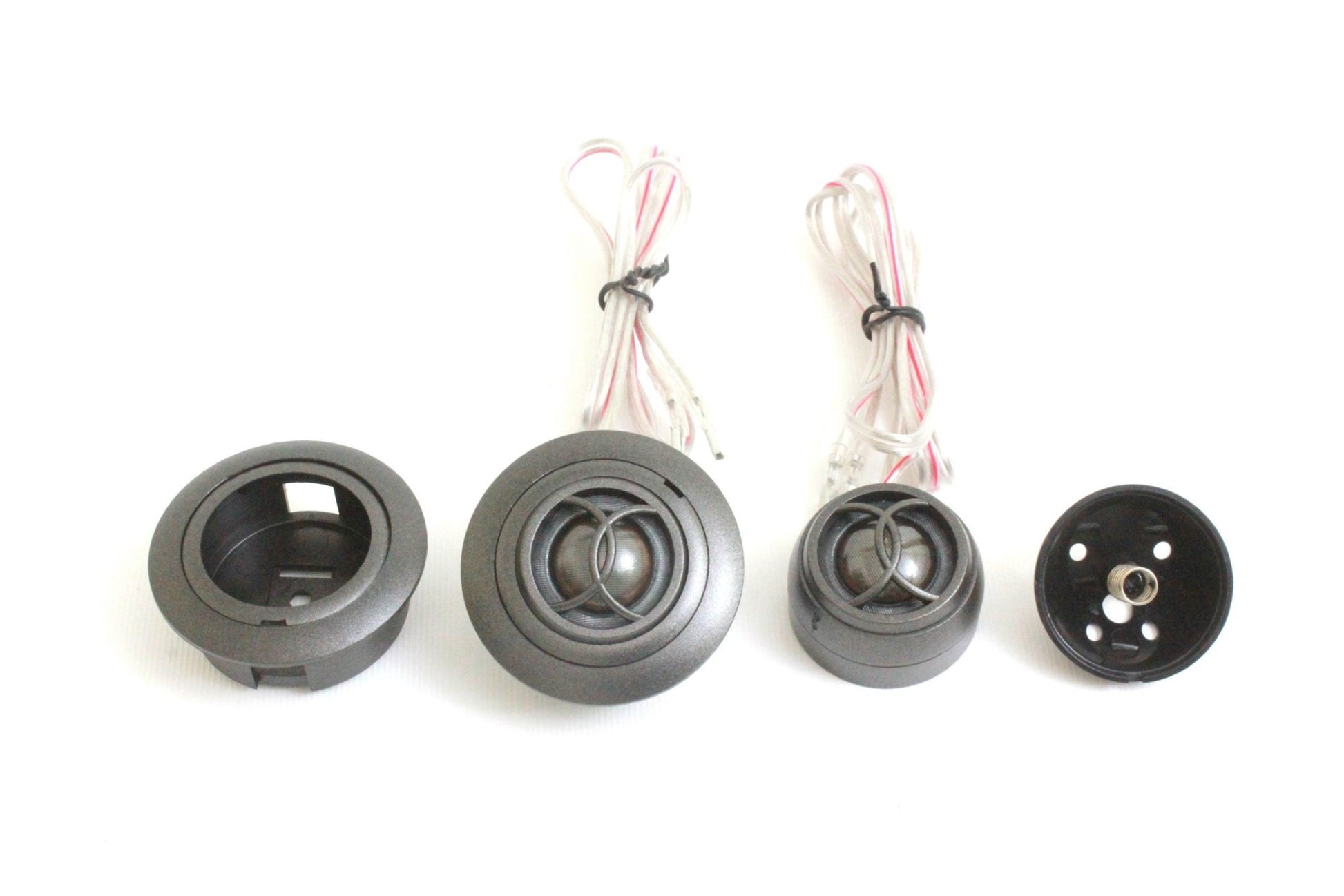

Tweeter Placement Strategy:

• Option 1 - Sail Panel/A-Pillar (Optimal Soundstage): Mount tweeters at upper door/windshield intersection—creates wide soundstage, excellent imaging, time-aligns with woofer naturally
• Option 2 - Dashboard (Factory Locations): Use OEM tweeter grilles if present—maintains stock appearance, adequate performance for most listeners
• Option 3 - Door Upper (Budget-Friendly): Surface-mount on door panel near mirror—simple installation, reduces wiring complexity, acceptable imaging
• Aiming Technique: Pivot tweeter toward driver's left ear (opposite side aims toward passenger's right ear)—maximizes on-axis high-frequency response for both front occupants

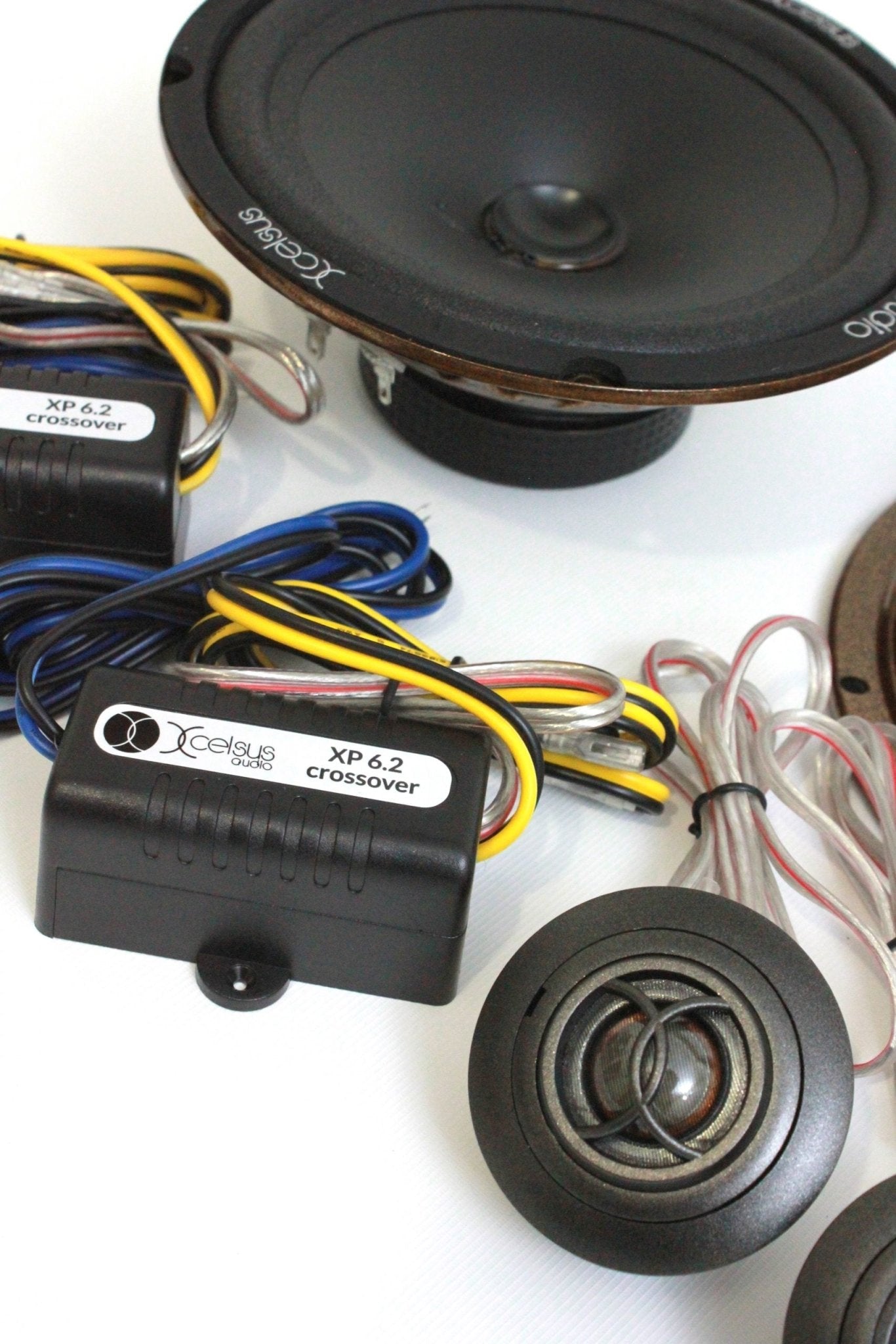

Crossover Mounting:

• Location: Mount crossover boxes inside door cavity (above moisture line) or under dashboard—avoid trunk mounting (excessive wire length degrades high frequencies)
• Orientation: Position horizontally with component side down—prevents dust accumulation on circuit board, improves heat dissipation
• Securing Method: Use foam tape or zip ties—avoid screwing into door metal (creates rattle), ensure crossover won't shift during door operation

Recommended Power Configuration:

• Factory Head Unit (15-22W RMS): Ideal application—89dB sensitivity extracts maximum output, no lowpass filter preserves OEM signal, 60W RMS rating provides safe thermal margin
• Entry Amplifier (50-75W RMS): Optional upgrade—unlocks additional dynamic range, improves bass control, maintains safe power limits (60W RMS rating)
• Not Recommended: High-power amplifiers (100W+ RMS)—exceeds 60W thermal capacity, risks voice coil damage, unnecessary for XP6.2's design intent

The Xcelsus XP6.2 earns 4.3/5.0 rating by excelling in its specific niche—factory system upgrades requiring no amplification or extensive modification. This is not a maximum-SPL competition speaker; it's an intelligent engineering solution optimizing sonic performance within OEM electrical and physical constraints.

Why This Product Earns "Strong Buy" for Factory Upgrades:

• Crossover Design Intelligence: No lowpass filter on woofer preserves factory head unit signal integrity—solves critical problem that 95% of aftermarket component sets ignore
• Shallow Mount Advantage: 63mm depth fits virtually all factory door locations—eliminates spacer rings, custom brackets, door modifications common with 68-75mm competitors
• Efficient Power Conversion: 89dB sensitivity extracts 2× louder output vs 86dB competitors from same factory power (15-22W)—meaningful real-world advantage
• Natural Tonal Balance: Gentle 6dB crossover slope + mica-filled cone delivers refined midrange/treble without harshness plaguing steep-filter mass-market designs

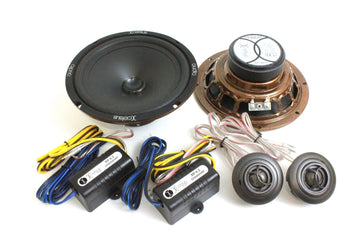

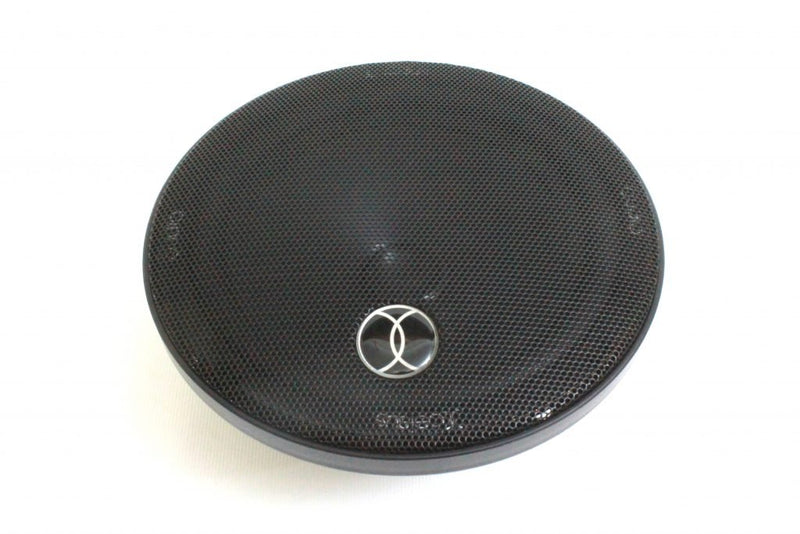

• Complete Solution: Includes all mounting hardware (grilles, spacers, tweeter mounts, crossovers)—true plug-and-play experience for factory upgrade application
