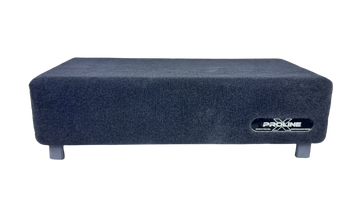

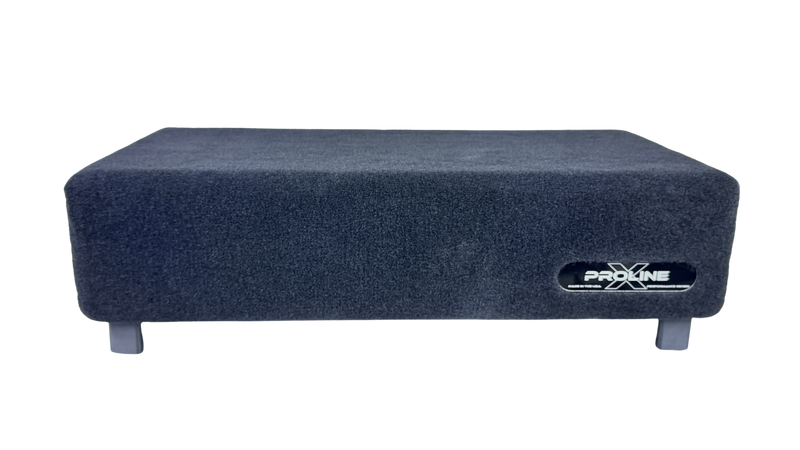

Proline X P10-S DF | Single 10" Sealed Down Fire Subwoofer Enclosure
SKU: P10-S DF-GRY
- Net Volume: 0.60 cu ft physical
- Cutout: 9.25 in
- Max Mounting Depth: 4.75 in, shallow drivers only
- Cabinet Height: 5.5 in, 7.25 in with feet
- Footprint: 24.5 in W x 13.5 in D
- Orientation: Down fire or forward fire
- Mounting: Solid flange, drill to match your driver
- Weight: 23 lb
Financing available — choose Shop Pay Installments at checkout.
Proline X P10-S DF | Single 10" Sealed Down Fire Subwoofer Enclosure
Five and a Half Inches Tall. Firing Into the Floor.
A shallow sealed enclosure for a single 10 inch subwoofer, built to disappear under a cargo cover or behind a seat back. The driver faces down, the top of the cabinet stays flat and usable, and the whole thing stands 7.25 inches tall with the feet installed.
This Is a Shallow Mount Enclosure
Maximum driver mounting depth is 4.75 inches. That is the number that decides whether this enclosure works for you, and it rules out the majority of conventional 10 inch subwoofers, which typically need somewhere between 5.5 and 7 inches.
This box is built for shallow mount and slim profile 10s. Check your driver's published mounting depth against 4.75 inches before you order. If your driver needs more than that, our forward fire P10-S allows 6.25 inches and is the better choice.
Built Around a Constraint, Not Around a Driver
Performance Down Fire enclosures are sized by driver diameter rather than cut for one specific subwoofer. This one takes any 10 inch driver with a 9.25 inch cutout and a mounting depth of 4.75 inches or less, and gives it 0.60 cubic feet of net airspace.
The design brief was height. At 5.5 inches of cabinet the enclosure fits places a conventional 10 inch box cannot go, and turning the driver toward the floor is what makes that height possible, because the baffle no longer has to face outward into the cargo area.
Why Down Fire
Turning the driver toward the floor is not a styling decision. It changes what the enclosure does to the space around it and what the space around it can do to the enclosure.
The Floor Is Right There
The driver radiates into a hard surface 1.75 inches away. In a trunk or cargo area that reinforcement, combined with cabin gain, is what makes a compact sealed box feel bigger than its airspace.
Nothing Lands on the Cone
Groceries, tools, luggage, and dogs never touch a surround that is facing down. The most common cause of a damaged subwoofer in a daily driven vehicle is cargo, not power.
A Flat Top You Can Use
No basket, no grille, no protrusion. The top of the cabinet is a flat carpeted surface, which in most vehicles means you get the cargo floor back instead of building around a box.
Not Locked Into One Orientation
The feet ship without predrilled holes on purpose. Mount them where your floor wants them, or leave them off entirely and run the cabinet forward firing if your install calls for it.
What Ships With the Enclosure
Four feet come standard with every Performance Down Fire enclosure. There is no upgrade tier and no separate accessory to buy.
- ABS and carbon fiber composite, machined in house on the same equipment as our terminal cups.
- 1.75 inches of lift, which sets the working air gap between the baffle and the floor.
- No predrilled mounting holes, so the enclosure is never locked into a single orientation.
- Overall height with feet installed: 7.25 inches. Cabinet alone is 5.5 inches.
Keep the gap clear. The 1.75 inch space under the baffle is the air path, not empty room. A spare tire, a toolbox, or a folded moving blanket pressed against the opening will choke the output. Down fire systems that sound dead almost always have something jammed underneath them.
How It Is Built
Cabinet
Cut on our ShopSabre CNC from Langboard Elite MDF and assembled with V groove and dado joinery, with internal bracing and a single 0.75 inch baffle. Every panel meets on a machined joint rather than a butt seam, so the cabinet stays rigid and puts its energy into the driver instead of the panels.
Mounting Hardware
This is a generic enclosure sized by driver diameter, which means we do not know which subwoofer is going into it and cannot machine a bolt pattern for it. The baffle ships as a solid mounting flange and you drill your own mounting holes to match your driver. Threaded inserts are a feature of our Performance Optimized line, where the enclosure is cut for one named subwoofer and the bolt circle is drawn in CAD from the actual driver.
The MDF we use is dense. Predrill your mounting holes. Driving screws straight into it without a pilot hole will split the baffle or strip the screw.
Wiring and Damping
The Proline X ABS and carbon fiber composite terminal cup is side mounted, which keeps the connection accessible with the enclosure sitting on its feet. Pre wired with 12 gauge OFC. Polyfill is installed before the enclosure leaves the shop.
Finish

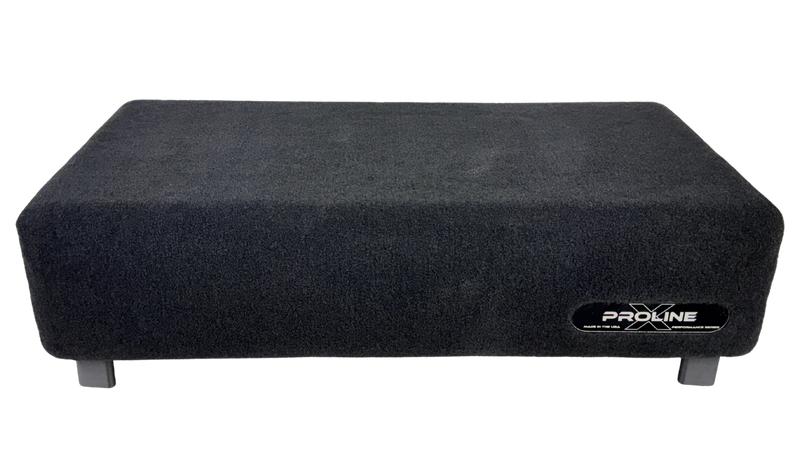

Dark gray trunk liner standard, plush black available. The lasered acrylic badge mounts on the front face rather than the woofer face, so it stays visible in the down fire orientation.
Fitment
The cabinet measures 24.5 inches wide by 13.5 inches deep by 5.5 inches tall, or 7.25 inches tall with the feet installed and the enclosure sitting in the down fire position.
Two numbers decide this purchase. Driver mounting depth against 4.75 inches, and cabinet height against the space you have. Width and depth are generous because the height had to come from somewhere. Measure the footprint before you order.
Enclosure Performance
This enclosure is sized by driver diameter rather than cut for one subwoofer, so there is no single response curve for it. What the alignment does depends entirely on the driver you put in, and specifically on its total Q.
The table below models three driver profiles across the range you find in shallow mount 10s, calculated in 0.60 cubic feet. These are illustrative profiles, not published specifications for any particular subwoofer. Use them to understand the shape of the outcome, then run your own driver's real numbers.
| Driver Profile (modeled) | Qtc | fc | F3 | Result |
|---|---|---|---|---|
| Low Q, Qts 0.40 Fs 32 Hz, Vas 0.70 cu ft |
0.589 | 47.1 Hz | 58.4 Hz | Overdamped. Rolls off early, thin on the bottom. |
|
Mid Q, Qts 0.50 Fs 30 Hz, Vas 0.85 cu ft |
0.777 | 46.6 Hz | 42.8 Hz | Near textbook. The target for this box. |
| High Q, Qts 0.65 Fs 28 Hz, Vas 1.00 cu ft |
1.061 | 45.7 Hz | 35.1 Hz | Impact alignment. Lift around 45 Hz, extends lower. |
What the numbers are telling you. A 0.60 cubic foot sealed box wants a driver in the middle of the Q range. Drop in a low Q driver and you get an overdamped alignment that gives up real low end. Drop in a high Q driver and you get a lift in the upper bass with deeper extension, which is a legitimate choice if impact is what you want. There is no wrong answer here, but there is a wrong assumption, which is that any 10 will behave the same way in this box.
About the Polyfill
The 0.60 cubic foot figure is physical net airspace, measured after subtracting bracing and typical driver displacement. It is the number to enter into a modeling program. Polyfill is installed at the correct density before the enclosure ships, which typically makes a sealed box behave as though it were roughly 10 to 15 percent larger. We quote the physical volume rather than the effective one, so the number you see is the number you can verify.
Run your own driver's parameters through the Sealed Box Calculator.
Full dimensions, cutout, mounting depth, and hardware details are listed under the Enclosures tab.
Shallow, Down Firing, Built in Tennessee.
Every Performance Down Fire enclosure is built to order in Tullahoma, Tennessee on our own CNC equipment. Questions on driver depth or whether your subwoofer suits this alignment, call or text 707-999-3071.
| Specification | Value |
|---|---|
| Series | Proline X Performance Down Fire |
| Configuration | Single 10 inch, sealed, down fire |
| External Dimensions | 24.5 in W x 13.5 in D x 5.5 in H |
| Overall Height With Feet | 7.25 in |
| Baffle to Floor Clearance | 1.75 in |
| Net Internal Volume | 0.60 cu ft, physical net |
| Woofer Cutout | 9.25 in |
| Max Mounting Depth | 4.75 in |
| Baffle | Single, 0.75 in |
| Panel Thickness | 0.75 in |
| Material | Langboard Elite MDF |
| Joinery | V groove and dado, CNC cut |
| Bracing | Internal, series standard |
| Threaded Inserts | None. Solid mounting flange, customer drills to match driver |
| Feet | Four ABS and carbon fiber composite, 1.75 in lift, no predrilled holes |
| Terminal Cup | Proline X ABS and carbon fiber composite, side mounted, pre wired 12 gauge OFC |
| Damping | Polyfill installed |
| Carpet | Dark gray trunk liner standard, plush black available |
| Badge | Front face mounted, lasered acrylic |
| Tuning | N/A, sealed |
| Weight | 23 lb |
| Warranty | 1 Year Limited |
| Built In | Tullahoma, Tennessee |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
