Proline X

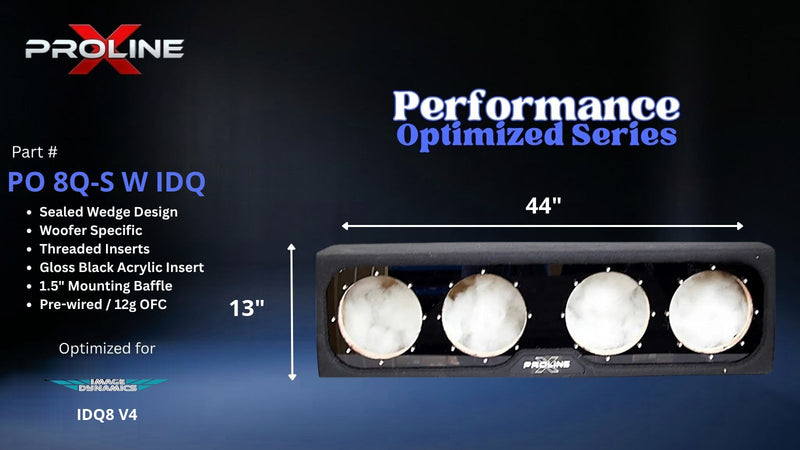

Performance Optimized Wedge Wide Sealed Quad 8" Enclosure | Image Dynamics IDQ8 V4

Q: Does this fit the Image Dynamics IDQ8 V4, and its coil versions?

Yes. Each opening is cut to 7.299 in for the 8.346 in frame, and the 4.92 in deep motor clears the raked rear panel with 12.26 in to spare. Coil versions of the Image Dynamics IDQ8 V4 share the frame, cutout and mounting depth, so any of them drops in. The alignment on this page is computed on the IDQ8 V4 D2 parameters.Run four matched drivers, same model and same coil, so every chamber sees the alignment on this page.

Q: Why 1.145 cubic feet per driver, and what alignment does it target?

On Image Dynamics's published Fs 51.0 Hz, Qts 0.810 and Vas 6.7 liters, 1.145 cubic feet per driver gives Qtc 0.890, system resonance 56.0 Hz and half power 46.8 Hz.The wide platform stops at 23 inches deep, so this box lands a little above flat: a small lift near resonance and firm midbass.

Q: What amplifier power should I run, and how should I wire it?

Image Dynamics rates the IDQ8 V4 at 125 watts RMS per driver. Recommended amplifier: 80 to 120 W RMS per driver, 320 to 480 W RMS for the full set of 4.Each IDQ8 V4 D2 has two 2 ohm voice coils, 4 ohms in series or 1 ohm in parallel. Wire every driver's coils in series. With the two drivers in each chamber in parallel and the two cups in parallel, the four present 1 ohm to a mono amplifier. With the two drivers in each chamber in series and the two cups in parallel, they present 4 ohms. Use the lower load only on an amplifier rated stable there.

Q: Why two drivers per chamber instead of four chambers?

Four chambers would need three dividers, and on a 44 inch face that space is needed for the woofers. Two matched drivers in one sealed chamber move together and see the same pressure, so each behaves as if it had half the chamber to itself: 1.145 cubic feet per driver here.It also gives two terminal cups, one per pair, which keeps the wiring to the amplifier simple.

Q: What is the expected low-frequency extension?

Anechoic F3 is 46.8 Hz per driver with system resonance at 56.0 Hz.Those figures exclude cabin gain. An SUV cabin adds real output below about 50 Hz, so in-vehicle response runs deeper than the numbers above.

Q: Do I need to add polyfill or damping?

No. Polyfill is already installed as a light wall lining in every chamber, and the quantity is chosen so it does not change the acoustic volume.Do not add more. Packing a sealed box makes it behave as though it were larger, which moves the alignment away from 1.145 cubic feet per driver.

Q: Are the drivers included?

No. This is an enclosure only. You receive the cabinet finished in plush black carpet with the gloss black acrylic baffle insert, two side-mounted pre-wired terminal cups, the polyfill lining in place, threaded inserts and stainless machine screws.Bring four matched Image Dynamics IDQ8 V4 drivers. The cabinet is cut direct fit to them, not a general purpose 8 inch box.

SKU: PO 8Q-S W IDQ BB

QUICK SPECS

Best For: Quad Image Dynamics IDQ8 V4 SUV Cargo-Floor Builds
Net Volume: 1.145 cu ft per Driver (4.58 cu ft Net Total)
Driver Match: Four Image Dynamics IDQ8 V4 (Dual 2 Ohm), matched
Construction: 2 Chambers | 44" Wide Wedge | V-Groove/Dado | Double 1.5" Baffle | 2 Terminal Cups

Shipping Included No freight charges at checkout. What you see is what you pay.

Built in Tennessee CNC cut from 3/4" Langboard Elite MDF. V-groove and dado joinery.

Advanced Terminal Cup Built in-house. ABS/Carbon Fiber. Stainless steel hardware. Copper ring terminals.

$ 559.99

Acrylic Insert Color

In Stock and Ready to Ship

Financing available. Choose Shop Pay Installments at checkout.

Performance Optimized Wedge Wide Sealed Quad 8" Enclosure | Image Dynamics IDQ8 V4

More enclosures cut for Image Dynamics subwoofers: Image Dynamics Subwoofer Boxes

Enclosure Type Sealed

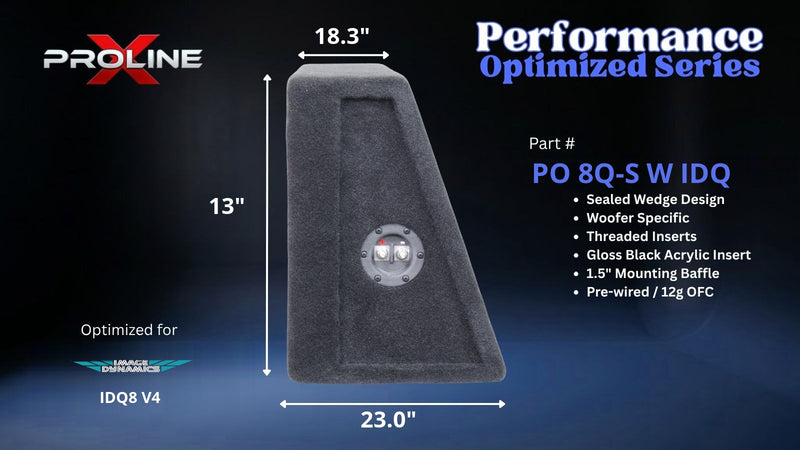

External Dimensions 44" W x 13" H x 23.00" D at base tapering to 18.27" D at top

Gross Volume 4.87 cu ft

Net Volume 4.58 cu ft

Shipping Weight 85 lbs

Front Panel Thickness 1.5"

INSTALLER'S TAKE

Start with the size. 1.145 cubic feet per driver puts the IDQ8 V4 at Qtc 0.890, resonance 56.0 Hz, half power 46.8 Hz anechoic. The wide platform stops at 23 inches deep, so this box lands a little above flat: a small lift near resonance and firm midbass.

Measure the base depth, not the top. This cabinet is 23.00 in deep where it meets the floor, 18.27 at the top, 44 wide and 13 tall. In an SUV the 44 has to clear between the rear wheel wells at floor height, the base depth is measured from the seat back with the seat upright and latched, and the 13 has to clear the cargo cover.

The two terminal cups are on the side panels, one per chamber, so they sit close to the wheel wells. Land the speaker wire on both before the box slides into its final spot, with slack to pull it forward again.

Two drivers share each chamber, so they have to match: same model, same coil, wired in phase. One driver reversed in a shared chamber pushes against its partner and the pair cancels instead of adding. Check polarity at each cup with a battery tap before the box goes in.

Impedance. IDQ8 V4 D2: wire for 4 ohms (coils in series, each chamber's pair in series, both cups in parallel), the load most monoblocks are built to deliver full power into; 1 ohm is the other clean option (coils in series, each chamber's pair in parallel, both cups in parallel). Work the load out before you buy the amplifier, not after.

Power. Size the amplifier for the set, not one driver: 80 to 120 W RMS per driver is 320 to 480 W RMS across all 4 at 4 ohms.

Image Dynamics's Qes and Qms reproduce the printed Qts within 3 percent, so the alignment rests on a self-consistent set.

Polyfill is in as a wall lining in every chamber. Do not add more: it makes the box act larger and walks Qtc off 0.89.

Product Details

Performance Optimized Wedge Wide | Quad Image Dynamics IDQ8 V4

Quad 8" Sealed Wedge Enclosure | Built for SUV Cargo Floors

1.145 ft3 Net per Driver4.58 ft3 Net TotalQtc 0.892 Sealed Chambers44" x 13" x 18.27/23.00"Built in Tennessee

Four Image Dynamics IDQ8 V4 in a 44 Inch Sealed Wedge

The wide wedge is a fixed SUV platform: 44 inches across and 13 tall, built to span a cargo floor against the rear seat. Depth is the only dimension that moves, and it is solved for the driver. Here it runs 18.27 in at the top to 23.00 in at the base.

1.145 cubic feet net per driver on Image Dynamics's published Fs 51.0 Hz, Qts 0.810 and Vas 6.7 liters: Qtc 0.890, system resonance 56.0 Hz, half power 46.8 Hz. The wide platform stops at 23 inches deep, so this box lands a little above flat: a small lift near resonance and firm midbass.

Two Chambers, Two Drivers Each

A bonded full-height 3/4 inch MDF divider splits the cabinet into two sealed chambers of 2.291 cubic feet net. Each chamber carries two drivers, so each driver works into 1.145 cubic feet; both drivers in a chamber see the same pressure, which is why they must be a matched pair. Two pre-wired terminal cups, side mounted, one per chamber; each cup feeds the two drivers in its chamber.

The four 8.346 in frames sit in one row across the 44 inch face, two to each chamber, with the cutouts held clear of the sides and the center divider.

Cargo-Floor Wedge Design

The woofers mount on the vertical face and fire rearward toward the liftgate. The raked face goes against the rear seat back.

Raked Face Matches the Seat

A 20 degree rear panel follows the lean of a rear seat back.

44 Inches Across

Built to span a cargo floor. Measure between the rear wheel wells.

13 Inches Tall

Check it against your cargo cover and rear glass before you order.

23.00 Inches Deep at the Base

Measure the cargo floor before you order.

Engineered for the Image Dynamics IDQ8 V4

Half power lands at 46.8 Hz anechoic, before cabin gain. Image Dynamics publishes 0.050 cubic feet of driver displacement and it is taken out of the net figure for every driver.

Alignment Numbers (Per Driver)

Driver	System Qtc	fc	F3
IDQ8 V4 D2	Qtc 0.890	56.0 Hz	46.8 Hz

Mounting Geometry

Each opening is cut to 7.299 in for the 8.346 in frame. The rear panel rakes 20 degrees, so the cavity deepens from 18.27 in at the top to 23.00 in at the base, and the 4.92 in deep motor clears it with 12.26 in to spare.

What the Numbers Rest On

Langboard Elite MDF

Premium 3/4 in MDF throughout.

V-Groove and Dado Joinery

CNC cut V-grooves at every fold, sides and dividers seated in dados.

Double-Layer 1.5" Front Baffle

Two bonded 3/4 in MDF sheets at the driver face, the outer layer machined as a flush recess.

Image Dynamics's Own Parameters

Fs 51.0 Hz, Qts 0.810, Qes 0.920, Qms 6.700, Vas 6.7 L, Sd 214 cm2, Xmax 14 mm.

Wiring Four Image Dynamics IDQ8 V4 to Your Amplifier

Each IDQ8 V4 D2 has two 2 ohm voice coils, 4 ohms in series or 1 ohm in parallel. Wire every driver's coils in series. With the two drivers in each chamber in parallel and the two cups in parallel, the four present 1 ohm to a mono amplifier. With the two drivers in each chamber in series and the two cups in parallel, they present 4 ohms. Use the lower load only on an amplifier rated stable there.

Image Dynamics rates the driver at 125 watts RMS each, 500 across all four. Recommended amplifier: 80 to 120 W RMS per driver, 320 to 480 W RMS for the full set of 4.

Built in Tennessee, Backed by Audio Intensity

Cut and assembled in Tullahoma, Tennessee on our own CNC equipment. Finished in plush black carpet with the gloss black acrylic baffle insert, two side-mounted pre-wired terminal cups, 12 gauge OFC. Polyfill wall lining installed in every chamber. Threaded inserts at every mounting location, stainless machine screws in the box. 1 year limited warranty. Enclosure only, the drivers are purchased separately. Call or text 931-563-5151.

Quad Image Dynamics IDQ8 V4: 44 Inch SUV Sealed Wedge

1.145 cubic feet net per driver at Qtc 0.890, F3 46.8 Hz, cut direct fit and built to order in Tennessee.

Specifications

Specification	Value
Series	Proline X Performance Optimized Wedge Wide
Compatible Driver	Image Dynamics IDQ8 V4, quantity 4, matched. Direct fit
Configuration	Quad 8 inch sealed wedge, 2 chambers, 2 drivers per chamber
Mounting Position	SUV cargo floor, raked face against the rear seat back
Firing Direction	Rearward toward the liftgate. Not a down fire design
External Width	44 in
External Height	13 in at the seat face
External Depth	23.00 in at the base, tapering to 18.27 in at the top
Internal Volume, Gross	4.87 cu ft total
Internal Volume, Net Acoustic	1.145 cu ft per driver, 4.58 cu ft total, after the divider and Image Dynamics's published 0.050 cu ft displacement per driver
Driver Mounting Depth	4.92 in required; 12.26 in clearance above the motor against the raked rear panel
Alignment Per Driver	IDQ8 V4 D2 Qtc 0.890, fc 56.0 Hz, F3 46.8 Hz anechoic
Woofer Openings	4 at 7.299 in
Woofer Layout	One row across the face
Frame Outer Diameter	8.346 in
Fs / Qts / Qes / Qms	51.0 Hz / 0.810 / 0.920 / 6.700
Vas / Sd / Xmax	6.7 L / 214 cm2 / 14 mm
Driver Power Handling	125 W RMS per driver, 500 W RMS for the set of 4 (thermal rating)
Recommended Amplifier	80-120 W RMS per driver, 320-480 W RMS for the full set, at 4 ohms
Parameter Source	Image Dynamics published specifications
Material	Langboard Elite MDF
Construction	CNC cut, V-groove and dado joinery
Panel Thickness	0.75 in
Front Baffle	1.5 in double baffle, outer layer machined as a flush recess
Internal Bracing	One full-height 3/4 in divider
Driver Mounting	Threaded inserts, stainless machine screws included
Terminal Cups	Two Proline X ABS and carbon fiber composite, side mounted, one per chamber, pre wired 12 gauge OFC
Acrylic Insert	Gloss black acrylic baffle insert standard; None variant minus $20
Damping	Light polyfill wall lining in every chamber, does not alter acoustic volume
Carpet	Plush black
Shipping Weight	85 lb
Warranty	1 Year Limited
Built In	Tullahoma, Tennessee

Performance Graphs

Net airspace

1.145

cu ft per driver

System Qtc

0.89

sealed

Half power

46.8

Hz · F3

Xmax at

381

W RMS per driver · no filter

With 25 Hz subsonic

398

W RMS per driver · +4%

Amplifier, per driver

80–120

W RMS recommended

This enclosure holds 1.145 cu ft net per driver. In it the Image Dynamics IDQ8 V4 D2 runs a system Qtc of 0.89 with half power at 46.8 Hz, and the cone reaches its 14.5 mm travel limit at 381 W per driver, above the driver’s 125 W thermal rating, so heat stops you before travel does. A 25 Hz subsonic filter adds little here: 398 W per driver against 381 W, 4 percent. The box already resonates at 56 Hz, so its own rolloff has removed most of what the filter would have stopped.

00Sizing the amplifier

Every wattage on this panel is per driver. This cabinet holds four, so the amplifier feeds all four at once.

Per driver 80–120 W RMS × 4 drivers = full set 320–480 W RMS at 4 ohms

Look for a mono amplifier rated 320–480 W RMS at 4 ohms, the load the set wires to most easily. The top is the driver’s 125 W thermal rating; with the 25 Hz subsonic set the cone still has travel to spare there, reaching Xmax only at 398 W. Below the bottom of the range it will play, just with less headroom; above the top you are buying power the drivers cannot use.

01Is it a sealed driver?

Efficiency bandwidth product places the motor before anything else is decided.

EBP = Fs ÷ Qes = 55.4

Dual 2 Ohm · EBP 55.4

At 55.4 the IDQ8 V4 D2 sits in the transition band, not the sealed band. That is not a mismatch: a transition motor works in either alignment, and sealed buys a smaller box and a gentler roll-off at the cost of some low-end output. Stage 02 shows what this airspace actually does with it.

02What the box does to it

1.145 cu ft against a 6.7 L Vas.

α = Vas ÷ Vb = 0.21 · Fc = Fs√(α+1) = 56 Hz · Qtc = 0.89

Dual 2 Ohm · Qtc 0.89, Fc 56 Hz, F3 46.8 Hz

The box lifts resonance from 51.0 Hz free-air to 56 Hz and half power lands at 46.8 Hz, anechoic, before any cabin gain. Figures are Image Dynamics’s published parameters; Qes and Qms reproduce the printed Qts. This cabinet holds four drivers in two sealed chambers of 2.291 cubic feet, two drivers to a chamber, so each driver works into 1.145 cubic feet and that is the volume plotted here.

03The watts that reach Xmax (in this enclosure)

Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 14.5 mm, and in this alignment a subsonic filter barely moves it.

P_Xmax = 381 W per driver unfiltered → 398 W per driver with a 25 Hz subsonic

Dual 2 Ohm · 381 W, no filterDual 2 Ohm · 398 W with subsonic at 25 Hz, 24 dB/octXmax 14.5 mm one-way

Every trace touches the limit and no further, because each is drawn at the exact power that puts that coil on 14.5 mm. Unfiltered that is 381 W per driver, reached first at 34 Hz. It sits above the 125 W the driver can take thermally, so the voice coil gives up before the suspension does. The dashed traces are the same driver behind a subsonic filter at 25 Hz, 24 dB/oct, and they sit almost on top of the solid ones: 398 W per driver against 381 W. At 56 Hz the filter sits well below resonance, where the sealed alignment has already rolled the cone off at 12 dB/oct, so there is little wasted travel left for it to recover. Set it anyway to keep road rumble out of the cone, but do not size the amplifier around it.

Param	Value	Unit	Note
Fs	51.00	Hz	free-air resonance
Qts	0.810		Dual 2 Ohm
Vas	6.70	L	equivalent compliance
Sd	214.0	cm²	effective piston area
Xmax	14.5	mm	one-way linear travel
Pe	125	W	continuous RMS
SPL	81.7	dB	1 W / 1 m, derived from T/S

Driver parameters as published by Image Dynamics IDQ8 V4 D2 published specifications. Curves computed against this enclosure’s actual net airspace.
