$193.99 • Brand New Current Production
Trusted by Sound Quality Champions for Over a Decade

🔧 American Manufacturing and Field Serviceability

Image Dynamics subwoofers are assembled in the United States using American-made voice coils and premium components sourced globally. This American manufacturing approach provides several critical advantages:

• Quality control: Every subwoofer undergoes rigorous testing and inspection before shipping—no batch sampling, no statistical quality acceptance. American manufacturing standards ensure consistent performance.
• Field serviceability: The IDQ V4's field-replaceable cone assembly means you can replace damaged cones without returning the subwoofer to the factory. Remove 16 screws, replace the cone assembly using alignment shims, reinstall—no glue, no specialized tools, no manufacturer service required.
• Parts availability: Recone kits and replacement parts remain available for years after purchase—Image Dynamics supports their products long-term rather than discontinuing support when new models launch.
• Technical support: Direct access to American-based technical support staff who understand the products intimately and can provide expert installation guidance.

This serviceability philosophy makes Image Dynamics subwoofers true long-term investments rather than disposable components. When a cone gets damaged (accident, overpowering, mechanical failure), you replace the cone assembly for a fraction of new subwoofer cost. This "green" approach reduces waste while maintaining original motor structure performance.

📊 Image Dynamics Product Line Philosophy

Image Dynamics maintains a focused, clearly differentiated product hierarchy:

The IDQ series occupies the sweet spot for enthusiasts: sound quality competition-grade performance without IDMAX's enclosure space requirements or pricing. The IDQ philosophy prioritizes musical bass reproduction, transient accuracy, and compact enclosure flexibility over maximum SPL capabilities.

🎯 IDQ8 V4 Design Philosophy and Target Applications

Primary Design Goal: Deliver exceptional sound quality in compact sealed enclosures (0.33 - 0.73 cubic feet) where larger subwoofers cannot physically fit or where trunk/cargo space is at a premium.

The 8-Inch Challenge: Small subwoofers face inherent physics challenges—less cone area means less air displacement, which typically results in limited low-frequency extension and reduced output. Image Dynamics addresses these limitations through:

• High excursion design: Extended linear excursion (Xmax) allows the compact 8" cone to move more air than typical 8" subs—compensating for reduced cone area with increased displacement.
• Optimized motor structure: Extended Y-35 motor design provides linear control across entire excursion range—preventing distortion even during high-excursion bass transients.
• Carefully tuned parameters: Thiele-Small parameters optimized specifically for small sealed enclosures—achieving surprisingly low frequency extension (below 30Hz in proper alignment) despite compact size.
• Transient response priority: Lightweight poly/mica cone and controlled suspension allow fast attack and decay—reproducing bass drum kicks and bass guitar plucks with precision rather than bloated overhang.

Ideal IDQ8 V4 Applications:

🔍 What Makes V4 Different: Evolution from Previous Generations

While Image Dynamics hasn't published detailed V3-to-V4 change documentation, enthusiast community feedback and specification comparisons reveal key refinements:

• Optimized motor structure: Extended Y-35 motor provides improved linearity and reduced distortion vs. V3 generation—cleaner bass at higher excursion levels.
• Refined suspension tuning: Parabolic Santoprene surround and Nomex spider parameters adjusted for better small-enclosure performance—improved transient response and extended low-frequency extension in 0.5-0.7 cu.ft. sealed alignments.
• Enhanced thermal management: Improved voice coil cooling and power handling—250W RMS represents conservative rating with thermal headroom for dynamic music peaks.
• Field serviceability improvements: Refined 16-screw cone assembly design simplifies reconing process—cleaner alignment, more reliable reassembly vs. earlier versions.

V4 Continuity: Image Dynamics prioritizes evolutionary refinement over revolutionary redesign. The V4 maintains core IDQ philosophy (sound quality, compact enclosures, tonal accuracy) while incorporating incremental improvements discovered through competition feedback and long-term testing. Customers familiar with V3 performance will recognize V4 as refined evolution rather than radical departure.

📋 What's Included (New Production Package)

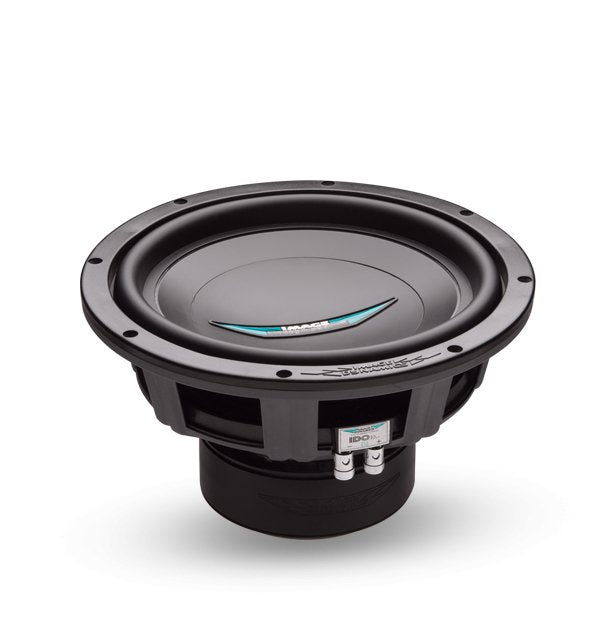

• One (1) IDQ8D2 V4 subwoofer (8" dual 2-ohm)
• Mounting hardware: Screws, gasket/spacer ring (if applicable)
• Owner's manual: Installation guide, specifications, enclosure recommendations
• Warranty registration: Image Dynamics manufacturer warranty coverage

New Production: Brand new current-production subwoofer with full manufacturer warranty. Not NOS, not refurbished, not B-stock—this is the latest IDQ8 V4 generation direct from Image Dynamics.

🎯 High Excursion Design: Maximizing Air Displacement

The Challenge: An 8" subwoofer has only 50.3 square inches of effective radiating area—significantly less than 10" (78.5 sq.in.) or 12" (113.1 sq.in.) subs. Basic physics dictates that air displacement = cone area × excursion. With limited cone area, achieving meaningful bass output requires extended linear excursion (Xmax).

Image Dynamics' Solution: The IDQ8 V4 features high-excursion suspension geometry optimized for long linear throw:

• Parabolic surround profile: The Santoprene surround uses parabolic (curved) geometry rather than flat half-roll design. This shape provides progressively increasing restoring force as excursion increases—preventing over-excursion mechanical failure while maintaining linearity through rated Xmax.
• Nomex spider design: Aramid fiber (Nomex) spider material provides exceptional fatigue resistance and temperature stability. The spider controls vertical motion while allowing extended excursion without centering force nonlinearities.
• Extended voice coil/gap design: American-made flat-wound voice coil extends beyond traditional height—even at maximum excursion, substantial coil length remains in magnetic gap, maintaining motor force and control.
• Polycarbonate neck joint: The cone-to-voice coil junction uses rigid polycarbonate material isolating thermal energy (preventing spider glue softening) while providing mechanical strength for high-power operation.

Result: The IDQ8 V4 achieves Xmax specifications competitive with larger woofers, allowing the compact 8" platform to displace air volumes approaching 10" subwoofers with conventional excursion—providing surprising bass output from small enclosures.

🔊 Poly/Mica Cone: Balancing Stiffness and Damping

Material Science Challenge: Subwoofer cone material selection involves fundamental tradeoffs:

Poly/Mica Composite Solution: Image Dynamics uses polypropylene base material infused with mica particles (natural silicate mineral). This composite provides:

• Optimized stiffness-to-weight ratio: Mica reinforcement increases cone rigidity without proportional mass increase—maintains piston behavior through mid-bass frequencies (approaching 200Hz) where subwoofer/midbass crossover occurs.
• Controlled damping characteristics: Polypropylene base provides inherent material damping preventing sharp resonances, while mica particles add localized damping at microscopic level—cone doesn't "ring" after transient signals.
• Environmental stability: Unlike paper or natural fiber cones sensitive to humidity, poly/mica composite maintains consistent properties across temperature and moisture extremes—critical for automotive applications experiencing -20°F winters and 140°F+ summer trunk temperatures.
• Predictable aging: Synthetic composite materials don't degrade over time like organic materials—10-year-old IDQ subwoofers perform identically to new units (assuming mechanical care).

Sound Quality Impact: The poly/mica cone delivers transient accuracy critical for sound quality applications—bass drum kicks start and stop cleanly without overhang, bass guitar notes have defined attack and decay rather than bloated sustain. This precision separates musical bass reproduction (IDQ philosophy) from simple loudness (SPL-focused designs).

🔥 Parabolic Santoprene Surround: Durability and Linearity

What Is Santoprene? Santoprene is a thermoplastic elastomer (TPE) combining properties of rubber (flexibility, resilience) and plastic (processing ease, consistency). For subwoofer surrounds, Santoprene offers several advantages over traditional materials:

Parabolic Geometry Advantage: The surround profile uses parabolic curvature rather than traditional half-roll or quarter-roll shapes. This geometry provides:

• Progressive compliance: As cone excursion increases, parabolic shape provides gradually increasing restoring force—prevents mechanical over-excursion without introducing abrupt nonlinearities that cause distortion.
• Extended linear excursion: Parabolic profile accommodates longer throw without surround bottoming (compression against cone) or reaching material stretch limits—critical for high-excursion design.
• Reduced harmonic distortion: Smooth progressive compliance curve minimizes nonlinear distortion components even during high-amplitude bass transients.
• Improved cone edge support: Parabolic geometry distributes mechanical stress more evenly across surround material—reduces localized fatigue and extends operational lifespan.

Long-Term Reliability: Santoprene's resistance to UV, ozone, and temperature extremes ensures the IDQ8 V4 surround maintains flexibility and compliance for 15-20+ years of typical automotive use—no cracking, no hardening, no premature failure common with inferior surround materials.

🕸️ Nomex Spider: Thermal Stability and Fatigue Resistance

What Is Nomex? Nomex is DuPont's trademarked aramid fiber material—the same family of synthetic fibers that includes Kevlar. While Kevlar prioritizes tensile strength (ballistic applications), Nomex emphasizes thermal resistance and dimensional stability—ideal properties for subwoofer spiders.

Spider Function and Challenges: The spider (also called damper or tinsel lead support) performs critical functions:

• Centering force: Returns voice coil to rest position after excursion
• Vertical motion control: Constrains cone movement to linear axis (prevents side-to-side rocking)
• Mechanical fatigue resistance: Flexes millions of cycles during typical lifespan
• Thermal exposure: Located directly above voice coil experiencing 150°C+ temperatures during high-power operation

Why Nomex Excels:

• Temperature resistance: Nomex maintains mechanical properties to 200°C+ (vs. 80-100°C for treated cotton, 120-150°C for polyester)—prevents spider softening or material degradation during extended high-power use.
• Dimensional stability: Aramid fibers don't stretch, sag, or creep under sustained load—spider maintains centering force consistency over years of use.
• Fatigue life: Nomex withstands millions of flex cycles without cracking or delamination—critical for subwoofers experiencing large excursions repeatedly.
• Consistent compliance: Unlike materials that soften with heat or stiffen with cold, Nomex spider provides predictable mechanical behavior across automotive temperature extremes.
• Chemical resistance: Resistant to oils, solvents, and environmental contaminants that might degrade natural fiber spiders.

Power Handling Impact: The Nomex spider is essential to IDQ8 V4's 250W RMS power handling. During sustained high-power bass reproduction, voice coil temperatures exceed 150°C—without thermally stable spider material, adhesive bonds soften, spider compliance changes, and mechanical failure occurs. Nomex eliminates this failure mode, allowing the IDQ8 to handle rated power continuously.

⚙️ Extended Y-35 Motor Structure: Linear Force and Efficiency

Motor Structure Fundamentals: The motor assembly (magnet, top plate, pole piece, voice coil gap) generates electromagnetic force converting electrical signal into mechanical cone motion. Motor design critically affects:

• Force factor (Bl): Strength of magnetic field × voice coil wire length in gap—determines efficiency and control
• Linear excursion (Xmax): Range over which motor force remains constant—determines distortion-free output capability
• Thermal management: Heat dissipation from voice coil—affects power handling and thermal compression
• Inductance (Le): Voice coil electrical inductance—affects high-frequency performance and amplifier interaction

What "Extended Y-35" Means:

Y-35 Steel: High-carbon steel alloy with superior magnetic permeability (ability to conduct magnetic flux) vs. mild steel. Y-35 material allows Image Dynamics to achieve higher magnetic flux density in the voice coil gap—increasing motor force (Bl) without proportionally increasing magnet size/weight.

Extended Geometry: "Extended" refers to voice coil/gap height optimization. Traditional motor designs use voice coil height approximately equal to gap height. Extended designs use voice coil significantly taller than gap—even at maximum excursion, substantial coil length remains in magnetic field, maintaining force and control.

Benefits of Extended Y-35 Design:

• Increased linear excursion: Voice coil can travel farther while maintaining constant Bl—extends Xmax and reduces distortion at high output levels.
• Improved transient control: Stronger magnetic field provides better damping of cone motion—precise start/stop behavior critical for sound quality.
• Reduced thermal compression: Taller voice coil has more surface area for heat dissipation—maintains performance during sustained high-power operation.
• Lower distortion: Constant Bl across excursion range prevents nonlinear distortion components that occur when force varies with position.
• Flat impedance curve: Extended coil design helps minimize voice coil inductance rise with frequency—maintains amplifier compatibility and reduces high-frequency rolloff.

Sound Quality Translation: The extended Y-35 motor is why the IDQ8 V4 delivers clean, distortion-free bass even during demanding musical passages. When a kick drum hits or bass guitar plucks a string, the subwoofer cone must accelerate instantly, reach target displacement, then decelerate and return to rest—all within milliseconds. Extended motor design provides the electromagnetic control necessary for this precision, preventing overshoot, ringing, or loss of control.

🔧 Field-Replaceable Cone Assembly: Serviceability and Sustainability

The "Green" Subwoofer Concept: Image Dynamics pioneered field-replaceable cone assemblies in the IDQ and IDMAX series, creating what they call the only "green" subwoofer on the market. This design philosophy prioritizes long-term serviceability over disposable consumption.

How It Works:

Traditional subwoofer reconing requires complete disassembly:

1. Heat voice coil to soften adhesive bonds
2. Carefully remove cone assembly without damaging basket or motor
3. Clean adhesive residue from voice coil gap and basket mating surfaces
4. Apply new adhesive to replacement cone assembly
5. Carefully align voice coil in gap (centering shims)
6. Cure adhesive (24-48 hours)
7. Remove shims, test for centering accuracy and rub/scrape

This process requires specialized tools, technical skill, and precision—most customers send subwoofers to professional reconing services ($100-200+ labor).

IDQ8 V4 Field Replacement Process:

1. Remove 16 screws securing cone assembly to basket
2. Lift out entire cone assembly (cone, surround, spider, voice coil, neck joint—all integrated)
3. Position replacement cone assembly on basket
4. Insert alignment shims (provided with recone kit) to center voice coil in gap
5. Install 16 screws securing assembly to basket
6. Remove alignment shims
7. Done—no glue, no curing time, no specialized tools

Advantages:

• DIY serviceability: Average enthusiast can replace cone assembly in 30 minutes—no professional service required
• Reduced cost: Recone kit ($80-120 typical) + DIY labor vs. new subwoofer ($193.99) or professional reconing ($150-250)
• Environmental sustainability: Motor structure (heaviest, most resource-intensive component) remains in service—only consumable cone assembly replaced
• Consistent performance: Factory-assembled cone ensures proper voice coil alignment and quality—eliminates reconing alignment errors
• Upgrade path: Future cone assembly improvements (materials, surround design) can be retrofitted to existing motors

Long-Term Value: The field-replaceable design transforms the IDQ8 V4 from consumable product to long-term investment. When cone damage occurs (over-excursion from amplifier clipping, mechanical impact, excessive power), you replace $100 cone assembly rather than $200 subwoofer. Over 10-15 year lifespan, this serviceability saves hundreds of dollars while reducing electronic waste.

📦 Enclosure Design and Construction

Sealed Enclosure Recommendations (Optimal):

Enclosure Construction Best Practices:

• Material: ¾" MDF (medium-density fiberboard) or 13-ply Baltic birch plywood—denser materials reduce panel resonance
• Internal bracing: Add cross-bracing for enclosures with panel dimensions exceeding 12"—prevents flex and resonance
• Sealant: Silicone or construction adhesive on all internal seams—eliminate air leaks that reduce bass output
• Terminal cup: Spring-loaded or binding post terminal—secure connections, easy wire routing
• Damping material (optional): Polyfill or acoustic foam (1-2" thick) on internal walls reduces standing waves—improves tonal accuracy
• Carpet/vinyl covering: Professional appearance, protects wood, adds minimal mass damping

⚠️ Volume Accuracy Critical: Calculate net internal volume after subtracting subwoofer displacement, bracing volume, and port volume (if ported). IDQ8 V4 displacement: approximately 0.05 cu.ft. Example: 0.55 cu.ft. net target = 0.60 cu.ft. gross internal - 0.05 cu.ft. subwoofer displacement.

🔌 Amplifier Selection and Wiring

Power Recommendations:

• Minimum: 150W RMS @ 1Ω or 2Ω (depending on wiring)—adequate for sound quality applications
• Recommended: 250-300W RMS—matches subwoofer power handling, provides dynamic headroom
• Maximum: 350W RMS—upper limit before risking thermal or mechanical damage

Dual 2-Ohm Wiring Options:

Example Amplifier Matches:

• Budget: 300W @ 1Ω Class D mono ($150-250)—wire parallel for maximum power
• Mid-tier: 350W @ 1Ω Class D with bass boost, subsonic filter ($250-400)
• Enthusiast: 500W @ 1Ω Class AB or Class D with regulated power supply ($400-700)—provides headroom, runs conservatively
• Sound quality: High-damping-factor amplifier (>200) for tight bass control—prioritize amplifier quality over raw wattage

🎵 System Integration and Tuning

Crossover Settings (Low-Pass Filter):

• Frequency: 60-80 Hz recommended (12dB or 24dB/octave slope)
• Lower crossover (50-60Hz): Use if front stage has strong midbass capability (6.5"+ woofers)—minimizes subwoofer localization
• Higher crossover (80-100Hz): Use with smaller front speakers (4" or 5.25") lacking midbass output—fills bass gap
• Slope: 24dB/octave preferred for sound quality (cleaner integration, less overlap)

Subsonic Filter (High-Pass):

• Sealed enclosures: Set subsonic filter 15-20Hz below calculated -3dB point (typically 20-25Hz for 0.5 cu.ft. sealed)
• Purpose: Protects subwoofer from excessive excursion at infrasonic frequencies—prevents mechanical damage without audible impact

Level/Gain Setting:

• Goal: Seamless integration with front stage—bass should enhance music, not overpower
• Method: Play familiar track with bass content, adjust subwoofer level until bass blends naturally with midrange
• Sound quality approach: Set subwoofer 3-6dB below perception of "enough bass"—prevents localization and maintains tonal balance

Phase Adjustment (if available):

• 0° vs. 180°: Try both settings, select whichever produces stronger, cleaner bass at listening position
• Variable phase: If amplifier offers 0-180° continuous adjustment, fine-tune for maximum output and clarity
• Phase interaction: Subwoofer and front stage speakers can reinforce or cancel each other at crossover frequency—correct phase alignment maximizes output

📊 Competitive Landscape: 8" Subwoofer Market

The 8" subwoofer category spans from budget entry-level products ($50-80) to audiophile-grade designs ($250+). Understanding where the IDQ8 V4 fits helps clarify purchase decisions:

IDQ8 V4 Value Proposition: At $193.99, the IDQ8 V4 delivers premium-tier engineering (American manufacturing, field serviceability, sound quality pedigree) at upper mid-tier pricing. You're getting proven competition-grade performance without boutique brand markup or unnecessary exotic materials.

🔍 Direct Competitor Comparison

vs. JL Audio 8W7AE ($400+):

• JL Advantages: Higher power handling (500W RMS), extreme excursion, proprietary technologies, premium brand cache
• IDQ8 Advantages: Half the price ($193 vs. $400), proven sound quality competition success, field-replaceable cone (JL requires factory recone), similar performance for most applications
• Verdict: JL Audio for no-compromise budgets and extreme SPL; IDQ8 for sound quality priority at reasonable cost

vs. Focal Performance P20F ($150-180):

• Focal Advantages: Slightly lower price, flax cone technology (natural fiber marketing), European brand prestige
• IDQ8 Advantages: American-made vs. imported, decade+ sound quality competition proven track record, field serviceability, more conservative power rating (Focal marketing inflates ratings)
• Verdict: Comparable performance tier; choose Focal for natural fiber preference, IDQ8 for American manufacturing and serviceability

vs. Rockford Fosgate P3D2-8 ($120-150):

• Rockford Advantages: Lower price, widely available, decent SPL capability, established brand
• IDQ8 Advantages: Superior sound quality focus (transient response, tonal accuracy), better build quality (Nomex spider, Santoprene surround), field serviceability, competition pedigree
• Verdict: Rockford for budget/SPL priority; IDQ8 for sound quality and long-term value (serviceability)

vs. Dayton Audio Reference HO ($80-100):

• Dayton Advantages: Budget pricing, DIY community support, measurement data available
• IDQ8 Advantages: Substantially better build quality, proven reliability, sound quality competition success, American manufacturing, field serviceability, technical support
• Verdict: Dayton for extreme budget constraints; IDQ8 for nearly double the price delivers far more than double the performance and longevity

✅ When IDQ8 V4 Is the Right Choice

• Sound quality priority: You value tonal accuracy, transient response, and musical bass over maximum SPL
• Compact enclosures: Limited trunk/cargo space makes larger subwoofers impractical (0.5-0.7 cu.ft. sealed)
• Long-term investment: Field serviceability and build quality matter—you plan to keep subwoofer 10+ years
• American manufacturing: You prefer supporting American assembly and engineering
• Competition foundation: Building sound quality competition system (IASCA, MECA, USACi)
• Proven performance: You want decade+ track record over latest marketing trends
• Reasonable budget: $193.99 fits budget while delivering premium-tier engineering

When to Consider Alternatives:

• Extreme SPL priority over sound quality (choose SPL-focused designs with higher power handling)
• Budget constraints under $150 (consider Rockford P3, budget brands)
• No-compromise flagship budget $300+ (consider JL W7, boutique brands)
• Larger enclosure space available (consider 10" or 12" subwoofers for more output)

🎵 What Makes IDQ8 V4 Special

• Sound quality competition pedigree: Trusted by IASCA, MECA, and USACi champions for over a decade
• American-engineered and assembled: Made in USA with American-made flat-wound voice coils, premium global components
• High-excursion design: Extended linear throw compensates for compact 8" cone area—surprising output from small enclosures
• Poly/mica cone: Optimized stiffness-to-weight ratio delivers transient accuracy and tonal precision
• Parabolic Santoprene surround: UV/ozone-resistant TPE material with progressive compliance—15-20+ year lifespan
• Nomex spider: Aramid fiber thermal stability enables 250W RMS continuous power handling
• Polycarbonate neck joint: Thermal isolation and mechanical strength for high-power reliability
• Extended Y-35 motor: High-carbon steel motor structure provides linear force across entire excursion range
• Field-replaceable cone assembly: 16-screw DIY serviceability—"green" subwoofer with long-term value
• Compact enclosure optimization: 0.5-0.7 cu.ft. sealed alignments deliver bass extension into upper 20Hz region
• Dual 2-ohm flexibility: Wire 1Ω parallel or 4Ω series matching amplifier capabilities
• 250W RMS / 500W peak: Conservative power rating with thermal headroom for dynamic music peaks

🏆 Sound Quality vs. SPL Philosophy

The IDQ8 V4 embodies Image Dynamics' core philosophy: musical bass reproduction over maximum volume. While SPL-focused designs chase highest power handling and loudness numbers, the IDQ engineering team prioritizes:

• Transient response: Bass drum kicks and bass guitar plucks start/stop cleanly without overhang
• Tonal accuracy: Bass notes sound natural and realistic, not colored or exaggerated
• Integration: Seamless blending with front stage components—cohesive full-range system
• Compact efficiency: Exceptional performance from small enclosures—practicality for real-world vehicles

This sound quality focus makes the IDQ8 V4 ideal for audiophile daily drivers, sound quality competition systems, and enthusiasts who prioritize musical enjoyment over chest-pounding volume.

💰 Value Proposition

$193.99 • Brand New Current Production
Full Manufacturer Warranty • American-Made Quality

At $193.99, the IDQ8 V4 delivers premium-tier engineering—American manufacturing, field serviceability, decade+ competition proven performance—at upper mid-tier pricing. You're investing in a long-term sound quality solution with genuine technical support, parts availability, and DIY serviceability that reduces lifetime ownership costs.

Competitors charging $300-400+ offer marginally better specifications on paper, but the IDQ8 V4 delivers 90% of their performance for 50% of the cost—while maintaining American assembly and field serviceability they cannot match.

$193.99

Brand New Current Production • Full Warranty
