Performance Optimized Wedge Sealed 12" Enclosure | Rockford Fosgate P3D2-12
SKU: PO 12-S W P3
- Best For: Rockford Fosgate P3D2-12 Musical Daily-Driver Builds (Trunk-Friendly, Value-Priced Full-Power 12")
- Net Volume: 1.021 cu ft (RF Spec: 1.02 EXACT | 1.215 cu ft Gross)
- Driver Match: Rockford Fosgate P3D2-12 (DVC 2Ω) or P3D4-12 (DVC 4Ω)
- Construction: Rear-Firing Wedge | V-Groove/Dado | FlexFit Baffle Ready | 600W RMS
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Wedge Sealed 12" Enclosure | Rockford Fosgate P3D2-12
Performance Optimized Wedge | Rockford Fosgate P3D2-12
Single 12" Sealed Wedge Enclosure | Rear-Firing Trunk-Load Design for the Rockford Fosgate Punch P3 Series
The Rockford Fosgate P3D2-12 in RF's Spec-Perfect Sealed Volume
The Rockford Fosgate P3D2-12 is Rockford's best-performing 12-inch Punch P3 subwoofer. Anodized aluminum cone with heat-sinking dust cap, VAST (Vertical Attach Surround Technique) Santoprene surround that extends effective radiating cone area by up to 25%, a hybrid stamp-cast basket that balances rigidity with reduced resonance, an extended pole piece with bumped backplate for heavy excursion, a 2.5-inch four-layer voice coil on an anodized aluminum former, and unique spider venting to keep the motor cooler under sustained operation. 600 watts RMS CEA-2031 compliant power handling, 1200W peak, dual 2-ohm voice coils, Klippel-verified motor. Same core engineering as the flagship P3D2-15 sibling, scaled to a 12" cone form factor and Rockford's most trunk-friendly full-power 12" driver.
The Performance Optimized Wedge Sealed 12 for Rockford Fosgate P3 is engineered to hit RF's exact published sealed specification. 1.215 cubic feet gross internal volume minus the P3D2-12's 0.194 cubic foot total driver displacement lands at 1.021 cubic feet net — essentially exact match to Rockford's 1.02 cubic foot published sealed spec, delivering the alignment RF's engineers designed the P3D2-12 to operate in.
1.215 cubic feet gross = 1.021 cubic feet net after the P3D2-12's 0.194 cubic foot total driver displacement. Essentially exact match to Rockford Fosgate's published 1.02 cubic foot sealed spec for the P3D2-12. With the P3D2-12's T/S parameters (Qts 0.49, Vas 57.7 L), that spec produces a system Qtc near 0.85 — RF's 12" spec is already tuned for musical accuracy out of the box.
Trunk-Load Wedge Design Explained
This wedge is not a front-firing enclosure. The woofer is mounted on the vertical face that sits at the back of the box, closest to the trunk lid, and fires rearward into the trunk cavity. The angled face is on the opposite side of the box — the side that faces the front of the vehicle — and tucks against the rear seat back. Two different problems solved by one geometry.
Seat-Side Face Matches Seat Lean

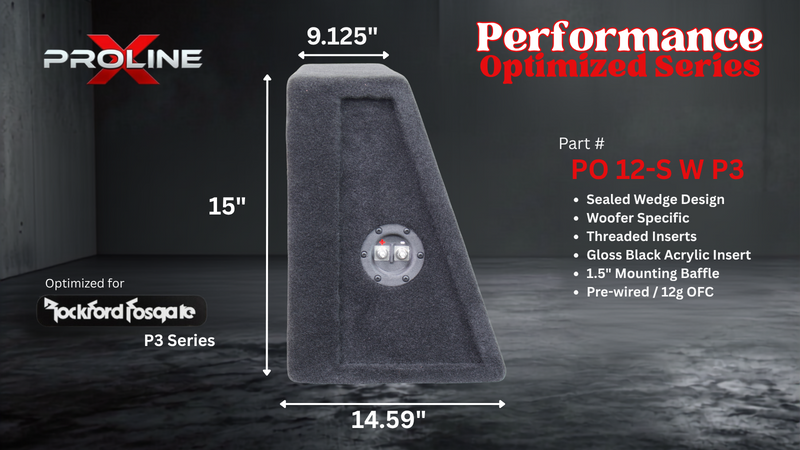

Most factory rear seat backs lean roughly 20 degrees back from vertical. The angled face of this wedge (9.125" at the top, 14.59" at the bottom) matches that lean, tucking against the seat back with no wasted gap. The P3's shallow 6.66" mounting depth allows a low-profile top face that fits parcel-shelf-limited trunks the deeper T1 wedge won't clear.
Trunk-Lid-Side Face Fires the Woofer

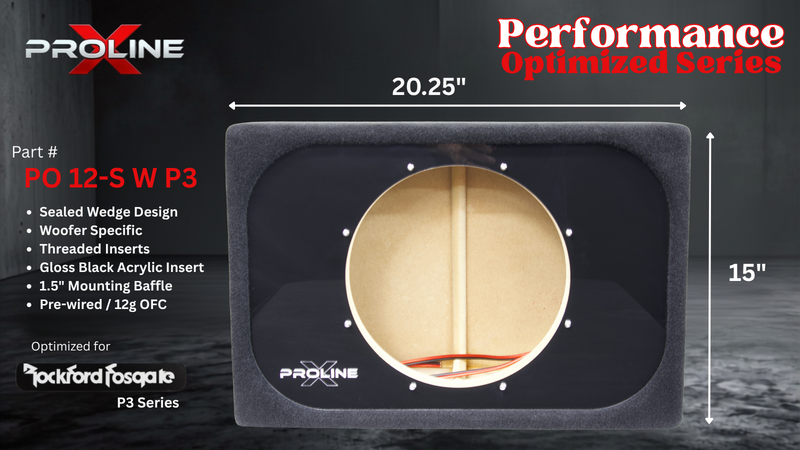

The vertical face on the opposite side of the wedge (20.25" wide × 15" tall) is where the P3D2-12 mounts. The driver fires rearward toward the trunk lid, using the trunk cavity as an acoustic loading chamber. Classic SQ trunk-load install pattern applied to Rockford's most musical 12" driver.
Trunk Cavity Loading
Firing the woofer into the trunk cavity rather than directly into the cabin uses the trunk itself as an extension of the acoustic system. Low frequencies transmit into the passenger cabin through the rear deck, seat back, and cabin boundaries — a smoother, less-localized presentation than direct-firing setups. Pairs especially well with the P3's already-musical character.
Compact Cabinet, Fits Most Vehicles
20.25" wide by 15" tall by 9.125-14.59" deep. Fits sedan trunks, coupe cargo areas, hatchbacks and wagons, and pickup extended-cab installs without the height or footprint concerns of the 15" P3 wedge. If the trunk holds a golf bag, it holds this cabinet.
Engineered to Rockford Fosgate's Published Sealed Specification
Rockford Fosgate publishes exactly 1.02 cubic feet net internal as the recommended sealed enclosure volume for the P3D2-12. This spec is RF's own engineered target — the volume where the P3D2-12's motor structure, VAST-enhanced Santoprene surround, and progressive-roll spider suspension deliver the sealed response their Klippel-verified design targets. The Performance Optimized Wedge Sealed 12 delivers 1.215 cubic feet gross internal, which after subtracting the P3D2-12's total driver displacement of 0.194 cubic feet lands at 1.021 cubic feet net — right on RF's published spec.
Why RF's 12" Spec Is Already the Musical Spec
Working through the driver math: the P3D2-12 has published T/S parameters of Qts 0.49 and Vas 57.7 liters. In RF's 1.02 cu ft sealed spec, the compliance ratio (Vas/Vb) works out to approximately 2.0, which produces a system Qtc of approximately 0.85 — the same musically-oriented alignment target we use across the PO Wedge line. Different from RF's 15" P3 spec, which targets a higher Qtc closer to 1.0 for peak SPL output efficiency in a smaller cabinet. Fortunately for 12" P3 buyers, RF's 12" spec doesn't require the tuning adjustment their 15" spec does. This box hits RF's actual number.
Sealed vs. Ported for the P3D2-12
The P3D2-12 is a versatile driver that Rockford supports both sealed (1.02 cu ft) and vented (1.79 cu ft) applications for. Sealed operation delivers the tightest, most controlled bass response — ideal for musical accuracy, sound quality installs, and daily-driven vehicles where cabin gain rewards a slightly warmer alignment. Ported delivers additional output efficiency in the peak-tuned range at the cost of transient accuracy and 75% more cabinet volume. This cabinet is engineered specifically for RF's sealed alignment — the SQ-oriented, musically accurate side of the P3D2-12's capabilities.
Mounting Geometry and Driver Fitment
The vertical trunk-lid-side baffle is cut to the P3D2-12's exact 11.25" cutout specification. The P3D2-12's very shallow 6.66" mounting depth fits inside the cabinet with generous clearance — internal depth from the vertical baffle to the interior of the angled seat-side face ranges from approximately 8.375" at the top edge to 13.84" at the bottom (after accounting for 3/4" MDF panel thickness), with the driver's mounting position at cabinet center providing over 10.3" of clearance behind the motor. Substantial room for the P3's motor structure and extended pole piece / bumped backplate assembly.
FlexFit Basket Consideration
The P3D2-12 uses Rockford's FlexFit basket — a slot-mounted frame pattern that allows fine-tuning of the driver's rotational mounting position. The Proline X wedge baffle is drilled with a standard bolt pattern compatible with the P3D2-12's slotted mounting geometry. Threaded 8/32 inserts pressed into the baffle backside accept stainless steel machine screws included with the enclosure.
Performance Series Construction, Built for 600W RMS Operation
Langboard Elite MDF
Premium 3/4" MDF panels milled to documented spec — denser and more dimensionally stable than commodity MDF. Panel resonance would color the P3's naturally musical response, and MDF creep would allow air leaks over time under sustained operation. Langboard's density and stability address both.
V-Groove and Dado Joinery
CNC-cut V-grooves at every panel intersection let the wedge cabinet fold into its angled shape with maximum glue surface. Dado joints lock the vertical woofer baffle and the angled seat-side panel into the side walls — no fasteners visible from outside, no exposed end grain at joints, no compromise on structural integrity.
8/32 Threaded Inserts
Threaded inserts pressed into the vertical woofer baffle accept stainless steel mounting screws. Compatible with the P3D2-12's FlexFit slot-mounted frame pattern. No stripped pilot holes, no MDF damage from drywall screws, no surprises when the next driver upgrade rolls around.
Pre-Wired Terminal Cup
Proline X ABS/carbon fiber composite terminal cup, pre-wired with 12-gauge OFC inside the cabinet, with stainless steel hardware accepting both spade and banana terminations on the input side. Comfortably handles the P3D2-12's 600W RMS power delivery.
Every panel is cut on ShopSabre CNC routers in our Tullahoma, TN facility. The angled seat-side panel requires precise CNC compound cuts to hit both the RF-spec 1.02 cu ft net volume target and the mating angles between the top and bottom edges. Internal volume is verified on every unit to ensure the manufacturer's spec target is achieved.
Customize Your Build
Carpet Finish
Dark Gray Trunkliner is the standard durable wrap, matched to most factory trunk and cargo-area carpet tones. Plush Black (+$10) is a deeper, more luxurious nap that pairs well with blacked-out interiors and show builds.
Acrylic Insert Color
Choose Black, Blue, Red, or White for the baffle insert to match your build. Or skip the insert entirely (-$40) for a clean, understated look. The insert is purely cosmetic — performance is identical across colors.
Enclosure Only
This listing is for the enclosure only. Drop in your existing Rockford Fosgate P3D2-12 (Dual 2-ohm) or P3D4-12 (Dual 4-ohm) subwoofer — the cabinet fits both variants identically since RF publishes the same 1.02 cu ft sealed spec across the P3 12" line. Source your driver from any authorized Rockford Fosgate dealer.
Wiring the Rockford Fosgate P3D2-12 to Your Amplifier
The Rockford Fosgate P3D2-12 is a dual-voice-coil driver with both coils at 2 ohms, using RF's 10-AWG nickel-plated push terminals for direct wire attachment. The pre-wired terminal cup accepts the two-conductor connection via 12-gauge OFC, with stainless steel input hardware.
Parallel wiring (1 ohm total load): Both voice coils wired in parallel presents a 1-ohm load to your amplifier — the highest-output configuration, ideal for RF's own Punch P600X1 or Prime R500X1D monoblock amplifiers, or any modern class D monoblock stable at 1 ohm. Standard high-output wiring for a single-driver P3 install.
Series wiring (4 ohm total load): Both voice coils wired in series presents a 4-ohm load — used with amplifiers that don't support 1-ohm stable operation, or in dual-driver installs where paralleling two 4-ohm loads at the amp gets you back to a 2-ohm total. Also compatible with class AB amplifiers preferring higher impedance loads.
P3D4-12 alternative: Rockford also offers the P3D4-12 (Dual 4-ohm) variant for installs where 2-ohm parallel or 8-ohm series operation is preferred. Either variant fits this cabinet identically.
The P3D2-12 is rated for 600 watts RMS continuous (CEA-2031 compliant) with 1200W peak handling — same power rating as the flagship 15" P3D2-15 despite the smaller cone. Aim for a well-regulated class D monoblock delivering 400-600 watts RMS at your chosen impedance for the best combination of headroom and dynamic capability. Rockford Fosgate's own Punch P600X1 monoblock is a natural match. Set your amplifier's active low-pass filter between 80 and 100 Hz for musical accuracy in a full-range system.
Built in Tennessee, Backed by Audio Intensity
Every Performance Optimized enclosure is CNC-cut, assembled, and finished in our Tullahoma, TN facility. Components are pulled from inventory after your order is placed, then bonded and wrapped — a 2 to 5 business day assembly window before the box ships. No pre-built inventory sitting in warehouses, warping in storage. Each unit is built to order.
Backed by a 1-year limited warranty against structural failure and hardware defects on the enclosure. Your Rockford Fosgate P3D2-12 subwoofer is covered by Rockford's own 1-year warranty when purchased through an authorized RF dealer. Questions on fitment, wiring, or amplifier pairing? Contact us — we install this gear ourselves, in our own vehicles.
Rockford's Musical 12" Punch, in RF's Spec-Perfect Trunk-Load Wedge
1.02 cubic feet net — Rockford Fosgate's published sealed spec for the P3D2-12, which naturally targets a musical system Qtc near 0.85. Trunk-load wedge geometry that fires the aluminum cone rearward into the trunk cavity. 600 watts RMS ready, built to order in Tennessee.
| Enclosure Type | Sealed | Wedge Geometry | Rear-Firing Trunk-Load |
| Driver-Specific Fitment | Rockford Fosgate P3D2-12 (DVC 2Ω) or P3D4-12 (DVC 4Ω) |
| Internal Volume (Gross) | 1.215 Cubic Feet |
| Internal Volume (Net After Displacement) | 1.021 Cubic Feet (RF Spec: 1.02 EXACT) |
| Target System Qtc | ~0.85 (Musical Alignment | RF's 12" Spec Naturally Targets This Qtc) |
| Baffle Configuration | Vertical Trunk-Lid-Side Woofer Mounting Face |
| Material | Langboard Elite 3/4" MDF |
| Front Baffle Construction | Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded) |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Construction | ShopSabre CNC / Angled Seat-Side Compound Cuts |
| External Width | 20.25 Inches |
| External Height | 15 Inches |
| External Depth (Top) | 9.125 Inches |
| External Depth (Bottom) | 14.59 Inches |
| Baffle Angle | ~20° From Vertical (Seat-Side Face) |
| Mounting Hole Diameter | 11.25 Inches |
| Mounting Hardware | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included (FlexFit Compatible) |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | 12g OFC Pre-Wired |
| Damping | Polyfill Pre-Installed |
| Recommended Power | 400-600 Watts RMS (RF CEA-2031 Rated: 600W RMS Continuous) |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black (+$10) |
| Acrylic Insert | Black, Blue, Red, White, or None (-$40) |
| Bundle Options | Enclosure Only (Bring Your Own P3D2-12 or P3D4-12) |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
