Proline X
Performance Optimized Wedge Sealed 12" Enclosure | JL Audio 12TW3-D4
SKU: PO 12-S W TW3
- Best For: JL Audio 12TW3-D4 Shallow-Mount Trunk-Fit Builds (Trucks, Sports Cars, Low-Clearance Installs)
- Net Volume: 0.801 cu ft (JL Spec: 0.80 | 0.83 cu ft Gross)
- Driver Match: JL Audio 12TW3-D4 (Dual 4Ω — Only Version JL Offers)
- Construction: Ultra-Shallow Rear-Firing Wedge | 4.5" Top Depth | Tab-Ear Ready
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Wedge Sealed 12" Enclosure | JL Audio 12TW3-D4
Performance Optimized Wedge | JL Audio 12TW3
Single 12" Shallow-Mount Sealed Wedge | Rear-Firing Trunk-Load for JL's Thin-Line 12TW3-D4
The JL Audio 12TW3-D4 in JL's Spec-Perfect Sealed Volume
The JL Audio 12TW3-D4 is JL's shallow-mount 12" thin-line subwoofer, engineered around JL's patented concentric tube cone architecture to deliver full-size 12" cone area from a driver that measures just 3.5" mounting depth. This isn't a compromise driver — the TW3's engineering actually enables greater excursion than the standard W3v3, using a compressed motor structure placed forward inside the cone body itself. 400 watts RMS continuous with a mica-filled polypropylene cone, rubber surround, cast alloy basket, and JL's tab-ear mounting design for maximum cone area within its footprint.
The Performance Optimized Wedge Sealed 12 for JL Audio TW3 is engineered to hit JL's exact published sealed specification. 0.83 cubic feet gross internal volume minus the 12TW3-D4's 0.029 cubic foot driver displacement equals 0.801 cubic feet net — essentially exact match to JL's 0.80 cubic foot published sealed spec, delivering deep, controlled bass response tuned by JL's own engineers.
0.83 cubic feet gross = 0.801 cubic feet net after the 12TW3-D4's 0.029 cubic foot driver displacement. Essentially exact match to JL Audio's published optimum sealed volume for the 12TW3-D4. The ultra-shallow wedge geometry — just 4.5" deep at the top rising to 9.89" at the bottom — is engineered around the TW3's 3.5" mounting depth, mounting the driver on the vertical trunk-lid-side face and firing rearward into the trunk cavity.
Why the TW3 Exists (and Why This Wedge Fits Where Others Can't)
The JL 12TW3-D4 was engineered for one specific mission: full-size 12" bass in vehicles and configurations where a standard 12" enclosure simply won't fit. Pickup trucks with cramped extended cabs. Sports cars with shallow parcel-shelf areas. Sedans with low decklid clearance. Vans and SUVs where cargo floor height is critical. Anywhere the front-to-back depth needed for a regular 12" is unavailable.
The Performance Optimized Wedge Sealed 12 for JL Audio TW3 solves the same problem in wedge form. The vertical trunk-lid-side face where the woofer mounts is only 4.5" deep at the top of the box, tapering to 9.89" at the bottom. That means the top of the cabinet fits under low parcel shelves and rear seat backs that a full-depth wedge could never clear. Combined with the TW3's own 3.5" mounting depth, this is one of the most vehicle-friendly full-size 12" enclosures available.
Seat-Side Face Matches Seat Lean

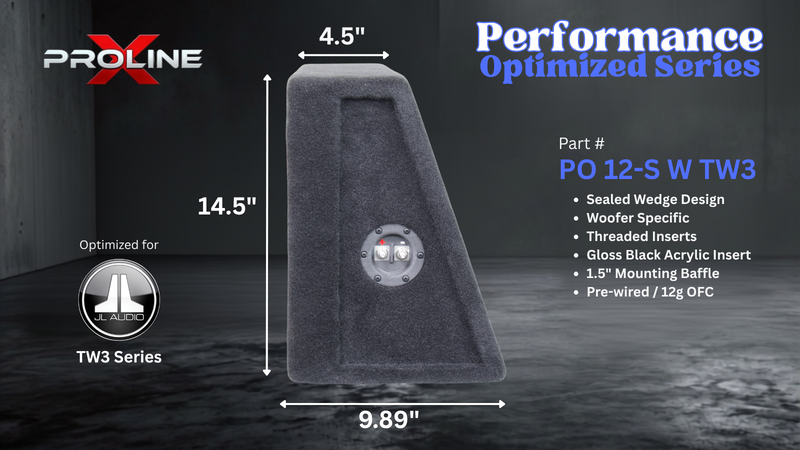

Most factory rear seat backs lean roughly 20 degrees back from vertical. The angled face of this wedge (4.5" at top, 9.89" at bottom) matches that lean, tucking against the seat back with no wasted gap. The ultra-shallow top face slides under decklids and parcel shelves that block deeper cabinets.
Trunk-Lid-Side Face Fires the Woofer

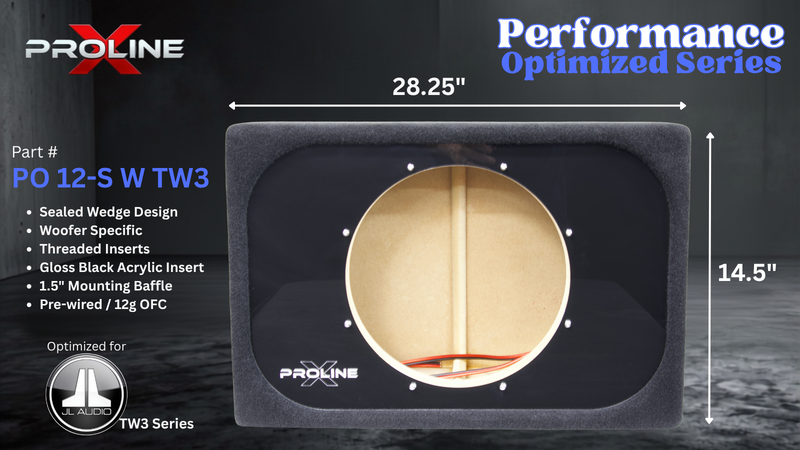

The vertical face on the opposite side of the wedge (28.25" wide × 14.5" tall) is where the 12TW3-D4 mounts. The driver fires rearward toward the trunk lid, using the trunk cavity as an acoustic loading chamber — the classic SQ trunk-load install pattern, now available in shallow-mount format.
Trunk Cavity Loading
Firing the woofer into the trunk cavity rather than directly into the cabin uses the trunk itself as an extension of the acoustic system. Low frequencies transmit into the passenger cabin through the rear deck, seat back, and cabin boundaries — smoother than direct-firing setups.
Wide, Shallow Footprint
28.25" wide by 14.5" tall by 4.5-9.89" deep. Substantially wider than a standard 12" cabinet but far shallower. Ideal for the space behind rear seat backs in trucks, under parcel shelves in sedans and coupes, and low-profile SUV cargo installations where depth is the limiting factor.
Engineered to JL Audio's Published Sealed Specification
JL Audio publishes exactly one recommended sealed enclosure volume for the 12TW3-D4: 0.80 cubic feet net internal. This spec is JL's own engineered target for the driver — the volume where the TW3's motor, suspension, and cone assembly deliver the balanced sealed response their engineers designed the driver for. The Performance Optimized Wedge Sealed 12 delivers 0.83 cubic feet gross internal, which after subtracting the 12TW3-D4's 0.029 cubic foot displacement lands at 0.801 cubic feet net — right on JL's published spec.
What the JL Spec Delivers
The 12TW3-D4 in its JL-spec 0.80 cu ft sealed alignment delivers deep, controlled, musically accurate bass with excellent transient response — the character JL's engineers targeted. Because the TW3 was engineered from the ground up to work in small enclosures, this isn't a case of a driver being crammed into an undersized box for space reasons. The 0.80 cu ft target is where the driver sounds its best, not just where it fits.
Mounting Geometry and Driver Fitment
The vertical trunk-lid-side baffle is cut to the 12TW3-D4's exact 11.625" cutout specification. The 12TW3-D4's 3.5" mounting depth fits inside the cabinet with clearance to spare — internal depth from the vertical baffle to the interior of the angled seat-side face ranges from ~3.75" at the top to ~9.14" at the bottom (after accounting for 3/4" MDF panel thickness), with the driver's mounting position at cabinet center providing over 5" of clearance behind the motor. JL's no-pole-vent motor design permits mounting close to the rear wall of an enclosure — critical for shallow-cabinet applications like this one.
Tab-Ear Mounting
The TW3 uses JL's tab-ear mounting design — three plastic mounting ears extending outward from the driver frame, rather than a continuous perimeter flange. This maximizes cone area within the mounting footprint but requires specific mounting hardware: use #8 or #10 pan-head screws (NOT tapered/countersunk), since countersunk screws can wedge the plastic ears outward under vibration and crack them over time. The Proline X wedge baffle is pre-drilled and threaded-insert equipped for the TW3's tab pattern with pan-head hardware included.
Performance Series Construction, Driver-Specific Tuning
Langboard Elite MDF
Premium 3/4" MDF panels milled to documented spec — denser and more dimensionally stable than commodity MDF. Especially important in a shallow cabinet where panel-to-air ratio is high — panel resonance would color the sound more than in a deeper box, and Langboard's density minimizes that risk.
V-Groove and Dado Joinery
CNC-cut V-grooves at every panel intersection let the wedge cabinet fold into its angled shape with maximum glue surface. Dado joints lock the vertical woofer baffle and the ultra-shallow angled seat-side panel into the side walls — no fasteners visible from outside, no exposed end grain at joints.
TW3-Specific Baffle Machining
The 11.625" cutout is CNC-machined with the tab-ear mounting positions pre-drilled and 8/32 threaded inserts pressed into the baffle backside. #8 pan-head stainless steel screws included — not countersunk, per JL's mounting requirements for the tab-ear design.
Pre-Wired Terminal Cup
Proline X ABS/carbon fiber composite terminal cup, pre-wired with 12-gauge OFC inside the cabinet, with stainless steel hardware accepting both spade and banana terminations on the input side.
Every panel is cut on ShopSabre CNC routers in our Tullahoma, TN facility. The shallow wedge geometry requires precise CNC compound cuts — the 4.5" top-face-to-9.89" bottom-face depth transition over 14.5" of height must be dimensionally perfect to hit both the volume target and the seat-side mating angles. Internal volume is verified on every unit to ensure the JL-spec 0.80 cubic foot net target is achieved.
Customize Your Build
Carpet Finish
Dark Gray Trunkliner is the standard durable wrap, matched to most factory trunk and cargo-area carpet tones. Plush Black (+$10) is a deeper, more luxurious nap that pairs well with blacked-out interiors and show builds.
Acrylic Insert Color
Choose Black, Blue, Red, or White for the baffle insert to match your build. Or skip the insert entirely (-$40) for a clean, understated look. The insert is purely cosmetic — performance is identical across colors.
Box-Only or Loaded
Add a JL Audio 12TW3-D4 driver directly to your order and we'll ship the complete loaded system, ready to wire to your amplifier. Note that the TW3 series is offered by JL Audio in only one impedance version — Dual 4-ohm. Already own your 12TW3-D4? Order the enclosure box-only and drop in the driver you have.
Wiring the JL Audio 12TW3-D4 to Your Amplifier
The JL Audio 12TW3-D4 is a dual-voice-coil driver with both coils at 4 ohms. This gives you two standard wiring options via the pre-wired terminal cup.
Parallel wiring (2 ohm total load): Both voice coils in parallel presents a 2-ohm load to your amplifier — the higher-output configuration, ideal for modern class D monoblocks stable at 2 ohms. Recommended for maximizing SPL and power transfer from typical 300-500 watt monoblock amps.
Series wiring (8 ohm total load): Both voice coils in series presents an 8-ohm load — used mainly with bridged high-voltage amp configurations, class AB amplifiers, or multi-driver installs where impedance summing matters.
The 12TW3-D4 is rated for 400 watts RMS continuous with a 100-400 watt RMS recommended amplifier range. Aim for a well-regulated monoblock delivering 300-400 watts RMS at your chosen impedance for the best combination of headroom, output, and long-term reliability. Set your amplifier's active low-pass filter between 80 and 100 Hz for musical accuracy.
Built in Tennessee, Backed by Audio Intensity
Every Performance Optimized enclosure is CNC-cut, assembled, and finished in our Tullahoma, TN facility. Components are pulled from inventory after your order is placed, then bonded and wrapped — a 2 to 5 business day assembly window before the box ships. No pre-built inventory sitting in warehouses, warping in storage. Each unit is built to order.
Backed by a 1-year limited warranty against structural failure and hardware defects. Questions on fitment, wiring, or amplifier pairing? Contact us — we install this gear ourselves, in our own vehicles.
JL's Spec Volume for the Shallow 12, in a Wedge That Actually Fits
0.80 cubic feet net internal — JL Audio's published optimum sealed volume for the 12TW3-D4 — in an ultra-shallow wedge geometry (4.5" at the top) engineered around the TW3's 3.5" mounting depth. Full-size 12" cone area, real JL Audio bass, in vehicles where a standard 12" enclosure simply won't fit.
| Enclosure Type | Sealed | Wedge Geometry | Rear-Firing Trunk-Load | Ultra-Shallow |
| Driver-Specific Fitment | JL Audio 12TW3-D4 (DVC 4Ω — only version JL offers) |
| Internal Volume (Gross) | 0.83 Cubic Feet |
| Internal Volume (Net After Displacement) | 0.801 Cubic Feet (JL Spec: 0.80) |
| Baffle Configuration | Vertical Trunk-Lid-Side Woofer Mounting Face |
| Material | Langboard Elite 3/4" MDF |
| Front Baffle Construction | Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded) |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Construction | ShopSabre CNC / Shallow Compound Cuts / Tab-Ear Baffle |
| External Width | 28.25 Inches |
| External Height | 14.5 Inches |
| External Depth (Top) | 4.5 Inches |
| External Depth (Bottom) | 9.89 Inches |
| Baffle Angle | ~20° From Vertical (Seat-Side Face) |
| Mounting Hole Diameter | 11.625 Inches |
| Mounting Hardware | 8/32 Threaded Inserts | #8 Pan-Head Stainless Screws (TW3 Tab-Ear Compatible) |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | 12g OFC Pre-Wired |
| Damping | Polyfill Pre-Installed |
| Recommended Power | 300-400 Watts RMS (100-400W JL Spec Range) |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black (+$10) |
| Acrylic Insert | Black, Blue, Red, White, or None (-$40) |
| Bundle Options | Box Only | Add a JL Audio 12TW3-D4 Driver |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
