Proline X
Performance Optimized Wedge Ported 12" Enclosure | JL Audio 12TW3
SKU: PO 12-P W TW3 BB
- Alignment: 1.15 cu ft net vented at 32.5 Hz. F3 32.1 Hz anechoic, 2.64 dB passband ripple
- Driver: JL Audio 12TW3 D4, 400 W RMS, 15.2 mm Xmax, 26.46 Hz Fs
- Build: Rear-firing wedge, 20 degree rear rake, V-groove and dado joinery, triangular side-exit slot port with a 1/2" rounded mouth, double 1.5" baffle, side-mounted terminal cup
- Cabinet: 30.00" W x 15.50" H x 12.39" D at base tapering to 6.75" D at top, 14.2 sq in port, ships dry
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Wedge Ported 12" Enclosure | JL Audio 12TW3
Proline X Performance Optimized Wedge 12" Ported
A 26.5 Hz motor 3.5 inches deep, vented at 32.5 Hz in a 6.75 inch top depth
Why this driver is vented at 32.5 Hz
The 12TW3 puts a 26.5 Hz resonance and 400 watts into 3.50 inches of mounting depth, and the wedge keeps the cabinet as shallow as the driver: 6.75 inches at the top, 12.39 at the base, 30 wide, 15.5 tall. 1.15 cubic feet net, vented at 32.5 Hz through a 14.2 square inch port.
48.7 litres of Vas on a shallow motor is a compliant driver, and it graphs livelier than a deep one: 2.64 dB of anechoic ripple here, the widest of the JL twelves. 32.5 Hz is the tuning that turns that into 1.59 dB of in-car spread across 25 to 60 Hz with an F3 of 32.1 Hz. The port takes 25.03 of 25.77 inches of path and runs at 19.6 metres per second in the channel against a 19.7 limit, 11.5 at the mouth.
Trunk-load wedge, explained
The 20 degree face is the seat side
A factory rear seat back leans about 20 degrees off vertical. The wedge's raked rear panel matches that lean and tucks against it, so the cabinet uses the triangle of trunk floor a square box wastes.
The driver fires rearward
The baffle stays vertical and faces the trunk opening. The trunk acts as the acoustic extension into the cabin; nothing about the driver is angled.

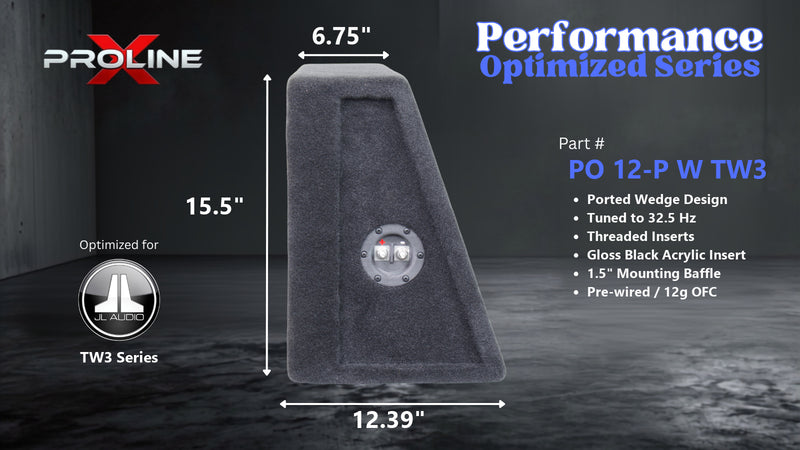

12.39 inches at the base, 6.75 at the top
At 3.50 inches of mounting depth the magnet is not what sets the depth; the port panel is, at 4.95 inches of top depth against 4.84. The cabinet then runs to 6.75 at the top for volume, with 3.89 inches of flat floor clear in front of the panel.
30.00 inches wide
Width is the wedge's free dimension and it buys two things at once here: airspace, and port length, because the port runs the full width of the box.
The port is the product
The port is a triangular slot in the bottom-rear corner. The floor and the raked back wall are two of its three sides; the third is a single panel bevelled to sit flush against both. It runs across the cabinet, opens into the box at the far end and exits through the side panel: a straight run with no bend, 25.03 inches of centreline path.
The channel is an isosceles triangle with 5.50 inch legs, 14.2 square inches, running at 19.6 metres per second at the tuning frequency. The mouth is that same triangle cut through the side panel with its three edges rounded over at 1/2 inch, so the opening at the face is 24.2 square inches and air leaves it at 11.5 metres per second, against the 17.0 metre per second threshold where a slot port starts to chuff. The panel's throat end carries a 3/8 inch roundover for the same reason.
This enclosure ships dry. Polyfill goes in every sealed Proline X cabinet we build. It does not go in this one. Damping material changes the effective volume the port is tuned against, which moves the tuning away from the 32.5 Hz the port was cut for.
Run a subsonic filter
Below tuning the port stops loading the cone and excursion climbs without limit toward DC, so a 26 Hz high-pass at 24 dB per octave is part of the specification. Set it and the same cabinet takes substantially more power for the same cone travel.
Every wattage on the Performance Graphs tab is a mechanical limit, the power at which the cone reaches the end of its linear travel in this box. What the voice coil can dissipate as heat is a separate ceiling set by JL Audio.
Cut for this driver, not for a catalogue

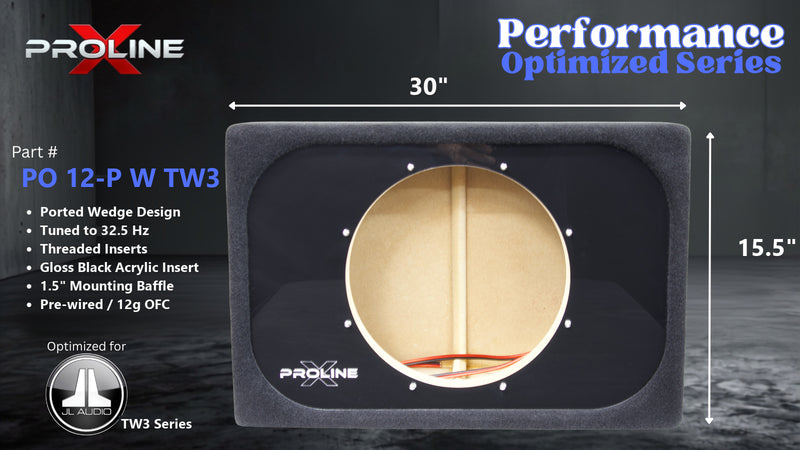

Mounting
Cut to JL Audio's published 11.625 inch cutout through a double-layer 1.5 inch baffle, with a cosmetic front layer routed for the acrylic insert. Threaded inserts at every mounting location.
Clearance
JL quote Xmax on a coil overhang basis, so the alignment is built against a derated 14.4 mm rather than the printed 15.2; the cone uses 5.8 mm at 400 watts with the subsonic filter set. The channel sits a tenth under its turbulence limit. We also build this driver as a 0.80 cubic foot sealed Down Fire, and the graphs tab compares the two.
Braced
Two windowed C braces run the cabinet profile at the third points of the width and seat on the port panel; the windows keep the cavity one chamber.
Joinery
V-groove and dado throughout, 0.75 inch Langboard Elite MDF, the shell folded from one strip with the sides dropped into dados and the port panel seated in dados of its own.
Power, wiring and warranty
JL Audio rate the 12TW3 at 400 W RMS. Terminal cup is side mounted on the side opposite the port mouth. A dual 2 ohm driver wired parallel presents 1 ohm, which many amplifiers are not stable into; series at 4 ohm is the safe default unless yours is rated for it.
Performance Optimized carries a 1-year warranty. Built to order in Tullahoma, Tennessee. The driver is not included.
Cut, folded and finished for the JL Audio 12TW3. The alignment, the port geometry and the power figures all come from JL Audio's published parameters run through our own solver.
| Series | Proline X Performance Optimized Wedge |
| Driver-Specific Fitment | JL Audio 12TW3 D4 |
| Enclosure Type | Ported | Rear-Firing Trunk Wedge |
| Baffle Configuration | Vertical Baffle - Driver Fires Rearward Into The Trunk |
| Wedge Angle | 20 Degrees On The Rear (Seat-Side) Panel |
| External Width | 30.00 Inches |
| External Height | 15.50 Inches |
| Top Depth | 6.75 Inches |
| Base Depth | 12.39 Inches |
| Internal Volume (Gross) | 1.46 Cubic Feet |
| Internal Volume (Net After Displacement) | 1.15 Cubic Feet |
| Port Type | Triangular Slot | Bottom-Rear Corner | Straight, No Bend | Side Exit |
| Port Geometry | Isosceles, 5.50 Inch Legs, 14.2 Square Inches, 25.03 Inches Long, Side Mouth |
| Port Tuning (Fb) | 32.5 Hz |
| Port Mouth | Triangle Through Side A, 1/2 In Roundover On All Three Edges, 24.2 Square Inches At The Face |
| Port Throat | Open Far End, 3.22 In Gap To Side B, 3/8 In Roundover On The Panel End |
| Port Air Velocity | 19.6 m/s In The Channel, 11.5 m/s At The Flared Mouth (17.0 m/s Chuff Threshold) |
| Predicted F3 | 32.1 Hz (Anechoic) |
| Passband Ripple | 2.64 dB (Anechoic) |
| Subsonic Filter | 26 Hz High-Pass, 24 dB/Octave - REQUIRED On A Vented Enclosure |
| Driver Fs | 26.46 Hz |
| Driver Qts | 0.531 |
| Driver Qes | 0.558 |
| Driver Vas | 48.730 Liters / 1.721 Cubic Feet |
| Driver Sd | 539.0 Square Centimeters |
| Driver Mms | 307.00 g |
| Driver BL | 29.10 |
| Driver Re | 9.3 Ohm |
| Driver Xmax | 15mm (One-Way at coil overhang) |
| Excursion Design Basis | Derated To 14.4mm For Alignment - JL Audio Publishes At coil overhang |
| Driver Displacement | 0.03 Cubic Feet (Published by JL Audio) |
| Driver Power Handling | 400 Watts RMS |
| Driver Overall Diameter | 13.200 Inches (JL Audio Spec) |
| Mounting Depth Required | 3.500 Inches (JL Audio Spec) |
| Cutout Diameter | 11.625 Inches (JL Audio Spec) |
| Material | Langboard Elite 3/4" MDF |
| Construction | ShopSabre CNC / Two Windowed C Braces At The Third Points, Seated On The Port Panel |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Front Baffle Construction | Double-Layer 1.5" MDF | Cosmetic Front Layer Routed For The Acrylic Insert |
| Mounting Hardware | Threaded Inserts At Every Mounting Location | Stainless Steel Machine Screws Included |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | Side Mounted, Opposite The Port | 12g OFC Pre-Wired |
| Damping | None - Ships Dry. Polyfill Detunes A Ported Enclosure |
| Recommended Power | 280-400 Watts RMS (JL Audio Rated: 400W RMS) |
| Carpet Finish | Plush Black |
| Weight | 46 lb |
| Bundle Options | Enclosure Only (Bring Your Own JL Audio 12TW3) |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
01Is this driver right for a ported box?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
1.15 cu ft net against a 48.7 L Vas, vented at 32.5 Hz.
03Perceived Ported vs Sealed
This cabinet, 1.15 cu ft net vented at 32.5 Hz, against the 0.80 cu ft sealed Down Fire we build for this driver (PO 12-S DF TW3).
04Real World Ported vs Sealed
The same two boxes with cabin gain applied, 45 Hz corner, 18 dB ceiling.
05The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on JL Audio's published 15.2 mm. The two traces are the same cabinet with the subsonic filter switched on and switched off.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
