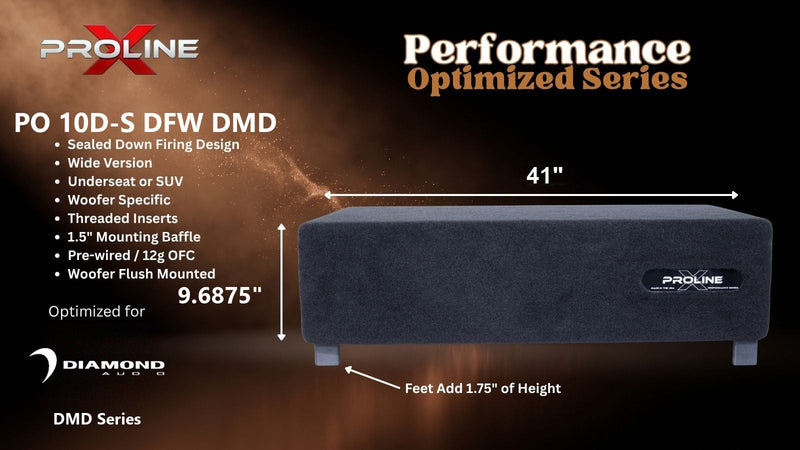

Proline X PO 10D-S DFW DMD sealed down-fire wide enclosure for two Diamond Audio DMD-SH, 41 inches wide by 9.6875 inches tall, feet add 1.75 inches of height.

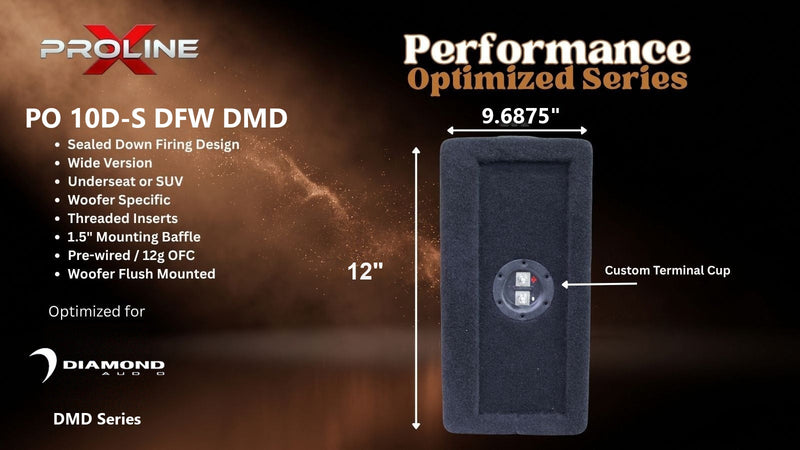

Proline X PO 10D-S DFW DMD sealed down-fire wide enclosure, end panel with side-mounted terminal cup, 9.6875 inches tall by 12 inches deep.

Proline X

Performance Optimized Down Fire Wide Sealed Dual 10" Enclosure | Diamond Audio DMD-SH

Q: Why is this dual cabinet 41 inches wide instead of 30?

Because it is only 12 inches deep. The standard Performance Optimized Down Fire cabinet for the Diamond Audio DMD-SH is 30 wide by 15 deep, and this version is for spaces 3 inches shallower than that, under a rear bench or on a narrow cargo floor.Airspace has to come from somewhere. Losing depth means recovering it along the length, so the cabinet runs 41 inches long and stands 9.6875 inches tall. If you have 15 inches of depth, the standard cabinet is shorter in length and is the better pick; if you have 12 inches of depth and 41 inches of run, this is the shape that works.

Q: How does this compare to the standard 30 x 15 Diamond Audio DMD-SH enclosure?

Same driver, different shape. The standard cabinet is 30 by 15 by 10.125 inches and was built to 0.80 cubic feet net per chamber. This cabinet is 41 by 12 by 9.6875 inches and holds 0.803 cubic feet net per chamber.The airspace is essentially the same, within about a hundredth of a cubic foot, so the two behave the same way. The choice is about the space you have: the standard box is deeper and shorter in length, this one is long and shallow.

Q: Why two separate chambers instead of one shared volume?

Because two drivers in a shared sealed volume interact acoustically. Each driver's compression phase becomes the pressure environment the other is working against, which smears transient response and blurs the alignment each would have on its own.A full-height bonded 3/4 inch MDF divider eliminates that. Each DMD-SH gets its own 0.803 cubic feet net and its own polyfill, and produces its own sealed alignment. Separate chambers are the standing design rule on every Proline X dual sealed enclosure.

Q: Should I choose the DMD102SH or the DMD104SH?

These two differ more than most dual-impedance pairs. The DMD102SH runs a Qts of 0.66 with 13.7 T of motor force and 7.9mm of Xmax, landing at Qtc 0.855, Fc 62.2 Hz, F3 53.2 Hz per chamber. The DMD104SH runs a Qts of 0.77 with 16.4 T and 8.8mm, landing at Qtc 1.002, Fc 63.1 Hz, F3 49.6 Hz.The D4 has the stronger motor and more excursion; the D2 has noticeably better damping. Check what load your amplifier is stable into first. If either works, choose the D2 for accuracy and the D4 for output. Whichever you pick, use two of the same version.

Q: How is this enclosure wired, and how do I set my final impedance?

The enclosure uses one side-mounted Proline X terminal cup with a single pair of posts, pre-wired in 12 gauge OFC to both driver positions in parallel. You do not wire the two chambers separately at the amplifier.Final impedance is set at the drivers. Each DMD-SH is a dual voice coil subwoofer, so how you wire the two coils on each driver determines the load the amplifier sees through the cup. Wire both drivers identically, and confirm the resulting load against your amplifier's minimum stable impedance before powering the system.

Q: Where is the terminal cup located on a down fire enclosure?

Side mounted, and there is one cup serving both driver positions rather than one per chamber. Every Proline X Performance Optimized enclosure uses a side mounted terminal cup regardless of alignment, whether standard, wedge, or down fire. On this cabinet that keeps the connection accessible with the enclosure in its installed position, since both baffles face the floor. The cup is our Proline X ABS and carbon fiber composite unit, recessed, with stainless hardware, copper ring terminals, and pre-wired 12 gauge OFC.

Q: How is this enclosure built?

V-groove and dado joinery, CNC-cut on ShopSabre routers from Langboard Elite MDF. Every panel joint is a machined interlocking groove that mechanically locks the panels before adhesive is applied, which keeps both chambers airtight under sustained pressure cycling. The chamber divider is a full-height bonded 3/4 inch panel, which also ties the front and rear walls together across the 41 inch span. The front baffle is a double layer at 1.5 inches, two bonded 3/4 inch sheets with the outer layer machined as a flush recess, at both driver positions. Polyfill is installed in each chamber as a light wall lining. Assembled and inspected in Tullahoma, Tennessee.

Q: Are the Diamond Audio DMD-SH subwoofers included with this enclosure?

No. This listing is for the enclosure only. Bring your own pair of Diamond Audio DMD102SH or DMD104SH. The cutouts and mounting depth are direct fit for either version, and the feet ship uninstalled in the box.

SKU: PO 10D-S DFW DMD

QUICK SPECS

Alignment: 0.803 cu ft net per chamber, 1.606 total. DMD102SH: Qtc 0.855, Fc 62.2 Hz, F3 53.2 Hz. DMD104SH: Qtc 1.002, Fc 63.1 Hz, F3 49.6 Hz. Computed from Diamond's published T/S
Down Fire Wide: 41"W x 12"D x 9.6875"H measured in down fire position, sized for under the rear seat of a truck or SUV
Chambers: Two fully separate sealed chambers, 3/4" MDF full divider, one shared side-mounted terminal cup
Drivers: Pair of Diamond DMD102SH (DVC 2Ω) or DMD104SH (DVC 4Ω), 250W RMS / 500W max each, 3.00" mounting depth
Build: Proline X V-groove and dado joinery, double-layer 1.5" front baffle, full divider, 12g OFC side-mounted terminal cup, feet ship uninstalled (+1.75")

Shipping Included No freight charges at checkout. What you see is what you pay.

Built in Tennessee CNC cut from 3/4" Langboard Elite MDF. V-groove and dado joinery.

Advanced Terminal Cup Built in-house. ABS/Carbon Fiber. Stainless steel hardware. Copper ring terminals.

$ 349.99

In Stock and Ready to Ship

Financing available. Choose Shop Pay Installments at checkout.

Performance Optimized Down Fire Wide Sealed Dual 10" Enclosure | Diamond Audio DMD-SH

$ 349.99

More enclosures cut for Diamond Audio subwoofers: Diamond Audio Subwoofer Boxes

Enclosure Type Sealed

External Dimensions 41" W x 12" D x 9.6875" H (measured in down fire position, excludes standoffs)

Gross Volume 1.74 cu ft

Net Volume 1.606 total / 0.803 per chamber cu ft

Shipping Weight 48.2 lbs

Front Panel Thickness 1.5"

INSTALLER'S TAKE

Same DMD-SH pair and the same airspace per chamber as our standard 30 by 15, laid out 41 long and 12 deep for spaces that do not have 15 inches of depth.

The DMD-SH 10 is a clean 3.00 inch shallow with an aluminum heatsink dust cap, die-cast frame, and a vented pole. The two coils are genuinely different drivers here. The D2 runs Qts 0.66 with 13.7 T and 7.9mm of Xmax; the D4 runs Qts 0.77 with 16.4 T and 8.8mm.

In this chamber the D2 lands at Qtc 0.855, Fc 62.2 Hz, F3 53.2 Hz and the D4 at Qtc 1.002, Fc 63.1 Hz, F3 49.6 Hz. So the D2 is the more damped of the two and the D4 has the stronger motor and more travel. If you want accuracy take the D2, if you want output take the D4.

If you compare our numbers to Diamond's manual they will not match, and the gap is bigger than a rounding difference. Run their own published Qts and Vas through standard sealed box math and every variant comes out 0.2 to 0.3 higher in Qtc than their enclosure table says. We publish what the driver data actually gives. Displacement is not published either; we used an estimated 0.05 cubic feet.

Honest limitation: Fs is 48 Hz, so F3 lands near 50 Hz no matter what you build. This is a punch and midbass driver for a tight space. 250 watts RMS, 500 max each. Dual voice coil, final impedance set at the driver.

Product Details

Proline X Performance Optimized Down Fire Wide Dual 10" Sealed

Under rear seat fitment for trucks and SUVs. Cut and tuned for a pair of Diamond Audio DMD-SH 10s

Down Fire WideV-Groove and Dado12" Shallow DepthSeparate Chambers3.00 in Mounting Depth

0.803cu ft net per chamber

1.002system Qtc, D4

49.6 HzF3 rolloff, D4

9.6875 incabinet height

The Down Fire Wide Format

Down Fire Wide is the Performance Optimized answer to a specific problem: the space under the rear seat of a truck or SUV, or a narrow cargo floor, is long and shallow, and the standard 30 by 15 inch Down Fire cabinet will not go in it.

So the cabinet is turned sideways. This one runs 41 inches wide by 12 inches deep by 9.6875 inches tall, measured in the down fire position. It is cut for the same Diamond Audio DMD-SH 10 pair as our standard box, 3 inches shallower front to back and 11 inches longer. The airspace lost from the depth is recovered along the length, and the height is solved to the driver.

Measure the depth before anything else. Under seat spaces vary widely between cab configurations, and depth is almost always the limiting dimension. If you have 15 inches of depth, the standard 30 by 15 inch cabinet at 10.125 inches tall is the pick. If your space stops at 12 inches deep and you have 41 inches of run, this cabinet fits. The feet add 1.75 inches, so the installed height is 11.4375 inches.

Performance, Performance Optimized, and Micro

Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.

	Performance	Performance Optimized	Micro Series
Fitment	Universal. Accepts any subwoofer that clears the published cutout and mounting depth.	Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver.	Woofer specific. Cut for one named subwoofer.
Footprint	Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch.	Shared 30 by 15 inch platform on most builds. Down Fire Wide variants like this one run long and shallow for under seat fitment.	Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch.
Front baffle	Single, 3/4 inch.	Double layer, outer layer machined as a flush recess. 1.5 inch.	Double, 1.5 inch.
Driver mounting	Solid flange. You drill your own mounting holes.	8/32 threaded inserts, stainless machine screws included.	8/32 threaded inserts, stainless machine screws included.
Joinery	V-groove and dado, CNC cut.	V-groove and dado, CNC cut, perimeter cross brace.	Stack fab, dowel reinforced.
Published alignment	Modeled Qtc profiles across a range of drivers. No single response curve.	A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters.	Target alignment described in the listing.
Carpet	Gray standard, black optional.	Plush black.	Plush black.
Warranty	1 year limited.	1 year limited.	2 years.

Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.

This page is a Performance Optimized enclosure. The airspace, the cutout and the cabinet height all come from the Diamond Audio DMD-SH 10's own published numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.

Built Around a Pair of DMD-SH 10s

Nothing about this cabinet is generic. Both baffle positions are bored to the driver's 9.13 inch cutout, and the 10.87 inch total diameter Diamond publishes sits on the 12 inch deep baffle with material fore and aft. The height is solved around its 3.00 inch mounting depth: the motor clears the top panel by 5.938 inches, so airspace set the height, not clearance.

The DMD-SH is a shallow mount design: an aluminum heatsink dust cap over a high strength paper cone, a die-cast shallow frame, a vented pole for cooler operation, oversized push terminals, a black spider with woven tinsel leads, and a wrap-around ABS mounting gasket. Diamond states that the motor and suspension symmetry are Klippel optimized. Effective piston area is 0.0359 square meters.

The two coil variants sit further apart than most dual impedance pairs. The DMD102SH, dual 2 ohm, runs a Qts of 0.66 with 13.7 T of motor force and 7.9mm of Xmax. The DMD104SH, dual 4 ohm, runs a Qts of 0.77 with 16.4 T and 8.8mm. The D4 carries the stronger motor and the longer travel, the D2 the better damping. Buy a matched pair and wire both drivers identically.

Two Chambers, Not One

Separate chambers are the standing design rule on every Proline X dual sealed enclosure: a bonded full-height 3/4 inch MDF divider gives each driver its own 0.803 cubic feet net and its own polyfill.

Two drivers sharing one sealed volume interact acoustically: each driver's compression phase becomes the pressure environment the other is working against, which smears transient response and blurs the alignment either would have on its own. The divider removes that, and on a 41 inch cabinet it also ties the front and rear walls together mid span.

Net Volume, Not Gross

Total gross volume is 1.740 cubic feet. After the divider and an estimated 0.05 cubic feet of displacement per driver, each chamber nets 0.803 cubic feet, 1.606 net total.

Diamond publishes no displacement figure for the DMD-SH, so that number is our estimate. The airspace matches the 0.80 our standard 30 by 15 dual box was built to, which is larger than Diamond's own suggested volume, a little over half of it. At Diamond's figure both coils run underdamped with a lift at the corner; the extra air buys better damping and a few hertz of extension, and Diamond's own manual presents its enclosure table as a suggestion rather than a specification.

In this chamber the DMD102SH lands at Qtc 0.855, Fc 62.2 Hz, F3 53.2 Hz and the DMD104SH at Qtc 1.002, Fc 63.1 Hz, F3 49.6 Hz. The D2 is the more damped alignment of the two; the D4 carries the motor force and the excursion.

Both figures are computed from the Thiele-Small parameters Diamond publishes, and they do not match the Qtc values printed in Diamond's own enclosure table, which run lower by roughly 0.2 to 0.3 across every variant. No gross versus net convention closes a gap that size, so we publish the figure that follows from the driver data.

High Fs, honest extension. Free-air resonance is 48.0 Hz on the D2 and 48.5 Hz on the D4. That is why F3 lands near 50 Hz in any sealed volume. This is a driver for punch and midbass authority from a 3 inch mounting depth; cabin gain below 50 Hz does the rest in a vehicle.

Down Fire Wide Construction

Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

The cabinet measures 41 inches wide by 12 inches deep by 9.6875 inches tall, measured in the down fire position. Feet ship with the enclosure but are not installed; they add 1.75 inches, for an installed height of 11.4375 inches.

1.5 Inch Double Baffle

Two 3/4 inch layers laminated to 1.5 inches, the outer layer machined as a flush recess so the driver bolts to the inner layer, with 8/32 threaded inserts at each driver position.

Separate Chambers

A bonded full-height 3/4 inch divider gives each driver its own 0.803 cubic feet net and its own polyfill, and ties the walls together mid span.

One Shared Terminal Cup

Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, side mounted and pre-wired in 12 gauge OFC to both driver positions in parallel.

Polyfill Installed

Polyfill is installed as a light wall lining in each chamber. It controls internal reflections and is not packed to change the acoustic volume.

Power and Wiring

Each DMD-SH 10 is rated 250 watts RMS and 500 watts maximum, so the pair takes 500 watts RMS combined. Both variants are dual voice coil and the single cup feeds both positions in parallel, so the final load is set at the drivers. Wire the two identically, since mismatched wiring between chambers splits power unevenly, and confirm the result against your amplifier's minimum stable impedance before powering the system.

Drivers mount to 8/32 threaded inserts with stainless machine screws, included. Bring your own pair of DMD102SH or DMD104SH; the drivers are purchased separately. The enclosure carries a 1 year limited warranty.

Cut for the Driver, Not the Catalog

Two chambers, two alignments worked out from the published parameters instead of a table of round numbers, in a footprint built for under a rear bench. Machined, assembled and inspected one at a time in Tullahoma, Tennessee.

Specifications

Series	Proline X Performance Optimized Down Fire Wide
Compatible Driver	Diamond Audio DMD102SH (DVC 2Ω) or DMD104SH (DVC 4Ω) \| Matched Pair Required
Enclosure Type	Sealed \| Dual Driver \| Down Fire Geometry \| Floor-Coupled
Chamber Configuration	Two Fully Separate Chambers \| Full Divider \| Single Shared Side-Mounted Terminal Cup
Intended Fitment	Under The Rear Seat Of Trucks And SUVs, Or Narrow Cargo Floors
Firing Direction	Down Firing, Both Drivers Fire Toward Floor
External Width	41 Inches
External Depth	12 Inches
External Height	9.6875 Inches
Installed Height	11.4375 Inches With The 1.75 Inch Feet
Dimension Reference	All External Dimensions Measured In Down Fire Position, Excluding Feet
Internal Volume (Gross)	1.740 Cubic Feet Total
Internal Volume (Net)	0.803 Cubic Feet Per Chamber, 1.606 Cubic Feet Total
Diamond Suggested Sealed Volume	Smaller Than This Build (We Build Larger, See Description)
DMD102SH Qtc / Fc / F3 Per Chamber	0.855 / 62.2 Hz / 53.2 Hz (Computed From Published T/S)
DMD104SH Qtc / Fc / F3 Per Chamber	1.002 / 63.1 Hz / 49.6 Hz (Computed From Published T/S)
Comparison, Standard 30x15 Dual	30 x 15 x 10.125 In, 0.80 Cubic Feet Net Per Chamber. Same Airspace, Different Shape
Driver Fs	48.0 Hz (D2) / 48.5 Hz (D4)
Driver Qts	0.66 (D2) / 0.77 (D4)
Driver Qes / Qms	0.71 / 9.0 (D2) \| 0.85 / 8.0 (D4)
Driver Vas	15.4 Liters (D2) / 15.8 Liters (D4)
Driver BL	13.7 T (D2) / 16.4 T (D4)
Driver Mms	130.5 g (D2) / 125.0 g (D4)
Driver Cms	0.084 mm/N (D2) / 0.086 mm/N (D4)
Driver Sd	0.0359 m²
Driver Xmax	7.9mm (D2) / 8.8mm (D4)
Driver Sensitivity	85.8 dB (D2) / 85.2 dB (D4)
Driver Power Handling	250 Watts RMS / 500 Watts Max Each
Driver Displacement	0.05 Cubic Feet, Estimated (Diamond Publishes None)
Total Driver Diameter	10.87 Inches (Diamond Spec)
Mounting Depth Required	3.00 Inches (Diamond Spec), 5.938 Inches Clear Above The Motor
Woofer Opening (Cutout)	9.13 Inches (Diamond Spec)
Feet	1.75 Inch, Included, Shipped Uninstalled
Material	Langboard Elite 3/4" MDF
Construction	ShopSabre CNC / Full-Height Divider
Joinery	V-Groove and Dado (CNC-Cut)
Panel Thickness	3/4 Inch
Front Baffle	Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded), Outer Layer Flush Recess
Corner Profile	Square (Down Fire Series Standard)
Driver Mounting	8/32 Threaded Inserts \| Stainless Steel Machine Screws Included \| 2 Sets
Terminal Cup	Proline X ABS/Carbon Fiber Composite \| Side Mounted \| One Cup, Both Positions In Parallel
Internal Wiring	12 Gauge OFC, Pre-Wired
Damping	Polyfill Installed Per Chamber, Light Wall Lining
Carpet	Plush Black
Voice Coil Configuration	Dual Voice Coil, Final Impedance Set At The Drivers
Bundle Options	Enclosure Only (Bring Your Own Pair Of DMD102SH or DMD104SH)
Warranty	1-Year Limited (Enclosure)
Built In	Tullahoma, Tennessee, USA

Performance Graphs

Net airspace

0.803

cu ft per chamber

System Qtc

1.00

sealed

Half power

49.6

Hz · F3

Xmax at

248

W RMS · no filter

With 25 Hz subsonic

250

W RMS · +1%

Amplifier

250

W RMS recommended

This enclosure holds 0.803 cu ft net per chamber. In it the Diamond Audio DMD104SH runs a system Qtc of 1.00 with half power at 49.6 Hz, and the cone reaches its 8.8 mm travel limit at 248 W, below the driver’s 250 W thermal rating, so travel is what stops you here, not heat. A 25 Hz subsonic filter adds little here: 250 W against 248 W, 1 percent. The box already resonates at 63 Hz, so its own rolloff has removed most of what the filter would have stopped.

01Is it a sealed driver?

Efficiency bandwidth product places the motor before anything else is decided.

EBP = Fs ÷ Qes = 57.7

D4 · EBP 57.7

At 57.7 the DMD104SH sits in the transition band, not the sealed band. That is not a mismatch: a transition motor works in either alignment, and sealed buys a smaller box and a gentler roll-off at the cost of some low-end output. Stage 02 shows what this airspace actually does with it.

02What the box does to it

0.803 cu ft against a 15.8 L Vas.

α = Vas ÷ Vb = 0.69 · Fc = Fs√(α+1) = 63 Hz · Qtc = 1.00

D4 · Qtc 1.00, Fc 63 Hz, F3 49.6 Hz

The box lifts resonance from 48.5 Hz free-air to 63 Hz and half power lands at 49.6 Hz, anechoic, before any cabin gain.

03The watts that reach Xmax (in this enclosure)

Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 8.8 mm, and in this alignment a subsonic filter barely moves it.

P_Xmax = 248 W unfiltered → 250 W with a 25 Hz subsonic

D4 · 248 W, no filterD4 · 250 W with subsonic at 25 Hz, 24 dB/octXmax 8.8 mm one-way

Every trace touches the limit and no further, because each is drawn at the exact power that puts that coil on 8.8 mm. Unfiltered that is 248 W, reached first at 45 Hz. It sits under the 250 W the driver can take thermally, so the enclosure sets the ceiling, not the voice coil. The dashed traces are the same driver behind a subsonic filter at 25 Hz, 24 dB/oct, and they sit almost on top of the solid ones: 250 W against 248 W. At 63 Hz the filter sits well below resonance, where the sealed alignment has already rolled the cone off at 12 dB/oct, so there is little wasted travel left for it to recover. Set it anyway to keep road rumble out of the cone, but do not size the amplifier around it.

Param	Value	Unit	Note
Fs	48.50	Hz	free-air resonance
Qts	0.770		D4
Vas	15.80	L	equivalent compliance
Sd	359.0	cm²	effective piston area
Xmax	8.8	mm	one-way linear travel
Pe	250	W	continuous RMS
SPL	85.2	dB	1 W / 1 m, derived from T/S

Driver parameters as published by diamondaudio.com product page. Curves computed against this enclosure’s actual net airspace.

Materials

Material

Built From a Spec Sheet, Not a Sales Sheet

Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.

Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.

Specifications

Langboard Elite MDF: Published Mill Data

Property	Value	Why It Matters
Panel Stock	Langboard Elite MDF	Named, verifiable panel source, not generic "high-density MDF"
Thickness	3/4" (18mm)	Industry standard for subwoofer enclosures; panels below this flex under pressure
Density	48.5 lbs/ft³	Higher density = less porosity, better screw retention, reduced resonance
Internal Bond	200 psi	Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet
Modulus of Rupture (MOR)	4,200 psi	Bending strength before the panel breaks, relevant for larger unsupported baffle spans
Modulus of Elasticity (MOE)	410,000 psi	Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance
Face Screw Holding	325 lbs	How firmly the panel surface holds a screw; critical for baffle joint integrity over time
Edge Screw Holding	250 lbs	Panel edge retention, relevant for every joint that isn't face-to-face

Internal Bond

200 psi: The Number That Actually Matters for Enclosures

The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.

Stiffness

410,000 psi MOE: Less Flex, Less Resonance

The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.

Screw Holding

325 lb Face / 250 lb Edge: Joints That Stay Locked

Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.

Sourcing

Named Panel Stock: Not "Premium MDF"

The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.

Why Proline X?

Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.

CNC-Cut to Spec

Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
