Performance Optimized Down Fire Sealed 12" Enclosure | Diamond Audio DMD-SH
SKU: PO 12-S DF DMD
- Alignment: 1.25 cu ft net. Qtc 1.137 / F3 51.4 Hz (D2), Qtc 1.336 / F3 53.6 Hz (D4) - computed from Diamond's T/S
- Driver: Diamond DMD122SH (DVC 2Ω) or DMD124SH (DVC 4Ω), 300W RMS / 600W max, 3.00" mounting depth
- Build: Proline X V-groove and dado joinery, double-layer 1.5" front baffle, perimeter cross-brace, 12g OFC side-mounted terminal cup

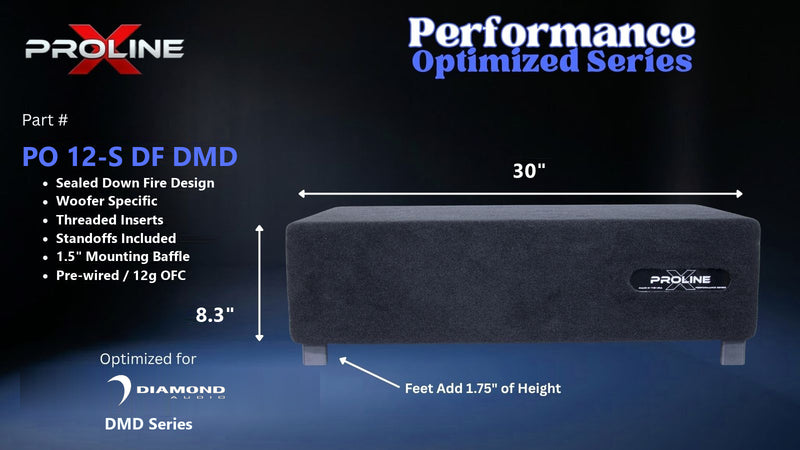

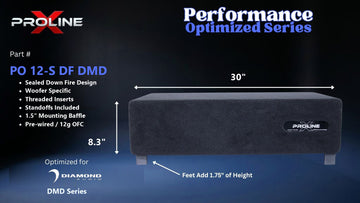

- Cabinet: 30"W x 15"D x 8.3125"H measured in down fire position, square corners
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed 12" Enclosure | Diamond Audio DMD-SH
The Performance Optimized Down Fire Sealed 12" Enclosure for the Diamond Audio DMD-SH is a low-profile sealed cabinet built around Diamond's shallow-mount DMD 12" subwoofer. At 8.3125 inches tall on a 30 by 15 inch footprint, it puts a full 12 into cargo floors and rear-wall positions where a conventional 12 will not go.
The DMD-SH 12 is available as the DMD122SH (dual 2Ω) or DMD124SH (dual 4Ω), both rated 300 watts RMS and 600 watts max with a 3.00 inch mounting depth — the same depth as the 10 inch model. Cutout is 11.06 inches, total diameter 12.83 inches. The driver features an aluminum heatsink dust cap over a high-strength paper cone, die-cast shallow frame, vented pole for cooler operation, oversized push terminals, black spider with woven tinsel leads, and a wrap-around ABS mounting gasket. Diamond states the motor and suspension symmetry are Klippel optimized.
The coil variants differ meaningfully here. The DMD122SH runs a Qts of 0.77 with 13.7 T of motor force and 7.9mm Xmax. The DMD124SH runs a Qts of 0.91 with 16.4 T and 8.8mm Xmax. The D4 has the stronger motor and more excursion, the D2 considerably better damping.
The 1.25 cubic foot net volume produces Qtc 1.137 with F3 at 51.4 Hz on the DMD122SH, and Qtc 1.336 with F3 at 53.6 Hz on the DMD124SH, computed from Diamond's published Thiele-Small parameters.
Two things worth stating plainly. First, we build this larger than Diamond's suggested 0.75 cubic feet, which would put the D2 near Qtc 1.20 and the D4 above 1.42. At 1.25 net the alignment is better damped on both variants with 1 to 2 Hz more extension, and Diamond's manual presents their enclosure table as a suggestion rather than a specification.
Second, the figures above are computed from the T/S parameters Diamond publishes, and they do not match the Qtc values printed in Diamond's enclosure table. Running their own Qts and Vas through standard sealed box math produces higher Qtc than their table shows, by roughly 0.2 to 0.3 across every variant. We publish the computed number because it follows from the driver data.
Be aware that the DMD124SH has a free-air Qts of 0.91. Since system Qtc can never fall below the driver's Qts, that variant is underdamped in any sealed enclosure regardless of volume. The DMD122SH at 0.77 has more headroom and is the better sealed performer of the two.
Firing down into the floor, the sealed rolloff meets rising cabin gain below 60 Hz, and in-car response extends well below the anechoic figure.

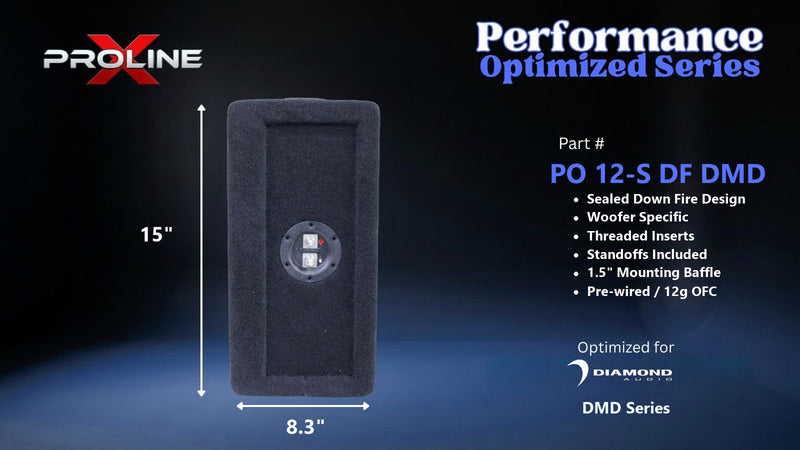

Construction is the full Proline X Performance Optimized platform: ShopSabre CNC-cut Langboard Elite MDF with V-groove and dado joinery, perimeter cross-bracing, and a double-layer 1.5 inch front baffle (two 3/4 inch sheets bonded) for maximum baffle rigidity and driver isolation. Corners are square on Down Fire cabinets. The driver fires down into the floor with the terminal cup side mounted, keeping the connection accessible with the cabinet in place. Terminal cup is our Proline X ABS/carbon fiber composite pre-wired with 12 gauge OFC.
Bring your own DMD122SH or DMD124SH. Both are dual voice coil, so you set your final impedance at the driver.
Manufactured in Tullahoma, Tennessee. 1-year enclosure warranty.
| Enclosure Type | Sealed | Down Fire Geometry | Floor-Coupled |
| Driver-Specific Fitment | Diamond Audio DMD122SH (DVC 2Ω) or DMD124SH (DVC 4Ω) |
| Internal Volume (Gross) | 1.30 Cubic Feet |
| Internal Volume (Net) | 1.25 Cubic Feet |
| Target System Qtc (DMD122SH) | 1.137 (Computed from Published T/S) |
| Target System Qtc (DMD124SH) | 1.336 (Computed from Published T/S) |
| Predicted F3 (DMD122SH) | 51.4 Hz |
| Predicted F3 (DMD124SH) | 53.6 Hz |
| Driver Fs | 46.0 Hz (D2) / 46.5 Hz (D4) |
| Driver Qts | 0.77 (D2) / 0.91 (D4) - Qtc cannot fall below Qts in any sealed box |
| Driver Qes / Qms | 0.84 / 9.0 (D2) | 1.02 / 9.0 (D4) |
| Driver Vas | 30.7 Liters (D2) / 31.0 Liters (D4) |
| Driver BL | 13.7 T (D2) / 16.4 T (D4) |
| Driver Mms | 161.0 g (D2) / 156.0 g (D4) |
| Driver Cms | 0.074 mm/N (D2) / 0.075 mm/N (D4) |
| Driver Sd | 0.0539 m² |
| Driver Xmax | 7.9mm (D2) / 8.8mm (D4) |
| Driver Sensitivity | 87.5 dB (D2) / 86.8 dB (D4) |
| Driver Power Handling | 300 Watts RMS / 600 Watts Max |
| Diamond Suggested Sealed Volume | 0.75 Cubic Feet Gross (We Build Larger - See FAQ) |
| Cutout Diameter | 11.06 Inches (Diamond Spec) |
| Mounting Depth Required | 3.00 Inches (Diamond Spec) |
| Total Driver Diameter | 12.83 Inches (Diamond Spec) |
| Baffle Configuration | Down Firing - Driver Fires Toward Floor |
| Material | Langboard Elite 3/4" MDF |
| Front Baffle Construction | Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded) |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Corner Profile | Square (Down Fire Series Standard) |
| Construction | ShopSabre CNC / Perimeter Cross-Brace |
| External Width | 30 Inches |
| External Depth | 15 Inches |
| External Height | 8.3125 Inches |
| Dimension Reference | All External Dimensions Measured In Down Fire Position |
| Voice Coil Configuration | Dual Voice Coil - Final Impedance Set At The Driver |
| Mounting Hardware | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | Side Mounted | 12g OFC Pre-Wired |
| Damping | Polyfill Pre-Installed |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black (+$10) |
| Bundle Options | Enclosure Only (Bring Your Own DMD122SH or DMD124SH) |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
