Performance Optimized Down Fire Wide Sealed 12" Enclosure | Skar Audio VD-12
SKU: PO 12-S DFW VD12
- Alignment: 1.090 cu ft net. D2: Qtc 0.854, Fc 54.8 Hz, F3 46.9 Hz. D4: Qtc 0.936, Fc 57.1 Hz, F3 46.4 Hz
- Down Fire Wide: 41"W x 14"D x 6.5"H in down fire position, excludes standoffs, square corners
- Versus the standard 30 x 15: 7.34 in tall and 1.00 cu ft net there, 6.5 in tall and 1.090 cu ft net here
- Driver: Skar Audio VD-12 D2 or D4, 500 W RMS, 11 mm Xmax, 4.95 in mounting depth
- Standoffs: Included, 1.75 in, shipped uninstalled. Installed height 8.25 in
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Wide Sealed 12" Enclosure | Skar Audio VD-12
More enclosures cut for Skar Audio subwoofers: Skar Audio Subwoofer Boxes
Proline X Performance Optimized Down Fire Wide 12" Sealed
41 by 14 inch footprint for spaces where height or depth is the limit. Cut for the Skar Audio VD-12
The Down Fire Wide Format
Down Fire Wide takes the same Skar Audio VD-12 our standard 30 by 15 inch Down Fire enclosure is built for and lays the cabinet out along a different axis. It is 1 inch shallower front to back, 14 inches instead of 15, and 11 inches longer, 41 instead of 30.
Fourteen inches is the practical minimum depth for a 12. The frame needs about 13 inches of baffle, and the cabinet walls need land around it, so the depth cannot come down further. The VD-12's 12.6 inch frame sits on the 14 inch deep baffle with about 0.70 inch of baffle fore and aft.
Spreading the airspace along 41 inches means the wide box stands lower. This cabinet is 41 inches wide by 14 inches deep by 6.5 inches tall, against 7.34 inches tall for the standard 30 by 15, both measured in the down fire position and excluding standoffs. With the 1.75 inch standoffs installed it stands 8.25 inches.
Which one to choose. The standard 30 by 15 is the pick when length is limited. This one is the pick when height or depth is the limit and you have 41 inches of run. Measure all three before ordering.
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds. Down Fire Wide variants like this one run 41 by 14 for spaces where height or depth is the limit. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double layer, outer layer machined as a flush recess. 1.5 inch. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, perimeter cross brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |
Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The cutout, the cabinet height and the airspace all come from the Skar Audio VD-12's own published numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around the Skar Audio VD-12
Nothing about this cabinet is generic. The baffle is cut to 11.28 in, Skar's published cutout, under the 12.60 in frame.
The VD-12 is Skar Audio's 12 inch, rated 500 watts RMS, with 11 mm of one-way excursion. It is 4.95 inches deep, which matters on a down fire, where the motor rises into the cabinet. The figures come from the Thiele-Small table Skar prints on its VD-12 product page: Fs 35.3 Hz, Qts 0.55, Vas 43.5 liters for the D2. Skar publishes no driver displacement, so the 0.085 cubic feet used here is our estimate from comparable 12 inch woofers. Skar also leaves cone area blank, so the 505 cm² in the specs is derived from their Vas and compliance.
Skar also publishes a separate set for the VD-12 D4: Fs 36.6 Hz, Qts 0.60, Vas 44.3 liters. It shares the D2's cutout and mounting depth, so this cabinet is specified for the VD-12 D2 or D4.
Net Volume, Not Gross
The cabinet holds 1.090 cubic feet net from a 1.18 cubic foot gross cavity, after the windowed U-brace and the driver's estimated 0.085 cubic feet of displacement are subtracted.
That produces Qtc 0.854 with Fc at 54.8 Hz and a predicted F3 of 46.9 Hz on the VD-12 D2, and Qtc 0.936 with Fc at 57.1 Hz and F3 at 46.4 Hz on the D4. Both are above the 0.707 maximally flat reference, so there is real lift near the corner rather than a textbook flat curve.
Height is set by the motor, not the airspace. The 4.95 inch mounting depth needs the cabinet to leave 0.75 inch above the motor, and at 41 by 14 that minimum height already encloses 1.090 cubic feet net, more than the 1.00 cubic feet the standard 30 by 15 box was built to. More air for the same driver lowers Qtc, which is the safe direction: better damping, less peaking, a slightly earlier rolloff.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's estimated displacement, not estimated from external dimensions minus wall thickness. All figures are anechoic; firing down into the floor, the sealed rolloff meets rising cabin gain below 60 Hz, so in-car response extends below them.
Down Fire Wide Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

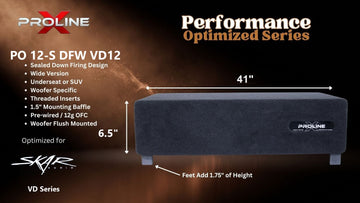

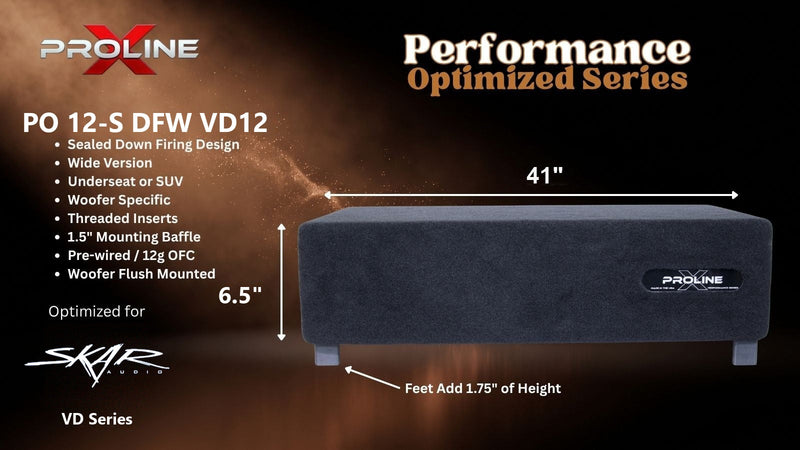

The cabinet measures 41 inches wide by 14 inches deep by 6.5 inches tall, measured in the down fire position and excluding standoffs. The 1.75 inch standoffs ship with the enclosure but are not installed, so plan the space around the installed height of 8.25 inches.
1.5 Inch Double Baffle
Two 3/4 inch layers laminated to 1.5 inches, with the outer layer machined as a flush recess so the driver bolts to the inner layer. Mounting is a threaded insert kit with stainless machine screws, not pre-installed, because Skar prints no bolt circle.
Frame on a 14 Inch Baffle
The 12.6 inch frame sits on the 14 inch deep baffle with about 0.70 inch of material fore and aft.
Windowed U-Brace
One chamber, braced with a windowed U-brace dadoed to the shell, which stiffens the long panels without walling off the airspace.

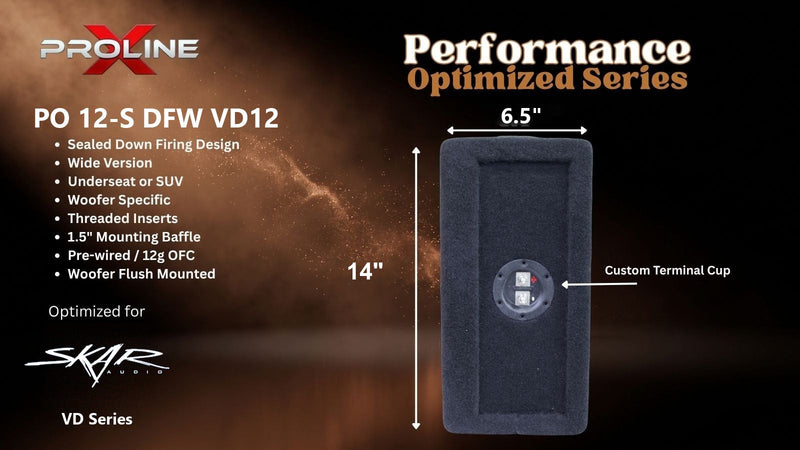

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, side mounted and pre-wired in 12 gauge OFC, so it stays accessible with the baffle facing the floor.
Standoffs and Polyfill
1.75 inch standoffs ship uninstalled, so you can place them to suit your floor or leave them off and run the cabinet front or up firing. Polyfill is installed as a light wall lining and does not alter the acoustic volume.
Power and Wiring
Skar rates the VD-12 at 500 watts RMS. The VD-12 D2 wires to 4 ohms with its coils in series or 1 ohm in parallel. The VD-12 D4 wires to 8 ohms in series or 2 ohms in parallel. Anything under 1 ohm, and many amplifiers at 1 ohm, is outside what the amplifier is built for; series wiring is the safe default. Confirm the load against your amplifier's minimum stable impedance before powering the system.
Skar prints no bolt circle for the VD-12, so the baffle ships undrilled with a threaded insert kit and stainless machine screws: set the driver in the recess, mark its holes, drill, press the inserts and bolt it down. The enclosure carries a 1 year limited warranty. Bring your own VD-12 D2 or D4; the driver is purchased separately.
Cut for the Driver, Not the Catalog
Down Fire Wide, 41 by 14, cut on our ShopSabre routers and built one at a time in Tullahoma, Tennessee. Questions on fitment or amplifier matching, call us at 931-563-5151.
| Specification | Value |
|---|---|
| Series | Proline X Performance Optimized Down Fire Wide |
| Compatible Driver | Skar Audio VD-12. Direct fit |
| Enclosure Type | Sealed, down fire, floor coupled |
| Intended Fitment | Spaces where height or depth is the limit and 41 in of run is available |
| Chamber Configuration | Single chamber, windowed U-brace, one side-mounted terminal cup |
| External Width | 41 in |
| External Depth | 14 in |
| External Height | 6.5 in in the down fire position, excludes standoffs |
| Installed Height | 8.25 in including the 1.75 in standoffs |
| Internal Volume, Gross | 1.18 cu ft |
| Internal Volume, Net | 1.090 cu ft after the brace and 0.085 cu ft estimated displacement |
| Height Set By | Driver clearance: 0.75 in above the 4.95 in motor |
| Alignment, VD-12 D2 | Qtc 0.854, Fc 54.8 Hz, F3 46.9 Hz anechoic |
| Alignment, VD-12 D4 | Qtc 0.936, Fc 57.1 Hz, F3 46.4 Hz anechoic |
| Comparison, Standard 30 x 15 | 7.34 in tall, 1.00 cu ft net. Wide format is 6.5 in tall with 1.090 cu ft net |
| Woofer Opening | 11.28 in, Skar's published cutout |
| Frame Outer Diameter | 12.60 in |
| Bolt Circle | Not printed by Skar; threaded insert kit included |
| Driver Displacement | 0.085 cu ft, estimated; Skar publishes none |
| D2 Fs / Qts / Qes / Qms / Vas | 35.3 Hz / 0.55 / 0.62 / 4.42 / 43.5 L |
| D4 Fs / Qts / Qes / Qms / Vas | 36.6 Hz / 0.60 / 0.70 / 4.2 / 44.3 L |
| Driver Sd | 505 cm2, derived from Vas and Cms; Skar leaves it blank |
| Xmax | 11 mm one way, Skar spec |
| Driver Power Handling | 500 W RMS, Skar spec |
| Floor Slot | 0.79 times the cone area at the 1.75 in standoff |
| Parameter Source | skaraudio.com VD-12 product page, T/S Parameters and Subwoofer Measurements |
| Material | Langboard Elite 3/4 in MDF |
| Construction | ShopSabre CNC, V-groove and dado joinery |
| Panel Thickness | 0.75 in |
| Front Baffle | 1.5 in double baffle, outer layer machined as a flush recess |
| Internal Bracing | Windowed U-brace, dadoed to the shell |
| Corner Profile | Square, Down Fire series standard |
| Driver Mounting | A threaded insert kit with stainless machine screws, not pre-installed, because Skar prints no bolt circle |
| Terminal Cup | One Proline X ABS and carbon fiber composite, side mounted, pre-wired 12 gauge OFC |
| Standoffs | Included, 1.75 in, shipped uninstalled |
| Damping | Light polyfill wall lining, does not alter acoustic volume |
| Carpet | Plush Black |
| Bundle Options | Enclosure only, bring your own Skar Audio VD-12 |
| Warranty | 1 Year Limited |
| Built In | Tullahoma, Tennessee |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
1.090 cu ft against a 43.5 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 11.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 35.30 / 36.60 | Hz | free-air resonance |
| Qts | 0.550 / 0.600 | D2 / D4 | |
| Vas | 43.50 / 44.30 | L | equivalent compliance |
| Sd | 505.3 | cm² | effective piston area |
| Xmax | 11 | mm | one-way linear travel |
| Pe | 500 | W | continuous RMS |
| SPL | 86.7 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by Skar Audio VD-12 product page. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
