Performance Optimized Down Fire Sealed 12" Enclosure | Arc Audio SW12
SKU: PO 12-S DF SW12
- Alignment: 0.806 cu ft gross, roughly 0.74 net, matching Arc's published optimum sealed spec. Qtc 1.007, Fc 53.4 Hz, F3 41.9 Hz
- Driver: Arc Audio SW12 (DVC 2Ω or 4Ω), 400W RMS / 800W peak, 2.4" mounting depth or 2.23" front loaded, Fs 33.1 Hz, 11" cutout
- Wiring: Series and parallel T/S data are effectively identical, so this cabinet is correct either way
- Build: V-groove and dado joinery, double layer 1.5" front baffle, perimeter cross-brace, side mounted 12 gauge OFC terminal cup

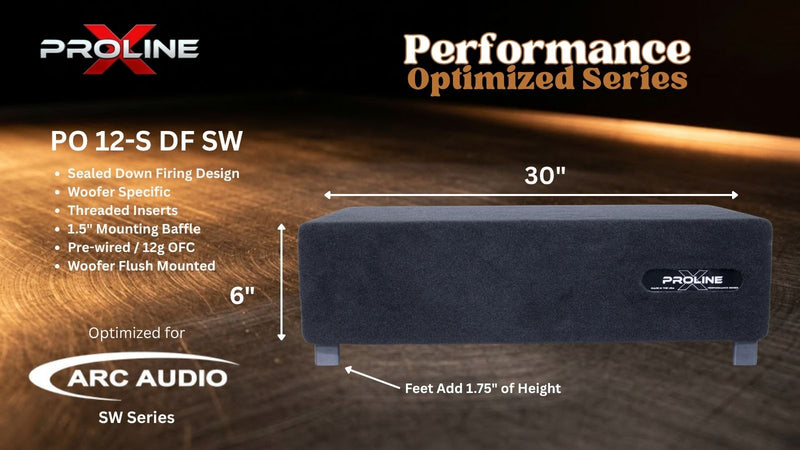

- Cabinet: 30"W x 15"D x 6"H measured in down fire position, square corners
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed 12" Enclosure | Arc Audio SW12
Proline X Performance Optimized Down Fire 12" Sealed
Cut and tuned for the Arc Audio SW12
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds, with cabinet height as the variable. A few drivers need a wider or deeper platform. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double, 1.5 inch, outer layer machined as a flush recess. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, perimeter cross brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |
Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The airspace, the cutout and the cabinet height all come from the Arc Audio SW12's own published numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around the Arc Audio SW12
Nothing about this cabinet is generic. The baffle is bored to the SW12's 11 inch cutout, with a 12.5 inch outer diameter to clear, and the internal height is set by its 2.4 inch mounting depth, or 2.23 inches front loaded. That is the shallowest 12 inch mounting depth in the Proline X Down Fire program, shallower than most 8 inch subwoofers, and it is what lets the finished cabinet stand exactly 6 inches tall on a 30 by 15 inch footprint.
The SW12 is a dual voice coil driver offered in dual 2 ohm or dual 4 ohm, rated 400 watts RMS and 800 watts peak. Cone area is 532.97 cm² and the force factor is 23.955 Tm wired in series. For a driver this thin that is a lot of capability.
The number that separates it from the SW10 is a 33.1 Hz free air resonance against the 10's 39.3, with Vas nearly triple at 33.44 liters against 12.96. Same mounting depth, same series, but the 12 reaches meaningfully lower. Arc publishes full Thiele-Small data in both series and parallel wiring and the two are effectively identical: Fs 33.1 against 33.0 Hz, Qts 0.624 against 0.616, Vas 33.44 against 33.73 liters. One enclosure serves either wiring choice properly.
Net Volume, Not Gross
We build this cabinet at 0.806 cubic feet gross, against Arc Audio's published optimum sealed recommendation of 0.8 gross. Net internal airspace after panel thickness, bracing and the driver's own displacement is approximately 0.74 cubic feet. Arc publishes their sealed recommendations as gross rather than net, which is unusual, so both figures are listed in the specifications.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness.
That volume produces Qtc 1.007 with Fc at 53.4 Hz and a predicted F3 of 41.9 Hz. Qtc right around unity gives a modest lift at the corner without the exaggerated peak that high Qts shallow drivers produce. A Qts of 0.624 is a healthy, moderate figure, so this driver reaches a usable alignment rather than being forced underdamped by its own parameters. Arc's published range runs 0.65 gross minimum to 1.0 gross maximum, and the optimum is the right place on this driver.
Firing down into the floor, the sealed rolloff meets rising cabin gain below 60 Hz. Arc's own documentation notes that cabin gain adds roughly 12 dB per octave below 50 Hz in most vehicles.
Down Fire Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.
The doubled baffle matters here: an 11 inch cutout in a cabinet only 6 inches tall removes a large share of the structural face. Perimeter cross-bracing and pre-installed polyfill complete the build. Finished dimensions are 30 inches wide by 15 inches deep by 6 inches tall, measured in the down fire position.

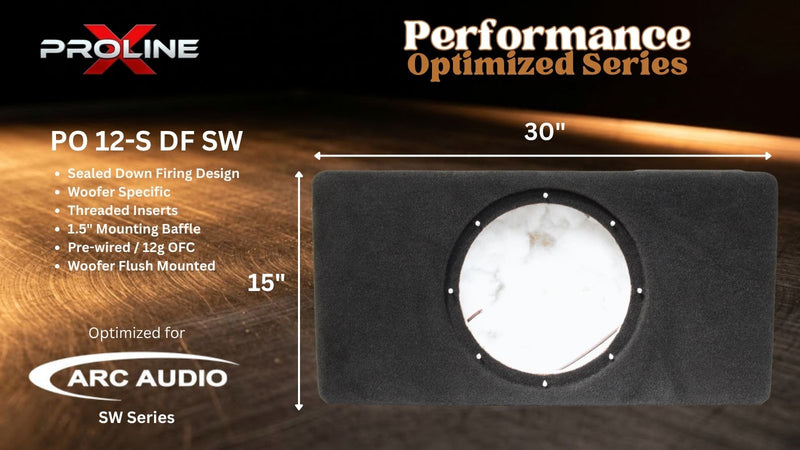

Double Baffle, Flush Recess
The front baffle is 1.5 inches, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so the driver bolts to the inner layer. That recovers 3/4 inch of internal clearance.

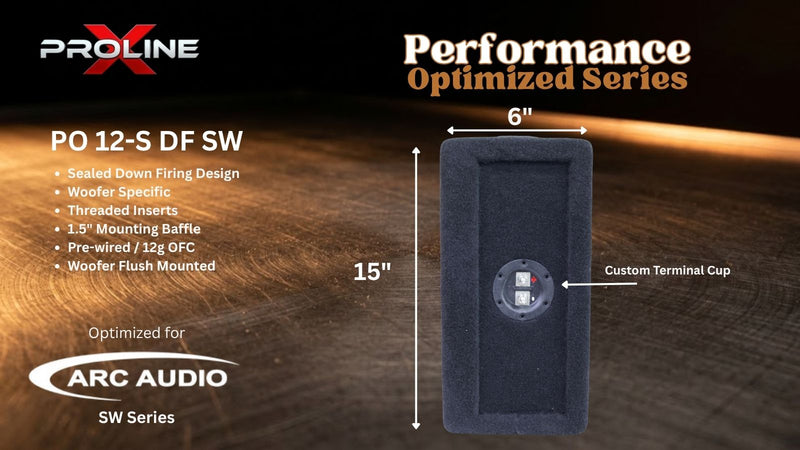

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.

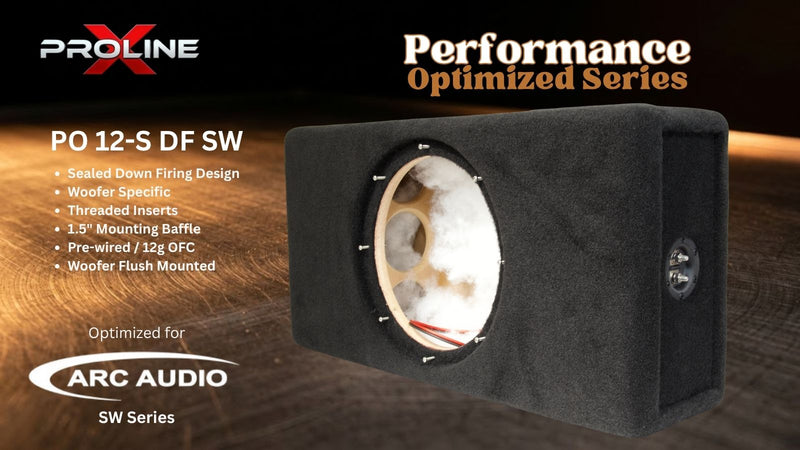

Bracing Under An 11 Inch Cutout
Perimeter cross-bracing holds the 30 inch span rigid around the opening. The driver lands on 8/32 threaded inserts with stainless machine screws included, so the mounting holes do not wear.
Power and Warranty
Arc rates the SW12 at 400 watts RMS with 800 watts peak across 532.97 square centimeters of cone. It is dual voice coil in 2 ohm or 4 ohm, and final impedance is set at the driver. Because the series and parallel Thiele-Small figures are effectively identical, the enclosure alignment holds either way; pick your wiring purely on amplifier impedance.
The enclosure carries a 1 year limited warranty. Bring your own Arc Audio SW12; the driver is purchased separately.
Cut for the Driver, Not the Catalog
One driver, one cutout, one volume target. Every Performance Optimized cabinet is machined to a single driver's published numbers and built one at a time in Tullahoma, Tennessee.
| Series | Proline X Performance Optimized Down Fire |
| Compatible Driver | Arc Audio SW12 (Dual 2Ω or Dual 4Ω) |
| Enclosure Type | Sealed | Down Fire Geometry | Floor-Coupled |
| Firing Direction | Down Firing, Driver Fires Toward Floor |
| External Width | 30 Inches |
| External Depth | 15 Inches |
| External Height | 6 Inches |
| Dimension Reference | All External Dimensions Measured In Down Fire Position |
| Internal Volume (Gross) | 0.806 Cubic Feet, Matches Arc's Optimum Sealed Spec of 0.8 Gross |
| Internal Volume (Net) | ~0.74 Cubic Feet |
| Arc Published Sealed Range | 0.65 Min / 0.8 Optimum / 1.0 Max (All Gross) |
| Target System Qtc | 1.007 |
| Predicted Fc | 53.4 Hz |
| Predicted F3 | 41.9 Hz |
| Driver Fs | 33.1 Hz Series / 33.0 Hz Parallel |
| Driver Qts | 0.624 Series / 0.616 Parallel |
| Driver Qes / Qms | 0.729 / 4.319 Series | 0.719 / 4.289 Parallel |
| Driver Vas | 33.44 Liters Series / 33.73 Liters Parallel |
| Driver Bl | 23.955 Tm Series / 12.024 Tm Parallel |
| Driver Mms | 278.61 g Series / 277.40 g Parallel |
| Driver Re | 7.23 Ohms Series / 1.81 Ohms Parallel |
| Driver Sd | 532.97 cm² |
| Driver Sensitivity | 85.22 dB (1W/1m) |
| Driver Power Handling | 400 Watts RMS / 800 Watts Peak |
| Mounting Depth Required | 2.4 Inches / 2.23 Inches Front-Load (Arc Spec) |
| Woofer Opening | 11 Inches Cutout / 12.5 Inches Outer Diameter (Arc Spec) |
| Standoffs | None |
| Material | Langboard Elite 3/4" MDF |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Construction | ShopSabre CNC / Perimeter Cross-Brace |
| Panel Thickness | 3/4 Inch |
| Front Baffle Construction | Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded) |
| Corner Profile | Square (Down Fire Series Standard) |
| Driver Mounting | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included |
| Voice Coil Configuration | Dual Voice Coil, Final Impedance Set At The Driver |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | Side Mounted | 12g OFC Pre-Wired |
| Internal Wiring | 12 Gauge OFC, Pre-Wired To The Terminal Cup |
| Damping | Polyfill Pre-Installed |
| Carpet Finish | Plush Black |
| Bundle Options | Enclosure Only (Bring Your Own Arc Audio SW12) |
| Weight | 28 lb |
| Warranty | 1-Year Limited (Enclosure) |
| Built In | Tullahoma, Tennessee, USA |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.74 cu ft against a 33.7 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 15.5 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 33.00 | Hz | free-air resonance |
| Qts | 0.616 / 0.624 | parallel / series | |
| Vas | 33.73 / 33.44 | L | equivalent compliance |
| Sd | 533.0 | cm² | effective piston area |
| Xmax | 15.5 | mm | one-way linear travel |
| Pe | 400 | W | continuous RMS |
| SPL | 84.1 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by arcaudio.com SW10 published specification table. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
