Performance Optimized Down Fire Sealed 12" Enclosure | Arc Audio A12
SKU: PO 12-S DF A
- Alignment: 0.994 cu ft gross, roughly 0.92 net, matching Arc's published optimum sealed spec. Qtc 1.336 / F3 39.2 Hz (D4), Qtc 1.208 / F3 36.3 Hz (D2)
- Driver: Arc Audio A12D2 or A12D4, 300W RMS / 600W musical, 8mm Xmax, 25.010 Hz Fs on the D2, 3.76" mounting depth, 10.91" cutout
- Alignment Character: Underdamped by design; the A12's Qts of 0.612 sets the floor. Arc's 1.25 gross maximum build is available on request in a cabinet about 1.2 inches taller
- Build: V-groove and dado joinery, double layer 1.5" front baffle, perimeter cross-brace, side mounted 12 gauge OFC terminal cup

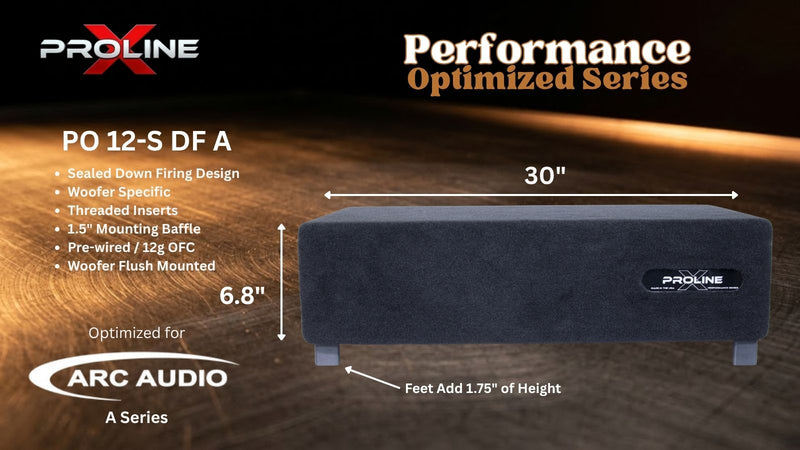

- Cabinet: 30"W x 15"D x 6.875"H measured in down fire position, square corners
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed 12" Enclosure | Arc Audio A12
Proline X Performance Optimized Down Fire 12" Sealed
Cut and tuned for the Arc Audio A12
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds, with cabinet height as the variable. A few drivers need a wider or deeper platform. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double, 1.5 inch, outer layer machined as a flush recess. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, perimeter cross brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |
Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The airspace, the cutout and the cabinet height all come from the Arc Audio A12's own published numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around the Arc Audio A12

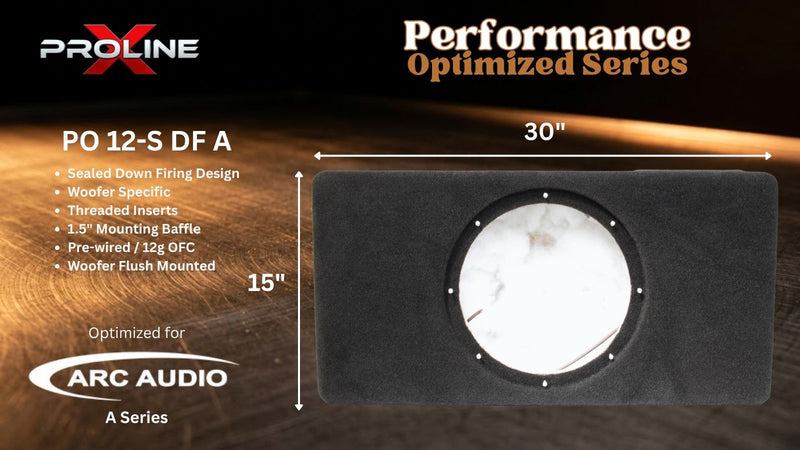

The baffle is bored to the A12's 10.91 inch cutout and the internal height is set by its 3.76 inch mounting depth and 4.32 inch overall depth. The finished cabinet stands 6.875 inches tall on a 30 by 15 inch footprint, measured in the down fire position, which puts a full 12 into spaces that normally cap out at a 10.
One detail worth noticing: the A12 mounts shallower than the A10, 3.76 inches against 3.77. Practically identical, which means moving from the 10 to the 12 in this series costs nothing in mounting depth. It costs cutout diameter and 0.625 inches of cabinet height.
The A12D2 carries a 25.010 Hz free-air resonance, the lowest of any driver in the Proline X Down Fire line, paired with a 76.32 liter Vas. The A12D4 sits at 26.995 Hz with 81.81 liters. Those are large-driver numbers from a shallow-mount platform. Xmax is 8mm one way, sensitivity is 87 dB at 1W/1m, and both variants are rated 300 watts RMS with 600 watts musical.
Net Volume, Not Gross
The machined cavity measures 0.994 cubic feet gross, matching Arc Audio's own optimum sealed recommendation of 1.0 gross. After driver displacement the working airspace is approximately 0.92 cubic feet net.
Arc publishes their sealed recommendations as gross volume rather than net, which is unusual. Most manufacturers state net, meaning the airspace left after the driver's own displacement is removed. We built to Arc's gross figure as published, and both conventions appear in the specifications so you can compare against either one.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness.
Alignment Character, Stated Plainly
The A12 runs a higher Qts than the A10: 0.612 on the D2 and 0.659 on the D4, against 0.477 and 0.506. System Qtc can never fall below the driver's own Qts in any sealed enclosure, regardless of volume, so this driver produces an underdamped alignment with a lift near the corner frequency. That is the A12's character, and Arc's optimum recommendation places it there deliberately.
In this volume the A12D2 lands at Qtc 1.208 with F3 at 36.3 Hz. The A12D4 lands at Qtc 1.336 with F3 at 39.2 Hz, so the D2 is both better damped and nearly 3 Hz lower. The D4 does carry higher motor force at 16.965 T against 13.948. If either load suits your amplifier, the D2 is the stronger choice here.
Arc also publishes a maximum sealed volume of 1.25 gross. That is the more damped build, in a cabinet roughly 1.2 inches taller at 8.0625 inches. We ship the optimum because it is what Arc specifies and because it keeps the cabinet under 7 inches. The taller build is available on request if the clearance is there.
Down Fire Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.
Double Baffle, Flush Recess
The front baffle is 1.5 inches, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so the driver bolts to the inner layer. That recovers 3/4 inch of internal clearance.
Side-Mounted Terminal Cup

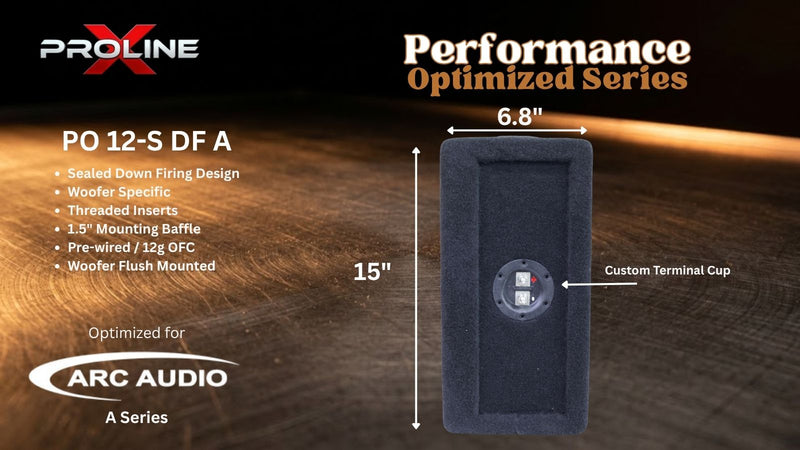

Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.
Braced for a 10.91 Inch Cutout

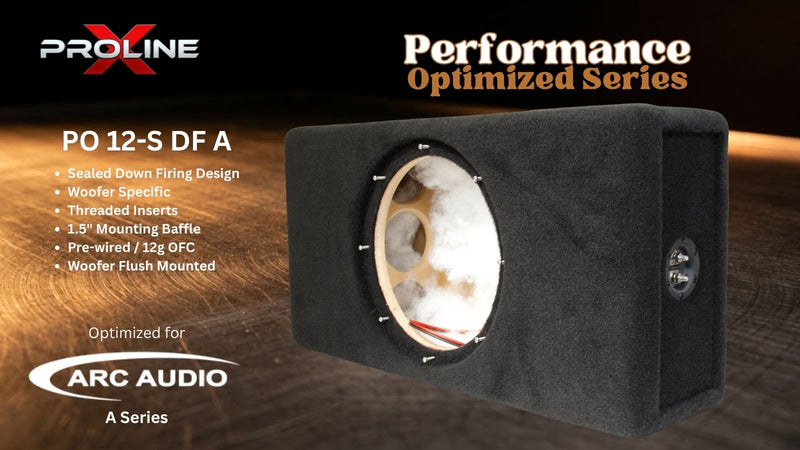

A 10.91 inch opening in a cabinet under 7 inches tall puts real structural load on the baffle. The double layer carries it, and a perimeter cross-brace ties the long 30 by 15 inch spans together. Polyfill is pre-installed.
Down Fire and Cabin Gain
The driver fires down into the floor and the cabinet couples to the surface it sits on. The sealed rolloff is gradual and meets rising cabin gain on the way down. Arc's own documentation notes that cabin gain adds roughly 12 dB per octave below 50 Hz, and with a 25 Hz Fs the D2 has real capability down there, so in-car response extends well below the anechoic figure.
Power and Warranty
Arc rates the A12 at 300 watts RMS continuous with 600 watts musical. Their documentation is blunt that sustained operation above the RMS rating burns voice coils and is not covered under warranty. Underpowering carries no risk, but a small amplifier driven into clipping does. Feed it clean, unclipped power in the 250 to 300 watt range and watch your gains.
Both variants are dual voice coil, so final impedance is set at the driver. Drivers mount to 8/32 threaded inserts with stainless machine screws, included. The enclosure carries a 1 year limited warranty. Bring your own A12D2 or A12D4; the driver is purchased separately.
Cut for the Driver, Not the Catalog
One driver, one volume, one set of machine files. Cut, assembled and inspected one at a time in Tullahoma, Tennessee.
| Series | Proline X Performance Optimized Down Fire |
| Compatible Driver | Arc Audio A12D2 (DVC 2Ω) or A12D4 (DVC 4Ω) |
| Enclosure Type | Sealed | Down Fire Geometry | Floor-Coupled |
| Firing Direction | Down Firing, Driver Fires Toward Floor |
| External Width | 30 Inches |
| External Depth | 15 Inches |
| External Height | 6.875 Inches |
| Dimension Reference | All External Dimensions Measured In Down Fire Position |
| Internal Volume (Gross) | 0.994 Cubic Feet, Matches Arc's Optimum Sealed Spec of 1.0 Gross |
| Internal Volume (Net) | ~0.92 Cubic Feet |
| Arc Published Sealed Range | 0.85 Min / 1.0 Optimum / 1.25 Max (All Gross) |
| Target System Qtc (A12D4) | 1.336 |
| Predicted F3 (A12D4) | 39.2 Hz |
| Driver Fs | 25.010 Hz (D2) / 26.995 Hz (D4) |
| Driver Qts | 0.612 (D2) / 0.659 (D4) |
| Driver Qes / Qms | 0.666 / 7.639 (D2) | 0.722 / 7.656 (D4) |
| Driver Vas | 76.32 Liters (D2) / 81.81 Liters (D4) |
| Driver BL | 13.948 T (D2) / 16.965 T (D4) |
| Driver Mms | 212.38 g (D2) / 170.06 g (D4) |
| Driver Re | 3.88 Ohms (D2) / 7.200 Ohms (D4) |
| Driver Xmax (One-Way) | 8mm |
| Driver Sensitivity | 87 dB (1W/1m) |
| Driver Power Handling | 300 Watts RMS / 600 Watts Musical |
| Mounting Depth Required | 3.76 Inches (Arc Spec) |
| Woofer Opening | 10.91 Inches (Arc Spec) |
| Standoffs | None |
| Material | Langboard Elite 3/4" MDF |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Construction | ShopSabre CNC / Perimeter Cross-Brace |
| Panel Thickness | 3/4 Inch |
| Front Baffle Construction | Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded) |
| Corner Profile | Square (Down Fire Series Standard) |
| Driver Mounting | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included |
| Voice Coil Configuration | Dual Voice Coil, Final Impedance Set At The Driver |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | Side Mounted | 12g OFC Pre-Wired |
| Internal Wiring | 12 Gauge OFC, Pre-Wired To The Terminal Cup |
| Damping | Polyfill Pre-Installed |
| Carpet Finish | Plush Black |
| Bundle Options | Enclosure Only (Bring Your Own A12D2 or A12D4) |
| Weight | 30 lb |
| Warranty | 1-Year Limited (Enclosure) |
| Built In | Tullahoma, Tennessee, USA |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.92 cu ft against a 76.3 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 12.76 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 25.00 | Hz | free-air resonance |
| Qts | 0.612 | D4 | |
| Vas | 76.32 | L | equivalent compliance |
| Sd | 530.9 | cm² | effective piston area |
| Xmax | 12.76 | mm | inferred from the A10 Klippel result; Arc publishes 8 mm |
| Pe | 300 | W | continuous RMS |
| SPL | 84.4 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by Arc Audio A-Series, store record + ResoNix Klippel for Xmax (A10, inferred). Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
