Performance Optimized Down Fire Sealed 12" Enclosure | Arc Audio ARC 12
SKU: PO 12-S DF Arc
- Alignment, Dual 2-Ohm: Qtc 0.770, Fc 42.2 Hz, F3 39.0 Hz
- Alignment, Dual 4-Ohm: Qtc 0.873, Fc 43.3 Hz, F3 36.6 Hz
- Volume: 1.155 gross / 1.085 net, inside Arc's 0.9 to 1.25 gross range
- Driver: ARC Audio ARC 12, 350W RMS / 700W musical, 15mm Xmax, 89 dB, 6" mounting depth
- Cabinet: 30"W x 15"D x 7.625"H in down fire position, square corners
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed 12" Enclosure | Arc Audio ARC 12
Proline X Performance Optimized Down Fire 12" Sealed
Cut and tuned for the ARC Audio ARC 12
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds, with cabinet height as the variable. A few drivers need a wider or deeper platform. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double, 1.5 inch, outer layer machined as a flush recess. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, perimeter cross brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |
Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The airspace, the cutout and the cabinet height all come from the ARC Audio ARC 12's own published numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around the ARC 12
Nothing about this cabinet is generic. The baffle is bored to the ARC 12's 11 inch cutout, the internal height is set by its 6 inch mounting depth, and a relief is milled into the panel behind the 6 1/2 inch magnet for motor clearance.
The ARC Series was designed by one of the leading car audio subwoofer acoustical engineers in the United States, and the brief was small to moderate enclosures with dynamic power handling. The 12 backs that up with 89 dB sensitivity, which is a genuinely efficient figure and two full decibels above the 10 in the same family.
Construction is a high-temperature black anodized voice coil, a one-piece molded rubber surround, a stamped steel basket, and a progressive flat layered spider with integrated tinsel leads. 15mm of one-way linear excursion across 72.85 square inches of cone. 350 watts RMS, 700 watts musical.
Inside Arc's Recommended Range
ARC Audio publishes a sealed range for the ARC 12 of 0.9 minimum, 1.1 optimum and 1.25 maximum. Those are gross figures, which is the convention Arc uses throughout their manual for both sealed and ported designs, so the usable net airspace is smaller once the driver's own 0.07 cubic feet of displacement is subtracted.
This cabinet is built at 1.155 gross, 1.085 net. That is five percent over Arc's optimum and comfortably inside their stated range.
Worth noting how that happened. The volume was not chosen, it was forced. A 6 inch mounting depth requires 5.375 inches of internal height after the flush recess baffle, the milled magnet relief and motor clearance. That height on a 30 by 15 footprint produces 1.155 gross. The driver's own geometry landed it inside Arc's window without any compromise on either side.
The 10 inch cabinet in this same series tells the opposite story. There the driver's depth forces a volume well above what Arc recommends, because their figure would need a box shorter than the driver itself. On the 12 the numbers simply agree.
Two Coils, Two Characters
The ARC 12 is available in Dual 2-Ohm and Dual 4-Ohm, and unlike most drivers these two behave noticeably differently in the same box.
The Dual 2-Ohm has a Qts of 0.416 and lands at Qtc 0.770 with F3 at 39.0 Hz. The Dual 4-Ohm has a Qts of 0.468 and lands at Qtc 0.873 with F3 at 36.6 Hz.
So the Dual 2-Ohm is the tighter, better damped alignment and the Dual 4-Ohm reaches roughly two and a half hertz deeper with more lift near the corner. Neither is wrong. If you want control and accuracy, take the Dual 2-Ohm. If you want the last bit of extension and a fuller bottom end, take the Dual 4-Ohm. Both are cut identically by this enclosure.
Down Fire Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

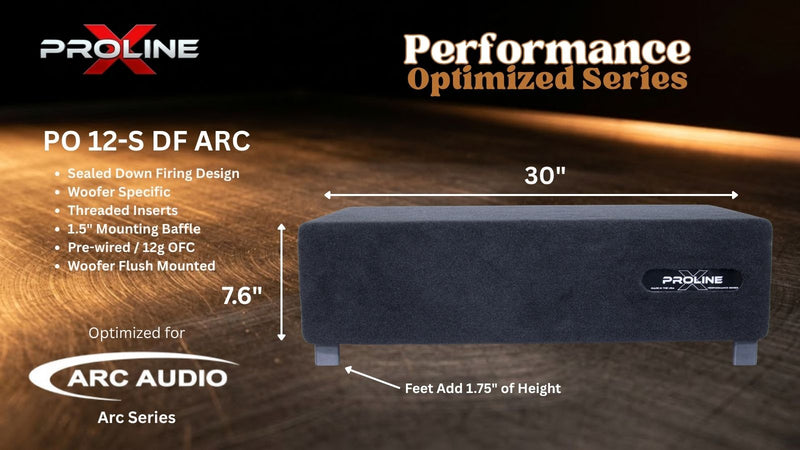

The cabinet measures 30 inches wide by 15 inches deep by 7.625 inches tall, measured in the down fire position. Feet ship with the enclosure but are not installed, so plan the space around where you intend to mount them.

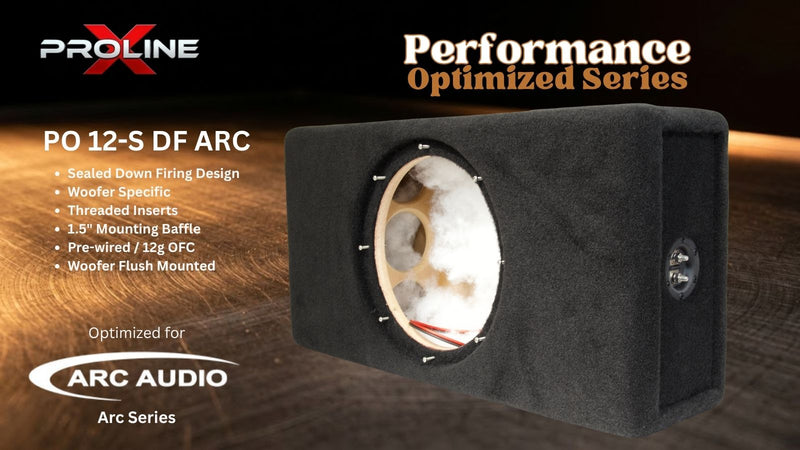

Double Baffle, Flush Recess

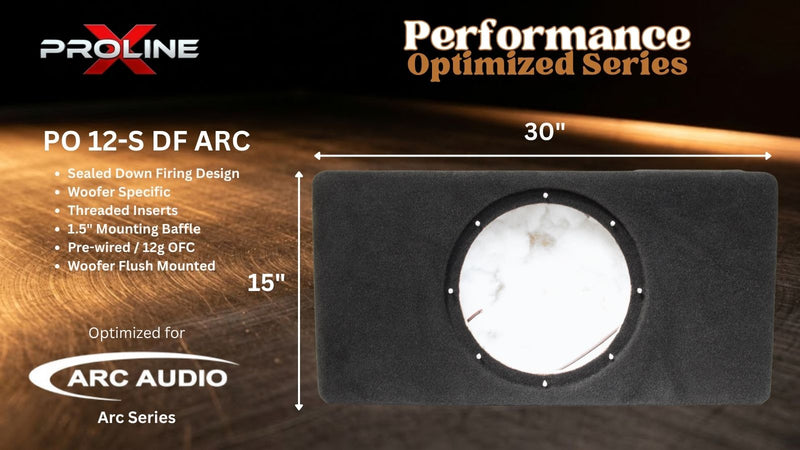

The front baffle is 1.5 inches, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so the driver bolts to the inner layer. That recovers 3/4 inch of internal clearance and matters with an 11 inch cutout.
Milled Magnet Relief
A 3/8 inch deep pocket is machined into the panel behind the motor, recovering further clearance without adding cabinet height and giving the 6 1/2 inch magnet room to breathe.

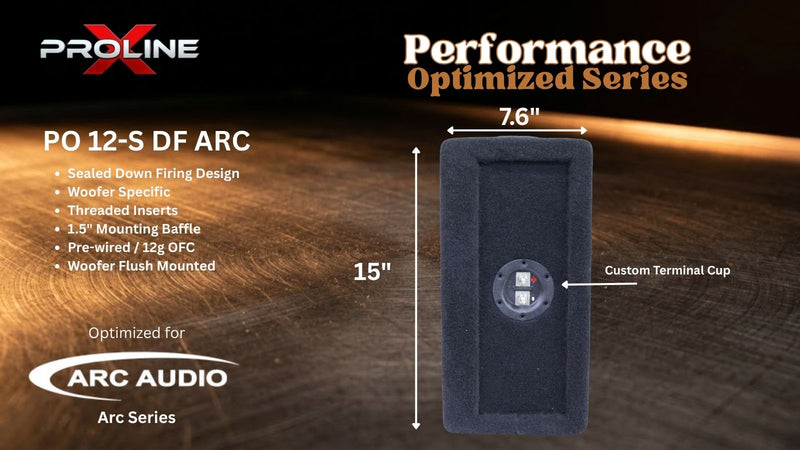

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.
Power and Wiring
ARC Audio rates the ARC 12 at 350 watts RMS continuous with 700 watts musical, and an amplifier power range of 5 to 700 watts. Their manual is direct about the distinction: the RMS figure is the recommended continuous power for long term use, the driver will take roughly twice that in short bursts, and sustained operation above the RMS rating will burn the voice coil and is not covered under warranty.
At 89 dB sensitivity this driver does not need to be pushed to get loud, which is worth remembering before reaching for a larger amplifier than the rating supports.
Both versions are dual voice coil, so final impedance is set at the driver. Bring your own ARC 12. The enclosure carries a 1 year limited warranty.
Cut for the Driver, Not the Catalog
Built one at a time in Tullahoma, Tennessee, to the volume this driver's own geometry asks for.
| Series | Proline X Performance Optimized Down Fire |
| Compatible Driver | ARC Audio ARC 12, Dual 2-Ohm or Dual 4-Ohm. Direct fit, no other driver |
| Enclosure Type | Sealed, down fire, floor coupled |
| Firing Direction | Down firing, driver fires toward the floor |
| External Width | 30 in |
| External Depth | 15 in |
| External Height | 7.625 in |
| Dimension Reference | All external dimensions measured in down fire position |
| Internal Volume, Gross | 1.155 cu ft |
| Internal Volume, Net Acoustic | 1.085 cu ft after displacement |
| Arc Suggested Sealed, Gross | 0.9 minimum, 1.1 optimum, 1.25 maximum. This build sits inside the range |
| System Qtc, Dual 2-Ohm | 0.770 |
| Predicted Fc, Dual 2-Ohm | 42.2 Hz |
| Predicted F3, Dual 2-Ohm | 39.0 Hz |
| System Qtc, Dual 4-Ohm | 0.873 |
| Predicted Fc, Dual 4-Ohm | 43.3 Hz |
| Predicted F3, Dual 4-Ohm | 36.6 Hz |
| Driver Fs | 22.8 Hz (Dual 2-Ohm) / 23.2 Hz (Dual 4-Ohm) |
| Driver Qts | 0.416 (Dual 2-Ohm) / 0.468 (Dual 4-Ohm) |
| Driver Qes | 0.469 (Dual 2-Ohm) / 0.533 (Dual 4-Ohm) |
| Driver Qms | 3.680 (Dual 2-Ohm) / 3.830 (Dual 4-Ohm) |
| Driver Vas | 74.4 L (Dual 2-Ohm) / 76.28 L (Dual 4-Ohm) |
| Driver Sd | 72.85 sq in |
| Driver Xmax | 15mm one way linear |
| Driver Displacement | 0.07 cu ft, published by Arc Audio |
| Driver Sensitivity | 89 dB, 1 W at 1 m |
| Driver Power Handling | 350 W RMS continuous, 700 W musical |
| Amplifier Power Range | 5 to 700 W, Arc Audio spec |
| Voice Coil Configuration | Dual voice coil, impedance set at the driver |
| Driver Voice Coil | High temperature black anodized |
| Driver Surround | One piece molded rubber |
| Driver Spider | Progressive flat layered with integrated tinsel leads |
| Driver Basket | Stamped steel |
| Mounting Depth | 6 in, Arc Audio spec |
| Woofer Opening | 11 in direct fit |
| Driver Total Depth | 6 5/8 in |
| Driver Outside Diameter | 12 3/8 in |
| Driver Magnet Diameter | 6 1/2 in |
| Standoffs | None required. Feet ship uninstalled |
| Material | Langboard Elite MDF |
| Construction | CNC cut, dado and V groove joinery, perimeter cross brace |
| Panel Thickness | 0.75 in |
| Front Baffle | 1.5 in double baffle, outer layer flush recess |
| Magnet Relief | 3/8 in deep milled relief in opposite panel |
| Corner Profile | Square, Down Fire series standard |
| Driver Mounting | 8/32 threaded inserts, stainless machine screws included |
| Terminal Cup | Proline X ABS and carbon fiber composite, side mounted |
| Internal Wiring | 12 gauge OFC |
| Damping | Polyfill pre-installed |
| Carpet | Plush Black |
| Weight | 34 lb |
| Bundle Options | Enclosure only, bring your own ARC Audio ARC 12 |
| Warranty | 1 Year Limited |
| Built In | Tullahoma, Tennessee |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
