Proline X
Performance Optimized Down Fire Sealed 10" Enclosure | Morel Ultimo SCX102
SKU: PO 10-S DF SCX
- Alignment: 0.89 cu ft net, Qtc 0.921, F3 46.4 Hz, volume set by driver clearance and slightly larger than Morel's 0.8 spec
- Driver: Morel Ultimo SCX102, DVC, 500W RMS / 1500W max transient, ±9mm Xmax, 5.26" mounting depth
- Fitment: 227mm cutout, 3/8" milled magnet relief, 0.5" minimum clearance behind the magnet vent
- Build: V-groove and dado joinery, double-layer 1.5" front baffle with flush outer recess, 12g OFC side-mounted terminal cup

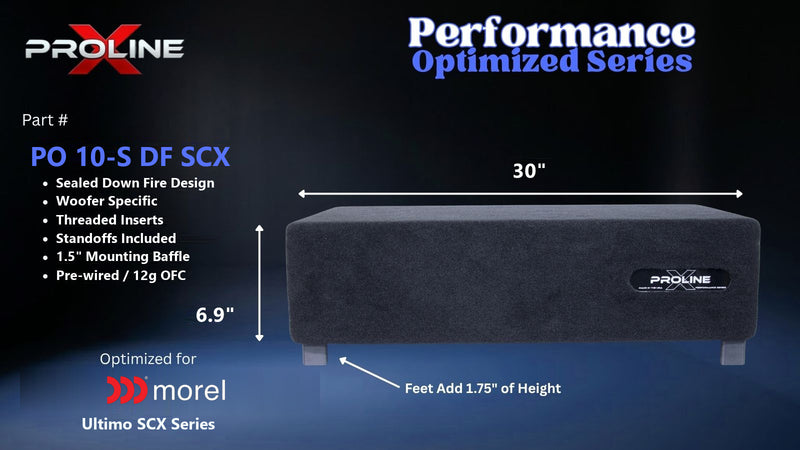

- Cabinet: 30"W x 15"D x 6.875"H measured in down fire position, square corners
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed 10" Enclosure | Morel Ultimo SCX102
Proline X PO Down Fire 10" Sealed
Cut and tuned for the Morel Ultimo SCX102
Built Around the Morel SCX102
Nothing about this cabinet is generic. The baffle is bored to the SCX102's 227mm cutout, and the internal height is set by the driver's 5.26 inch mounting depth, which is deep by the standards of the Down Fire program. Morel specifies a 263mm overall frame diameter, and the finished cabinet stands 6.875 inches on a 30 by 15 inch footprint.
The SCX102 is a dual voice coil driver rated 500 watts RMS with 1500 watts maximum transient handling, running a multi-layer paper and carbon fiber cone on a Hexatech aluminium former, over a double ferrite vented motor. The standout number is the 130mm, or 5.1 inch, voice coil. That is the same diameter Morel uses in the PowerSlim series and it is large for a 10 inch driver. It is the reason the SCX102 takes 500 watts continuously with that much transient headroom.
At 0.89 cubic feet net the system lands at Qtc 0.921 with a predicted F3 of 46.4 Hz, computed from Morel's published Fs of 38.8 Hz, Qts of 0.64 and Vas of 23 liters.
Net Volume, Not Gross
Gross internal volume is 0.99 cubic feet. We publish 0.89 cubic feet net, the figure that remains after panel thickness, perimeter bracing and the driver's own intrusion into the airspace are accounted for.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness.
Morel's published data holds up under checking. They list an F3 of 48 Hz at their recommended 0.8 cubic feet net, and running their own Qts and Vas through standard sealed box math at that volume lands within about a hertz of their figure. Their enclosure table and their Thiele-Small data agree with each other, which is not universal in this category.
Why This Cabinet Runs Larger Than Morel's 0.8
The volume here is set by fitment, not by preference. On the double baffle the outer 3/4 inch layer is machined as a flush recess and the driver bolts to the inner layer, so the mounting plane sits 3/4 inch down from the outer face and only 4.51 inches of driver protrudes into the airspace. A 3/8 inch relief milled into the opposite panel behind the magnet recovers a little more. Add half an inch of clearance behind the magnet vent and the minimum internal height lands at 4.625 inches, which works out to 0.89 net.
That extra airspace goes the right direction acoustically. Qtc lands at 0.921 here against 0.986 at Morel's 0.8 figure, a marginally better damped alignment with no cost in extension.
Down Fire Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.
The driver fires down into the floor. The sealed rolloff meets rising cabin gain below 60 Hz, so in car response extends well below the anechoic figure.
Double Baffle, Flush Recess
The front baffle is 1.5 inches, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so the driver bolts to the inner layer. That recovers 3/4 inch of internal clearance.

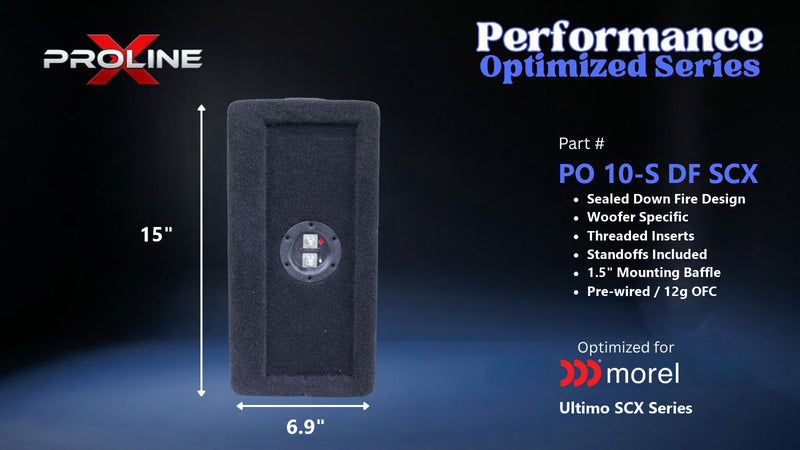

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.
Milled Magnet Relief
A 3/8 inch deep pocket is machined into the panel directly behind the magnet, leaving half an inch of clearance behind the vented motor without adding cabinet height.
Power and Warranty
Morel rates the SCX102 at 500 watts RMS and 1500 watts maximum transient. We recommend 300 to 600 watts RMS into this enclosure, which is Morel's own rated range. The driver is dual voice coil, so you set final impedance at the driver per Morel's wiring diagrams. The enclosure carries one side mounted terminal cup pre-wired in 12 gauge OFC.
The enclosure carries a 1 year limited warranty. Bring your own Morel Ultimo SCX102; the driver is purchased separately.
Cut for the Driver, Not the Catalog
Every Performance Optimized cabinet is machined for one driver, from that driver's published cutout, mounting depth and motor clearance, and built one at a time in Tullahoma, Tennessee.
| Enclosure Type | Sealed | Down Fire Geometry | Floor-Coupled |
| Driver-Specific Fitment | Morel Ultimo SCX102 (Dual Voice Coil) |
| Internal Volume (Gross) | 0.99 Cubic Feet |
| Internal Volume (Net) | 0.89 Cubic Feet |
| Morel Recommended Sealed Volume | 0.8 Cubic Feet Net (See FAQ On Why This Cabinet Is Larger) |
| Target System Qtc | 0.921 (Computed from Published T/S) |
| Predicted F3 | 46.4 Hz | Morel Publishes 48 Hz At Their 0.8 Volume |
| Driver Fs | 38.8 Hz |
| Driver Qts | 0.64 |
| Driver Qes / Qms | 0.96 / 1.89 |
| Driver Vas | 23 Liters / 0.81 Cubic Feet |
| Driver Mms | 124.2 g |
| Driver BL | 8.3 |
| Driver Sd | 346.3 cm² |
| Driver Xmax | ±9mm |
| Driver DC Resistance | 2.2 Ohm (Coils In Parallel) |
| Driver Sensitivity | 82.8 dB (1W/1m) |
| Driver Power Handling | 500 Watts RMS / 1500 Watts Max Transient |
| Driver Frequency Response | 10-500 Hz |
| Driver Cone | Multi-Layer Paper and Carbon Fiber |
| Driver Voice Coil | 130mm / 5.1" | Hexatech Aluminium Former |
| Driver Motor | Double Ferrite Vented |
| Mounting Depth Required | 5.26 Inches / 133.5mm (Morel Spec) |
| Cutout Diameter | 8.94 Inches / 227mm (Morel Spec) |
| Driver Overall Diameter | 10.35 Inches / 263mm (Morel Spec) |
| Baffle Configuration | Down Firing, Driver Fires Toward Floor |
| Material | Langboard Elite 3/4" MDF |
| Front Baffle Construction | Double-Layer 1.5" MDF | Outer Layer Flush Recess, Driver Mounts To Inner Layer |
| Magnet Relief | 3/8" Deep Milled Relief In Opposite Panel For Motor Clearance |
| Motor Clearance | 0.5 Inch Minimum Behind Magnet Vent |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Corner Profile | Square (Down Fire Series Standard) |
| Construction | ShopSabre CNC / Perimeter Cross-Brace |
| External Width | 30 Inches |
| External Depth | 15 Inches |
| External Height | 6.875 Inches |
| Dimension Reference | All External Dimensions Measured In Down Fire Position |
| Voice Coil Configuration | Dual Voice Coil, Final Impedance Set At The Driver |
| Mounting Hardware | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | Side Mounted | 12g OFC Pre-Wired |
| Damping | Polyfill Pre-Installed |
| Recommended Power | 300-600 Watts RMS (Morel Rated Range) |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black |
| Bundle Options | Enclosure Only (Bring Your Own Morel SCX102) |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
