Proline X
Performance Optimized Down Fire Sealed 12" Enclosure | Morel Ultimo PowerSlim PS124D
SKU: PO 12-S DF PS
- Alignment: 0.80 cu ft net - Morel's own spec. Qtc 1.070, F3 34.2 Hz computed - deepest single-driver figure in the Down Fire line
- Driver: Morel Ultimo PowerSlim PS124D, DVC 4Ω, 700W RMS / 2100W max, ±11mm Xmax, 3.4" mounting depth, 24 Hz Fs
- Build: Proline X V-groove and dado joinery, double-layer 1.5" front baffle, perimeter cross-brace, 12g OFC side-mounted terminal cup

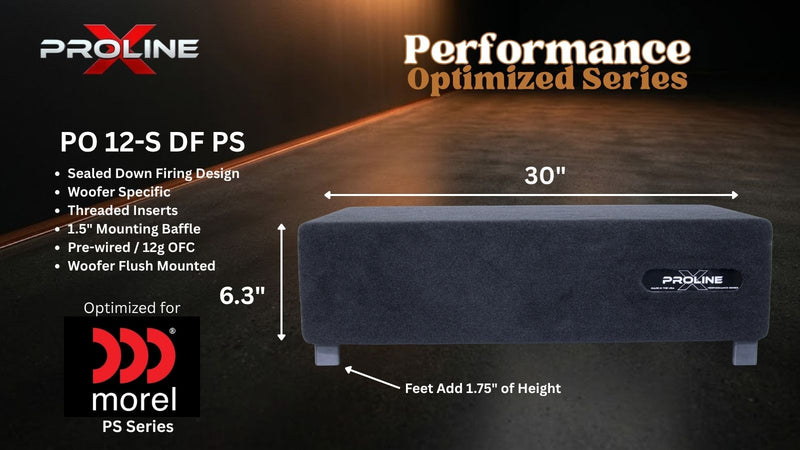

- Cabinet: 30"W x 15"D x 6.375"H measured in down fire position, square corners
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed 12" Enclosure | Morel Ultimo PowerSlim PS124D
Proline X PO Down Fire 12" Sealed
Cut and tuned for the Morel Ultimo PowerSlim PS124D
Built Around the Morel PS124D
Nothing about this cabinet is generic. The baffle is bored to the PS124D's 10.6 inch cutout, 268.6mm to Morel's spec, and the internal height is set by the driver's 3.4 inch mounting depth. The finished cabinet stands 6.375 inches tall on a 30 by 15 inch footprint, which puts a full 12 under a seat or behind a row.
The two numbers that matter most here are resonance and compliance. Fs is 24 Hz against a 49.4 liter Vas, and for a driver that mounts in 3.4 inches that pairing is unusual. Most shallow 12s sit in the low 30s for free-air resonance, which caps how low they go regardless of the box. This one reaches conventional driver territory in a shallow frame, and that is what produces the 34.2 Hz predicted F3 in this cabinet, the deepest single driver figure in the Down Fire program.
The rest of the driver follows the same pattern. Flat honeycomb Hexatech aluminium cone, double magnet EVC motor system, and a 129.5mm voice coil, 5.1 inches, wound in four layers of carbon on an aluminium former. Most shallow 12s run a 2 to 3 inch coil. Nearly double the diameter gives far more surface area to shed heat, which is what sets continuous power handling and why this driver carries 700 watts RMS at 3.4 inches deep. The Ultimo PowerSlim series took the EISA Best In-Car Subwoofer award for 2023-2024.
Net Volume, Not Gross
We build this cabinet at 0.80 cubic feet net out of 0.89 gross, matching Morel's own sealed recommendation of 22.7 liters. In that volume the driver lands at Qtc 0.966 with a predicted F3 of 34.2 Hz, computed from Morel's published Fs of 24 Hz, Qts of 0.6 and Vas of 49.4 liters. Morel publishes 36 Hz for this volume, so their data and ours agree inside about 2 Hz, which is closer agreement than most manuals in this category manage.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness.
Qts is 0.6, so system Qtc cannot fall below 0.6 in any sealed enclosure regardless of volume. At Morel's recommended airspace the alignment sits just under unity with a modest lift near the corner frequency. That is the driver's intended character, and Morel built their recommendation around it.
Against the 10 inch PowerSlim cabinet, 1.4375 inches of extra height buys roughly 11 Hz of extension: 34.2 Hz here against 44.9 Hz there. Mounting depth is nearly identical at 3.4 inches versus 3.1. If the vertical clearance allows 6.375 inches, build the 12.
Down Fire Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

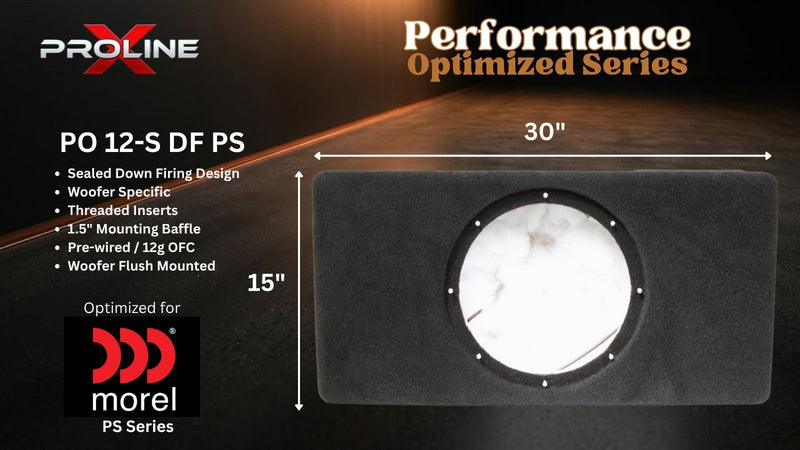

Double Baffle, Flush Recess
The front baffle is 1.5 inches, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so the driver bolts to the inner layer. That recovers 3/4 inch of internal clearance.

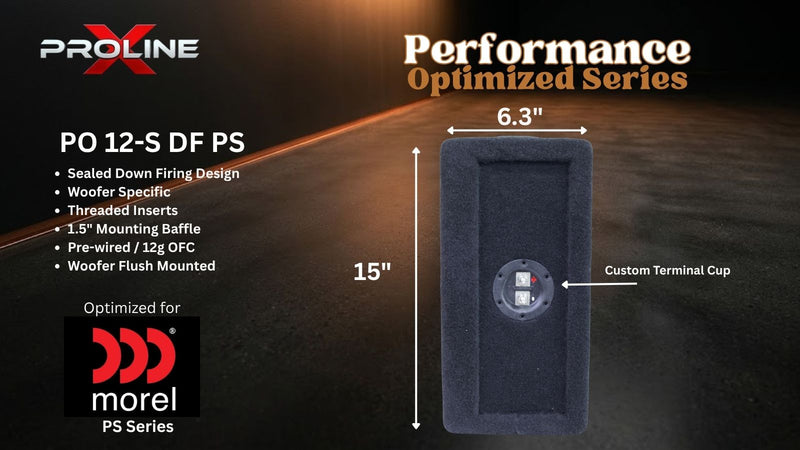

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.
Braced For A 10.6 Inch Cutout
A 10.6 inch hole takes real material out of the baffle, so the panel is cross-braced around the perimeter and the driver bolts through 8/32 threaded inserts. Polyfill is pre-installed.
Firing Into the Floor
The driver fires down into the floor and the cabinet couples to it. Sealed rolloff meets rising cabin gain below 60 Hz, so in-car response extends well below the anechoic figure, and this driver starts from the lowest anechoic figure in the line. All external dimensions are measured in the down fire position.
Power and Warranty
Morel rates the PS124D at 700 watts RMS with 2100 watts maximum transient handling, and publishes a recommended range of 350 to 700 watts RMS. Set gains inside that range.
The coils are dual 4 ohm, so you set the final load at the driver: two coils in parallel for 2 ohms, in series for 8 ohms. Most single driver builds run the 2 ohm configuration. Confirm your amplifier is stable at the load you choose.
The enclosure carries a 1 year limited warranty. Bring your own Morel Ultimo PowerSlim PS124D; the driver is purchased separately.
Cut for the Driver, Not the Catalog
Every Performance Optimized cabinet is cut to one driver's cutout, mounting depth and displacement, then built one at a time in Tullahoma, Tennessee.
| Enclosure Type | Sealed | Down Fire Geometry | Floor-Coupled |
| Driver-Specific Fitment | Morel Ultimo PowerSlim PS124D (DVC 4Ω) |
| Internal Volume (Gross) | 0.89 Cubic Feet |
| Internal Volume (Net) | 0.80 Cubic Feet - Matches Morel Spec of 22.7 Liters |
| Target System Qtc | 1.070 (Computed from Published T/S) |
| Predicted F3 | 34.2 Hz Computed | Morel Publishes 36 Hz At This Volume |
| Driver Fs | 24 Hz |
| Driver Qts | 0.6 - Qtc Cannot Fall Below This In Any Sealed Box |
| Driver Qes / Qms | 0.7 / 3.6 |
| Driver Vas | 49.4 Liters / 1.7 Cubic Feet |
| Driver Mms | 252.1 g |
| Driver BL | 9.1 |
| Driver Sd | 452.4 cm² |
| Driver Xmax | ±11mm |
| Driver DC Resistance | 1.6 Ohm (Coils In Parallel) |
| Driver Sensitivity | 83 dB (2.83V/1m) |
| Driver Power Handling | 700 Watts RMS / 2100 Watts Max Transient |
| Driver Frequency Response | 20-500 Hz |
| Driver Cone | Flat Honeycomb Hexatech Aluminium |
| Driver Voice Coil | 129.5mm / 5.1" | 4 Layers Carbon | Aluminium Former |
| Driver Motor | Double Magnet EVC |
| Mounting Depth Required | 3.4 Inches / 86mm (Morel Spec) |
| Cutout Diameter | 10.6 Inches / 268.6mm (Morel Spec) |
| Driver Overall Diameter | 12 Inches / 305mm (Morel Spec) |
| Awards | EISA Best In-Car Subwoofer 2023-2024 (Ultimo PowerSlim Series) |
| Baffle Configuration | Down Firing - Driver Fires Toward Floor |
| Material | Langboard Elite 3/4" MDF |
| Front Baffle Construction | Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded) |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Corner Profile | Square (Down Fire Series Standard) |
| Construction | ShopSabre CNC / Perimeter Cross-Brace |
| External Width | 30 Inches |
| External Depth | 15 Inches |
| External Height | 6.375 Inches |
| Dimension Reference | All External Dimensions Measured In Down Fire Position |
| Voice Coil Configuration | Dual 4-Ohm | 2Ω Parallel or 8Ω Series At The Driver |
| Mounting Hardware | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | Side Mounted | 12g OFC Pre-Wired |
| Damping | Polyfill Pre-Installed |
| Recommended Power | 350-700 Watts RMS (Morel Rated Range) |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black (+$10) |
| Bundle Options | Enclosure Only (Bring Your Own Morel PS124D) |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.80 cu ft against a 49.4 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 11.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 24.00 | Hz | free-air resonance |
| Qts | 0.600 | D4 | |
| Vas | 49.40 | L | equivalent compliance |
| Sd | 452.4 | cm² | effective piston area |
| Xmax | 11 | mm | one-way linear travel |
| Pe | 700 | W | continuous RMS |
| SPL | 81.7 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by Morel Ultimo PowerSlim owner's manual, rev 24-12-23. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
