6.5 inch Coaxial Speakers

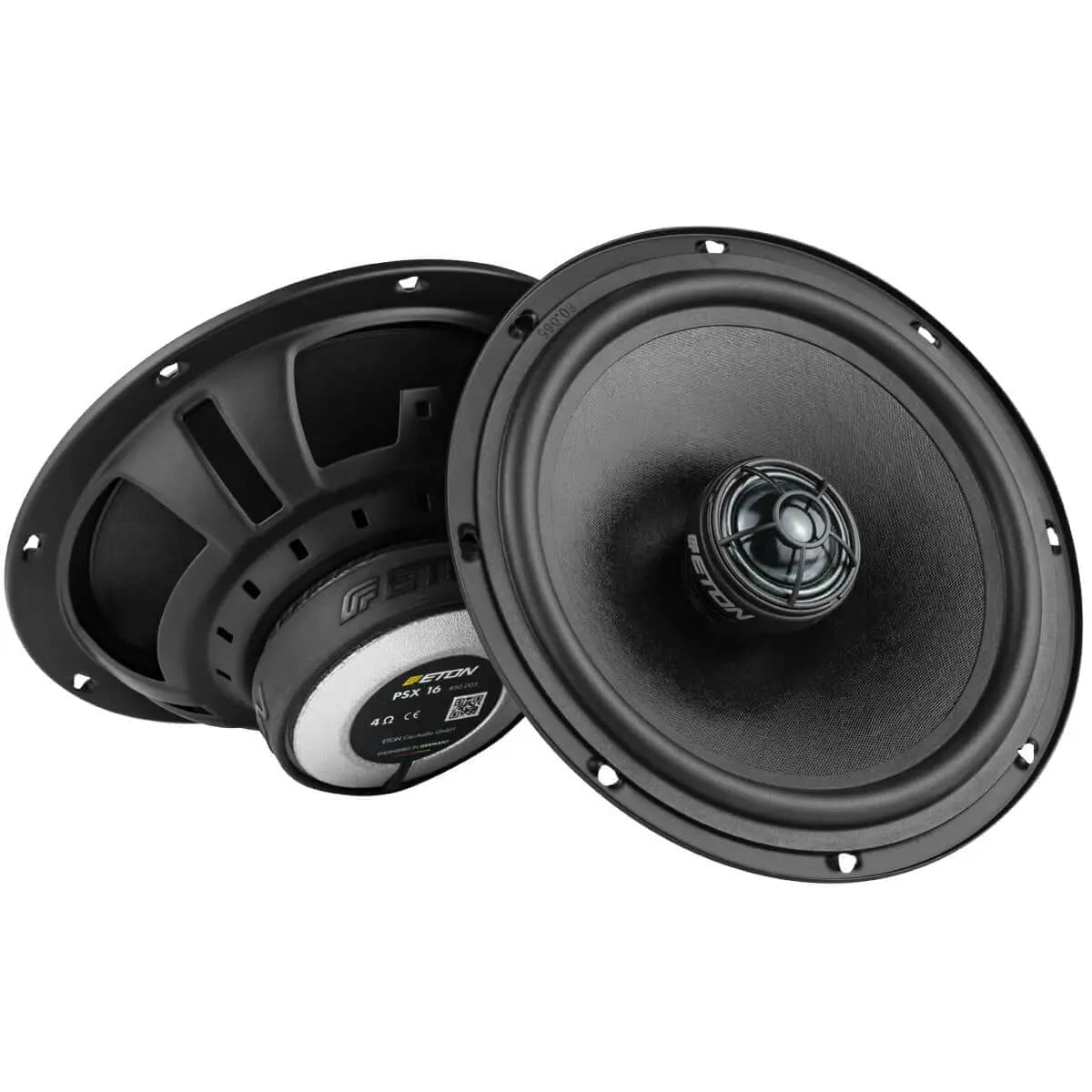

6.5-Inch Coaxial Speakers

The 6.5-inch coaxial is the most common factory speaker size and the simplest way to upgrade your sound. A coaxial mounts the tweeter on the woofer as one unit, so it drops straight into the stock location for a clean, fast install.

Every set here is chosen for clean, detailed sound and a real improvement over factory speakers. If you want separate tweeters you can aim, look at our component sets instead.

Coaxial or Component: Which Should You Buy?

This is the decision that actually matters at this size, and it is not about which one sounds better on paper. It is about where the tweeter ends up.

A coaxial puts the tweeter at the center of the woofer. Both drivers fire from the same point in the door, low and off to the side, which is where the factory put the hole. You get correct arrival timing between the woofer and tweeter because they share an axis, and you get an install that takes an afternoon.

A component set separates the tweeter so you can mount it high, in the sail panel or A-pillar, and aim it at your ears. That lifts the soundstage off the floor. It also means running separate wiring, finding a location for the passive crossover, and usually some trim work.

Buy coaxials when you want a straightforward improvement over factory speakers without modifying the car. Buy components when you are chasing a proper soundstage and you are willing to do the install work to get it. Neither is a compromise; they answer different questions.

What We Stock

The coaxial sets we carry in 6.5-inch, each aimed at a different budget and use case.

Power figures are quoted the way each manufacturer publishes them. The ID65 and the EL-X165S give an RMS rating; Audiocircle quotes a maximum for the SL-X6 with a 15W minimum amplifier power. They are not directly comparable numbers, so match your amplifier to the rating the manufacturer actually specified.

Reading the Numbers

Sensitivity is the spec that matters most if you are running off the head unit. A factory head unit puts out somewhere around 15 to 22W RMS per channel. At 89 to 90 dB sensitivity, the sets here produce usable volume on that power. Lower sensitivity speakers need an amplifier to come alive.

The low-frequency limit tells you what you still need a subwoofer for. A 6.5-inch coaxial rolling off at 58Hz or 65Hz covers the midbass, not the bottom octave. Pair any of these with a subwoofer and cross the speakers over above their limit so they are not fighting for excursion they do not have.

Tweeter material changes the top end more than the spec sheet suggests. Silk domes roll off gently and stay easy to listen to over long drives. Mylar sits between silk and metal for brightness. None of that shows up in a frequency response number.

Fitment: Check Before You Buy

All of these are 165mm DIN standard, which is the mounting pattern most 6.5-inch factory locations use. The number that actually stops an install is mounting depth. The Audiocircle SL-X6 sits at 62mm, shallow enough for the large majority of factory door locations, including doors with a window mechanism close behind the speaker.

Measure from the mounting surface to the nearest obstruction behind the speaker before ordering. If you are not sure, contact us with your year, make, model and door location and we will confirm the fit.

Frequently Asked Questions

Will 6.5-inch coaxials fit my car?

They fit the many vehicles that use a 6.5-inch (165mm) speaker location. Confirm the opening and mounting depth for your door or panel, or contact us with your vehicle and we will verify fit.

Do I need an amplifier for coaxial speakers?

No. Coaxials play off your head unit's built-in power, but a dedicated amplifier brings out more detail, output, and control. At 89 to 90 dB sensitivity these will play acceptably on factory power and noticeably better on 50 to 75W RMS per channel.

Are coaxials worse than component sets?

No, they answer a different question. A coaxial keeps the tweeter on the woofer axis and installs in the factory location. A component set lets you mount the tweeter high and aim it, which raises the soundstage but requires more install work. Choose based on how much of the car you are willing to take apart.

What crossover point should I use with a subwoofer?

Cross above the speaker's published low limit, not at it. With a set rolling off at 58Hz to 67Hz, a high-pass somewhere in the 70Hz to 80Hz range keeps the coaxial out of trouble and hands the bottom end to the subwoofer.
