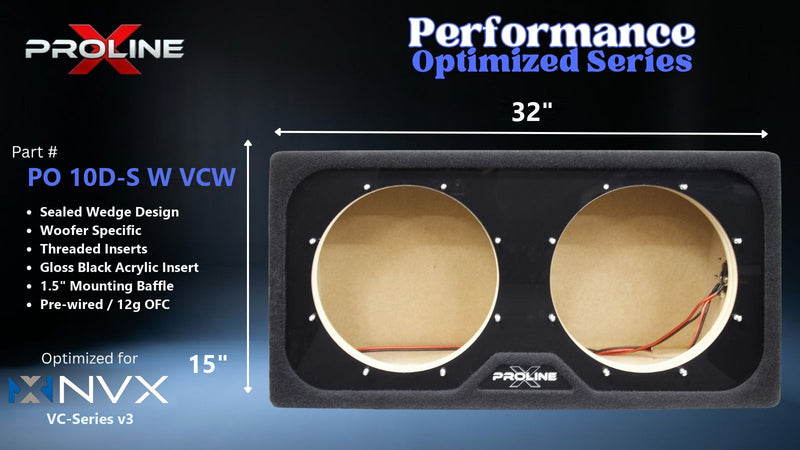

Proline X PO 10D-S W VCW sealed wedge, front baffle with gloss black insert and pre-wired leads, 32 by 15 inches.

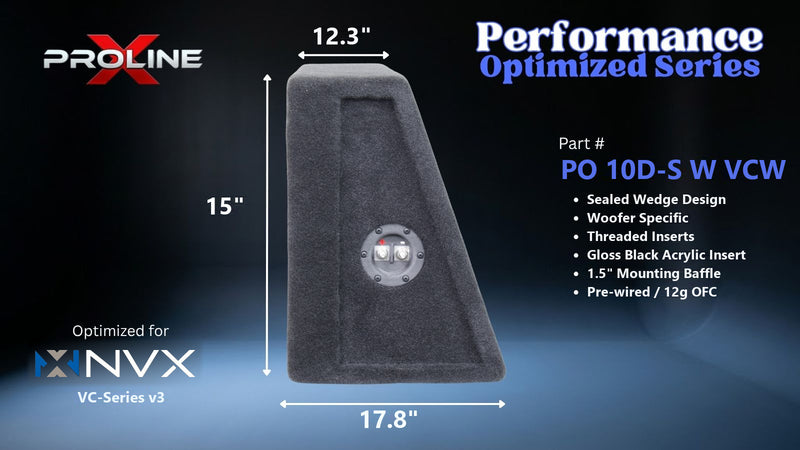

Proline X PO 10D-S W VCW sealed wedge, side profile with recessed terminal cup, 17.8 inch base, 15 inches tall.
Proline X PO 10D-S W VCW sealed wedge, front baffle with gloss black insert and pre-wired leads, 32 by 15 inches.
Proline X PO 10D-S W VCW sealed wedge, side profile with recessed terminal cup, 17.8 inch base, 15 inches tall.

Proline X

Performance Optimized Wedge Sealed Dual 10" Enclosure | NVX VCW10v3

SKU: PO 10D-S W VCW BB

QUICK SPECS
  • Best For: Dual NVX VCW10v3 Trunk-Fit Builds
  • Net Volume: 1.20 cu ft per chamber (2.77 cu ft Gross Total)
  • Driver Match: Pair of NVX VCW10v3 (VCW102v3 D2 or VCW104v3 D4), matched
  • Construction: Dual Chamber | Rear-Firing Wedge | V-Groove/Dado | Double 1.5" Baffle | 1 Shared Terminal Cup | Threaded Inserts
Shipping Icon
Shipping Included No freight charges at checkout. What you see is what you pay.
USA Flag Rounded
Built in Tennessee CNC cut from 3/4" Langboard Elite MDF. V-groove and dado joinery.
Advanced Terminal Cup Built in-house. ABS/Carbon Fiber. Stainless steel hardware. Copper ring terminals.
$ 369.99
In Stock and Ready to Ship
Shop Pay Financing available. Choose Shop Pay Installments at checkout.
Proline X PO 10D-S W VCW sealed wedge, front baffle with gloss black insert and pre-wired leads, 32 by 15 inches.

Performance Optimized Wedge Sealed Dual 10" Enclosure | NVX VCW10v3

More enclosures cut for NVX subwoofers: NVX Subwoofer Boxes

Enclosure Type Sealed
External Dimensions 32.00" W x 15" H x 17.75" D at base tapering to 12.29" D at top
Gross Volume 2.77 cu ft
Net Volume 2.40 cu ft
Shipping Weight 60 lbs
Front Panel Thickness 1.5"
INSTALLER'S TAKE

1.20 cubic feet per chamber, Qtc 0.735 on the D2. One cabinet serves both coils: the VCW102v3 (D2) reads Qtc 0.735 with half power at 34.5 Hz, and the VCW104v3 (D4) reads Qtc 0.680 at 42.5 Hz.

Two chambers at 1.20 each, 32.00 wide, 15 tall, 17.75 at the base. Wire the pair identically.

Cut is 9.65, NVX's own figure, and the inserts are already pressed on their 10.24 bolt circle. It is sealed, so leave the polyfill as it is and run it at 1000 watts or under.

Product Details
Specifications
Performance Graphs
Materials
Product Details

Performance Optimized Wedge | Dual NVX VCW10v3

Dual 10" Sealed Wedge Enclosure | Rear-Firing Trunk-Load Design

1.20 ft3 Net per Chamber2.77 ft3 GrossQtc 0.73Two Separate Chambers32.00" x 15" x 12.29/17.75"Built in Tennessee

A Pair of NVX VCW10v3 in a Sealed Wedge

The VCW10v3 is NVX's 10 inch: 1000 watts RMS, 22 mm of one-way excursion on 370 square centimeters of cone, and 6.30 inches of mounting depth. Every figure comes from NVX's owner's manual and product pages for the VCW102v3 and VCW104v3, including the 0.150 cubic foot driver displacement and the bolt circle, so nothing here is estimated. NVX's D2 and D4 columns disagree on Vas by 19 percent and each coil's own page confirms its own column, so both are solved here.

1.20 cubic feet net per chamber is split between the coils' Butterworth volumes (1.46 for the D2, 0.98 for the D4) on the D2 figures, Fs 27.3 Hz, Qts 0.56 and Vas 24.5 liters: Qtc 0.735, half power at 34.5 Hz. One cabinet serves both coils: the VCW102v3 (D2) reads Qtc 0.735 with half power at 34.5 Hz, and the VCW104v3 (D4) reads Qtc 0.680 at 42.5 Hz.

Two Fully Separate Chambers

A bonded full-height 3/4 inch MDF divider splits the cabinet into two sealed chambers of 1.20 cubic feet net each, so every driver sees exactly the airspace printed on this page. Two drivers sharing one volume load each other; the divider removes that, and each chamber carries its own polyfill.

The cabinet is 32.00 inches wide, 15 tall, 12.29 inches deep at the top and 17.75 at the base. One shared side-mounted terminal cup feeds both driver positions.

Trunk-Load Wedge Design Explained

The drivers mount on the vertical trunk-lid-side face and fire rearward into the trunk cavity.

Seat-Side Face Matches Seat Lean

Angled face matches the roughly 20 degree factory seat lean.

Trunk-Lid-Side Face Fires the Woofer

Vertical baffle, cone firing rearward into the trunk cavity.

Trunk Cavity Loading

The trunk acts as an acoustic extension for a smoother presentation.

Preserves Trunk Cargo Space

The wedge tucks against the seat back and the space in front stays usable.

Engineered for a pair of NVX VCW10v3

Half power lands at 34.5 Hz anechoic on the D2, before any cabin gain. NVX publishes a driver displacement of 0.150 cubic feet, and it is taken out of the net figure.

Alignment Numbers (Per Chamber)

Driver (per chamber) System Qtc fc F3
VCW102v3 dual 2 ohm Qtc 0.735 35.8 Hz 34.5 Hz
VCW104v3 dual 4 ohm Qtc 0.680 40.8 Hz 42.5 Hz

Mounting Geometry

The baffle is cut to 9.65 in, NVX's published cutout, under the 11.06 in frame. The rear panel rakes 20 degrees, so the cavity deepens from 12.29 in at the top to 17.75 in at the base, and the 6.30 in motor clears it with 5.30 in to spare. NVX publishes the 10.24 in bolt circle for the VCW10v3, so the threaded inserts are pressed at the shop and the stainless machine screws are in the box: set the driver in the recess and bolt it down.

What the Numbers Rest On

Langboard Elite MDF

Premium 3/4 in MDF throughout.

V-Groove and Dado Joinery

CNC cut V-grooves at every panel intersection, sides and divider seated in dados.

Double-Layer 1.5" Front Baffle

Two bonded 3/4 in MDF sheets at the driver face, the outer layer machined as a flush recess.

NVX's Published Parameters

VCW102v3 (D2): Fs 27.30 Hz, Qts 0.560, Qes 0.630, Qms 5.50, Vas 24.50 L, Sd 370 cm2. VCW104v3 (D4): Fs 32.40 Hz, Qts 0.540, Qes 0.710, Qms 2.40, Vas 19.90 L, Sd 370 cm2.

Wiring a pair of NVX VCW10v3 to Your Amplifier

A pair of VCW102v3 (D2) drivers can land on 0.5 ohm with all four coils in parallel, 2 ohms as series pairs in parallel, or 8 ohms all in series. A pair of VCW104v3 (D4) drivers can land on 1 ohm with all four coils in parallel, 4 ohms as series pairs in parallel, or 16 ohms all in series. Anything under 1 ohm, and many amplifiers at 1 ohm, is outside what the amplifier is built for; series wiring is the safe default. Confirm the final load against your amplifier's minimum stable impedance before powering the system.

Power handling is 1000 watts RMS per driver, 2000 across the pair. Aim for roughly 700 to 1000 watts per driver at the impedance you wire.

Built in Tennessee, Backed by Audio Intensity

Cut and assembled in Tullahoma, Tennessee on our own CNC equipment. Finished in plush black carpet with the gloss black acrylic baffle insert, one shared pre-wired terminal cup, 12 gauge OFC to both driver positions. Polyfill wall lining installed. Threaded inserts pressed on NVX's published bolt circle, stainless machine screws in the box. 1 year limited warranty. Enclosure only, the drivers are purchased separately. Call or text 931-563-5151.

Dual NVX VCW10v3: Cut for the Driver

1.20 cubic feet net per chamber at Qtc 0.735, F3 34.5 Hz on the D2, cut direct fit and built to order in Tennessee.

Specifications
SpecificationValue
SeriesProline X Performance Optimized Wedge
Compatible DriverNVX VCW10v3 (VCW102v3 D2 or VCW104v3 D4), quantity 2. Direct fit
ConfigurationDual 10 inch, two separate chambers, sealed wedge
Mounting PositionTrunk or cargo area, tall face against the rear seat back
Firing DirectionRearward into the trunk. Not a down fire design, no feet included
External Width32.00 in
External Height15 in at the seat face
External Depth17.75 in at the base, tapering to 12.29 in at the top
Internal Volume, Gross2.77 cu ft total
Internal Volume, Net Acoustic1.20 cu ft per chamber after the divider and the 0.150 cu ft displacement NVX publishes per driver
Driver Mounting Depth6.30 in required; 5.30 in clearance above the motor against the raked rear panel
Alignment, D2 per chamberQtc 0.735, fc 35.8 Hz, F3 34.5 Hz anechoic
Alignment, D4 per chamberQtc 0.680, fc 40.8 Hz, F3 42.5 Hz anechoic
Woofer Opening9.65 in, two, NVX's published cutout
Frame Outer Diameter11.06 in, NVX published
Bolt Circle10.24 in, NVX published; threaded inserts pre-installed
Driver Displacement0.150 cu ft, NVX published
VCW102v3 (D2) Fs / Qts / Qes / Qms / Vas27.30 Hz / 0.560 / 0.630 / 5.50 / 24.50 L
VCW104v3 (D4) Fs / Qts / Qes / Qms / Vas32.40 Hz / 0.540 / 0.710 / 2.40 / 19.90 L
Driver Sd370 cm2, published by NVX
Xmax22 mm one way, NVX spec
Driver Power Handling1000 W RMS per driver, NVX spec
Wiring OptionsA pair of VCW102v3 (D2) drivers can land on 0.5 ohm with all four coils in parallel, 2 ohms as series pairs in parallel, or 8 ohms all in series. A pair of VCW104v3 (D4) drivers can land on 1 ohm with all four coils in parallel, 4 ohms as series pairs in parallel, or 16 ohms all in series. Anything under 1 ohm, and many amplifiers at 1 ohm, is outside what the amplifier is built for; series wiring is the safe default.
Parameter SourceNVX VCW102v3 / VCW104v3 owner's manual and nvx.com product pages
MaterialLangboard Elite MDF
ConstructionCNC cut, V-groove and dado joinery
Panel Thickness0.75 in
Front Baffle1.5 in double baffle, outer layer machined as a flush recess
Internal BracingFull-height 3/4 in divider
Driver MountingThreaded inserts pre-installed on the published bolt circle, stainless machine screws included
Terminal CupsOne Proline X ABS and carbon fiber composite, side mounted, pre wired 12 gauge OFC to both driver positions
Acrylic InsertGloss black acrylic baffle insert standard; None variant minus $20
DampingLight polyfill wall lining in both chambers, does not alter acoustic volume
CarpetPlush black
Shipping Weight60 lb
Warranty1 Year Limited
Built InTullahoma, Tennessee
Performance Graphs
Net airspace
1.20
cu ft per chamber
System Qtc
0.68–0.73
sealed
Half power
34.5–42.5
Hz · F3
Xmax at
650
W RMS · no filter
With 25 Hz subsonic
1056
W RMS · +63%
Amplifier
1000
W RMS recommended
This enclosure holds 1.20 cu ft net per chamber. In it the NVX VCW10v3 runs a system Qtc of 0.68–0.73 with half power at 34.5–42.5 Hz, and the cone reaches its 22.0 mm travel limit at 650 W, below the driver’s 1000 W thermal rating, so travel is what stops you here, not heat. Run a subsonic filter at 25 Hz and that becomes 1056 W — +406 W, or 63 percent more power for the same 22.0 mm of travel.

01Is it a sealed driver?

Efficiency bandwidth product places the motor before anything else is decided.

EBP = Fs ÷ Qes = 43.3–45.6
SEALED 0–50 TRANSITION 50–100 PORTED 100–150 0 50 100 150 dual 2 ohm 43.3 dual 4 ohm 45.6
dual 2 ohm · EBP 43.3dual 4 ohm · EBP 45.6
EBP under 50 means a motor that wants a sealed load. The VCW10v3 sits at 43.3–45.6, inside that band, which is why this is a sealed build rather than a ported one.

02What the box does to it

1.20 cu ft against a 24.5 L Vas.

α = Vas ÷ Vb = 0.72  ·  Fc = Fs√(α+1) = 36–41 Hz  ·  Qtc = 0.68–0.73
20 30 50 70 100 150 200 +6 +0 -6 -12 -18 -24 FREQUENCY · Hz LEVEL · dB −3 dB
dual 2 ohm · Qtc 0.73, Fc 36 Hz, F3 34.5 Hzdual 4 ohm · Qtc 0.68, Fc 41 Hz, F3 42.5 Hz
The box lifts resonance from 27.3–32.4 Hz free-air to 36–41 Hz and half power lands at 34.5–42.5 Hz, anechoic, before any cabin gain. Figures are NVX’s published VCW10v3 parameters from its owner’s manual and product pages, displacement included (0.150 cubic feet). One cabinet serves both coils; both are plotted. Each chamber holds 1.20 cubic feet, so these figures are per driver.

03The watts that reach Xmax (in this enclosure)

Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 22.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.

PXmax = 650–947 W unfiltered  →  1056–1452 W with a 25 Hz subsonic
20 30 50 70 100 150 200 0 8 16 24 FREQUENCY · Hz CONE TRAVEL · mm PAST LINEAR TRAVEL · Xmax 22.0 mm 650 W reaches Xmax here
dual 2 ohm · 650 W, no filterdual 4 ohm · 947 W, no filterdual 2 ohm · 1056 W with subsonic at 25 Hz, 24 dB/octdual 4 ohm · 1452 W with subsonic at 25 Hz, 24 dB/octXmax 22.0 mm one-way
Every trace touches the limit and no further, because each is drawn at the exact power that puts that coil on 22.0 mm. Unfiltered that is 650 W, reached first at 20 Hz. It sits under the 1000 W the driver can take thermally, so the enclosure sets the ceiling, not the voice coil. The dashed traces are the same driver behind a subsonic filter at 25 Hz, 24 dB/oct: stopping the cone wasting travel below the passband lets it take 1056 W before hitting the same 22.0 mm. That is 63 percent more amplifier for the price of one filter setting.
ParamValueUnitNote
Fs27.30 / 32.40Hzfree-air resonance
Qts0.560 / 0.540dual 2 ohm / dual 4 ohm
Vas24.50 / 19.90Lequivalent compliance
Sd369.8cm²effective piston area
Xmax22mmone-way linear travel
Pe1000Wcontinuous RMS
SPL80.8dB1 W / 1 m, derived from T/S

Driver parameters as published by NVX VCW10v3 owner’s manual. Curves computed against this enclosure’s actual net airspace.

Materials
Material

Built From a Spec Sheet, Not a Sales Sheet

Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.

Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.

Specifications

Langboard Elite MDF: Published Mill Data

Property Value Why It Matters
Panel Stock Langboard Elite MDF Named, verifiable panel source, not generic "high-density MDF"
Thickness 3/4" (18mm) Industry standard for subwoofer enclosures; panels below this flex under pressure
Density 48.5 lbs/ft³ Higher density = less porosity, better screw retention, reduced resonance
Internal Bond 200 psi Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet
Modulus of Rupture (MOR) 4,200 psi Bending strength before the panel breaks, relevant for larger unsupported baffle spans
Modulus of Elasticity (MOE) 410,000 psi Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance
Face Screw Holding 325 lbs How firmly the panel surface holds a screw; critical for baffle joint integrity over time
Edge Screw Holding 250 lbs Panel edge retention, relevant for every joint that isn't face-to-face
Internal Bond

200 psi: The Number That Actually Matters for Enclosures

The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.

Stiffness

410,000 psi MOE: Less Flex, Less Resonance

The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.

Screw Holding

325 lb Face / 250 lb Edge: Joints That Stay Locked

Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.

Sourcing

Named Panel Stock: Not "Premium MDF"

The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.

Why Proline X?

Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.

CNC-Cut to Spec

CNC-Cut to Spec

Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.

Handcrafted in USA

Handcrafted in USA

Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.

Tuned to the Build

Tuned to the Build

Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.

Frequently Asked Questions

Does this fit the NVX VCW10v3, and will any other 10 inch fit?

Why 1.20 cubic feet per chamber, and what alignment does it target?

What amplifier power should I run, and how should I wire it?

Why the wedge angle, and why rear-firing into the trunk?

Why two separate chambers instead of one shared volume?

What is the expected low-frequency extension?

Do I need to add polyfill or damping?

Is the driver included, and are the threaded inserts installed?
