Proline X
Performance Optimized Down Fire Wide Sealed Dual 10" Enclosure | Morel Ultimo Ti SC102 / SC104
SKU: PO 10D-S DFW SC
- Alignment: 0.601 cu ft net per chamber, 1.202 total. SC102 Qtc 0.708, Fc 61.5 Hz, F3 61.4 Hz; SC104 Qtc 0.695, Fc 57.5 Hz, F3 58.6 Hz
- Down Fire Wide: 41"W x 12"D x 8.1875"H in down fire position, 3" shallower and 11" longer than the standard 30 x 15, for under rear seats and narrow cargo floors
- Drivers: Pair of SC102 (2 ohm) or SC104 (4 ohm), 600 W RMS each, 9.5 mm Xmax, 5.63 in mounting depth
- Chambers: Two fully separate sealed chambers, 3/4" MDF full divider, one shared side-mounted terminal cup
- Standoffs: 1.75", ship uninstalled. Installed height 9.9375"
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Wide Sealed Dual 10" Enclosure | Morel Ultimo Ti SC102 / SC104
More enclosures cut for Morel subwoofers: Morel Subwoofer Boxes
Proline X Performance Optimized Down Fire Wide Dual 10" Sealed
Under rear seat and narrow cargo floor fitment. Cut for a pair of Morel Ultimo Ti SC102 / SC104
The Down Fire Wide Format
Down Fire Wide answers a specific space problem. The floor under the rear seat of a truck or SUV, and many narrow cargo floors, is long and shallow, and a standard 30 by 15 inch enclosure will not go in it.
So the cabinet is turned sideways. This one runs 41 inches wide by 12 inches deep by 8.1875 inches tall, measured in the down fire position. Against our standard 30 by 15 inch dual Ultimo Ti SC cabinet it takes the same pair of Ultimo Ti SC drivers, sits 3 inches shallower front to back and runs 11 inches longer. The airspace lost from the depth is recovered along the length, so each driver still gets a properly sized chamber rather than a compromised one.
Which one to choose. If you have 15 inches of depth, the standard 30 by 15 cabinet is the pick: it is shorter end to end and easier to place. Choose this one when depth is the limiting dimension and you have 41 inches of run. Measure the depth first; under seat spaces vary widely between cab configurations.
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds. Down Fire Wide variants like this one run long and shallow for under seat fitment. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double layer, outer layer machined as a flush recess. 1.5 inch. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, perimeter cross brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |
Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The cutouts, the mounting depth and the chamber volumes all come from the Morel Ultimo Ti SC102 / SC104's own numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around a Pair of Morel Ultimo Ti SC102 / SC104
Both baffles are bored to the Ultimo Titanium SC 10's 8.87 inch cutout, 225.15 mm to Morel's sheet, with threaded inserts pressed to Morel's 9.96 inch bolt circle. The frames are round and sit on the 12 inch deep baffle with material to spare.
The Ultimo Titanium SC is Morel's 10 inch on a titanium voice coil former and a 5.1 inch Hexatech aluminium coil, rated 600 watts RMS and 2000 watts transient, 5.63 inches deep on a 10.35 inch frame, 9.5 mm of excursion each way.
It ships as the SC102 (2 ohm) and the SC104 (4 ohm), and Morel measures the two coils separately and publishes a different parameter set for each: the SC102 at Fs 33.0 Hz, Qts 0.38 and Vas 42.0 liters, the SC104 at Fs 29.0 Hz, Qts 0.35 and Vas 50.0 liters. Every figure comes from Morel's current Ultimo Titanium SC specification sheet; Morel's older printed manual carries a different parameter set that is not used here.
Across the pair that is 1200 watts RMS combined.
Net Volume and Alignment
Each chamber holds 0.601 cubic feet net, 1.202 total, from 1.389 cubic feet gross after 0.08 cubic feet of driver displacement, 2.3 L, published by Morel per driver.
Two coils, two parameter sets, one cabinet. The cabinet is sized to the SC102, the coil that asks for the larger box, and the SC104 sits a little lower in Qtc in the same airspace.
| Coil (per chamber) | System Qtc, per chamber | Fc | F3, anechoic |
|---|---|---|---|
| SC102, 2 ohm (cabinet sized to this coil) | Qtc 0.708 | 61.5 Hz | 61.4 Hz |
| SC104, 4 ohm | Qtc 0.695 | 57.5 Hz | 58.6 Hz |
Height is the free dimension. With the footprint fixed at 41 by 12, the cabinet height was solved to put each chamber on the same airspace as the standard 30 by 15 box, then rounded up to the next sixteenth so the volume lands on the target rather than under it. The motor clears the top panel with 1.81 inches to spare, so airspace set this height, not clearance.
Each chamber sits inside Morel's own 13 to 30 liter sealed range. Morel does not publish a position on down firing this driver, and this cabinet makes no claim on their behalf; the standoffs ship uninstalled, so front firing or up firing is a decision you can make at install time.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver displacement, not estimated from external dimensions minus wall thickness. All figures are anechoic; firing down into the floor, the sealed rolloff meets rising cabin gain below 60 Hz and in-car response extends well below them.
Two Chambers, Not One
This enclosure follows the Proline X standing design rule for dual sealed builds: two fully separate chambers divided by a bonded full-height 3/4 inch MDF panel.
Two drivers sharing one sealed volume interact acoustically. Each driver's compression phase becomes the pressure environment the other is working against, which smears transient response and blurs the alignment each would have on its own. A full divider eliminates that. Each Ultimo Ti SC gets its own 0.601 cubic feet net and its own polyfill.
On a long cabinet the divider does structural work as well, tying the front and rear walls together at the centre of a 41 inch span.
Down Fire Wide Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps both chambers airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

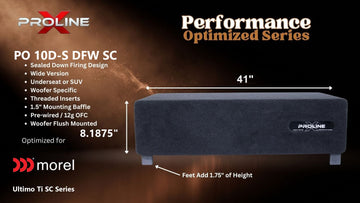

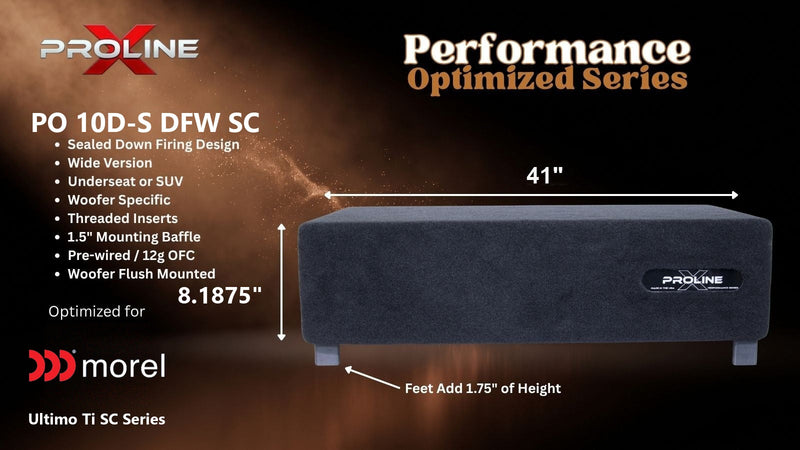

The cabinet measures 41 inches wide by 12 inches deep by 8.1875 inches tall, measured in the down fire position. The 1.75 inch standoffs ship with the enclosure but are not installed, so plan the space around an installed height of 9.9375 inches if you use them.
1.5 Inch Double Baffle
Two 3/4 inch layers laminated to 1.5 inches, with the outer layer machined as a flush recess so each driver bolts to the inner layer on 8/32 threaded inserts. Stainless machine screws included.
Separate Chambers
A bonded full-height 3/4 inch divider gives each driver its own 0.601 cubic feet net and its own polyfill, and ties the walls together mid span.
One Shared Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, side mounted and pre-wired in 12 gauge OFC to both driver positions in parallel.
Power and Wiring
Morel rates the Ultimo Titanium SC at 600 watts RMS and 2000 watts transient per driver, 1200 watts RMS combined.
Both coils are single voice coil drivers: the SC102 is a nominal 2 ohm load (1.3 ohm DC), the SC104 a nominal 4 ohm load (3.0 ohm DC). One shared side mounted cup feeds both positions. Wire both drivers identically: two SC102 in parallel is 1 ohm and needs an amplifier rated for it, in series 4 ohms; two SC104 run 2 ohms in parallel or 8 ohms in series. Confirm the load against your amplifier's minimum stable impedance before powering the system.
Bring your own pair of Morel Ultimo Ti SC102 or SC104; the drivers are purchased separately. The enclosure carries a 1 year limited warranty. Plush black carpet.
Cut for the Driver, Not the Catalog
Down Fire Wide, built for the space under a rear bench, one at a time in Tullahoma, Tennessee. Questions on fitment or amplifier matching, call 931-563-5151.
| Specification | Value |
|---|---|
| Series | Proline X Performance Optimized Down Fire Wide |
| Compatible Driver | Morel Ultimo Titanium SC, SC102 or SC104, quantity 2. Direct fit |
| Enclosure Type | Sealed, dual driver, down fire, floor coupled |
| Intended Fitment | Under the rear seat of trucks and SUVs and narrow cargo floors, where depth is the limiting dimension |
| Firing Direction | Down firing, both drivers fire toward the floor. Standoffs ship uninstalled, so front or up firing is also possible |
| Chamber Configuration | Two fully separate chambers, full divider, single shared side-mounted terminal cup |
| External Width | 41 in |
| External Depth | 12 in |
| External Height | 8.1875 in in the down fire position, excludes standoffs |
| Installed Height | 9.9375 in with the 1.75 in standoffs |
| Standard 30 x 15 Equivalent | 30 x 15 x 8.82 in, 0.60 cu ft net per chamber. Same driver, deeper and shorter footprint |
| Internal Volume, Gross | 1.389 cu ft total |
| Net Volume Per Chamber | 0.601 cu ft after displacement |
| Total Net Volume | 1.202 cu ft |
| Height Set By | Airspace; motor clearance allows a lower cabinet |
| Clearance Above Motor | 1.81 in |
| Alignment, SC102 Per Chamber | Qtc 0.708, Fc 61.5 Hz, F3 61.4 Hz anechoic |
| Alignment, SC104 Per Chamber | Qtc 0.695, Fc 57.5 Hz, F3 58.6 Hz anechoic |
| Woofer Opening | 8.87 in (225.15 mm) direct fit |
| Frame Outer Diameter | 10.35 in (263 mm), Morel spec |
| Bolt Circle | 9.96 in (253 mm), Morel drawing; inserts pressed to it |
| Driver Mounting Depth | 5.63 in |
| Morel Published Sealed Range | 13 to 30 liters, including driver displacement |
| SC102 Fs / Qts / Qes / Qms | 33.00 Hz / 0.38 / 0.48 / 1.75 |
| SC102 Vas / Mms / BL | 42.00 L / 91.6 g / 7.06 T-m |
| SC104 Fs / Qts / Qes / Qms | 29.00 Hz / 0.35 / 0.43 / 1.84 |
| SC104 Vas / Mms / BL | 50.00 L / 101.7 g / 11.00 T-m |
| Driver Sd | 346 cm2, published by Morel |
| Xmax | 9.5 mm each way; 12 mm gap |
| DC Resistance | SC102 1.3 ohm; SC104 3.0 ohm |
| Voice Coil | 130 mm (5.1 in) Hexatech aluminium on a titanium former |
| Parameter Source | Morel Ultimo Titanium SC specification sheet |
| Driver Power Handling | 600 W RMS / 2000 W transient per driver |
| Wiring Options | Single voice coil: SC102 nominal 2 ohm, SC104 nominal 4 ohm; two drivers in parallel halve it, in series double it |
| Driver Displacement | 0.08 cu ft each, 2.3 L, published by Morel |
| Material | Langboard Elite MDF |
| Construction | CNC cut on ShopSabre routers, V-groove and dado joinery |
| Panel Thickness | 0.75 in |
| Front Baffle | 1.5 in double baffle at both positions, outer layer machined as a flush recess |
| Internal Bracing | Full-height 3/4 in bonded divider |
| Corner Profile | Square, Down Fire series standard |
| Driver Mounting | 8/32 threaded inserts, stainless machine screws included, 2 sets |
| Terminal Cup | One Proline X ABS and carbon fiber composite, side mounted |
| Internal Wiring | 12 gauge OFC to both driver positions in parallel |
| Standoffs | Included, 1.75 in, shipped uninstalled |
| Damping | Polyfill pre-installed as a light wall lining per chamber |
| Carpet | Plush Black |
| Bundle Options | Enclosure only, bring your own pair of SC102 or SC104 |
| Warranty | 1 Year Limited |
| Built In | Tullahoma, Tennessee |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.601 cu ft against a 42.0 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 9.5 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 33.00 / 29.00 | Hz | free-air resonance |
| Qts | 0.380 / 0.350 | SC102, 2 ohm / SC104, 4 ohm | |
| Vas | 42.00 / 50.00 | L | equivalent compliance |
| Sd | 346.0 | cm² | effective piston area |
| Xmax | 9.5 | mm | one-way, Morel prints it as plus or minus 9.5 mm each way |
| Pe | 600 | W | continuous RMS |
| SPL | 86.8 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by Morel Ultimo Titanium SC specification sheet, morelhifi.com. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
