Performance Optimized Down Fire Wide Sealed Dual 10" Enclosure | JL Audio 10W6v3

The Down Fire Wide Format

Down Fire Wide is the Performance Optimized answer to a specific problem: the space under the rear seat of a truck or SUV, or a narrow cargo floor, is long and shallow, and a 30 by 15 inch Down Fire cabinet will not go in it.

So the cabinet is turned sideways. This one runs 41 inches wide by 12 inches deep by 8.4375 inches tall. It is the same 10W6v3-D4, in a cabinet 3 inches shallower front to back than our standard 30 by 15 inch 10W6v3-D4 cabinet and 11 inches longer. The airspace given up in depth is recovered along the length, so each driver still gets a properly sized chamber rather than a compromised one.

Performance, Performance Optimized, and Micro

Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.

Built Around a Pair of 10W6v3-D4

Nothing about this cabinet is generic. Both baffle positions are bored to the 10W6v3-D4's 9.02 inch cutout, 229mm to JL's spec, and the cabinet height is set by the driver's 6.89 inch mounting depth plus the clearance JL requires behind the motor. The frame measures 10.5 inches overall with a 6.3 inch magnet, so this is a large motor in a low cabinet.

The W6v3 is JL's top tier automotive subwoofer platform, carrying six US patents covering motor and suspension design. Each driver is a dual 4 ohm voice coil rated 600 watts RMS continuous with 19mm of one way linear excursion, the highest Xmax figure of any driver in the Proline X Down Fire line. Across the pair that is 1200 watts RMS combined and 98.6 square inches of piston area.

Published parameters are Fs 30.12 Hz, Qts 0.513 and Vas 23.25 liters per driver, with sensitivity at 82.7 dB, 6.452 ohms Re in series, and 0.078 cubic feet of published displacement each.

Net Volume, Not Gross

We build this cabinet at 0.632 cubic feet net per chamber, 1.263 cubic feet net total, from 1.448 gross, after panel thickness, the chamber divider and each driver's published 0.078 cubic feet of displacement are accounted for. That produces Qtc 0.778, Fc 45.7 Hz, F3 41.9 Hz per driver.

Height on this cabinet is set by the driver's mounting depth, not by a volume target. The 6.89 inch driver reaches 5.39 inches past the inner baffle into the cabinet, and we hold 0.75 inch of clearance above the motor. That fixes the cabinet at 8.4375 inches tall, and on a 41 by 12 footprint that height holds 0.632 cubic feet net per chamber, more than the 0.58 cubic feet the standard cabinet was built to. More air in a sealed box lowers Qtc, which is the safe direction: slightly more damping and a gentler approach to the rolloff.

JL Audio publishes a 0.55 cubic foot sealed recommendation per 10W6v3-D4. Each chamber here holds more than that, so the alignment sits on the better damped side of JL's own box, and still above the 0.707 maximally flat reference. JL also explicitly specifies 0.50 inch of pole vent clearance behind the motor; this cabinet gives each motor 0.80 inches.

Two Chambers, Not One

This enclosure follows the Proline X standing design rule for dual sealed builds: two fully separate chambers divided by a bonded full-height 3/4 inch MDF panel.

Two drivers sharing one sealed volume interact acoustically. Each driver's compression phase becomes the pressure environment the other is working against, which smears transient response and blurs the alignment each would have on its own. A full divider eliminates that entirely. Each 10W6v3-D4 gets its own 0.632 cubic feet net and its own polyfill.

On a long cabinet the divider does structural work as well, tying the front and rear walls together at the centre of a 41 inch span. One shared side-mounted terminal cup feeds both driver positions, so the cabinet stays a single connection point.

Down Fire Wide Construction

Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps both chambers airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

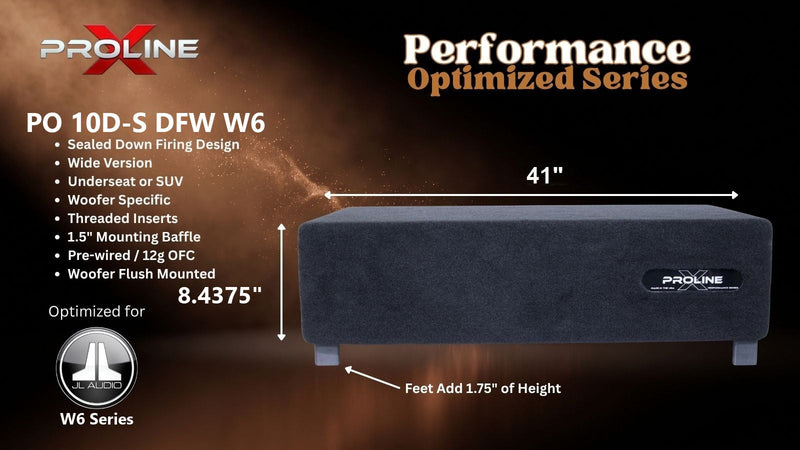

The cabinet measures 41 inches wide by 12 inches deep by 8.4375 inches tall, measured in the down fire position and excluding standoffs. The 1.75 inch standoffs ship uninstalled so you can place them to suit your floor; installed, the finished stack is 10.1875 inches. Plan the space around that figure, not the cabinet height.

Power and Wiring

JL Audio rates each 10W6v3-D4 at 600 watts RMS continuous, so 1200 watts RMS combined across the pair. Sensitivity is 82.7 dB, so give these real power.

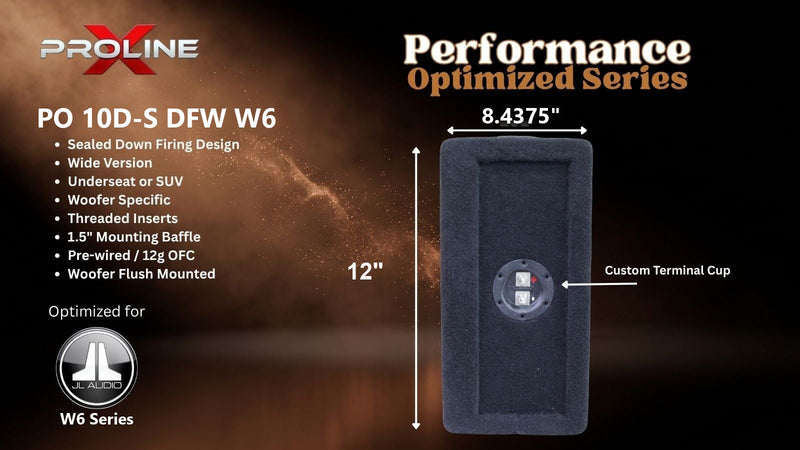

Each driver uses JL's terminal jumper system: both voice coils must be connected for the driver to operate, configured either in parallel for 2 ohms per driver, which is the factory setting, or in series for 8 ohms. One side mounted terminal cup serves both chambers, pre-wired in 12 gauge OFC to both driver positions in parallel, so a pair at 2 ohms each presents 1 ohm and a pair at 8 ohms each presents 4 ohms. Wire both drivers identically, then verify the load against your amplifier's minimum stable impedance.

Bring your own pair of JL Audio 10W6v3-D4 subwoofers; the drivers are purchased separately. The enclosure carries a 1 year limited warranty.
