Performance Optimized Down Fire Wide Sealed 12" Enclosure | Arc Audio ARC 12
SKU: PO 12-S DFW Arc
- Alignment: 1.383 cu ft net. Dual 2-Ohm Qtc 0.708, Fc 38.8 Hz, F3 38.8 Hz; Dual 4-Ohm Qtc 0.803, Fc 39.8 Hz, F3 35.6 Hz
- Down Fire Wide: 41"W x 14"D x 7.5"H in down fire position, lower than the standard 30 x 15 (7.625 in)
- Height Set By: the 6 in motor, 0.75 in clearance above it; holds more air than the standard box, so Qtc is lower
- Driver: ARC Audio ARC 12, 350W RMS / 700W musical, 15mm Xmax, 89 dB, 6" mounting depth, 11" cutout
- Volume Note: 1.462 cu ft gross, above ARC's 1.25 gross maximum because the motor sets the height; Qtc is lower, not higher
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Wide Sealed 12" Enclosure | Arc Audio ARC 12
More enclosures cut for Arc Audio subwoofers: Arc Audio Subwoofer Boxes
Proline X Performance Optimized Down Fire Wide 12" Sealed
Wide and shallow, cut for the ARC Audio ARC 12 in Dual 2-Ohm or Dual 4-Ohm
The Down Fire Wide Format
Down Fire Wide is the same driver in a different shape. The standard Performance Optimized Down Fire cabinet for the ARC Audio ARC 12 is 30 by 15 inches. This one runs 41 inches wide by 14 inches deep: 1 inch shallower front to back and 11 inches longer.
Fourteen inches is not arbitrary. A 12 inch frame needs about 13 inches of baffle to sit on, so 14 is the practical minimum depth for this driver size. The ARC Audio ARC 12 frame measures 12.375 inches across and sits on the 14 inch deep baffle with about 0.81 inches of baffle fore and aft.
Spreading the airspace along 41 inches instead of 30 means the cabinet does not have to climb to find it. This box stands 7.5 inches tall, against 7.625 for the standard 30 x 15 ARC Audio ARC 12 cabinet, both measured in the down fire position without feet. That is 0.125 inches lower.
Which one to choose. The standard 30 x 15 is the pick when length is limited. This one is the pick when height or depth is the limit and you have 41 inches of run. With the 1.75 inch feet installed this cabinet stands 9.25 inches, so measure for that.
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds. Down Fire Wide variants like this one run long and shallow for under seat fitment. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double layer, outer layer machined as a flush recess. 1.5 inch. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, perimeter cross brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |
Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The cutout, the cabinet height and the airspace all come from the ARC Audio ARC 12's own published numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around the ARC 12
The baffle is bored to the ARC 12's 11 inch cutout, and the internal height is set by its 6 inch mounting depth. The 12 3/8 inch frame and its 6 1/2 inch magnet make this one of the deeper drivers we build a Down Fire cabinet for, which is why its height is set by the motor rather than by a volume target.
The ARC Series brief was small to moderate enclosures with dynamic power handling. The 12 backs that up with 89 dB sensitivity, a genuinely efficient figure, and 15mm of one-way linear excursion across 470 cm² of cone. 350 watts RMS, 700 watts musical.
Construction is a high-temperature black anodized voice coil, a one-piece molded rubber surround, a stamped steel basket, and a progressive flat layered spider with integrated tinsel leads.
Net Volume and Alignment
The cabinet holds 1.383 cubic feet net, from 1.462 cubic feet gross after the brace and the driver's 0.07 cubic feet of displacement.
Height here is set by the driver's mounting depth, not by a volume target. The 6 inch motor needs 0.75 inch of clearance above it, so the cabinet can go no lower than 7.5 inches. At that height the wide footprint holds 1.383 net, more than the 1.085 the standard 30 x 15 box was built to. More air lowers Qtc, which is the safe direction: a softer, better damped corner rather than a peakier one.
Computed from ARC Audio's published Thiele-Small parameters: Dual 2-Ohm: Qtc 0.708, Fc 38.8 Hz, F3 38.8 Hz; Dual 4-Ohm: Qtc 0.803, Fc 39.8 Hz, F3 35.6 Hz.
ARC Audio publishes a sealed range for the ARC 12 of 0.9 minimum, 1.1 optimum and 1.25 maximum, all stated as gross. This cabinet is 1.462 cubic feet gross, above that published maximum. We say so plainly: the motor, not a volume choice, put it there, and the result is a lower Qtc than the standard box, not a higher one.
The two coils behave differently. The Dual 2-Ohm, Qts 0.416, lands essentially on the maximally flat 0.707 reference. The Dual 4-Ohm, Qts 0.468, keeps a little more lift near the corner and reaches about 3 Hz deeper. Both are cut identically by this enclosure.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's displacement, not estimated from external dimensions minus wall thickness.
Down Fire Wide Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

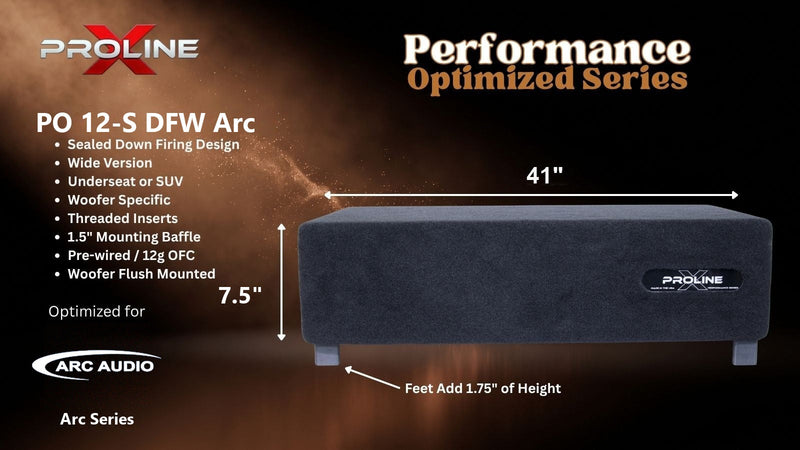

The cabinet measures 41 inches wide by 14 inches deep by 7.5 inches tall, measured in the down fire position. Feet ship with the enclosure but are not installed. With the 1.75 inch feet on, the cabinet stands 9.25 inches, so plan the space around where you intend to mount them.
1.5 Inch Double Baffle
Two 3/4 inch layers laminated to 1.5 inches, with the outer layer machined as a flush recess so the driver bolts to the inner layer. 8/32 threaded inserts at the driver position, stainless machine screws included.
Windowed U-Brace
A windowed U-brace dadoed to the shell ties the long 41 inch panels together without taking a meaningful bite out of the airspace.

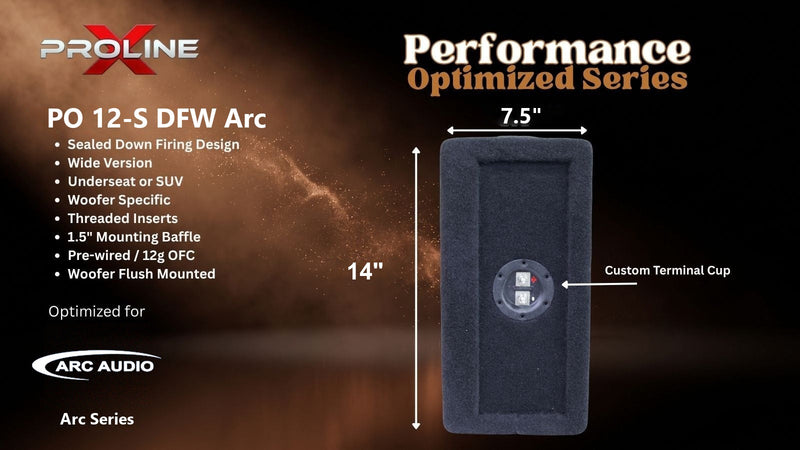

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.
Polyfill Installed
Polyfill is installed as a light wall lining to control internal reflections. It does not change the acoustic volume, so do not add more.
Power and Wiring
ARC Audio rates the ARC 12 at 350 watts RMS continuous with 700 watts musical, and an amplifier power range of 5 to 700 watts. Their manual is direct: the RMS figure is the recommended continuous power, the driver takes roughly twice that in short bursts, and sustained operation above RMS burns the voice coil and is not covered under warranty.
In a sealed box larger than the maker's maximum, the air spring does less to hold the cone at the bottom of the band. At 89 dB this driver does not need pushing anyway: stay inside the 350 watt rating and run a subsonic filter.
Both versions are dual voice coil, so final impedance is set at the driver. Bring your own ARC 12. The enclosure carries a 1 year limited warranty.
Cut for the Driver, Not the Catalog
Down Fire Wide, 41 inches long and 14 deep, cut for one driver model and built one at a time in Tullahoma, Tennessee. Questions on fitment or amplifier matching, call us at 931-563-5151.
| Series | Proline X Performance Optimized Down Fire Wide |
| Compatible Driver | ARC Audio ARC 12, Dual 2-Ohm or Dual 4-Ohm. Direct fit, no other driver |
| Enclosure Type | Sealed, down fire, floor coupled |
| Intended Fitment | Where height or depth is the limit and 41 in of length is available |
| Firing Direction | Down firing. Feet ship uninstalled, so front or up firing is also possible |
| External Width | 41 in |
| External Depth | 14 in |
| External Height | 7.5 in, measured in down fire position, excludes feet |
| Installed Height | 9.25 in with the 1.75 in feet installed |
| Standard 30 x 15 Equivalent | 30 in W x 15 in D x 7.625 in H, 1.085 cu ft net |
| Internal Height | 5.25 in |
| Internal Volume, Gross | 1.462 cu ft |
| Internal Volume, Net | 1.383 cu ft after the brace and displacement |
| Height Set By | Driver clearance: 0.75 in above the motor, the 0.75 in minimum plus rounding |
| Alignment, Dual 2-Ohm | Qtc 0.708, Fc 38.8 Hz, F3 38.8 Hz, anechoic |
| Alignment, Dual 4-Ohm | Qtc 0.803, Fc 39.8 Hz, F3 35.6 Hz, anechoic |
| Arc Suggested Sealed, Gross | 0.9 min, 1.1 optimum, 1.25 max. This build is above the maximum, set by motor clearance |
| Driver Fs | 22.8 Hz (Dual 2-Ohm) / 23.2 Hz (Dual 4-Ohm) |
| Driver Qts | 0.416 (Dual 2-Ohm) / 0.468 (Dual 4-Ohm) |
| Driver Qes | 0.469 (Dual 2-Ohm) / 0.533 (Dual 4-Ohm) |
| Driver Qms | 3.680 (Dual 2-Ohm) / 3.830 (Dual 4-Ohm) |
| Driver Vas | 74.4 L (Dual 2-Ohm) / 76.28 L (Dual 4-Ohm) |
| Driver Sd | 470 cm² |
| Driver Xmax | 15mm one way linear |
| Driver Sensitivity | 89 dB, 1 W at 1 m |
| Driver Power Handling | 350 W RMS continuous, 700 W musical |
| Amplifier Power Range | 5 to 700 W, ARC Audio spec |
| Voice Coil Configuration | Dual voice coil, impedance set at the driver |
| Driver Total Depth | 6 5/8 in |
| Driver Magnet Diameter | 6 1/2 in |
| Mounting Depth | 6 in |
| Woofer Opening | 11 in |
| Driver Frame Diameter | 12.375 in, sits on the 14 in baffle |
| Driver Displacement | 0.07 cu ft |
| Material | Langboard Elite 3/4 in MDF |
| Joinery | V-groove and dado, CNC cut on ShopSabre routers |
| Panel Thickness | 0.75 in |
| Front Baffle | 1.5 in double baffle, outer layer machined as a flush recess |
| Internal Bracing | Windowed U-brace, dadoed to the shell |
| Corner Profile | Square, Down Fire series standard |
| Driver Mounting | 8/32 threaded inserts, stainless machine screws included |
| Terminal Cup | One Proline X ABS and carbon fiber composite, side mounted, pre-wired 12 gauge OFC |
| Damping | Polyfill installed as a light wall lining, does not alter acoustic volume |
| Feet | 1.75 in, included, shipped uninstalled |
| Carpet | Plush black |
| Bundle Options | Enclosure only, bring your own ARC Audio ARC 12 |
| Warranty | 1 year limited |
| Built In | Tullahoma, Tennessee |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
1.383 cu ft against a 74.4 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 15.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 22.80 / 23.20 | Hz | free-air resonance |
| Qts | 0.416 / 0.468 | D2 / D4 | |
| Vas | 74.40 / 76.28 | L | equivalent compliance |
| Sd | 470.0 | cm² | effective piston area |
| Xmax | 15 | mm | one-way linear travel |
| Pe | 350 | W | continuous RMS |
| SPL | 84.6 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by ARC Audio published specification. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
