Performance Optimized Down Fire Sealed Dual 10" Enclosure | JL Audio 10W6v3-D4
SKU: PO 10D-S DF W6
- Alignment: 0.58 cu ft net per chamber, 1.16 cu ft net total. Qtc 0.797, Fc 46.8 Hz, F3 42.1 Hz, within 0.2 Hz of JL's own published figures
- Chambers: Two fully separate sealed chambers, 3/4" MDF full divider, one shared side-mounted terminal cup
- Drivers: Pair of JL Audio 10W6v3-D4 (DVC 4Ω), 600W RMS each, 1200W combined, 19mm Xmax, highest in the Down Fire line
- Wiring: JL terminal jumper system, both coils must be connected, 2Ω parallel factory or 8Ω series, wire both drivers identically

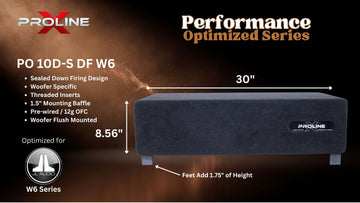

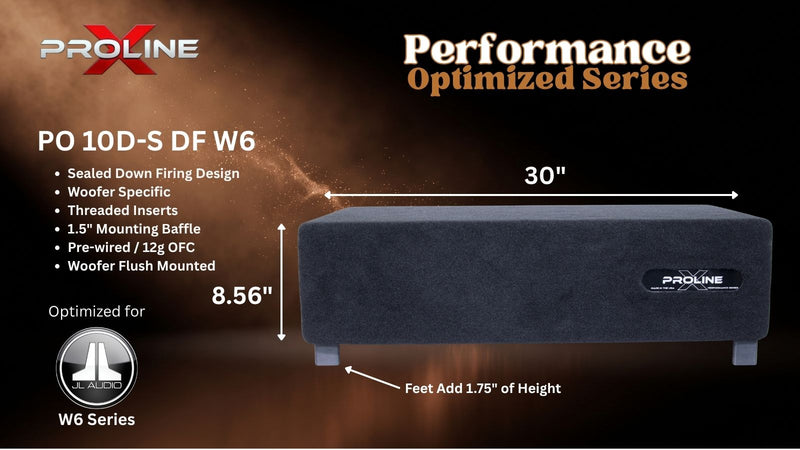

- Cabinet: 30"W x 15"D x 8.5625"H measured in down fire position, square corners
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed Dual 10" Enclosure | JL Audio 10W6v3-D4
Proline X PO Down Fire Dual 10" Sealed
Cut and tuned for a pair of JL Audio 10W6v3-D4
Built Around a Pair of 10W6v3-D4
Nothing about this cabinet is generic. Both baffle positions are bored to the 10W6v3-D4's 9.02 inch cutout, 229mm to JL's spec, and the internal height is set by the driver's 6.89 inch mounting depth plus the 0.50 inches of pole vent clearance JL explicitly requires behind the motor. The frame measures 10.5 inches overall with a 6.3 inch magnet, so this is a large motor in a low cabinet.
The W6v3 is JL's top tier automotive subwoofer platform, carrying six US patents covering motor and suspension design. Each driver is a dual 4 ohm voice coil rated 600 watts RMS continuous with 19mm of one way linear excursion, the highest Xmax figure of any driver in the Proline X Down Fire line. Across the pair that is 1200 watts RMS combined and 98.6 square inches of piston area. Output at low frequencies is cone area multiplied by excursion, and that travel is where a 10 moves air like something larger.
Published parameters are Fs 30.12 Hz, Qts 0.513 and Vas 0.821 cubic feet per driver, with sensitivity at 82.7 dB and 6.452 ohms Re in series.
Net Volume, Not Gross
We build this cabinet at 0.58 cubic feet net per chamber, 1.16 cubic feet net total, from 1.32 gross, after panel thickness, the chamber divider, perimeter bracing and each driver's published 0.078 cubic feet of displacement are accounted for. That produces Qtc 0.797, Fc 46.8 Hz and a predicted F3 of 42.1 Hz per driver.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness.
JL Audio recommends 0.55 cubic feet net per 10W6v3-D4 and publishes the resulting alignment as Qtc 0.8099, Fc 47.55 Hz and F3 42.27 Hz. Our figures land within two tenths of a hertz of theirs, which is the closest agreement this program has produced with any manufacturer, and the marginal extra volume moves the alignment slightly toward the better damped side.
What makes that agreement notable is that we did not target it. Cabinet height here is set by driver depth, not by volume. Take 6.89 inches of mounting depth, subtract the 3/4 inch recovered by the flush recess in each outer baffle layer, subtract the 3/8 inch milled relief behind each magnet, then honor JL's half inch pole vent clearance. Minimum internal height works out to 6.3125 inches, an 8.5625 inch external cabinet. Split that into two chambers and each driver ends up on JL's own recommended airspace through pure fitment geometry.
Down Fire Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps both chambers airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.
Perimeter cross-bracing ties the panels together, which matters with two 600 watt drivers bolted to the same cabinet. Polyfill is pre-installed in each chamber, and both drivers land on 8/32 threaded inserts with two sets of stainless machine screws included. External dimensions are 30 inches wide by 15 inches deep by 8.5625 inches high, measured in the down fire position, at 40 pounds.
Both drivers fire down into the floor. The sealed rolloff meets rising cabin gain below 60 Hz, so in-car response extends well below the anechoic figure.

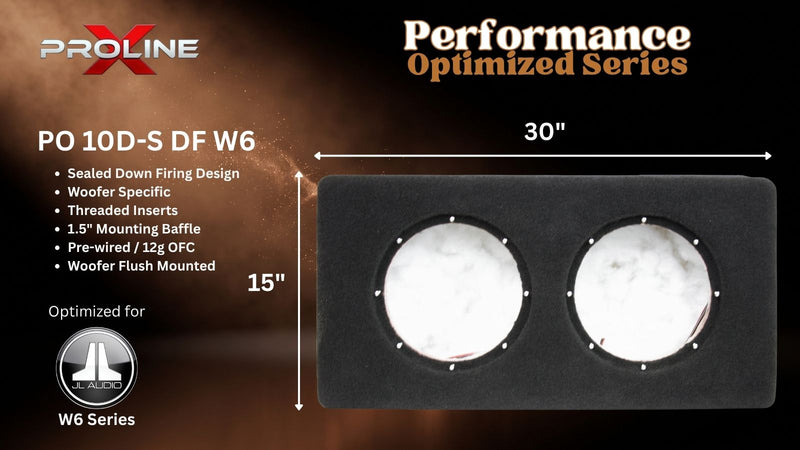

Double Baffle, Flush Recess
Front baffles are 1.5 inches at both driver positions, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so each driver bolts to the inner layer. That recovers 3/4 inch of internal clearance, and a 3/8 inch relief is milled behind each motor.

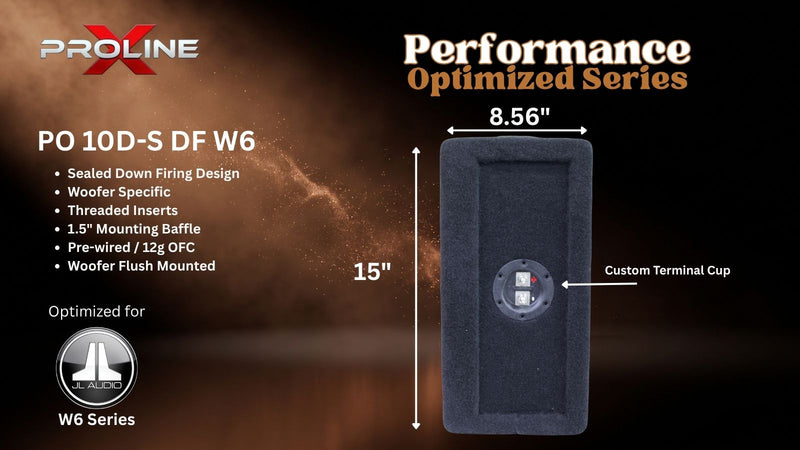

Side-Mounted Terminal Cup
One Proline X ABS and carbon fiber composite cup serves both chambers, with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC to both driver positions in parallel. Side mounted so it stays accessible with the baffles facing the floor.

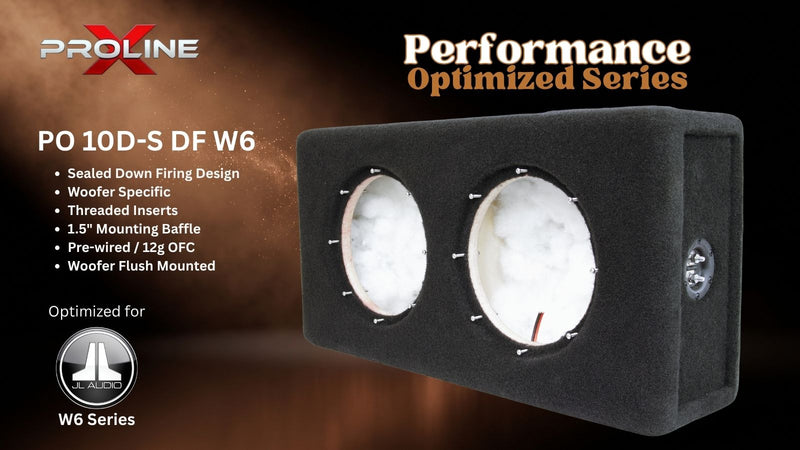

Separate Chambers
A full height bonded 3/4 inch MDF divider gives each driver its own 0.58 cubic feet and its own polyfill. Two drivers sharing one volume interact acoustically, each one's compression stroke becoming the pressure environment the other works against, which smears transients and blurs the alignment either would have alone.
Power and Warranty
JL Audio rates each 10W6v3-D4 at 600 watts RMS continuous, so 1200 watts RMS combined across the pair. Each driver uses JL's terminal jumper system: both voice coils must be connected for the driver to operate, configured either in parallel for 2 ohms per driver, which is the factory setting, or in series for 8 ohms. Wire both drivers identically, then verify the resulting load through the shared cup against your amplifier's minimum stable impedance.
The enclosure carries a 1 year limited warranty. Bring your own pair of JL Audio 10W6v3-D4 subwoofers; the drivers are purchased separately.
Cut for the Driver, Not the Catalog
Cutouts, internal height, chamber divider and JL's specified pole vent clearance are machined for this one driver at both positions, then built one at a time in Tullahoma, Tennessee.
| Enclosure Type | Sealed | Dual Driver | Down Fire Geometry | Floor-Coupled |
| Chamber Configuration | Two Fully Separate Chambers | Full Divider | Single Shared Side-Mounted Terminal Cup |
| Driver-Specific Fitment | JL Audio 10W6v3-D4 (DVC 4Ω) | Pair Required |
| Total Internal Gross Volume | 1.32 Cubic Feet |
| Per-Chamber Net Volume | 0.58 Cubic Feet |
| Total Net Volume | 1.16 Cubic Feet |
| JL Audio Recommended Sealed Volume | 0.55 Cubic Feet Net Per Driver |
| Target Qtc Per Chamber | 0.797 (JL Publishes 0.8099 At Their 0.55 Volume) |
| Predicted Fc Per Driver | 46.8 Hz (JL Publishes 47.55 Hz) |
| Predicted F3 Per Driver | 42.1 Hz (JL Publishes 42.27 Hz) |
| Driver Fs | 30.12 Hz |
| Driver Qts | 0.513 |
| Driver Qes / Qms | 0.543 / 9.228 |
| Driver Vas | 0.821 Cubic Feet / 23.25 Liters Each |
| Driver Xmax (One-Way Linear) | 19mm / 0.75 in, Highest In The Down Fire Line |
| Driver Sd | 49.303 sq in / 0.0318 m² Each | 98.6 sq in Total |
| Driver Displacement | 0.078 Cubic Feet / 2.21 L Each (Published by JL Audio) |
| Driver Re (Series) | 6.452 Ohm |
| Driver Sensitivity | 82.7 dB (1W/1m) |
| Power Handling | 600 Watts RMS Each / 1200 Watts RMS Combined |
| Mounting Depth Required | 6.89 Inches / 175mm (JL Audio Spec) |
| Required Pole-Vent Clearance | 0.50 Inches / 12.5mm (JL Audio Spec, Honored In This Build) |
| Cutout Diameter (Each) | 9.02 Inches / 229mm (JL Audio Spec) |
| Driver Overall Diameter | 10.5 Inches / 267mm (JL Audio Spec) |
| Driver Magnet Diameter | 6.3 Inches / 160mm (JL Audio Spec) |
| Baffle Configuration | Down Firing - Both Drivers Fire Toward Floor |
| Material | Langboard Elite 3/4" MDF |
| Front Baffle Construction | Double-Layer 1.5" MDF at Both Driver Positions | Outer Layer Flush Recess |
| Magnet Relief | 3/8" Deep Milled Relief Behind Each Motor |
| Chamber Divider | 3/4" MDF Full Bonded Panel |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Corner Profile | Square (Down Fire Series Standard) |
| Construction | ShopSabre CNC / Perimeter Cross-Brace |
| External Width | 30 Inches |
| External Depth | 15 Inches |
| External Height | 8.5625 Inches |
| Dimension Reference | All External Dimensions Measured In Down Fire Position |
| Voice Coil Configuration | Dual 4-Ohm Per Driver | Terminal Jumper System | 2Ω Parallel (Factory) or 8Ω Series |
| Mounting Hardware | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included | 2 Sets |
| Terminal Cup | One Proline X ABS/Carbon Fiber Composite | Side Mounted | 12g OFC Pre-Wired to Both Driver Positions |
| Damping | Polyfill Pre-Installed Per Chamber |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black |
| Bundle Options | Enclosure Only (Bring Your Own Pair of JL Audio 10W6v3-D4) |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.58 cu ft against a 23.2 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 19.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 30.12 | Hz | free-air resonance |
| Qts | 0.513 | D4 | |
| Vas | 23.25 | L | equivalent compliance |
| Sd | 318.0 | cm² | effective piston area |
| Xmax | 19 | mm | one-way linear travel |
| Pe | 600 | W | continuous RMS |
| SPL | 82.5 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by jlaudio.com. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
