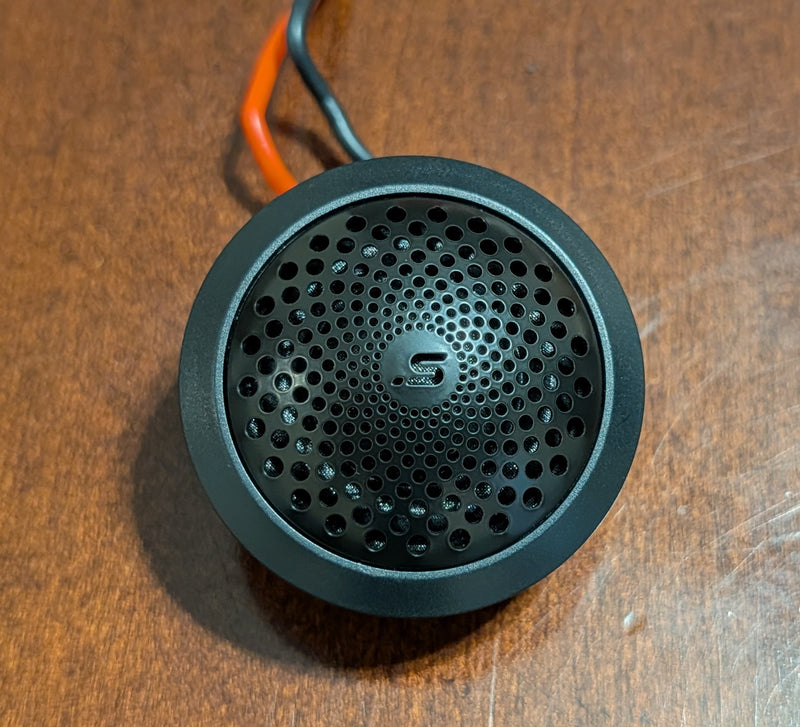

Stereo Integrity M22 tweeter, front view of the laser-etched stainless steel grille

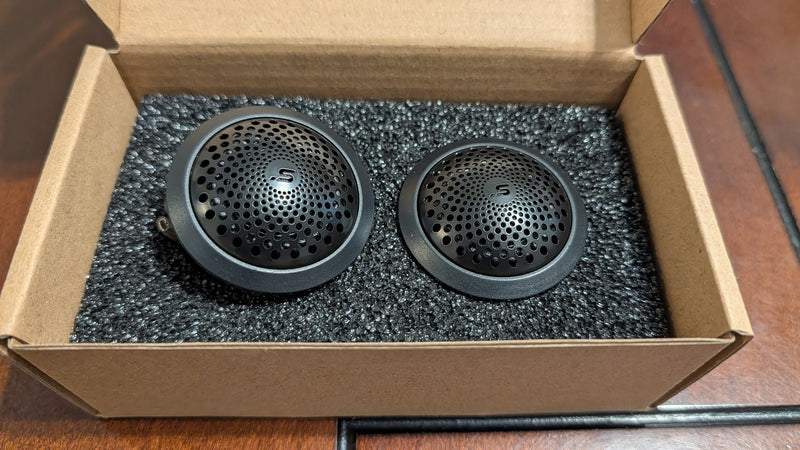

Stereo Integrity M22 tweeter pair in the retail box with foam insert

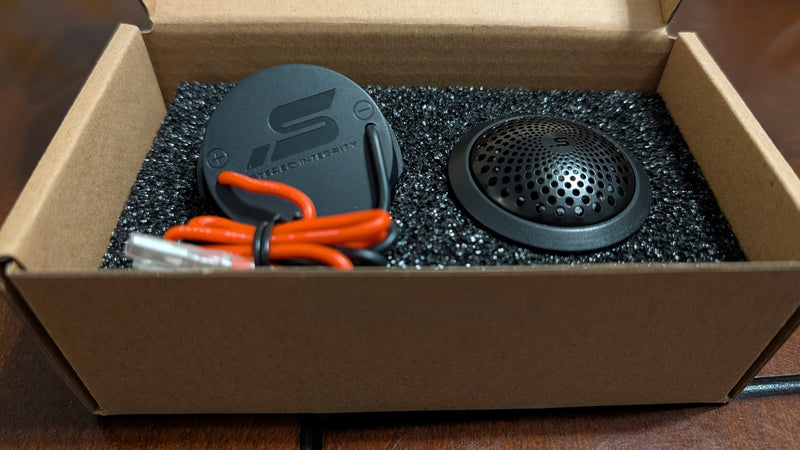

Stereo Integrity M22 tweeter pair in the box, one turned to show the rear leads

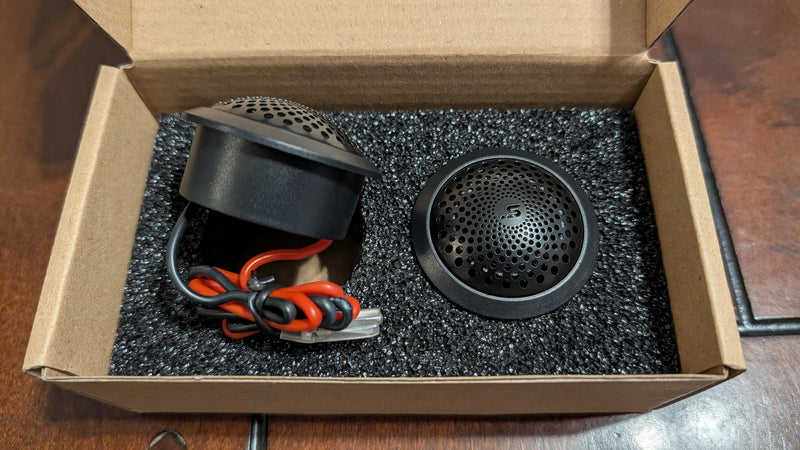

Stereo Integrity M22 tweeter pair in the box, showing front and rear

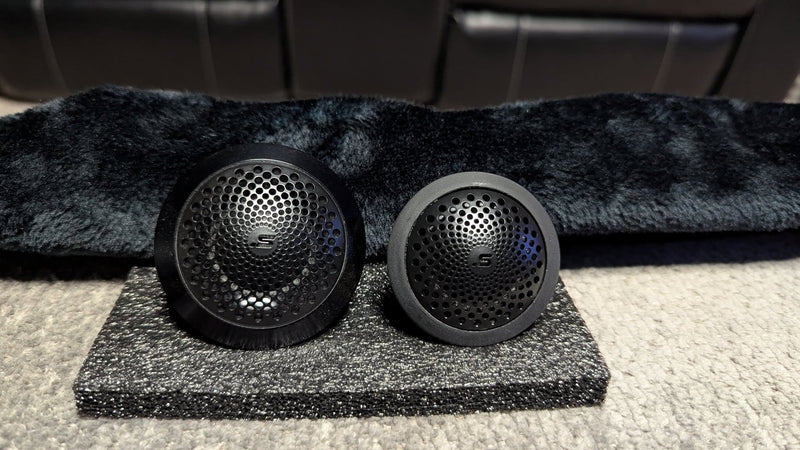

Stereo Integrity M22 and M25 tweeters side by side for size comparison

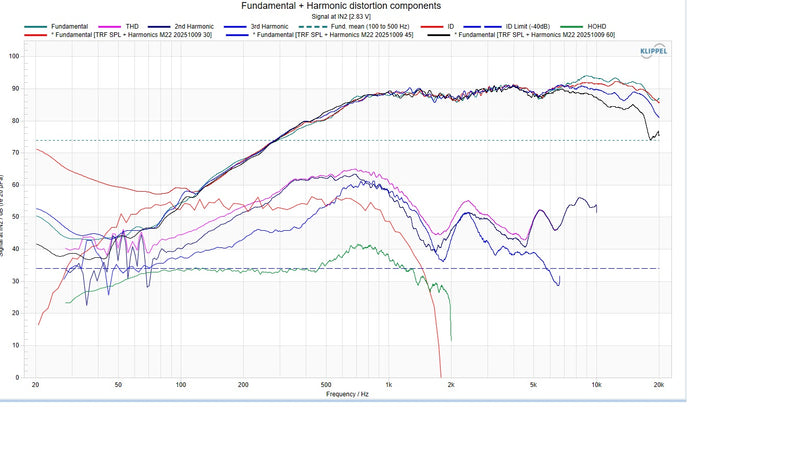

Stereo Integrity M22 Klippel frequency response and harmonic distortion measurement

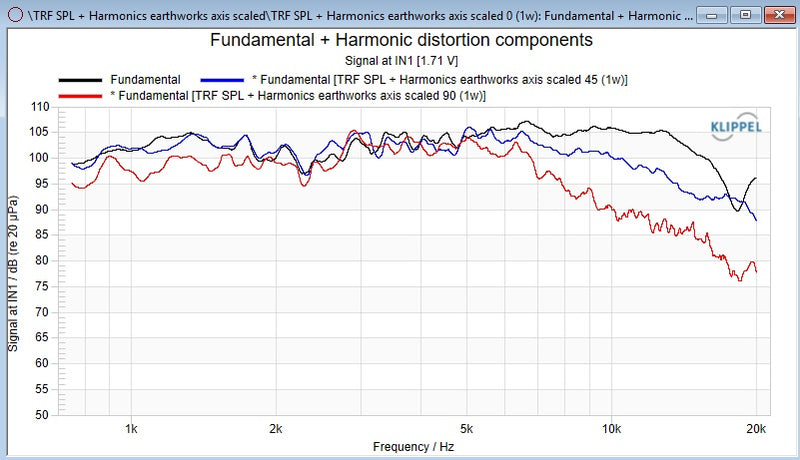

Stereo Integrity M22 frequency response on axis and at 45 and 90 degrees off axis

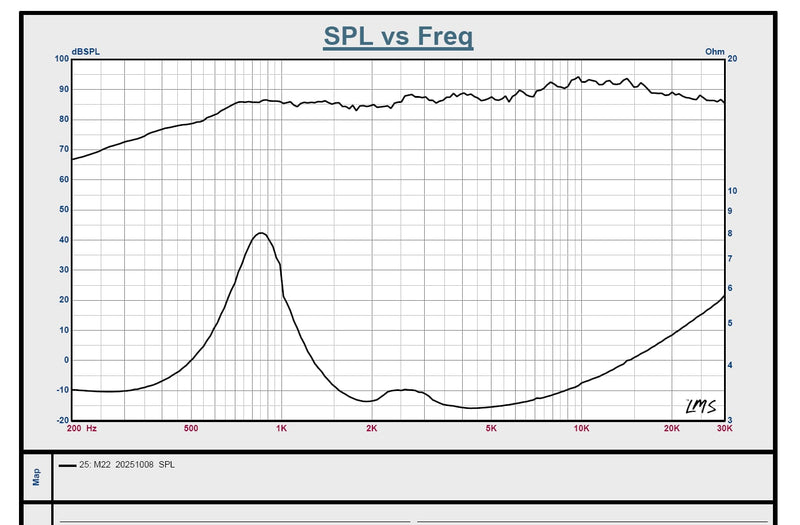

Stereo Integrity M22 SPL and impedance versus frequency measurement

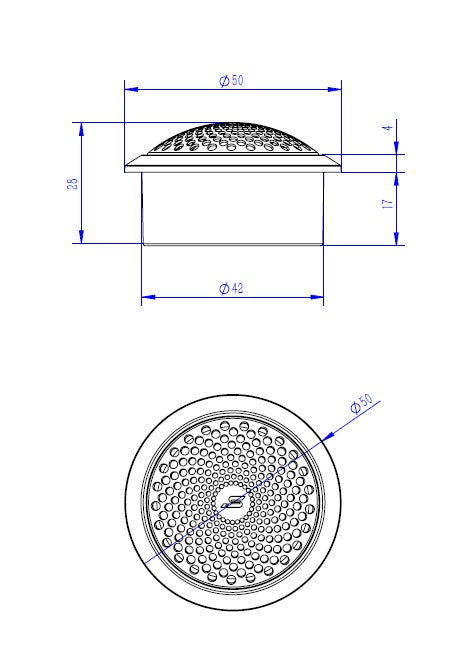

Stereo Integrity M22 mechanical drawing with side and front dimensions

Stereo Integrity

Stereo Integrity M22 | 22mm Silk Dome Tweeter - Pair

Q: What is the Stereo Integrity M22?

The M22 is a 22 mm silk dome tweeter from Stereo Integrity, a smaller and completely re-engineered version of its M25. It has a tuned rear chamber, a neodymium motor, and an integrated stainless steel grille, and it mounts in 17 mm. It is sold as a pair.

Q: What crossover point should I use for the M22?

Stereo Integrity recommends a high-pass point of at least 2,800 Hz with a slope of 24 dB per octave or steeper.

Q: How does the M22 mount?

The M22 uses a friction fit in a 42 mm cutout, with a 50 mm outer diameter and a 17 mm mounting depth. Direct leads exit the rear of the tweeter.

Q: How is the M22 different from the M28?

The M22 is the smaller of the two, with a 22 mm dome, a 17 mm mounting depth, a polymer chassis, a friction fit, and direct leads. The M28 has a larger 28 mm dome and voice coil, a machined aluminum chassis, a screw and clamp mounting ring, push terminals, and a lower 680 Hz resonance.

Q: What does the tuned rear chamber do?

It lowers the resonant frequency of the M22 to 850 Hz despite the shallow mounting depth, which makes it easier to blend the tweeter with a midrange or midbass.

SKU: SI-M22

$ 159.99

QUICK SPECS

Type: 22 mm silk dome tweeter, sold as a pair
Mounting Depth: 17 mm, 42 mm cutout
Crossover: High-pass at 2,800 Hz or higher, 24 dB/oct
Power Handling: 100W RMS, 4 ohm

Coming SoonNot in stock yet. Tap Notify me when available and we will email you the moment it lands, or call 931-563-5151 to ask about timing.

Stereo Integrity M22 | 22mm Silk Dome Tweeter - Pair

$ 159.99

Includes Shipping On orders to the lower 48

Full Warranty Factory Backed

Expert Support Real Installers

INSTALLER'S TAKE

The M22 is the install friendly tweeter in the SI line. 17 mm of mounting depth, a 42 mm cutout, friction fit, direct leads out the back. In a sail panel or a factory tweeter location that combination solves problems a larger tweeter creates.

The tuned rear chamber is the part worth understanding. It pulls Fs down to 850 Hz despite the shallow body, and a low Fs is what gives you room to cross over low without stressing the dome. SI still recommend 2,800 Hz minimum at 24 dB per octave, which is sensible, but the headroom behind that recommendation is real.

Natural silk dome and surround, 90 dB sensitivity, 4 ohm. The grille is laser etched stainless and part of the assembly rather than an accessory.

Choosing between the M22 and the M28: the M22 is smaller, shallower and friction fit. The M28 has the larger dome, a lower 680 Hz resonance that supports a 2,000 Hz crossover, and a machined aluminum body with push terminals. Decide on the mounting location first, then the crossover point.

Product Details

Stereo Integrity

M22

22 mm Silk Dome Tweeter | Sold as a Pair

17 mm Mounting Depth 42 mm Cutout Tuned Rear Chamber Fs 850 Hz 100W RMS

Small Tweeter, Easy Install

The M22 is a smaller, completely re-engineered version of the Stereo Integrity M25 tweeter. Stereo Integrity started from what it wanted out of a tweeter at install time: a shallower mounting depth, a good looking protective grille, and a smaller footprint that fits more locations.

Despite a mounting depth of just 17 mm, a tuned rear chamber lowers the resonant frequency to 850 Hz. That added low end makes the transition to a midrange or midbass easier to get right.

Engineering Highlights

Natural Silk Dome

The 22 mm dome and surround are natural silk for a smooth, natural sound.

Neodymium Motor

A single slug of neodymium inside the voice coil drives a solid copper coil wound on a Kapton former.

Laser-Etched Grille

The black anodized stainless steel grille is integrated with the logo laser-etched in the center, and its pattern and open area are engineered so sound from the dome passes through uninhibited.

Friction Fit and Direct Leads

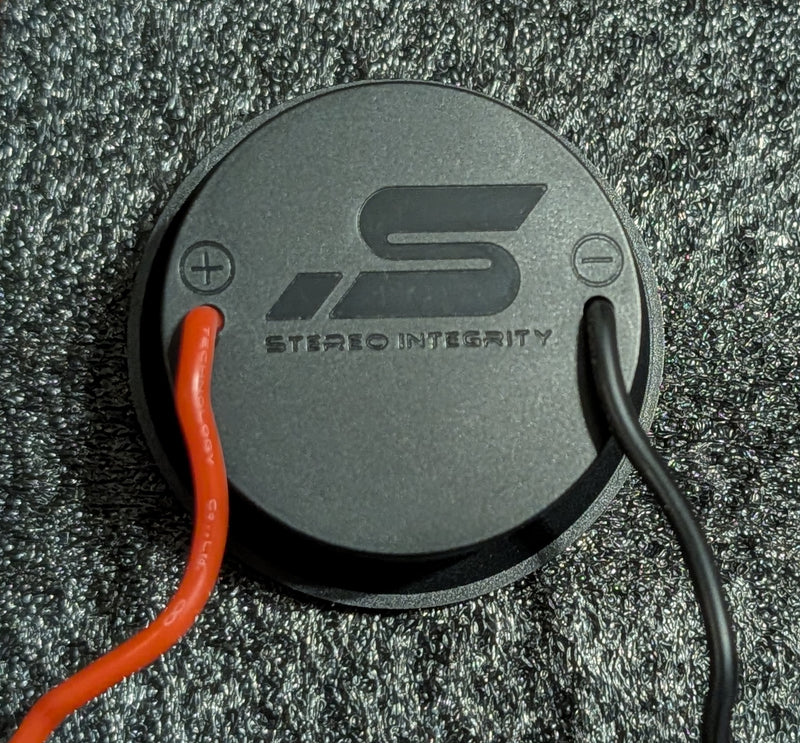

The lightweight custom tooled polymer chassis mounts with a friction fit, and direct leads exit the rear for simple wiring.

Crossover Recommendation

Stereo Integrity recommends a high-pass crossover point of at least 2,800 Hz with a slope of 24 dB per octave or steeper. The specification sheet lists a frequency response of 1,600 Hz to 40,000 Hz.

Build a front stage: Within the Stereo Integrity range, the M22 pairs with the TM65 mkIV or TM8 midbass for a 2-way, or with the M3 Carbon or M350 Carbon midrange added for a 3-way.

Fitment

Outer diameter: 50 mm. Cutout: 42 mm. Mounting depth: 17 mm. Mounting: friction fit. Impedance: 4 ohm. Sold as a pair.

Authorized Stereo Integrity Dealer

Audio Intensity is an authorized Stereo Integrity dealer, and we build enclosures around their drivers.

Call 931-563-5151 and we will help you plan a front stage around the M22.

Specifications

Specifications
Model	M22
Type	22 mm silk dome tweeter, sold as a pair
Impedance	4 ohm
Power Handling (RMS)	100 W
Sensitivity	90 dB
Dome and Surround	Natural silk
Voice Coil	22 mm solid copper on a Kapton former
Motor	Neodymium
Chassis	Custom tooled polymer with tuned rear chamber
Grille	Black anodized stainless steel, laser-etched logo
Terminals	Direct leads
Mounting	Friction fit
Outer Diameter	50 mm
Cutout	42 mm
Mounting Depth	17 mm
Listed Weight	0.3 lb
Parameters
DC Resistance (Re)	4 ohm
Resonant Frequency (Fs)	850 Hz
SPL	90 dB
Response
Frequency Response	1,600 Hz to 40,000 Hz
High-Pass	2,800 Hz or higher, 24 dB per octave or steeper
Figures as published by Stereo Integrity.
