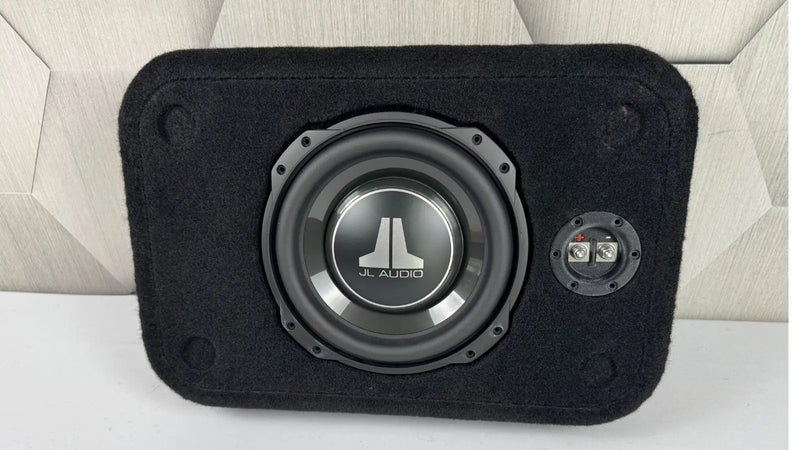

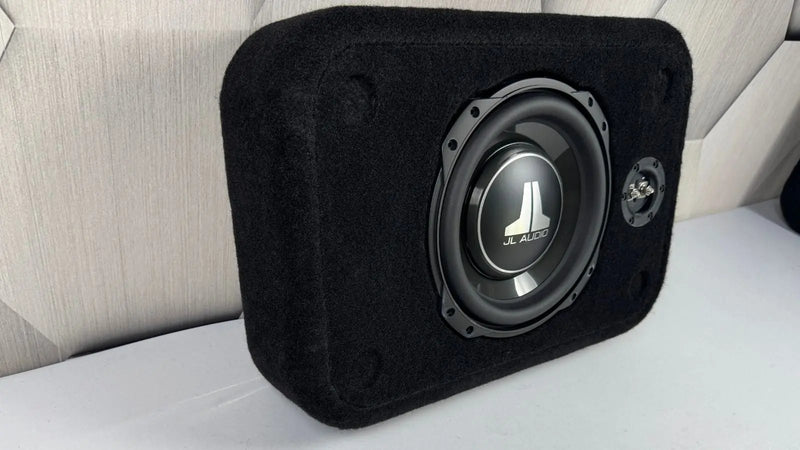

JL Audio 10TW3 - D4 in Proline X Micro Series Enclosure

Alpine in Proline X Micro Series Enclosure

Proline X

Proline X Single 10" Sealed Micro Series System | Loaded with JL Audio 10TW3-D4

Q: How much power do I need for the JL Audio 10TW3-D4?

The JL Audio 10TW3-D4 is rated to handle 400 watts RMS, so we recommend amplifiers that can deliver 300-500 watts RMS at the final impedance you'll be using. The dual 4-ohm voice coils can be wired to present either a 2-ohm or 8-ohm load to your amplifier, providing flexibility in system design.

Q: What is the lead time and how does shipping work?

This system is assembled to order in Tullahoma, Tennessee. Allow 2–5 business days for assembly before it ships. Shipping to the lower 48 states is included — no freight charges added at checkout. You'll receive a tracking number when the order ships.

Q: Will this system fit under the seat of my truck?

The enclosure's combined dimensions (21.5" × 14.5" × 5.25") make it suitable for many under-seat applications in trucks, especially extended cab and crew cab models. We recommend measuring your available space before purchasing. We also offer custom-sized versions of our Micro Series enclosures for tight installations.

Q: How does this shallow subwoofer compare to traditional deeper subwoofers?

The JL Audio 10TW3-D4 utilizes advanced technologies like the concentric tube structure and DMA-optimized motor to deliver performance comparable to much larger conventional subwoofers. While the very deepest bass notes might have slightly less output than larger designs, most listeners are amazed at the performance achieved from such a compact system.

Q: Is this a ported or sealed enclosure?

This ProLine X Micro Series enclosure is a sealed (acoustic suspension) design. We chose the sealed configuration for its superior transient response, accuracy, and compact size requirements. The enclosure volume has been precisely calculated to match the JL Audio 10TW3-D4's Thiele/Small parameters for optimal performance. The stack fab construction method used in this enclosure enhances the rigidity of the sealed design, further improving bass quality and minimizing unwanted resonances.

Q: Can this system be installed in a downfiring configuration?

Absolutely! One of the key advantages of our ProLine X Micro Series enclosure is its versatility. Optional rubber feet that allow for a down-firing installation. This configuration can be particularly effective in certain vehicles where space is limited above the subwoofer or where you want to protect the driver cone. The down-firing setup can also enhance bass coupling with the vehicle's floor, potentially improving low-frequency efficiency in some installations.

Q: What kind of music does this subwoofer excel at reproducing?

The JL Audio 10TW3-D4 in our ProLine X Micro Series enclosure delivers excellent performance across all music genres. Its tight, accurate bass reproduction makes it particularly well-suited for rock, jazz, acoustic, and electronic music. The precise control and musicality also make it excellent for hip-hop and EDM, though those seeking extreme SPL may want to consider a larger system.

Q: What warranty and shipping come with this enclosure?

The enclosure carries a 2 year limited warranty and ships free to the lower 48 states. Ordered loaded, the 10TW3-D4 carries its own manufacturer warranty through authorized dealers. Every enclosure is built one at a time in Tullahoma, Tennessee.

SKU: M10-S JL SF

QUICK SPECS

Best For: Stealth installs / Extreme space-limited builds
Configuration: Single 10" Sealed — Micro Series
Volume: 0.50 ft³ Net
Tuning: N/A — Sealed
Sonic Character: Tight, Accurate, Musical

Proline X Enclosure — Built in Tennessee CNC-cut Langboard Elite 3/4" MDF, V-groove + dado joinery, recessed ABS/Carbon Fiber terminal cup.

Driver + Enclosure — Matched and Pre-Wired Subwoofer pre-installed and wired to the correct impedance. Connect your amplifier and it's ready to run.

Shipping Included No freight charges at checkout on orders to the lower 48. Alaska, Hawaii, and international orders are quoted live rates at checkout.

$ 699.99 $ 799.99 Save $ 100.00

Hurry! Only 1 left in stock.

Financing available — choose Shop Pay Installments at checkout.

What's Included

Proline X Micro Series sealed enclosure — single 10" configuration
JL Audio 10TW3-D4 10" thin-line subwoofer pre-installed
Pre-wired 12g OFC speaker wire — wired to 2-ohm (Dual 4-ohm parallel)
Recessed ABS/Carbon Fiber Composite terminal cup — stainless hardware, copper ring terminals
Pre-installed polyfill — acoustically tuned for this enclosure volume
Threaded inserts for secure driver mounting

Amplifier, power wire, and RCA cables not included

Proline X Single 10" Sealed Micro Series System | Loaded with JL Audio 10TW3-D4

$ 699.99

$ 699.99 ~~$ 799.99~~

Enclosure Type Sealed

External Dimensions 21.5" X 14.5" X 5.25"

Net Volume .50cu ft

Tuning Frequency N/A

Cutout Diameter Direct Fit

Front Panel Thickness 1.5"

Max Mounting Depth Direct Fit"

INSTALLER'S TAKE

The 10TW3-D4 is the driver that proves shallow-mount doesn't mean low-performance. The concentric tube motor is the reason — it's a fundamentally different architecture than a conventional motor shrunk to fit a shallow package. The 15.2mm Xmax is real and usable. In the 0.50 ft³ sealed Micro Series box with polyfill it performs like a properly loaded full-depth driver in a fraction of the space.

The 5.25" depth is the number to work with on fitment. Most under-seat truck applications and compact trunk builds can accommodate that. Measure carefully — 5.25" sounds small until you're working around seat rail brackets or cargo floor lips. The enclosure can also be run down-fire with rubber feet if clearance permits — that orientation works well in applications where the floor couples with the enclosure bottom.

One note: at 82.1dB sensitivity this driver is not the most efficient shallow-mount on the market. Feed it a clean 300–400W and it performs. Underpower it and you'll leave output on the table.

Product Details

Proline X Micro Series Enclosure for the JL Audio 10TW3-D4

Cut and tuned for the JL Audio 10TW3-D4

CNC Stack-Fab Langboard Elite MDF 0.50 cu ft Net Fits JL Audio 10TW3-D4

0.50cu ft net

0.960system Qtc

40 HzF3 rolloff

3.25 in10TW3-D4 mounting depth

JL Audio 10TW3-D4 in Proline X Micro Series Enclosure - Stackfab II

Built Around the JL Audio 10TW3-D4

Nothing about this box is generic. Every layer is cut to the 10TW3-D4's published sealed target, with the baffle bored to the 10TW3-D4's 9.625 in cutout with 8/32 threaded inserts set on the back face, and clearance cut for its 3.25 in mounting depth.

The 10TW3-D4 carries a published Fs of 32.3 Hz, Qts of 0.62 and Vas of 19.82 litres, and an EBP of 49, which puts it in sealed enclosure territory. We ran the alignment math on that data and built the box to land where it belongs.

Net Volume, Not Gross

We build this cabinet at 0.50 cubic feet net, against a published recommendation of 0.50 cu ft. The volume quoted is true net internal airspace, measured after the walls, bracing and driver displacement are accounted for.

True net, not marketing net. Internal volume is calculated by summing each CNC cut layer's opening, not estimated from external dimensions minus wall thickness.

Proline X Micro Series Construction

This enclosure is stack fabricated on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every layer is a precision cut ring and the stacked layers do the joining themselves, so there is no butt joint or dado to flex or leak. Dowel reinforcement runs between layers as tension hardware only.

Threaded Inserts, Not Wood Screws

8/32 threaded inserts are set on the backside of the baffle so the driver mounts on machine screws. Pull it a dozen times and the threads are still there.

Pre-Wired Terminal Cup

Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired internally with 12 gauge OFC. No CCA anywhere in the build.

Damped and Finished

Polyfill is pre-installed to smooth the in box response, and the shell is wrapped in plush black carpet. Built in Tullahoma, Tennessee.

Enclosure Only or Loaded

Order the enclosure bare and mount your own 10TW3-D4, or order it loaded and we mount the driver, dress the wiring and ship it ready to bolt in.

Sealed Enclosure Performance: Pre-Calculated

Using the published Thiele Small parameters for the JL Audio 10TW3-D4, here is the predicted Qtc, system resonance (Fc) and F3 rolloff for this enclosure. Calculated with the same formulas as the Audio Intensity Sealed Box Calculator.

JL Audio 10TW3-D4 D2 | Qts 0.62 | Fs 32.3 Hz | Vas 19.82 L

Enclosure Size	Qtc	Fc	F3
0.50 cu ft as built	0.960	50.0 Hz	40.1 Hz

JL Audio 10TW3-D4 Frequency Response | Sealed, 0.50 cu ft

0.50 cu ft (Qtc 0.960) -3dB reference

Note on coil choice: This alignment is calculated from the published T/S for the 10TW3-D4 in the D2 parallel set. The D4 variant carries slightly different Qts and Vas figures and will land a marginally different sealed alignment. Run your own numbers in the Sealed Box Calculator.

Cut for the Driver, Not the Catalog

Select your configuration above. This enclosure ships free to the lower 48 with a 2 year limited warranty, built one at a time in Tullahoma, Tennessee. Ordered loaded, the 10TW3-D4 carries its own 1 year manufacturer warranty through authorized dealers.

Enclosure Specifications

Enclosure Type	Sealed — Micro Series
Configuration	Single 10"
Net Volume	0.50 ft³
Tuning Frequency	N/A — Sealed
External Dimensions	21.5" W × 14.5" H × 5.25" D
MDF	Langboard Elite 3/4"
Joinery	V-groove + dado
Terminal Cup	Recessed ABS/Carbon Fiber Composite
Speaker Wire	12g OFC pre-installed
Acoustic Treatment	Polyfill pre-installed
Finish	Plush Black
Vehicle Fitment	Universal

Woofer Details

The JL Audio 10TW3-D4 is the benchmark shallow-mount 10" subwoofer in the car audio industry. It uses JL Audio's patented concentric tube architecture — the voice coil sits beneath the dust cap while the motor structure extends forward, which is what allows a 3.25" mounting depth while maintaining 15.2mm of one-way linear Xmax. Most shallow-mount drivers achieve low mounting depth by reducing motor size and accepting less excursion. The 10TW3-D4 does not make that tradeoff. The DMA-optimized motor maintains a linear magnetic field across the full excursion range, and the Floating Cone Attachment Method keeps the cone, voice coil, and spider aligned throughout. The result is a driver that performs like a full-depth subwoofer in a package that fits where conventional subs cannot. It is a Dual 4-ohm driver — pre-wired in parallel to 2 ohms at the terminal cup.

Brand + Model	JL Audio 10TW3-D4
Size	10"
RMS Power	400W
Voice Coil Config	Dual 4-ohm (wired to 2-ohm)
Voice Coil Diameter	2.5"
Xmax	15.2mm one-way linear
Fs	32.3 Hz
Sensitivity	82.1 dB
Frequency Response	24–200 Hz
Mounting Depth	3.25"
Cutout Diameter	9-1/16"
Cone Material	Mica-filled Polypropylene
Frame	Cast alloy

Why This Combo Works

JL Audio 10TW3-D4 in a Proline X 0.50 ft³ Sealed Micro Series Enclosure

The 10TW3-D4 has an Fs of 32.3Hz and is engineered specifically for compact sealed enclosures. JL Audio's published target for this driver is 0.50 ft³ sealed — that is exactly what this enclosure delivers. At that volume the driver's suspension and the sealed air spring combine to produce a flat, controlled response with strong transient accuracy. The 15.2mm Xmax gives it the mechanical travel to produce real output at this volume without running out of cone motion at listening levels.

The polyfill pre-installed in this enclosure is not filler — it acoustically increases the effective volume by slowing the speed of sound inside the box, which extends low-frequency response without increasing physical size. Combined with the 0.50 ft³ net volume, the system behaves closer to a 0.65–0.70 ft³ sealed enclosure acoustically. That is a meaningful difference at the low end for a box this size.

This system is for builds where space is genuinely constrained — sports car trunks, compact sedans, under-seat truck installs, or any application where a standard enclosure simply won't fit. At 21.5" wide and 5.25" deep it goes places nothing else does. The tradeoff versus a larger system is maximum output — this is an accuracy-first build, not an SPL build.

For amplifier power, target 300–400W RMS at 2 ohms. The 10TW3-D4 is rated at 400W RMS — stay in that range. A clean Class D monoblock at 300–400W is the correct match.

Materials

Material

Built From a Spec Sheet, Not a Sales Sheet

Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.

Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.

Specifications

Langboard Elite MDF: Published Mill Data

Property	Value	Why It Matters
Panel Stock	Langboard Elite MDF	Named, verifiable panel source, not generic "high-density MDF"
Thickness	3/4" (18mm)	Industry standard for subwoofer enclosures; panels below this flex under pressure
Density	48.5 lbs/ft³	Higher density = less porosity, better screw retention, reduced resonance
Internal Bond	200 psi	Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet
Modulus of Rupture (MOR)	4,200 psi	Bending strength before the panel breaks, relevant for larger unsupported baffle spans
Modulus of Elasticity (MOE)	410,000 psi	Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance
Face Screw Holding	325 lbs	How firmly the panel surface holds a screw; critical for baffle joint integrity over time
Edge Screw Holding	250 lbs	Panel edge retention, relevant for every joint that isn't face-to-face

Internal Bond

200 psi: The Number That Actually Matters for Enclosures

The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.

Stiffness

410,000 psi MOE: Less Flex, Less Resonance

The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.

Screw Holding

325 lb Face / 250 lb Edge: Joints That Stay Locked

Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.

Sourcing

Named Panel Stock: Not "Premium MDF"

The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.

Why Proline X?

Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.

CNC-Cut to Spec

Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
