Proline X Micro Series 12" Sealed Enclosure - Fits JL 12TW3
SKU: M12-S JL
- Best For: Behind-seat and under-seat truck installs, compact trunk builds needing accurate 12" bass
- Power: Rated for up to 400W RMS (JL Audio 12TW3)
- Topology/Class: Sealed / Double-Layer Stack Fab / Dowel Reinforced / Front-Fire or Downfire
- Sonic Character: Tight, accurate, musical — 0.80 cu ft hits JL Audio's published optimal sealed volume exactly
Financing available — choose Shop Pay Installments at checkout.
Proline X Micro Series 12" Sealed Enclosure - Fits JL 12TW3
Built Around the JL Audio 12TW3.
0.80 cu ft. Exactly.
JL Audio publishes 0.80 cubic feet as the optimum sealed volume for the 12TW3. The Proline X Micro Series enclosure for the 12TW3 delivers exactly that — net, after displacement — in a double-layer stack-fab build that is 6.75 inches deep. Tab-ear cutout machined to JL Audio's exact geometry. 8/32 threaded inserts for machine screw mounting. Front-firing or downfiring with feet included.
0.80 Cubic Feet — JL Audio's Published Optimum, Delivered Net
The JL Audio 12TW3 has a Fs of 26.5 Hz, a Qts of 0.53, and a Vas of 48.7 liters. JL Audio's published optimum sealed volume for this driver is 0.80 cubic feet. At that volume the system Qtc lands at the target JL Audio designed for in compact sealed applications — producing controlled extension into the low 30s with the tight transient response the TW3 platform is built around.
Generic 12" shallow-mount enclosures are built to approximate volumes and sold as universal fits. This enclosure is built to one spec, for one driver. The 0.80 cubic foot figure is net internal volume — calculated after driver displacement, double-layer baffle thickness, and polyfill are subtracted. Not approximated from external box dimensions before hardware is accounted for.

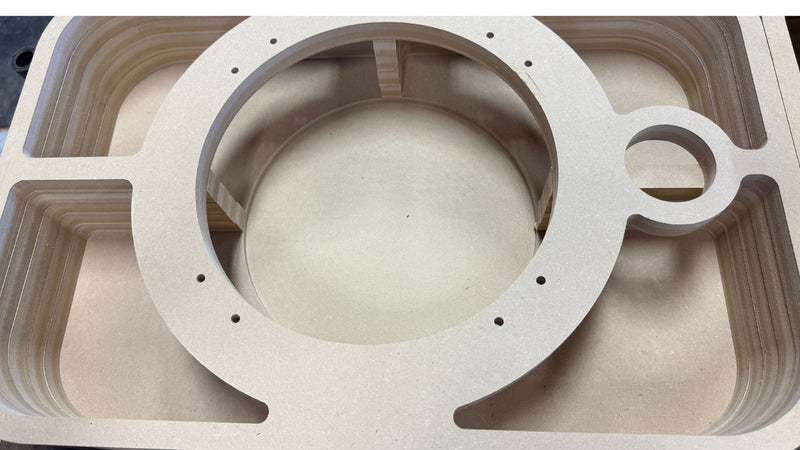

Stack-Fab Construction with a 1.5" Double-Layer Baffle
The front baffle is a double-layer stack-fab build — two CNC-cut Langboard Elite MDF panels bonded to 1.5 inches total thickness. The baffle carries the driver's mechanical mounting load and sustains the full acoustic pressure differential between the sealed interior and exterior on every bass transient. At 400 watts RMS on a 12" cone, a single 3/4" panel resonates at frequencies within the driver's operating range. Two bonded layers eliminate that coloration at the structural level.
The rest of the enclosure uses CNC-cut interlocking dado joints at every panel intersection — mechanical interlock before adhesive, adhesive seal after. Neither alone is the joint. The 6.75" total depth gives each side panel more inherent geometric rigidity than the ultra-shallow Wavtech builds in the same series, which means the dado joinery here is reinforcing an already more rigid structure rather than compensating for shallow panel depth.
0.80 cu ft Net — JL Audio's Published Optimum
JL Audio specifies 0.80 cubic feet as the optimum sealed volume for the 12TW3. This enclosure delivers that number net — after driver displacement, double-layer baffle thickness, and polyfill are subtracted. Not approximated from external dimensions.
1.5" Double-Layer — Baffle Resonance Eliminated
Two bonded layers of Langboard Elite 3/4" MDF produce a 1.5-inch baffle that does not flex or resonate at 400 watts RMS on a 12" driver. Panel resonance at the baffle adds coloration to bass output — double-layer construction eliminates it at the source.
8/32 Threaded Inserts — Correct for Tab-Ear Drivers
The 12TW3 uses injection-molded plastic mounting ears. Tapered wood screws apply outward pressure to those ears and will crack them under sustained vibration. 8/32 threaded inserts with stainless machine screws eliminate this failure mode entirely — the driver mounts to steel, not MDF, with even clamping force across all four ears.
Proline X Terminal Cup — Pre-Wired with 12g OFC
The Proline X terminal cup is installed and pre-wired with 12-gauge OFC run internally to the driver location. Connect your amplifier run to the terminal and mount the driver — no internal wiring work required.
11-5/8" Tab-Ear Geometry — Machined for the 12TW3
The baffle cutout is machined to the 12TW3's tab-ear geometry — 11-5/8" (295mm) with mounting points positioned for the TW3's four-ear spacing. The driver seats flush against the baffle gasket without shimming or modification.
Front-Firing or Downfiring — Feet Included
Rubber feet for downfiring installation are included. Run it front-firing in a standard trunk or cargo orientation, or flip it downward to couple bass output with the vehicle floor. The 12TW3's no-pole-vent design means there are no motor ventilation concerns in either orientation.
Dado Joinery — No Joint Relies on Glue Alone
Every panel joint uses CNC-cut interlocking dado slots — the mechanical interlock holds panel alignment under load before adhesive is applied. The adhesive seals the joint permanently. Both together produce an airtight, acoustically inert enclosure that holds its integrity under sustained use.
Polyfill Pre-Installed at the Factory
Polyfill is packed and installed at the factory before the enclosure ships. It acoustically extends effective internal volume for improved low-frequency output without adding external size. Factory installation ensures consistent packing density on every unit — not left to the installer to approximate.
Dowel-Reinforced Stack Fab — Mechanical Strength Beyond the Joint
The stack-fab assembly is further reinforced with dowels throughout the construction. Dowels add mechanical alignment and shear resistance at panel joints beyond what dado joinery and adhesive alone provide — locking the panel stack against lateral movement under the sustained excursion load a sealed enclosure generates at volume. The result is a structure that holds its geometry and its acoustic seal over years of real-world use.
Ready to Mount. Ready to Wire. Ready to Downfire.
The enclosure ships fully prepped. The Proline X terminal cup is installed and pre-wired with 12-gauge OFC — connect your amplifier run and that side is complete. The double-layer baffle uses 8/32 threaded inserts with stainless machine screws included — both critical for the 12TW3's tab-ear mounting system. Rubber feet for downfiring are included. Polyfill is already packed.
Impedance Options — 12TW3-D4 and 12TW3-D8
The JL Audio 12TW3 is available as the 12TW3-D4 (dual 4-ohm voice coils) and the 12TW3-D8 (dual 8-ohm voice coils). Both variants are physically identical and fit this enclosure. With the D4 wired in parallel you present a 2-ohm load; series presents 8 ohms. With the D8 wired in parallel you present a 4-ohm load; series presents 16 ohms. Most builds run the D4 at 2 ohms into a 2-ohm-stable monoblock in the 300–400 watt RMS range.
Where It Fits
At 26" × 14.75" × 6.75", this enclosure opens install locations that a conventional 0.80 cu ft sealed 12" box — typically 10–14" deep — cannot reach:
- Behind-seat — full-size crew cab and extended cab trucks
- Under rear bench — SUVs and full-size vans
- Trunk floor — full-size sedans and wagons
- Cargo floor — crossovers and mid-size SUVs
- Hatch floor — sports cars and hatchbacks
- Behind-seat downfire — truck cabs where floor coupling improves response
All Proline X Micro Series enclosures carry a two-year manufacturer's warranty against defects in materials and workmanship. Built and inspected in our Tullahoma, Tennessee facility before shipment. Contact Audio Intensity directly for warranty support.
Made in Tennessee
Every Proline X Micro Series enclosure is CNC-cut and hand-assembled in Tullahoma, Tennessee on ShopSabre CNC routers. Internal volume, dado joint depth, tab-ear cutout geometry, baffle layer count, and terminal placement are all held to spec on every unit. Langboard Elite MDF throughout — a named, mill-documented board with published density, internal bond, and screw-holding specifications.
| Compatible Driver | JL Audio 12TW3-D4 / 12TW3-D8 |
| Enclosure Type | Sealed |
| Internal Volume (Net) | 0.80 Cubic Feet |
| Material | Langboard Elite 3/4" MDF |
| Construction | CNC-Cut Stack Fab / Dado Joinery / Dowel Reinforced |
| Front Panel Thickness | 1.5 Inches (Double-Layer Stack Fab) |
| External Width | 26 Inches |
| External Height | 14.75 Inches |
| External Depth | 6.75 Inches |
| Max Mounting Depth | 3.5 Inches |
| Woofer Opening | 11-5/8" Tab-Ear Cutout — Direct Fit JL Audio 12TW3 |
| Driver Mounting | 8/32 Threaded Inserts — Stainless Machine Screws Included |
| Terminal Cup | Proline X Terminal Cup — Pre-Wired |
| Internal Wiring | 12-Gauge OFC (Oxygen-Free Copper) |
| Polyfill | Pre-Installed |
| Firing Direction | Front-Firing or Downfiring |
| Downfire Feet | Included |

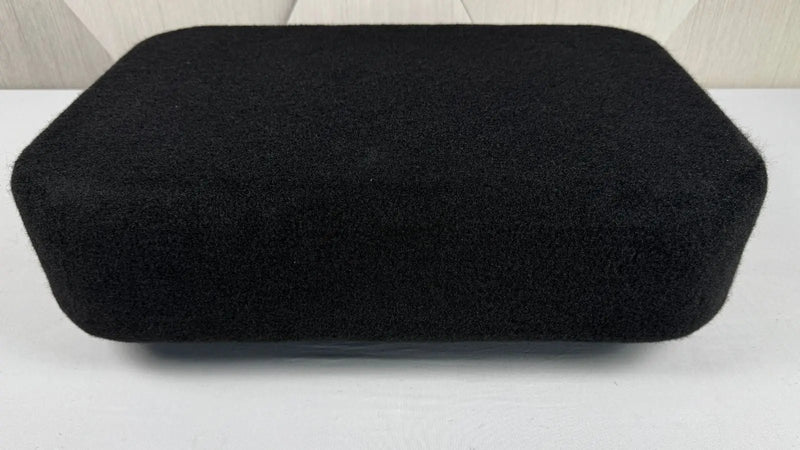

| Finish | Plush Black Automotive Carpet |
| Warranty | 2 Years — Proline X / Audio Intensity |
| Made In | Tullahoma, Tennessee, USA |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Micro Series enclosure is CNC-cut from Langboard Elite MDF — 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure — because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used across the full Proline X lineup.
Langboard Elite MDF — Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source — not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure — the most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks — relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention — relevant for every joint that isn't face-to-face |
200 psi — The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually — the symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE — Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness — resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with stack-fab layering and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level — not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge — Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint — where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Micro Series enclosure is not going anywhere.
Named Panel Stock — Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification — it is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
