Proline X
Performance Optimized Sealed Dual 12" Enclosure | Stereo Integrity 12" SQL Series
SKU: PO SI 12D-S BB
- Best For: Dual SI SQL 12 High-Power SQ+SPL Builds
- Net Volume: 2.0 cu ft Total (1.0 cu ft Per Isolated Chamber)
- Driver Match: Two Stereo Integrity SQL 12 Series 2 (D2 or D4)
- Construction: V-Groove/Dado | Double Baffle | Threaded Inserts
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Sealed Dual 12" Enclosure | Stereo Integrity 12" SQL Series
Performance Optimized | Dual Stereo Integrity SQL 12
Dual 12" Sealed Enclosure | Isolated Chambers | Dual Mounting Face for the SQL 12 Series 2
Two Stereo Integrity SQL 12s, Each in Their Own Engineered Chamber

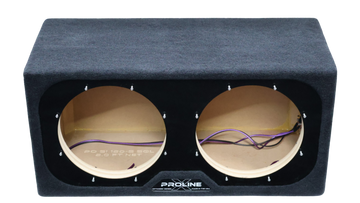

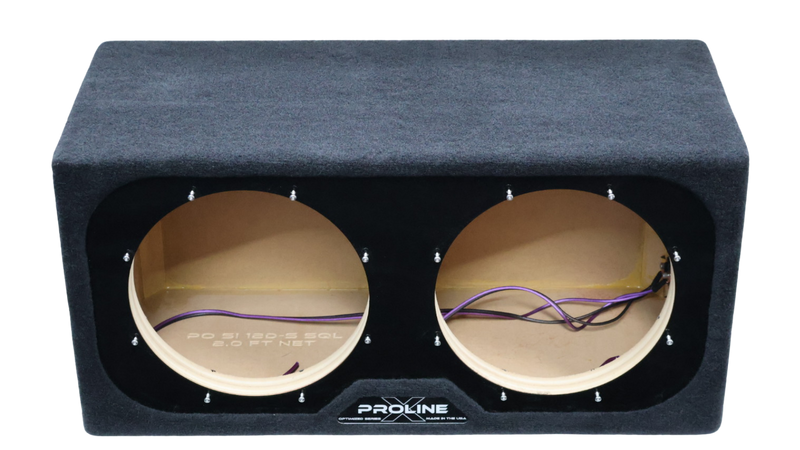

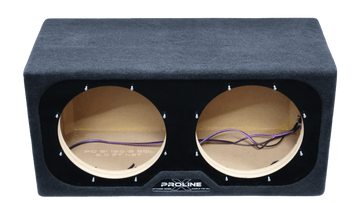

The Performance Optimized Dual Sealed 12 for the Stereo Integrity SQL 12 is a fully chambered sealed enclosure engineered around a pair of SQL 12 Series 2 subwoofers. Two isolated 1.0 cubic foot chambers, separated by a center divider, each tuned to the SQL 12's published Thiele-Small parameters. Dual mounting face design gives each driver its own dedicated baffle. No shared airspace, no acoustic crosstalk between drivers, no compromise from doubling up in a common chamber.
This is not the same construction as our common-chamber PO duals. The SQL 12 is a serious high-power driver — 1000 watts RMS per unit, 26mm one-way linear Xmax, and enough motor force to move meaningful air. At those power and excursion levels, isolated chambers stop being nice-to-have and become the correct engineering answer. Each SQL 12 operates in its own dedicated acoustic environment, unaffected by what the other driver is doing at any given moment.
Each SQL 12 gets its own sealed 1.0 cubic foot chamber — the maximum sealed volume Stereo Integrity specifies for the SQL 12 Series 2. The chambered design means each driver operates as if it were in its own dedicated single enclosure, with a center divider that also serves as structural bracing.
Why Isolated Chambers Matter at This Power Level
For lower-power dual subwoofer systems in the 300-500 watt per driver range, a common chamber works fine. Matched driver pairs load symmetrically, and shared airspace introduces minimal interaction. At the SQL 12's 1000 watt RMS per driver rating, the calculation changes. Higher power means more cone excursion, more thermal load, and more asymmetric behavior between the two drivers as they respond to different thermal and mechanical states in real time. Isolated chambers eliminate that variable entirely.
Symmetric Loading Under Real Power
Each SQL 12 operates against its own dedicated 1.0 cubic foot airspace. If one driver's voice coil resistance rises from heat faster than the other, or if one driver breaks in at a slightly different rate, the pair still performs consistently because they aren't coupled through shared air.
Force Cancellation Benefits
The dual mounting face design creates opposing forces that partially cancel through the cabinet structure. Less mechanical energy transferred to the vehicle chassis, less rattle in trim panels, and cleaner perceived output because the cabinet itself is doing less unwanted work.
Structural Rigidity
The center divider acts as a full-length brace in addition to its acoustic role. The 31" cabinet width is split into two 15.5" panel sections structurally, dramatically reducing panel flex compared to an unbraced wide interior at the power levels the SQL 12 delivers.
Predictable Behavior at Full Excursion
The SQL 12's 26mm one-way Xmax means significant air displacement per stroke. Isolated chambers guarantee each driver's air spring stays consistent through the full excursion range, without pressure variations from the second driver influencing the first.
Engineered Around the SQL 12's Parameters
Stereo Integrity specifies the SQL 12 Series 2 for sealed enclosures between 0.65 and 1.0 cubic feet per driver. The Performance Optimized Dual Sealed 12 delivers 1.0 cubic foot per chamber — the upper end of SI's specified range, where the SQL's deep low-end extension characteristics fully develop. In a properly sized cabinet, the SQL 12 plays down to F3 points in single-digit territory, delivering the low-frequency response that makes SI's SQL series unmatched at its price point.
Volume Selection
1.0 cubic foot per chamber is the maximum of SI's recommended sealed volume range. Smaller volumes tighten Qtc and lose some low-end extension. Larger volumes fall outside SI's specification and compromise transient control. 1.0 cubic foot per driver is where the SQL 12 delivers on its full low-end capability while staying inside the driver's engineered operating window.
Mounting Geometry
Both baffles are cut to the SQL 12's exact 11.33" cutout specification and doubled to 1.5" total thickness at the mounting position. The SQL 12's 7" mounting depth leaves comfortable internal clearance inside the 13.625" deep cabinet. Each driver has its own dedicated mounting face — a true dual-face design that separates the two drivers acoustically and mechanically, with 8/32 threaded inserts pressed into the doubled baffle stock for secure, full-depth mounting.
Performance Series Construction, Driver-Specific Tuning
Double Baffle Mounting Faces
Each of the two mounting faces uses a doubled 1.5" total baffle thickness — two layers of 3/4" Langboard Elite MDF bonded together at the driver mounting position. Doubled baffle stock resists baffle flex and mounting screw pullout at the power levels the SQL 12 delivers.
8/32 Threaded Inserts Into Double Baffle
Both baffles use 8/32 threaded inserts pressed into the doubled 1.5" MDF backside, providing full-depth thread engagement for the supplied stainless steel mounting screws. No stripped pilot holes, no MDF damage from drywall screws, and secure retention at high excursion levels.
V-Groove and Dado Joinery
CNC-cut V-grooves at every panel intersection let the cabinet fold into shape with maximum glue surface. Dado joints lock the doubled baffles, rear panel, and center divider into the side walls — no fasteners visible from outside, no exposed end grain at joints.
Pre-Wired Terminal Cups (×2)
One Proline X ABS/carbon fiber composite terminal cup per chamber, each pre-wired with 12-gauge OFC. Wire each driver to its own amp channel for maximum control, or jumper the cups externally for a single-channel pair.
Every panel is cut on ShopSabre CNC routers in our Tullahoma, TN facility. The center divider is dadoed into the top, bottom, and rear panels for maximum mechanical lock — not just glued in. Both mounting baffles are doubled to 1.5" total thickness at the mounting positions. Internal volume is verified per chamber on every unit.
Customize Your Build
Carpet Finish
Dark Gray Trunkliner is the standard durable wrap, matched to most factory trunk and cargo-area carpet tones. Plush Black (+$10) is a deeper, more luxurious nap that pairs well with blacked-out interiors and show builds.
Acrylic Insert Color
Choose Black, Blue, Red, or White for the baffle inserts to match your build. Or skip the inserts entirely (-$40) for a clean, understated look. The inserts are purely cosmetic — performance is identical across colors.
Box-Only or Loaded Pair
Add a matched pair of Stereo Integrity SQL 12 Series 2 drivers directly to your order in Dual 2-ohm or Dual 4-ohm and Paper or Carbon Fiber dust cap configurations. Already own your SQL 12s? Order the enclosure box-only and drop in the drivers you have.
Wiring Two SQL 12s to Your Amplifier
Each chamber has its own dedicated terminal cup, pre-wired with 12-gauge OFC. The two cups can be jumpered externally for a single-amp installation, or wired independently for dual monoblock or multi-channel amplifier setups.
Two Dual 2-Ohm SQL 12s
Each driver's coils in parallel = 1 ohm per driver. Two 1-ohm drivers in parallel = 0.5 ohm combined (most monoblocks won't handle this — verify your amp). Two 1-ohm drivers in series = 2 ohms combined. Each driver on its own monoblock at 1 ohm gives you the cleanest high-power setup.
Two Dual 4-Ohm SQL 12s
Each driver's coils in parallel = 2 ohms per driver. Two 2-ohm drivers in parallel = 1 ohm combined. Two 2-ohm drivers in series = 4 ohms combined. Dual 4-ohm is the more flexible option for most amplifier setups at these power levels.
The SQL 12 pair is rated for 2000 watts RMS combined. Aim for a clean, well-regulated amplifier or amplifier pair delivering 1500 to 2000 watts total at your chosen impedance. At this power level, amplifier quality matters more than headline numbers — regulated power supply, low THD, and honest RMS ratings.
Built in Tennessee, Backed by Audio Intensity
Every Performance Optimized enclosure is CNC-cut, assembled, and finished in our Tullahoma, TN facility. Components are pulled from inventory after your order is placed, then bonded and wrapped — a 2 to 5 business day assembly window before the box ships. No pre-built inventory sitting in warehouses, warping in storage. Each unit is built to order.
Backed by a 1-year limited warranty against structural failure and hardware defects. Questions on fitment, wiring, or amplifier pairing? Contact us — we install this gear ourselves, in our own vehicles.
Two SQL 12s, Engineered Correctly
Isolated chamber design, dual mounting face, driver-specific 1.0 cubic foot chambers, and Performance Series construction built for the power levels the SQL 12 delivers. The correct cabinet for a serious pair of SIs.
| Enclosure Type | Sealed | Isolated Dual Chamber |
| Baffle Configuration | Dual Mounting Face | Double Baffle (1.5" Total Thickness) |
| Driver-Specific Fitment | Stereo Integrity SQL 12 Series 2 (Dual 2Ω or Dual 4Ω) |
| Internal Volume (Net Total) | 2.0 Cubic Feet |
| Internal Volume (Per Chamber) | 1.0 Cubic Feet |
| Material | Langboard Elite 3/4" MDF (Doubled at Mounting Faces) |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Construction | ShopSabre CNC / Full-Length Center Divider |
| External Width | 31 Inches |
| External Height | 15 Inches |
| External Depth | 13.625 Inches |
| Mounting Hole Diameter | 11.33 Inches (×2) |
| Max Mounting Depth | 13 Inches |
| Mounting Hardware | 8/32 Threaded Inserts Into Double Baffle | Stainless Steel Screws Included |
| Terminal Cups | (2) Proline X ABS/Carbon Fiber Composite | 12g OFC Pre-Wired |
| Damping | Polyfill Pre-Installed (Both Chambers) |
| Recommended Power | 1500-2000 Watts RMS Combined (1000W RMS Per Driver) |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black (+$10) |
| Acrylic Insert | Black, Blue, Red, White, or None (-$40) |
| Bundle Options | Box Only | Add 2 Paper Cone Drivers | Add 2 Carbon Fiber Drivers |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF — 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure — because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF — Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source — not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure — the most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks — relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention — relevant for every joint that isn't face-to-face |
200 psi — The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually — the symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE — Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness — resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level — not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge — Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint — where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock — Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification — it is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
