Crescendo Revolution 10 inch Subwoofer – High-End 10″ Car Audio Bass

High-Excursion Underhung Motor for Low Distortion

Underhung motor technology is at the heart of the Revolution 10″ Subwoofer’s performance. In an underhung design, the voice coil is shorter than the magnetic gap, which means the coil remains fully immersed in the magnetic field even at extreme cone excursions. The result is significantly reduced distortion and exceptionally linear cone motion. In practical terms, this subwoofer produces clean bass, regardless of how hard you push it – music sounds tight and controlled at high volumes, without the muddiness or “bottoming out” that plagues lesser subs. This design also contributes to the sub’s ability to produce bass at low volume levels without losing detail. Whether you’re listening quietly or cranking it up, the advanced underhung motor ensures the sound remains accurate and free from unwanted coloration.

Carbon Fiber Cone and NBR Surround for Accurate Bass

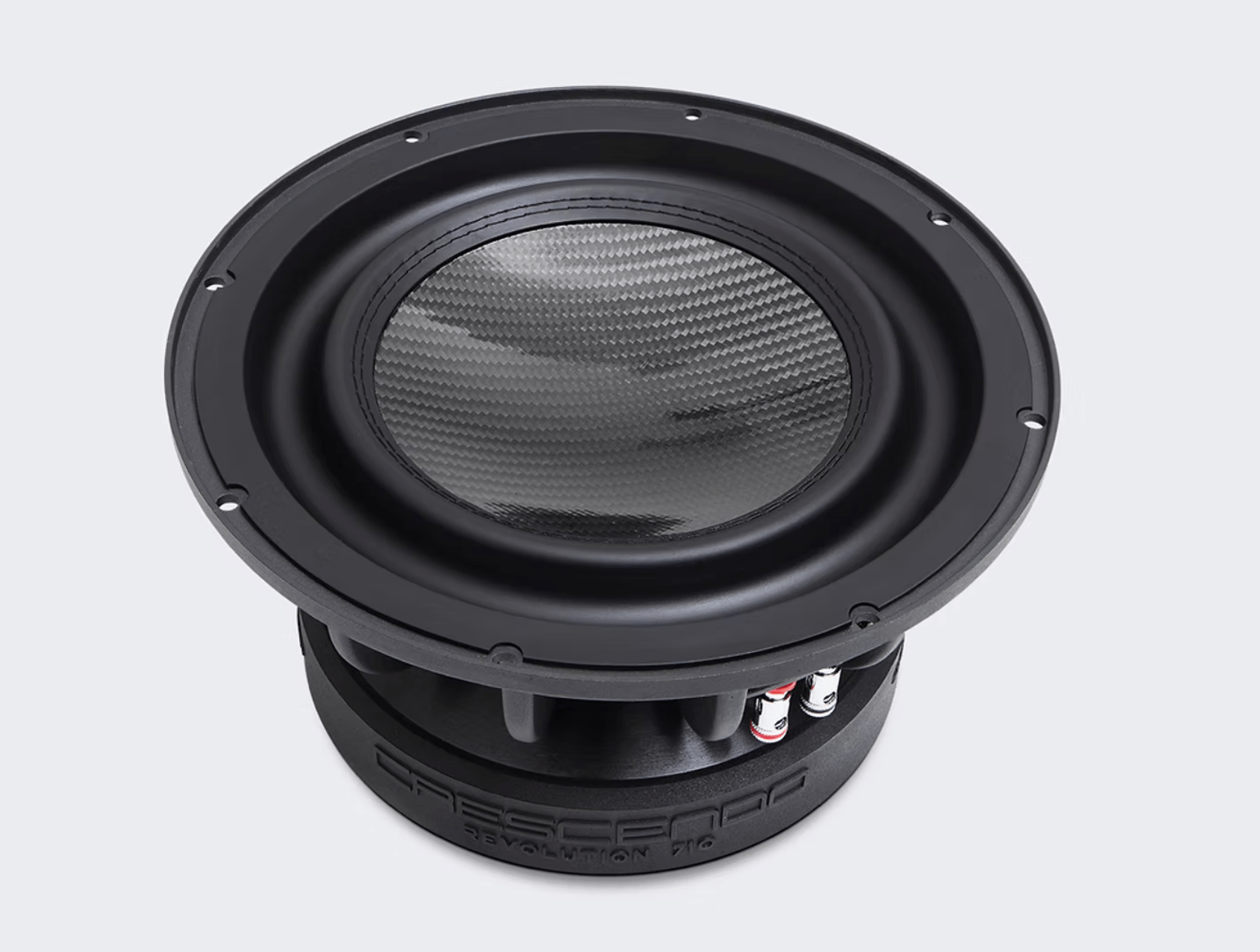

The Crescendo Revolution 710 features a carbon fiber cone, a premium diaphragm material chosen for its excellent strength-to-weight ratio. This stiff, lightweight cone resists flexing even during intense bass hits, so it faithfully reproduces all the musical nuances in your low frequencies. You’ll hear quick, punchy kick drums and rumbling sub-bass tones exactly as they were intended, without the cone distortion that can blur the sound. Surrounding the cone is an inverted parabolic NBR surround (made of nitrile-butyl rubber). This robust surround is crafted to maintain linear control over the cone’s movement throughout the sub’s high excursion range. It prevents the cone from tilting or over-extending, ensuring that even at maximum excursion, the bass stays tight and controlled. The NBR material is also highly durable and weather-resistant, ensuring it will not dry out or crack over time. Together, the carbon fiber cone and NBR surround enable the Revolution subwoofer to deliver distortion-free, accurate bass that car audio enthusiasts crave, while also providing longevity for daily use in varying climates.

Nomex Spider and Robust Construction

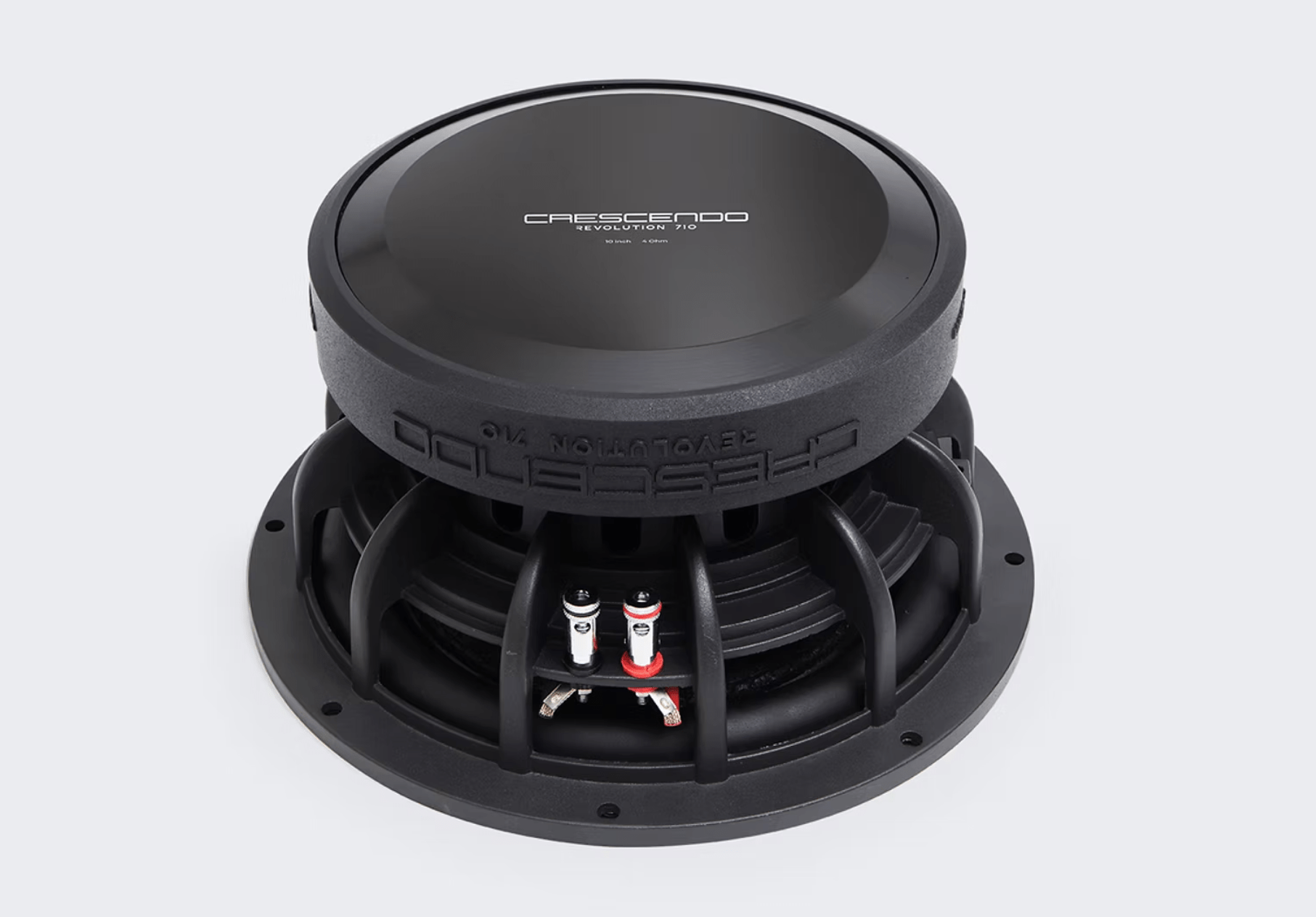

Every component of the Crescendo Revolution 10-inch Subwoofer is built with longevity and performance in mind. It utilizes a Nomex spider (the springy fabric disk that centers the voice coil and cone) to maintain the moving assembly's precise alignment. Nomex is a heat-resistant, resonance-damping material, which means the spider won’t deform under stress and will maintain consistent tension over time. This translates to reliable performance – the sub will sound just as tight after years of play as it did on day one. The voice coil itself is a large 2″ diameter unit wound on a Kapton former, capable of handling high temperatures from extended play. It’s a flat-wound copper coil that maximizes density in the magnetic gap, enhancing efficiency and control. A massive, high-grade ferrite magnet drives this underhung coil, generating a powerful magnetic flux that the coil pushes against. The motor and basket are engineered with ventilation to cool the coil and prevent power compression during demanding sessions.

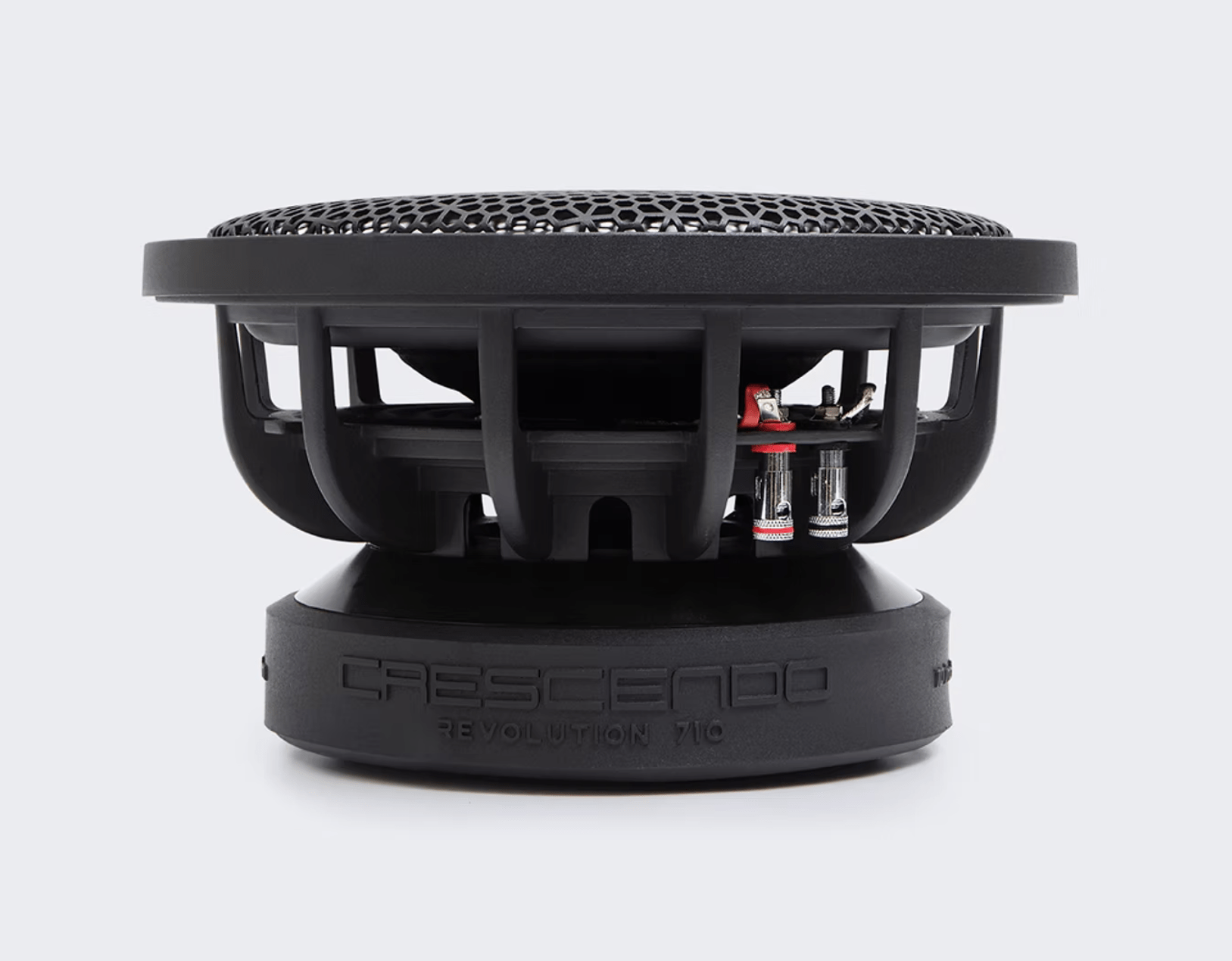

Additionally, the Revolution 710’s chassis is a cast aluminum basket that provides a rigid, non-resonant platform for the motor and cone. This robust build eliminates flex and vibration that could affect the sound quality. In short, Crescendo has spared no expense in construction, from the spider to the magnet, ensuring this subwoofer delivers consistently tight, responsive bass throughout its life.

Small Sealed-Box Optimization

Unlike many high-end subs that require large enclosures, the Crescendo Revolution 10" is optimized for small sealed boxes – a significant advantage for installers and daily drivers. In a sealed enclosure as compact as ~0.5 cu ft, this sub achieves a smooth low-end roll-off that extends into the 20 Hz range when aided by typical in-cabin gain. This means you get accurate deep bass without needing a big, space-guzzling subwoofer box. For car enthusiasts with limited trunk space or those driving hatchbacks, coupes, or electric vehicles (EVs), the Revolution 710 offers a perfect solution: you can build a stealthy installation (even a custom fiberglass corner enclosure or under-floor mount) and still enjoy powerful, full-bodied bass. The recommended 15–18 liter sealed volume is an adaptation to modern vehicle design – it’s small enough to fit in tight places while still yielding excellent sound quality. Ported or vented enclosures are not required (in fact, not recommended for this model), simplifying the installation and tuning process. With a sealed box, you’ll experience very accurate transient response (fast bass) and a flatter response curve, which is precisely what the Revolution series was engineered for. This subwoofer essentially brings competition-grade sound quality into everyday vehicles, proving you don’t need a giant enclosure to get big, clean bass.

Designed for Daily Driving & Ease of Installation

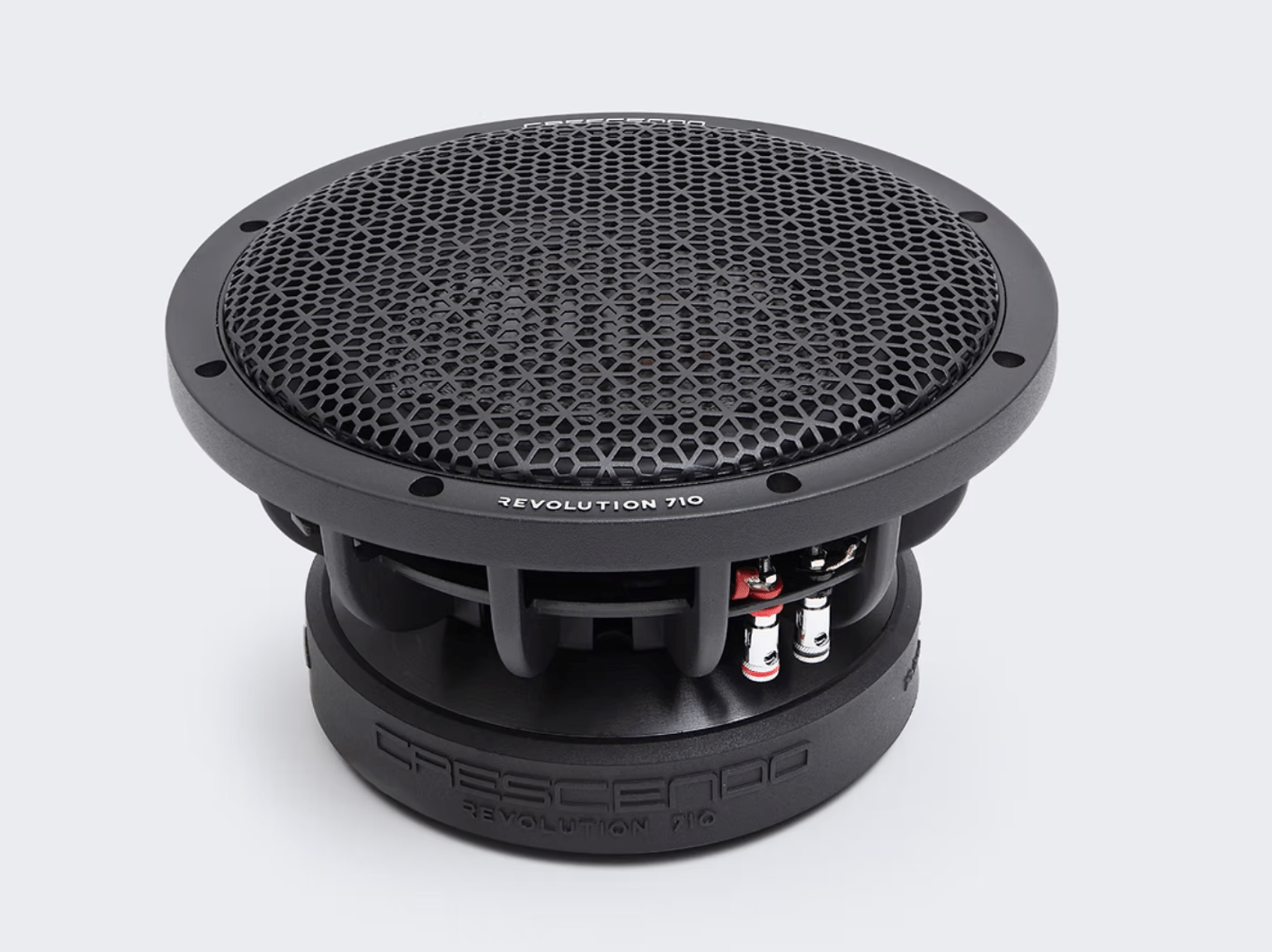

While the Crescendo Revolution 10″ Subwoofer boasts competition-level design, it’s truly built for the demands of daily driving. It's “Normal” mounting depth and profile allow it to fit where many other high-end subs can’t – you won’t need extreme custom fabrication to mount it. The sub comes with a custom aluminum trim ring and a mesh grille, which not only protects the cone from damage but also gives the installation a professional, finished look. These accessories make it easy to achieve an OEM-style appearance (for example, by flush-mounting the sub in a rear deck or trunk panel) without clutter from aftermarket components. From an amplifier pairing perspective, the Revolution 710’s 4-ohm single voice coil is compatible with most mono or bridged amplifiers. Its 300–500 W RMS rating means it pairs well with a wide range of amps in the ~500 W @ 4Ω class. You don’t need an exotic amp to drive it; even a quality Class D monoblock will unlock its potential. Crescendo’s focus on linearity and efficiency in this sub means that, when properly installed and tuned, you’ll get tight, punchy bass for rock and pop, as well as rich, deep extension for R&B, hip-hop, or movie soundtracks. In everyday use, users report that the Revolution 10″ sub provides a noticeable improvement in overall sound realism – it adds that missing layer of depth to your audio system, turning your car into a rolling soundstage. Whether you’re an audiophile seeking reference-quality sound or just someone who loves impactful bass on the commute, this subwoofer is designed to satisfy, day in and day out.
