Performance Optimized Wedge Sealed 12" Audiophile Enclosure | Image Dynamics IDMAX12 V.4

The Image Dynamics IDMAX12 V.4 in an Audiophile-Tuned Sealed Cabinet

The Image Dynamics IDMAX12 V.4 is a competition-grade 12-inch subwoofer engineered for sound quality competitors and audiophile daily-driver builds. Glass fiber reinforced pressed paper pulp cone, aluminum neck joint for structural integrity under sustained excursion, oversized motor structure, Nomex spider suspension for thermal survival, parabolic Santoprene surround, American-made flat-wound extended voice coil, heavy-duty cast aluminum frame, and Image Dynamics' bolt-on field-replaceable cone assembly (16 screws, no glue, alignment shims included) that turns a blown cone into a fifteen-minute rebuild rather than a lost driver. 500 watts RMS continuous power handling, 19.5mm one-way linear excursion, 545 cm² of piston area, 2-inch voice coil, dual voice coil in either 2-ohm or 4-ohm configuration. The IDMAX12 is the middle driver in Image Dynamics' three-size IDMAX platform and the size most sound quality competitors choose for the balance of extension, output, and cabinet manageability.

The Performance Optimized Wedge Sealed 12 for Image Dynamics IDMAX 12 is engineered to Image Dynamics' Audiophile-tier sealed alignment. 1.94 cubic feet gross internal volume minus the IDMAX12's 0.14 cubic foot total driver displacement lands at 1.80 cubic feet net — exact match to Image Dynamics' published Audiophile spec of 1.8 cu ft for the IDMAX12 platform. This is not the compact-cabinet alignment. This is where the IDMAX12 was designed to live.

Trunk-Load Wedge Design Explained

This wedge is not a front-firing enclosure. The woofer is mounted on the vertical face that sits at the back of the box, closest to the trunk lid, and fires rearward into the trunk cavity. The angled face is on the opposite side of the box — the side that faces the front of the vehicle — and tucks against the rear seat back. Two different problems solved by one geometry, applied here to a driver that rewards the trunk-load approach with the extension and control an audiophile alignment can deliver.

Audiophile Alignment Explained | Why 1.80 Cubic Feet Net

Image Dynamics publishes three sealed alignments for the IDMAX12 platform in the V.4 series manual — a Compact alignment (0.65 cu ft) for maximum power handling in constrained installs, a Universal alignment (1.0 cu ft) for balanced performance, and the Audiophile alignment (1.8 cu ft) for maximum extension and lowest Qtc. Each alignment produces a different acoustic character with different power handling ceilings and different F3 targets. The Performance Optimized Wedge Sealed 12 is engineered to the Audiophile alignment target exactly.

Predicted Alignment at 1.80 Cubic Feet Net

Using Image Dynamics' published Thiele-Small parameters for the IDMAX12 V.4, calculated using the same formulas as the Audio Intensity Sealed Box Calculator, here is what the Audiophile alignment produces for each impedance variant:

Both alignments are legitimate audiophile territory. The D2 sits slightly above classic Butterworth (Qtc 0.707) for a controlled, accurate response with the flattest character available from an IDMAX in this alignment. The D4 runs modestly higher Qtc for a warmer character with a slight upper-bass lift, and interestingly reaches similar F3 to the D2 despite the higher Qtc — because the D4's slightly higher Fs is offset by the higher-Q resonance behavior. Neither variant produces the punchy midbass-forward character of a compact-cabinet alignment. This cabinet is built for the extended, controlled side of the IDMAX12's capabilities.

D2 vs D4 Selection Note

An important point that differs from the IDMAX10 build: on the IDMAX12, the D4 runs a higher Qts than the D2 (0.58 vs 0.52), which produces the higher Qtc alignment. On the IDMAX10, the pattern was reversed (D4 Qts 0.44 was lower than D2 0.50). This means on the IDMAX12 the D2 is the flatter, more Butterworth-adjacent choice, while on the IDMAX10 the D4 was the tighter overdamped choice. If you are cross-shopping between the two sizes and want the flattest audiophile character in either, that means D4 on the 10" or D2 on the 12". If you want a slight warmer midbass lift, that means D2 on the 10" or D4 on the 12".

What Audiophile Alignment Trades Against

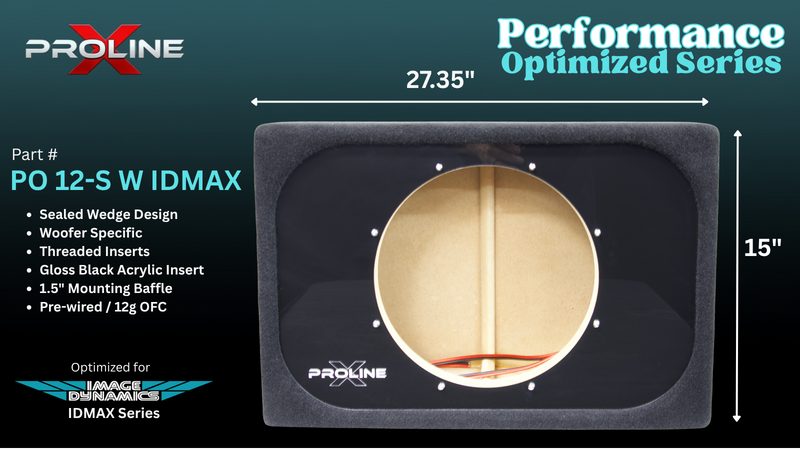

The extended low-end and controlled Qtc come with real trade-offs worth understanding before you order. Cabinet size is significantly larger than a compact 12" enclosure — 27.35" wide, taking up meaningful trunk space. Power handling in a larger cabinet is lower than in a compact alignment because reduced air-spring loading allows greater cone excursion at the same input power — plan for 400-500 watts RMS input rather than pushing the driver's 500W thermal limit continuously. Efficiency is slightly lower — cabin gain and vehicle acoustics matter more when the cabinet does not add its own peak. The audiophile alignment is the right answer when accuracy and extension matter more than compact fitment or maximum output.

Impedance and Amplifier Matching

The D2 wired in parallel presents a 1-ohm load — pair it with a modern class D monoblock stable at 1 ohm delivering 400-500 watts RMS. The D4 wired in parallel presents a 2-ohm load — pair it with a class D monoblock delivering 400-500 watts RMS at 2 ohms. Both variants fit this cabinet identically since the physical dimensions and displacement are the same across the DVC configurations.

Mounting Geometry and Driver Fitment

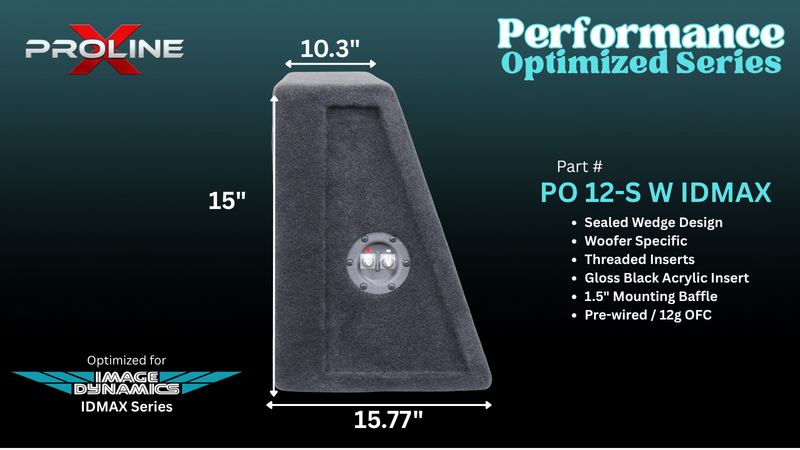

The vertical trunk-lid-side baffle is cut to the IDMAX12 V.4's exact 11.02" cutout specification. The IDMAX12's 8.15" mounting depth fits inside the cabinet with proper clearance — internal depth from the vertical baffle to the interior of the angled seat-side face ranges from approximately 9.55" at the top baffle edge to 15.02" at the bottom (after accounting for 3/4" MDF panel thickness), with the driver's mounting position at cabinet center providing over 12.28" of clearance behind the motor. Substantial room for the IDMAX12's large motor structure and heavy backplate.

Performance Series Construction, Built for Sustained IDMAX Operation

Every panel is cut on ShopSabre CNC routers in our Tullahoma, TN facility. The angled seat-side panel requires precise CNC compound cuts to hit both the 1.80 cu ft net audiophile alignment target and the mating angles between the top and bottom edges. Internal volume is verified on every unit to ensure the audiophile-alignment target is achieved.

Customize Your Build

Carpet Finish

Dark Gray Trunkliner is the standard durable wrap, matched to most factory trunk and cargo-area carpet tones. Plush Black (+$10) is a deeper, more luxurious nap that pairs well with blacked-out interiors and show builds.

Acrylic Insert Color

Choose Black, Blue, Red, or White for the baffle insert to match your build. Or skip the insert entirely (-$40) for a clean, understated look. The insert is purely cosmetic — performance is identical across colors.

Enclosure Only

This listing is for the enclosure only. Drop in your existing Image Dynamics IDMAX12 V.4 D2 (Dual 2-ohm) or IDMAX12 V.4 D4 (Dual 4-ohm) subwoofer — the cabinet fits both variants identically. Source your driver from Image Dynamics or an authorized ID dealer.

Wiring the Image Dynamics IDMAX12 V.4 to Your Amplifier

The IDMAX12 V.4 is a dual-voice-coil driver available in two impedance configurations. The pre-wired terminal cup accepts the two-conductor connection via 12-gauge OFC, with stainless steel input hardware accepting both spade and banana terminations.

IDMAX12 V.4 D2 (Dual 2-ohm): Parallel wiring presents a 1-ohm load — ideal for modern class D monoblocks stable at 1 ohm delivering 400-500 watts RMS at that impedance. Series wiring presents 4 ohms if your amplifier is not 1-ohm stable. Note that the IDMAX12 D2 has Re of 1.65 ohms per coil, giving a combined parallel load closer to 0.83 ohms measured — verify your amplifier is rated for sub-1-ohm operation before wiring parallel.

IDMAX12 V.4 D4 (Dual 4-ohm): Parallel wiring presents a 2-ohm load — compatible with essentially all class D monoblocks. Series wiring presents 8 ohms for amplifiers that prefer higher impedance loads. The D4 is generally the easier match for standard mainstream amplifiers, especially given the D2's sub-1-ohm parallel measured impedance.

The IDMAX12 is rated for 500 watts RMS continuous. In the audiophile 1.80 cu ft alignment, the reduced air-spring loading means the driver reaches its mechanical excursion limit before its thermal limit — plan for 400-500 watts RMS input from a well-regulated class D monoblock rather than pushing continuous operation at or above the thermal rating. Set your amplifier's active low-pass filter between 70 and 90 Hz for musical accuracy in a full-range system. Subsonic filter around 20-25 Hz to protect the mechanical suspension at frequencies well below the alignment's Fc.

Built in Tennessee, Backed by Audio Intensity

Every Performance Optimized enclosure is CNC-cut, assembled, and finished in our Tullahoma, TN facility. Components are pulled from inventory after your order is placed, then bonded and wrapped — a 2 to 5 business day assembly window before the box ships. No pre-built inventory sitting in warehouses, warping in storage. Each unit is built to order.

Backed by a 1-year limited warranty against structural failure and hardware defects on the enclosure. Your Image Dynamics IDMAX12 V.4 subwoofer is covered by Image Dynamics' 1-year manufacturer warranty when purchased through an authorized ID dealer. Questions on fitment, wiring, or amplifier pairing? Contact us — we install this gear ourselves, in our own vehicles, and Audio Intensity's owner has judged IASCA National and MECA World SQ competitions since 2019.
