Performance Optimized Wedge Sealed 10" Enclosure | Rockford Fosgate T1D210
SKU: PO 10-S W T1
- Best For: Rockford Fosgate T1D210 Trunk-Fit SPL-Capable Builds (Compact Sedans, Coupes, Cargo Space Limited)
- Net Volume: 0.746 cu ft (RF Spec: 0.75 EXACT | 0.95 cu ft Gross)
- Driver Match: Rockford Fosgate T1D210 (DVC 2Ω) or T1D410 (DVC 4Ω)
- Construction: Rear-Firing Wedge | V-Groove/Dado | FlexFit Baffle Ready
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Wedge Sealed 10" Enclosure | Rockford Fosgate T1D210
Performance Optimized Wedge | Rockford Fosgate T1D210
Single 10" Sealed Wedge Enclosure | Rear-Firing Trunk-Load Design for the Rockford Fosgate T1 Power Series
The Rockford Fosgate T1D210 in RF's Spec-Perfect Sealed Volume
The Rockford Fosgate T1D210 is the current-generation Power T1 series 10-inch subwoofer, engineered around Rockford's patented VAST (Vertical Attach Surround Technique) technology that increases effective radiating cone area by up to 25% over conventional 10" drivers. 600 watts RMS CEA-2031 compliant power handling, 1200 watts peak, dual 2-ohm voice coils, 16mm one-way Xmax, a rigid die-cast aluminum FlexFit basket, Kevlar fiber reinforced paper cone, anodized aluminum voice coil former for superior heat dissipation, and Klippel-verified design tolerances. Same core engineering as its larger T1D212 sibling, sized for smaller trunks and installations where a 12" won't fit.
The Performance Optimized Wedge Sealed 10 for Rockford Fosgate T1 is engineered to hit RF's exact published sealed specification. 0.95 cubic feet gross internal volume minus the T1D210's 0.204 cubic foot total driver displacement lands at 0.746 cubic feet net — essentially exact match to Rockford's 0.75 cubic foot published sealed spec, delivering the alignment RF's engineers designed the T1D210 to operate in.
0.95 cubic feet gross = 0.746 cubic feet net after the T1D210's 0.204 cubic foot total driver displacement. Essentially exact match to Rockford Fosgate's published 0.75 cubic foot sealed spec for the T1D210. The wedge geometry mounts the woofer on the vertical trunk-lid-side face, firing rearward into the trunk cavity — classic SQ trunk-load pattern applied to Rockford's SPL-capable T1 platform.
Trunk-Load Wedge Design Explained
This wedge is not a front-firing enclosure. The woofer is mounted on the vertical face that sits at the back of the box, closest to the trunk lid, and fires rearward into the trunk cavity. The angled face is on the opposite side of the box — the side that faces the front of the vehicle — and tucks against the rear seat back. Two different problems solved by one geometry.
Seat-Side Face Matches Seat Lean

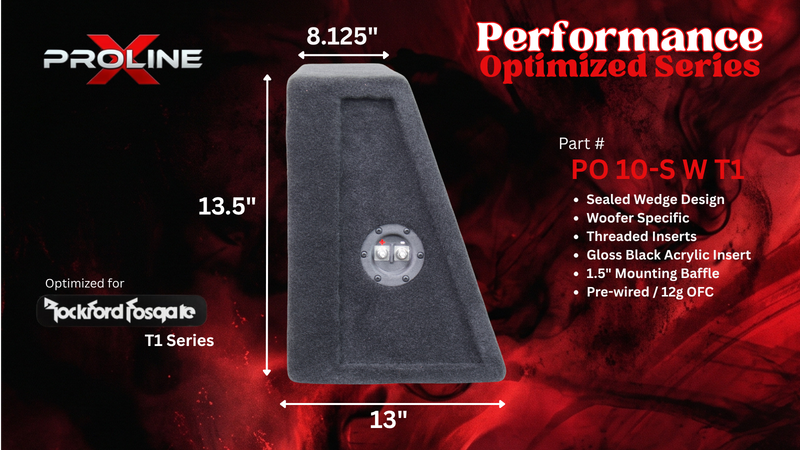

Most factory rear seat backs lean roughly 20 degrees back from vertical. The angled face of this wedge (8.125" at the top, 13" at the bottom) matches that lean, tucking against the seat back with no wasted gap. The compact 10" cabinet footprint fits trunks where the larger 12" T1 wedge would be too big.
Trunk-Lid-Side Face Fires the Woofer

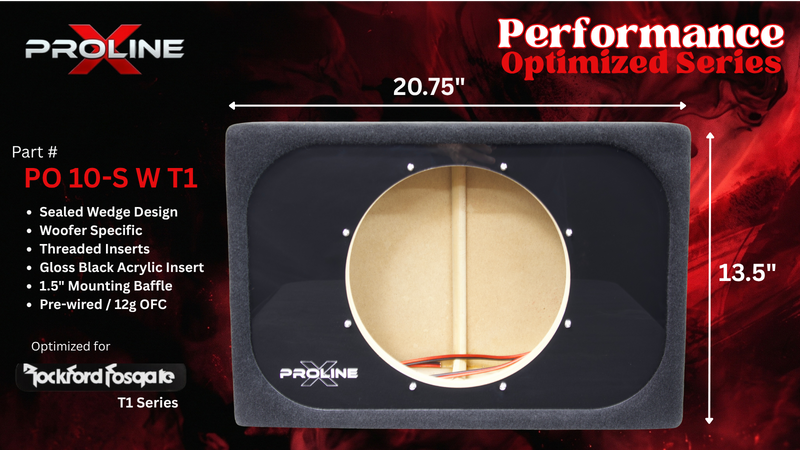

The vertical face on the opposite side of the wedge (20.75" wide × 13.5" tall) is where the T1D210 mounts. The driver fires rearward toward the trunk lid, using the trunk cavity as an acoustic loading chamber. This is the classic SQ trunk-load install pattern applied to Rockford's SPL-oriented T1 series.
Trunk Cavity Loading
Firing the woofer into the trunk cavity rather than directly into the cabin uses the trunk itself as an extension of the acoustic system. Low frequencies transmit into the passenger cabin through the rear deck, seat back, and cabin boundaries — a smoother, less-localized presentation than direct-firing setups.
Compact Footprint, Full-Power 10"
20.75" wide by 13.5" tall by 8.125-13" deep. Smaller than the 12" T1 wedge in every dimension while still delivering RF's 600 watt RMS 10" performance. Fits in compact sedan trunks, coupe cargo areas, and vehicles where the larger 12" cabinet won't clear parcel shelves or wheelwells.
Engineered to Rockford Fosgate's Published Sealed Specification
Rockford Fosgate publishes exactly 0.75 cubic feet net internal as the recommended sealed enclosure volume for the T1D210. This spec is RF's own engineered target — the volume where the T1's motor structure, VAST-enhanced cone assembly, and progressive-roll spider suspension deliver the sealed response their Klippel-verified design targets. The Performance Optimized Wedge Sealed 10 delivers 0.95 cubic feet gross internal, which after subtracting the T1D210's total driver displacement of 0.204 cubic feet lands at 0.746 cubic feet net — right on RF's published spec.
Sealed vs. Ported for the T1D210
The T1D210 is a versatile driver that Rockford supports both sealed (0.75 cu ft) and vented (1.5 cu ft) applications for. Sealed operation delivers the tightest, most controlled bass response — ideal for musical accuracy, sound quality installs, and daily-driven vehicles where cabin gain rewards a slightly warmer alignment. If you're building a maximum-SPL system or want the peak-tuned resonance boost of a ported enclosure, RF's 1.5 cu ft vented spec is worth considering as a separate build. This cabinet is engineered specifically for RF's sealed alignment — the SQ-oriented, musically accurate side of the T1D210's capabilities.
Mounting Geometry and Driver Fitment
The vertical trunk-lid-side baffle is cut to the T1D210's exact 9.0625" cutout specification. The T1D210's 6.375" mounting depth fits inside the cabinet with clearance — internal depth from the vertical baffle to the interior of the angled seat-side face ranges from approximately 7.375" at the top edge to 12.25" at the bottom (after accounting for 3/4" MDF panel thickness), with the driver's mounting position at cabinet center providing over 9.5" of clearance behind the motor. Ample room for the T1's substantial magnet structure and inductive damping heat sink.
FlexFit Basket Consideration
The T1D210 uses Rockford's FlexFit basket — a slot-mounted frame pattern that allows fine-tuning of the driver's rotational mounting position. The Proline X wedge baffle is drilled with a standard 8-hole bolt pattern compatible with the T1D210's slotted mounting geometry. Threaded 8/32 inserts pressed into the baffle backside accept stainless steel machine screws included with the enclosure.
Performance Series Construction, Built for 600W RMS Operation
Langboard Elite MDF
Premium 3/4" MDF panels milled to documented spec — denser and more dimensionally stable than commodity MDF. Necessary for an enclosure housing a 600 watts RMS driver: panel resonance would color the sound and MDF creep would allow air leaks over time under sustained high-power operation. Langboard's density and stability address both.
V-Groove and Dado Joinery
CNC-cut V-grooves at every panel intersection let the wedge cabinet fold into its angled shape with maximum glue surface. Dado joints lock the vertical woofer baffle and the angled seat-side panel into the side walls — no fasteners visible from outside, no exposed end grain at joints, no compromise on structural integrity under high-excursion driver operation.
8/32 Threaded Inserts
Threaded inserts pressed into the vertical woofer baffle accept stainless steel mounting screws. No stripped pilot holes, no MDF damage from drywall screws, no surprises when the next driver upgrade rolls around. Full compatibility with the T1D210's FlexFit slot-mounted frame pattern.
Pre-Wired Terminal Cup
Proline X ABS/carbon fiber composite terminal cup, pre-wired with 12-gauge OFC inside the cabinet, with stainless steel hardware accepting both spade and banana terminations on the input side. Sized to comfortably handle the T1D210's 600W RMS power delivery.
Every panel is cut on ShopSabre CNC routers in our Tullahoma, TN facility. The angled seat-side panel requires precise CNC compound cuts to hit both the volume target and the mating angles between the top and bottom edges — tolerances that manual fabrication can't reliably hold. Internal volume is verified on every unit to ensure the RF-spec 0.75 cubic foot net target is achieved.
Customize Your Build
Carpet Finish
Dark Gray Trunkliner is the standard durable wrap, matched to most factory trunk and cargo-area carpet tones. Plush Black (+$10) is a deeper, more luxurious nap that pairs well with blacked-out interiors and show builds.
Acrylic Insert Color
Choose Black, Blue, Red, or White for the baffle insert to match your build. Or skip the insert entirely (-$40) for a clean, understated look. The insert is purely cosmetic — performance is identical across colors.
Enclosure Only
This listing is for the enclosure only. Drop in your existing Rockford Fosgate T1D210 (Dual 2-ohm) or T1D410 (Dual 4-ohm) subwoofer — the cabinet fits both variants identically since RF publishes the same 0.75 cu ft sealed spec across the T1 10" line. Source your driver from any authorized Rockford Fosgate dealer.
Wiring the Rockford Fosgate T1D210 to Your Amplifier
The Rockford Fosgate T1D210 is a dual-voice-coil driver with both coils at 2 ohms, using RF's SWIFT terminal system that allows quick reconfiguration between series and parallel wiring. The pre-wired terminal cup accepts the two-conductor connection via 12-gauge OFC, with stainless steel input hardware.
Parallel wiring (1 ohm total load): Both voice coils in parallel via SWIFT terminals presents a 1-ohm load to your amplifier — the highest-output configuration, ideal for RF's own Power T500-1bdCP monoblock amplifier, or any modern class D monoblock stable at 1 ohm. This is the standard high-SPL wiring configuration.
Series wiring (4 ohm total load): Both voice coils in series via SWIFT terminals presents a 4-ohm load — used with amplifiers that don't support 1-ohm stable operation, or in dual-driver installs where paralleling two 4-ohm loads at the amp gets you back to a 2-ohm total. Also compatible with class AB amplifiers preferring higher impedance loads.
T1D410 alternative: Rockford also offers the T1D410 (Dual 4-ohm) variant for installs where 2-ohm parallel (T1D410 wired parallel = 2 ohms) or 8-ohm series operation is preferred. Either variant fits this cabinet identically.
The T1D210 is rated for 600 watts RMS continuous (CEA-2031 compliant) with 1200W peak handling. Aim for a well-regulated monoblock delivering 400-600 watts RMS at your chosen impedance for the best combination of headroom, dynamic capability, and long-term reliability. Rockford Fosgate's own Power T500-1bdCP is a natural match, delivering full rated output at 1-ohm parallel via SWIFT terminals. Set your amplifier's active low-pass filter between 80 and 100 Hz for musical accuracy in a full-range system.
Built in Tennessee, Backed by Audio Intensity
Every Performance Optimized enclosure is CNC-cut, assembled, and finished in our Tullahoma, TN facility. Components are pulled from inventory after your order is placed, then bonded and wrapped — a 2 to 5 business day assembly window before the box ships. No pre-built inventory sitting in warehouses, warping in storage. Each unit is built to order.
Backed by a 1-year limited warranty against structural failure and hardware defects on the enclosure. Your Rockford Fosgate T1D210 subwoofer is covered by Rockford's own 1-year warranty when purchased through an authorized RF dealer. Questions on fitment, wiring, or amplifier pairing? Contact us — we install this gear ourselves, in our own vehicles.
Rockford's Power Series 10" Sub, in a Spec-Perfect Trunk-Load Wedge
0.75 cubic feet net internal — Rockford Fosgate's published optimum sealed volume for the T1D210 — in a trunk-friendly wedge geometry that fires the VAST-enhanced 10" cone rearward into the trunk cavity. 600 watts RMS ready, precision driver-specific engineering, built to order in Tennessee.
| Enclosure Type | Sealed | Wedge Geometry | Rear-Firing Trunk-Load |
| Driver-Specific Fitment | Rockford Fosgate T1D210 (DVC 2Ω) or T1D410 (DVC 4Ω) |
| Internal Volume (Gross) | 0.95 Cubic Feet |
| Internal Volume (Net After Displacement) | 0.746 Cubic Feet (RF Spec: 0.75 EXACT) |
| Baffle Configuration | Vertical Trunk-Lid-Side Woofer Mounting Face |
| Material | Langboard Elite 3/4" MDF |
| Front Baffle Construction | Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded) |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Construction | ShopSabre CNC / Angled Seat-Side Compound Cuts |
| External Width | 20.75 Inches |
| External Height | 13.5 Inches |
| External Depth (Top) | 8.125 Inches |
| External Depth (Bottom) | 13 Inches |
| Baffle Angle | ~20° From Vertical (Seat-Side Face) |
| Mounting Hole Diameter | 9.0625 Inches |
| Mounting Hardware | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included (FlexFit Compatible) |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | 12g OFC Pre-Wired |
| Damping | Polyfill Pre-Installed |
| Recommended Power | 400-600 Watts RMS (RF CEA-2031 Rated: 600W RMS Continuous) |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black (+$10) |
| Acrylic Insert | Black, Blue, Red, White, or None (-$40) |
| Bundle Options | Enclosure Only (Bring Your Own T1D210 or T1D410) |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
