Proline X
Performance Optimized Wedge Sealed 10" Enclosure | JL Audio 10TW3-D4
SKU: PO 10-S W TW3
- Best For: JL Audio 10TW3-D4 Shallow-Mount Trunk-Fit Builds (Coupes, Compact Sedans, Trucks, Tight Cargo Areas)
- Net Volume: 0.50 cu ft (JL Spec: 0.50 | 0.52 cu ft Gross)
- Driver Match: JL Audio 10TW3-D4 (DVC 4Ω) or 10TW3-D8 (DVC 8Ω)
- Construction: Ultra-Shallow Rear-Firing Wedge | 4.5" Top Depth | Tab-Ear Ready
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Wedge Sealed 10" Enclosure | JL Audio 10TW3-D4
Performance Optimized Wedge | JL Audio 10TW3
Single 10" Shallow-Mount Sealed Wedge | Rear-Firing Trunk-Load for JL's Thin-Line 10TW3-D4
The JL Audio 10TW3-D4 in JL's Spec-Perfect Sealed Volume
The JL Audio 10TW3-D4 is JL's shallow-mount 10" thin-line subwoofer — 10 inches of cone area with just 3.25" of mounting depth, and 15.2mm of one-way linear excursion (more than the standard W3v3 despite the shallow packaging). JL's patented concentric tube cone architecture places the motor structure forward inside the injection-molded cone body, letting this driver deliver full-size 10" bass in enclosures that a conventional 10" driver couldn't fit. 400 watts RMS continuous with a mica-injected polypropylene cone, rubber surround, cast alloy basket, and JL's tab-ear mounting design.
The Performance Optimized Wedge Sealed 10 for JL Audio TW3 is engineered to hit JL's exact published sealed specification. 0.52 cubic feet gross internal volume minus the 10TW3-D4's driver displacement lands at 0.50 cubic feet net — exact match to JL's published 0.50 cubic foot sealed spec, delivering the Qtc 0.96 warm/impactful alignment JL's engineers targeted for the TW3 series.
0.52 cubic feet gross = 0.50 cubic feet net after the 10TW3-D4's driver displacement. Exact match to JL Audio's published optimum sealed volume for the 10TW3-D4 (Qtc 0.96, F3 just above 40 Hz). The ultra-shallow wedge geometry — 4.5" deep at the top rising to 9.25" at the bottom — is engineered around the TW3's 3.25" mounting depth, mounting the driver on the vertical trunk-lid-side face and firing rearward into the trunk cavity.
Why the TW3 Exists (and Why This Wedge Fits Where Others Can't)
The JL 10TW3-D4 was engineered for one specific mission: full-size 10" bass in vehicles and configurations where a standard 10" enclosure won't fit. Extended-cab and crew-cab pickup trucks (where the driver commonly mounts under a rear seat that lifts up). Sports cars with shallow parcel-shelf areas. Sedans with low decklid clearance. SUVs where cargo floor height is critical. The 10TW3-D4 has been the reference under-seat subwoofer for years because of two specific numbers: 3.25" mounting depth and 15.2mm one-way Xmax. Most shallow 10s give you one or the other. JL delivers both.
The Performance Optimized Wedge Sealed 10 for JL Audio TW3 solves the same space problem in trunk-load wedge form. The vertical trunk-lid-side face is only 4.5" deep at the top, tapering to 9.25" at the bottom — meaning the top of the cabinet slides under low parcel shelves and rear seat backs that a full-depth wedge could never clear. Combined with the TW3's own shallow mounting depth, this is one of the most vehicle-friendly full-size 10" trunk-load enclosures available.
Seat-Side Face Matches Seat Lean

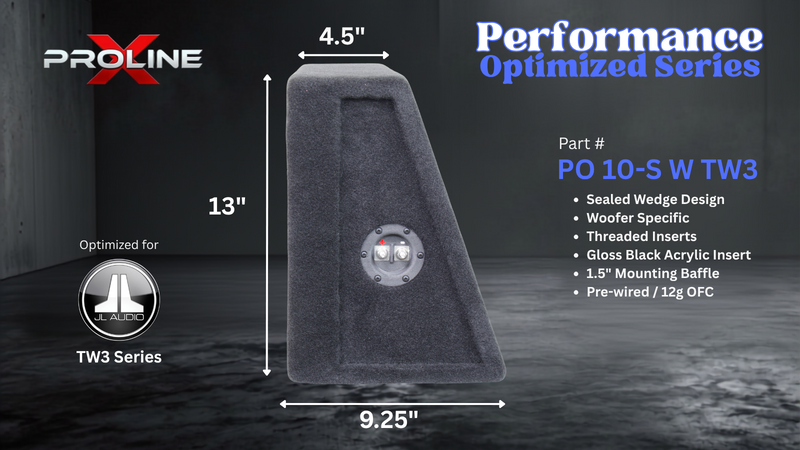

Most factory rear seat backs lean roughly 20 degrees back from vertical. The angled face of this wedge (4.5" at top, 9.25" at bottom) matches that lean, tucking against the seat back with no wasted gap. The ultra-shallow top face slides under decklids and parcel shelves that block deeper cabinets.
Trunk-Lid-Side Face Fires the Woofer

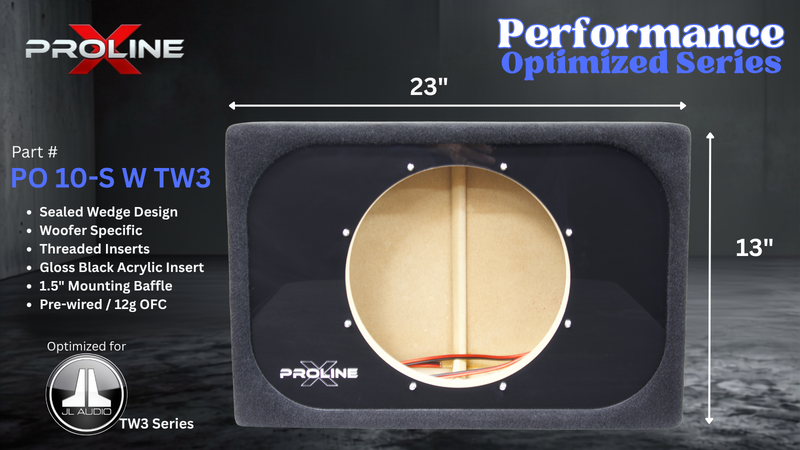

The vertical face on the opposite side of the wedge (23" wide × 13" tall) is where the 10TW3-D4 mounts. The driver fires rearward toward the trunk lid, using the trunk cavity as an acoustic loading chamber — the classic SQ trunk-load install pattern, now available in shallow-mount format.
Trunk Cavity Loading
Firing the woofer into the trunk cavity rather than directly into the cabin uses the trunk itself as an extension of the acoustic system. Low frequencies transmit into the passenger cabin through the rear deck, seat back, and cabin boundaries — smoother than direct-firing setups.
Compact, Shallow Footprint
23" wide by 13" tall by 4.5-9.25" deep. Smaller cabinet than the 12" TW3 wedge for tighter trunk installs, low-clearance SUV cargo floors, and coupe trunks where a 12" simply won't fit. Same shallow top-face design principle — the 4.5" top depth threads under obstructions that block conventional wedges.
Engineered to JL Audio's Published Sealed Specification
JL Audio publishes 0.50 cubic feet net internal as the recommended sealed enclosure for the 10TW3-D4. This is JL's own engineered target — the volume where the TW3's motor, suspension, and cone assembly deliver the sealed response their engineers designed the driver for. The Performance Optimized Wedge Sealed 10 delivers 0.52 cubic feet gross internal, which after subtracting the 10TW3-D4's driver displacement lands right at the 0.50 cubic foot JL spec.
What the JL Spec Delivers
The 10TW3-D4 in its JL-spec 0.50 cu ft sealed alignment delivers a Qtc of approximately 0.96 with F3 just above 40 Hz — a slightly warm alignment with good upper-bass presence, ideal for daily-driven vehicles where cabin gain smooths out the low end. This is a musical, punchy character rather than a strictly flat one, which suits the typical use case for a shallow-mount driver in a truck, sports car, or compact vehicle. If you have room for a slightly larger enclosure (0.75 cu ft), the alignment flattens out to Qtc 0.86 — but that's not this cabinet. This cabinet delivers exactly what JL specifies as optimum.
Mounting Geometry and Driver Fitment
The vertical trunk-lid-side baffle is cut to the 10TW3-D4's exact 9.625" cutout specification. The 10TW3-D4's 3.25" mounting depth fits inside the cabinet with clearance — internal depth from the vertical baffle to the interior of the angled seat-side face ranges from approximately 3.75" at the top edge to 8.5" at the bottom (after 3/4" MDF panel thickness), with the driver's mounting position at cabinet center providing well over 5" of clearance behind the motor. JL's no-pole-vent motor design permits mounting close to the rear wall of an enclosure — the driver requires only 0.25" of rear clearance to breathe.
Tab-Ear Mounting
The TW3 uses JL's tab-ear mounting design — plastic mounting ears extending outward from the driver frame, rather than a continuous perimeter flange. This maximizes cone area within the mounting footprint but requires specific mounting hardware: use #8 or #10 pan-head screws (NOT tapered/countersunk), since countersunk screws can wedge the plastic ears outward under vibration and crack them over time. The Proline X wedge baffle is pre-drilled and threaded-insert equipped for the TW3's tab pattern with pan-head hardware included.
Performance Series Construction, Driver-Specific Tuning
Langboard Elite MDF
Premium 3/4" MDF panels milled to documented spec — denser and more dimensionally stable than commodity MDF. Especially important in a shallow cabinet where panel-to-air ratio is high — panel resonance would color the sound more than in a deeper box, and Langboard's density minimizes that risk.
V-Groove and Dado Joinery
CNC-cut V-grooves at every panel intersection let the wedge cabinet fold into its angled shape with maximum glue surface. Dado joints lock the vertical woofer baffle and the ultra-shallow angled seat-side panel into the side walls — no fasteners visible from outside, no exposed end grain at joints.
TW3-Specific Baffle Machining
The 9.625" cutout is CNC-machined with the tab-ear mounting positions pre-drilled and 8/32 threaded inserts pressed into the baffle backside. #8 pan-head stainless steel screws included — not countersunk, per JL's mounting requirements for the tab-ear design.
Pre-Wired Terminal Cup
Proline X ABS/carbon fiber composite terminal cup, pre-wired with 12-gauge OFC inside the cabinet, with stainless steel hardware accepting both spade and banana terminations on the input side.
Every panel is cut on ShopSabre CNC routers in our Tullahoma, TN facility. The shallow wedge geometry requires precise CNC compound cuts — the 4.5" top-face-to-9.25" bottom-face depth transition over 13" of height must be dimensionally perfect to hit both the JL-spec volume target and the correct 20-degree seat-side mating angle. Internal volume is verified on every unit to ensure the JL-spec 0.50 cubic foot net target is achieved.
Customize Your Build
Carpet Finish
Dark Gray Trunkliner is the standard durable wrap, matched to most factory trunk and cargo-area carpet tones. Plush Black (+$10) is a deeper, more luxurious nap that pairs well with blacked-out interiors and show builds.
Acrylic Insert Color
Choose Black, Blue, Red, or White for the baffle insert to match your build. Or skip the insert entirely (-$40) for a clean, understated look. The insert is purely cosmetic — performance is identical across colors.
Box-Only or Loaded
Add a JL Audio 10TW3-D4 (Dual 4-ohm) or 10TW3-D8 (Dual 8-ohm) driver directly to your order and we'll ship the complete loaded system, ready to wire to your amplifier. Most single-driver installs use the D4 wired parallel for a 2-ohm load. Already own your 10TW3? Order the enclosure box-only and drop in the driver you have.
Wiring the JL Audio 10TW3-D4 to Your Amplifier
The JL Audio 10TW3-D4 is a dual-voice-coil driver with both coils at 4 ohms. This gives you two standard wiring options via the pre-wired terminal cup.
Parallel wiring (2 ohm total load): Both voice coils in parallel presents a 2-ohm load to your amplifier — the higher-output configuration, ideal for modern class D monoblocks stable at 2 ohms. Recommended for maximizing SPL and power transfer from typical 300-400 watt monoblock amps. This is the standard wiring for single-driver installs.
Series wiring (8 ohm total load): Both voice coils in series presents an 8-ohm load — used mainly with bridged high-voltage amp configurations, class AB amplifiers, or multi-driver installs where impedance summing matters.
Alternative driver: 10TW3-D8. If you're building a multi-driver system, JL Audio also offers the 10TW3-D8 (Dual 8-ohm) variant, which pairs better in dual-driver configurations at 2 ohms total (each driver wired parallel to 4 ohms, then two drivers wired parallel to 2 ohms). Either D4 or D8 variant fits this cabinet identically.
The 10TW3-D4 is rated for 400 watts RMS continuous with a 100-400 watt RMS recommended amplifier range. Aim for a well-regulated monoblock delivering 300-400 watts RMS at your chosen impedance for the best combination of headroom, output, and long-term reliability. Set your amplifier's active low-pass filter between 80 and 100 Hz for musical accuracy.
Built in Tennessee, Backed by Audio Intensity
Every Performance Optimized enclosure is CNC-cut, assembled, and finished in our Tullahoma, TN facility. Components are pulled from inventory after your order is placed, then bonded and wrapped — a 2 to 5 business day assembly window before the box ships. No pre-built inventory sitting in warehouses, warping in storage. Each unit is built to order.
Backed by a 1-year limited warranty against structural failure and hardware defects. Questions on fitment, wiring, or amplifier pairing? Contact us — we install this gear ourselves, in our own vehicles.
JL's Spec Volume for the Shallow 10, in a Wedge That Actually Fits
0.50 cubic feet net internal — JL Audio's published optimum sealed volume for the 10TW3-D4 — in an ultra-shallow wedge geometry (4.5" at the top) engineered around the TW3's 3.25" mounting depth. Full-size 10" cone area with 15.2mm Xmax, real JL Audio bass, in vehicles where a standard 10" enclosure simply won't fit.
| Enclosure Type | Sealed | Wedge Geometry | Rear-Firing Trunk-Load | Ultra-Shallow |
| Driver-Specific Fitment | JL Audio 10TW3-D4 (DVC 4Ω) or 10TW3-D8 (DVC 8Ω) |
| Internal Volume (Gross) | 0.52 Cubic Feet |
| Internal Volume (Net After Displacement) | 0.50 Cubic Feet (JL Spec: 0.50) |
| Baffle Configuration | Vertical Trunk-Lid-Side Woofer Mounting Face |
| Material | Langboard Elite 3/4" MDF |
| Front Baffle Construction | Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded) |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Construction | ShopSabre CNC / Shallow Compound Cuts / Tab-Ear Baffle |
| External Width | 23 Inches |
| External Height | 13 Inches |
| External Depth (Top) | 4.5 Inches |
| External Depth (Bottom) | 9.25 Inches |
| Baffle Angle | ~20° From Vertical (Seat-Side Face) |
| Mounting Hole Diameter | 9.625 Inches |
| Mounting Hardware | 8/32 Threaded Inserts | #8 Pan-Head Stainless Screws (TW3 Tab-Ear Compatible) |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | 12g OFC Pre-Wired |
| Damping | Polyfill Pre-Installed |
| Recommended Power | 300-400 Watts RMS (100-400W JL Spec Range) |
| Target Qtc / F3 | ~0.96 / 40+ Hz (JL Published Sealed Spec) |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black (+$10) |
| Acrylic Insert | Black, Blue, Red, White, or None (-$40) |
| Bundle Options | Box Only | Add a JL Audio 10TW3-D4 or 10TW3-D8 Driver |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
