Performance Optimized Down Fire Sealed Dual 12" Enclosure | JL Audio 12TW3
SKU: PO 12D-S DF TW3
- Alignment: 0.80 cu ft net per chamber, 1.60 cu ft total, JL's own optimum. Qtc 0.943, F3 38.0 Hz per driver
- Chambers: Two fully separate sealed chambers, 3/4" MDF full divider, one shared side-mounted terminal cup
- Drivers: Pair of JL Audio 12TW3-D4 (DVC 4Ω), 400W RMS each / 800W combined, 15.2mm Xmax, 26.46 Hz Fs, 3.50" mounting depth
- Power: JL rates 200 to 400 watts RMS per driver. Wire both drivers identically and set impedance at the drivers
- Cabinet: 30"W x 15"D x 10.75"H measured in down fire position, square corners
Financing available. Choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed Dual 12" Enclosure | JL Audio 12TW3
Proline X Performance Optimized Down Fire Dual 12" Sealed
Cut and tuned for a pair of JL Audio 12TW3-D4 subwoofers
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds, with cabinet height as the variable. A few drivers need a wider or deeper platform. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double, 1.5 inch, outer layer machined as a flush recess. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, perimeter cross brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |

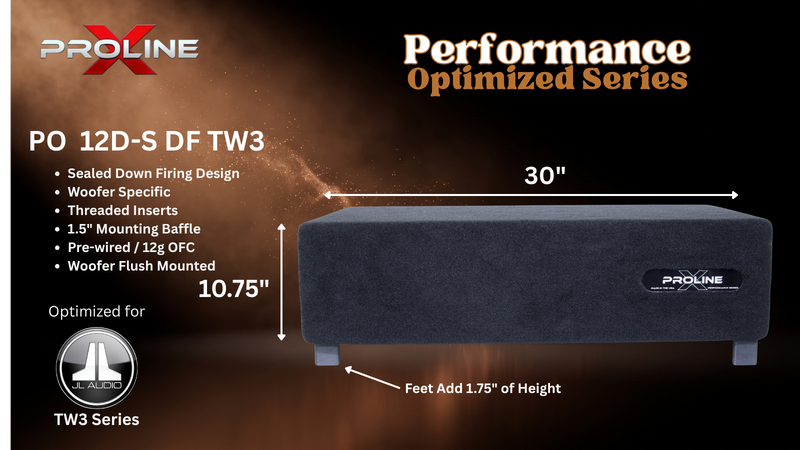

Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The airspace, the cutout and the cabinet height all come from the JL Audio 12TW3-D4's own published numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around the 12TW3-D4
Nothing about this cabinet is generic. Both baffle positions are bored to the 12TW3-D4's 11.625 inch cutout, the chamber depth is set by the driver's 3.50 inch mounting depth, and each chamber lands exactly on the 0.80 cubic feet JL Audio publishes as the sealed optimum for this driver.
Each 12TW3-D4 is a dual 4-ohm subwoofer rated 400 watts RMS and 800 watts peak, with 15.2mm of one-way linear excursion. Across the pair that is 800 watts RMS combined and 1078 cm² of cone area. Mica-injected polypropylene cones, rubber surrounds, aluminum-alloy heat-dissipating dust caps, cast alloy frames, and 2.5 inch aluminum voice coils. JL Audio's patented Thin-Line architecture and Concentric Tube Suspension are what keep those cones traveling straight through that much excursion in frames three and a half inches deep.
The published parameters are unusual for a shallow driver: Fs of 26.46 Hz, Qts of 0.531, and 48.73 liters of Vas per driver. A low free-air resonance and a genuinely low Qts in the same short frame are rare, and together they are why each chamber predicts an F3 of 38.0 Hz, the deepest figure anywhere in the Down Fire program, delivered here twice over.
Net Volume, Not Gross
The cabinet measures 1.78 cubic feet gross and 1.60 cubic feet net total, which is 0.80 cubic feet net per driver. Net is what each driver actually sees, after panel thickness, the chamber divider, perimeter cross-bracing and the driver's own displacement are subtracted, and 0.80 is JL Audio's own published sealed optimum for the 12TW3-D4.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness.
At 0.80 net per chamber each driver lands at Qtc 0.943, above the 0.707 maximally flat reference, so there is a little lift near the corner rather than a textbook flat curve. Predicted F3 is 38.0 Hz per driver, anechoic. Firing down into the floor, that sealed rolloff meets rising cabin gain below 60 Hz, so in-car response extends well below the anechoic figure.
Two Chambers, Not One
This enclosure follows the Proline X standing design rule for dual sealed builds: two fully separate chambers split by a bonded full-height 3/4 inch MDF divider, so each driver gets its own dedicated airspace and its own polyfill. Two drivers sharing one sealed volume interact acoustically, with each driver's compression phase becoming the pressure environment the other works against. That smears transient response and blurs the alignment each driver would have on its own. A full divider removes the interaction completely.
Be realistic about the size. At 10.75 inches tall this is among the tallest cabinets in the Down Fire line, a cargo floor or rear wall build rather than an under-seat one. The 30 by 15 inch footprint is unchanged, so it occupies no more floor area than any other Down Fire cabinet; it simply stands taller because halving the width means each chamber has to gain height to hold its full 0.80 cubic feet. Measure your vertical clearance before ordering. Every external dimension is stated as measured in the down fire position.
Down Fire Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps both chambers airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.
Perimeter cross-bracing carries the panels and polyfill is pre-installed in each chamber. Both drivers land on 8/32 threaded inserts, and two sets of stainless steel machine screws are included.

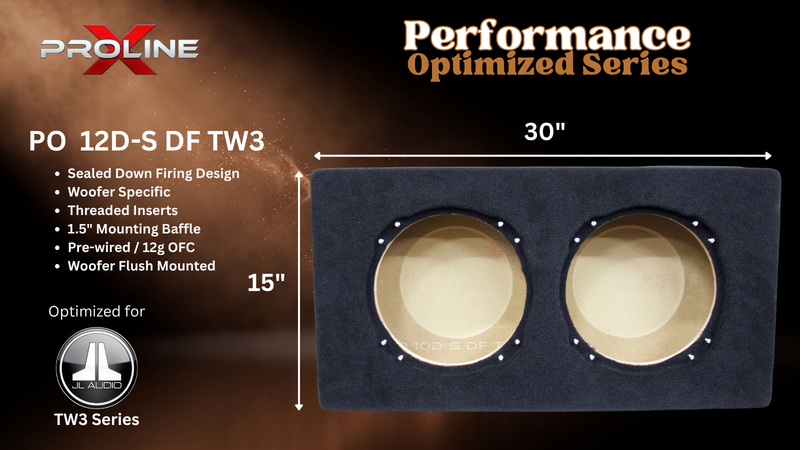

Double Baffle, Flush Recess
The front baffle is 1.5 inches at both driver positions, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so each driver bolts to the inner layer. That recovers 3/4 inch of internal clearance, which matters with two 11.625 inch cutouts in one cabinet.

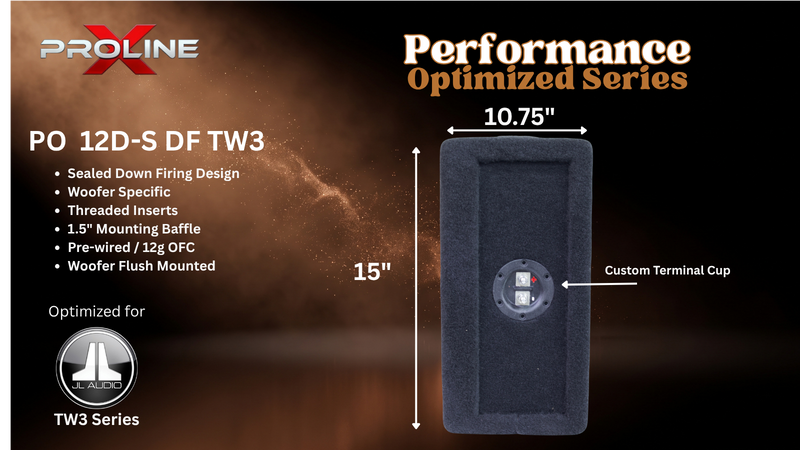

Side-Mounted Terminal Cup
One shared Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC to both driver positions in parallel. Side mounted so it stays accessible with the baffles facing the floor.
Separate Chambers
A full-height bonded 3/4 inch MDF divider gives each 12TW3-D4 its own 0.80 cubic feet net and its own polyfill, so neither driver is working against the other's compression stroke.
Power and Warranty
JL Audio rates each 12TW3-D4 at 400 watts RMS and 800 watts peak, 800 watts RMS combined across the pair, and recommends 200 to 400 watts of amplifier power per driver. Aim at the top of that range. Sensitivity is 82 dB at 1 watt, which is low, and that is the price of getting 15.2mm of excursion and a 26.46 Hz resonance into a 3.50 inch frame.
One side-mounted cup feeds both driver positions in parallel. Each driver has dual 4-ohm coils, so final impedance is set at the drivers. Wire both drivers identically, since mismatched wiring between chambers splits power unevenly, and confirm the resulting load against your amplifier's minimum stable impedance before powering the system.
The enclosure carries a 1 year limited warranty. Bring your own pair of JL Audio 12TW3-D4 subwoofers; the drivers are purchased separately.
Cut for the Driver, Not the Catalog
Two cutouts, two chambers, one volume target taken straight from JL Audio's own sealed optimum. Machined on ShopSabre CNC routers and built one at a time in Tullahoma, Tennessee.
| Series | Proline X Performance Optimized Down Fire |
| Driver-Specific Fitment | JL Audio 12TW3-D4 (DVC 4Ω) | Pair Required |
| Enclosure Type | Sealed | Dual Driver | Down Fire Geometry | Floor-Coupled |
| Chamber Configuration | Two Fully Separate Chambers | Full Divider | Single Shared Side-Mounted Terminal Cup |
| Baffle Configuration | Down Firing, Both Drivers Fire Toward Floor |
| External Width | 30 Inches |
| External Depth | 15 Inches |
| External Height | 10.75 Inches |
| Dimension Reference | All External Dimensions Measured In Down Fire Position |
| Total Internal Gross Volume | 1.78 Cubic Feet |
| Per-Chamber Net Volume | 0.80 Cubic Feet, Matches JL Audio Sealed Optimum |
| Total Net Volume | 1.60 Cubic Feet |
| Target Qtc Per Chamber | 0.680 (Just Below Maximally Flat) |
| Predicted F3 Per Driver | 32.6 Hz, Deepest In The Down Fire Line |
| Driver Fs | 26.46 Hz |
| Driver Qts | 0.531 |
| Driver Vas | 48.73 Liters Each |
| Driver Xmax (One-Way Linear) | 15.2mm / 0.60 in |
| Cone Area | 539 cm² Each / 1078 cm² Total |
| Power Handling | 400 Watts RMS Each / 800 Watts RMS Combined |
| Driver Cone | Mica-Injected Polypropylene (MIPP) | Rubber Surround |
| Driver Dust Cap | Aluminum-Alloy (Heat-Dissipating) |
| Driver Voice Coil | 2.5 in | Aluminum |
| Driver Technology | Patented Thin-Line / Concentric Tube Suspension |
| Mounting Depth Required | 3.50 Inches (JL Audio Spec) |
| Cutout Diameter (Each) | 11.625 Inches (JL Audio Spec) |
| Material | Langboard Elite 3/4" MDF |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Construction | ShopSabre CNC / Perimeter Cross-Brace |
| Front Baffle Construction | Double-Layer 1.5" MDF at Both Driver Positions | Outer Layer Flush Recess |
| Chamber Divider | 3/4" MDF Full Bonded Panel |
| Corner Profile | Square (Down Fire Series Standard) |
| Voice Coil Configuration | Dual 4-Ohm Per Driver, Final Impedance Set At The Drivers |
| Mounting Hardware | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included | 2 Sets |
| Terminal Cup | One Proline X ABS/Carbon Fiber Composite | Side Mounted | 12g OFC Pre-Wired to Both Driver Positions |
| Damping | Polyfill Pre-Installed Per Chamber |
| Recommended Power Per Driver | 200-400 Watts RMS (JL Audio Rated Range) |
| Carpet Finish | Plush Black |
| Bundle Options | Enclosure Only (Bring Your Own Pair of JL Audio 12TW3-D4) |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.80 cu ft against a 48.7 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 15.2 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 26.46 | Hz | free-air resonance |
| Qts | 0.531 | D4 | |
| Vas | 48.73 | L | equivalent compliance |
| Sd | 539.0 | cm² | effective piston area |
| Xmax | 15.2 | mm | one-way linear travel |
| Pe | 400 | W | continuous RMS |
| SPL | 83.9 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by jlaudio.com. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
