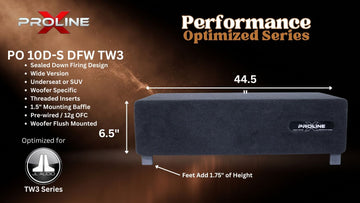

A promotional product graphic for a PROLINE X PO 10D-S DFW TW3 performance-optimized vehicle underseat or SUV woofer. The image shows a dark gray rectangular woofer with dimension callouts of 44.

Performance Optimized Down Fire Wide Sealed Dual 10" Enclosure | JL Audio 10TW3-D4

Proline X

Performance Optimized Down Fire Wide Sealed Dual 10" Enclosure | JL Audio 10TW3-D4

Q: Why is this cabinet 44.5 inches wide instead of 30?

Because it is only 12.25 inches deep. The standard Performance Optimized Down Fire platform is 30 wide by 15 deep, and this application needs a cabinet that fits a space nearly three inches shallower than that.Airspace has to come from somewhere. Losing depth means recovering it from width, so the cabinet runs 44.5 inches long instead of 30 and still keeps each driver in a properly sized separate chamber at 6.5 inches tall. If your available space is wide and shallow rather than deep, this is the shape that works.

Q: How does this compare to the standard 30 x 15 dual TW3 enclosure?

Same alignment, different shape. The standard cabinet is 30 by 15 by 7.6875 inches and gives each driver 0.50 cubic feet net, landing at Qtc 0.960 with F3 at 40.1 Hz. This cabinet is 44.5 by 12.25 by 6.5 and gives each driver 0.507 net, landing at Qtc 0.956 with F3 at 40.0 Hz.Four thousandths of Qtc and a tenth of a hertz apart. Acoustically these are the same enclosure. The choice between them is purely about what shape fits your vehicle: the standard platform is deeper and taller in a shorter run, this one is long and shallow for under a rear bench.

Q: Why do the drivers have to be rotated?

Because the 10TW3-D4 flange is not round. JL Audio's tab-ear mounting design measures 11.2 inches across the ears and 10.5 inches on the minor axis, so the driver has a long dimension and a short one.In a 12.25 inch deep cabinet the 11.2 inch ear span will not sit across the depth with usable material either side. Both baffle positions are therefore laid out with the tab ears running along the 44.5 inch length of the cabinet, putting the 10.5 inch minor axis across the depth with 9/16 inch of baffle land fore and aft. It is a small detail that decides whether the driver physically bolts down, which is exactly the sort of thing a woofer specific enclosure is supposed to have already solved.

Q: What does a Qtc of 0.956 sound like?

Fuller and more impactful than a flat alignment. Qtc describes how a sealed system behaves near its corner frequency, and the textbook reference is 0.707, called maximally flat. Above that the system develops a rise just before the rolloff begins, which adds perceived weight and punch at the cost of some transient control.At 0.956 this cabinet has real lift near the corner. That is a property of the driver rather than of the shallow footprint: our standard 30 by 15 inch dual TW3 cabinet lands at 0.960 in JL's own recommended volume. The TW3 is voiced for output and impact in compact sealed enclosures, and reaching a flat 0.707 would require roughly 2.2 cubic feet per driver, which is not a shallow enclosure in any format.

Q: How is this enclosure wired, and how do I set my final impedance?

The enclosure uses one side-mounted Proline X terminal cup with a single pair of posts, pre-wired in 12 gauge OFC to both driver positions in parallel. You do not wire the two chambers separately at the amplifier.Final impedance is set at the drivers. Each 10TW3-D4 has dual 4-ohm voice coils, so you choose how to wire the two coils on each driver and that determines the load the amplifier sees through the cup. Wire both drivers identically, since mismatched wiring between chambers will split power unevenly. Confirm the resulting load against your amplifier's minimum stable impedance before powering the system.

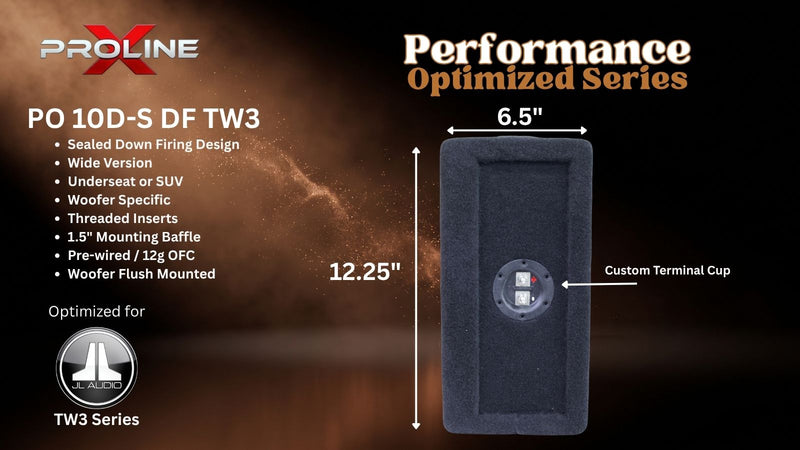

Q: Where is the terminal cup located on a down fire enclosure?

Side mounted, and there is one cup serving both chambers rather than one per chamber. Every Proline X Performance Optimized enclosure uses a side mounted terminal cup regardless of alignment, whether standard, wedge, or down fire. On this cabinet that keeps the connection fully accessible with the enclosure in its installed position, since both baffles face the floor. The cup is our Proline X ABS and carbon fiber composite unit, recessed, with stainless hardware, copper ring terminals, and pre-wired 12 gauge OFC.

Q: How is this enclosure built?

V-groove and dado joinery, CNC-cut on ShopSabre routers from Langboard Elite MDF. Every panel joint is a machined interlocking groove that mechanically locks the panels before adhesive is applied, which keeps both chambers airtight under sustained pressure cycling. The chamber divider is a full-height bonded 3/4 inch panel, which also ties the front and rear walls together across the 44.5 inch span.The front baffle is a double layer at 1.25 inches: a 3/4 inch inner layer with a 1/2 inch outer layer machined as a flush recess, so each driver bolts to the inner layer. The thinner outer layer is deliberate. It recovers a quarter inch of internal height without growing the outside of the cabinet, which is what puts each chamber on JL's 0.50 target. Baffle land is 9/16 inch fore and aft of each cutout. Perimeter cross-bracing and pre-installed polyfill in each chamber complete the build. Assembled and inspected in Tullahoma, Tennessee.

Q: Are the JL Audio 10TW3-D4 subwoofers included with this enclosure?

No. This listing is for the enclosure only. Bring your own pair of JL Audio 10TW3-D4 subwoofers. The cutouts, mounting depth and driver orientation are cut specifically for this driver at both positions.

SKU: PO 10D-S DFW TW3

QUICK SPECS

Alignment: 0.507 cu ft net per chamber, JL's own 0.50 optimum. Qtc 0.956, Fc 49.8 Hz, F3 40.0 Hz per driver
Same alignment as our standard 30 x 15 dual TW3 (Qtc 0.960 / F3 40.1), in a wide shallow footprint

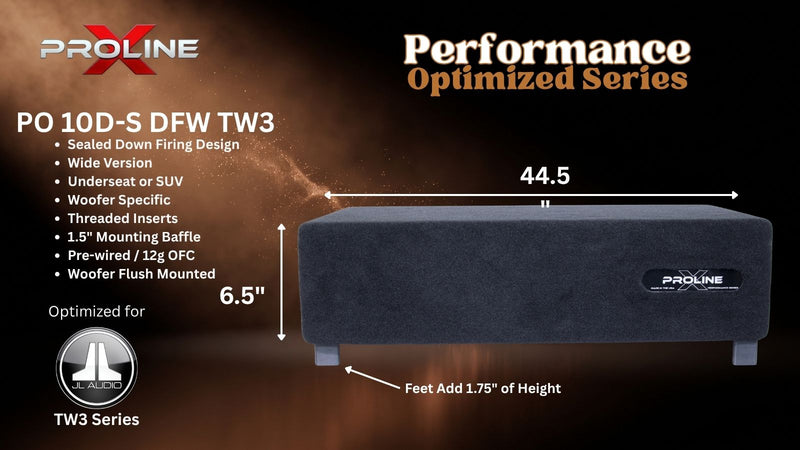

Down Fire Wide: 44.5"W x 12.25"D x 6.5"H, sized for under the rear seat of a truck or SUV
Drivers rotated so the flange tab ears run along the 44.5 in length, required at this depth
Baffle: 1.25" double layer, 1/2" outer flush recess over 3/4" inner, buys a quarter inch of internal height

Shipping Included No freight charges at checkout. What you see is what you pay.

Built in Tennessee CNC cut from 3/4" Langboard Elite MDF. V-groove and dado joinery.

Advanced Terminal Cup Built in-house. ABS/Carbon Fiber. Stainless steel hardware. Copper ring terminals.

$ 379.99

In Stock and Ready to Ship

Financing available. Choose Shop Pay Installments at checkout.

Performance Optimized Down Fire Wide Sealed Dual 10" Enclosure | JL Audio 10TW3-D4

$ 379.99

Enclosure Type Sealed

External Dimensions 44.5" W x 12.25" D x 6.5" H (measured in down fire position)

Net Volume 1.014 total / 0.507 per chambercu ft

Tuning Frequency N/A (Sealed)

Cutout Diameter Direct Fit

Front Panel Thickness 1.25"

Max Mounting Depth Direct Fit

INSTALLER'S TAKE

This box exists for one reason: the space under a rear bench is 12 inches deep and a 15 inch cabinet does not go in it. Everything else follows from that.

The first thing to get right is not acoustic, it is mechanical. The 10TW3 flange is 11.2 inches across the tab ears and 10.5 on the minor axis. In a 12.25 inch deep box the ears have to run along the length. Lay the drivers out the other way and they do not bolt down. Both cutouts are set that way and it is called out on the page so nobody assumes otherwise. Baffle land works out to 9/16 inch fore and aft, which is comfortable on a double baffle where the driver bolts to the inner layer.

The second layer of the baffle is 1/2 inch here rather than the usual 3/4. That keeps the outside dimension at 6.5 inches while buying a quarter inch of internal height, and across a 44.5 by 12.25 footprint a quarter inch is roughly 0.06 cubic feet of net volume. Small change, and it is what moves each chamber from 0.475 up to 0.507.

That 0.507 matters because JL's sealed optimum for this driver is 0.50. We are seven thousandths over it. The result is Qtc 0.956 and F3 40.0 Hz, against 0.960 and 40.1 Hz in our standard 30 by 15 dual TW3. Same alignment, four thousandths of Qtc apart. The shallow format costs nothing acoustically, which is not usually how this goes.

Worth saying plainly: 0.956 is well above the 0.707 maximally flat reference. That is the TW3, not the cabinet. This driver is voiced for output and impact in small sealed boxes, and JL's own recommended volume lands it there. If you want a flat anechoic curve out of a TW3 you would need about 2.2 cubic feet per driver, which is not a shallow enclosure in any format.

Separate chambers, full height bonded divider, one shared side mounted cup fed in parallel to both positions. On a 44.5 inch span the divider is doing structural work as well as acoustic. 82.1 dB sensitivity means these want the full 400 watts each rather than half.

Product Details

Proline X Performance Optimized Down Fire Wide Dual 10" Sealed

Under rear seat fitment for trucks and SUVs. Cut for a pair of JL Audio 10TW3-D4

Down Fire WideV-Groove and Dado12.25" Shallow DepthSeparate Chambers

0.507cu ft net each

0.956system Qtc, per chamber

40.0 HzF3 rolloff

6.5 incabinet height

The Down Fire Wide Format

Down Fire Wide is the Performance Optimized answer to a specific problem: the space under the rear seat of a truck or SUV is long and shallow, and a standard 30 by 15 inch enclosure will not go in it.

So the cabinet is turned sideways. This one runs 44.5 inches wide by 12.25 inches deep by 6.5 inches tall, which spans most of the width of a rear bench while sitting well within the depth those spaces allow. The airspace lost from the depth is recovered along the length, so each driver still gets a properly sized chamber rather than a compromised one.

Measure the depth before anything else. Under seat spaces vary widely between cab configurations, and depth is almost always the limiting dimension rather than width or height. If your available depth is 12.25 inches or more and you have 44.5 inches of run, this cabinet fits.

Performance, Performance Optimized, and Micro

Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.

	Performance	Performance Optimized	Micro Series
Fitment	Universal. Accepts any subwoofer that clears the published cutout and mounting depth.	Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver.	Woofer specific. Cut for one named subwoofer.
Footprint	Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch.	Shared 30 by 15 inch platform on most builds. Down Fire Wide variants like this one run long and shallow for under seat fitment.	Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch.
Front baffle	Single, 3/4 inch.	Double layer, outer layer machined as a flush recess. 1.5 inch standard, 1.25 inch on shallow builds like this one.	Double, 1.5 inch.
Driver mounting	Solid flange. You drill your own mounting holes.	8/32 threaded inserts, stainless machine screws included.	8/32 threaded inserts, stainless machine screws included.
Joinery	V-groove and dado, CNC cut.	V-groove and dado, CNC cut, perimeter cross brace.	Stack fab, dowel reinforced.
Published alignment	Modeled Qtc profiles across a range of drivers. No single response curve.	A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters.	Target alignment described in the listing.
Carpet	Gray standard, black optional.	Plush black.	Plush black.
Warranty	1 year limited.	1 year limited.	2 years.

Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.

This page is a Performance Optimized enclosure. The cutouts, the driver orientation and the chamber volumes all come from the JL Audio 10TW3-D4's own published numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.

Built Around the JL Audio 10TW3-D4

Both baffle positions are bored to the TW3's 9.625 inch cutout, and the cabinet height is set by its 3.25 inch mounting depth.

The 10TW3-D4 is a dual 4-ohm subwoofer rated 400 watts RMS and 800 watts peak, with 15.2mm of one-way linear excursion. Across the pair that is 800 watts RMS combined and 730 cm² of cone area. Polymer and mica composite cone, synthetic rubber surround, cast alloy frame, 2 inch aluminum voice coil. JL's patented Thin-Line architecture is what puts that much travel into a 3.25 inch frame, and it is the reason a driver like this can live under a seat at all.

The drivers are rotated. The 10TW3-D4 flange measures 11.2 inches across the tab ears and 10.5 inches on the minor axis. In a 12.25 inch deep cabinet the ears have to run along the length of the box, not across it. Both baffle positions are laid out that way, which is the kind of detail that decides whether a driver physically bolts down or not.

Shallow Without the Usual Penalty

Each chamber holds 0.507 cubic feet net, from 0.577 gross, after the driver's 0.07 cubic feet of displacement. JL Audio's stated sealed optimum for the 10TW3-D4 is 0.50 net, so this lands within seven thousandths of their own figure.

That produces Qtc 0.956 with Fc at 49.8 Hz and a predicted F3 of 40.0 Hz.

The shallow format costs nothing acoustically. Our standard 30 by 15 inch dual TW3 cabinet gives each driver 0.50 net and lands at Qtc 0.960 with F3 at 40.1 Hz. This cabinet is at 0.956 and 40.0 Hz. The two are the same alignment to within four thousandths of Qtc and a tenth of a hertz. You are choosing a shape, not accepting a compromise.

Getting there took a change to the baffle. The second layer is 1/2 inch rather than the usual 3/4, making the front baffle 1.25 inches total instead of 1.5. That recovers a quarter inch of internal height without adding anything to the outside of the cabinet, and a quarter inch across a 44.5 by 12.25 inch footprint is worth about 0.06 cubic feet of net volume across the two chambers. It is the difference between sitting under JL's target and sitting on it.

For the record, Qtc 0.956 is above the textbook maximally flat reference of 0.707. That is not a consequence of the shallow footprint; it is simply what this driver does in the volume JL recommends. The TW3 is voiced for output and impact in small sealed enclosures rather than for a flat anechoic curve.

Two Chambers, Not One

This enclosure follows the Proline X standing design rule for dual sealed builds: two fully separate chambers divided by a bonded full-height 3/4 inch MDF panel.

Two drivers sharing one sealed volume interact acoustically. Each driver's compression phase becomes the pressure environment the other is working against, which smears transient response and blurs the alignment each would have on its own. A full divider eliminates that entirely. Each TW3 gets its own 0.507 cubic feet and its own polyfill.

On a long cabinet the divider does structural work as well, tying the front and rear walls together at the centre of a 44.5 inch span.

Down Fire Wide Construction

Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps both chambers airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

The cabinet measures 44.5 inches wide by 12.25 inches deep by 6.5 inches tall, measured in the down fire position. Feet ship with the enclosure but are not installed, so plan the space around where you intend to mount them.

1.25 Inch Double Baffle

A 3/4 inch inner layer with a 1/2 inch outer layer machined as a flush recess. The driver bolts to the inner layer. The thinner outer layer buys a quarter inch of internal height without growing the cabinet.

Rotated Driver Layout

Both cutouts are laid out with the flange tab ears running along the 44.5 inch length, so the 10.5 inch minor axis crosses the shallow depth with 9/16 inch of baffle land fore and aft.

Separate Chambers

A bonded full-height 3/4 inch divider gives each driver its own 0.507 cubic feet and its own polyfill, and ties the walls together mid span.

One Shared Terminal Cup

Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, side mounted and pre-wired in 12 gauge OFC to both driver positions in parallel.

Power and Wiring

JL Audio rates the 10TW3-D4 at 400 watts RMS each, 800 watts RMS combined across the pair, and recommends 200 to 400 watts of amplifier power per driver. Aim for the upper end of that range: sensitivity is 82.10 dB, which is low, and that is the tradeoff for 15.2mm of excursion in a 3.25 inch frame.

One side mounted terminal cup serves both chambers, pre-wired in 12 gauge OFC to both driver positions in parallel, so you do not run the chambers separately to the amplifier. Each driver is dual 4-ohm, so final impedance is set at the drivers. Wire both identically, since mismatched wiring between chambers will split power unevenly, and confirm the resulting load against your amplifier's minimum stable impedance before powering the system.

Bring your own pair of JL Audio 10TW3-D4 subwoofers. The enclosure carries a 1 year limited warranty.

Cut for the Driver, Not the Catalog

Down Fire Wide, built for the space under a rear bench, one at a time in Tullahoma, Tennessee.

Specifications

Series	Proline X Performance Optimized Down Fire Wide
Compatible Driver	JL Audio 10TW3-D4, pair required. Direct fit, no other driver
Enclosure Type	Sealed, dual driver, down fire, floor coupled
Intended Fitment	Under the rear seat of trucks and SUVs, where depth is the limiting dimension
Firing Direction	Down firing, both drivers fire toward the floor
Chamber Configuration	Two fully separate chambers, full divider, single shared side-mounted terminal cup
External Width	44.5 in
External Depth	12.25 in
External Height	6.5 in
Dimension Reference	All external dimensions measured in down fire position
Internal Footprint Per Chamber	20.625 in x 10.75 in x 4.5 in
Total Internal Volume, Gross	1.155 cu ft
Per-Chamber Net Volume	0.507 cu ft after displacement
Total Net Volume	1.014 cu ft
JL Audio Sealed Optimum	0.50 cu ft net per driver, range 0.50 to 0.75
Target Qtc Per Chamber	0.956
Predicted Fc Per Driver	49.8 Hz
Predicted F3 Per Driver	40.0 Hz anechoic
Comparison, Standard 30x15 Dual TW3	0.50 cu ft net, Qtc 0.960, F3 40.1 Hz, 30 x 15 x 7.6875. Same alignment, different shape
Driver Fs	32.3 Hz
Driver Qts	0.620
Driver Qes / Qms	0.656 / 11.35
Driver Vas	19.82 L / 0.700 cu ft each
Driver Sd	365 cm² each, 730 cm² total
Driver Xmax	15.2mm one way linear
Driver Displacement	0.07 cu ft each, Proline X estimate
Driver Sensitivity	82.10 dB, 1 W at 1 m
Power Handling	400 W RMS each, 800 W RMS combined, 800 W peak each
Recommended Amplifier Power	200 to 400 W RMS per driver, JL Audio spec
Voice Coil Configuration	Dual 4 ohm per driver, impedance set at the drivers
Driver Cone	Polymer and mica composite, synthetic rubber surround
Driver Frame	Cast alloy, tab-ear mounting
Driver Technology	Patented Thin-Line woofer technology
Mounting Depth	3.25 in / 82.6mm, JL Audio spec
Woofer Opening	9.625 in / 244mm direct fit, both positions
Driver Flange	11.2 in major across tab ears, 10.5 in minor
Driver Orientation	Rotated. Tab ears run along the 44.5 in length, minor axis crosses the depth
Baffle Land	9/16 in fore and aft of each cutout
Standoffs	None required. Feet ship uninstalled
Material	Langboard Elite MDF
Construction	CNC cut, dado and V groove joinery, perimeter cross brace
Panel Thickness	0.75 in
Front Baffle	1.25 in double baffle. 3/4 in inner layer, 1/2 in outer layer machined as a flush recess
Chamber Divider	3/4 in MDF full bonded panel
Corner Profile	Square, Down Fire series standard
Driver Mounting	8/32 threaded inserts, stainless machine screws included, 2 sets
Terminal Cup	Proline X ABS and carbon fiber composite, side mounted
Internal Wiring	12 gauge OFC to both driver positions in parallel
Damping	Polyfill pre-installed per chamber
Carpet	Plush Black
Weight	38 lb
Bundle Options	Enclosure only, bring your own pair of JL Audio 10TW3-D4
Warranty	1 Year Limited
Built In	Tullahoma, Tennessee

Performance Graphs

Net airspace

0.507

cu ft per chamber

System Qtc

0.96

sealed

Half power

40.0

Hz · F3

Xmax at

669

W RMS · no filter

With 25 Hz subsonic

706

W RMS · +6%

Amplifier

200–400

W RMS recommended

This enclosure holds 0.507 cu ft net per chamber. In it the JL Audio 10TW3-D4 runs a system Qtc of 0.96 with half power at 40.0 Hz, and the cone reaches its 15.2 mm travel limit at 669 W, above the driver’s 400 W thermal rating, so heat stops you before travel does. Run a subsonic filter at 25 Hz and that becomes 706 W — +37 W, or 6 percent more power for the same 15.2 mm of travel.

01Is it a sealed driver?

Efficiency bandwidth product places the motor before anything else is decided.

EBP = Fs ÷ Qes = 48.9

D4 · EBP 48.9

EBP under 50 means a motor that wants a sealed load. The 10TW3-D4 sits at 48.9, inside that band, which is why this is a sealed build rather than a ported one.

02What the box does to it

0.507 cu ft against a 19.8 L Vas.

α = Vas ÷ Vb = 1.38 · Fc = Fs√(α+1) = 50 Hz · Qtc = 0.96

D4 · Qtc 0.96, Fc 50 Hz, F3 40.0 Hz

The box lifts resonance from 32.3 Hz free-air to 50 Hz and half power lands at 40.0 Hz, anechoic, before any cabin gain.

03The watts that reach Xmax (in this enclosure)

Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 15.2 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.

P_Xmax = 669 W unfiltered → 706 W with a 25 Hz subsonic

D4 · 669 W, no filterD4 · 706 W with subsonic at 25 Hz, 24 dB/octXmax 15.2 mm one-way

Every trace touches the limit and no further, because each is drawn at the exact power that puts that coil on 15.2 mm. Unfiltered that is 669 W, reached first at 34 Hz. It sits above the 400 W the driver can take thermally, so the voice coil gives up before the suspension does. The dashed traces are the same driver behind a subsonic filter at 25 Hz, 24 dB/oct: stopping the cone wasting travel below the passband lets it take 706 W before hitting the same 15.2 mm. That is 6 percent more amplifier for the price of one filter setting.

Param	Value	Unit	Note
Fs	32.30	Hz	free-air resonance
Qts	0.620		D4
Vas	19.80	L	equivalent compliance
Sd	365.0	cm²	effective piston area
Xmax	15.2	mm	one-way linear travel
Pe	400	W	continuous RMS
SPL	81.9	dB	1 W / 1 m, derived from T/S

Driver parameters as published by loudspeakerdatabase.com. Curves computed against this enclosure’s actual net airspace.

Materials

Material

Built From a Spec Sheet, Not a Sales Sheet

Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.

Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.

Specifications

Langboard Elite MDF: Published Mill Data

Property	Value	Why It Matters
Panel Stock	Langboard Elite MDF	Named, verifiable panel source, not generic "high-density MDF"
Thickness	3/4" (18mm)	Industry standard for subwoofer enclosures; panels below this flex under pressure
Density	48.5 lbs/ft³	Higher density = less porosity, better screw retention, reduced resonance
Internal Bond	200 psi	Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet
Modulus of Rupture (MOR)	4,200 psi	Bending strength before the panel breaks, relevant for larger unsupported baffle spans
Modulus of Elasticity (MOE)	410,000 psi	Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance
Face Screw Holding	325 lbs	How firmly the panel surface holds a screw; critical for baffle joint integrity over time
Edge Screw Holding	250 lbs	Panel edge retention, relevant for every joint that isn't face-to-face

Internal Bond

200 psi: The Number That Actually Matters for Enclosures

The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.

Stiffness

410,000 psi MOE: Less Flex, Less Resonance

The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.

Screw Holding

325 lb Face / 250 lb Edge: Joints That Stay Locked

Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.

Sourcing

Named Panel Stock: Not "Premium MDF"

The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.

Why Proline X?

Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.

CNC-Cut to Spec

Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
