Performance Optimized Down Fire Sealed Dual 10" Enclosure | JL Audio 10TW3-D4
SKU: PO 10D-S DF TW3
- Alignment: 0.50 cu ft net per chamber, 1.00 cu ft total, JL's own optimum. Qtc 0.712 Butterworth, F3 42.6 Hz per driver
- Chambers: Two fully separate sealed chambers, 3/4" MDF full divider, one shared side-mounted terminal cup
- Drivers: Pair of JL Audio 10TW3-D4 (DVC 4Ω), 400W RMS each / 800W combined, 15.2mm Xmax, 3.25" mounting depth
- Power: JL rates 200 to 400 watts RMS per driver. Wire both drivers identically and set impedance at the drivers
- Cabinet: 30"W x 15"D x 7.6875"H measured in down fire position, square corners
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed Dual 10" Enclosure | JL Audio 10TW3-D4
Proline X PO Down Fire Dual 10" Sealed
Cut and tuned for a pair of JL Audio 10TW3-D4 subwoofers
Built Around a Pair of 10TW3-D4s
Nothing about this cabinet is generic. Both baffle positions are bored to the 10TW3-D4's 9.625 inch cutout, 244mm to JL Audio's own spec, and the internal height is set by the driver's 3.25 inch mounting depth. The finished cabinet stands 7.6875 inches tall on the same 30 by 15 inch footprint as the single, and delivers roughly 6 dB more maximum output.
Each 10TW3-D4 is a dual 4-ohm subwoofer rated 400 watts RMS and 800 watts peak, with 15.2mm of one-way linear excursion. Across the pair that is 800 watts RMS combined and 730 cm² of cone area. Polymer and mica composite cones, synthetic rubber surrounds, cast alloy frames with tab-ear mounting, and 2 inch aluminum voice coils.
15.2mm of Xmax on a shallow 10 is a serious figure. Most drivers in this category run 8 to 13mm, and excursion is what produces output at low frequencies. Two of them in a box under 8 inches tall adds up to real displacement capability.
Net Volume, Not Gross
This is a two chamber cabinet. Each driver gets 0.50 cubic feet net, matching JL Audio's published sealed optimum exactly, for 1.00 cubic feet net total. Total gross internal volume is 1.14 cubic feet before panel thickness, the divider, bracing and driver displacement are taken out.
Per chamber that produces Qtc 0.712 with a predicted F3 of 42.6 Hz, identical to the single driver cabinet, computed from JL's published Thiele-Small parameters of Fs 32.3 Hz, Qts 0.620 and Vas 19.82 liters. Qtc 0.707 is the textbook maximally flat sealed alignment. This enclosure lands at 0.960.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness.
Two drivers sharing a single sealed volume interact acoustically: each driver's compression phase becomes the pressure environment the other is working against, which smears transient response and blurs the alignment either would have on its own. A full height bonded divider removes that entirely. Final impedance is set at the drivers, and both drivers must be wired identically so power splits evenly between chambers.
Down Fire Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps both chambers airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

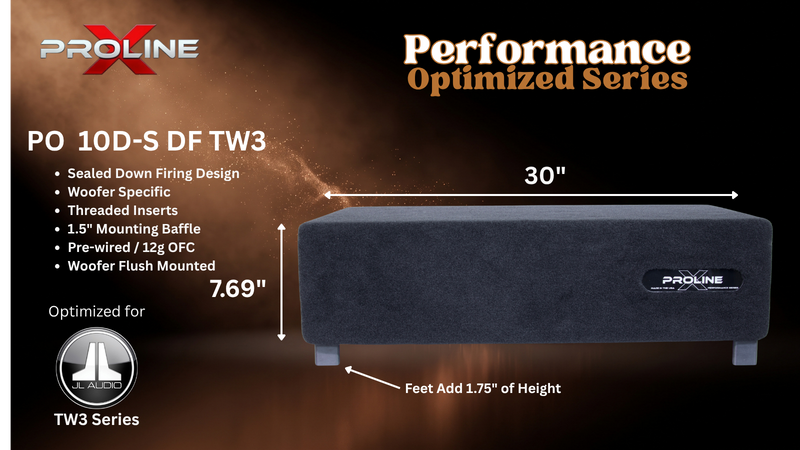

All external dimensions are measured in the down fire position: 30 inches wide, 15 inches deep, 7.6875 inches tall. Both drivers fire down into the floor.

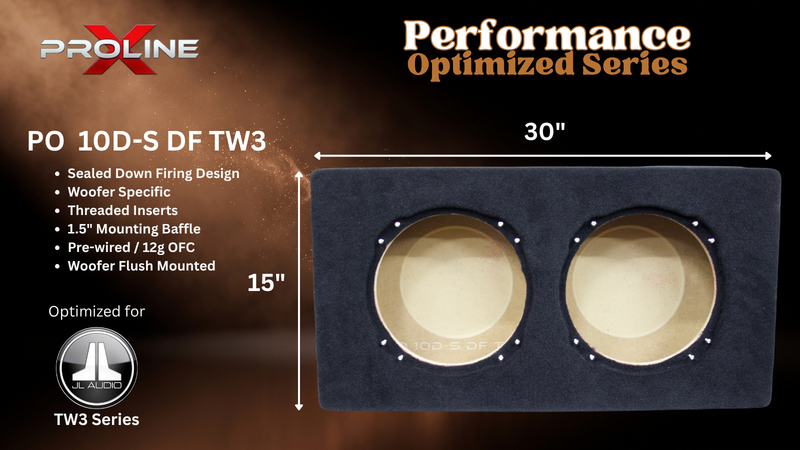

Double Baffle, Flush Recess
Both baffle positions are 1.5 inches, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so each driver bolts to the inner layer. That recovers 3/4 inch of internal clearance at each position.

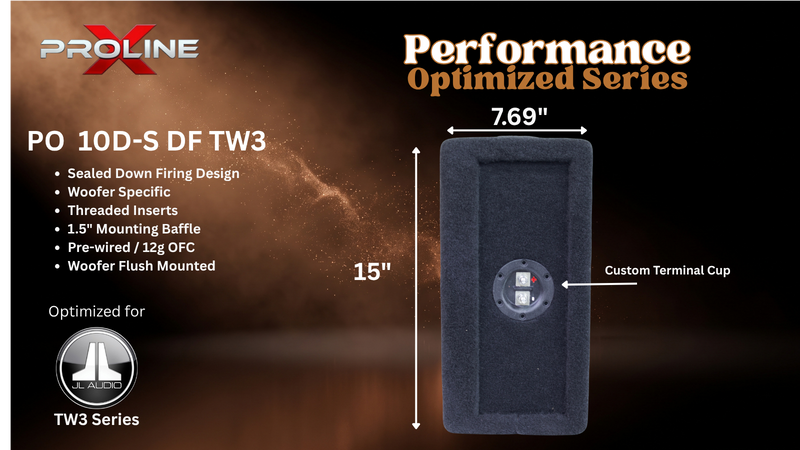

Side-Mounted Terminal Cup
One Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC in parallel to both driver positions. Side mounted so it stays accessible with the baffles facing the floor.
Separate Chambers
A bonded full height 3/4 inch MDF divider splits the cabinet into two sealed chambers, each with its own 0.50 cubic feet net and its own pre-installed polyfill. Standing design rule on every Proline X dual sealed build.
Power and Warranty
JL Audio rates each 10TW3-D4 at 400 watts RMS and 800 watts peak, and recommends 200 to 400 watts per driver, so 800 watts RMS across the pair. Aim for the top of that range. Sensitivity is 82.1 dB at 1 watt and 1 meter, which is on the low side. That is the tradeoff for getting 15.2mm of excursion into a 3.25 inch frame: these motors prioritize travel and control over efficiency, so underpowering them leaves real output unused.
Firing down into the floor, the sealed rolloff meets rising cabin gain below 60 Hz, and in-car response extends well below the anechoic figure. Confirm the load your wiring choice presents against your amplifier's minimum stable impedance before powering the system.
The enclosure carries a 1 year limited warranty. Bring your own pair of JL Audio 10TW3-D4 subwoofers; the drivers are purchased separately.
Cut for the Driver, Not the Catalog
Two chambers, two baffles, both machined to this driver's cutout, mounting depth and displacement, then assembled, carpeted and inspected one at a time in Tullahoma, Tennessee.
| Driver-Specific Fitment | JL Audio 10TW3-D4 (DVC 4Ω) | Pair Required |
| Enclosure Type | Sealed | Dual Driver | Down Fire Geometry | Floor-Coupled |
| Chamber Configuration | Two Fully Separate Chambers | Full Divider | Single Shared Side-Mounted Terminal Cup |
| Baffle Configuration | Down Firing - Both Drivers Fire Toward Floor |
| External Width | 30 Inches |
| External Depth | 15 Inches |
| External Height | 7.6875 Inches |
| Dimension Reference | All External Dimensions Measured In Down Fire Position |
| Total Internal Gross Volume | 1.14 Cubic Feet |
| Per-Chamber Net Volume | 0.50 Cubic Feet - Matches JL Audio Sealed Optimum |
| Total Net Volume | 1.00 Cubic Feet |
| Target Qtc Per Chamber | 0.712 (Computed from Published T/S) |
| Predicted F3 Per Driver | 42.6 Hz |
| Driver Fs | 32.3 Hz |
| Driver Qts | 0.620 |
| Driver Vas | 19.82 Liters Each |
| Driver Xmax (One-Way Linear) | 15.2mm / 0.60 in |
| Cone Area | 365 cm² Each / 730 cm² Total |
| Power Handling | 400 Watts RMS Each / 800 Watts RMS Combined |
| Driver Cone | Polymer/Mica Composite | Synthetic Rubber Surround |
| Driver Voice Coil | 2 in / 50.8mm | Aluminum |
| Driver Technology | Patented Thin-Line Woofer Technology |
| Mounting Depth Required | 3.25 Inches / 82.6mm (JL Audio Spec) |
| Cutout Diameter (Each) | 9.625 Inches / 244mm (JL Audio Spec) |
| Material | Langboard Elite 3/4" MDF |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Construction | ShopSabre CNC / Perimeter Cross-Brace |
| Front Baffle Construction | Double-Layer 1.5" MDF at Both Driver Positions | Outer Layer Flush Recess |
| Chamber Divider | 3/4" MDF Full Bonded Panel |
| Corner Profile | Square (Down Fire Series Standard) |
| Voice Coil Configuration | Dual 4-Ohm Per Driver - Final Impedance Set At The Drivers |
| Mounting Hardware | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included | 2 Sets |
| Terminal Cup | One Proline X ABS/Carbon Fiber Composite | Side Mounted | 12g OFC Pre-Wired to Both Driver Positions |
| Damping | Polyfill Pre-Installed Per Chamber |
| Recommended Power Per Driver | 200-400 Watts RMS (JL Audio Rated Range) |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black |
| Bundle Options | Enclosure Only (Bring Your Own Pair of JL Audio 10TW3-D4) |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.50 cu ft against a 19.8 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 15.2 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 32.30 | Hz | free-air resonance |
| Qts | 0.620 | D4 | |
| Vas | 19.82 | L | equivalent compliance |
| Sd | 365.0 | cm² | effective piston area |
| Xmax | 15.2 | mm | one-way linear travel |
| Pe | 400 | W | continuous RMS |
| SPL | 81.9 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by jlaudio.com. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
