Proline X
Performance Optimized Down Fire Sealed 12" Enclosure | Kicker CompRT
SKU: PO 12-S DF CompRT
- Alignment: 1.25 cu ft net, Qtc 1.137, Fc 47.6 Hz, F3 35.6 Hz - deepest extension in the Down Fire line
- Driver: Kicker 48CWRT124 CompRT 12 (DVC 4Ω), 13.35mm linear excursion, Fs 30.3 Hz, Vas 52.06 L
- Build: Proline X V-groove and dado joinery, double-layer 1.5" front baffle, perimeter cross-brace, 12g OFC side-mounted terminal cup

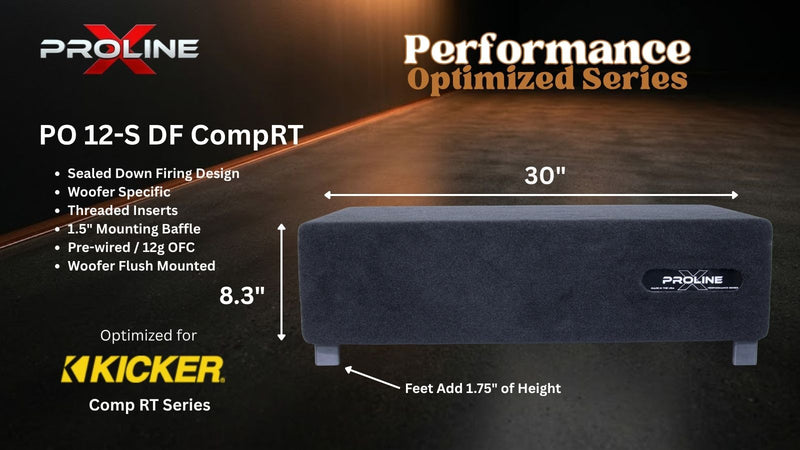

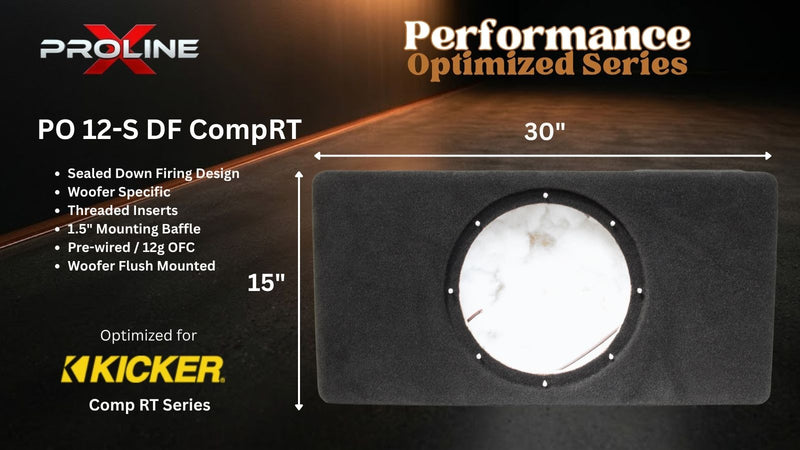

- Cabinet: 30"W x 15"D x 8.3125"H measured in down fire position, square corners
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed 12" Enclosure | Kicker CompRT
The Performance Optimized Down Fire Sealed 12" Enclosure for the Kicker CompRT is a low-profile sealed cabinet built around Kicker's shallow-mount CompRT 12" subwoofer. At 8.3125 inches tall on a 30 by 15 inch footprint, it puts a full 12 into cargo floors and rear-wall positions where a conventional 12 inch box will not go.
The Kicker 48CWRT124 is a dual 4-ohm subwoofer with an injection-molded polypropylene cone, Santoprene rubber surround with Kicker's signature red double stitching, SoloKon integrated cone-to-backplate design, and Forced-Air Cooling that runs the motor roughly 20 percent cooler. The cone and surround are UV resistant, which is why the CompRT turns up in UTV and open-cab builds as often as it does in trucks.
The Thiele-Small data behind this enclosure comes from Klippel measurement rather than a datasheet estimate: Fs 30.3 Hz, Qts 0.7235, Vas 52.06 liters, Bl 19.1765 Tm, Mms 192.33 g, Sd 506.71 cm², and 13.35mm of linear excursion. A 30.3 Hz free-air resonance on a shallow 12 is excellent, and the 52 liter Vas is what gives this driver room to work in a sealed box.
The 1.25 cubic foot net volume produces Qtc 1.137, Fc 47.6 Hz, and a predicted anechoic F3 of 35.6 Hz. That is the deepest anechoic extension in the Proline X Down Fire line, and it comes from the driver's low resonance and large compliance rather than from an oversized cabinet.
Two things are worth being straight about. First, volume matters more on this driver than on the CompRT 10. Dropping to 0.80 net would raise Qtc to 1.314 and push F3 to 39.5 Hz, costing nearly 4 Hz of extension. On the 10 the same proportional reduction costs only about 2 Hz. The extra 2 inches of cabinet height here buys something real.
Second, with a free-air Qts of 0.7235, system Qtc cannot fall below 0.7235 in any sealed enclosure, so this driver is mildly underdamped in every sealed box regardless of size. That is a design characteristic of the CompRT 12, not a limitation of this cabinet. It produces a modest lift near the corner frequency and the punchy, forward presentation the CompRT is known for. If you want the more damped and neutral of the two CompRT sizes, that is the 10 with its 0.618 Qts.
Firing down into the floor, the sealed rolloff meets rising cabin gain below 60 Hz, and in-car response extends well below the anechoic figure.

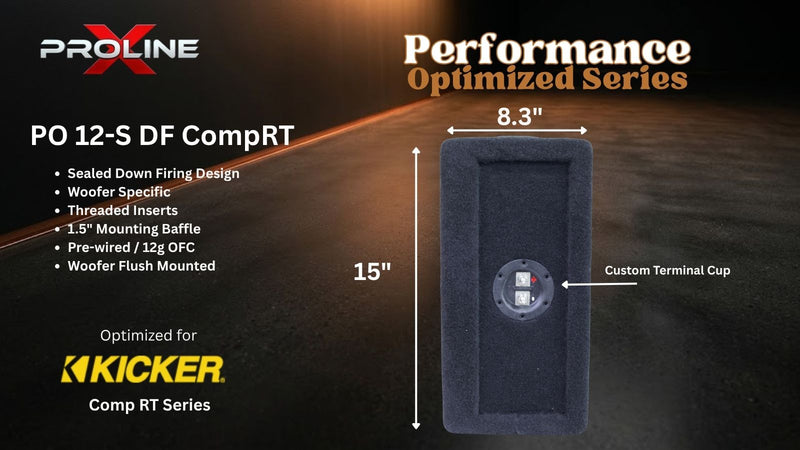

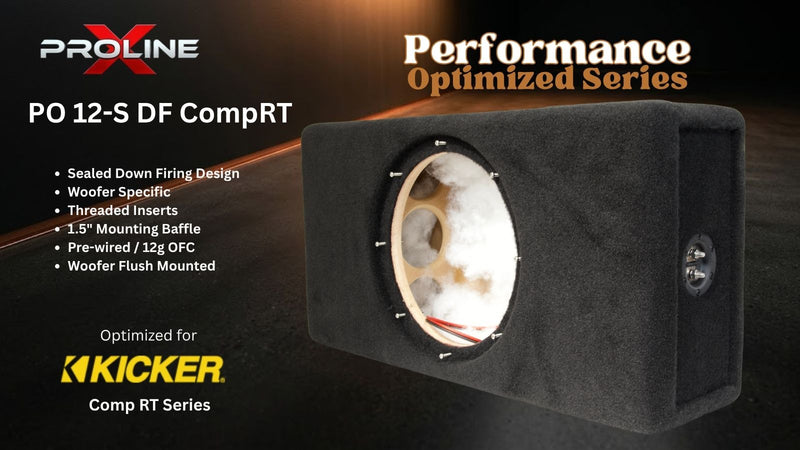

Construction is the full Proline X Performance Optimized platform: ShopSabre CNC-cut Langboard Elite MDF with V-groove and dado joinery, perimeter cross-bracing, and a double-layer 1.5 inch front baffle (two 3/4 inch sheets bonded) for maximum baffle rigidity and driver isolation. Corners are square on Down Fire cabinets. The driver fires down into the floor with the terminal cup side mounted, keeping the connection accessible with the cabinet in place. Terminal cup is our Proline X ABS/carbon fiber composite pre-wired with 12 gauge OFC.
Bring your own Kicker 48CWRT124. Dual 4-ohm, so you set your final impedance at the driver: 2 ohms with the coils in parallel, 8 ohms in series.
Manufactured in Tullahoma, Tennessee. 1-year enclosure warranty.
| Enclosure Type | Sealed | Down Fire Geometry | Floor-Coupled |
| Driver-Specific Fitment | Kicker 48CWRT124 CompRT 12 (DVC 4Ω) |
| Internal Volume (Gross) | 1.30 Cubic Feet |
| Internal Volume (Net) | 1.25 Cubic Feet |
| Target System Qtc | 1.137 (Computed from Klippel-Measured T/S) |
| Predicted Fc | 47.6 Hz |
| Predicted F3 (Anechoic) | 35.6 Hz |
| Driver Fs | 30.3 Hz (Klippel) |
| Driver Qts | 0.7235 (Klippel) - Qtc cannot fall below this in any sealed box |
| Driver Qes / Qms | 0.7925 / 8.399 (Klippel) |
| Driver Vas | 52.06 Liters / 1.838 Cubic Feet (Klippel) |
| Driver Bl | 19.1765 Tm (Klippel) |
| Driver Mms | 192.33 g (Klippel) |
| Driver Cms | 0.1435 mm/N (Klippel) |
| Driver Re | 7.945 Ohm (Klippel) |
| Driver Sd | 506.71 cm² (Klippel) |
| Driver Xmax | 13.35mm Linear (Klippel) |
| Driver Sensitivity | 84.66 dB (Klippel, 1W/1m) |
| Baffle Configuration | Down Firing - Driver Fires Toward Floor |
| Material | Langboard Elite 3/4" MDF |
| Front Baffle Construction | Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded) |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Corner Profile | Square (Down Fire Series Standard) |
| Construction | ShopSabre CNC / Perimeter Cross-Brace |
| External Width | 30 Inches |
| External Depth | 15 Inches |
| External Height | 8.3125 Inches |
| Dimension Reference | All External Dimensions Measured In Down Fire Position |
| Voice Coil Configuration | Dual 4-Ohm - 2Ω Parallel or 8Ω Series At The Driver |
| Mounting Hardware | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | Side Mounted | 12g OFC Pre-Wired |
| Damping | Polyfill Pre-Installed |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black (+$10) |
| Bundle Options | Enclosure Only (Bring Your Own 48CWRT124) |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
1.25 cu ft against a 59.2 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 13.35 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 28.60 | Hz | free-air resonance |
| Qts | 0.560 / 0.724 | D2 / D4 | |
| Vas | 59.19 / 52.06 | L | equivalent compliance |
| Sd | 506.7 | cm² | effective piston area |
| Xmax | 13.35 | mm | one-way linear travel |
| Pe | 500 | W | continuous RMS |
| SPL | 85.6 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by Kicker published Klippel T/S sheet. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
