Performance Optimized Down Fire Sealed 12" Enclosure | JL Audio 12W3v3-4
SKU: PO 12-S DF W3
- Alignment: 1.23 cu ft net, Qtc 0.808, Fc 48.6 Hz, F3 43.3 Hz. Volume set by driver clearance
- Driver: JL Audio 12W3v3-4 (SVC 4Ω), 500W RMS, 13.0mm Xmax, 26.72 Hz Fs, 2.844 ft³ Vas, 6.65" mounting depth
- Headroom: Largest Vas in the Down Fire line, 0.707 Qtc would need roughly 1.85 cu ft net and a taller cabinet

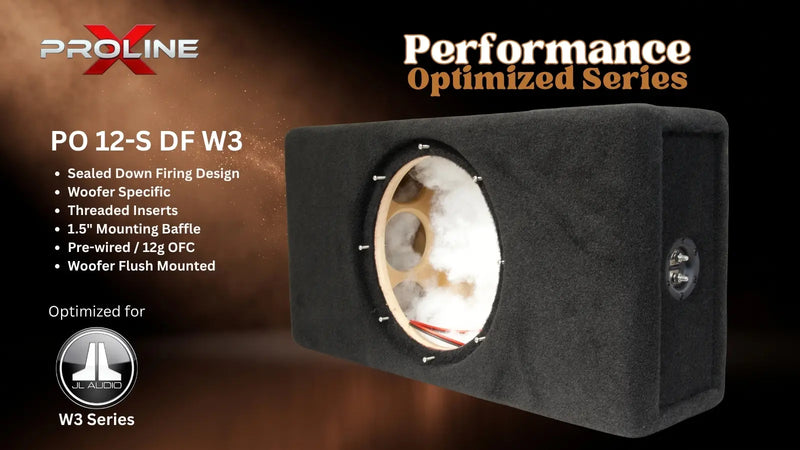

- Build: Proline X V-groove and dado joinery, double-layer 1.5" front baffle with flush outer recess, 3/8" milled magnet relief, 12g OFC side-mounted terminal cup

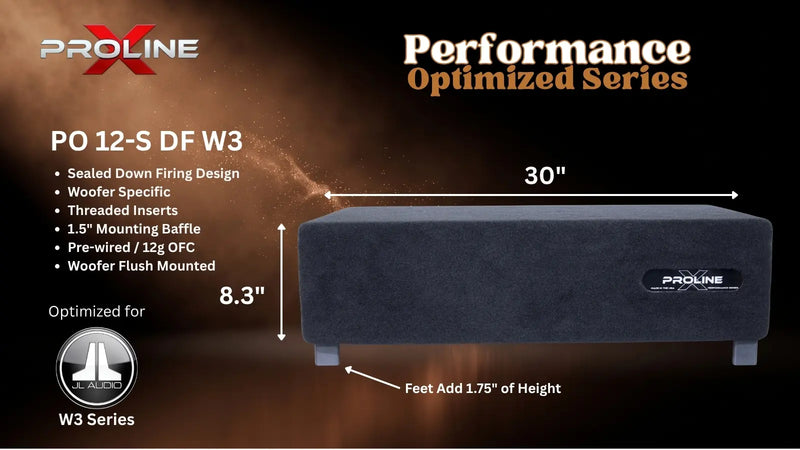

- Cabinet: 30"W x 15"D x 8.3125"H measured in down fire position, square corners
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed 12" Enclosure | JL Audio 12W3v3-4
Proline X PO Down Fire 12" Sealed
Cut and tuned for the JL Audio 12W3v3-4
Built Around the 12W3v3-4
Nothing about this cabinet is generic. The baffle is bored to the 12W3v3-4's 11.0625 inch cutout, 281mm to JL's spec, and the internal height is set by the driver's 6.65 inch mounting depth. Overall frame diameter is 12.5 inches, which the 30 by 15 inch footprint carries with the terminal cup clear of the driver.
The W3v3 is JL's medium power 12, a single voice coil driver at 4 ohms nominal rated 500 watts RMS with a recommended amplifier range of 150 to 500 watts. The cone is mineral filled polypropylene on a rubber surround, 80.6 square inches of piston area, with 13.0mm of one way linear excursion. Sensitivity is 87.15 dB at 1 watt and 1 meter, genuinely efficient by the standards of this program. Dynamic Motor Analysis handles linearity and Elevated Frame Cooling handles heat.
The published parameters are what make this driver unusual: Fs 26.72 Hz, Qts 0.444 and Vas 2.844 cubic feet. That Vas is the largest of any driver in the Proline X Down Fire line. A large Vas means a compliant suspension, so the driver wants real volume before the enclosed air starts dominating the alignment, and the low Qts leaves headroom to reach a well damped result.
Net Volume, Not Gross
We build this cabinet at 1.23 cubic feet net from 1.30 gross, after panel thickness, perimeter bracing and the driver's published 0.071 cubic feet of displacement are accounted for. That produces Qtc 0.808, Fc 48.6 Hz and a predicted F3 of 43.3 Hz. JL Audio's recommended sealed volume is 1.125 cubic feet.
The cabinet runs slightly larger because the driver's depth sets the floor. Take 6.65 inches of mounting depth, subtract the 3/4 inch recovered by the flush recess in the outer baffle layer, subtract the 3/8 inch milled relief behind the magnet, then add half an inch of clearance behind the motor. Minimum internal height lands at 6.0625 inches, which on this footprint is 1.23 net. The extra volume works in your favor: at JL's 1.125 the system computes near Qtc 0.834, and at 1.23 it lands at 0.808.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness.
Worth stating plainly, because of that 2.844 cubic foot Vas this driver would reach the textbook 0.707 alignment at roughly 1.85 cubic feet net, which on a 30 by 15 footprint is a cabinet near 11 inches tall. That is outside the Down Fire format. In a down fire cabinet 0.808 is the right answer: a mild lift near the corner frequency and a usable, well behaved alignment. If flat response is the priority and you have the vertical space, contact us about a taller custom build.
Down Fire Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.
A down fire box is a low, wide platform that sits flat against a floor or cargo deck, so square corners maximize usable internal volume for a given footprint and keep the cabinet stable on its mounting surface. Perimeter cross-bracing ties the panels together, polyfill is pre-installed, and the driver lands on 8/32 threaded inserts with stainless machine screws included. External dimensions are 30 inches wide by 15 inches deep by 8.3125 inches high, measured in the down fire position, at 34 pounds.
Firing down into the floor, the sealed rolloff meets rising cabin gain below 60 Hz, so in-car response extends well below the anechoic figure.

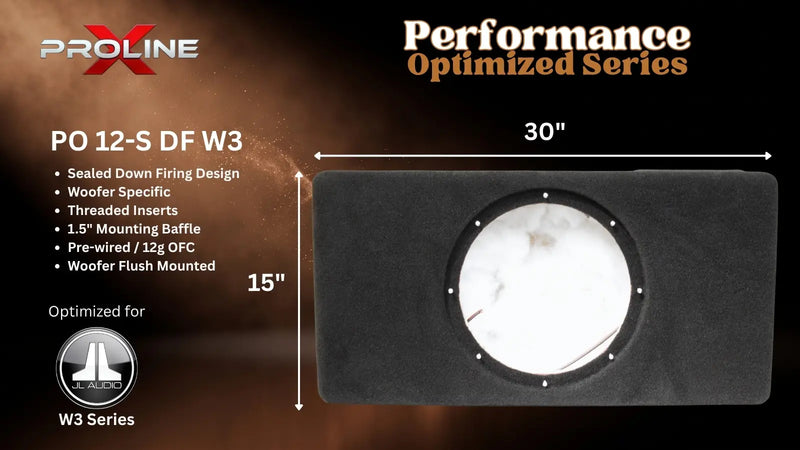

Double Baffle, Flush Recess
The front baffle is 1.5 inches, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so the driver bolts to the inner layer. That recovers 3/4 inch of internal clearance, which matters with an 11.0625 inch cutout.

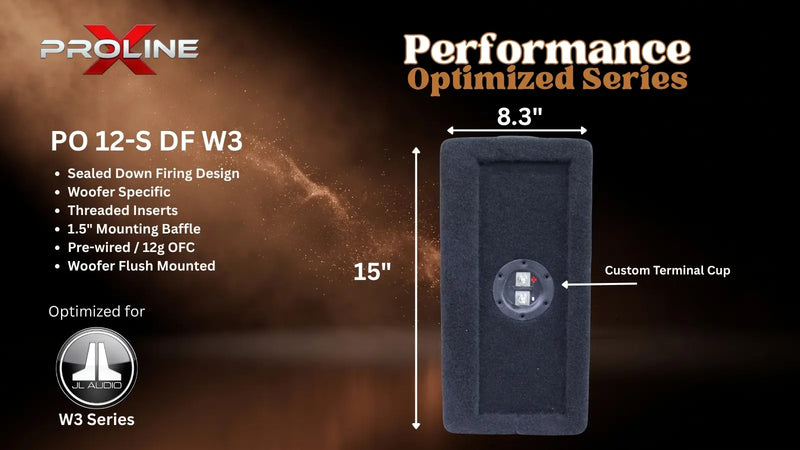

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.
Milled Magnet Relief
A 3/8 inch deep pocket is machined into the panel opposite the baffle, directly behind the magnet. It buys motor clearance for a 6.65 inch deep driver without adding cabinet height.
Power and Warranty
JL Audio rates the 12W3v3-4 at 500 watts RMS continuous and recommends 150 to 500 watts of amplifier power. At 87.15 dB sensitivity this driver produces solid output even in the middle of that range. It is a single voice coil at 4 ohms nominal, so there is no series or parallel decision to make: one side mounted cup, and the amplifier sees 4 ohms.
The enclosure carries a 1 year limited warranty. Bring your own JL Audio 12W3v3-4; the driver is purchased separately.
Cut for the Driver, Not the Catalog
Cutout, internal height and magnet relief are machined for this one driver, then built one at a time in Tullahoma, Tennessee.
| Enclosure Type | Sealed | Down Fire Geometry | Floor-Coupled |
| Driver-Specific Fitment | JL Audio 12W3v3-4 (SVC 4Ω) |
| Internal Volume (Gross) | 1.30 Cubic Feet |
| Internal Volume (Net After Displacement) | 1.23 Cubic Feet |
| JL Audio Recommended Sealed Volume | 1.125 Cubic Feet (See FAQ On Why This Cabinet Is Larger) |
| Target System Qtc | 0.808 |
| Predicted Fc | 48.6 Hz |
| Predicted F3 | 43.3 Hz |
| Volume For 0.707 Qtc | ~1.85 Cubic Feet Net (Requires Taller Cabinet, See FAQ) |
| Driver Fs | 26.72 Hz |
| Driver Qts | 0.444 |
| Driver Qes / Qms | 0.472 / 7.572 |
| Driver Vas | 2.844 Cubic Feet / 80.54 Liters, Largest In The Down Fire Line |
| Driver Sd | 80.6 sq in / 0.0520 m² |
| Driver Xmax (One-Way Linear) | 13.0mm / 0.510 in |
| Driver Displacement | 0.071 Cubic Feet / 2.01 L (Published by JL Audio) |
| Driver Sensitivity | 87.15 dB (1W/1m) |
| Driver Power Handling | 500 Watts RMS Continuous |
| Recommended Amplifier Power | 150 to 500 Watts RMS (JL Audio Spec) |
| Driver Cone | Mineral-Filled Polypropylene | Rubber Surround |
| Driver Technology | Dynamic Motor Analysis (DMA) | Elevated Frame Cooling |
| Mounting Depth Required | 6.65 Inches / 169mm (JL Audio Spec) |
| Cutout Diameter | 11.0625 Inches / 281mm (JL Audio Spec) |
| Driver Overall Diameter | 12.5 Inches / 318mm (JL Audio Spec) |
| Baffle Configuration | Down Firing - Driver Fires Toward Floor |
| Material | Langboard Elite 3/4" MDF |
| Front Baffle Construction | Double-Layer 1.5" MDF | Outer Layer Flush Recess, Driver Mounts To Inner Layer |
| Magnet Relief | 3/8" Deep Milled Relief In Opposite Panel For Motor Clearance |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Corner Profile | Square (Down Fire Series Standard) |
| Construction | ShopSabre CNC / Perimeter Cross-Brace |
| External Width | 30 Inches |
| External Depth | 15 Inches |
| External Height | 8.3125 Inches |
| Dimension Reference | All External Dimensions Measured In Down Fire Position |
| Voice Coil Configuration | Single Voice Coil | 4 Ohm Nominal |
| Mounting Hardware | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | Side Mounted | 12g OFC Pre-Wired |
| Damping | Polyfill Pre-Installed |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black |
| Bundle Options | Enclosure Only (Bring Your Own JL Audio 12W3v3-4) |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
1.23 cu ft against a 80.5 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 13.0 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 26.72 | Hz | free-air resonance |
| Qts | 0.444 | 4 | |
| Vas | 80.54 | L | equivalent compliance |
| Sd | 520.0 | cm² | effective piston area |
| Xmax | 13 | mm | one-way linear travel |
| Pe | 500 | W | continuous RMS |
| SPL | 87.0 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by jlaudio.com. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
