Performance Optimized Down Fire Sealed 10" Enclosure | Hertz Mille Pro MPS 250
SKU: PO 10-S DF MPS
- Alignment: 0.51 cu ft net, Hertz's own spec. Qtc 0.673 / F3 48.4 Hz (S2), Qtc 0.754 / F3 42.9 Hz (S4)
- Driver: Hertz MPS 250 S2 (2Ω) or S4 (4Ω) SVC, 500W RMS / 1000W peak, 16.8mm Xmax, 3.25" mounting depth
- Build: Proline X V-groove and dado joinery, double-layer 1.5" front baffle, perimeter cross-brace, 12g OFC side-mounted terminal cup
- Cabinet: 30"W x 15"D x 4.9375"H measured in down fire position, square corners
Financing available. Choose Shop Pay Installments at checkout.
Complete Your System
Performance Optimized Down Fire Sealed 10" Enclosure | Hertz Mille Pro MPS 250
Proline X Performance Optimized Down Fire 10" Sealed
Cut and tuned for the Hertz Mille Pro MPS 250
Performance, Performance Optimized, and Micro
Proline X builds three tiers of Down Fire enclosure. The difference is not finish or materials, it is whether the cabinet was designed for a category or for a driver, and how much of the fitting work is already done for you.
| Performance | Performance Optimized | Micro Series | |
|---|---|---|---|
| Fitment | Universal. Accepts any subwoofer that clears the published cutout and mounting depth. | Woofer specific. Cut for one named subwoofer, with cutout, mounting depth, magnet clearance and displacement drawn in CAD from that driver. | Woofer specific. Cut for one named subwoofer. |
| Footprint | Sized to the driver diameter. 24.5 by 13.5 inches on the 10 inch. | Shared 30 by 15 inch platform on most builds, with cabinet height as the variable. A few drivers need a wider or deeper platform. | Compact per driver footprint. 21.5 by 14.5 inches on the 10 inch. |
| Front baffle | Single, 3/4 inch. | Double, 1.5 inch, outer layer machined as a flush recess. | Double, 1.5 inch. |
| Driver mounting | Solid flange. You drill your own mounting holes. | 8/32 threaded inserts, stainless machine screws included. | 8/32 threaded inserts, stainless machine screws included. |
| Joinery | V-groove and dado, CNC cut. | V-groove and dado, CNC cut, perimeter cross brace. | Stack fab, dowel reinforced. |
| Published alignment | Modeled Qtc profiles across a range of drivers. No single response curve. | A real predicted Qtc and F3 for that exact driver, calculated from its own Thiele-Small parameters. | Target alignment described in the listing. |
| Carpet | Gray standard, black optional. | Plush black. | Plush black. |
| Warranty | 1 year limited. | 1 year limited. | 2 years. |

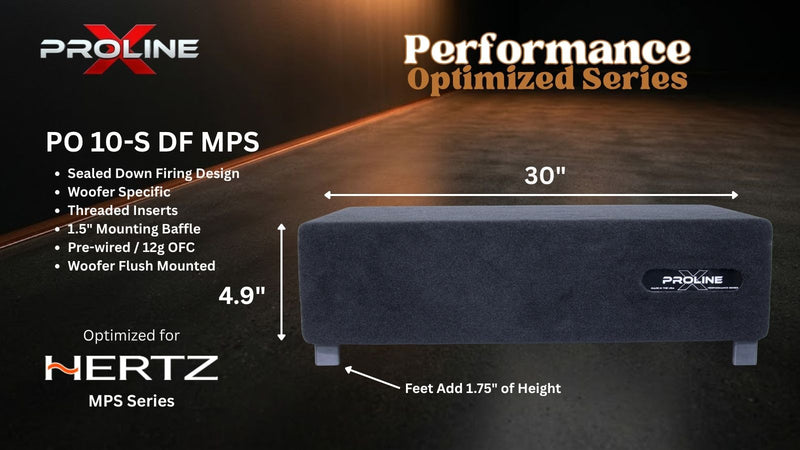

Feet ship with every tier, uninstalled on purpose. Mount them where your floor wants them for a down fire install, or leave them off and run the cabinet front firing or up firing. The orientation is yours to choose.
This page is a Performance Optimized enclosure. The airspace, the cutout and the cabinet height all come from the Hertz Mille Pro MPS 250's own published numbers. A Performance box fits your subwoofer. A Performance Optimized box was built for it.
Built Around the MPS 250
Nothing about this cabinet is generic. The baffle is bored to the Hertz 232mm cutout, which is 9.13 inches, and the internal height is set by the driver's 3.25 inch mounting depth. The finished cabinet stands 4.9375 inches tall on a 30 by 15 inch footprint, measured in the down fire position. That is one of the shortest cabinets in the Proline X Down Fire line, and it fits under seats where almost nothing else will go.
The headline number on this driver is 16.8mm of Xmax, which is exceptional for a shallow mount 10. It comes from a polypropylene cone on a 38mm voice coil with a high density flux ferrite motor, rated 500 watts RMS and 1000 watts peak. Hertz includes a mesh grille in the box that can be rotated 90 degrees or removed entirely.
Both coil options are single voice coil, so impedance is fixed by the model you buy: 2 ohms on the MPS 250 S2, 4 ohms on the MPS 250 S4. There is no wiring decision at the driver. Hertz publishes its Thiele-Small measured with coils in parallel and states that Fs, Vas and Qts are unchanged in series wiring, with only Re, Le and BL moving, so one cabinet is correct either way.
Net Volume, Not Gross
We build this cabinet at 0.51 cubic feet net out of 0.58 cubic feet gross, which matches Hertz's own sealed recommendation of 14.2 liters. There is no argument with the manufacturer to have here: the volume they ask for is the volume the cabinet holds after panel thickness, bracing and driver displacement are accounted for.
True net, not marketing net. Internal volume is calculated from the machined cavity dimensions and the driver's published displacement, not estimated from external dimensions minus wall thickness.
Note which coil is which here, because it is counterintuitive. On the MPS 250 the S2 is the better damped driver, with a free-air Qts of 0.41 against the S4's 0.48. In this volume the S2 lands at Qtc 0.673 with F3 at 48.4 Hz and the S4 at Qtc 0.754 with F3 at 42.9 Hz. So the S2 is the tighter alignment and the S4 reaches lower and carries more motor force, 17.3 T·m against 14.7. That pattern reverses on the 12 inch MPS 300, where the S4 is the tighter of the pair, so do not assume it carries across sizes.
Worth saying plainly: Hertz's published enclosure data reconciles with its own T/S parameters. Running their Qts and Vas through standard sealed box math at their recommended volume lands within 0.03 of the Qtc they print. That is not true of every manufacturer in this category, and it means the numbers on this page and the numbers in the Hertz manual are the same numbers.
Down Fire Construction
Cut with V-groove and dado joinery on our ShopSabre routers from Langboard Elite 3/4 inch MDF, a dense 48.5 lb/ft³ board with a 200 psi internal bond and 410,000 psi MOE. Every panel joint is a machined interlocking groove that mechanically locks before adhesive is applied, which keeps the cabinet airtight under sustained pressure cycling. Corners are square on Down Fire cabinets.

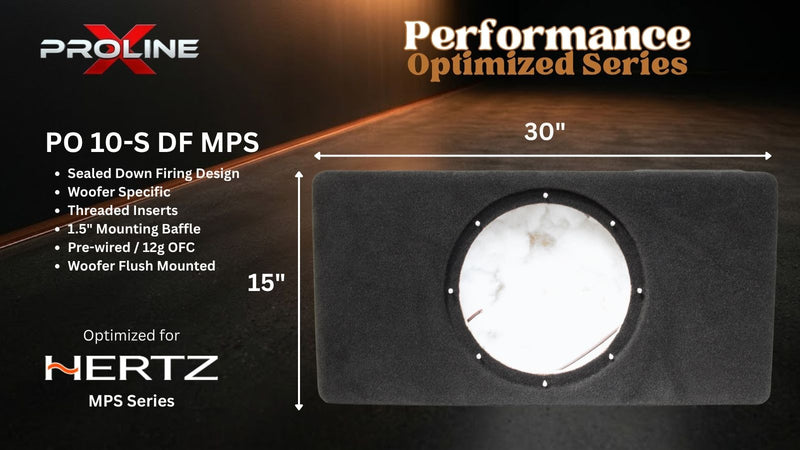

Double Baffle, Flush Recess
The front baffle is 1.5 inches, two bonded 3/4 inch sheets, with the outer layer machined as a flush recess so the driver bolts to the inner layer. That recovers 3/4 inch of internal clearance, which matters on a cabinet under five inches tall.

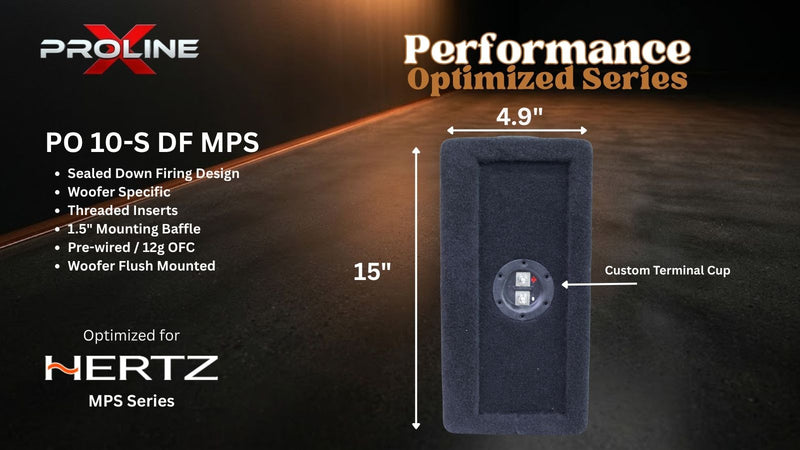

Side-Mounted Terminal Cup
Proline X ABS and carbon fiber composite cup with stainless hardware and copper ring terminals, pre-wired in 12 gauge OFC. Side mounted so it stays accessible with the baffle facing the floor.
Perimeter Cross-Bracing

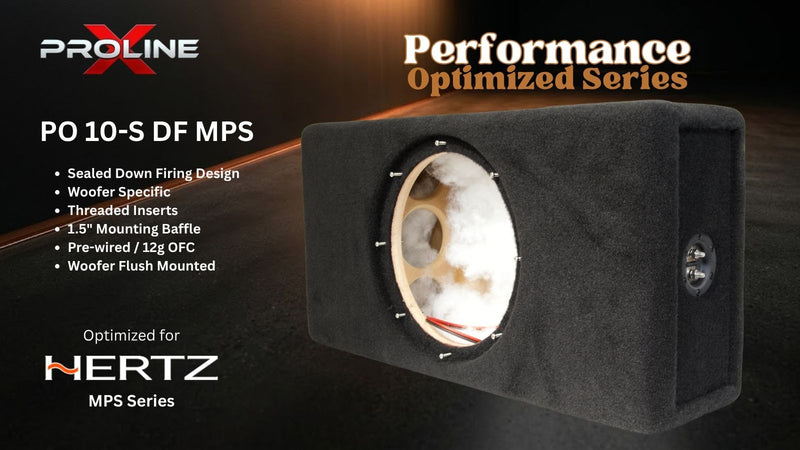

Perimeter cross-bracing ties the long spans together on a wide, shallow cabinet where panel area is the main resonance risk. Polyfill is pre-installed and the driver mounts into 8/32 threaded inserts with stainless machine screws included.
Down Firing Into the Floor
The driver fires downward into the floor and the cabinet couples to the surface it sits on. No standoffs are required; the cabinet sits flat. The sealed rolloff meets rising cabin gain below 60 Hz, so in-car response extends well below the anechoic figures quoted above.
For sealed applications Hertz suggests a 15 Hz subsonic filter at 24 dB per octave and a 70 to 80 Hz low pass, also at 24 dB per octave. Those are the manufacturer's own recommended settings for this driver.
Power and Warranty
The MPS 250 is rated 500 watts RMS and 1000 watts peak on a 38mm voice coil. Since both models are single voice coil, the load your amplifier sees is decided when you choose the S2 or the S4. Check what your amplifier is stable into before you order the driver.
The enclosure carries a 1 year limited warranty. Bring your own MPS 250 S2 or MPS 250 S4; the driver is purchased separately.
Cut for the Driver, Not the Catalog
Hertz asked for 14.2 liters, so that is what this cabinet holds, in the shortest package that will take the driver. Machined, assembled and inspected one at a time in Tullahoma, Tennessee.
| Series | Proline X Performance Optimized Down Fire |
| Compatible Driver | Hertz MPS 250 S2 (2Ω SVC) or MPS 250 S4 (4Ω SVC) |
| Enclosure Type | Sealed | Down Fire Geometry | Floor-Coupled |
| Firing Direction | Down Firing, Driver Fires Toward Floor |
| External Width | 30 Inches |
| External Depth | 15 Inches |
| External Height | 4.9375 Inches |
| Dimension Reference | All External Dimensions Measured In Down Fire Position |
| Internal Volume (Gross) | 0.58 Cubic Feet |
| Internal Volume (Net) | 0.51 Cubic Feet, Matches Hertz Spec of 14.2 Liters |
| Manufacturer Target Volume | 14.2 Liters (Hertz Sealed Recommendation) |
| Target System Qtc (MPS 250 S2) | 0.673 |
| Target System Qtc (MPS 250 S4) | 0.754 |
| Predicted Fc (MPS 250 S4) | 46 Hz |
| Predicted F3 (MPS 250 S2) | 48.4 Hz |
| Predicted F3 (MPS 250 S4) | 42.9 Hz |
| Driver Fs | 28 Hz (S2) / 29 Hz (S4) |
| Driver Qts | 0.41 (S2) / 0.48 (S4), S2 Is The Better Damped On This Size |
| Driver Qes / Qms | 0.45 / 5.3 (S2) | 0.52 / 5.6 (S4) |
| Driver Vas | 24.5 Liters (S2) / 21.2 Liters (S4) |
| Driver BL | 14.7 T·m (S2) / 17.3 T·m (S4) |
| Driver Mms | 250 g (S2) / 234 g (S4) |
| Driver Cms | 0.13 mm/N (S2) / 0.11 mm/N (S4) |
| Driver Xmax | 16.8mm |
| Driver Sensitivity | 82.5 dB (S2) / 83.5 dB (S4) |
| Driver Power Handling | 500 Watts RMS / 1000 Watts Peak |
| Driver Voice Coil | 38mm | Single Voice Coil |
| Driver Motor | High Density Flux Ferrite |
| Mounting Depth Required | 3.25 Inches (Hertz Spec) |
| Woofer Opening | 232mm / 9.13 Inches Cutout Diameter (Hertz Spec) |
| Standoffs | None, Cabinet Sits Flat |
| Material | Langboard Elite 3/4" MDF |
| Construction | ShopSabre CNC / Perimeter Cross-Brace |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Panel Thickness | 3/4 Inch |
| Front Baffle | Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded) |
| Corner Profile | Square (Down Fire Series Standard) |
| Driver Mounting | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | Side Mounted | 12g OFC Pre-Wired |
| Internal Wiring | 12 Gauge OFC |
| Damping | Polyfill Pre-Installed |
| Carpet Finish | Plush Black |
| Suggested Filters | 15 Hz Subsonic at 24 dB/Oct | 70-80 Hz Low Pass at 24 dB/Oct (Hertz) |
| Voice Coil Configuration | Single Voice Coil, Impedance Set By Driver Model |
| Bundle Options | Enclosure Only (Bring Your Own MPS 250 S2 or S4) |
| Weight | 25 lb |
| Warranty | 1-Year Limited (Enclosure) |
| Built In | Tullahoma, Tennessee, USA |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.51 cu ft against a 21.2 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 16.8 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 29.00 | Hz | free-air resonance |
| Qts | 0.480 | SVC 4 | |
| Vas | 21.20 | L | equivalent compliance |
| Sd | 368.5 | cm² | effective piston area |
| Xmax | 16.8 | mm | one-way linear travel |
| Pe | 500 | W | continuous RMS |
| SPL | 81.8 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by Hertz Mille PRO technical sheet. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements, and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
