Performance Optimized Down Fire Sealed 10" Enclosure | Arc Audio SW10
SKU: PO 10-S DF SW10
- Alignment: 0.604 cu ft gross / ~0.55 net - Arc's optimum sealed spec. Qtc 0.843, Fc 53.1 Hz, F3 45.9 Hz
- Driver: Arc Audio SW10 (DVC 2Ω or 4Ω), 350W RMS / 700W peak, 2.4" mounting depth, Fs 39.3 Hz
- Build: Proline X V-groove and dado joinery, double-layer 1.5" front baffle, perimeter cross-brace, 12g OFC side-mounted terminal cup

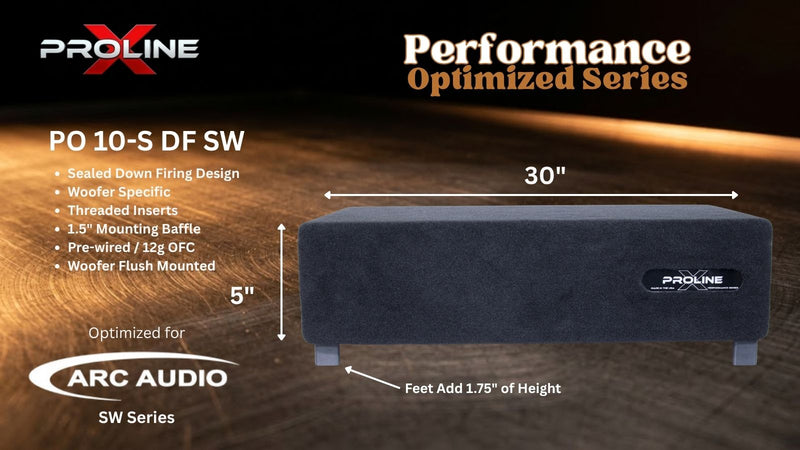

- Cabinet: 30"W x 15"D x 5.0625"H measured in down fire position, square corners
Financing available — choose Shop Pay Installments at checkout.
Performance Optimized Down Fire Sealed 10" Enclosure | Arc Audio SW10

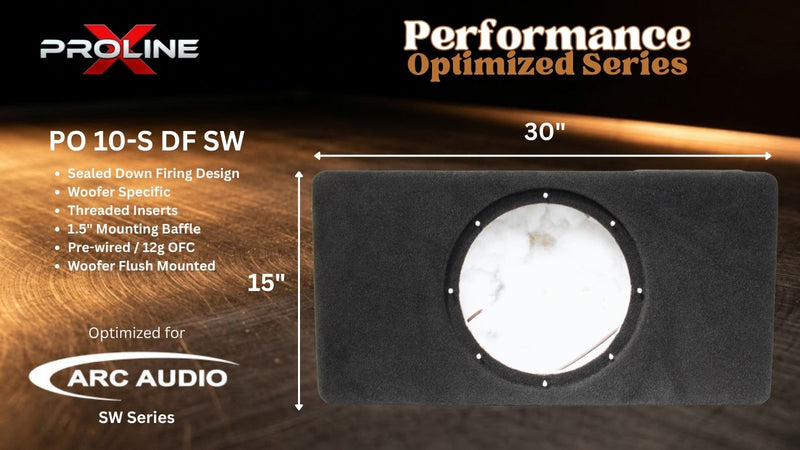

The Performance Optimized Down Fire Sealed 10" Enclosure for the Arc Audio SW10 is built around the shallowest driver in the Proline X Down Fire program. The SW10 mounts in 2.4 inches, or 2.25 inches front-loaded, and this cabinet stands just 5.0625 inches tall on a 30 by 15 inch footprint.

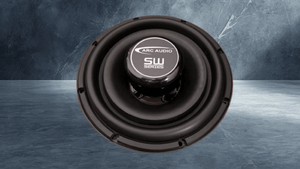

The Arc Audio SW10 is a dual voice coil subwoofer available in dual 2Ω or dual 4Ω, rated 350 watts RMS and 700 watts peak. Cutout is 9.1 inches, outer diameter 10.3 inches. Cone area is 338.16 cm² with a 16.365 Tm force factor in series wiring.
Arc publishes full Thiele-Small data for this driver in both series and parallel wiring configurations, and the two land within a hair of each other: Fs 39.3 versus 39.0 Hz, Qts 0.624 versus 0.634, Vas 12.96 versus 13.33 liters. That consistency means one enclosure serves both wiring choices properly, which is not always true of dual voice coil drivers.
The 0.604 cubic foot gross volume matches Arc Audio's own optimum sealed recommendation of 0.6 gross. That produces Qtc 0.843, Fc 53.1 Hz, and a predicted F3 of 45.9 Hz. A Qts of 0.624 is a healthy, moderate figure, so unlike some shallow drivers this one reaches a properly controlled alignment rather than being locked underdamped regardless of box size.
Note that Arc publishes their sealed recommendations as gross volume rather than net, which is unusual. Most manufacturers state net. We have built to their gross figure as published.
The tradeoff on this driver is honest: a 39.3 Hz free-air resonance is higher than the deeper-reaching shallows in this program, so F3 lands in the mid 40s rather than the 30s. What you get in exchange is a 2.4 inch mounting depth and a cabinet just over 5 inches tall. If your clearance is the binding constraint, this is the driver that fits.
Firing down into the floor, the sealed rolloff meets rising cabin gain below 60 Hz. Arc's own documentation notes cabin gain adds roughly 12 dB per octave below 50 Hz in most vehicles.

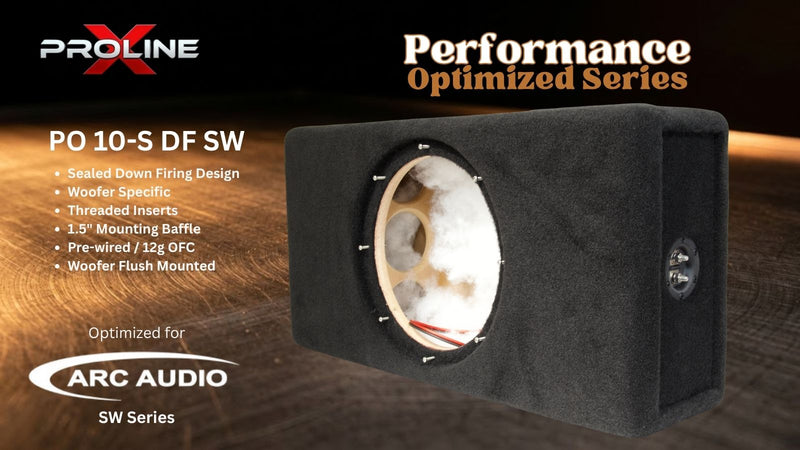

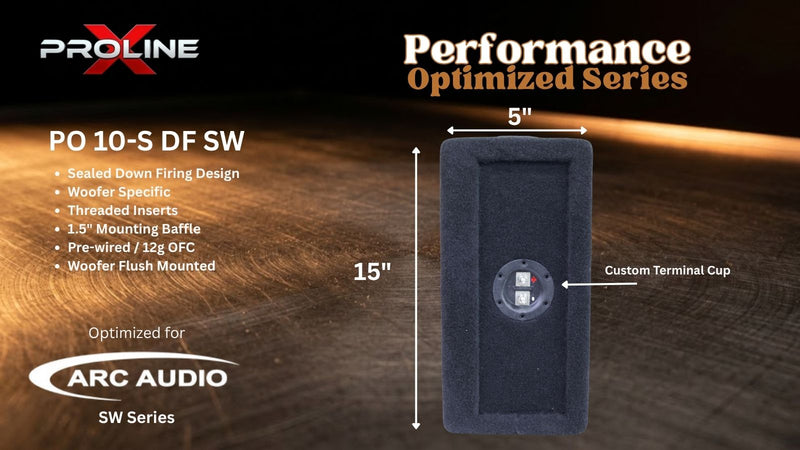

Construction is the full Proline X Performance Optimized platform: ShopSabre CNC-cut Langboard Elite MDF with V-groove and dado joinery, perimeter cross-bracing, and a double-layer 1.5 inch front baffle (two 3/4 inch sheets bonded) for maximum baffle rigidity and driver isolation. Corners are square on Down Fire cabinets. The driver fires down into the floor with the terminal cup side mounted, keeping the connection accessible with the cabinet in place. Terminal cup is our Proline X ABS/carbon fiber composite pre-wired with 12 gauge OFC.
Bring your own Arc Audio SW10. Dual voice coil, so you set your final impedance at the driver.
Manufactured in Tullahoma, Tennessee. 1-year enclosure warranty.
| Enclosure Type | Sealed | Down Fire Geometry | Floor-Coupled |
| Driver-Specific Fitment | Arc Audio SW10 (Dual 2Ω or Dual 4Ω) |
| Internal Volume (Gross) | 0.604 Cubic Feet - Matches Arc's Optimum Sealed Spec of 0.6 Gross |
| Internal Volume (Net) | ~0.55 Cubic Feet |
| Target System Qtc | 0.843 |
| Predicted Fc | 53.1 Hz |
| Predicted F3 | 45.9 Hz |
| Driver Fs | 39.3 Hz Series / 39.0 Hz Parallel |
| Driver Qts | 0.624 Series / 0.634 Parallel |
| Driver Qes / Qms | 0.723 / 4.563 Series | 0.736 / 4.589 Parallel |
| Driver Vas | 12.96 Liters Series / 13.33 Liters Parallel |
| Driver Bl | 16.365 Tm Series / 8.085 Tm Parallel |
| Driver Mms | 204.58 g Series / 201.79 g Parallel |
| Driver Re | 3.83 Ohms Series / 0.97 Ohms Parallel |
| Driver Sd | 338.16 cm² |
| Driver Sensitivity | 83.4 dB (1W/1m) |
| Driver Power Handling | 350 Watts RMS / 700 Watts Peak |
| Arc Published Sealed Range | 0.4 Min / 0.6 Optimum / 0.9 Max (All Gross) |
| Cutout Diameter | 9.1 Inches (Arc Spec) |
| Mounting Depth Required | 2.4 Inches / 2.25 Inches Front-Load (Arc Spec) |
| Outer Diameter | 10.3 Inches (Arc Spec) |
| Baffle Configuration | Down Firing - Driver Fires Toward Floor |
| Material | Langboard Elite 3/4" MDF |
| Front Baffle Construction | Double-Layer 1.5" MDF (Two 3/4" Sheets Bonded) |
| Joinery | V-Groove and Dado (CNC-Cut) |
| Corner Profile | Square (Down Fire Series Standard) |
| Construction | ShopSabre CNC / Perimeter Cross-Brace |
| External Width | 30 Inches |
| External Depth | 15 Inches |
| External Height | 5.0625 Inches |
| Dimension Reference | All External Dimensions Measured In Down Fire Position |
| Voice Coil Configuration | Dual Voice Coil - Final Impedance Set At The Driver |
| Mounting Hardware | 8/32 Threaded Inserts | Stainless Steel Machine Screws Included |
| Terminal Cup | Proline X ABS/Carbon Fiber Composite | Side Mounted | 12g OFC Pre-Wired |
| Damping | Polyfill Pre-Installed |
| Carpet Finish | Dark Gray Trunkliner (Standard) or Plush Black (+$10) |
| Bundle Options | Enclosure Only (Bring Your Own Arc Audio SW10) |
| Warranty | 1-Year Limited (Enclosure) |
| Manufactured | Tullahoma, Tennessee, USA |
01Is it a sealed driver?
Efficiency bandwidth product places the motor before anything else is decided.
02What the box does to it
0.55 cu ft against a 13.0 L Vas.
03The watts that reach Xmax (in this enclosure)
Travel scales with the square root of power, so there is one wattage that puts the cone exactly on 14.7 mm — and a bigger one once a subsonic filter stops it wasting travel below the passband.
| Param | Value | Unit | Note |
|---|---|---|---|
| Fs | 39.30 | Hz | free-air resonance |
| Qts | 0.624 / 0.634 | series / parallel | |
| Vas | 12.96 / 13.33 | L | equivalent compliance |
| Sd | 338.2 | cm² | effective piston area |
| Xmax | 14.7 | mm | one-way linear travel |
| Pe | 350 | W | continuous RMS |
| SPL | 82.2 | dB | 1 W / 1 m, derived from T/S |
Driver parameters as published by arcaudio.com SW10 published specification table. Curves computed against this enclosure’s actual net airspace.
Built From a Spec Sheet, Not a Sales Sheet
Every Proline X Performance Series enclosure is CNC-cut from Langboard Elite MDF, 3/4" (18mm) panels produced to published mill specifications. Most enclosure manufacturers source generic MDF without published data. We can tell you the internal bond rating, the modulus of elasticity, the modulus of rupture, and the face and edge screw holding strength for every panel in this enclosure, because we chose the material based on those numbers, not on price or availability.
Langboard Elite is produced in the United States. The specifications below are pulled directly from Langboard's published mill data and are verifiable. This is the same panel stock used in our full Proline X lineup.
Langboard Elite MDF: Published Mill Data
| Property | Value | Why It Matters |
|---|---|---|
| Panel Stock | Langboard Elite MDF | Named, verifiable panel source, not generic "high-density MDF" |
| Thickness | 3/4" (18mm) | Industry standard for subwoofer enclosures; panels below this flex under pressure |
| Density | 48.5 lbs/ft³ | Higher density = less porosity, better screw retention, reduced resonance |
| Internal Bond | 200 psi | Measures resistance to delamination under sustained internal pressure. The most enclosure-relevant spec on this sheet |
| Modulus of Rupture (MOR) | 4,200 psi | Bending strength before the panel breaks, relevant for larger unsupported baffle spans |
| Modulus of Elasticity (MOE) | 410,000 psi | Stiffness under load; higher MOE means less panel flex under bass pressure, less resonance |
| Face Screw Holding | 325 lbs | How firmly the panel surface holds a screw; critical for baffle joint integrity over time |
| Edge Screw Holding | 250 lbs | Panel edge retention, relevant for every joint that isn't face-to-face |
200 psi: The Number That Actually Matters for Enclosures
The internal bond rating measures how well the MDF panel resists delamination under sustained pressure applied perpendicular to the face. In a subwoofer enclosure, every bass transient generates a pressure pulse that pushes outward on every panel simultaneously. A panel that begins to delaminate internally loses stiffness gradually. The symptoms are slow: a box that starts to sound softer, less defined, less punchy over months of use. 200 psi internal bond is the spec that determines how long this enclosure holds its acoustic integrity under daily use at real power levels.
410,000 psi MOE: Less Flex, Less Resonance
The modulus of elasticity measures panel stiffness, its resistance to bending under load. A stiffer panel flexes less under the pressure generated by a high-excursion driver at volume. Panel flex is a source of acoustic coloration: the panel itself begins to radiate sound at its own resonant frequency, adding distortion to the output. 410,000 psi stiffness combined with V-groove and dado joinery means the panels stay rigid and the bracing controls resonance at the structure level, not the panel level. The bass you hear comes from the driver, not the box.
325 lb Face / 250 lb Edge: Joints That Stay Locked
Screw holding strength determines how firmly the panel grips a fastener at the face and at the edge. This matters most at the baffle joint, where the front panel meets the side panels and where the driver is mounted. A panel with low screw holding strength allows fasteners to loosen over time under vibration, leading to air gaps at the joint and loss of acoustic seal. 325 lb face screw holding strength means the baffle hardware stays put. Combined with dado joinery and adhesive, the front panel on a Proline X Performance Series enclosure is not going anywhere.
Named Panel Stock: Not "Premium MDF"
The phrase "premium MDF" or "high-density MDF" appears on marketing copy for enclosures across every price point, from $40 to $400. It is not a specification. It is a description with no defined standard. Langboard Elite is a named, sourced, mill-documented product with published data. We name it in our copy because naming it holds us accountable to the spec. You can look up Langboard Elite independently, verify the numbers on this page, and confirm you are getting what we say you are getting. That is the point.
Why Proline X?
Most enclosures are built to a price point. Proline X is built to a spec. Every box starts with published-data MDF, gets CNC-cut to exact internal volume, and is assembled by hand in our Tennessee facility. The difference shows up in the measurements — and in how the box holds up two years into daily use.
CNC-Cut to Spec
Panels are machine-cut on ShopSabre CNC routers and joined with V-groove and dado joinery. Consistent geometry, no hand-cut variance, no gaps at the joints.
Handcrafted in USA
Hand-assembled at our facility in Tullahoma, TN. Every enclosure is inspected before it ships.
Tuned to the Build
Internal volume and port geometry are calculated to spec and CNC-cut to exact dimensions. The box performs the same way every time.
