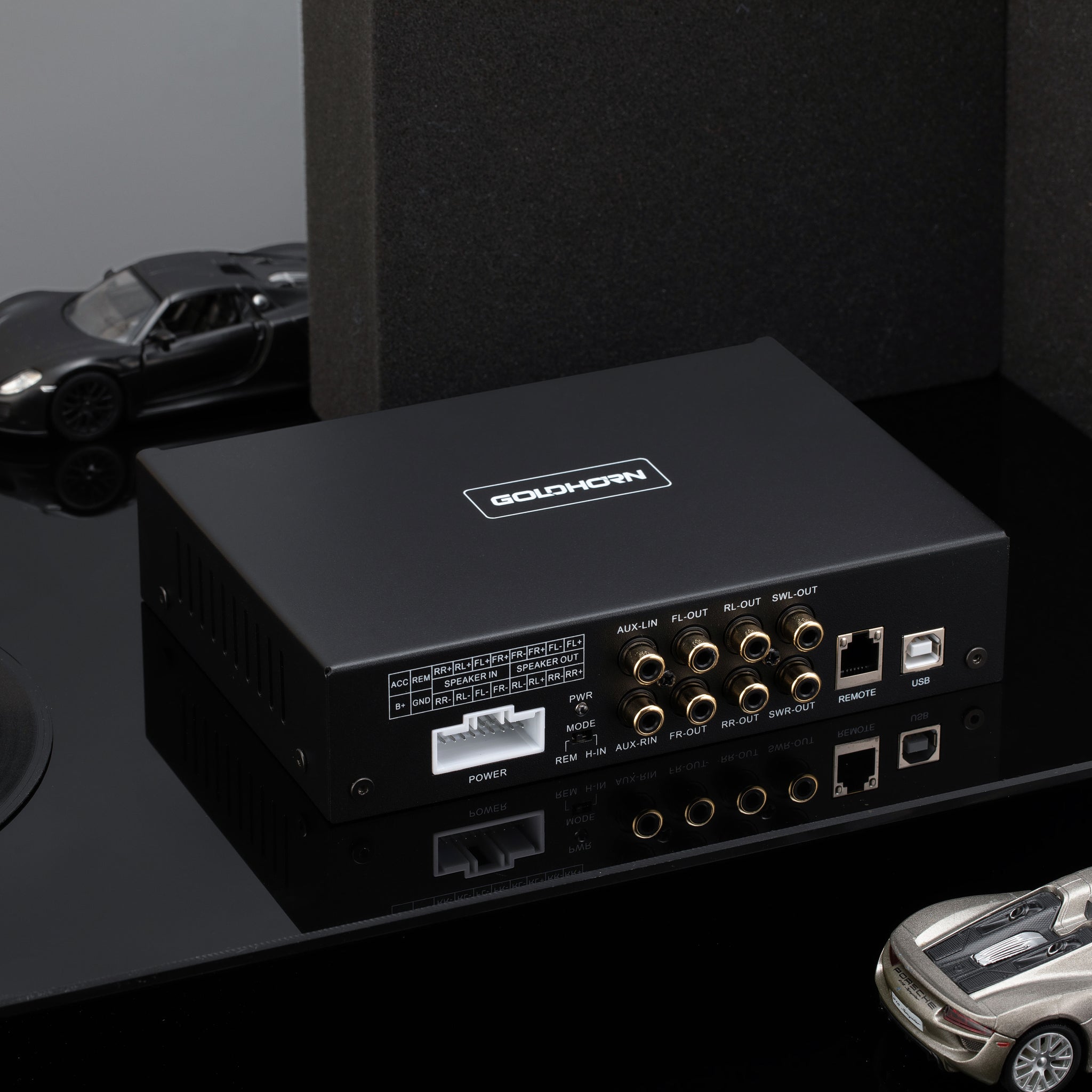

Goldhorn DSPA 206 | 6 Channel DSP / 4 x 50w Amplifier

The Gateway to DSP Audio: Professional Features at Entry-Level Pricing

The Goldhorn DSPA 206 demolishes the traditional barrier-to-entry for DSP-based car audio systems. Where premium DSP processors demand $600-$1,500 (plus separate amplifiers adding $400-$800), the DSPA 206 delivers 6-channel DSP processing, 4-channel Class AB amplification, Bluetooth streaming, and comprehensive tuning control for $299.99 — less than the cost of entry-level standalone DSPs alone. This is not a compromised "budget" product cutting corners on sound quality — this is a strategic engineering exercise maximizing performance-per-dollar through intelligent component selection, streamlined feature sets, and Goldhorn's manufacturing scale advantages. The DSPA 206 targets first-time DSP users, factory audio upgraders, and budget-conscious enthusiasts who recognize that proper time alignment, active crossovers, and parametric EQ deliver greater sonic improvements than expensive speakers poorly integrated. If you've been listening to recommendations for "adding a DSP" but balked at thousand-dollar processor prices, the DSPA 206 is your entry point to reference-quality car audio.

6-Channel DSP Architecture: Focused Routing for Common Configurations

The DSPA 206's 6-channel DSP output might seem limiting compared to the DSPA 1012 Plus (20 channels) or DSPA 2416 Ultra (36 channels), but this channel count is precisely calibrated for the most popular car audio configurations: two-way active front stages with rear-fill or subwoofer integration. The system accepts 4 inputs (high-level speaker feeds or RCA preamp signals) and routes them to 6 independent DSP outputs, each with its own parametric EQ, crossover, time alignment, and level control:

Input Flexibility: High-Level + RCA Connectivity

The DSPA 206 accommodates diverse source configurations without requiring signal adapters or LOCs (line output converters):

• 4× High-Level Inputs: Direct connection to factory head unit speaker outputs (up to 10V tolerance) or aftermarket head unit amplified outputs — preserves OEM integration without head unit replacement
• 2× RCA Inputs: Line-level connections for aftermarket head units with preamp outputs — allows independent stereo source connection
• Bluetooth 5.0: Wireless streaming from smartphones, tablets, or laptops — eliminates wiring for test/tuning or casual listening

ADAU1701 SigmaDSP: Analog Devices Professional Audio Engine

The DSPA 206 employs the Analog Devices ADAU1701 SigmaDSP processor — the same DSP core used in professional studio mixing consoles, live sound processors, and high-end home audio. The ADAU1701's architecture features 28-bit fixed-point processing, 48 kHz sampling rate, and dedicated hardware accelerators for filtering, mixing, and dynamics. While this 48 kHz specification is lower than the DSPA 2416 Ultra's 192 kHz capability, it's important to understand that 48 kHz sampling captures audio content up to 24 kHz — already exceeding human hearing's 20 kHz limit. The practical limitation is not audio bandwidth but rather anti-aliasing filter design and processing headroom for EQ/crossover calculations. The ADAU1701's 28-bit internal processing resolution ensures that EQ adjustments, crossover filters, and gain staging don't introduce audible quantization artifacts, maintaining signal integrity through complex DSP chains. For enthusiasts concerned about "entry-level" processing compromising sound quality, the ADAU1701 delivers professional-grade audio fidelity indistinguishable from higher-specification processors in real-world listening.

AKM PCM1754 DAC + PCM1808 ADC: Premium Conversion Components

Despite its entry-level positioning, the DSPA 206 utilizes Asahi Kasei Microdevices (AKM) converters — the same manufacturer supplying premium DACs for the DSPA 2416 Ultra. The PCM1754 DAC and PCM1808 ADC provide 24-bit/96 kHz capability with > 100 dB dynamic range, ensuring that conversion stages don't bottleneck the ADAU1701's processing capabilities. This component selection reflects Goldhorn's philosophy: invest in signal path quality where it matters (converters, op-amps), optimize costs where users won't notice (enclosure cosmetics, accessory bundles).

4-Channel Class AB Amplification: 50W × 4 Power Delivery

The DSPA 206's integrated Class AB amplifier section delivers 50W RMS @ 4Ω per channel — conservative power ratings that prioritize long-term reliability and thermal stability over marketing-friendly "MAX" specifications. The 200W total output is ideal for efficient component speakers (88-92 dB sensitivity) where 50W generates 105-109 dB SPL @ 1 meter — sufficient for most listening applications without external amplification. The Class AB topology delivers the warm, natural midrange character and tight bass control that audiophiles prefer over Class D's efficiency-focused design:

DSP Feature Set: Essential Tools Without Overwhelming Complexity

The DSPA 206's DSP toolkit is deliberately focused on essential tuning parameters rather than overwhelming beginners with advanced features rarely used outside professional installations:

Competitive Analysis: DSPA 206 vs. Entry-Level Alternatives

Value Proposition Analysis

• vs. Dayton DSP-408: The DSPA 206 includes integrated amplification + Bluetooth for the same $299 price as Dayton's DSP-only solution, saving $300+ on external amplifier purchases
• vs. Kicker KEY200.4: The DSPA 206 offers 15-band parametric EQ vs. Kicker's graphic EQ, providing surgical frequency correction impossible with fixed graphic bands. The Class AB amplification delivers warmer tonal character than Kicker's Class D
• Component Quality: The ADAU1701 DSP + AKM converters deliver professional-grade signal path quality matching processors costing 2-3× more
• Upgrade Path: The 6× RCA outputs enable future expansion with external amplifiers without replacing the DSP brain

Installation Scenarios: Where the DSPA 206 Excels

Software Interface: Simplified Tuning for Beginners

The DSPA 206 utilizes Goldhorn's Windows-based DSP tuning software (compatible with Windows 7/8/10/11, 64-bit). The interface prioritizes clarity over feature density, presenting essential controls without overwhelming beginners. Key software features include:

• Visual Signal Flow: Graphical representation of input-to-output routing clarifies DSP configuration
• Parametric EQ Interface: Drag-and-drop EQ curve manipulation with real-time frequency response visualization
• Crossover Wizard: Guided setup for common two-way/three-way configurations with recommended slopes and frequencies
• Preset Management: Save/load 8 tuning configurations for different listeners or source content
• Real-Time Adjustment: Parameter changes update immediately without requiring DSP restarts

While enthusiasts familiar with Helix or AudioControl software may find Goldhorn's interface "less polished", the functional capabilities are comprehensive. Online community resources (DIYMobileAudio tutorials, YouTube setup guides) provide step-by-step tuning instructions accelerating the learning curve.

Limitations and Upgrade Path

The DSPA 206's entry-level positioning necessitates strategic compromises that buyers should understand before purchase:

Conclusion: The $300 DSP Revolution

The Goldhorn DSPA 206 challenges the conventional wisdom that "proper DSP tuning requires thousand-dollar processors and separate amplification". At $299.99, it delivers professional-grade ADAU1701 DSP processing, AKM converters, 15-band parametric EQ, active crossovers, time alignment, and Class AB amplification in a package smaller than most standalone DSP processors. This is not a "beginner's compromise" sacrificing sound quality — this is a strategic engineering achievement maximizing performance-per-dollar for the most common car audio configuration (two-way active front stage). For enthusiasts who've been told "you need a DSP to make those speakers sound right" but balked at $600-$1,500 processor prices (plus separate amplifiers), the DSPA 206 eliminates excuses. The limitations are real but manageable for target applications. The component quality is genuine (ADAU1701 + AKM converters). The value proposition is undeniable (DSP + Amp for less than standalone DSPs alone). If your project is a two-way active front stage with external subwoofer, factory head unit integration, or first DSP exploration, the Goldhorn DSPA 206 delivers the foundation your system deserves. Welcome to accessible audiophile car audio.
