ARC Audio 8” Ported Downfiring Subwoofer System

Complete System Overview: Compact Ported Performance for Space-Constrained Vehicles

The ARC Audio 8" Ported Downfiring System delivers a turnkey compact bass solution that combines the efficiency of ported enclosure design with the space-saving advantages of downfire orientation and 8-inch driver format. This complete system pairs the ARC Audio ARC Series 8" subwoofer—engineered in the USA for balanced performance and sound quality—with the revolutionary Pro-Line X Downfire Series ported enclosure featuring the same groundbreaking 6.5" height profile that defines the entire downfire collection, enabling installation in locations where traditional enclosures simply cannot fit.

The 8-inch driver format represents a strategic choice for applications where space constraints eliminate larger subwoofers but bass impact remains non-negotiable. Modern 8-inch subwoofers—particularly when properly matched to optimized ported enclosures—deliver surprising output that challenges assumptions about small driver limitations. The 150-watt RMS power handling, while modest compared to 12" or 15" competitors, translates to meaningful bass energy when combined with the ported enclosure's efficiency advantage (3-6 dB gain over sealed at tuning frequency) and the downfire orientation's floor reflection coupling (additional 2-3 dB gain).

This system's 0.7 cubic foot internal volume with 36 Hz port tuning has been specifically calculated for the ARC Series 8" subwoofer's Thiele-Small parameters, maximizing low-frequency output while maintaining compact external dimensions of 25.5" × 6.5" × 13". The 36 Hz tuning frequency targets the critical midbass/upper bass transition region where kick drums, bass guitars, and electronic bass synthesizers concentrate their fundamental frequencies—exactly where automotive interiors benefit most from additional output.

The downfire configuration provides the same strategic advantages as larger downfire systems: floor reflection coupling for natural acoustic gain, physical cone protection from cargo contact, flat top surface enabling cargo stacking functionality, and stealth aesthetic integration with no exposed driver. The revolutionary 6.5" height fits behind crew cab truck seats, under SUV seats, in sedan package trays, and countless other locations where 12-15" tall traditional enclosures are physically impossible.

With dimensions optimized for compact car and small truck applications, ported efficiency delivering maximum output from modest amplifier power, and professional factory assembly eliminating DIY complexity, this system represents the ideal entry point for enthusiasts seeking meaningful bass enhancement without sacrificing usable vehicle space or requiring massive amplifier power.

Complete System Specifications

8-Inch Driver Format: Strategic Advantages for Compact Applications

The 8-inch subwoofer format occupies a unique position in car audio—often overlooked in favor of "more popular" 10", 12", or 15" drivers, yet offering distinct strategic advantages for specific applications where space constraints, power limitations, or acoustic requirements favor smaller driver diameter combined with optimized enclosure design.

Compact Enclosure Volumes: Fitting Where Others Cannot

The fundamental advantage of 8-inch subwoofers is their ability to perform optimally in significantly smaller enclosure volumes than larger drivers. This system's 0.7 cubic foot internal volume—already small by most standards—would be grossly inadequate for 10" or 12" drivers, resulting in over-damped response with severely limited output and extension. The ARC Series 8", however, operates happily in this volume with proper port tuning, delivering meaningful bass response that belies the compact package.

The 25.5" × 6.5" × 13" external dimensions create a footprint that fits in locations physically impossible for larger systems:

• Behind Crew Cab Seats: 6.5" height with 25.5" width fits smaller crew cabs (Tacoma, Ranger, Colorado, Canyon) where 30" width 12" systems don't fit between wheel wells
• Under Seats: Compact cars, sedans, small SUVs with 6-8" under-seat clearance accommodate 8" systems but not 10-12" alternatives
• Sedan Package Trays: Rear deck installations in sedans and coupes where vertical clearance is severely limited
• Behind-Seat Mini Trucks: Nissan Frontier, older Rangers, S10/Sonoma, Tacoma Regular Cab where space is at absolute premium
• Hatchbacks and Wagons: Side-mounted or floor-mounted installations in small cargo areas

Power Efficiency: Meaningful Bass from Modest Amplifiers

The 150-watt RMS power handling—modest by modern car audio standards where 500W+ subwoofers dominate discussions—represents a realistic power level for budget-conscious enthusiasts or those working with existing amplifier infrastructure. Quality 150-200 watt Monoblock amplifiers are available at entry-level pricing, and many 4-channel amplifiers can be bridged to deliver 150-250 watts to a single subwoofer channel while still powering front/rear speakers.

The ported enclosure design tuned to 36 Hz provides 3-6 dB additional output compared to equivalent sealed designs at frequencies near tuning. This efficiency advantage means the 150-watt 8" ported system can match or exceed the output of a 200-250 watt sealed system in the critical 35-50 Hz midbass region where most music content concentrates. Combined with the downfire floor coupling adding another 2-3 dB, this system performs acoustically like a 250-300 watt sealed upward-firing system—all while consuming only 150 watts of actual amplifier power.

Speed and Transient Response

Smaller driver formats inherently exhibit faster transient response due to reduced moving mass. The 8" cone, voice coil, and spider assembly weighs significantly less than equivalent 12" or 15" components, allowing the driver to accelerate and decelerate more rapidly during complex bass passages. This translates to improved definition on rapid bass notes—double bass drum patterns in metal, fast bass guitar runs in jazz/funk, staccato electronic bass in EDM and hip-hop.

While larger drivers can achieve excellent transient response through engineering (lightweight materials, high-power motors, advanced spider designs), the 8" format starts with a fundamental mass advantage that makes "fast bass" easier to achieve at modest price points. For listeners prioritizing bass accuracy and articulation over maximum SPL capability, well-designed 8" systems often outperform poorly-designed 12" systems despite the size disadvantage.

Realistic Expectations: What 8" Systems Can and Cannot Do

Honesty demands acknowledging that 8-inch subwoofers have output limitations compared to larger formats. No amount of engineering can overcome the fundamental physics that larger cone area moves more air volume. A single 8" driver in 0.7 cu.ft. ported will not deliver the chest-pounding 120+ dB SPL that competition enthusiasts seek from dual 15" systems in 5+ cubic foot enclosures powered by kilowatts of amplification.

What this system can deliver:

• Meaningful Bass Enhancement: Transform factory audio systems from "no bass" to "satisfying bass" for most listeners
• Compact Car Solutions: First-time subwoofer installations where space absolutely prohibits larger systems
• Secondary Vehicles: Work trucks, daily drivers, beater cars where massive bass systems are impractical
• Budget-Friendly Performance: Complete bass solution (sub + enclosure + modest amp) for under $500 total investment
• Audiophile Quality Bass: Accurate, articulate low frequencies for jazz, classical, acoustic music where quality trumps quantity

What this system cannot deliver:

• Competition SPL: Maximum volume contests, extreme bass head applications requiring 130+ dB
• Deep Subsonic Extension: True deep bass below 30 Hz with authority (system tuning and driver limits restrict deepest bass)
• Large Vehicle Pressurization: Full-size SUVs, extended cargo vans, large vehicles with huge cabin volumes
• Extreme Power Handling: 500W+ amplifiers demand larger drivers with higher power ratings

Ported Enclosure Design: 36 Hz Tuning for Midbass Impact

This system utilizes a ported enclosure alignment (also called bass reflex or vented) rather than sealed acoustic suspension. The ported design includes a precision-tuned slot port that resonates at 36 Hz, providing significant efficiency advantages in the critical midbass and upper bass frequency range where most music content concentrates fundamental bass energy.

How Ported Enclosures Work: Helmholtz Resonance

A ported enclosure functions as a Helmholtz resonator—a cavity with an opening that resonates at a specific frequency determined by enclosure volume and port dimensions. At the tuning frequency (36 Hz in this system), the air mass in the port resonates in phase with the subwoofer cone, effectively creating a "second driver" that contributes additional acoustic output. This resonance provides 3-6 dB more output than equivalent sealed enclosures at frequencies near tuning—a gain equivalent to doubling or quadrupling amplifier power.

The 36 Hz tuning frequency has been specifically selected for automotive applications where the critical bass content resides:

• Kick Drums: Fundamental frequencies 40-60 Hz (36 Hz tuning provides support just below for natural extension)
• Bass Guitar: Low E string fundamental = 41 Hz, lower notes down to 30-35 Hz in extended-range basses
• Electronic Bass: Hip-hop, EDM, electronic music synthesizers concentrate energy 35-50 Hz range
• Midbass Punch: The "impact" sensation from bass hits occurs 40-80 Hz—36 Hz tuning supports this critical range

Above the tuning frequency, the ported enclosure operates similarly to sealed designs with the cone providing acoustic output. Below tuning frequency, the port falls out of resonance and response drops steeply (24 dB/octave vs. 12 dB/octave for sealed). This steeper rolloff means ported systems provide less deep bass extension than equivalent sealed systems—but in automotive environments where cabin gain naturally boosts frequencies below 50 Hz, this limitation is less problematic than in home audio applications.

Ported vs. Sealed for This Application

Why ported alignment for 8" compact system?

• Efficiency Advantage: 150W into ported = 250-300W into sealed at tuning frequency (critical for modest power budget)
• Midbass Emphasis: 36 Hz tuning maximizes output where music energy concentrates (kick drums, bass guitar fundamentals)
• Smaller Driver Compensation: Ported design helps 8" driver compete with larger sealed alternatives through efficiency gain
• Compact Enclosure Optimization: 0.7 cu.ft. with port delivers more usable output than 0.7 cu.ft. sealed would provide

Trade-offs acknowledged:

• Slightly Larger Enclosure: Port requires space—equivalent sealed might use 0.5 cu.ft. vs. 0.7 cu.ft. ported
• Reduced Deep Bass: Below 30 Hz, response drops off more steeply than sealed (less relevant in automotive applications)
• Potential Port Noise: High excursion at high power can cause port chuffing (airflow noise)—typically only at extreme volume levels
• More Complex Construction: Port tuning requires precision—factory construction ensures proper implementation

Port Design and Construction

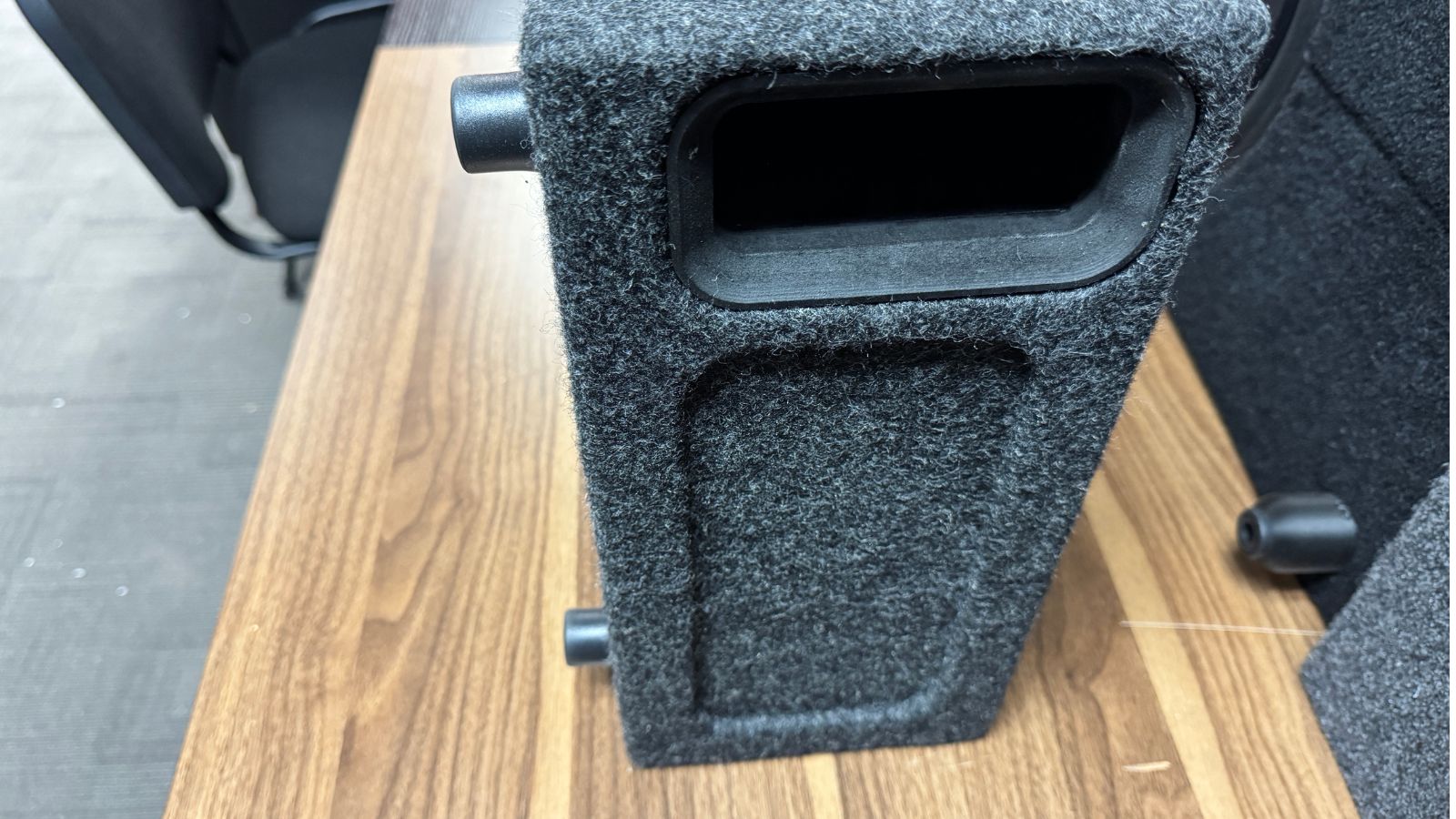

This system employs a slot port rather than round port tube. Slot ports offer several advantages in low-profile downfire enclosures:

• Space Efficiency: Slot port integrates into enclosure structure, utilizing available height more efficiently than round tubes
• Reduced Port Noise: Larger port area (vs. equivalent round port) reduces air velocity and minimizes chuffing at high excursion
• Downfire Compatibility: Slot can be positioned to fire downward alongside driver, maintaining low profile aesthetic
• Manufacturing Precision: CNC-cut slot ports ensure accurate dimensions and tuning frequency—critical for proper performance

The port has been professionally designed and constructed by the enclosure manufacturer using acoustic modeling software to calculate required port area and length for 36 Hz tuning in 0.7 cu.ft. volume. This eliminates the trial-and-error and potential errors that plague DIY ported enclosure construction, where incorrect port dimensions result in mistuned systems with poor performance.

Downfiring Configuration: Floor Coupling and Practical Advantages

This system's downfire orientation—identical to the larger 12" ARC Audio systems in the Pro-Line X collection—delivers the same strategic acoustic and practical advantages regardless of driver size. The subwoofer fires toward the vehicle floor, creating floor reflection coupling that naturally boosts output while protecting the driver cone and enabling cargo compatibility.

Floor Reflection Coupling: Acoustic Reinforcement

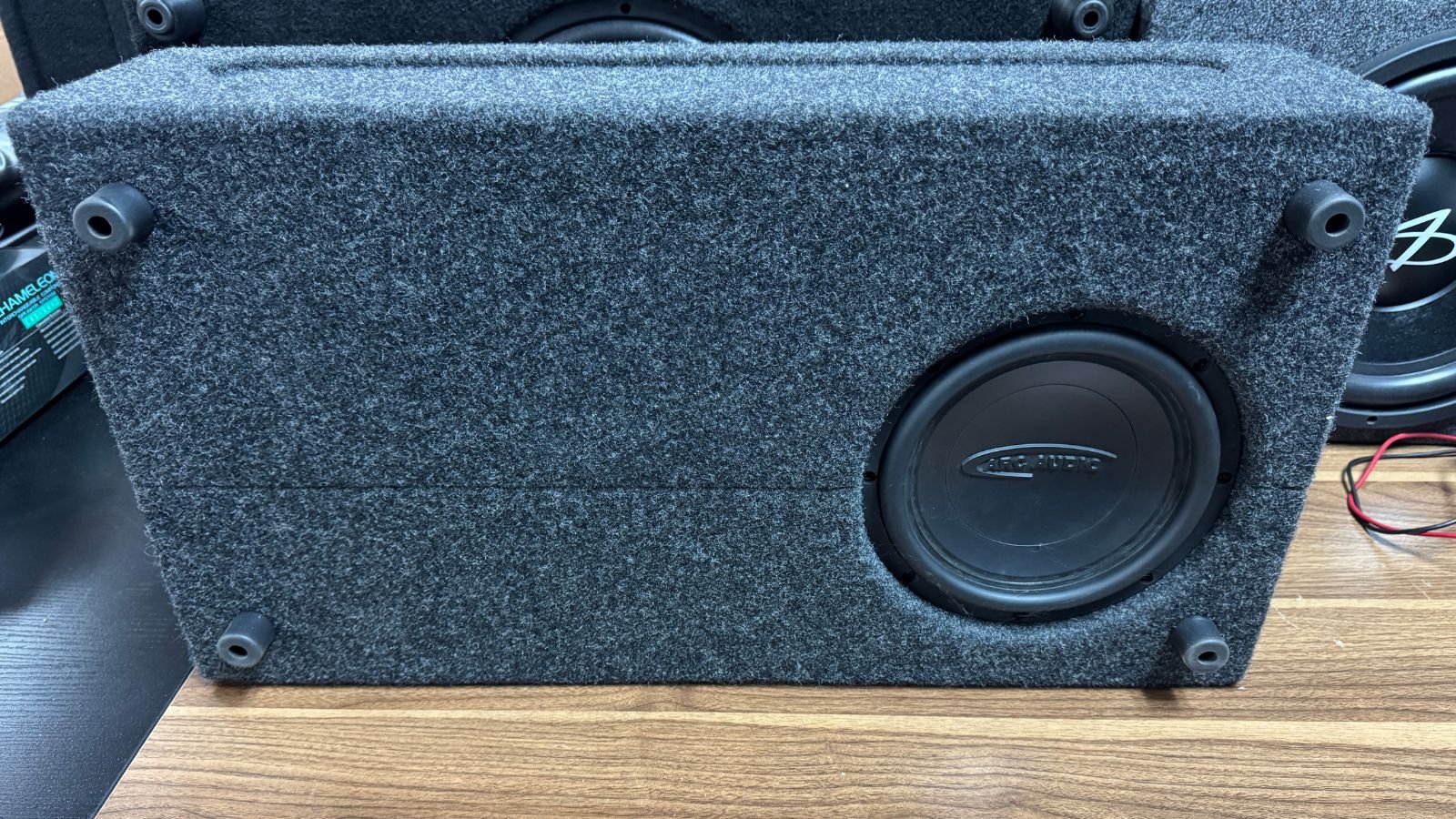

When the 8" subwoofer fires downward toward the vehicle floor (typically 2-4 inches away accounting for 6.5" enclosure height and carpet thickness), sound waves reflect off that solid surface and combine with direct radiation from the cone. This boundary reinforcement creates constructive interference that effectively increases acoustic output by 2-3 dB in the lower frequency range. This "free gain" is equivalent to increasing amplifier power by 60-100%—moving from 150 watts to 240-300 watts would be required to achieve the same acoustic increase through electrical means alone.

For the compact 8" format where every dB matters due to inherent cone area limitations, this 2-3 dB gain represents a meaningful performance enhancement that helps the smaller driver compete with larger alternatives. Combined with the ported enclosure's 3-6 dB efficiency advantage over sealed, the cumulative gain (5-9 dB total) means this 150W 8" ported downfire system can acoustically match a 400-600W sealed upward-firing system in the 35-50 Hz midbass region—all while consuming only 150W of amplifier power.

Physical Protection and Cargo Compatibility

The downfire orientation protects the subwoofer cone from accidental contact with cargo, tools, equipment, and other items commonly transported in vehicle cargo areas. This protection is particularly valuable in compact cars and small trucks where cargo areas see heavy use and where the compact 8" system location (behind seats, under seats) places it in zones where items may be loaded and unloaded frequently.

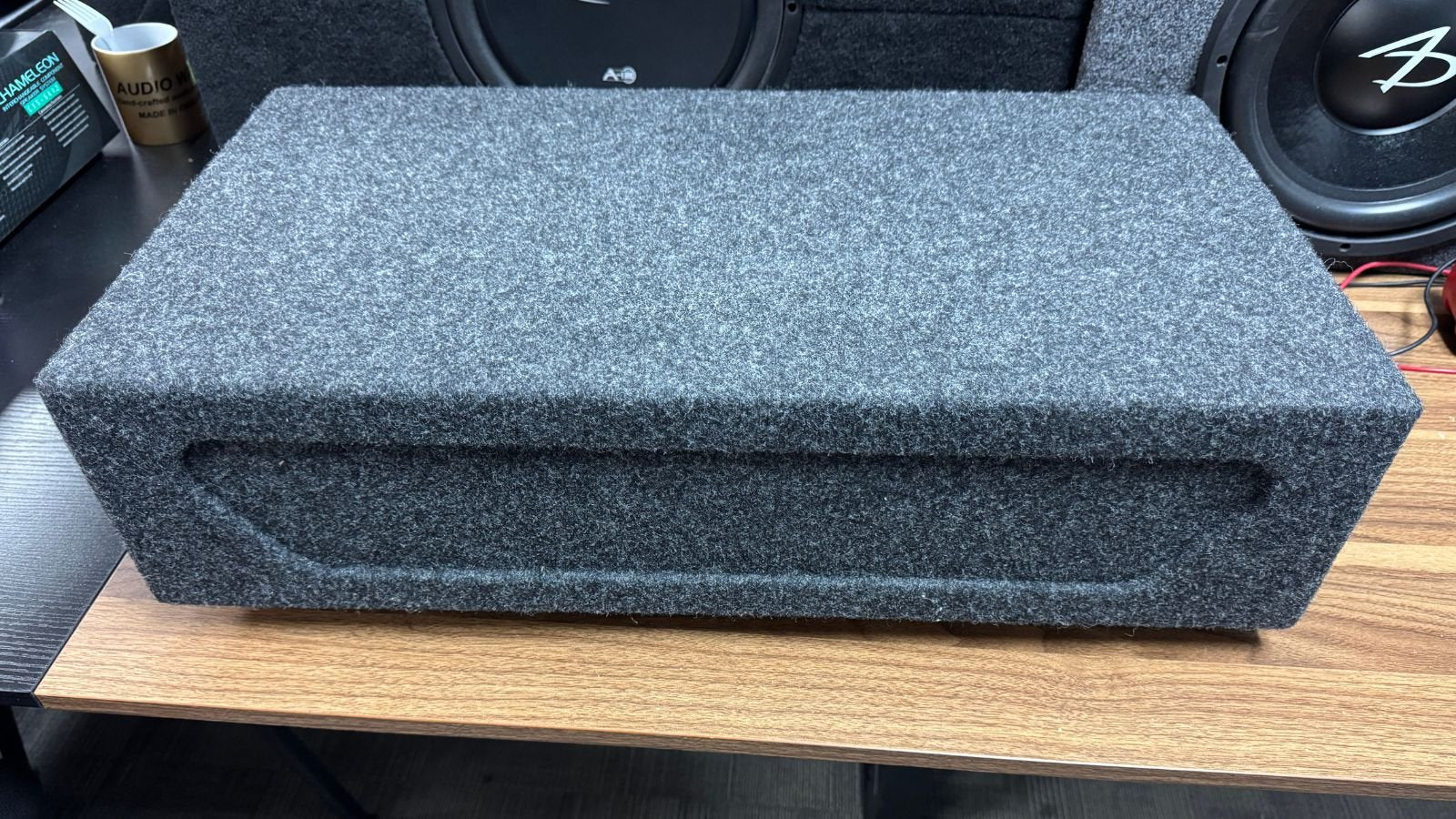

The flat top surface of the enclosure functions as a cargo platform, allowing you to place items directly on the enclosure without risk. Grocery bags, tool boxes, backpacks, coolers—all can rest on the system during transport. Traditional upward-firing enclosures sacrifice this functionality entirely, as nothing can be placed on an exposed cone without risking damage.

Stealth Installation Aesthetic

With the cone facing downward and only the black carpeted top surface visible, the downfire configuration provides a stealth appearance that many enthusiasts prefer. The system appears as a low-profile black platform—nothing identifies it as an aftermarket audio component to potential thieves. This subtlety is particularly valued in urban environments where visible bass systems increase theft risk, and in shared/family vehicles where non-enthusiast occupants prefer minimal visual audio modification.

Port Orientation Considerations

In this ported downfire system, the slot port also fires downward alongside the subwoofer cone. This orientation requires adequate clearance (1-2 inches minimum) between the port opening and floor to prevent port restriction that would mistune the system and reduce output. Most vehicle floors provide adequate clearance, but vehicles with extremely thick carpet or sound deadening should be evaluated. The enclosure includes rubber feet that provide consistent spacing and prevent sliding.

Voice Coil Wiring Options: Dual 4-Ohm Flexibility

This system features the ARC Series 8" with dual 4-ohm voice coils, providing installers with the flexibility to configure final impedance based on amplifier compatibility and power output goals. The dual 4-ohm design offers two wiring options: 2-ohm (parallel) or 8-ohm (series).

Parallel Wiring: 2-Ohm Configuration (Maximum Power)

Wiring both 4-ohm voice coils in parallel (positive to positive, negative to negative) results in 2-ohm final impedance. This configuration extracts maximum power from most Monoblock amplifiers:

2-Ohm Advantages: Nearly all modern amplifiers support 2-ohm loads (far more common than 1-ohm support). Most Class D Monoblock's and bridged 4-channel amplifiers deliver their best power-to-price ratio at 2-ohm impedance. Wiring requirements are moderate (10-12 AWG speaker wire adequate, 8 AWG power/ground recommended for 200W+ output).

Series Wiring: 8-Ohm Configuration (Conservative Power)

Wiring both 4-ohm voice coils in series (positive of coil 1 to negative of coil 2, remaining positive and negative to amplifier) results in 8-ohm final impedance. This configuration provides conservative power levels and universal compatibility:

8-Ohm Applications: Useful for enthusiasts using older amplifiers without robust 2-ohm capability, extremely budget amplifiers, or installations prioritizing low amplifier stress over maximum output. An 8-ohm load is the easiest impedance for amplifiers to drive, generating minimal heat and stress.

Wiring Configuration During Installation

Voice coil wiring is typically performed during amplifier connection by the installer. The complete system includes the subwoofer pre-mounted in the enclosure with both voice coil leads accessible at the terminal cup. To configure impedance:

• For 2-Ohm (Parallel): Connect both positive voice coil leads together, both negative leads together, then connect amplifier positive to combined positive, amplifier negative to combined negative
• For 8-Ohm (Series): Connect positive of coil 1 to negative of coil 2 (internal jumper), then connect amplifier positive to remaining coil 1 positive, amplifier negative to remaining coil 2 negative

Most enthusiasts choose 2-ohm parallel wiring to maximize power output and extract full potential from this 150W RMS subwoofer.

Recommended Amplifier Power by Impedance

ARC Audio Engineering Philosophy: USA-Designed Balanced Performance

The ARC Audio ARC Series subwoofer line represents the company's entry-tier offering—positioned below the flagship X2, A-Series, and SW (Signature Woofer) ranges—but "entry-tier" in ARC Audio's product hierarchy still means USA-designed engineering by one of the leading acoustical engineers in the domestic car audio industry. The ARC Series embodies ARC Audio's philosophy of delivering balanced performance combining sound quality and impactful bass in an affordable package accessible to budget-conscious enthusiasts.

Designed for Small to Moderate Enclosures

The ARC Series 8" has been specifically optimized for compact enclosure volumes where many competing 8" subwoofers struggle. The Thiele-Small parameters (Qts, Vas, Fs) have been tailored through voice coil design, suspension compliance, and motor strength to deliver proper response in 0.35-0.75 cu.ft. enclosures—exactly the range where space-constrained automotive applications demand performance. This optimization means the subwoofer doesn't require massive boxes to perform properly, enabling the compact 0.7 cu.ft. ported enclosure in this complete system to extract maximum potential from the driver.

Versatile Applications: Sealed, Ported, Infinite Baffle

ARC Audio designed the ARC Series to be versatile across multiple enclosure types. While this complete system uses ported alignment for efficiency, the same subwoofer performs well in sealed enclosures (0.35-0.55 cu.ft.) for enthusiasts prioritizing transient accuracy, and can even be configured for infinite baffle installations in vehicles with trunk-to-cabin mounting capability (rear deck installations in sedans, SUV rear cargo panels). This versatility reflects thoughtful engineering where the driver's electrical and mechanical parameters allow proper performance across diverse acoustic loading conditions.

Progressive Spider with Integrated Tinsel Leads

The progressive flat spider design provides non-linear restoring force that becomes progressively stiffer as excursion increases—a technique that prevents over-excursion damage and mechanical bottoming at high power levels. The spider's force curve is carefully tailored to work in concert with the surround compliance, creating a suspension system that allows maximum linear excursion while providing mechanical protection at extremes.

The integrated tinsel leads (the braided wire connecting voice coil to external terminals) are woven directly into the spider material rather than loosely attached. This integration prevents tinsel lead fatigue failure—a common failure mode in subwoofers where repeated flexing causes the wire to work-harden and eventually break. By integrating leads into the spider structure, ARC Audio ensures tinsel leads move in controlled paths that minimize stress concentration and maximize long-term reliability.

High-Temperature Black Anodized Voice Coil

The 2.5-inch diameter voice coil—unusually large for an 8" driver (many use 1.5-2.0" coils)—provides increased power handling and heat dissipation through greater surface area. The black anodized aluminum former offers superior thermal conductivity compared to paper or fiberglass formers, efficiently transferring heat from the voice coil windings to the magnetic structure and eventually to ambient air. The black anodization provides corrosion resistance and emissivity enhancement (black surfaces radiate heat more efficiently than bright metal surfaces) while adding minimal weight.

Linear Design for Improved Dynamics

ARC Audio specifies the ARC Series features "linear design for improved dynamics and SPL at low and high volumes." This refers to engineering that maintains consistent performance across wide power input ranges—the subwoofer sounds balanced and controlled at both low listening levels (5-10 watts) and high output levels approaching power handling limits (100-150 watts). Many budget subwoofers exhibit good performance at either low or high power but not both; the ARC Series' linear design ensures satisfying bass across the entire volume range enthusiasts actually use.

Installation Guidance and System Integration

While this complete system eliminates enclosure construction complexity, proper installation and amplifier integration remain critical for optimal performance. The following guidance addresses placement strategies, amplifier selection, wiring requirements, and tuning recommendations specific to compact 8" ported systems.

Recommended Amplifier Specifications

For this 150W RMS 8" system with dual 4-ohm voice coils, target the following amplifier specifications:

• Power Output (2Ω Parallel - Recommended): 150-200 watts RMS @ 2 ohms (ideal matching for maximum performance)
• Power Output (8Ω Series - Conservative): 75-125 watts RMS @ 8 ohms (adequate for moderate listening levels)
• Topology: Class D strongly recommended for efficiency—8" systems often installed in compact spaces with limited amplifier cooling
• Features: Variable low-pass filter (50-120 Hz), subsonic filter (15-30 Hz), bass boost (0-12 dB @ 45 Hz), phase control (0-180°)
• Size: Compact footprint amplifiers advantageous—system targeting compact vehicles often have limited amplifier mounting locations

Wiring Requirements by Configuration

Placement Strategies by Vehicle Type

Compact/Midsize Crew Cab Trucks (Primary Application):

• Position enclosure horizontally behind rear seat against rear cab wall
• Verify 1-2" clearance between driver/port and floor (measure with carpet in place)
• Route speaker wire through cab wall grommet or under rear seat
• Secure enclosure with bungee cords, tie-downs, or non-slip mat to prevent sliding
• Consider sound deadening rear cab wall to reduce panel resonance excited by bass output

Under-Seat Installation (Full-Size Trucks, SUVs):

• Measure clearance with seat occupied and adjusted to typical position (passengers add weight that compresses seat cushions)
• Position enclosure centered under seat or offset to one side depending on seat mounting brackets
• Ensure adequate clearance for downfire operation—compressed seat cushions may reduce effective height
• Route wires toward seat edges to avoid contact with seat adjustment mechanisms
• May require minor seat bracket modifications in some vehicles for optimal fit

Sedan/Hatchback Trunk Installation:

• Position against rear seat back, enclosure lying flat with driver/port firing toward trunk floor
• Alternative: side-mounted against trunk side panel in hatchbacks/wagons
• Secure to prevent sliding during aggressive driving—bass energy creates significant forces
• Consider bass blockers or foam baffles if excessive trunk-to-cabin resonance occurs (rare with 8" systems)

Crossover and Equalization Settings

Recommended starting points for amplifier adjustments (fine-tune by ear after initial setup):

• Low-Pass Filter: 70-80 Hz (12 dB or 24 dB/octave slope)—higher than 12" systems due to 8" driver's midrange extension limitations
• Subsonic Filter: 25-30 Hz (protects against infrasonic content below system's 36 Hz tuning frequency—CRITICAL for ported systems to prevent over-excursion below tuning)
• Gain/Level: Set using test tones to match amplifier output voltage to input sensitivity—prevents clipping distortion
• Phase: Adjust 0° or 180° for best integration with front speakers at listening position (whichever provides more output and smoother transition)
• Bass Boost: Start at 0 dB—ported enclosure already provides midbass emphasis; excessive boost risks over-excursion and port noise

Complete System Value Proposition

This ARC Audio 8" Ported Downfiring System occupies a unique position in the car audio market—specifically engineered for space-constrained applications where larger systems are physically impossible, budget constraints limit amplifier power to 100-200 watts, and enthusiasts seek meaningful bass enhancement without the complexity, cost, and space consumption of traditional 10-12" systems.

Problem This System Solves

Many enthusiasts face the frustrating reality that their vehicle cannot accommodate traditional subwoofer systems:

• Compact Cars: Small trunks where 12" ported enclosures consume 50-70% of available space
• Small Trucks: Crew cabs with minimal behind-seat clearance, narrow wheel well spacing preventing 30"+ wide enclosures
• Family Vehicles: Shared cars where cargo space cannot be sacrificed for massive bass systems
• Daily Drivers: Work trucks, commuter vehicles where bass is desired but not prioritized over practicality
• Budget Constraints: First-time installations where $300-500 total investment (sub + enclosure + amplifier + wiring) represents realistic budget

Traditional solutions to space constraints—DIY custom enclosures, expensive "stealth" systems, component-only purchases requiring separate enclosure construction—introduce complexity, uncertainty, and potential failure modes that discourage many enthusiasts from installing bass systems at all. This complete system provides a turnkey solution that eliminates those barriers.

What You Get for Your Investment

• Complete Matched System: Subwoofer + optimized enclosure + professional assembly + port tuning—ready to connect and install
• Space-Efficient Package: 25.5" × 6.5" × 13" fits where traditional systems cannot, preserves cargo functionality
• Ported Efficiency: 3-6 dB more output than equivalent sealed system in critical midbass region—compensates for smaller 8" driver
• Downfiring Advantages: Floor coupling (+2-3 dB), cone protection, cargo platform functionality, stealth aesthetic
• Wiring Flexibility: Dual 4-ohm voice coils offer 2Ω or 8Ω configurations to match existing amplifiers
• USA Engineering: ARC Audio brand reputation, domestic design team, 30+ years car audio expertise
• Extended Warranty: 2-year coverage (double typical)—manufacturer confidence in system longevity
• Realistic Power Requirements: 100-200W amplifier range accessible to budget-conscious enthusiasts

System Advantages vs. Considerations

Frequently Asked Questions

Q: How does 8" ported bass compare to 10" or 12" sealed systems?

A: With ported efficiency (3-6 dB gain) and downfire floor coupling (2-3 dB gain), this 150W 8" ported system can match 200-300W 10" sealed systems in the 35-50 Hz midbass region where most music content concentrates. However, 10-12" systems deliver more deep bass extension (<35 Hz) and higher maximum SPL. For space-constrained applications, the 8" ported provides excellent bang-for-buck performance.

Q: Can I wire this for 4-ohm impedance?

A: No. Dual 4-ohm voice coils only offer 2-ohm (parallel) or 8-ohm (series) configurations. To achieve 4-ohm final impedance, you would need dual 2-ohm voice coils (series = 4Ω) or dual 8-ohm voice coils (parallel = 4Ω). This system's dual 4-ohm configuration is limited to 2Ω or 8Ω—choose based on your amplifier's capabilities. We recommend 2-ohm parallel wiring for maximum performance.

Q: What size amplifier do I need?

A: For 2-ohm parallel wiring (recommended): Target 150-200W RMS @ 2Ω Monoblock (Class D recommended). For 8-ohm series wiring: Target 75-125W RMS @ 8Ω Monoblock or bridged 4-channel. Most quality entry-level Monoblock's ($100-150 range) deliver appropriate power levels at 2-ohm loads. Nearly all modern amplifiers support 2-ohm operation.

Q: Do I need a subsonic filter?

A: YES—absolutely critical for ported systems. Set subsonic/infrasonic filter to 25-30 Hz (5-10 Hz below 36 Hz tuning frequency). Below tuning frequency, ported enclosures lose acoustic loading and the driver can over-excursion catastrophically, causing mechanical damage. The subsonic filter prevents amplifier from sending damaging low-frequency content to the subwoofer. Never operate ported systems without subsonic filtering.

Q: Will this fit in my Honda Civic/Toyota Corolla/Mazda3?

A: Yes. The 25.5" × 6.5" × 13" dimensions fit most compact car trunks behind the rear seat back or on the trunk floor. Measure your available space: 26"+ width, 7"+ height, 14"+ depth provides comfortable clearance. The compact size preserves significant trunk space for groceries, luggage, daily use items.

Q: How loud is 150 watts in an 8" ported system?

A: Loudness depends on vehicle size and listening expectations. In compact cars/small trucks, 150W ported 8" with downfire coupling delivers satisfying bass for most listeners—transforming factory systems from "no bass" to "meaningful bass impact." Not competition-level output, but appropriate for daily listening, music enjoyment, and substantial upgrade over factory audio. Think "impressive for the size" rather than "rattles license plates."

Q: Can I use this with factory head unit?

A: Yes, with a line output converter (LOC) if factory head unit lacks RCA preamp outputs. Many modern factory systems include subwoofer pre-out (single RCA output)—verify your vehicle's specifications. LOCs tap factory speaker-level outputs and convert to low-level RCA signal for amplifier input. Quality LOCs cost $30-60, installation straightforward. Factory integration maintains steering wheel controls, factory appearance.

Final Recommendation

The ARC Audio 8" Ported Downfiring System represents an intelligent solution for a specific set of challenges that face many car audio enthusiasts: space constraints that eliminate traditional subwoofer systems, budget limitations restricting amplifier power to 100-200 watts, and the desire for meaningful bass enhancement without sacrificing vehicle practicality or cargo functionality.

This system succeeds by embracing its niche rather than attempting to compete with larger systems on maximum SPL. The revolutionary 6.5" height enables installation in locations physically impossible for conventional enclosures—behind crew cab seats in compact trucks, under seats in SUVs, in sedan trunks without consuming entire cargo areas. The 25.5" width specifically targets compact vehicles (Tacoma, Ranger, Colorado, Civic, Corolla, Mazda3) where 30"+ wide 12" systems don't fit between wheel wells or within trunk dimensions.

The ported enclosure tuned to 36 Hz provides critical efficiency advantages that help the modest 8" driver and 150-watt power budget deliver competitive performance. The 3-6 dB ported efficiency gain, combined with 2-3 dB downfire floor coupling, creates cumulative acoustic advantages (5-9 dB total) that allow this system to punch well above its specification sheet. In the critical 35-50 Hz midbass region where kick drums, bass guitar, and electronic bass concentrate, this 150W 8" ported system performs acoustically similar to 250-400W sealed upward-firing alternatives.

The dual 4-ohm voice coil configuration provides installation flexibility with 2-ohm parallel wiring (recommended for maximum power) or 8-ohm series wiring (conservative option). The 2-ohm impedance is supported by nearly all modern amplifiers and delivers excellent power-to-price ratio from budget and midrange monoblocks.

For compact truck owners, compact car enthusiasts, first-time installers, budget-conscious builders, and anyone facing space constraints that eliminate larger alternatives, this system offers a turnkey solution that delivers meaningful bass performance without compromise to vehicle utility. The 2-year warranty, professional factory assembly, optimized port tuning, and realistic power requirements create a complete package that simply works.

Purchase with confidence if you drive a compact vehicle, work with modest amplifier power (150-200W @ 2Ω), and seek bass enhancement that fits your life rather than consuming it. This system delivers where it matters—in the seat of your truck, with bass that sounds right and fits right.
