ARC Audio 12” Sealed Downfire Subwoofer System

Complete System Overview: Engineered for Maximum Impact in Minimum Space

The ARC Audio A12 Sealed Downfiring System represents the ultimate turnkey bass solution for enthusiasts seeking professional-grade performance without the complexity of component matching and enclosure construction. This complete system combines the ARC Audio A-Series 12" subwoofer—a military-tribute shallow-mount specialist engineered in the USA—with the revolutionary Pro-Line X Downfiring Series enclosure featuring a groundbreaking 6.5" height profile that fits behind crew cab seats where traditional enclosures cannot.

Unlike systems offering variable voice coil configurations, this system comes pre-wired in a fixed parallel configuration delivering a 1-ohm final impedance. The subwoofer features dual 2-ohm voice coils wired in parallel within the enclosure, eliminating guesswork and ensuring optimal impedance matching. This 1-ohm configuration demands a 1-ohm stable amplifier but delivers the advantage of maximum power transfer—many amplifiers output their highest power ratings at 1-ohm loads, potentially delivering 400-500 watts from amplifiers rated at 250-300 watts @ 4-ohms.

The downfire orientation—where the subwoofer fires toward the vehicle floor rather than upward or forward—provides multiple acoustic and practical advantages including floor reflection coupling (+2-3 dB natural gain), physical cone protection from cargo, stealth aesthetic integration, and the ability to stack cargo directly on the enclosure. The custom front acrylic insert adds a premium visual element while the sealed alignment ensures tight, accurate bass response ideal for all music genres.

With 300 watts RMS power handling, 1.1 cubic feet of precisely calculated internal volume, and only 6.5 inches of height, this system installs where others physically cannot while delivering bass performance that rivals significantly larger enclosures through intelligent acoustic design.

Complete System Specifications

ARC Audio A-Series: Military Tribute Engineering Heritage

The ARC Audio A-Series represents more than technical specifications—it embodies a tribute to the United States armed forces and the precision engineering principles derived from military aircraft development. Founded in California and now manufactured with global component sourcing, ARC Audio has maintained unwavering dedication to American military heritage throughout its 30+ year history in the car audio industry.

Military Aircraft-Inspired Design Philosophy

The A-Series subwoofers draw direct inspiration from military aviation engineering, where performance demands are absolute and failure is not an option. The shallow-mount configuration—requiring only 3.85" of mounting depth—mirrors the space-constrained design challenges faced by aircraft engineers who must maximize performance within strictly limited physical envelopes. The progressive heat-pressed cone technology employs principles similar to aircraft composite structures, where multiple materials are combined under precise temperature and pressure to achieve strength-to-weight ratios impossible with single-material construction.

The Totoku copper voice coil wire from Japan represents the same international component sourcing philosophy used in modern military aircraft, where the absolute best materials are selected regardless of origin. Totoku's copper wire offers 99.99% purity with grain structure optimized for both electrical conductivity and thermal management—critical in the high-current, high-temperature environment of a 1-ohm subwoofer voice coil where hundreds of watts of power must be efficiently converted to mechanical motion while dissipating heat that could otherwise cause failure.

Geometric Resonation Control Technology

ARC Audio employs geometric resonation control throughout the A-Series basket design, using strategic rib placement and spoke geometry to eliminate resonant modes that color bass response. This technology, derived from acoustic analysis techniques originally developed for military sonar applications, ensures that the basket structure itself contributes no audible distortion. The result is bass that faithfully reproduces the source material without the "ringing" or "overhang" characteristic of less sophisticated designs.

Progressive Material Engineering

The A-Series cone utilizes progressive heat-pressed poly-injected pulp—a mouthful of a description that represents genuine material science advancement. Unlike simple paper or polypropylene cones, this progressive material begins as natural pulp fibers that are impregnated with polymer resins, then heat-pressed under carefully controlled temperature and pressure profiles. The "progressive" aspect refers to variable material density across the cone profile, with stiffer regions near the voice coil (where forces are highest) transitioning to more compliant regions at the surround attachment (where compliance is needed for long excursion). This gradient approach mimics the progressive composite layup techniques used in aircraft wing structures.

The UV-grade polyether surround addresses a real-world failure mode that destroys countless subwoofers: ultraviolet degradation. Standard rubber and foam surrounds deteriorate when exposed to sunlight through vehicle windows, becoming brittle and eventually cracking. UV-grade polyether maintains flexibility across temperature extremes (-40°F to +160°F) and resists photochemical degradation, ensuring the surround remains compliant for the subwoofer's entire service life—even in convertibles or vehicles with extensive glass area.

Downfiring Configuration: Strategic Acoustic Advantages

The downfire orientation—where the subwoofer fires toward the vehicle floor rather than upward into the cabin or forward toward the rear seats—represents a deliberate acoustic and practical design choice that delivers multiple advantages in automotive installations. This configuration has gained significant popularity in recent years as enthusiasts recognize the benefits of floor reflection coupling and the practical convenience of a protected cone surface.

Floor Reflection Coupling: Natural 2-3 dB Gain

When a subwoofer fires downward toward a solid surface (the vehicle floor), the sound waves reflect off that surface and combine with the direct radiation from the cone. This phenomenon, known as boundary reinforcement or reflection coupling, creates constructive interference that effectively increases the acoustic output by 2-3 dB in the lower frequencies. This "free gain" is equivalent to nearly doubling amplifier power—moving from 300 watts to 500-600 watts would be required to achieve the same 3 dB increase through electrical means alone.

The floor acts as an acoustic mirror, effectively creating a "phantom subwoofer" that reinforces the real driver. The closer the cone surface to the floor, the lower the frequency at which reinforcement begins. With the 6.5" enclosure height placing the cone approximately 3-4 inches from the floor (accounting for carpet and mounting), reinforcement extends well into the midbass region (50-80 Hz), exactly where automotive interior acoustic challenges are most severe.

Cone Protection and Cargo Compatibility

A downfire configuration protects the cone surface from accidental contact with cargo, tools, sports equipment, and other items commonly transported in vehicle cargo areas. The cone—the most delicate component of any subwoofer—faces the floor where it cannot be inadvertently damaged. This protection is particularly valuable in trucks and SUVs where the cargo area sees heavy use and where loose items may shift during aggressive driving or off-road excursions.

Additionally, the flat top surface of the enclosure can support cargo weight directly, allowing you to stack boxes, coolers, tools, and other items on the enclosure without concern. Traditional upward-firing enclosures sacrifice this cargo space entirely—nothing can be placed on them without risking cone damage. The downfire configuration transforms the enclosure from a cargo space obstacle into a functional cargo platform.

Stealth Aesthetic Integration

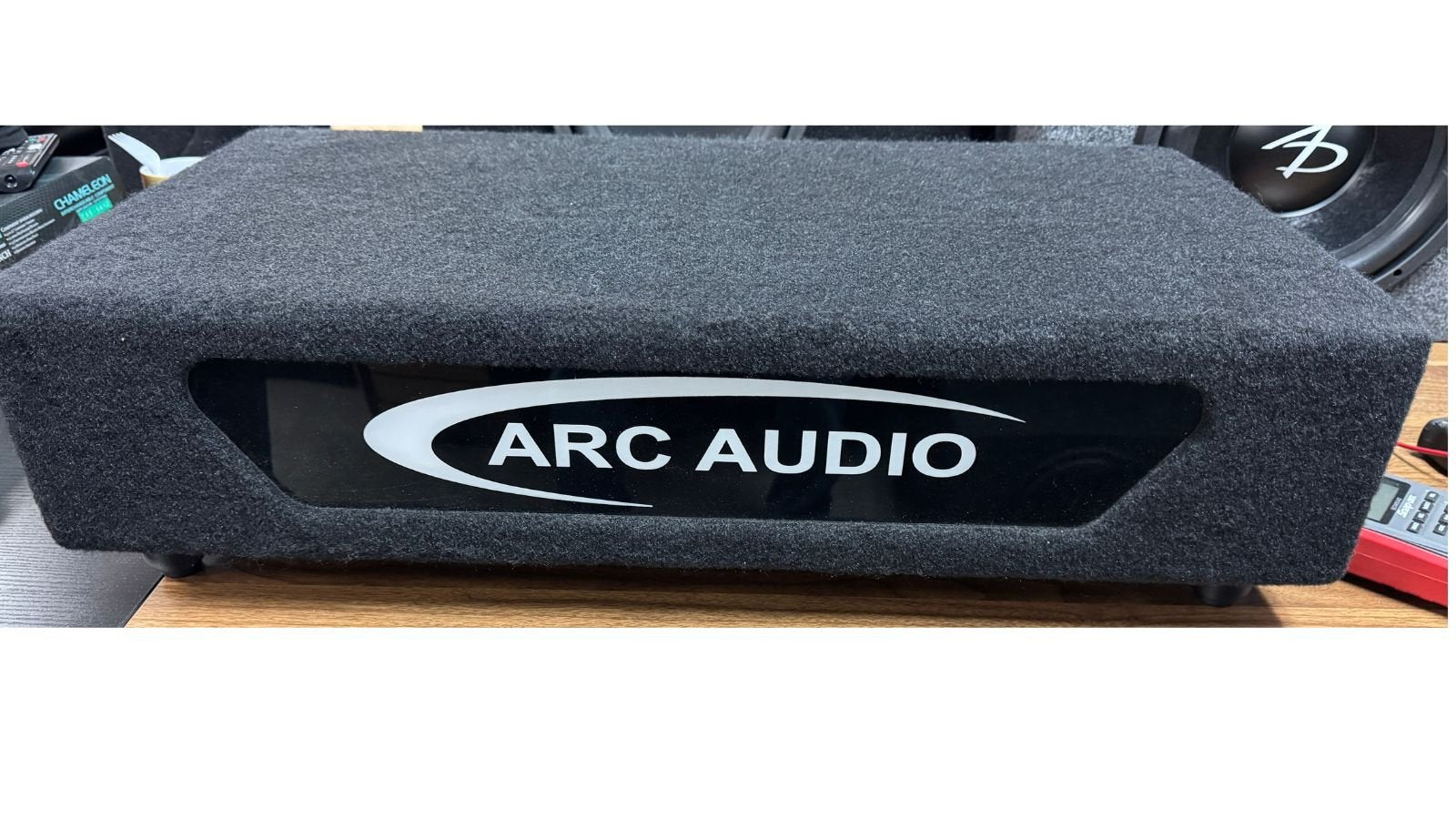

With the cone facing downward and the custom acrylic insert providing the only visible aesthetic element, the downfire configuration offers a stealth appearance that many enthusiasts prefer over the industrial look of an exposed subwoofer cone. The system appears as a low-profile black carpeted platform with an elegant acrylic detail—nothing screams "car audio installation" to potential thieves. This subtlety is particularly valued in urban environments where visible aftermarket audio equipment increases theft risk.

Considerations and Installation Notes

Downfiring configurations do require adequate clearance between the cone and floor—typically 1-2 inches minimum. Excessively thick carpet or sound deadening may reduce clearance and potentially cause cone contact with the floor at high excursion. Most factory vehicle floors provide adequate clearance, but vehicles with aftermarket floor mats or excessive sound deadening should be evaluated. The enclosure includes rubber feet that provide consistent spacing and prevent sliding.

Revolutionary 6.5" Height Profile: Installing Where Others Cannot

The defining feature of the Pro-Line X Downfiring Series enclosure is its revolutionary 6.5-inch height—a dimension that fundamentally changes what's possible in crew cab truck and SUV installations. Traditional sealed 12" enclosures typically require 12-15 inches of height, relegating them to upright installations that consume cargo space or compromise rear seat functionality. The 6.5" profile of this system enables behind-seat installation in crew cab trucks and under-seat installation in SUVs where conventional enclosures physically cannot fit.

Crew Cab Behind-Seat Installation

Modern crew cab trucks (Ford F-150, Chevrolet Silverado, Ram 1500, Toyota Tundra, etc.) feature spacious rear seating with reclining seatbacks—but this luxury creates a space constraint behind the seats. When rear seats are positioned in their typical "occupied" position with seatbacks reclined 5-15 degrees from vertical, the clearance between the seatback and the rear cab wall typically measures 7-10 inches. Traditional 12-15" tall enclosures simply don't fit—they force rear seats fully upright (uncomfortable for passengers) or consume vertical cargo space (eliminating the bed access slot many trucks provide).

The 6.5" height of this system fits comfortably in that behind-seat cavity even with seatbacks reclined to comfortable positions. The enclosure slides behind the seats, rests against the rear cab wall, and disappears from view entirely. Rear seat passengers enjoy full comfort, cargo space remains accessible, and the bass system is completely invisible—yet delivers 300 watts of output enhanced by floor coupling.

SUV Under-Seat and Behind-Seat Applications

Third-row SUVs (Chevrolet Tahoe/Suburban, Ford Expedition, Toyota Sequoia, etc.) often have similar constraints behind second-row seats or in the third-row footwell area. The shallow 6.5" profile enables installation options that taller enclosures cannot achieve. Position the system behind the second row for sound distributed throughout the cabin, or place it in the third-row floor area for dedicated rear entertainment applications. Some SUVs even allow under-seat mounting for the ultimate stealth installation.

30" Width Dimension: Strategic Cargo Area Optimization

The 30-inch width is no accident—it's designed to fit between the wheel wells of most full-size trucks and SUVs while maximizing enclosure volume within the available space. Full-size truck beds and cargo areas typically feature 48-52 inches between wheel well housings, allowing the 30" enclosure to sit flat on the floor (or behind seats) without interference. This leaves substantial width on either side for cargo placement, tool boxes, or other equipment.

The 15-inch depth dimension complements the width, creating a rectangular footprint that efficiently uses available space without excessive protrusion into cargo areas. The combination of 30" × 15" × 6.5" yields 1.1 cubic feet of internal volume after accounting for material thickness and driver displacement—right in the sweet spot for the A-Series 12" subwoofer's 1.0 cu.ft. optimum sealed volume (slightly oversized for extended low-frequency response).

1-Ohm Wiring Configuration: Pre-Wired for Maximum Power Transfer

This system features the ARC Audio A-Series 12" subwoofer equipped with dual 2-ohm voice coils that are pre-wired in parallel configuration within the enclosure to present a 1-ohm final impedance to your amplifier. This is a fixed configuration—the system cannot be rewired to present different impedances. Understanding the implications of 1-ohm operation is critical for successful installation and optimal performance.

Parallel Wiring Explanation: Dual 2-Ohm to 1-Ohm

The subwoofer contains two separate voice coils, each with a DC resistance of 2 ohms. When voice coils are wired in parallel (positive to positive, negative to negative), the impedances combine according to the parallel resistance formula. For two identical coils:

Why 1-Ohm Configuration? Maximum Power Output

Amplifiers typically deliver more power at lower impedances due to Ohm's Law relationships between voltage, current, and resistance. An amplifier with a fixed maximum output voltage will deliver more current (and therefore more power) into a lower-resistance load. Many Monoblock amplifiers deliver their maximum rated power at 1-ohm loads, with significantly less output at 2-ohm or 4-ohm loads.

Example Amplifier Power Curve:

• @ 4 ohms: 250 watts RMS
• @ 2 ohms: 400 watts RMS
• @ 1 ohm: 600 watts RMS

The same amplifier delivering 250W @ 4Ω can potentially deliver 600W @ 1Ω—2.4 times the power. For this 300W RMS subwoofer, a 1-ohm stable amplifier rated at 300-350W @ 1Ω will likely deliver 400-500W of actual output, providing substantial headroom for dynamic bass content (kick drums, explosions, bass drops) without clipping distortion.

1-Ohm Amplifier Requirements: What You Must Verify

Not all amplifiers can safely operate at 1-ohm loads. Class A/B amplifiers in particular generate substantial heat at 1-ohm operation and many are not designed for continuous 1-ohm duty. Before connecting this system, verify your amplifier meets these requirements:

Power Supply and Current Draw Considerations

A 300-watt amplifier operating at 1-ohm draws approximately 25-30 amperes of current from the vehicle's 12-volt electrical system (accounting for amplifier efficiency). This current demand requires robust power wiring, adequate alternator capacity, and proper grounding. Insufficient power supply causes voltage sag during dynamic bass content, resulting in compressed output, distortion, and potential amplifier thermal shutdown (protection circuit activation).

If your vehicle's electrical system shows signs of strain (dimming headlights during bass hits, amplifier going into protection mode, voltage dropping below 12V under load), consider these upgrades:

• High-Output Alternator: 150-200 amp alternators replace factory 100-130 amp units
• Additional Battery: Second battery in rear cargo area stores energy for transient demands
• Capacitor Bank: 1-2 farad capacitors buffer voltage sag during bass transients (controversial effectiveness)
• Big Three Upgrade: Replace/supplement three main electrical system wires (alternator positive to battery positive, battery negative to chassis, engine ground to chassis) with 1/0 or 4 AWG wire

Sealed Alignment: Accuracy and Musicality

This system utilizes a sealed enclosure alignment (also called acoustic suspension) rather than a ported/vented design. The sealed alignment offers distinct advantages in bass quality, size efficiency, and installation flexibility that make it the preferred choice for audiophile-oriented enthusiasts and space-constrained applications.

Sealed vs. Ported: Understanding the Trade-offs

Sealed enclosures trap air inside the box, creating an "air spring" that resists cone motion and provides natural damping. This results in:

• Tight, Accurate Bass Response: Natural acoustic rolloff (12 dB/octave) without resonance peaks or group delay anomalies
• Excellent Transient Response: Cone returns to rest position quickly, accurately reproducing fast bass notes (double bass drums, staccato bass lines)
• Smaller Enclosure Size: Sealed boxes typically require 50-70% of the volume needed for equivalent ported designs
• Lower Tuning Frequency: Sealed alignments extend deeper with proper subwoofer selection (this system's 1.1 cu.ft. volume extends response below 35 Hz)

Ported enclosures include a tuned port (vent) that resonates at a specific frequency, providing additional output in a narrow frequency band. Trade-offs include:

• Higher Peak Output: 3-6 dB more output at tuning frequency (typically 35-40 Hz for automotive systems)
• Larger Enclosure Requirement: Ported boxes require 1.5-2.5× the volume of equivalent sealed designs
• Port Resonance Coloration: Some listeners describe ported bass as "boomy" or "one-note" due to tuning frequency emphasis
• Steeper Rolloff: Below tuning frequency, response drops at 24 dB/octave (vs. 12 dB/octave sealed), reducing deep bass extension

Why Sealed for This System?

The revolutionary 6.5" height profile of this system is only achievable with sealed alignment—ported designs require additional vertical space to accommodate the port structure. Achieving the 1.1 cu.ft. volume in a ported configuration with adequate port area would require 10-12" of height minimum, eliminating the behind-seat installation capability that defines this system's value proposition.

Additionally, the downfire orientation benefits sealed alignments disproportionately. The floor reflection coupling (+2-3 dB gain) partially compensates for the lower peak output of sealed designs, bringing sealed and ported systems closer to performance parity while retaining the sealed alignment's transient accuracy and deep bass extension advantages.

Installation Guidance and System Integration

While this complete system eliminates the complexity of component matching and enclosure construction, proper installation and system integration remain critical for optimal performance. The following guidance addresses amplifier selection, wiring requirements, placement strategies, and acoustic integration.

Recommended Amplifier Specifications

For this 300W RMS @ 1-ohm system, target the following amplifier specifications:

• Power Output: 250-400 watts RMS @ 1 ohm (300-350W ideal, higher ratings provide headroom)
• Topology: Class D strongly recommended for efficiency and thermal management at 1-ohm loads
• 1-Ohm Stability: Explicit manufacturer rating stating "1-ohm stable" or power specifications @ 1Ω
• Features: Variable low-pass filter (50-120 Hz range), subsonic filter (15-25 Hz), bass boost (0-12 dB @ 45 Hz), phase control (0-180°)
• Protection Circuits: Thermal, short circuit, DC offset protection (especially important for 1-ohm operation)

Wiring Requirements (1-Ohm Specific)

1-ohm systems demand heavier gauge wiring than higher-impedance installations due to increased current draw:

Placement Strategies for Crew Cab Trucks

Behind Rear Seats (Primary Application):

• Position enclosure horizontally against rear cab wall
• Verify 1-2" clearance between cone and floor (account for carpet thickness)
• Route speaker wire through cab wall or under rear seat (maintain wire gauge)
• Secure enclosure with bungee cords or tie-downs to prevent sliding during aggressive driving
• Consider sound deadening on rear cab wall to reduce panel resonance

Under Rear Seat (Alternative):

• Measure clearance when seat is occupied—typically 7-9" in most crew cabs
• 6.5" height fits with minimal modification to seat mounting brackets
• Provides ultra-stealth installation with zero visibility
• May reduce output slightly due to seat cushion absorption (1-2 dB typical)

Crossover and EQ Settings

Recommended starting points for amplifier adjustments (fine-tune by ear):

• Low-Pass Filter: 70-80 Hz (12 dB or 24 dB/octave slope)
• Subsonic Filter: 20-25 Hz (protects against infrasonic content below subwoofer's capability)
• Gain/Level: Set using test tones to match amplifier output voltage to input sensitivity (prevents clipping)
• Phase: Adjust 0° or 180° for best integration with front speakers (whichever provides more output at listening position)
• Bass Boost: Start at 0 dB, add conservatively (3-6 dB maximum) if more midbass impact desired

Complete System Value Proposition

This ARC Audio A12 Sealed Downfiring System represents a turnkey solution that eliminates the complexity, uncertainty, and potential errors of component-based subwoofer installations. By providing a professionally matched subwoofer and enclosure combination with factory installation and wiring, this system offers multiple value advantages over piece-by-piece approaches.

Time and Expertise Savings

Building a custom subwoofer system from components requires:

• Subwoofer Selection: Researching specifications, reading reviews, comparing models
• Enclosure Design: Calculating optimal volume, determining port tuning (if ported), modeling response
• Enclosure Construction: Sourcing materials (MDF, terminal cups, carpet/vinyl, glue, screws), cutting panels, assembly, finishing
• Installation: Mounting subwoofer, wiring voice coils, sealing enclosure, testing for air leaks

Even for experienced enthusiasts, this process consumes 8-12 hours minimum. For novices, the learning curve adds frustration and increased error risk (incorrect volume calculations, wiring mistakes, poor enclosure sealing). This complete system eliminates that entire process—unbox, connect wires, install, enjoy.

Professional Component Matching

The manufacturer has professionally matched the ARC Audio A-Series 12" subwoofer to the 1.1 cu.ft. sealed enclosure based on the driver's Thiele-Small parameters. The subwoofer's optimum sealed volume specification (1.0 cu.ft.) means the 1.1 cu.ft. enclosure provides slightly oversized volume for extended low-frequency response at the expense of 1-2 dB reduced efficiency. This trade-off has been deliberately chosen by engineers—you benefit from their modeling expertise without needing to understand Qtc calculations, resonance frequencies, or group delay.

Warranty Coverage and Support

This system includes a 2-year manufacturer warranty—double the typical 1-year coverage for individual components. The warranty covers both the subwoofer and enclosure as an integrated system, eliminating potential finger-pointing between component manufacturers ("the subwoofer is fine, your enclosure is wrong" vs. "the enclosure is fine, your subwoofer is defective"). Single-source warranty simplifies support and ensures accountability.

Cost Comparison Analysis

Purchasing components individually typically costs:

• ARC Audio A-Series 12" Subwoofer: $200-250 (retail)
• Pro-Line X Downfiring Enclosure (if available separately): $150-200
• Materials for DIY Enclosure: $80-120 (MDF, terminal cup, carpet, adhesive, hardware)
• Labor (DIY): 8-12 hours @ $25/hr shop rate = $200-300 value
• Labor (Professional): $150-250 typical installation shop charges

Total component + labor cost: $430-670 depending on DIY vs. professional construction. The complete system pricing eliminates cost uncertainty while delivering professional-grade results.

System Advantages vs. Considerations

Ideal Applications and User Profiles

Perfect For:

• Crew Cab Truck Owners: Behind-seat installation with 6.5" height that preserves rear seat comfort and cargo access
• Space-Constrained Vehicles: SUVs, extended cabs, vehicles where traditional 12-15" tall enclosures don't fit
• Audiophile Enthusiasts: Sealed accuracy and transient response prioritized over maximum SPL competition output
• Stealth Installation Preference: Downfiring configuration and low profile create invisible, theft-resistant appearance
• All-Genre Music Listeners: Sealed bass reproduces rock, jazz, classical, electronic, hip-hop equally well
• Quality-Over-Quantity Philosophy: ARC Audio military heritage and premium materials appeal to discerning buyers
• 1-Ohm Amplifier Owners: Maximize power output from Class D Monoblock's rated for 1-ohm operation
• Turnkey Solution Seekers: Complete system eliminates DIY complexity, professional results guaranteed
• Cargo Area Multi-Use: Downfiring cargo platform functionality ideal for work trucks and active lifestyle vehicles

Consider Alternatives If:

• Maximum SPL Competition: Sealed 300W single 12" insufficient—consider dual 12" or 15" ported systems
• No 1-Ohm Amplifier: If existing amplifier only supports 2Ω/4Ω, consider systems with different impedance options
• Limited Electrical System: Vehicles with weak alternators and no upgrade capability may struggle with 1-ohm power demands
• Ported Preference: If you specifically want port-enhanced output at tuning frequency, sealed alignment won't satisfy
• DIY Customization Desired: Complete system offers no enclosure or wiring modification flexibility

Frequently Asked Questions

Q: Can this system be rewired to 2-ohm or 4-ohm impedance?

A: No. The dual 2-ohm voice coils are pre-wired in parallel configuration within the sealed enclosure to present a fixed 1-ohm load. Accessing the voice coil connections would require disassembling the sealed enclosure (voiding warranty) and potentially compromising enclosure integrity. This system is designed specifically for 1-ohm amplifier operation.

Q: How much power does this system really need?

A: The subwoofer is rated 300W RMS continuous. Recommended amplifier output is 250-400W RMS @ 1-ohm. Lower power (150-250W) will work but won't utilize the subwoofer's full capability. Higher power (400-500W) provides headroom for dynamic content but risks exceeding thermal limits if driven continuously at maximum—use conservatively with proper gain setting.

Q: Will this fit in my specific truck model?

A: The 30" × 6.5" × 15" dimensions fit most full-size crew cab trucks (Ford F-150, Chevrolet Silverado/GMC Sierra, Ram 1500, Toyota Tundra, Nissan Titan). Measure your behind-seat clearance with rear seats in typical occupied position—you need minimum 7-8" height clearance and 31"+ width. Midsize trucks (Colorado, Ranger, Tacoma) may have insufficient width between wheel wells.

Q: Can I install this myself or do I need professional installation?

A: The system itself is turnkey (no subwoofer installation or enclosure assembly required), but amplifier installation requires electrical skills: running 4 AWG power wire from battery through firewall, creating quality ground connection, setting gain properly with test equipment. If you have basic car audio experience and tools, DIY is feasible. If this is your first system, professional installation recommended to avoid wiring errors that damage equipment.

Q: How does sealed bass compare to ported bass?

A: Sealed bass is generally described as "tight," "accurate," and "fast"—excellent transient response reproduces rapid bass notes cleanly. Ported bass offers 3-6 dB more peak output at the port tuning frequency (typically 35-40 Hz) but some listeners describe it as "boomy" or "one-note." Sealed is preferred for sound quality and musicality; ported is preferred for maximum SPL at specific frequencies. This system's downfire floor coupling partially compensates for sealed's lower peak output.

Q: What happens if my amplifier isn't 1-ohm stable?

A: Connecting a non-1-ohm-stable amplifier to this system will likely trigger the amplifier's protection circuit (shutdown) as it detects excessive current draw and overheating. In worst cases, the amplifier's output transistors can fail catastrophically, requiring expensive repair or replacement. Never connect this 1-ohm system to an amplifier not explicitly rated for 1-ohm operation—verify specifications before purchase.

Q: Can I use this in a sedan or coupe?

A: Yes, though the 30" width and 15" depth may be challenging in smaller trunks. The 6.5" height allows positioning against the rear seat back in sedans, or horizontal placement in trunk floors. The downfire orientation works well in trunks where floor coupling is still effective. Measure your trunk dimensions and consider whether 30" × 15" footprint fits your available space.

Q: How loud is 300 watts RMS in a sealed enclosure?

A: Loudness depends on vehicle size, cabin acoustics, and music content. In crew cab trucks (primary application), 300W in a sealed 12" produces strong, authoritative bass suitable for most listeners—not competition SPL levels, but more than adequate for enjoying music, action movies, and bass-heavy content. The downfire floor coupling provides 2-3 dB additional gain, effectively performing like 400-500W upward-firing sealed system.

What's Included and What You'll Need

✓ Included with System:

• ARC Audio A-Series 12" subwoofer (installed in enclosure, pre-wired to 1-ohm)
• Pro-Line X Downfiring Series sealed enclosure (30" × 6.5" × 15", black carpet finish)
• Custom front acrylic insert (premium aesthetic element)
• Spring-loaded speaker terminals (accepts 12 AWG wire)

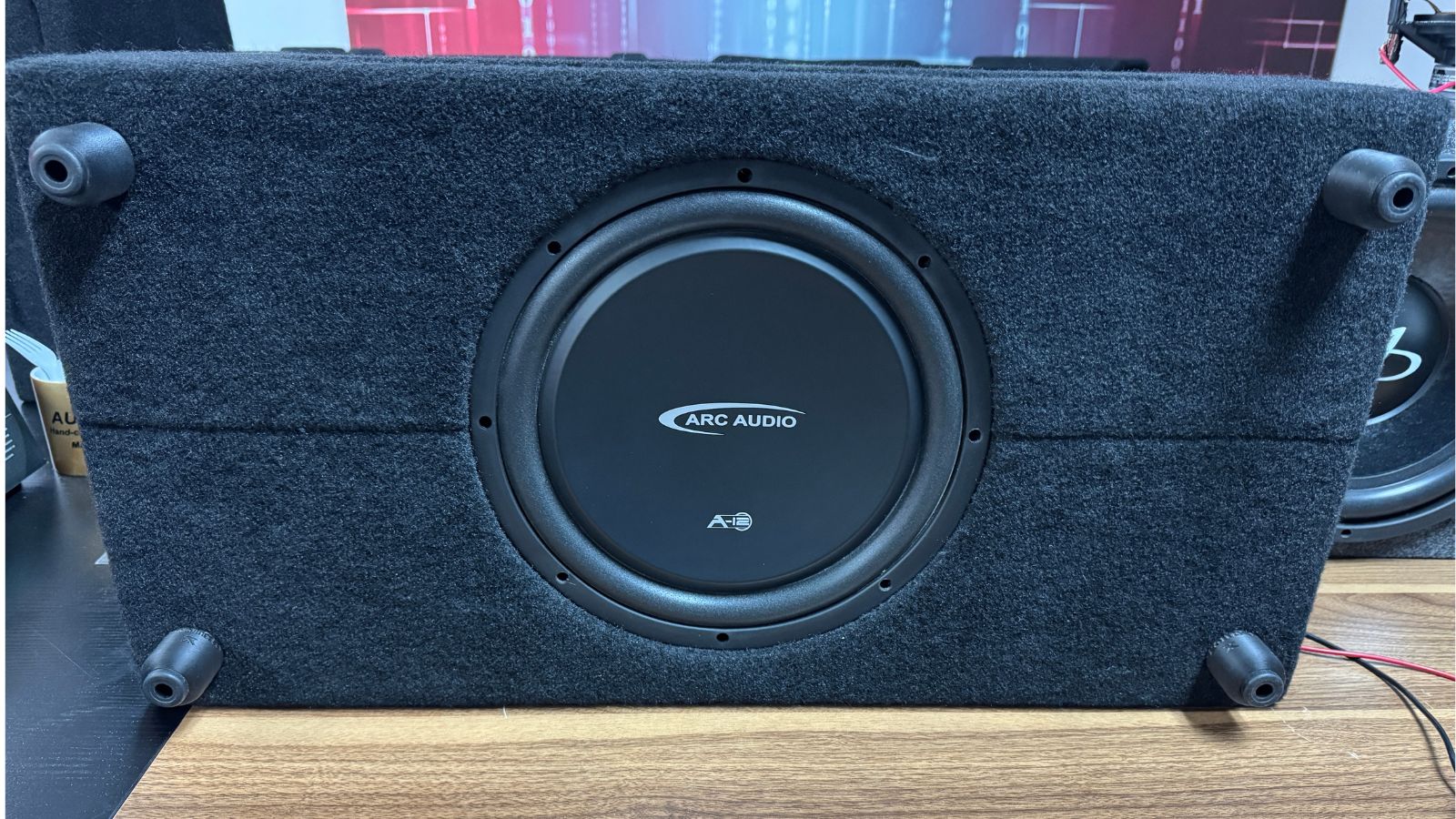

• Rubber isolation feet (prevents floor sliding, maintains clearance)
• 2-year manufacturer warranty documentation

✗ Required But Not Included (Purchase Separately):

• Monoblock Amplifier: 1-ohm stable, 250-400W RMS @ 1Ω (Class D recommended)
• 4 AWG Power Wire Kit: Power wire, ground wire, remote wire, fuse holder, distribution blocks
• Speaker Wire: 10-12 AWG, length appropriate for your installation (typically 15-20 feet)
• RCA Cables: Quality shielded interconnects from head unit to amplifier
• Installation Accessories: Wire terminals, grommets, zip ties, sound deadening (optional)

Optional Upgrades to Consider:

• High-Output Alternator: 150-200A for systems >500W total or vehicles with weak factory alternators
• Sound Deadening: Rear cab wall and floor deadening reduces resonance and enhances bass quality
• Amplifier Cooling: Auxiliary fans for amplifiers in enclosed locations or hot climates
• Line Output Converter: If your factory head unit lacks RCA preamp outputs
• Digital Signal Processor: Advanced tuning capabilities, time alignment, EQ for audiophile-grade integration

Final Recommendation

The ARC Audio A12 Sealed Downfiring System represents an exceptional solution for crew cab truck and SUV owners seeking professional-grade bass performance in a revolutionary low-profile package. The combination of the military-tribute A-Series 12" subwoofer with the groundbreaking 6.5" height Pro-Line X Downfiring enclosure creates installation possibilities that simply don't exist with traditional enclosures—behind-seat placement in crew cabs where rear seat comfort is preserved and cargo access remains uncompromised.

The 1-ohm pre-wired configuration is both an advantage and a requirement. Enthusiasts with 1-ohm stable amplifiers benefit from maximum power transfer and the potential for 400-500 watts of actual output from amplifiers rated at 300-350W nominal. However, this system absolutely requires verification of amplifier 1-ohm compatibility—connecting non-1-ohm-stable amplifiers will cause protection shutdown or damage. The heavy-gauge wiring requirements (minimum 4 AWG power/ground) and increased electrical system demands must be acknowledged and addressed through proper installation practices.

The downfire orientation provides multiple strategic advantages: floor reflection coupling delivers 2-3 dB of natural acoustic gain that partially compensates for the sealed alignment's lower peak output compared to ported designs, while the cone-down configuration protects the subwoofer from cargo damage and creates a functional cargo platform. The stealth aesthetic—no exposed cone, just elegant acrylic insert on black carpet—reduces theft risk in urban environments where visible aftermarket audio equipment attracts unwanted attention.

The sealed acoustic suspension alignment delivers the tight, accurate, musical bass response that audiophile enthusiasts prefer. Unlike ported enclosures with tuning frequency emphasis that some describe as "boomy" or "one-note," this sealed system reproduces all frequencies equally well—rock, jazz, classical, electronic, hip-hop, and everything between. The excellent transient response accurately captures rapid bass notes (double bass drums, staccato bass lines) without the overhang or resonance coloration that characterizes lower-quality systems.

For crew cab truck owners, SUV enthusiasts, or anyone facing space constraints that eliminate traditional enclosures, this system offers a turnkey solution that installs where others cannot while delivering performance that rivals significantly larger systems through intelligent acoustic design. The 2-year warranty, professional factory assembly, and ARC Audio's military heritage engineering provide confidence that this investment will deliver years of reliable, high-quality bass performance.

Purchase with confidence if you have a 1-ohm stable amplifier and proper electrical system support. This system delivers where it matters—in the seat of your truck, with bass that hits hard and sounds right.
